GE ADTS552F Setup guide

GE
Measurement & Control

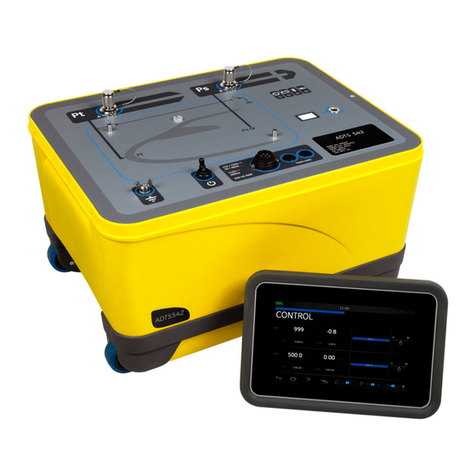

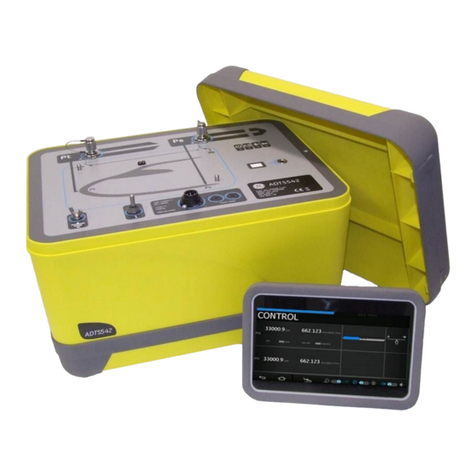

GE Air Data Test Sets
ADTS542F/552F/553F/554F
Safety and Installation Guide K0554 Revision A
www.nbn.at

K0554 Revision A
List of effective pages
Marks and Symbols on the equipment
This equipment meets the requirements of all relevant European safety
directives. The equipment carries the CE mark.
This symbol, on the equipment, indicates that the user should read the user
manual.
This symbol, on the equipment, indicates a warning and that the user should
refer to the user manual.
Do not dispose of this product as household waste. Use an approved
organisation that collects and/or recycles waste electrical and electronic
equipment. For more information, contact one of these:
• Our customer service department: www.gemeasurement.com
• Your local government office.
The Bluetooth®wireless technology word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of such marks by GE is
under license. Other trademarks and trade names are those of their
respective owners.
For the list of GE approved service centres, go to: www.gemeasurement.com
English 1 - 16
Français 17 - 28
Deutsch 29 - 40
Italiano 41 - 52
Español 53 - 64
Português 65 - 76
中国 77 - 88
日本人 89 - 100

© 2015 General Electric Company. All Rights Reserved. Specifications are subject to
change without notice. GE is a registered trademark of General Electric Company.
Other company or product names mentioned in this document may be trademarks
or registered trademarks of their respective companies, which are not affiliated
with GE. The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by GE is under license.

K0554 Revision A
This page intentionally blank

K0554 Revision A 1
1 Introduction
This manual is applicable to ADTS542F/552F/553F and 554F, referred to as ADTS, and
provides safety and installation information for the Air Data Test Set, compatible with
the requirements of first line operation.
A touchscreen (ADTS Touch) is used to control all required functions. The ADTS Touch
can be positioned on the ADTS or used as a hand held mobile unit via a cable or
Bluetooth®wireless technology. This allows a person to complete the entire test
program remotely while conveniently seated in the aircraft. The ADTS Touch can be
powered when positioned on the ADTS, or using a cable connection to the ADTS or
battery powered.
The manufacturer has designed this equipment to be safe when operated using the
procedures detailed in this manual.
For details of calibration requirements for the ADTS, refer to User Manual K0553.
For details of available manufacturer specified parts, refer to the current revision of the
product data sheet.
Service/maintenance and repair will be carried out at GE authorised service centres.
1.1 Intended use
Test and calibration of aircraft aeronautical pressure instruments located indoor in a
hanger or calibration laboratory or outdoor on a runway, refer to User Manual K0553
for further information.
WARNING
THIS EQUIPMENT IS NOT RATED FOR USE IN POTENTIALLY EXPLOSIVE
ATMOSPHERES. USING THIS EQUIPMENT IN A POTENTIALLY EXPLOSIVE
ATMOSPHERE COULD LEAD TO SERIOUS INJURY OR DEATH.
If the equipment is used in a manner not specified by this document and K0553 the
protection provided by the equipment may be impaired.
1.2 Safety
Examine all equipment to be used, paying particular attention to electrical leads and
connectors and pneumatic pipes and connectors. DO NOT use any equipment that is
known to be or suspected to be damaged or faulty.
1.3 Power supply
1.4 Power supply connection
Do not apply electrical power outside the values stated.
Make sure that the power supply is off before connecting the power cable.
Single phase 110/230 VAC, 50/60Hz 200 VA MAX
115 VAC, 400Hz

2 K0554 Revision A
The ADTS must be connected to the correct electrical power supply as stated, adjacent to
the power connector.
CAUTIONS
THERE IS A RISK OF ELECTIC SHOCK/ELECTROCUTION IF THERE IS NOT A
PROTECTIVE EARTH IN PLACE. THE ADTS MUST, AT ALL TIMES, BE CONNECTED
TO THE SUPPLY PROTECTIVE EARTH/GROUND.
THE POWER SUPPLY CABLE AND CONNECTOR MUST BE CORRECTLY RATED FOR
THE POWER SUPPLY. ONLY USE POWER CABLES SUPPLIED BY GE SPECIFICALLY
FOR THE ADTS.
1.5 Fuses
The two High Breaking Capacity fuses (8) (see Figure 7), located in the holders and
mounted on the front panel, protect the unit. The fuses are connected in the live and
neutral supply circuit and are rated at: T5AH 250V
1.6 Replacing a fuse
1. Disconnect the electrical power supply.
2. Unscrew the fuse holder cap from the front panel and remove the fuse.
3. Fit a new fuse of the correct size and rating into the fuse holder cap.
4. Secure the fuse holder cap in the front panel.
2ADTSTouch
The ADTS Touch is used to control all required functions. The ADTS Touch can be
positioned on the ADTS or used as a hand held mobile unit via a cable or Bluetooth®
wireless technology.
The ADTS Touch will have power applied when positioned (docked) (1) on a powered-on
ADTS, or using a cable connected to a powered-on ADTS, or can be battery powered.
EUROPEAN
COLOUR
US color Function
Brown Black Live
Blue White Neutral
Green/Yellow Green Protective Earth
(Ground)

K0554 Revision A 3
Figure 1 ADTS Touch docking connector
The ADTS Touch is equipped with an On/Off switch (2) and USB connectors for connection
to a PC or mass storage device (3).
Figure 2 ADTS Touch On/Off switch and USB connectors
Connector (4) allows connection between the base unit and the ADTS Touch using a 5
metre or 18 metre umbilical cable.
Note: Only use cables that have been supplied by or purchased from GE.
1
32

4 K0554 Revision A
Figure 3 ADTS Touch umbilical cable connector
The ADTS Touch can contain one Lithium-ion battery which is housed in the battery
compartment of the ADTS Touch.
2.1 Replacing the battery
Figure 4 ADTS Touch battery compartment
Note: Only use batteries that have been supplied by or purchased from GE.
Prior to replacing the battery, switch the ADTS Touch off. If the ADTS Touch is connected to
the umbilical cable or Docking connector, disconnect prior to removing the battery cover
plate.
1. Unscrew the two thumbscrews (5) of the battery compartment cover plate and remove
the cover plate.
4
55

K0554 Revision A 5
CAUTION
WHEN THE BATTERY COMPARTMENT COVER PLATE IS REMOVED AND THE
ADTS TOUCH IS TILTED WITH THE BATTERY COMPARTMENT FACING
DOWNWARDS, THE BATTERY CAN FALL OUT OF THE ADTS TOUCH CAUSING
DAMAGE TO THE BATTERY.
2. Use the tab attached to the battery to slide the battery out of the battery
compartment.
3. Fit a new or re-charged battery into the battery compartment, observing the keyed
orientation.
Note: The battery does not necessarily need to be new or re-charged. The ADTS Touch will
function safely and correctly with a flat battery when the umbilical cable or dock charging
supply is connected.
4. Refit the battery compartment cover plate and tighten the two thumbscrews (5). The
cover must be fitted correctly to maintain protection afforded.
Battery care and maintenance
The battery unit contains a Lithium Ion battery which requires no user maintenance.
Prolonged exposure to temperature extremes may significantly reduce battery
lifetime. For maximum lifetime, avoid prolonged periods where the battery is exposed
to temperatures outside the range -30°C to +45°C.
The recommended storage temperature range is 5°C to 21°C (41°F to 98.8°F).
The battery is removable. The manufacturer makes the following safety
recommendations. The User should not:
• Short circuit the battery.
• Immerse the battery in any liquid.
• Disassemble or deform the battery.
• Expose to, or dispose of the battery in a fire.
• Subject the battery to excessive physical shock or vibration outside the specified limits
for the ADTS.
• Use a battery that appears to have suffered abuse.
• Charge with an unspecified charger or specified charger that has been modified. This
can cause breakdown of the battery or swelling and rupturing.
• Use a battery in an appliance or purpose for which it was not intended.
The battery unit is sealed for life, so leakage of electrolyte is not expected. If leakage of
electrolyte from the battery is observed, stop using the battery immediately and avoid
contact with the electrolyte. If skin or clothes come into contact with the electrolyte,
wash immediately with soap and water. If electrolyte comes into contact with the eyes,
wash the eyes thoroughly with water and consult a doctor immediately.
Always dispose of batteries safely and in accordance with local instructions.

6 K0554 Revision A
2.2 Battery charging
The battery in the ADTS Touch can be charged using one of the following methods:
• By placing the ADTS Touch onto a powered ADTS.
• By connecting the ADTS Touch connector (7) (see Figure 7) to the ADTS using the umbilical
cable.
• Using a universal power supply unit connected to the ADTS Touch using an adapter:
Figure 5 Universal power supply unit and adapter
The ADTS Touch universal power supply and the desktop charger are both rated for indoor
use only.
3ADTS5xxF
3.1 Power-Up Test (see Figure 7)
1. Fit “Pitot” (Pt) (1) and “Static” (Ps) (2) port blanks.
2. Ensure that the test set is connected to an external power supply and the supply is
switched on.
3. Use the On/Standby Switch (3) on the front of the test set to switch the test set on.
The test set performs a self test, resulting in a test set status indication (4a) “Pass” or
“Fault”.
The test set status indications are as follows:
Figure 6 Test set status indications
4a 4b 4c 4d

K0554 Revision A 7
If the self test fails, or for any other reason the test set is considered to be unserviceable,
contact GE and return the test set to the GE or GE approved service centre.
Test set status indications (4):
4a Power on and self test:
- Off (power Off)
- Standby (Yellow)
- Self test in progress (Green (flashing))
- Pass/Ready (Green)
- Fault (Red)
4b Battery pack status (if fitted):
- For LED indications, see User Manual K0553 section 5.4 “ADTS5xxF
battery pack”
4c Bluetooth®wireless technology connection status:
- Wireless connection present (Blue)
- Looking for wireless connection (Flashing blue)
- Wired connection present (Wireless off)
4d Aircraft status:
- When the ADTS is controlling the aircraft and it is “off ground”, the LED
will be Yellow
- When the ADTS is controlling the aircraft to “going to ground”, the LED
will flash yellow
- When the ADTS has made the aircraft “safe at ground”, the LED is green
- In standby-mode, this LED will be off.

8 K0554 Revision A
Figure 7 ADTS front panel
The On/Standby Switch (3) on the front of the test set is not a disconnecting device. To
disconnect power to the test set, either:
4. Remove the power cable (5) from the front of the test set, or
5. Remove the power cable from the wall socket. The wall socket connection must remain
accessible.
3.2 External functional earth/ground terminal
An external earth/ground connection stud (6) is available as a functional earth on the front
panel providing a connection/bonding point for other equipment to be connected to the
same earth/ground connection as the test set (This is not a protective earth/ground
connection).
3.3 Pneumatic Connections
No external pneumatic pressures or vacuums are required as the ADTS contains internal
pressure and vacuum pumps.
1
36
24
5 78

K0554 Revision A 9
Hoses (available as orderable accessories on the datasheet) are used for connection to
the “Pitot” (Pt) (1) and “Static” (Ps) (2) output ports of the ADTS.
The “Pitot” (Pt) and “Static” (Ps) outputs can then be connected to the corresponding Pitot
and Static connectors on the aircraft or aeronautical instruments.
The maximum Pt and Ps output pressure is 2bar absolute.
The following table details the possible connector specifications:
Mating female parts are available from GE.
3.4 Cleaning
CAUTION
DO NOT USE SOLVENTS TO CLEAN THIS EQUIPMENT.
The following materials are approved cleaning agents:
Note: Equivalent alternatives may be used for listed items.
1. Clean the external surfaces of the unit using lint-free cloth and a soft brush. Remove
stubborn dirt using a damp cloth and mild detergent and allow to dry.
2. Clean the electrical connector using a soft brush. Remove stubborn dirt using a damp
cloth and mild detergent and allow to dry.
4 Product labelling
The product label for the base unit can be found in the bottom right hand corner of the
front panel. The product label for the ADTS Touch can be found on the rear of the ADTS
Touch.
Labelling information consists of:
G1/8 Pipe Thread ISO 228 - G 1/8 B
AN3 3/8 - 24 UNJF - 3A Thread
AN4 7/16 - 20 UNJF - 3A Thread
AN6 9/16 - 18 UNJF - 3A Thread
Material Specification
Lint-free cloth Commercially available
Damp cloth -
Mild detergent Commercially available
Soft brush Commercially available
Company logo and product name
Part number
Serial number
Date of manufacture (DOM)
Name and address of manufacturer

10 K0554 Revision A
Figure 8 Product labels
5 Operating Environment
WARNING
THIS EQUIPMENT IS NOT RATED FOR USE IN POTENTIALLY EXPLOSIVE
ATMOSPHERES.
Storage temperatures ADTS542F: -20°C to 70°C (-4° to 158°F)
ADTS552F )
ADTS553F ) -30°C to 70°C (-22° to 158°F)
ADTS554F )
Operating temperatures/
environment
ADTS542F: 0°C to 50°C (32° to 122°F)
ADTS552F )
ADTS553F ) 0°C to 50°C (32° to 122°F)
ADTS554F )
Operating humidity: 5% to 95% RH (condensing)
Indoor & Outdoor use
ADTS Touch universal
power supply
Operating temperature: 10°C to 50°C (50° to 122°F)
Operating humidity: 5% to 95% RH (non-condensing)
Power supply Universal input Mains Power Supply.
Class 1 equipment requiring a protective earth connection.
TXAH 250V HRC Time-delay (T) 250Va.c. rated fuses (X = amp
rating of fuse).
Overvoltage category II, Pollution degree 2
The supplied mains/PSU cable protective earth/ground con-
ductor must be connected to the power supply protective
earth/ground system.
Electrical safety EN 61010-1, UL61010-1, CSA 22.2, No. 61010-1 and
IEC61010-1
Operating altitude Maximum 7500ft (2300 metres)
Ingress protection ADTS542/552/553/554 IP23, ADTS TOUCH IP65 (EN60529)

K0554 Revision A 11
6 Dimensions
WARNING
THE ADTS CAN BE MOVED BY USE OF THE HANDLE AND WHEELS. IF THE ADTS
IS TO BE LIFTED, IT MUST BE LIFTED BY AT LEAST TWO PEOPLE.
ADTS5xxF Weight ADTS542F: 14kg (31lb) (without battery, esti-
mated as 20kg (44lb) with battery)
ADTS552F )
ADTS553F ) 20kg (44lb)
ADTS554F )
Height 300mm
Depth 320mm (front to rear)
Width 420mm (left to right)
ADTS Touch Weight 1kg (2.2lb)
1.4kg (3lb) with battery
Height 58mm
Depth 154mm
Width 224mm

12 K0554 Revision A
This page intentionally blank

www.gemeasurement.com

GE
Measurement & Control
Appareils de mesure de données
aérodynamiques GE
ADTS542F/552F/553F/554F
Guide de sécurité et d’installation K0554 Révision A

K0554 Révision A
Liste des pages concernées
Marquages et symboles sur l’appareil
Cet appareil satisfait aux exigences de toutes les directives européennes de
sécurité applicables. Cet appareil porte le marquage CE.
Ce symbole, qui figure sur l’appareil, signifie que l’utilisateur doit consulter le
manuel d’utilisation.
Ce symbole, sur l’appareil, est un avertissement qui indique que l’utilisateur
doit consulter le manuel d’utilisation.
Ne jetez pas ce produit avec les ordures ménagères Faites appel à un
organisme agréé de collecte et/ou de recyclage des déchets électriques et
électroniques. Pour en savoir plus, contactez :
• notre service client : www.gemeasurement.com
• votre collectivité locale.
Le mot et les logos de la technologie sans fil Bluetooth®sont des marques
déposées par Bluetooth SIG, Inc. et toute utilisation de telles marques par GE
est sujette à licence. Les autres marques déposées et marques commerciales
appartiennent à leur détenteur respectif.
Pour obtenir la liste de nos centres de maintenance agréés GE, rendez-vous sur le site :
www.gemeasurement.com
English 1 - 18
Français 19 - 36
Deutsch 37 - 54
Italiano 55 - 72
Español 73 - 90
Português 91 - 108
中国 109 - 126
日本語 127 - 144
