GILBARCO VEEDER-ROOT Latitude LS-100 User manual

LATITUDE™
Owner’s Manual
MDE-5422B

Computer Programs and Documentation
All Gilbarco Inc. and/or Veeder-Root Company computer programs (including software on diskettes and within memory chips) and documentation are copyrighted by, and shall
remain the property of, Gilbarco Inc. and/or Veeder-Root Company. Such computer programs and documents may also contain trade secret information. The duplication, disclosure,
modification, or unauthorized use of computer programs or documentation is strictly prohibited, unless otherwise licensed by Gilbarco Inc. and/or Veeder-Root Company.
Federal Communications Commission (FCC) Warning
This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly
approved by the manufacturer could void the user’s authority to operate this equipment.
Approvals
Trademarks
National Conference of Weights and Measures (NCWM) - Certificate of Conformance (CoC):
Gilbarco pumps and dispensers are evaluated by NCWM under the National Type Evaluation Program (NTEP). NCWM has issued the following CoC:
CoC# Product Model # CoC# Product Model #
02-019 Encore Nxx 02-036 Legacy Jxxx
02-020 Eclipse Exx
02-037
G-SITE Printer (Epson) PA0307
02-025 Meter - C Series PA024NC10 G-SITE Distribution Box PA0306
Meter - C Series PA024TC10 G-SITE Keyboard PA0304
02-029 CRIND — G-SITE Mini Tower PA0301
02-030
TS-1000 Console — G-SITE Monitor PA0303
TS-1000 Controller PA0241 G-SITE Printer (Citizen) PA0308
Distribution Box PA0242 02-038 C+ Meter T19976
Meter - EC Series PA024EC10 02-039 Passport PA0324
VaporVac Kits CV 02-040 Ecometer T20453
05-001 Titan KXXY Series
Gilbarco is an ISO 9001:2008 registered company.
Underwriters Laboratories (UL):
UL File# Products listed with UL
MH1941 All Gilbarco pumps and dispensers that bear
the UL listing mark.
MH8467 Transac System 1000 and PAM 1000
E105106 Dell DHM Minitower
E165027 G-SITE and Passport Systems
California Air Resources Board (CARB):
Executive Order # Product
G-70-52-AM Balance Vapor Recovery
G-70-150-AE VaporVac
Additional U.S. and foreign trademarks pending.
All product names, logos, and brands are the property of their respective owners and are for identification
purposes only. Use of these names, logos, and brands does not imply endorsement.
This document is subject to change without notice.
http://www.gilbarco.com
 2021 Gilbarco Inc. All Rights Reserved
Service mark
GOLDSM
Non-registered trademarks
Applause™ Media System Gilbert™Optimum™ Series Tank Monitor™
CIM™G-SITE™PAM™ TCR
™
C-PAM™G-SITE® Link™PA M™ 1000 The Advantage™ Series
Dimension™ Series G-SITE® Lite™PA M™ 5000 Titan™
Ecometer™Highline™Passport™Trimline™
Eclipse™Horizon™SMART Connect™Ultra-Hi™
ECR™InfoScreen™SMART CRIND™ValueLine™
e-CRIND™Insite360™SMART Meter™
EMC™Making Things Better™SmartPad™
FlexPay™MPD™Super-Hi™
G-CAT™MultiLine™Surge Management System™
Registered trademarks
CRIND®
Encore®
Gilbarco®
Legacy®
Performer®
Transac®
Transac® System 1000
TRIND®
Va p o r Va c ®

MDE-5422B Latitude™ Owner’s Manual · March 2021 Page i
Table of Contents
Table of Contents
1 – Introduction 1-1
Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Intended Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Support Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Scope . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Abbreviations and Acronyms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
2 – Important Safety Information 2-1
3 – Supplementary Instructions for European Union (EU) Countries3-1
Sample Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Markings Related to Explosive Atmospheres (ATEX) Directive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Zoning Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Material Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
4 – Latitude Components 4-1

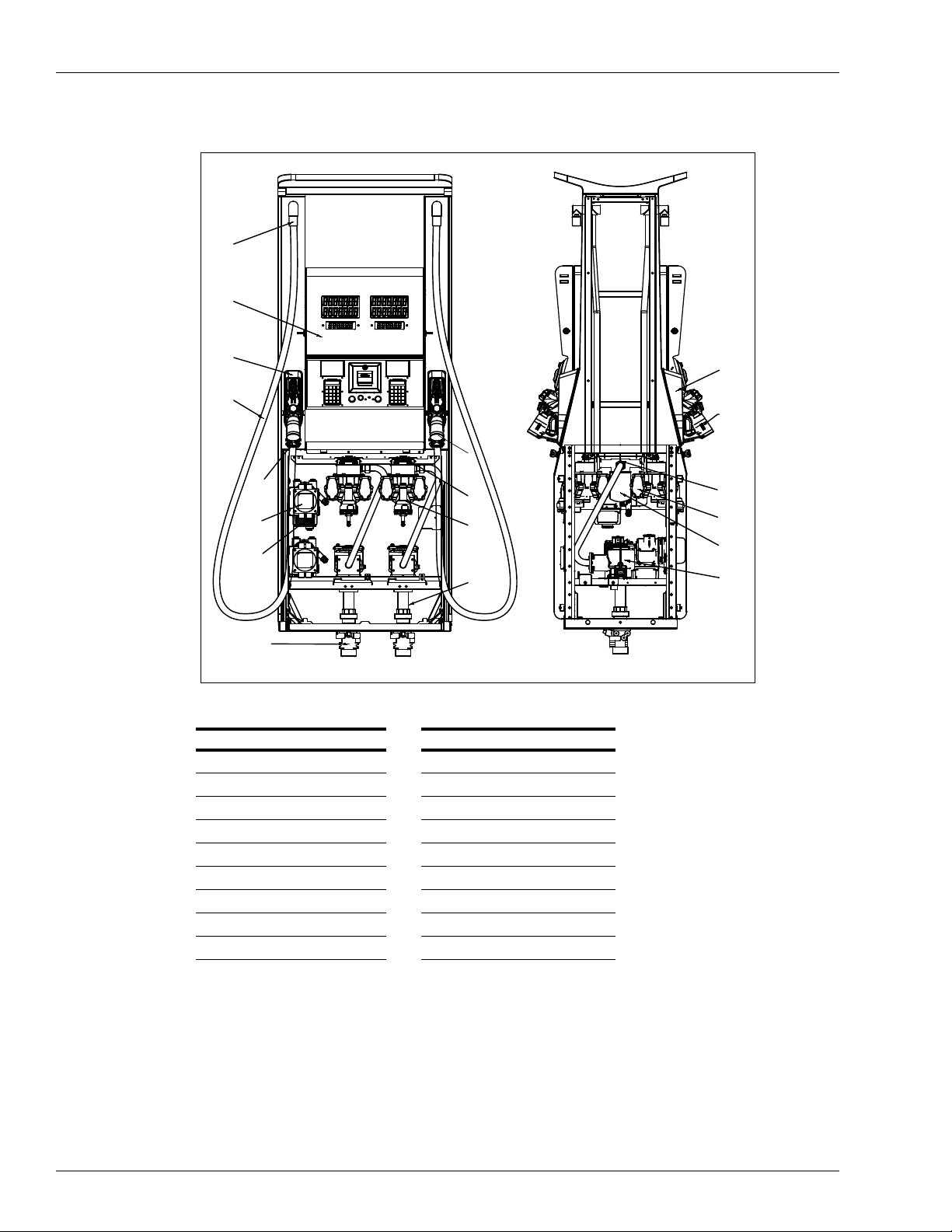

Dispenser Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Common Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

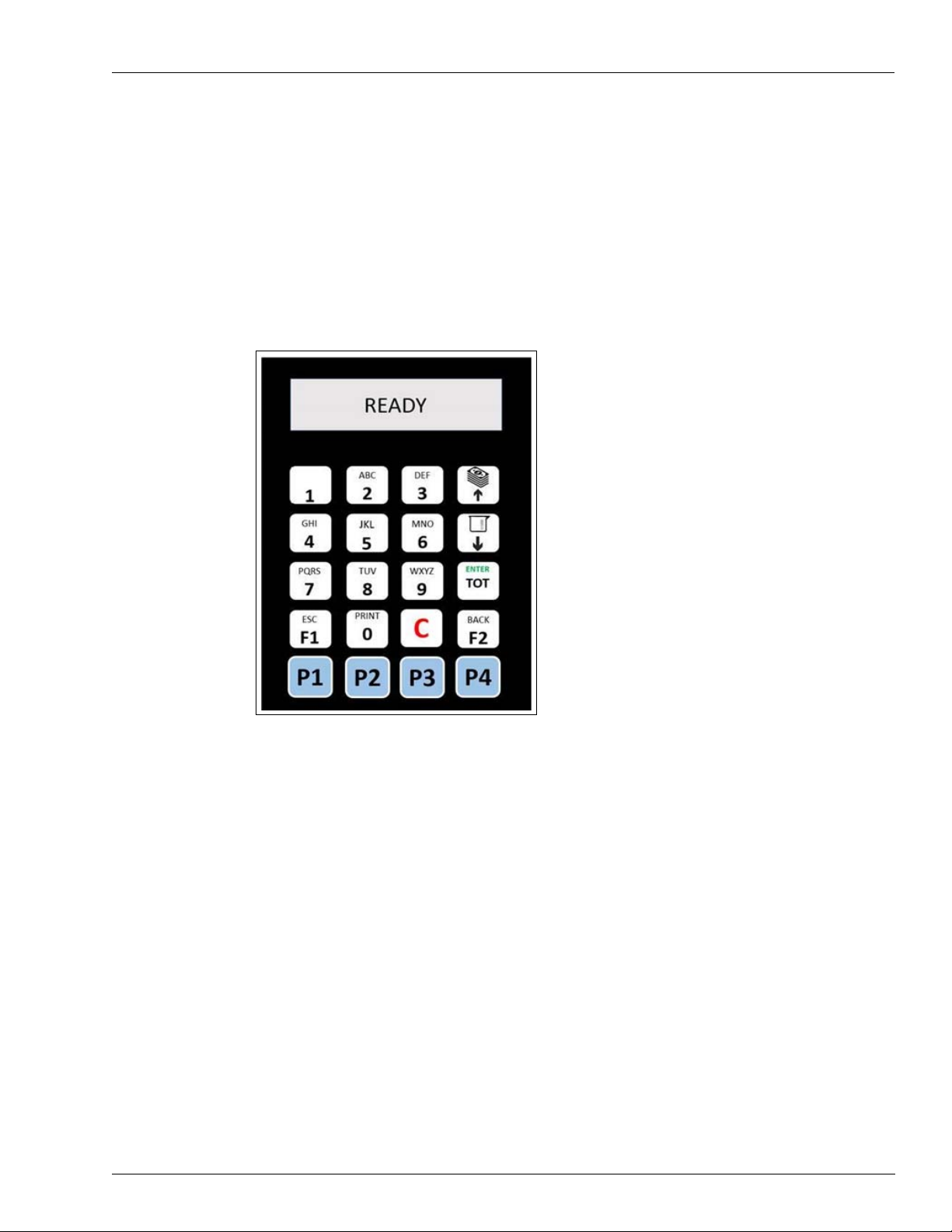

Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Using Keypad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Keypad LCD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
PIN of each Level Command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Premium Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Premium Canopy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Vapor Recovery and Monitoring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Hose Retraction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Multimedia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
5 – Latitude Operation 5-1
Working Principle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Self-contained Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Handling the Nozzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2
Operating Pump/Dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Dispenser Start-up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Initializing the Dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Dispenser in Idle Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
Fueling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5
View Sale Totalizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
View Volume Totalizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Setting Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
User Menu Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11
User Menu Mode for Setting the Price . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
Command Code Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14
Parameter Settings Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-72
Pump Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-76
Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-78

Table of Contents
Page ii MDE-5422B Latitude™ Owner’s Manual · March 2021
6 – Preliminary Steps for Service 6-1
Preparing for Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Before Making Service Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Describing Problem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
Replacing Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2
Specialized Training . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2
7 – Latitude Pump/Dispenser Maintenance 7-1
General Safety Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
Inspecting Pump/Dispenser Periodically . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
Performing General and Component Maintenance Inspections . . . . . . . . . . . . . . .7-1
General Inspections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2
Component Inspections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-2
Periodic Maintenance Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-10
Cleaning Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-10
Cleaning the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-10
Special Maintenance Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-10
Cleaning and Detailing Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-10
Changing the Receipt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-12
8 – Troubleshooting 8-1
Index Index-1

MDE-5422B Latitude™ Owner’s Manual · March 2021 Page 1-1
Purpose Introduction
1 – Introduction
Purpose
This manual provides instructions for safely operating and maintaining LATITUDE™ 
pumps/dispensers (hereafter referred to as units, unless otherwise specifically stated).
This is the original manual and contains instructions in English. Manuals that are in
languages other than English are a translation of the original manual.
Modifications to this equipment or connection of unauthorized equipment to its
electrical circuits is likely to invalidate any safety or metrological certification and is
likely to invalidate Electromagnetic Compatibility (EMC®) performance.
IMPORTANT INFORMATION
Intended Users
This manual is intended for the owners and operators of Latitude units.
Support Information
For technical assistance, contact Gilbarco® Help Desk on the following numbers:
• Middle East Africa (MEA): [phone]
• South-East Asia (SEA): [phone]
• Sub-Saharan Africa (SSA): [phone]
Scope
This manual provides the following information on using Latitude units:
• Operating the units
• Preliminary steps for servicing the units
• Maintaining the units

Introduction Related Documents
Page 1-2 MDE-5422B Latitude™ Owner’s Manual · March 2021
Related Documents
Document
Number Title GOLDSM Library
MDE-5427 Latitude Installation Manual Latitude
MDE-5445 Latitude Service Manual Latitude
MDE-5474 Latitude Programming Quick Reference Guide Latitude
MDE-5475 Calibration Quick Reference Card LATITUDE™ LS100/200/300 Latitude
MDE-5512
Latitude™ Multimedia Programming and Service Manual with
Applause™ Media System
Latitude
MDE-5551 Latitude Vapor Recovery and Monitoring System Operational ManualLatitude
Abbreviations and Acronyms
Term Description
ASC Authorized Service Contractor
ATCL Automatic Transfer Control Logic
ATEX Explosive Atmospheres
CC Command Code
CSC Customer Specified Contractor
CPR Cardiopulmonary Resuscitation
EC Error Code
EMC Electromagnetic Compatibility
EU European Union
GOLD Gilbarco Online Documentation
GPU Global Pumping Unit
J-box Junction Box
LCD Liquid Crystal Display
LED Light Emitting Diode
MEA Middle East Africa
POS Point of Sale
PPU Price per Unit
SEA South-East Asia
SSA Sub-Saharan Africa
USB Universal Serial Bus
VDC Voltage Direct Current

MDE-5422B Latitude™ Owner’s Manual · March 2021 Page 2-1
Important Safety Information
2 – Important Safety Information
Note: Save this Important Safety Information section in a
readily accessible location.
This section introduces the hazards and safety precautions
associated with installing, inspecting, maintaining or servicing
this product. Before performing any task on this product, read
this safety information and the applicable sections in this
manual, where additional hazards and safety precautions for
your task will be found. Fire, explosion, electrical shock or
pressure release could occur and cause death or serious injury,
if these safe service procedures are not followed.
Preliminary Precautions
You are working in a potentially dangerous environment of
flammable fuels, vapors, and high voltage or pressures. Only
trained or authorized individuals knowledgeable in the related
procedures should install, inspect, maintain or service this
equipment.
Emergency Total Electrical Shut-Off
The first and most important information you must know is how
to stop all fuel flow to the pump/dispenser and island. Locate
the switch or circuit breakers that shut off all power to all fueling
equipment, dispensing devices, and Submerged Turbine
Pumps (STPs).
The EMERGENCY STOP, ALL STOP, and
PUMP STOP buttons at the cashier’s station
WILL NOT shut off electrical power to the 
pump/dispenser. This means that even if you
activate these stops, fuel may continue to flow
uncontrolled.
You must use the TOTAL ELECTRICAL 
SHUT-OFF in the case of an emergency and not
the console’s ALL STOP and PUMP STOP or
similar keys.
!
WARNING
!
Total Electrical Shut-Off Before Access
Any procedure that requires access to electrical components or
the electronics of the dispenser requires total electrical shut off
of that unit. Understand the function and location of this switch
or circuit breaker before inspecting, installing, maintaining, or
servicing Gilbarco equipment.
Evacuating, Barricading and Shutting Off
Any procedure that requires access to the pump/dispenser or
STPs requires the following actions:
• An evacuation of all unauthorized persons and vehicles from
the work area
• Use of safety tape, cones or barricades at the affected unit(s)
• A total electrical shut-off of the affected unit(s)
Read the Manual
Read, understand, and follow this manual and any other labels
or related materials supplied with this equipment. If you do not
understand a procedure, call a Gilbarco Authorized Service
Contractor. It is imperative to your safety and the safety of
others to understand the procedures before beginning work.
Follow the Regulations
All national regulations related to installation, commissioning,
maintenance, and repair must be observed.
Replacement Parts
Use only genuine Gilbarco replacement parts and retrofit kits on
your pump/dispenser. Using parts other than genuine Gilbarco
replacement parts could create a safety hazard and violate
local regulations.
Safety Symbols and Warning Words
This section provides important information about warning
symbols and boxes.
Alert Symbol
This safety alert symbol is used in this manual and on
warning labels to alert you to a precaution which must be
followed to prevent potential personal safety hazards. Obey
safety directives that follow this symbol to avoid possible injury
or death.
Signal Words
These signal words used in this manual and on warning labels
tell you the seriousness of particular safety hazards. The
precautions below must be followed to prevent death, injury or
damage to the equipment:
DANGER: Alerts you to a hazard or unsafe practice
which will result in death or serious injury.
WARNING: Alerts you to a hazard or unsafe practice
that could result in death or serious injury.
CAUTION with Alert symbol: Designates a hazard or
unsafe practice which may result in minor injury.
CAUTION without Alert symbol: Designates a hazard or
unsafe practice which may result in property or
equipment damage.
Working With Fuels and Electrical Energy
Prevent Explosions and Fires
Fuels and their vapors will explode or burn, if ignited. Spilled or
leaking fuels cause vapors. Even filling customer tanks will
cause potentially dangerous vapors in the vicinity of the
dispenser or island.
!
!
!

Page 2-2 MDE-5422B Latitude™ Owner’s Manual · March 2021
Important Safety Information
No Open Fire
Open flames from matches, lighters, welding torches or
other sources can ignite fuels and their vapors.
No Sparks - No Smoking
Sparks from starting vehicles, starting or using power tools,
burning cigarettes, cigars or pipes can also ignite fuels and their
vapors. Static electricity, including an electrostatic charge on
your body, can cause a spark sufficient to ignite fuel vapors.
Every time you get out of a vehicle, touch the metal of your
vehicle, to discharge any electrostatic charge before you
approach the dispenser island.
Working Alone
It is highly recommended that someone who is capable of
rendering first aid be present during servicing. Familiarize
yourself with Cardiopulmonary Resuscitation (CPR) methods, if
you work with or around high voltages. This information is
available from the American Red Cross. Always advise the
station personnel about where you will be working, and caution
them not to activate power while you are working on the
equipment. Use the Lockout/Tagout procedures. If you are not
familiar with this requirement, refer to this information in the
service manual.
Working With Electricity Safely
Ensure that you use safe and established practices in working
with electrical devices. Poorly wired devices may cause a fire,
explosion or electrical shock. Ensure that grounding
connections are properly made. Take care that sealing devices
and compounds are in place. Ensure that you do not pinch wires
when replacing covers. Follow Lockout/Tagout requirements.
Station employees and service contractors need to understand
and comply with this program completely to ensure safety while
the equipment is down.
Hazardous Materials
Some materials present inside electronic enclosures may
present a health hazard if not handled correctly. Ensure that you
clean hands after handling equipment. Do not place any
equipment in the mouth.
Gilbarco Veeder-Root encourages the recycling of
our products. Some products contain electronics,
batteries, or other materials that may require special
management practices depending on your location.
Please refer to your local, state, or country
regulations for these requirements.
In an Emergency
Inform Emergency Personnel
Compile the following information and inform emergency
personnel:
• Location of accident (for example, address, front/back of
building, and so on)
• Nature of accident (for example, possible heart attack, run
over by car, burns, and so on)
• Age of victim (for example, baby, teenager, middle-age,
elderly)
• Whether or not victim has received first aid (for example,
stopped bleeding by pressure, and so on)
• Whether or not a victim has vomited (for example, if
swallowed or inhaled something, and so on)
Gasoline ingested may cause unconsciousness
and burns to internal organs. Do not induce
vomiting. Keep airway open.
Oxygen may be needed at scene. Seek medical
advice immediately.
WARNING
!
Gasoline inhaled may cause unconsciousness
and burns to lips, mouth and lungs.
Keep airway open.
Seek medical advice immediately.
WARNING
!
Gasoline spilled in eyes may cause burns to eye
tissue.
Irrigate eyes with water for approximately 
15 minutes.
Seek medical advice immediately.
WARNING
!
Gasoline spilled on skin may cause burns.
Wash area thoroughly with clear water.
Seek medical advice immediately.
WARNING
!
IMPORTANT: Use of non-Gilbarco replacement parts, defects
caused by the unauthorized addition of non-Gilbarco items to
Gilbarco equipment or by the unauthorized alteration of
Gilbarco equipment voids this warranty.
IMPORTANT: Oxygen may be needed at scene if gasoline has
been ingested or inhaled. Seek medical advice immediately.
Lockout/Tagout
Lockout/Tagout covers servicing and maintenance of machines
and equipment in which the unexpected energization or start-up
of the machine(s) or equipment or release of stored energy
could cause injury to employees or personnel. Lockout/Tagout
applies to all mechanical, hydraulic, chemical, or other energy,
but does not cover electrical hazards.

MDE-5422B Latitude™ Owner’s Manual · March 2021 Page 2-3
Important Safety Information
Hazards and Actions
WARNING
Spilled fuels, accidents involving pumps/dispensers, or uncontrolled fuel flow create a
serious hazard.
Fire or explosion may result, causing serious injury or death.
Follow established emergency procedures.
!
The following actions are recommended regarding these hazards:
Collision of a Vehicle with Unit Fire at Island Fuel Spill
• Do not go near a fuel spill or allow anyone else in the area.
• Use station EMERGENCY CUTOFF immediately. Turn off all system circuit breakers to the island(s).
• Do not use console E-STOP, ALL STOP, and PUMP STOP to shut off power. These keys do not
remove AC power and do not always stop product flow.
• Take precautions to avoid igniting fuel. Do not allow starting of vehicles in the area. Do not allow
open flames, smoking or power tools in the area.
• Do not expose yourself to hazardous conditions such as fire, spilled fuel or exposed wiring.
• Call emergency numbers.

Page 2-4 MDE-5422B Latitude™ Owner’s Manual · March 2021
Important Safety Information
This page is intentionally left blank.

MDE-5422B Latitude™ Owner’s Manual · March 2021 Page 3-1
Sample Declaration of Conformity
Supplementary Instructions for
European Union (EU) Countries
3 – Supplementary Instructions for European Union
(EU) Countries
Dispensing areas of the forecourt must be adequately lit for safety purposes at all times of use.
The luminance at ground level and the read-out level of displays must not be less than 
100 lux.
Sample Declaration of Conformity
This document is provided with the dispenser. The document includes information like Serial
Number and Date of Manufacture of the dispenser. It also confirms about the directives
followed and standards applied at the time of manufacturing the dispenser.

Page 3-2 MDE-5422B Latitude™ Owner’s Manual · March 2021
Supplementary Instructions for
European Union (EU) Countries Markings Related to Explosive Atmospheres (ATEX) Directive
Markings Related to Explosive Atmospheres (ATEX)
Directive
Specifications
Parameter Value
Operating Condition T3
Maximum Surface Temperature 200 °C (392 °F)
Three-phase Power Supply (For 3-phase motor only) 400 VAC +10 or - 20%
Single-phase Power Supply (For CDM and 1-phase motor) 230 VAC +10 or - 20%
Maximum Pressure 3.5 bar
Airborne Noise Emissions ≤ 67 dBA
The Latitude fuel dispenser is intended for use in an open location. The dispenser’s
electronics are suitable for use in condensing humidity. Ensure that you follow the

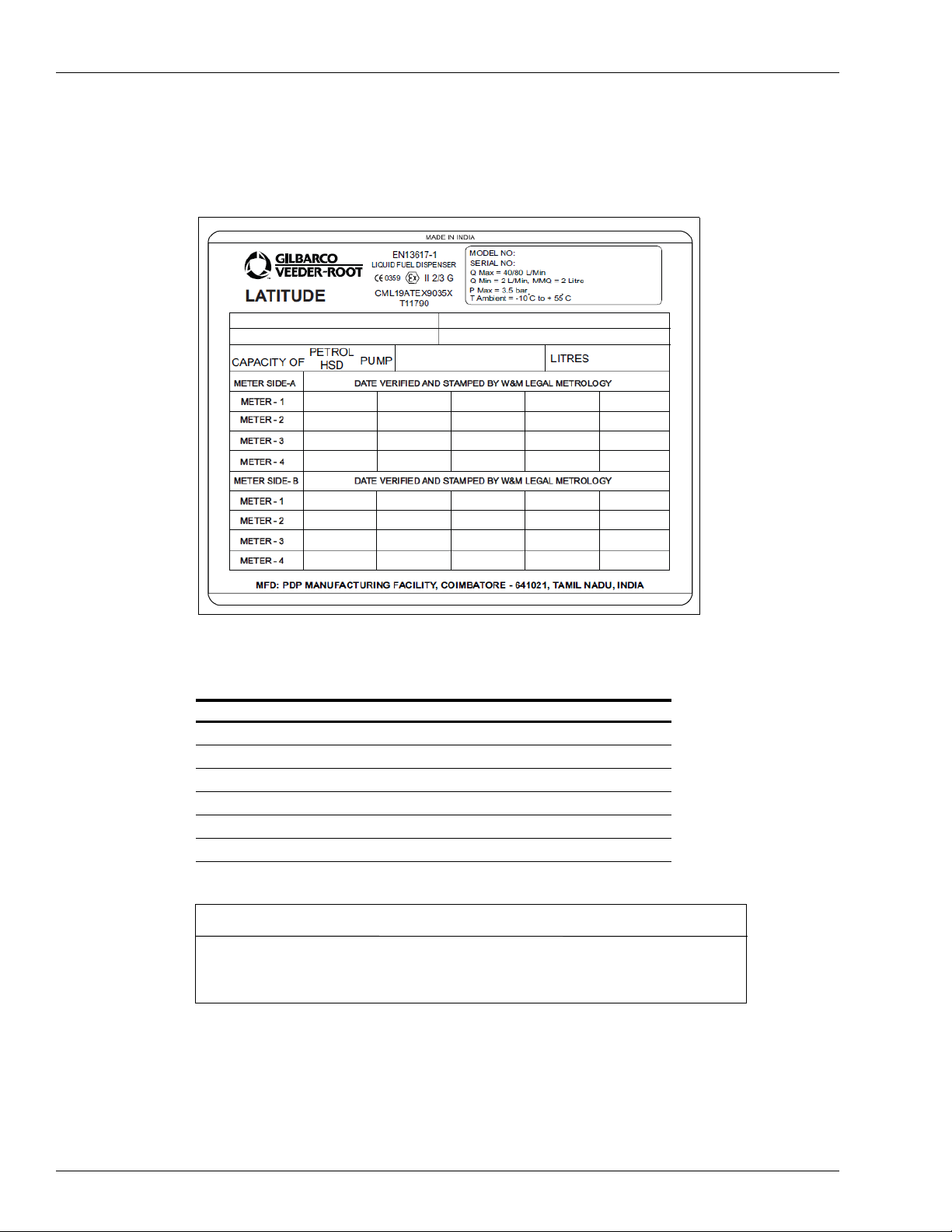

operating conditions and classes stated on the nameplate of the equipment.
IMPORTANT INFORMATION

MDE-5422B Latitude™ Owner’s Manual · March 2021 Page 3-3
Zoning Diagram
Supplementary Instructions for
European Union (EU) Countries
Zoning Diagram
Latitude pumps and dispensers are ATEX certified. The dispenser must be installed to not
compromise the zones illustrated in Figure 3-1, Figure 3-2 on page 3-4, and Figure 3-3 on
page 3-5. These zoning diagrams show the extent of the external hazardous areas.
The zones 0, 1, and 2 indicated in the zoning diagrams define the probability of the hazard
actually being present in flammable concentrations.
•Zone 0: A place in which an explosive atmosphere is present continuously or for long
periods or frequently.
•Zone 1: A place in which an explosive atmosphere is likely to occur in normal operation
occasionally.
•Zone 2: A place in which an explosive atmosphere mist is not likely to occur in normal
operation but, if it does occur, will persist for a short period only.
Figure 3-1: Zoning Diagram for LS-200 Lane Configuration
Zone 0 Zone 1 Zone 2

Page 3-4 MDE-5422B Latitude™ Owner’s Manual · March 2021
Supplementary Instructions for
European Union (EU) Countries Zoning Diagram
Figure 3-2: Zoning Diagram for LS-100 and LS-200 Island Configuration
Zone 0 Zone 1 Zone 2
Island High Hose Island Low Hose

MDE-5422B Latitude™ Owner’s Manual · March 2021 Page 3-5
Zoning Diagram
Supplementary Instructions for
European Union (EU) Countries
Figure 3-3: Zoning Diagram for LS-300 Configuration
Hazardous Area For 4 Grade Models
Without Hose Retraction Feature
Hazardous Area For 4 Grade Models
With Hose Retraction Feature
Zone 0 Zone 1 Zone 2
External Zoning

Page 3-6 MDE-5422B Latitude™ Owner’s Manual · March 2021
Supplementary Instructions for
European Union (EU) Countries Material Compatibility
Material Compatibility
GVR dispensers are suitable for temporary external and internal exposure to petrol and
associated vapors, ethanol-blended fuels, diesel, biodiesels, LPG and associated
vapors, water with minimal salt content, mild cleaning agents, AdBlue® (DEF),
anticipated vehicle exhaust emissions, and small traces of engine oil, lubricants or
vehicle screenwash which could be transferred by hand contact.
The equipment is not suitable for use where external surfaces might come in contact
with substances which are incompatible with any of the following materials:
Painted steel, stainless steel, aluminium, neoprene, polyester, nylon, and glass.
The equipment is not suitable for use where internal surfaces and components may
come into contact with substances which are incompatible with any of the following
materials:
Painted steel, stainless steel, aluminium and alloys, zinc and alloys, iron, brass,
copper, neoprene, nylon, viton, and cork.
IMPORTANT INFORMATION

MDE-5422B Latitude™ Owner’s Manual · March 2021 Page 4-1
Dispenser Overview Latitude Components
4 – Latitude Components
Dispenser Overview
This chapter provides a description of the Latitude unit and its components.
Figure 4-1: Latitude Pump
(i) (ii)
Front View Side View
Sl. No. Menu Sl. No. Menu
1Motor 10 Pulser
2Suction Unit 11 Inlet Filter
3Junction Box (J-Box) 12 Spin on Filter
4Side Flow Indicator 13 Meter
5Hose 14 Nozzle
6Reed Sensor 15 Nozzle Boot
7Electronics Zone
8Pump Breakaway
9Valve

Latitude Components Dispenser Overview
Page 4-2 MDE-5422B Latitude™ Owner’s Manual · March 2021
Figure 4-2: Latitude Dispenser
1
3
2

1
1
1
4




1
BB BB
1
1
1
1
BB
Z
Z
A
Z
Z
A
B
B
A
5
Front View Side View
Sl. No. Menu Sl. No. Menu
1Shear Valve 10 Inlet Pipe
2Vapor Recovery Pump 11 Valve
3Junction Box 12 Pulser
4Swivel 13 Inlet Filter
5Side Flow Indicator 14 Spin on Filter
6Hose 15 Meter
7Reed Sensor 16 Meter Manifold
8Electronics Zone 17 Nozzle
9Pump Breakaway 18 Nozzle Boot

MDE-5422B Latitude™ Owner’s Manual · March 2021 Page 4-3
Common Functions Latitude Components
Common Functions
This section provides information on the common functions of the Latitude unit.
Keypad
The Latitude dispenser keypad has a total of 20 keys that include alphanumeric, functional,
and hot preset keys.
Figure 4-3: Alphanumeric Keypad
Using Keypad
The following functions can be performed using the keypad:
• Customer Preset
• Preset Delivery - Sale/Volume
• Configuration Parameters
• View Electronic Totals - Sale/Volume
• Perform Electronic Calibration (activated through secure switch)
Keypad LCD
The Latitude dispenser uses a 16 X 2 Liquid Crystal Display (LCD) that displays all pump
parameters and fault information.

Latitude Components PIN of each Level Command
Page 4-4 MDE-5422B Latitude™ Owner’s Manual · March 2021
PIN of each Level Command
Parameters are set using the keypad. Enter a four-digit PIN code to use all programming
functions and levels. The PIN can be changed from the respective menu or from menus with
higher rights.
The users must make their own rule on how to manage different levels of PIN.
The following table lists the different command levels and their respective PIN:
Premium Features
This section provides an overview of the premium features that are offered with Latitude
dispensers.
Premium Canopy
The premium canopy comprises of the following:
• Perimeter LED Strips
- This is used for traffic management.
- The status options available for FP are: Available and Busy.
- The customer can select from any of the following color options to indicate the FP status
Level Command PIN
Level 0 Command PIN 0000
Level 1 Command PIN XXXX
Level 2 Command PIN XXXX
*For PIN numbers, contact Gilbarco-authorized 
Service Contractor (ASC).
Color Color Swatch
Red
Orange
Yel lo w
Green
Blue
Purple
