GLP Creative Light 1 User manual

Revision 20210303-01
User Manual
Creative Light 1 (CL1)
Creative Light 1 Plus (CL1+)

Document revisions
Revision number Notes Date released
20210303-01 First version available
Firmware v. 1.2.0
March 3, 2021
GLP® Creative Light 1 (CL1) and Creative Light 1+ (CL1+) User Manual
© 2020-2021 German Light Products GmbH. All rights reserved.
The marks ‘GLP’ and ‘German Light Products’ are trademarks registered as the property of
German Light Products GmbH in Germany, in the United States of America and in other countries.
The information contained in this document is subject to change without notice. German Light
Products GmbH and all affiliated companies disclaim liability for any injury, damage, direct or
indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability
to use or reliance on the information contained in this document.
Head office:
German Light Products GmbH (GLP), Industriestrasse 2, 76307 Karlsbad, Germany
Tel (Germany): [phone] - 0
Service & Support EMEA:
GLP, Industriestrasse 2, 76307 Karlsbad, Germany
Tel. (Germany): [phone]
Email: [email protected]
www.glp.de
Service & Support USA:
GLP USA, 1145 Arroyo St., Ste. A, 91340 San Fernando, California
Tel (USA): [phone]
Support (US): [e-mail]
www.glp.de

Table of Contents
1. Safety ................................................................................................. 5
General safety information ......................................................... 5
Electrical safety ............................................................................ 6
Installation safety and protection from personal injury ........... 6
Battery safety................................................................................ 7
2. Features ............................................................................................. 8

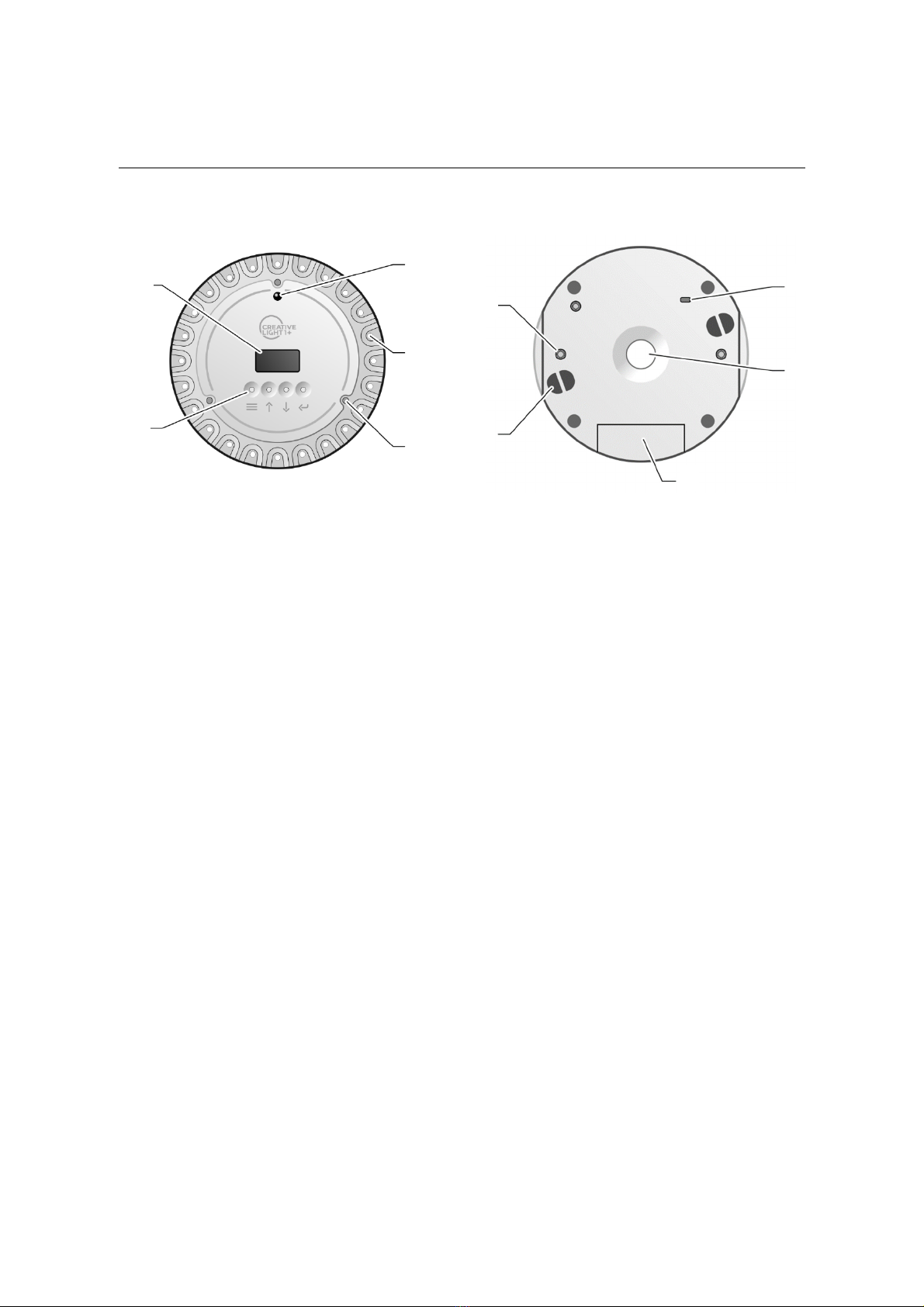

3. Product overview.............................................................................. 9
4. Control panel and display............................................................. 10
Control panel display ................................................................ 10
Control panel functions............................................................. 12
Accessing the control menus ................................................... 13
5. Preparing for use............................................................................. 14

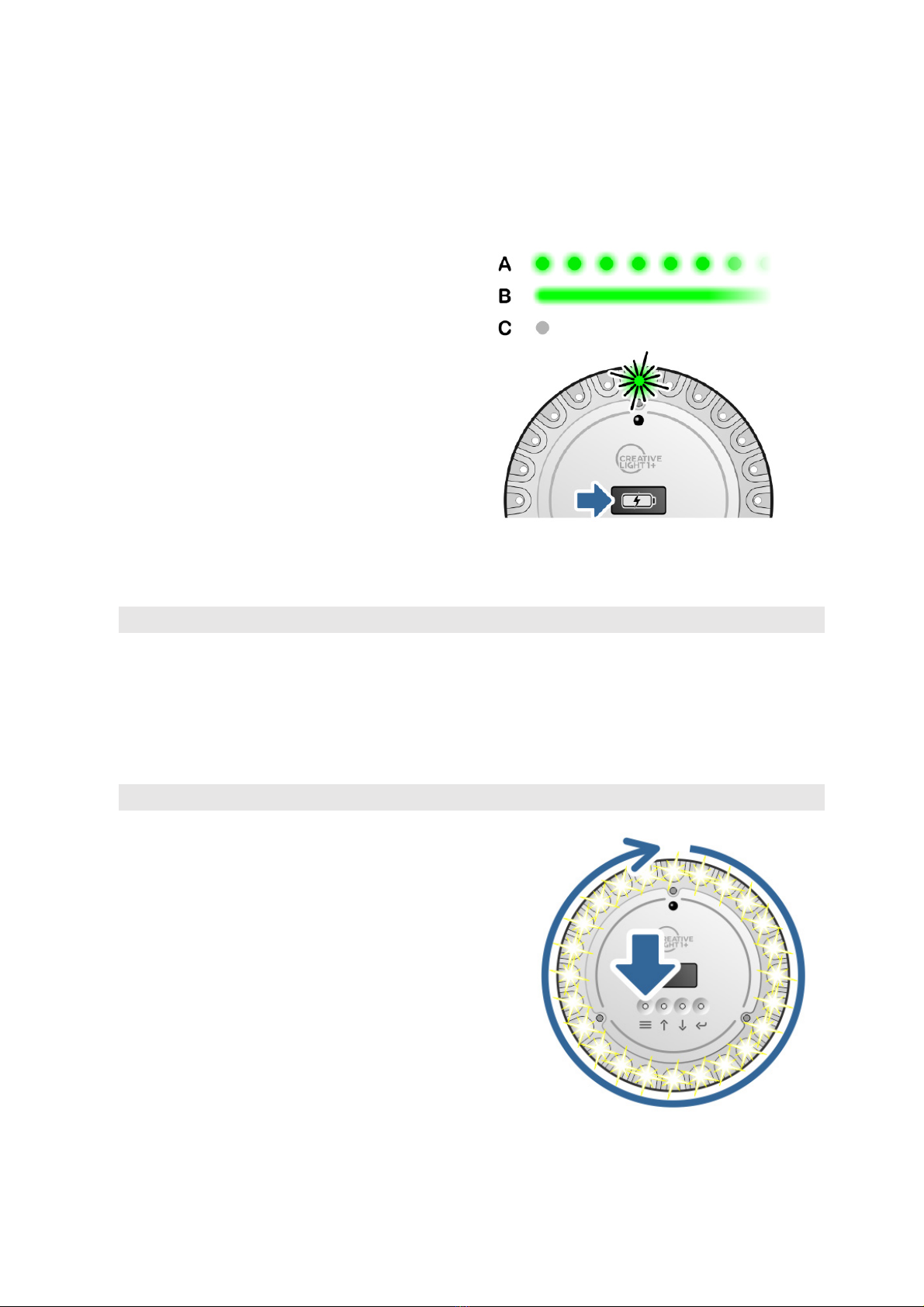

Charging ..................................................................................... 14
Transport lock ............................................................................. 15
Powering on and off .................................................................. 15
6. Configuring the CL1 ....................................................................... 16
Default control settings.............................................................. 16
Control options........................................................................... 16
Fixture Settings ............................................................................ 17
Manual Control menu ............................................................... 18
Fixture and iQ.Mesh information .............................................. 18
Service......................................................................................... 18
Loading factory backup ........................................................... 18
Linking to a CRMX Transmitter (CL1+ only).............................. 19
DMX settings (CL1+ only)........................................................... 19
Setting up iQ.Mesh control........................................................ 19
7. Manual control................................................................................ 20
8. Infrared remote control.................................................................. 21
Pattern color ............................................................................... 22
Pattern Effects ............................................................................ 22
Effect Speed ............................................................................... 22
Global Intensity / Blackout........................................................ 22
Automatic Colors ....................................................................... 23
Color changing type ................................................................. 23
Light output On/Off ................................................................... 23

9. Creative Light app control ............................................................ 24
Setting up the iQ.Mesh network ............................................... 24
Using the Creative Light app .................................................... 26
10. DMX control (CL1+ only).............................................................. 28
Global intensity ............................................................................. 28
Global Shutter / Pattern Shutter.................................................... 28
Virtual color wheel ........................................................................ 29
RGB / Pattern RGB......................................................................... 29
Control / Settings.......................................................................... 29
Pattern Control (available in Pattern DMX Mode)................. 30
11. Mounting and installing ............................................................... 31
Temporary installation ............................................................... 31
Fixed installation ......................................................................... 31
Adding optical accessories ...................................................... 31
Securing with a safety cable .................................................... 32
Mounting on a UFO1 (Universal Fixing Object 1) .................... 32
Using an external power source............................................... 32
12. Cleaning and product care ....................................................... 33
Suggested cleaning intervals ................................................... 33
Checking firmware version ....................................................... 33
Uploading new firmware........................................................... 33
Battery care................................................................................ 35
Caring for the environment ...................................................... 35
GLP Service and Support .......................................................... 35
13. Control menus .............................................................................. 36
14. DMX control modes overview (CL1+ only) ................................ 39
15. DMX channel index (CL1+ only) ................................................. 41
DMX Mode 1: Basic.................................................................... 41
DMX Mode 2: Pattern (default mode)..................................... 43
DMX Mode 3: MultiPix ................................................................ 49
16. Technical Data ............................................................................. 50
17. Dimensions .................................................................................... 52

German Light Products®
5 Rev. 20210303-01
1. Safety
Key to symbols
The following symbols are used in this manual:
Warning!
Safety hazard.
Warning!
Risk of electric shock.
Warning!
See user documentation
for important safety
information.
General safety information
Read this section carefully before installing the product. If you have any questions
about the product, contact your GLP® supplier for assistance. Your GLP supplier will
be happy to help.
• Respect all warnings and directions given in this manual and on the product.
Read this manual and familiarize yourself with the safety precautions it contains
before installing or using the product. The manufacturer will take no responsibility
for damages or harm resulting from disregard for the information in this manual.
• Check the GLP website at www.glp.de and make sure that you have the latest
version of this quick start guide.
• Make this manual available to any person who is responsible for installing,
operating or servicing the product.
• Use the product only as directed in this manual. Observe all markings in this
manual and on the product.
• Do not modify the product in any way not described in this manual.
• The LEDs that form the light source in this product are not replaceable.
• Ensure that there is free and unobstructed airflow around the product.
• Do not attempt to open the product. There are no user-serviceable parts inside.
Opening the product can create a safety risk and will void the product warranty.
If the product becomes defective, contact your GLP supplier for assistance. Do
not try to carry out repairs yourself.

www.glp.de
CL1 / CL1+ User Manual 6
Electrical safety
• The product is for indoor use in dry locations only. Do not allow the product to
become wet.
• Disconnect the product from its charger before cleaning. Clean the product with
a soft, dry cloth only. Do not clean with solvents or abrasive products.
• Ensure that any equipment used to charge the product is electrically connected
to ground (earth).
• Disconnect equipment used to charge the product from power if the charging
equipment, power plug, power cable, any cover or any other component is
damaged, defective or deformed. Do not reapply power until the product has
been repaired and made safe by a technician authorized by GLP.
Installation safety and protection from personal injury
• Do not stare directly into the light output at close range. Looking into the light
output at close range may cause eye injury or irritation.
• Install the product in a dry, dust-free location where it will not be exposed to high
temperatures or direct sunlight.
• Ensure that the product is safely supported and cannot fall. If mounting the
product on a wall or other vertical surface or structure, use fasteners that are
suitable for the surface and strong enough to safely hold the weight of the
product.
• The product’s integrated magnet may be used for temporary installation on
magnetic surfaces.
• In permanent installations, fasten the product to a surface or structure with screws
fastened into the threaded holes provided on the product or secure the product
against falling by adding an approved safety attachment as directed in this
manual.
• Fasten the product to a structure or surface only as directed in this manual.
• If there is any risk that the product may cause injury or damage if it falls, secure it
with an approved secondary attachment as described in this manual.
• The product can become hot during normal operation. Take precautions to
prevent accidental physical contact with the product. Allow to cool before
handling.

German Light Products®
7 Rev. 20210303-01
• Do not illuminate surfaces and objects that are less than 0.3 m (0.98 ft) from the
product.
• Keep the product away from flammable or volatile materials.
Battery safety
• This product contains a rechargeable single-cell 3.7volt lithium-ion battery with a
capacity of 10 000 mAh.
• Respect all applicable laws and regulations for the transport, storage and disposal
of batteries.
• Do not expose the battery to fire or heat.
• Protect the battery and product from physical shocks.
• Do not allow the battery to come into contact with water.
• Do not short-circuit a lithium-ion battery, or you may cause a battery explosion.
• Charge the battery at an ambient temperature of between 15° C (59° F) and
35° C (95° F).
• Do not charge the battery in an enclosed space. Leave the product’s container,
tourpack case or flightcase open during charging.
• Do not connect a battery charger to a product that may be damaged or faulty.
• If the battery becomes faulty or will not hold a charge, replace it with an original
spare part from GLP only.
• The battery must be serviced by authorized personnel only.

www.glp.de
CL1 / CL1+ User Manual 8
2. Features
The GLP Creative Light 1 (CL1) is a wireless, battery-powered visual effect fixture for
the semi-professional event and professional entertainment market. Each CL1 has 24
individually controllable RGB pixels. Two different optical front screens are supplied
with the CL1, as well as a USB-A to USB-C charging cable. You can charge the CL1
using any standard USB charger. A traveling multi-device case with integrated
charging system is available as an optional accessory.
The CL1 is a highly advanced fixture in a compact package. It creates stunning light
effects using the integrated dynamic FX engine or when driven by individual RGB
pixel control. The fixture is perfect for setting creative visual highlights, illuminating
walls or integrating into dark areas of sets. The CL1 lets you create impressive visual
effects with minimal equipment size and budget.
Depending on the selected performance mode, the integrated battery can power
visual effects for up to 10 hours with white output and 24 hours with single-color
output.
The Creative Light 1 comes in two versions:
• The Creative Light 1 (CL1) can be controlled by IR Remote Control, by mobile
device via the GLP iQ.Mesh* system and GLP Creative Light app, and by use of
the control panel on the front of the fixture.
• The Creative Light 1 Plus (CL1+) offers all of the features of the CL1 but in addition
it features integrated LumenRadio CRMX TiMo technology that allows control by
wireless DMX.
This manual uses the name CL1 to refer to both the CL1 and CL1+ unless stated
otherwise.
If you have any questions about the CL1, the CL1+, CRMX, DMX control or iQ.Mesh,
for example, please contact your GLP supplier who will be happy to help you.
* iQ.Mesh is a new wireless mesh network technology available from GLP. iQ.Mesh
allows fixtures to communicate with each other, share data and receive and amplify
signals to set up huge networks. The GLP Creative Light smartphone app allows
communication with the mesh network and direct fixture control.
When controlled via the app, CL1 fixtures can generate an iQ.Mesh wireless network
with no need for any additional hardware. Each CL1 receives and amplifies the
signal, allowing the network to cover long physical distances.
The GLP Creative Light app provides an intuitive user interface and allows fast, easy
system setup. Multiple devices can be grouped for live control of intensity, strobe
and pulse effects, background and foreground colors, a variety of dynamic patterns
and sound-to-light audio triggering. The app is available from Play Store for Android
and App Store for iOS.

German Light Products®
9 Rev. 20210303-01
3. Product overview
Figure 1. Product overview
A– Monochrome OLED display
B– Sensor for IR remote control
C– 4 x control buttons
D– 24 x individually controllable RGB
LEDs
E– 3 x magnetic mounting points for
optical accessories
F– 3 x M6 threaded holes for mounting
fasteners and/or eyebolt for
secondary attachment
G– Slot for Kensington security lock
system
H– Mounting magnet embedded in
non-slip rubber
I– 2 x attachment points for secondary
attachment
J– USB-C connector for charging,
continuous power and service, two
charging ports
A
B
D
E
C
F
G
H
J
I

www.glp.de
CL1 / CL1+ User Manual 10
4. Control panel and display
The control panel on the front of the CL1 consists of an integrated monochrome
OLED display and four control buttons.
Control panel display
The CL1’s OLED display shows the following information:
Main status display
• If the CL1 or CL1+ is in Manual Mode:
Shows the selected Pattern, Speed and Crossfading
settings. For example: P01/S04/X04 indicates Pattern 01,
Pattern Speed 04 and XFade setting 04.
• If the CL1 or CL1+ is in iQ.Mesh mode:
Shows iQ.Mesh status.
• If the CL1+ is in DMX Mode:
Shows the DMX Mode and the DMX Start Address. For
example, DMX-M2-302 indicates DMX Mode, Control
Mode 2 and DMX Start Address 302.
Charge status
• Remaining battery charge.
• Plug icon shows that the device is connected to power.
• Increasing sectors in the battery icon indicate that the
device is charging.
Audio triggering
• Internal audio triggering microphone enabled / disabled.
• Audio triggering microphone sensitivity 1 (lowest) to 10
(highest).
Software
• Currently installed firmware version.
10
V
1.2
N
P01/S04/X04
Sho
w
IR O
N

German Light Products®
11 Rev. 20210303-01
Power mode
• N– Normal. Output is balanced for long performance with
optimized output. Performance time depends on intensity
level and color. Continuous performance without battery
charges requires an external power supply of minimum 2
amps.
• H– High Power. Output is optimized for highest brightness.
Performance time depends on intensity level and color.
Continuous performance without battery charges requires
an external power supply of minimum 3 amps.
• E– Eco. Output is optimized for longest performance time
between battery charges. Performance time depends on
intensity level and color. Continuous performance without
battery charges requires an external power supply of
minimum 2 amps.
Signal status
• Show – Fixture is in Manual Mode. The standalone pattern
can be selected using the IR remote control or the
integrated control buttons.
• No Signal (CL1+ only) – Fixture is in DMX Mode but is not
receiving DMX data via CRMX. The fixture is following the
settings that are currently active in the NO-SIGNAL
BEHAVIOR menu.
• DMX (CL1+ only) – Fixture is in DMX Mode and is receiving
DMX data via CRMX.
Signal source
• IR (ON) – Manual Mode is selected and IR remote control
is enabled. You can control the fixture using the
integrated control buttons (MANUAL CONTROL menu) or
the IR remote control.
• IR (OFF) – Manual Mode is selected and IR remote control
is disabled. You can control the fixture using the
integrated control buttons (MANUAL CONTROL menu).
• CRMX (CL1+ only) – LumenRadio CRMX module is enabled
and the CL1+ is ready to be controlled via DMX. The status
of CRMX communication is indicated as follows:
Horizontal dashes – the CRMX module is
not linked to a CRMX transmitter.
Vertical bars – the CRMX module is linked
to a CRMX transmitter. The bars indicate
signal quality.

www.glp.de
CL1 / CL1+ User Manual 12
Control panel functions
The CL1’s four control buttons have the following functions:
MENU button
• Press and hold for 3 seconds: switch CL1 on and off.
• Press once briefly: open the control menus for manual
control or configuration.
• If you are in one of the control menus, press once briefly to
exit the current menu without making any changes.
• If the top-level control menu is active, press and hold for
20 seconds to carry out a hard reset. This will disconnect
the battery from the controller for a few seconds while it
fully restarts the CL1.
UP and DOWN buttons
• Scroll up and down through menus.

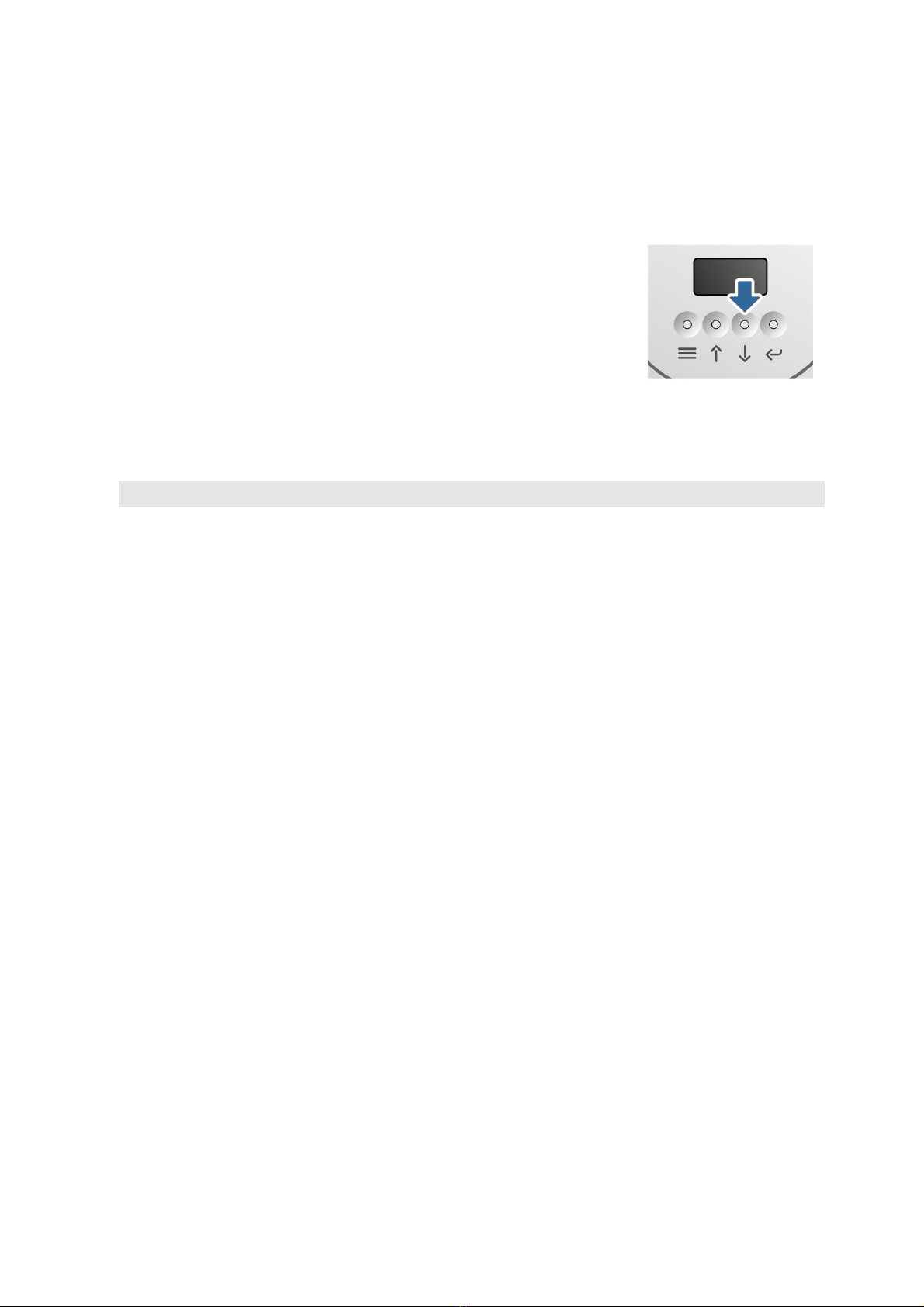

• If the display is activated and you see the main screen,
press and hold the DOWN button for 3 seconds to change
the signal source
ENTER button
• If you are in the control menus, confirm a selection or save
a change.

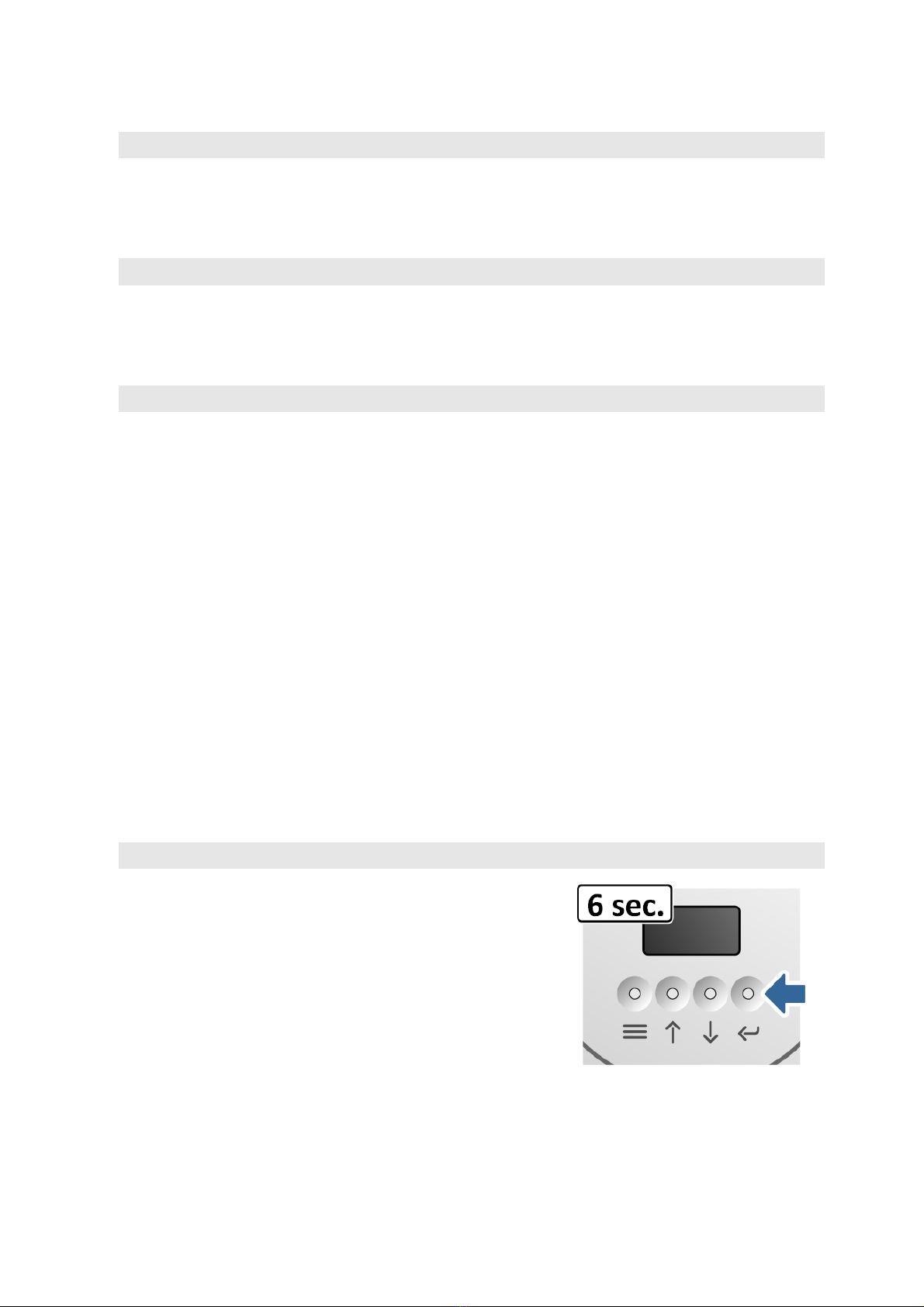

• If the top-level control menu is active, press and hold for 6
seconds to re-initialize the CL1 and return it to its original
factory settings. All custom settings and control
configuration settings will be deleted.
NB: Re-initializing will return the DMX address to 001 and
unlink the CL1 from any existing CRMX or iQ.Mesh link, so
you may lose the connection to your controller.
+
MENU and ENTER buttons together
• If the top-level control menu is active, pressing and
holding the MENU button and the ENTER button together
for 6 seconds applies the transport lock and disables all
the control buttons. We recommend that you apply the
transport lock to avoid accidentally powering the CL1 on
during transport or long-term storage.
To unlock the CL1, connect it to a charger.

German Light Products®
13 Rev. 20210303-01
Accessing the control menus
To enter the CL1’s control menus:

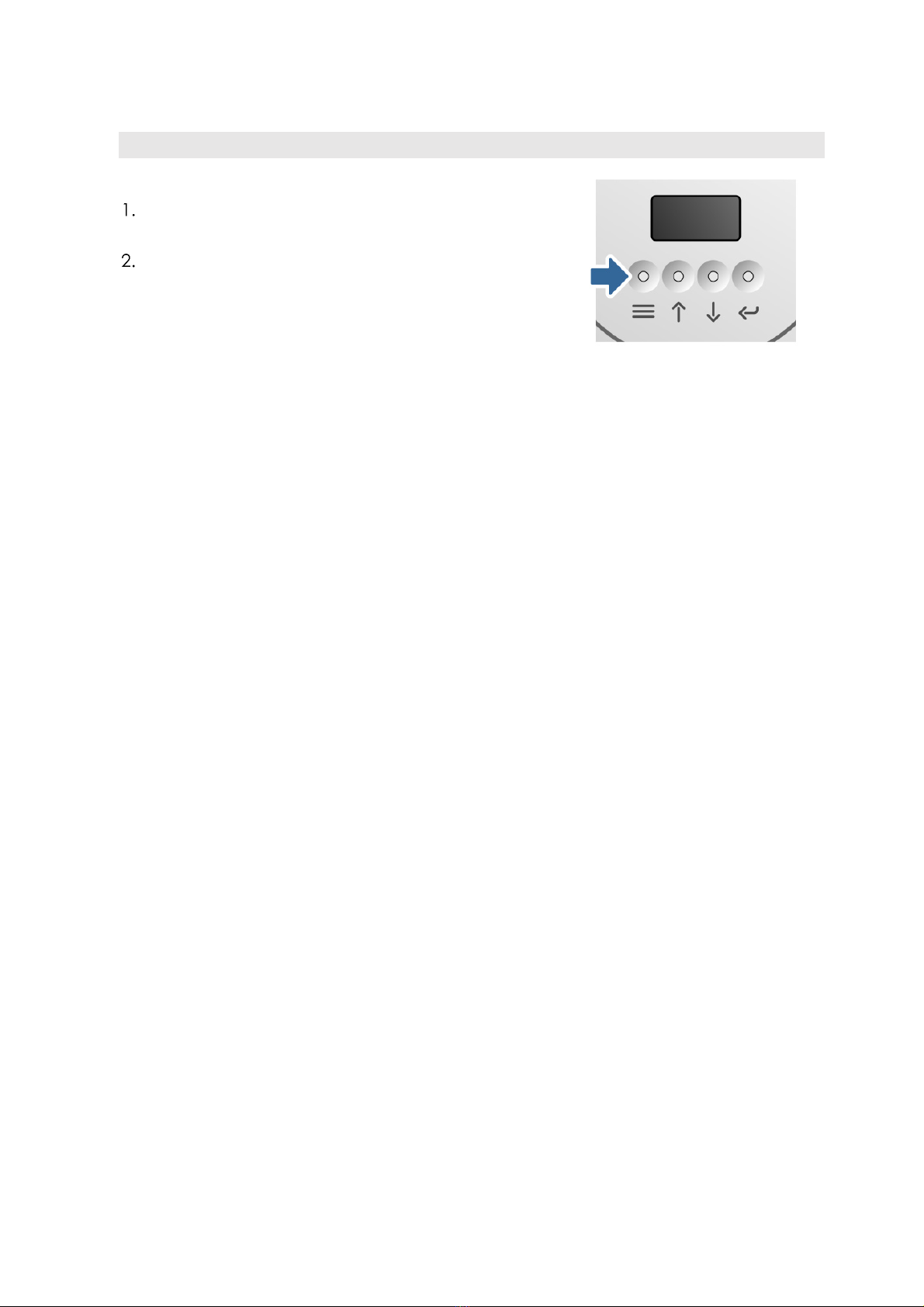

See Figure 2. Press the MENU or ENTER control
button once to activate the display.
Press the MENU button to enter the menu structure.
Figure 2. Menu button

www.glp.de
CL1 / CL1+ User Manual 14
5. Preparing for use
Warning! Read ‘Safety’ starting on page 5 for important safety
information that you must understand before you charge, install or
operate the fixture. Follow the warnings and instructions in the user
documentation of all involved products during charging.
Important! Connect the CL1 to a USB power source and charge it to 100%
before using it for the first time. To avoid draining the battery
unnecessarily, power the CL1 off when not in use and apply the transport
lock before long-term storage or transport.
Charging
Charge the CL1 to100% before using it for the first time.
When using the GLP Creative Light app, you can see the CL1’s current battery
charge level on your smartphone.
See Figure 3. After unboxing the CL1 and before you switch it on, connect it to a
source of USB power using the supplied USB-A-to-USB-C cable in order to charge it.
The power source can be a laptop, USB charger or powerbank, for example, that
can supply minimum 1 amp.
A 1 amp power supply is suitable for charging only: the CL1 must be powered off
during charging. When operating the CL1 continuously under external power, the
CL1 requires a current of minimum 2 amps in Normal and Eco power modes and
3 amps in High power mode. The CL1 is designed for use with normal and fast
charging, but using USB superfast charging together with a USB-C to USB-C cable
may result in the battery not being fully charged.
Figure 3. Charging options
USB-C
Docking
station

German Light Products®
15 Rev. 20210303-01
You can also charge multiple CL1 devices using the docking stations in the Creative
Light 1 charging tourpack case that is available as an optional accessory from GLP
suppliers. Leave the case open during charging.
See Figure 4. You can monitor the
charging process as follows:
• During charging, the first LED pixel
flashes green (A) and the CL1’s display
shows a charging symbol.
• When the CL1 is fully charged, the first
LED pixel lights constant green (B) for as
long as the CL1 is connected to the
charger.
• When you disconnect the CL1 from the
charger, the first LED pixel switches off
(C).
Transport lock
The CL1 ships with the transport lock applied. To unlock the CL1 when the transport
lock is applied, connect it to a charger.
If you are going to transport the CL1 or put it into long-term storage, apply the
transport lock. This disables all control buttons. To unlock the CL1 when the transport
lock is applied, connect it to a charger.
Powering on and off
See Figure 5. To switch on the CL1, press and
hold the MENU button for 3 seconds. The CL1’s
LEDs will light up white in a circle show you that
the fixture is starting up. The CL1 is now ready to
use and you can start configuration.
To switch off the CL1 while it is powered on,
press and hold the MENU button for 3 seconds.
The CL1’s LEDs will light white and then turn off in
a counterclockwise circle to show you that the
CL1 is shutting down. You can now store the CL1
without draining the battery.
Figure 4. Charging status
Figure 5. Powering on

www.glp.de
CL1 / CL1+ User Manual 16
6. Configuring the CL1
The menus in the control panel on the front of the CL1 give a range of options for
configuring the fixture. See ‘Control menus’ on page 36 for an overview of the
menus.
In the CL1+, a range of configuration options is also available via DMX on the Control
/ Settings DMX channel. See the DMX Channel Index section at the back of this
manual for details.
The configuration options available are described in this chapter.
Default control settings
By default, the CL1 and CL1+ are set up as follows:
• The CL1 is set to SIGNAL SOURCE: iQ.Mesh and NO-SIGNAL: MANUAL CONTROL.
This means the fixture automatically switches to manual / IR remote control as
long no valid iQ.Mesh Signal is being received or the fixture is not linked to the
Creative Light smartphone app.
• The CL1+ is set to SIGNAL SOURCE: CRMX and NO-SIGNAL: MANUAL CONTROL.
This means the fixture automatically switches to manual / IR remote control as
long no valid CRMX Signal is being received or the fixture is not linked to CRMX.
You can change these default settings in the fixture’s control menus under SIGNAL
SETTINGS →SIGNAL SOURCE and FIXTURE SETTINGS →NO-SIGNAL BEHAVIOR. See the
following sections for details.
Control options
To select a control method for the CL1:
Enter the control menus and use the UP and DOWN buttons to scroll to SIGNAL
SETTINGS. Press ENTER.
Scroll to SIGNAL SOURCE. Press ENTER.
Scroll to one of the following options and press ENTER to select:
• CRMX (CL1+ only)
If you select CRMX, the letters CRMX appear in the bottom right-hand corner
of The CL1+ display. You can now link the fixture to a CRMX transmitter. See
‘Linking to a CRMX Transmitter (CL1+ only)’ on page 19 for instructions. Once
the fixture is linked you can control the CL1+ by DMX.
Note: Don´t forget to choose a DMX Control Mode in the CONTROL MODE
menu and give the CL1+ a suitable DMX Address in the DMX ADDRESS menu.
• iQ.Mesh
If you select IQ.MESH, the name iQ.Mesh appears in the bottom right-hand
corner of the CL1 display. You can now link the CL1 to GLP’s iQ.Mesh network
and Creative Light smartphone app. See ‘Creative Light app control’ on page
24 for instructions.

German Light Products®
17 Rev. 20210303-01
• Manual / IR Remote
If you select MANUAL / IR REMOTE, IR appears in the bottom right-hand corner
of the CL1 display followed by ON or OFF depending on whether IR remote
control is enabled or disabled in the separate SIGNAL SETTINGS →IR REMOTE
CONTROL ON/OFF menu. You can now control the
CL1 using the MANUAL CONTROL menu or using the
infrared remote control that is supplied with the CL1.
See ‘Manual control’ on page 20 and ‘Infrared remote
control’ on page 21 for details of control options.
Tip! See Figure 6. As a shortcut, you can switch between
control signal sources by pressing and holding the DOWN
button for 3 seconds.
Fixture Settings
• No-signal Behavior lets you decide what the fixture should do if it is powered on
but not receiving (or has not received) a control signal. You can set the CL1 to
either black out, continue using the last commands it received via CRMX or
iQ.Mesh, or switch over to manual control.
• Mic Sensitivity adjusts the sensitivity of the CL1’s built-in microphone. The
microphone is used for audio triggering, which gives you various options for
synchronizing lighting changes with a music beat, for example.
If you set the CL1 to audio triggering and it does not respond to music, increase
microphone sensitivity towards 10 (the highest sensitivity setting). If the CL1
responds too actively to music, reduce microphone sensitivity towards 1 (the
lowest setting) until you obtain optimum performance.
• Power Mode lets you choose how you prioritize light output versus length of
operating time on one battery charge. There is a trade-off between these two
parameters, or course. Power Mode lets you choose maximum light output,
maximum operating time between battery charges or a good compromise
between these two settings.
• Emergency Light lets you define a static scene that the CL1 will display if it is
connected to external power but then external power is disconnected. You can
use Emergency Light as a control feature or as a way of providing emergency
lighting in the event of a loss of power.
• Default Settings returns the CL1 to its factory default settings without affecting its
control configuration. Mic Sensitivity, No-Signal Behavior etc. are returned to their
factory default settings, but DMX Address, Signal Source and Control Mode are
not changed. The CL1’s default settings are printed in bold type in the control
menus table starting on page 36.
Figure 6. DOWN
button

www.glp.de
CL1 / CL1+ User Manual 18
Manual Control menu
The Manual Control menu lets you use the control panel on the front of the CL1 to
display a static scene or run a dynamic pattern over the top of the main color. See
full details under ‘Manual control’ on page 20.
Fixture and iQ.Mesh information
The Information menu lets you call up information about the CL1’s fixture software
(firmware) versions and operating data. It also lets you call up information about the
iQ.Mesh system and see the fixture’s current iQ.Mesh status.
Service
The Service menu gives three options for managing the CL1’s firmware and settings.
• iQ.Mesh Upload prepares the CL1 for a firmware upload over an iQ.Mesh network
using the GLP Creative Light smartphone app. See the section on ‘Uploading new
firmware’ on page 33 for details.
• Load Setting Defaults is identical to the Default Settings command in the Fixture
Settings menu. It returns the CL1 to its factory default settings without affecting its
control configuration. Mic Sensitivity, No-Signal Behavior etc. are returned to their
factory default settings, but DMX Address, Signal Source and Control Mode are
not changed. The CL1’s default settings are printed in bold type in the control
menus table starting on page 36.
• Load Factory Backup re-initializes the CL1 completely. It returns the CL1 to its
factory default settings including its factory-set control configuration. Mic
Sensitivity, No-Signal Behavior etc. DMX Address, Signal Source and Control Mode
are all returned to the original factory default settings. The CL1’s default settings
are printed in bold type in the control menus table starting on page 36.
Important! A Load Factory Backup command will reset the CL1 to Manual / IR
Remote control. Any link to CRMX or iQ.Mesh control will be cut off.
Loading factory backup
To re-initialize the CL1 and restore its original factory
settings, switch the fixture on, then use a shortcut by
holding the ENTER button pressed in for 6 seconds.
The CL1’s individual configuration with all custom
settings is returned to factory defaults.
Important! If you are using CRMX (CL1+ only) or
iQ.Mesh control, note that loading factory backup
returns the fixture to an unlinked state, breaking off
communication with the CRMX link or iQ.Mesh
network.
Figure 7. Restoring factory
settings

German Light Products®
19 Rev. 20210303-01
In the CL1+, the DMX address also returns to the factory default, which is 001.
To re-establish CRMX control, see below.
To re-establish iQ.Mesh control, see ‘Setting up iQ.Mesh control’ on page 19.
Linking to a CRMX Transmitter (CL1+ only)
Whenever CRMX is enabled and the CL1+ is not already linked, it searches for a
LumenRadio CRMX transmitter.
To link the CL1+ with a new CRMX transmitter:
Enter the control menus, navigate to SIGNAL SETTINGS →SIGNAL SOURCE and
select CRMX.
Navigate to SIGNAL SETTINGS →CRMX LINK and select LINK/UNLINK.
Start the linking process at the CRMX transmitter as described in the transmitter’s
user manual.
TIP: The quickest way of setting up multiple CL1+ fixtures for DMX use is to carry out a
LOAD FACTORY BACKUP on each fixture by pressing and holding its ENTER Button for
6 seconds. This will return the fixture to factory settings and delete all CRMX and
iQ.Mesh links. The fixtures are now ready for linking to a transmitter. After successful
linking, set up the fixtures’ DMX addresses and DMX control mode.
DMX settings (CL1+ only)
When using DMX control via CRMX, you need to consider the following setup
options.
DMX Address
If you want individual control of the CL1+ in an installation containing more than one
fixture, you will need to give the CL1+ its own individual DMX address. Fixtures of the
same type that share the same DMX address behave identically.
The CL1+ is set to DMX address 001 by default.
DMX Modes
The CL1 has three DMX control modes: Basic, Pattern and MultiPix modes. The
different modes give you a choice of control options. See ‘DMX control modes
overview (CL1+ only)’ starting on page 39 for details.
Setting up iQ.Mesh control
To set up a CL1 fixture so that you can control it with the GLP iQ.Mesh system and
Creative Light smartphone app, open the control menus, navigate to SIGNAL
SETTINGS →SIGNAL SOURCE and select iQ.Mesh. See full details under ‘Creative Light
app control‘ on page 24.

www.glp.de
CL1 / CL1+ User Manual 20
7. Manual control
If you set the CL1 to MANUAL / IR REMOTE CONTROL in the SIGNAL SETTINGS menu
(you can also use a shortcut by pressing and holding the DOWN button to scroll
through the control signal sources), you can control it manually using the CL1’s
integrated control panel.
Manual control gives the same options as Pattern DMX Mode (see ‘DMX Mode 2:
Pattern’ on page 39). Additionally, you can set changes between steps in patterns
to snap (instant change from one step to the next) or crossfade (fade from one step
to the next).
The control options available when using Manual control are as follows:
• Master Intensity gives 0 – 100% continuous dimming of the complete fixture.
• Main Color lets you set the LED pixels to display a custom RGB color, one of 30
color presets or one of 4 color chaser options.
• FX Layer provides control of 40 patterns that can be superimposed over the main
color with variable visibility and speed. You can control pattern intensity and color
using RGB color mixing plus the color presets from the Color Wheel DMX channel.
• Color Crossfade lets you set steps in the pattern to snap or fade to the next.
