GLP IMPRESSION 120 RZ WWC User manual

Instruction Manual
W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
from software version 1.00/03
(Instruction version 1.14)
e-mail: [email protected]
Internet: http://www.glp.de

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 2
This manual serves for both systems the I IM MP PR RE ES SS SI IO ON N 1 12 20 0 R RZ Z W WW WC C as well as the
I
IM MP PR RE ES SS SI IO ON N 1 12 20 0 R RZ Z C CC CW W. . The two systems differ from each other only by the
number of cold- respectively warm- white LEDs.
WWC version: 42x LEDs cold white, 78x LEDs warm white
CCW version: 78x LEDs cold white, 42x LEDs warm white
Notes:

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 3
Table of content
1 Description of Device..............................................................................................4
1.1 Safety Instructions............................................................................................5
2 Preparation and Installation...................................................................................6
2.1 Mounting...........................................................................................................6
2.1.1 Mounting on the floor (upright).............................................................7
2.1.2 Mounting in hanging position (head down)..........................................8
2.1.3 Mounting in a sideway position............................................................8
2.2 Securing the Device..........................................................................................9
2.3 Connections......................................................................................................9
2.3.1 Power Supply.......................................................................................9
2.3.2 DMX...................................................................................................10
3 The Menu Field......................................................................................................10
4 DMX Channel Selection (DMX Protocol) .............................................................12
5
5 Maintaining and Cleaning the I IM MP PR RE ES SS SI IO ON N.......................................................15
5.1 Safety regulations...........................................................................................15
5.2 Maintenance Intervals (rule-of-thumb)............................................................15
6 Technical Specifications ......................................................................................16
Index 17

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 4
1 Description of Device
1. Moving head (actively and
passively cooled)
2. Arm with various cooling
vents
3. LCD-Display/Menu (data
entry)
4. Base with various
connectors and Camlock
mounting system
1
2
3
4
5
base side 1
6
base side 2
7
8
9
10
10
FUSET4A
5. Power On/Off
6. DMX- Output (3 pole)
7. DMX- Input (3 pole)
8. Micro-fuse 5x20mm, T5A
9. Mains supply (Powercon)
10.2x Safety eyes

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 5
1.1 Safety Instructions
The I IM MP PR RE ES SS SI IO ON N is an advanced technology product. To
guarantee smooth operation, it is necessary to follow the
following instructions.
The manufacturer of this device will not take responsibility of
damages through any disregard of the information in this user
manual. Warranty claims will also be cancelled in the event of
the system casing being opened.
1. Make sure that before powering up the fixture, the fans and air inlets are
clean and not blocked by anything.
2. Before powering up the fixture, ensure that the moving head part of the
fixture can rotate unhindered through its full range of movement.
3. A safety distance of at least 0.5 m to any easily flammable material (e.g.
decoration material) must be adhered to.
4. Attention! Don’t touch the device during operation. Parts of the fixture can
become hot and can cause injuries and / or damages.
5. The system doesn’t contain any user serviceable parts. Opening the fixture
will void the manufacturers warranty.
6. Danger of burning. Wait at least 15 minutes after disconnecting the AC
power before changing the optical carrier on the fixture. Pay attention to
possible hot parts of the system.
7. Never look directly into the beam of light or one of the LEDs. Never use
optical apertures with a distance less than 0.5 m to observe the beam of
light. LED Class 2M. Not following these precautions can result in serious
injury to your eyes and in particular, your retina.
Attention:
LED Class 2M can cause injuries of your eyes even
without optical instruments in front of them or within a distance
of less than 0.5m and short exposure time.
Avoid direct radiation to your eyes!
8. To ensure proper operation, you must also follow the installation guide
described in chapter 2 of this manual. Operating the I IM MP PR RE ES SS SI IO ON N without
suitable mounting devices can increase the risk of an accident.
9. The I IM MP PR RE ES SS SI IO ON Nfeatures a unique small and lightweight design with no
specific carrying handles. Care needs to be shown when handling the
fixture to ensure that no unnecessary damage should occur. Fragile areas
include the LCD display and cover on one side arm and the front bezel.

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 6
Pressure in these areas could result in damages which will not be covered
by the standard warranty.
10. Repair-, maintenance- and installation work should only be performed by
qualified or GLP certified staff. You need to pay attention to the common
rules of technology that are not explicit mentioned in this manual.
11. Use only original spare parts. Any structural modification on the system will
terminate all warranty claims.
12. Please keep this instruction manual for future reference.
2 Preparation and Installation
2.1 Mounting
The I IM MP PR RE ES SS SI IO ON N is fully operational whether it hangs or is mounted to a wall.
It can also be operated while standing on the floor. Keep a safety distance of
0.5 m from any easily inflammable materials (decoration etc.).
Pay attention to the regulations of: BGV C1 (former VBG 70)
and DIN VDE 0711-217.
The installation shall be done by qualified personal only.

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 7
For the various mounting positions of the I IM MP PR RE ES SS SI IO ON N(standing on the floor,
sideways or hanging) different accessories kits are available. Using any
required kits, along with the standard mounting connectors on the base of the
fixture, will ensure a safe and firm installation.

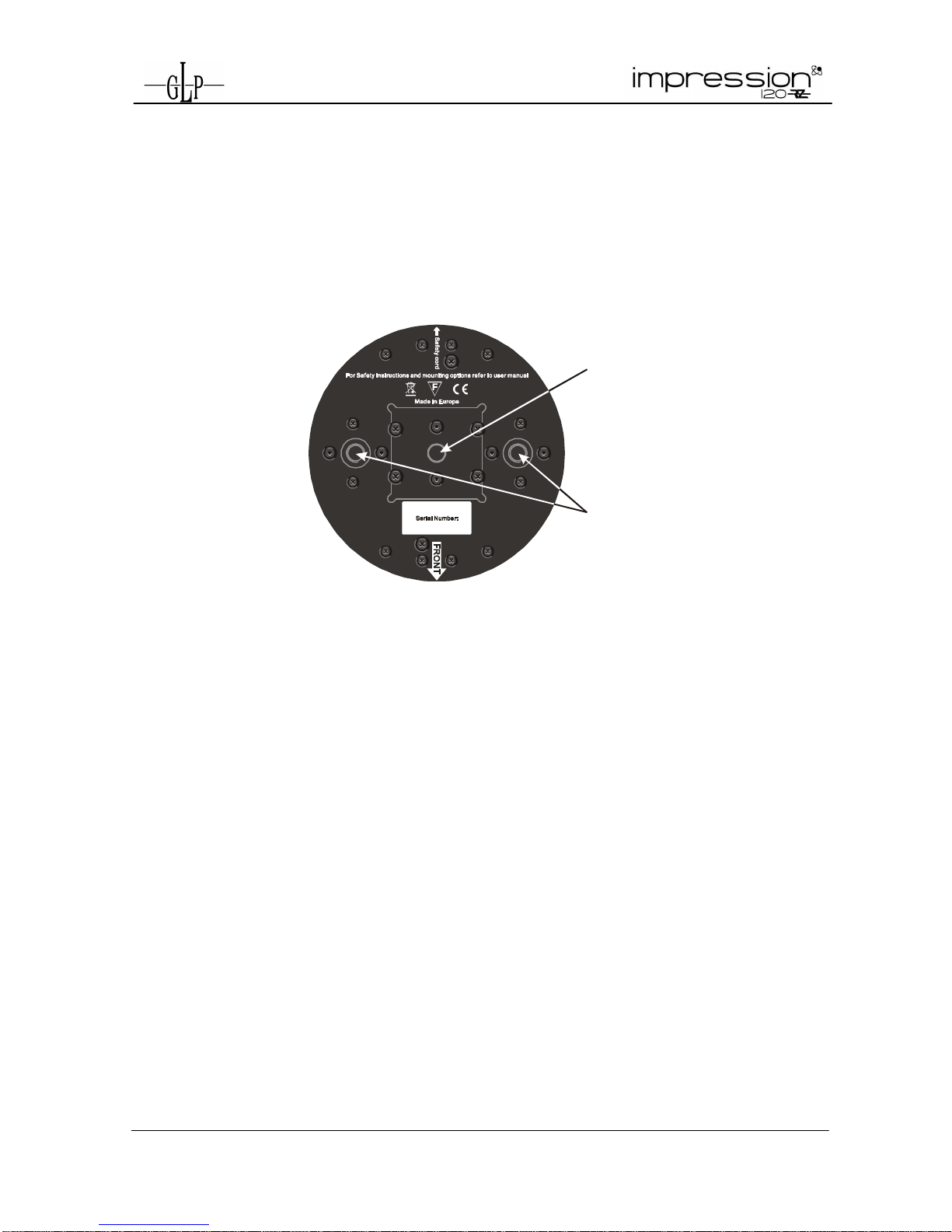

1x M10
(length max.16mm)
2x Camlock
quick release
fasteners
front side of the fixture
2.1.1 Mounting on the floor (upright)
To operate the I IM MP PR RE ES SS SI IO ON Nin an upright position, please use the
dedicated floor-stand which ships with all original fixtures. The floor
stand is mounted to the base of the fixture using the two Camlock
quarter turn fasteners. Line up and engage the camlock connectors from
the floor stand into the base of the fixture and turn the two fasteners 90°
to lock them. Do the opposite to release them again. On both sides you'll
find eyelets to pull though a fixing strap. This allows additional bracing of
the floor-stand during the upright operation.

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 8
2.1.2 Mounting in hanging position (head down)
To operate the I IM MP PR RE ES SS SI IO ON Nin a hanging position, a half-coupler or
similar clamp can be mounted directly to the bottom of the base using
the M10x16 mm threaded socket.
M10x16
2.1.3 Mounting in a sideway position
To operate the I IM MP PR RE ES SS SI IO ON Nin a sideways position, please use an
additional mounting bar, available from GLP or one of their agents.. This
mounting bar is fixed via the two camlock quick-release connectors. Two
half-couplers or clamps are then used to hang the mounting bar. This
technique is necessary to cope with the additional torque in this
mounting position. Never use the "Mounting in hanging position"
technique described above to secure the fixture in a sideway position, as
the fixtures base can become damaged, and a secure installation cannot
be assured.
2x Camlock
2x Eyelets

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 9
2x 90°
Half-coupler (clamp) 1
Half-coupler (clamp) 2
without mounting bar
2.2 Securing the Device
Regardless of the mounting method of the I IM MP PR RE ES SS SI IO ON N you'll have to use a
secondary safety wire. This safety wire can be attached to the fixture by
threading it through one of the two holes provided on the base of the fixture.
Ensure that the safety wire is securely fastened through the fixture and the
fixtures mounting support. Install a safety wire that can hold at least 10 times
the weight of the fixture.
2.3 Connections
2.3.1 Power Supply
~100-240 Volt AC, 50-60 Hz, earth contact type plug, via Powercon
Connected load 350 VA (W) <=> T5A (micro-fuse 5x20mm)
Disconnect from the mains supply before changing the fuse and
use only the above described micro-fuse type.

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 10
2.3.2 DMX
USITT DMX-512 Standard input/output with 3 pole connectors.
3 pole: Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+]
The DMX- Addressing starts at DMX- Address [001].
3 The Menu Field
You’ll find the control board on the side of the arm. It allows you to make
all necessary adjustments of the I IM MP PR RE ES SS SI IO ON N. .With the Mode-key you
get into the main menu. Afterwards you can navigate through the menu
with the Up/Down-keys. Push the Enter-key to get to the next menu
level or to confirm your settings. Select ON/ OFF function settings with
the Up/Down-keys. Confirm and save with the Enter-key (the display
shows OK). Push the Mode-key to cancel the entry and go back to the
main menu.
Mode
Down
Enter
Up
Level1
Level 2
Level 3
Level 4
Remark
DMX Start
Address 001
Define the DMX start address
Special Manual DMX
Manual control of all system functions
Pan Manual control for Pan (X-movement)
Speed
Movements Speed adjustment for Pan/Tilt movements see
also item below
Pan/Tilt
Movements Manual control for Pan/Tilt movement
Special Activate the White- or Full-Power Mode; see also
DMX table
Dimmer Manual control for dimmer
Shutter Manual control for shutter

 
DOWN - UP 
 

1/3 White Manual control for 1/3 white, 30x LEDs (either warm-
or cold white depending on the system)
2/3 White Manual control for 2/3 white, 60x LEDs (either warm-
or cold white depending on the system)
Zoom Manual control for zoom
Tilt Manual control for tilt (Y-movement)
Display
Contrast Adjustment for the Display contrast
Default Set Resetting all functions to original values
Set Dimmer
Frequency Changes PMW frequency between 600Hz and
1200Hz
LED Dimmer
Version Reads out the current LED dimmer (software) version
Imp
ression
Version Reads out the current CPU software version
Adjust
Key code
xxxx Use the code for entering the calibration menu (for
authorized persons only)
Pan Offset Calibration for Pan-Offset
Tilt Offset Calibration for Tilt-Offset

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 11
Clear
EEPROM Erase EEPROM memory
Diagnose Diagnose functions
Pos Feed
Pan Delta Internal data and function diagnose
Anz Ti0
-
Int-Err Internal data and function diagnose
PFC
Voltage Show the present PFC voltage
Pos Feed
Tilt Delta Internal data and function diagnose
Temperature
Arm Indicates the arm temperature
Temperature
Head Indicates the head temperature
PAN/TILT
Motor Power
Switches power for Pan/Tilt ON or OFF
(disconnected from power)
PAN/TILT
Silent Mode Reduces maximum speed for Pan/Tilt
DMX Hold Defines whether the last DMX signal is stored or the
lamp is switched OFF in case of signal interruption
Position
Feedback Automatically position feedback (correction) for
Pan/Tilt movement
Set DMX
Image Stores the Scene currently sent to the unit

 
DOWN - UP 
 

DMX input
Monitor Indicates the presently received DMX signal per DMX
channel
Pan Instantaneous value for Pan
Speed
Movements Speed adjustment for Pan/Tilt movements see
item below
Pan/Tilt
Movements Instantaneous value for Pan/Tilt movements
Special Instantaneous value for Special
Dimmer Instantaneous value for Dimmer
Shutter Instantaneous value for Shutter
1/3 White Current value for 1/3 White, 30x LEDs (either warm-
or cold white depending on the system)
2/3 White Current value for 2/3 White, 60x LEDs (either warm-
or cold white depending on the system)
Zoom Instantaneous value for Zoom
Tilt Instantaneous value for Tilt movement
Self test Performs an automatic self-test
Live time Indicates the overall operation time of the system
Display Adjust the display
Blackout ON/OFF: Display OFF
Select DMX
Mode Please select the desired DMX Mode
Compressed
Fixture works in "Compressed" mode see also
sectiion 4
Normal Fixture works in "Normal" mode see also section 4

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 12
High
-
Resolution Fixture works in "High Resolution" mode see also
section 4
Reverse Pan
Selects Inverse Pan, on or off
Reverse Tilt SelectsInverse Tilt on or off
Reset RESET all functions
4 DMX Channel Selection (DMX Protocol)
Normal-Mode 12 DMX channels
Channel
Function
Time and Value
DMX
HEX
%
1) PAN
-
coarse 0 .. 660° 3,2 s 0..255 00..FF 0..100
2)
PAN
-
fine
High- Pos ... High- Pos + 2,6°(16 Bit) 0..255 00..FF 0..100
3) Tilt
-
coarse 0 .. 300° 1,5 s 0..255 00..FF 0..100
4) Tilt
-
fine
High- Pos … High- Pos + 1,2°(16 Bit) 0..255 00..FF 0..100
5) White 2/3
White Color, 60x LEDs (either warm-
or cold white depending on the system)
0 - 100% 0..255 00..FF 0..100
6) White 1/3
White Color, 30x LEDs (either warm-
or cold white depending on the system)
0 - 100% 0..255 00..FF 0..100
7) Shutter
Shutter closed 0..15 00..0F 0..5,5
Random Pulse effect slow - fast 16..47 10..2F 6..18,5
Up-dimming then Shutter closing
(random patterns) slow - fast 48..79 30..4F 19..31
Shutter open then down-dimming
(random patterns) slow - fast 80..111 50..6F 32..43
Up-dimming then down-dimming
(random patterns) slow - fast 112..143
70..8F 44..56
Strobe effect pause 5s .. 1s 144..199
A0..C7
57..77
Strobe effect, slow - fast 1 Hz .. 10 Hz 200..239
C8..EF
78..94
Shutter open 240..255
F0..FF 95..100
8) Dimmer
Dimmer 0 - 100% 0..255 0..FF 0..100
9) Special
Fan min. as long as temp. < 90°C 224..229
E0..E5 88..89,5
RESET (Normal Mode)
250..255
FA..FF
98..100
10) Move
-
No movement
0 00 0
ment
Movement
Size
Phase
PAN 1 0° 01..01 01..01 0,5
1 90° 02..03 02..03 1,0
1 180° 04..05 04..05 1,7
1 270° 06..07 06..07 2,5
PAN 2 0° 08..09 08..09 3,3
2 90° 10..11 0A..0B 4,1
2 180° 12..13 0C..0D
4,9
2 270° 14..15 0E..0F 5,7
PAN 3 0° 16..17 11..11 6,5
3 90° 18..19 12..13 7,3
3 180° 20..21 14..15 8,0
3 270° 22..23 16..17 8,8
PAN 4 0° 24..25 18..19 9,6
4 90° 26..27 1A..1B 10,4

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 13
Channel
Function
Time and Value
DMX
HEX
%
4 180° 28..29 1C..1D
11,2
4 270° 30..31 1E..1F 12
TILT size / phase see also PAN 32..63 20..3F 13..25
PAN / TILT size / phase see also PAN 64..95 40..5F 26..37
PAN / TILT (inverse) size / phase see also PAN 96..127 60..7F 38..50
Circle size / phase see also PAN 128..159
80..9F 51..62
Circle (inverse) size / phase see also PAN 160..191
A0..BF
63..75
Lying eight size / phase see also PAN 192..223
C0..DF
76..87
Random movement size see also PAN 224..255
E0..FF 88..100
11) Speed
Pan/Tilt relative movement 0..1 00..01 0..0,5
Pan/Tilt
Pan/Tilt slow – fast
Use this channel 14) also for the speed
of the movements (channel 13).
Pan Min. 660°= 200s
Pan Max. 660°= 3,2s
Tilt Min. 300°= 110s
Tilt Max. 300°= 1,5s
2..255 02..FF 1..100
12) Zoom
Spot - Flood 10°- 26° 0…255 00…FF
0…100
Compress-Mode 9 DMX channels
Channel
Function
Time and Value
DMX
HEX
%
1) PAN
-
coarse 0 .. 660° 3,2 s 0..255 00..FF 0..100
2) PAN
-
fine
High- Pos ... High- Pos + 2,6°(16 Bit) 0..255 00..FF 0..100
3) Tilt
-
coarse 0 .. 300° 1,5 s 0..255 00..FF 0..100
4) Tilt
-
fine
High- Pos … High- Pos + 1,2°(16 Bit) 0..255 00..FF 0..100
5) White 2/3
White Color, 60x LEDs (either warm-
or cold white depending on the system)
0 - 100% 0..255 00..FF 0..100
6) White 1/3
White Color, 30x LEDs (either warm-
or cold white depending on the system)
0 - 100% 0..255 00..FF 0..100
7) Shutter
Shutter closed 0..15 00..0F 0..5,5
Random Pulse effect slow - fast 16..47 10..2F 6..18,5
Up-dimming then Shutter closing
(random patterns) slow - fast 48..79 30..4F 19..31,5
Shutter open then down-dimming
(random patterns) slow - fast 80..111 50..6F 32..43
Up-dimming then down-dimming
(random patterns) slow - fast 112..143
70..8F 44..56
Strobe effect pause 5s .. 1s 144..199
A0..C7
57..77
Strobe effect, slow - fast 1 Hz .. 10 Hz 200..239
C8..EF
78..94
Shutter open 240...249
F0..F9 95..97,5
RESET
Min. 3 Sec.
250
FA
98
Shutter open 251..255
FB..FF
99..100
8) Dimmer
Dimmer 0 - 100% 0..255 0..FF 0..100
9) Zoom
Spot - Flood 10°- 26° 0…255 00…FF
0…100

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 14
High Resolution (Extended) -Mode 12 DMX Channels
Channel
Function
Time and Value
DMX
HEX
%
1) PAN
-
coarse 0 .. 660° 3,2 s 0..255 00..FF 0..100
2) PAN
-
fine
High- Pos ... High- Pos + 2,6°(16 Bit) 0..255 00..FF 0..100
3) Tilt
-
coarse 0 .. 300° 1,5 s 0..255 00..FF 0..100
4) Tilt
-
fine
High- Pos … High- Pos + 1,2°(16 Bit) 0..255 00..FF 0..100
5) White 2/3
coarse White Color, 60x LEDs (either warm-
or cold white depending on the system)
0 - 100% 0..255 00..FF 0..100
6) White 2/3
fine White - fine/low 0..255 00..FF 0..100
7) White 1/3
coarse White Color, 30x LEDs (either warm-
or cold white depending on the
system)
0 - 100% 0..255 00..FF 0..100
8) White 1/3
fine White - fine/low 0..255 00..FF 0..100
9) Shutter
Shutter closed 0..15 00..0F 0..5,5
Random Pulse effect slow - fast 16..47 10..2F 6..18,5
Up-dimming then Shutter closing
(random patterns) slow - fast 48..79 30..4F 19..31,5
Shutter open then down-dimming
(random patterns) slow - fast 80..111 50..6F 32..43
Up-dimming then down-dimming
(random patterns) slow - fast 112..143
70..8F 44..56
Strobe effect pause 5s to 1s 144..199
A0..C7
57..77
Strobe effect, slow - fast 1 Hz .. 10 Hz 200..239
C8..EF
78..94
Shutter open 240...249
F0..F9 95..97,5
RESET
Min. 3 Sec.
250
FA
98
Shutter open 251..255
FB..FF
99..100
10) Dimmer
-
coarse Dimmer 0 - 100% 0..255 0..FF 0..100
11) Dimmer
-
fine Dimmer - Low 0..255 0..FF 0..100
12) Zoom
Spot - Flood 10°- 26° 0…255 00…FF
0…100
Locking and unlocking the Control Panel
You can lock and unlock the control panel by pressing the menu keys MODE & ENTER & UP at the
same time.
Additional shortcut features when switching on the fixture
a) 1200Hz Mode (Hold down the UP- button during power ON)
After switching on, the fixture the LEDs will be operated with a Pulse Width Modulation
(PWM) of 1200Hz.
In addition, all standard settings will be loaded (DMX start address [001], Normal Mode).
b) 600Hz Mode (Hold down the DOWN- button during power ON)
After switching on, the fixture the LEDs will be operated with a Pulse Width Modulation
(PWM) of 600Hz.

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 15
In addition, all standard settings will be loaded (DMX start address [001], Normal Mode).
c) Standard Mode (Hold down the ENTER- button during power ON)
After switching on the fixture, the DMX start address will be set to [001]. All other settings
will remain unchanged.
Additional Display Indications
As a default you'll find the following additional information in the first row of the LCD display:
XX/X/XX
06 = 600Hz / 12 = 1200Hz
N = Normal Mode / C = Compressed Mode / H = High Res. Mode
N = Tilt normal / I = Tilt inverted
N = Pan normal / I = Pan inverted
5
5 Maintaining and Cleaning the I IM MP PR RE ES SS SI IO ON N
The I IM MP PR RE ES SS SI IO ON Nis a low maintenance fixture. It is only necessary to clean the air
inlets and outlets as well as the optical LED lenses from time to time. For safe
operation it is absolutely essential that the fixture is kept clean and that dust, dirt and
smoke-fluid residues must not build up on, or within, the fixture. If they do, the
fixture's light output will be significantly reduced, and damages to the fixture may
occur. Regular cleaning will not only ensure the maximum light output, but will also
allow the fixture to operate reliably throughout its entire life.
A soft lint-free cloth moistened with any good glass cleaning fluid is recom-
mended. Under no circumstances should alcohol or solvents be used to clean
the fixture or its lenses!
5.1 Safety regulations
•Disconnect the fixture from the mains power before commencing any
maintenance work!
•Wait minimum 15 minutes after removing the power to allow the fixture to
cool down.
5.2 Maintenance Intervals (rule-of-thumb)
The maintenance schedule of any given fixture depends on the installation
environment. Hence no specific guidelines can be given. The cleaning intervals
given below are suggestions, based on practical experience. We suggest that
you start with these and develop your own maintenance schedule as you see
the fixtures performance in your specific environment.

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 16
Maintenance Task Interval How
Cleaning of LED lenses and
optical system weekly soft brush /lint-free cloth
Cleaning of fans and air channels monthly vacuum cleaner, airbrush, etc.
Attention:
•Never let optical parts come into contact with oil or fat.
•Before running the fixture wait until all parts are touch dry.
•Never touch lenses with bare fingers.
6 Technical Specifications
Power supply
Power consumption 350 VA (Watt)
Power Input ~100-240 V AC, 50-60 Hz (wide range input)
Fuse protection Micro-fuse 5x20 mm, T5A
Operational Parameters
Max. Ambient
Temperature 45°C (integrated overheating switch)
Mounting Position Any (see chapter mounting)
Lighting System - Additive Color mixing
LED Type 120x Rebel High-power- LEDs
Lifetime 50.000 h


CCW version: 78x LEDs cold white, 42x LEDs warm white


WWC version: 42x LEDs cold white, 78x LEDs warm white
Optical System
High efficient Collimator cluster
Fixed optical mount with an angel of reflected beam between 10°- 26°
Shutter / Dimmer (8/16 Bit)
Strobe- Effect with variable speed between 1 - 10 flashes per second, Random-Strobe, Pulse-
Effects
Continuous Dimmer 0 - 100%
DMX Control
Standard USITT DMX-512, 3 pole XLR; [+] = Pin 3 [-] = Pin 2 [Ground] = Pin 1.
Die DMX- Addressing starts at the DMX channel [001].
Pan / Tilt (8/16 Bit)
Pan- movement 660°in min. 3,2 seconds (Position Feedback)
Tilt- movement 300°in min. 1,5 seconds (Position Feedback)
Weights and Measures
Width of the base
340 mm
Length of the base
145 mm
height (head vertical)
370 mm
Weight (net)
8.0 kg

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 17
Index
A
Angel of reflected beam.................................16
B
BGV C1............................................................6
C
CCW version ..................................................2
Circumference...............................................15
Cleaning.........................................................15
Cold white LEDs..............................................2
Compress-Mode ....................................13, 14
D
Description of Device.......................................4
DIN VDE 0711-217..........................................6
DMX...............................................................10
E
e-mail...............................................................1
Enter-key.......................................................10
Eyelets.............................................................7
H
Half-couplers (clamps).....................................8
I
Instruction Version...........................................1
Internet.............................................................1
L
LED Class 2M.................................................5
M
Maintenance..................................................15
Menu Field.....................................................10
Micro-fuse........................................................9
Mode-key.......................................................10
Mounting.........................................................6
Mounting in hanging Position ..........................8
Mounting in sidewise Position......................... 8
Mounting on the Floor..................................... 7
N
Normal-Mode............................................... 12
O
Optical parts................................................16
P
Pan- Movement.............................................16
Power Supply ................................................ 9
Powercon........................................................ 4
R
Rebel High-power- LEDs..............................16
S
Safety distance ............................................... 6
Safety Instructions .......................................... 5
Secure the Device......................................... 9
Software Version............................................. 1
T
Technical Specifications............................16
Tilt- Movement..............................................16
U
Up/Down-keys..............................................10
V
VBG 70 ........................................................... 6
W
Warm white LEDs ........................................... 2
Warranty claims .............................................. 6
Weights and Measures.................................16
WWC version................................................. 2

W
W
WW
W
WC
C
C &
&
& C
C
CC
C
CW
W
W
GLP German Light Products GmbH (Instruction version 1.14) / from software version 1.00/03) 18
