GLP X4 atom PSU 12 User manual

from software version: v1.21
[e-mail]
www.glp.de
Instruction Manual
PSU12

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.212
Contents
1Description of Device..................................................................................................... 3
2Safety Instructions ........................................................................................................... 4
3Mounting.......................................................................................................................... 5
3.1 Operating on the floor, on a table or in a Rack................................................. 5
3.2 Mounting in a hanging or sideways position ...................................................... 5
3.3 Securing the Fixture................................................................................................ 6
4Connections .................................................................................................................... 7
4.1 Power Supply .......................................................................................................... 7
4.2 DMX.......................................................................................................................... 8
4.3 Output to X4 ATOM Head ..................................................................................... 8
5The Menu Field ................................................................................................................ 8
6DMX Channel Selection (DMX Protocol) ................................................................... 11
6.1 Normal Mode (norm) 110 DMX Channels: ........................................................ 11
7Maintaining and Cleaning .......................................................................................... 20
7.1 Safety regulations................................................................................................. 20
7.2 Maintenance and Interval (rule-of-thumb) ...................................................... 20
8Technical Specifications: ............................................................................................. 21
9Dimensions..................................................................................................................... 22

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.213

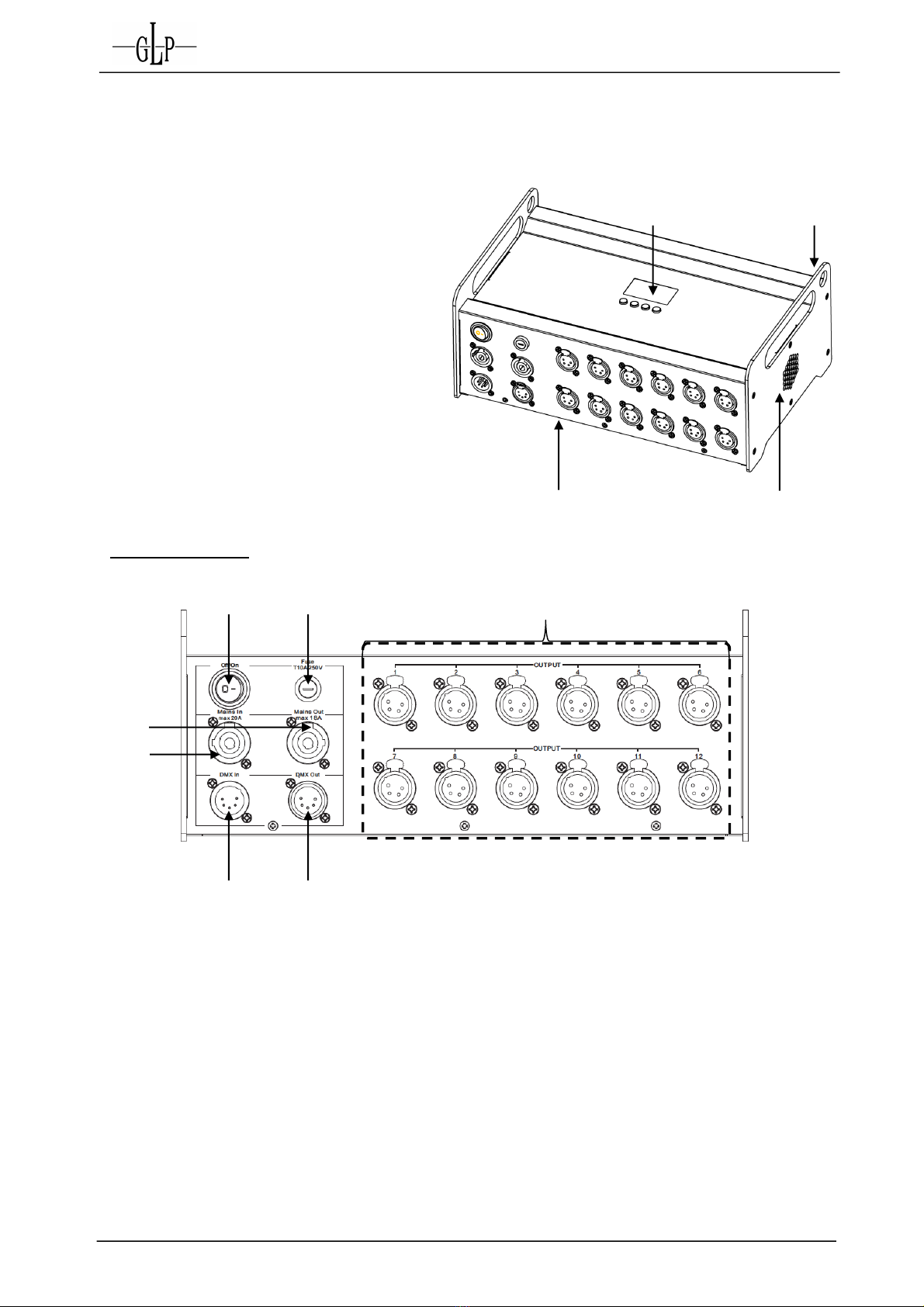

1Description of Device
Connector Panel
1. LCD-Display / Menu (data entry)
2. Safety wire attachment point (2x)
3. Fan in/outlet (2x)
4. Connector panel (see below)
1
2
3
4
5
6
7
8
9
10
11
5. Mains switch (on / off)
6. Micro-fuse 5 x 20mm, T5A @ 250V
7. 12 x Output to Atom head (XLR 4pin)
8. Mains Output (white powerCON)
9. Mains Input (blue powerCON)
10. DMX Input (XLR 5pin)
11. DMX Output (XLR 5pin)

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.214
2Safety Instructions
1. Before powering on the fixture, make sure that the fixtures fans and air
inlets are clean and not blocked.
2. The fixture doesn’t contain any user serviceable parts. Opening the
fixture will void all warranties.
3. It is necessary to wait at least 15 minutes after disconnecting the mains
power before handling the fixture. Pay attention to possible hot parts
of the fixture.
4. To ensure safe operation, follow also the Installation guide described
in the chapter below. Operating the X4 ATOM PSU 12 without suitable
safety aids like Safety cables or clamps/hooks can increase the risk of
an accident and must be avoided.
5. Repair, maintenance, and installation work shall be done by qualified
or GLP certified staff only. You need to pay attention to the common
rules of technology that are not explicitly mentioned in this manual.
6. Use only original GLP spare parts. Any structural modification of the
system will terminate all warranty claims.
7. Please keep this instruction manual for future reference.
8. Should you have any questions about the operation of your fixture
then please contact your local GLP office, or their authorized
distributor, a list of which can be found at www.glp.de.
The
X4 ATOM PSU 12 is a High-Tech Product.
To guarantee a smooth operation, it is necessary to respect
the following rules. The manufacturer of this device will not
take responsibility for damages through any disregard of the
information provided in this manual. Warranty claims also
will be voided in the case that the fixture housing is opened.
Never look directly into the beam of light or into the LED.
Attention: LED Class 2M can cause injuries of your eyes even
without optical instruments in front of them or within a
distance of less than 0.5m and short exposure time.
Hence: Avoid direct radiation into your eyes!

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.215
3Mounting
The X4 ATOM PSU 12 is fully operational whether it hangs or is mounted to
the wall. It can also be operated in a rack or standing on the floor or table.
Keep a safety distance of min. 0.5 m towards any easily inflammable
materials (decoration etc.).
Pay attention to the regulations of: BGV C1 (former VBG 70)
and DIN VDE 0711-217.
The installation shall be done by qualified staff only.
For the various mounting positions of the X4 ATOM PSU 12 (sideways or
hanging) different accessories kits are available. Through this a safe and firm
installation is assured. You'll find dedicated connectors on the top side of
the fixture which should be used.
3.1 Operating on the floor, on a table or in a Rack
The X4 ATOM PSU 12 can directly placed on the floor, a table or inside a
rack. An additional securing is usually not required. Please pay attention to
an even and gripping surface and keep at least 10cm space to each side
for ventilation.
Attention: Make sure not to not block any of the two fan in/outlets on either
side of the fixture.
3.2 Mounting in a hanging or sideways position
To operate the X4 ATOM PSU 12 in a hanging position an omega bracket
can be mounted directly to the top side of the PSU using the two Camlock
connectors.
It is fixed to the fixture with fasteners called Camlock quick-release
connectors. Insert the two fasteners and turn each 90° to lock them. Do the
opposite to release them again.
Alternatively a half-coupler (clamp or hook) can be mounted directly to the
top side of the PSU using the M10 x 11mm thread bolt.
Attention: Never use a longer bolt than 11mm as this may damage the
interior of the fixture.

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.216

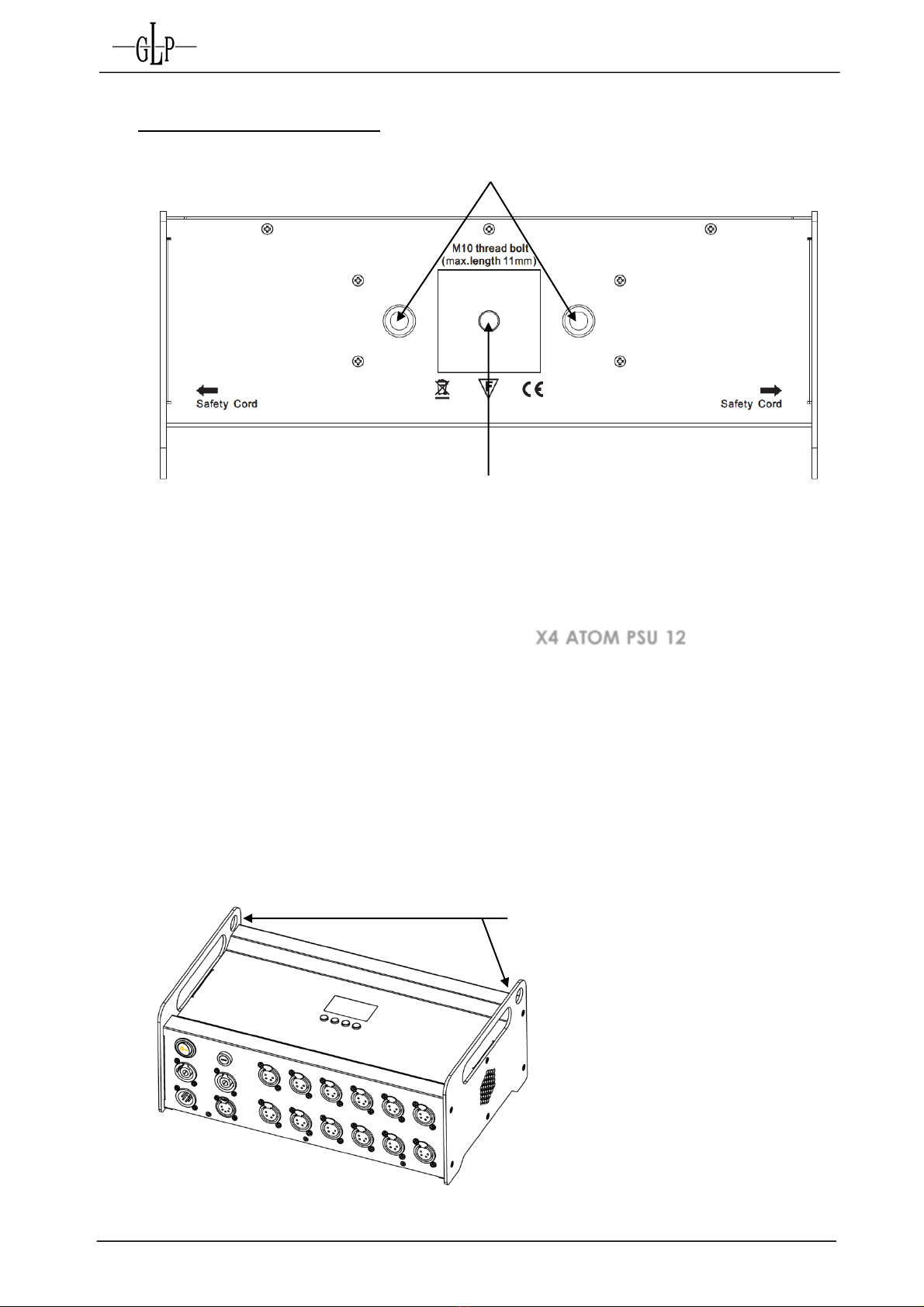

Top side view of the fixture:
3.3 Securing the Fixture
Regardless of the mounting method of the X4 ATOM PSU 12 you'll have to
use a stipulated safety wire.
Attach the safety wire through the attachment point shown below and
connect it to the primary support structure.
Pay attention to a safe and proper fastening. The safety cable must comply
with BGI 810-3 (EN 60598-2-17 Section 17.6.6) and be capable of bearing a
static suspended load that is ten times the weight of the fixture and all
installed accessories.
2 x camlock
1 x M10 x 11mm
thread bolt
2 x safety attachment point

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.217
4Connections
4.1 Power Supply
~90-240 Volt AC, 50-60 Hz, powerCON AC connector
Connected load max. 350 VA (Watt) / 25VA (Watt) per Atom head
<=> T5A (micro-fuse 5x20mm)
Please see printing on the case for the right electronic supply!
Always disconnect from the mains supply for changing the fuse and use
only the above described micro-fuse type.
NEUTRIK® powerCON
The X4 ATOM PSU 12 is fitted with NEUTRIK® powerCON locking 3 conductor
AC connectors.
The grey connector must be used to draw AC mains power from the fixtures`
throughput sockets and the blue connectors must be used to supply power
at the fixtures` power input socket.
The total number of fixtures in one interconnected chain depends on your
local AC mains voltage but you must never connect more than a total load
of 20A to stay within the limits of the connector. The total load includes all
connected fixtures including the first one in the chain.
Note: The maximum allowed total -
load is 20A including the first fixture
in one interconnected daisy chain.

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.218
4.2 DMX
USITT DMX-512 Standard input/output in XLR 5-pin connectors.
Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+] / Pin 4 & 5 N.C.
The DMX- Addressing starts at the DMX- Address [001].
4.3 Output to X4 ATOM Head
12 x 4-pin XLR connectors for signal and power to Atom Head only.
Pin 1 = [Ground] / Pin 2 = [Data +] / Pin 3 = [Data -] / Pin 4 = [V+ 24V]
Do not exceed 60m / 200ft. cable length for any output to the X4 ATOM
head.
Attention: Do only connect one (1) GLP X4 ATOM head per output. Never
connect any other equipment to this output as this may damage the PSU
and/or the connected fixture(s).
5The Menu Field
ß
DOWN -UP
à
ß
MODE - ENTER
à
Level1
Level 2
Level 3
Level 4
Remark
DMX Start
Address 001
Set the DMX start address
Special
Manual
DMX
Manual control of all fixture functions
Master
Intensity
Manual control for Master Intensity
You’ll find the control board on the front side of the X4 ATOM
PSU 12.
It allows you to make all necessary adjustments of the fixture.
With the Mode-key you get into the main menu. Afterwards you
can Navigate through the menu with the Up/Down-keys. Push
the Enter-key to get in the next menu level or to confirm your
settings. Make them and set functions ON/OFF with the
Up/Down-keys. Confirm and save it with the Enter-key (the
display shows OK). Push the Mode-key to cancel the entry and
go back to the main menu.

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.219
Fixture
Select fixture/output
Zoom
Manual control for zoom
Speed
Movements
N/A
Special
Manual control for Special functions
White
Temperature
Manual control for Color temperature
Dimmer
Manual control for Dimmer
Shutter
Manual control for Shutter
White
Manual control for White
Blue
Manual control for blue
Green
Manual control for green
Red
Manual control for red
Color Wheel
Manual control for the color wheel
Adjust
Key code
xxxx
Use the code for entering the calibration
menu (for authorized persons only)
Display
Contrast
Adjustment for the Display contrast
PWM - Frequ.
Adj.
Changes PMW frequency
Max Zoom
adjust
Calibration of Zoom-offset
LED adjust
White
adjust red
Adjust intensity for red channel
White
adjust blue
Adjust intensity for blue channel
White
adjust
green
Adjust intensity for green channel
Clear
EEPROM
Erase EEPROM memory
BL-Diagnose
Diagnose of Boot-loader
Diagnose
Diagnose fixture functions
Default full
feature
Reset all settings to factory defaults
ß
DOWN -UP
à
Display
Black out
Auto switch-off display illumination after 10
seconds
DMX hold
Holds last DMX signal in case of signal loss
DMX Image
Set image if
DMX off
Activates a stored scene if DMX is off
Save image
in memory
Stores the scene currently sent to the unit
Set dimming
mode
Linear Dimming / Extr. soft dimming / Soft
dimming
DMX input
Monitor
Indicates the presently received DMX signal
per DMX channel

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.2110
Master
Intensity
Instantaneous value for Master Intensity
Fixture
Instantaneous value for Fixture Sel.
Zoom
Instantaneous value for Zoom
Speed
Movements
N/A
Special
Instantaneous value for Special
White
Temperature
Adjustment of the color temperature
Dimmer
Instantaneous value for Dimmer
Shutter
Instantaneous value for Shutter
White
Instantaneous value for White
Blue
Instantaneous value for Blue
Green
Instantaneous value for Green
Red
Instantaneous value for Red
Color Wheel
Instantaneous value for color wheel
Self test
program
Initiates a self-test program
Live time
On-time of fixture
Silent Mode
Switch Silent Mode ON/OFF
Reset
RESET and new calibration for all functions
!
!
Additional Display Indications
As a default you'll find the following additional information in the first row of the LCD
display:
Vxx/xx/xx (e.g. V1.22/08/00)
00 = N/A
08 = Atom head SW version
1.22 Main CPU version

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.2111
6DMX Channel Selection (DMX Protocol)
6.1 Normal Mode (norm) 110 DMX Channels:
Note: We suggest to patch the Atom PSU as one 2 channel fixture
and each connected Atom head as one 9 channel fixture.
Channel
Function
Time and Value
%
DMX
PSU / Master Control
1
Master Intensity
Intensity of all connected Atom heads
0 - 100%
0..100
0..255
2
Special
No function
0..19
0..50
for all fixtures
Activate silent mode
> 1 sec
20..25
51..64
No function
26..39
65..99
Change PWM Frequency (582hz - 618hz)
> 1 sec
40..78
100..200
Control all (copy output 1 to all outputs)
> 0.5 sec
79..97
201..247
Reset all fixtures
> 0.5 sec
98..100
248..254
Output 1
3
Intensity
Intensity
0 - 100%
0..100
0..255
4
Shutter
Shutter closed
0..5
0..15
Random strobe
random / slow - fast
6..18
16..47
Ramp up
random / slow - fast
19..31
48..79
Ramp down
random / slow - fast
32..43
80..111
Pulse
random / slow - fast
44..62
112..143
Strobe with b/o pause
random / slow - fast
63..77
144..199
Strobe - Slow to Fast
random / slow - fast
78..98
200..239
Shutter Open
95..100
239..255
5
Color (fixed)
Colors adjustable via RGB
0..2
0..7
Color 01 - Red 1)
3..5
8..15
Color 02 - Amber 1)
6..8
16..23
Color 03 - Warm Yellow 1)
9..12
24..31
Color 04 - Yellow 1)
13..15
32..39
Color 05 - Green 1)
16..18
40..47
Color 06 - Turquoise 1)
19..21
48..55
Color 07 - Cyan 1)
22..24
56..63
Color 08 - Blue 1)
25..27
64..71
Color 09 - Lavender 1)
28..30
72..79
Color 10 - Malve 1)
31..34
80..87
Color 11 - Magenta 1)
35..37
88..95
Color 12 - Pink 1)
38..40
96..103
White - CTO
3200K
41..43
104..111
White
5600K
44..46
112..119

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.2112
White - CTB
7200K
47..49
120..127
Rainbow Effect Stop 2)
50
128
Rainbow Effect 3)
slow - fast
51..88
129..223
Random colors
slow - fast
89..100
224..255
6
Red
Color mixing system - Red
0 - 100%
0..100
0..255
7
Green
Color mixing system - Green
0 - 100%
0..100
0..255
8
Blue
Color mixing system - Blue
0 - 100%
0..100
0..255
9
White
Color mixing system - White
0 - 100%
0..100
0..255
10
Zoom
Wide (flood) - narrow (spot)
34° - 3.5°
0..100
0..255
11
CTO
No function
Applicable for
0..3
0..7
Variable CTO (10,000K - 2,700K)
all colors
4..100
8..255
Output 2
12
Intensity
Intensity
0 - 100%
0..100
0..255
13
Shutter
Shutter closed
0..5
0..15
Random strobe
random / slow - fast
6..18
16..47
Ramp up
random / slow - fast
19..31
48..79
Ramp down
random / slow - fast
32..43
80..111
Pulse
random / slow - fast
44..62
112..143
Strobe with b/o pause
random / slow - fast
63..77
144..199
Strobe - Slow to Fast
random / slow - fast
78..98
200..239
Shutter Open
95..100
239..255
14
Color (fixed)
Colors adjustable via RGB
0..2
0..7
Color 01 - Red 1)
3..5
8..15
Color 02 - Amber 1)
6..8
16..23
Color 03 - Warm Yellow 1)
9..12
24..31
Color 04 - Yellow 1)
13..15
32..39
Color 05 - Green 1)
16..18
40..47
Color 06 - Turquoise 1)
19..21
48..55
Color 07 - Cyan 1)
22..24
56..63
Color 08 - Blue 1)
25..27
64..71
Color 09 - Lavender 1)
28..30
72..79
Color 10 - Malve 1)
31..34
80..87
Color 11 - Magenta 1)
35..37
88..95
Color 12 - Pink 1)
38..40
96..103
White - CTO
3200K
41..43
104..111
White
5600K
44..46
112..119
White - CTB
7200K
47..49
120..127
Rainbow Effect Stop 2)
50
128
Rainbow Effect 3)
slow - fast
51..88
129..223
Random colors
slow - fast
89..100
224..255
15
Red
Color mixing system - Red
0 - 100%
0..100
0..255
16
Green
Color mixing system - Green
0 - 100%
0..100
0..255
17
Blue
Color mixing system - Blue
0 - 100%
0..100
0..255
18
White
Color mixing system - White
0 - 100%
0..100
0..255
19
Zoom
Wide (flood) - narrow (spot)
34° - 3.5°
0..100
0..255
20
CTO
No function
Applicable for
0..3
0..7
Variable CTO (10,000K - 2,700K)
all colors
4..100
8..255

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.2113
Output 3
21
Intensity
Intensity
0 - 100%
0..100
0..255
22
Shutter
Shutter closed
0..5
0..15
Random strobe
random / slow - fast
6..18
16..47
Ramp up
random / slow - fast
19..31
48..79
Ramp down
random / slow - fast
32..43
80..111
Pulse
random / slow - fast
44..62
112..143
Strobe with b/o pause
random / slow - fast
63..77
144..199
Strobe - Slow to Fast
random / slow - fast
78..98
200..239
Shutter Open
95..100
239..255
23
Color (fixed)
Colors adjustable via RGB
0..2
0..7
Color 01 - Red 1)
3..5
8..15
Color 02 - Amber 1)
6..8
16..23
Color 03 - Warm Yellow 1)
9..12
24..31
Color 04 - Yellow 1)
13..15
32..39
Color 05 - Green 1)
16..18
40..47
Color 06 - Turquoise 1)
19..21
48..55
Color 07 - Cyan 1)
22..24
56..63
Color 08 - Blue 1)
25..27
64..71
Color 09 - Lavender 1)
28..30
72..79
Color 10 - Malve 1)
31..34
80..87
Color 11 - Magenta 1)
35..37
88..95
Color 12 - Pink 1)
38..40
96..103
White - CTO
3200K
41..43
104..111
White
5600K
44..46
112..119
White - CTB
7200K
47..49
120..127
Rainbow Effect Stop 2)
50
128
Rainbow Effect 3)
slow - fast
51..88
129..223
Random colors
slow - fast
89..100
224..255
24
Red
Color mixing system - Red
0 - 100%
0..100
0..255
25
Green
Color mixing system - Green
0 - 100%
0..100
0..255
26
Blue
Color mixing system - Blue
0 - 100%
0..100
0..255
27
White
Color mixing system - White
0 - 100%
0..100
0..255
28
Zoom
Wide (flood) - narrow (spot)
34° - 3.5°
0..100
0..255
29
CTO
No function
Applicable for
0..3
0..7
Variable CTO (10,000K - 2,700K)
all colors
4..100
8..255
Output 4
30
Intensity
Intensity
0 - 100%
0..100
0..255
31
Shutter
Shutter closed
0..5
0..15
Random strobe
random / slow - fast
6..18
16..47
Ramp up
random / slow - fast
19..31
48..79
Ramp down
random / slow - fast
32..43
80..111
Pulse
random / slow - fast
44..62
112..143
Strobe with b/o pause
random / slow - fast
63..77
144..199
Strobe - Slow to Fast
random / slow - fast
78..98
200..239
Shutter Open
95..100
239..255
32
Color (fixed)
Colors adjustable via RGB
0..2
0..7
Color 01 - Red 1)
3..5
8..15
Color 02 - Amber 1)
6..8
16..23
Color 03 - Warm Yellow 1)
9..12
24..31
Color 04 - Yellow 1)
13..15
32..39
Color 05 - Green 1)
16..18
40..47
Color 06 - Turquoise 1)
19..21
48..55
Color 07 - Cyan 1)
22..24
56..63
Color 08 - Blue 1)
25..27
64..71
Color 09 - Lavender 1)
28..30
72..79

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.2114
Color 10 - Malve 1)
31..34
80..87
Color 11 - Magenta 1)
35..37
88..95
Color 12 - Pink 1)
38..40
96..103
White - CTO
3200K
41..43
104..111
White
5600K
44..46
112..119
White - CTB
7200K
47..49
120..127
Rainbow Effect Stop 2)
50
128
Rainbow Effect 3)
slow - fast
51..88
129..223
Random colors
slow - fast
89..100
224..255
33
Red
Color mixing system - Red
0 - 100%
0..100
0..255
34
Green
Color mixing system - Green
0 - 100%
0..100
0..255
35
Blue
Color mixing system - Blue
0 - 100%
0..100
0..255
36
White
Color mixing system - White
0 - 100%
0..100
0..255
37
Zoom
Wide (flood) - narrow (spot)
34° - 3.5°
0..100
0..255
38
CTO
No function
Applicable for
0..3
0..7
Variable CTO (10,000K - 2,700K)
all colors
4..100
8..255
Output 5
39
Intensity
Intensity
0 - 100%
0..100
0..255
40
Shutter
Shutter closed
0..5
0..15
Random strobe
random / slow - fast
6..18
16..47
Ramp up
random / slow - fast
19..31
48..79
Ramp down
random / slow - fast
32..43
80..111
Pulse
random / slow - fast
44..62
112..143
Strobe with b/o pause
random / slow - fast
63..77
144..199
Strobe - Slow to Fast
random / slow - fast
78..98
200..239
Shutter Open
95..100
239..255
41
Color (fixed)
Colors adjustable via RGB
0..2
0..7
Color 01 - Red 1)
3..5
8..15
Color 02 - Amber 1)
6..8
16..23
Color 03 - Warm Yellow 1)
9..12
24..31
Color 04 - Yellow 1)
13..15
32..39
Color 05 - Green 1)
16..18
40..47
Color 06 - Turquoise 1)
19..21
48..55
Color 07 - Cyan 1)
22..24
56..63
Color 08 - Blue 1)
25..27
64..71
Color 09 - Lavender 1)
28..30
72..79
Color 10 - Malve 1)
31..34
80..87
Color 11 - Magenta 1)
35..37
88..95
Color 12 - Pink 1)
38..40
96..103
White - CTO
3200K
41..43
104..111
White
5600K
44..46
112..119
White - CTB
7200K
47..49
120..127
Rainbow Effect Stop 2)
50
128
Rainbow Effect 3)
slow - fast
51..88
129..223
Random colors
slow - fast
89..100
224..255
41
Red
Color mixing system - Red
0 - 100%
0..100
0..255
43
Green
Color mixing system - Green
0 - 100%
0..100
0..255
44
Blue
Color mixing system - Blue
0 - 100%
0..100
0..255
45
White
Color mixing system - White
0 - 100%
0..100
0..255
46
Zoom
Wide (flood) - narrow (spot)
34° - 3.5°
0..100
0..255
47
CTO
No function
Applicable for
0..3
0..7
Variable CTO (10,000K - 2,700K)
all colors
4..100
8..255
Output 6
48
Intensity
Intensity
0 - 100%
0..100
0..255
49
Shutter
Shutter closed
0..5
0..15

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.2115
Random strobe
random / slow - fast
6..18
16..47
Ramp up
random / slow - fast
19..31
48..79
Ramp down
random / slow - fast
32..43
80..111
Pulse
random / slow - fast
44..62
112..143
Strobe with b/o pause
random / slow - fast
63..77
144..199
Strobe - Slow to Fast
random / slow - fast
78..98
200..239
Shutter Open
95..100
239..255
50
Color (fixed)
Colors adjustable via RGB
0..2
0..7
Color 01 - Red 1)
3..5
8..15
Color 02 - Amber 1)
6..8
16..23
Color 03 - Warm Yellow 1)
9..12
24..31
Color 04 - Yellow 1)
13..15
32..39
Color 05 - Green 1)
16..18
40..47
Color 06 - Turquoise 1)
19..21
48..55
Color 07 - Cyan 1)
22..24
56..63
Color 08 - Blue 1)
25..27
64..71
Color 09 - Lavender 1)
28..30
72..79
Color 10 - Malve 1)
31..34
80..87
Color 11 - Magenta 1)
35..37
88..95
Color 12 - Pink 1)
38..40
96..103
White - CTO
3200K
41..43
104..111
White
5600K
44..46
112..119
White - CTB
7200K
47..49
120..127
Rainbow Effect Stop 2)
50
128
Rainbow Effect 3)
slow - fast
51..88
129..223
Random colors
slow - fast
89..100
224..255
51
Red
Color mixing system - Red
0 - 100%
0..100
0..255
52
Green
Color mixing system - Green
0 - 100%
0..100
0..255
53
Blue
Color mixing system - Blue
0 - 100%
0..100
0..255
54
White
Color mixing system - White
0 - 100%
0..100
0..255
55
Zoom
Wide (flood) - narrow (spot)
34° - 3.5°
0..100
0..255
56
CTO
No function
Applicable for
0..3
0..7
Variable CTO (10,000K - 2,700K)
all colors
4..100
8..255
Output 7
57
Intensity
Intensity
0 - 100%
0..100
0..255
58
Shutter
Shutter closed
0..5
0..15
Random strobe
random / slow - fast
6..18
16..47
Ramp up
random / slow - fast
19..31
48..79
Ramp down
random / slow - fast
32..43
80..111
Pulse
random / slow - fast
44..62
112..143
Strobe with b/o pause
random / slow - fast
63..77
144..199
Strobe - Slow to Fast
random / slow - fast
78..98
200..239
Shutter Open
95..100
239..255
59
Color (fixed)
Colors adjustable via RGB
0..2
0..7
Color 01 - Red 1)
3..5
8..15
Color 02 - Amber 1)
6..8
16..23
Color 03 - Warm Yellow 1)
9..12
24..31
Color 04 - Yellow 1)
13..15
32..39
Color 05 - Green 1)
16..18
40..47
Color 06 - Turquoise 1)
19..21
48..55
Color 07 - Cyan 1)
22..24
56..63
Color 08 - Blue 1)
25..27
64..71
Color 09 - Lavender 1)
28..30
72..79
Color 10 - Malve 1)
31..34
80..87
Color 11 - Magenta 1)
35..37
88..95
Color 12 - Pink 1)
38..40
96..103

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.2116
White - CTO
3200K
41..43
104..111
White
5600K
44..46
112..119
White - CTB
7200K
47..49
120..127
Rainbow Effect Stop 2)
50
128
Rainbow Effect 3)
slow - fast
51..88
129..223
Random colors
slow - fast
89..100
224..255
60
Red
Color mixing system - Red
0 - 100%
0..100
0..255
61
Green
Color mixing system - Green
0 - 100%
0..100
0..255
62
Blue
Color mixing system - Blue
0 - 100%
0..100
0..255
63
White
Color mixing system - White
0 - 100%
0..100
0..255
64
Zoom
Wide (flood) - narrow (spot)
34° - 3.5°
0..100
0..255
65
CTO
No function
Applicable for
0..3
0..7
Variable CTO (10,000K - 2,700K)
all colors
4..100
8..255
Output 8
66
Intensity
Intensity
0 - 100%
0..100
0..255
67
Shutter
Shutter closed
0..5
0..15
Random strobe
random / slow - fast
6..18
16..47
Ramp up
random / slow - fast
19..31
48..79
Ramp down
random / slow - fast
32..43
80..111
Pulse
random / slow - fast
44..62
112..143
Strobe with b/o pause
random / slow - fast
63..77
144..199
Strobe - Slow to Fast
random / slow - fast
78..98
200..239
Shutter Open
95..100
239..255
68
Color (fixed)
Colors adjustable via RGB
0..2
0..7
Color 01 - Red 1)
3..5
8..15
Color 02 - Amber 1)
6..8
16..23
Color 03 - Warm Yellow 1)
9..12
24..31
Color 04 - Yellow 1)
13..15
32..39
Color 05 - Green 1)
16..18
40..47
Color 06 - Turquoise 1)
19..21
48..55
Color 07 - Cyan 1)
22..24
56..63
Color 08 - Blue 1)
25..27
64..71
Color 09 - Lavender 1)
28..30
72..79
Color 10 - Malve 1)
31..34
80..87
Color 11 - Magenta 1)
35..37
88..95
Color 12 - Pink 1)
38..40
96..103
White - CTO
3200K
41..43
104..111
White
5600K
44..46
112..119
White - CTB
7200K
47..49
120..127
Rainbow Effect Stop 2)
50
128
Rainbow Effect 3)
slow - fast
51..88
129..223
Random colors
slow - fast
89..100
224..255
69
Red
Color mixing system - Red
0 - 100%
0..100
0..255
70
Green
Color mixing system - Green
0 - 100%
0..100
0..255
71
Blue
Color mixing system - Blue
0 - 100%
0..100
0..255
72
White
Color mixing system - White
0 - 100%
0..100
0..255
73
Zoom
Wide (flood) - narrow (spot)
34° - 3.5°
0..100
0..255
74
CTO
No function
Applicable for
0..3
0..7
Variable CTO (10,000K - 2,700K)
all colors
4..100
8..255
Output 9
75
Intensity
Intensity
0 - 100%
0..100
0..255
76
Shutter
Shutter closed
0..5
0..15
Random strobe
random / slow - fast
6..18
16..47
Ramp up
random / slow - fast
19..31
48..79
Ramp down
random / slow - fast
32..43
80..111

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.2117
Pulse
random / slow - fast
44..62
112..143
Strobe with b/o pause
random / slow - fast
63..77
144..199
Strobe - Slow to Fast
random / slow - fast
78..98
200..239
Shutter Open
95..100
239..255
77
Color (fixed)
Colors adjustable via RGB
0..2
0..7
Color 01 - Red 1)
3..5
8..15
Color 02 - Amber 1)
6..8
16..23
Color 03 - Warm Yellow 1)
9..12
24..31
Color 04 - Yellow 1)
13..15
32..39
Color 05 - Green 1)
16..18
40..47
Color 06 - Turquoise 1)
19..21
48..55
Color 07 - Cyan 1)
22..24
56..63
Color 08 - Blue 1)
25..27
64..71
Color 09 - Lavender 1)
28..30
72..79
Color 10 - Malve 1)
31..34
80..87
Color 11 - Magenta 1)
35..37
88..95
Color 12 - Pink 1)
38..40
96..103
White - CTO
3200K
41..43
104..111
White
5600K
44..46
112..119
White - CTB
7200K
47..49
120..127
Rainbow Effect Stop 2)
50
128
Rainbow Effect 3)
slow - fast
51..88
129..223
Random colors
slow - fast
89..100
224..255
78
Red
Color mixing system - Red
0 - 100%
0..100
0..255
79
Green
Color mixing system - Green
0 - 100%
0..100
0..255
80
Blue
Color mixing system - Blue
0 - 100%
0..100
0..255
81
White
Color mixing system - White
0 - 100%
0..100
0..255
82
Zoom
Wide (flood) - narrow (spot)
34° - 3.5°
0..100
0..255
83
CTO
No function
Applicable for
0..3
0..7
Variable CTO (10,000K - 2,700K)
all colors
4..100
8..255
Output 10
84
Intensity
Intensity
0 - 100%
0..100
0..255
85
Shutter
Shutter closed
0..5
0..15
Random strobe
random / slow - fast
6..18
16..47
Ramp up
random / slow - fast
19..31
48..79
Ramp down
random / slow - fast
32..43
80..111
Pulse
random / slow - fast
44..62
112..143
Strobe with b/o pause
random / slow - fast
63..77
144..199
Strobe - Slow to Fast
random / slow - fast
78..98
200..239
Shutter Open
95..100
239..255
86
Color (fixed)
Colors adjustable via RGB
0..2
0..7
Color 01 - Red 1)
3..5
8..15
Color 02 - Amber 1)
6..8
16..23
Color 03 - Warm Yellow 1)
9..12
24..31
Color 04 - Yellow 1)
13..15
32..39
Color 05 - Green 1)
16..18
40..47
Color 06 - Turquoise 1)
19..21
48..55
Color 07 - Cyan 1)
22..24
56..63
Color 08 - Blue 1)
25..27
64..71
Color 09 - Lavender 1)
28..30
72..79
Color 10 - Malve 1)
31..34
80..87
Color 11 - Magenta 1)
35..37
88..95
Color 12 - Pink 1)
38..40
96..103
White - CTO
3200K
41..43
104..111
White
5600K
44..46
112..119
White - CTB
7200K
47..49
120..127

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.2118
Rainbow Effect Stop 2)
50
128
Rainbow Effect 3)
slow - fast
51..88
129..223
Random colors
slow - fast
89..100
224..255
87
Red
Color mixing system - Red
0 - 100%
0..100
0..255
88
Green
Color mixing system - Green
0 - 100%
0..100
0..255
89
Blue
Color mixing system - Blue
0 - 100%
0..100
0..255
90
White
Color mixing system - White
0 - 100%
0..100
0..255
91
Zoom
Wide (flood) - narrow (spot)
34° - 3.5°
0..100
0..255
92
CTO
No function
Applicable for
0..3
0..7
Variable CTO (10,000K - 2,700K)
all colors
4..100
8..255
Output 11
93
Intensity
Intensity
0 - 100%
0..100
0..255
94
Shutter
Shutter closed
0..5
0..15
Random strobe
random / slow - fast
6..18
16..47
Ramp up
random / slow - fast
19..31
48..79
Ramp down
random / slow - fast
32..43
80..111
Pulse
random / slow - fast
44..62
112..143
Strobe with blackout pause
random / slow - fast
63..77
144..199
Strobe - Slow to Fast
random / slow - fast
78..98
200..239
Shutter Open
95..100
239..255
95
Color (fixed)
Colors adjustable via RGB
0..2
0..7
Color 01 - Red 1)
3..5
8..15
Color 02 - Amber 1)
6..8
16..23
Color 03 - Warm Yellow 1)
9..12
24..31
Color 04 - Yellow 1)
13..15
32..39
Color 05 - Green 1)
16..18
40..47
Color 06 - Turquoise 1)
19..21
48..55
Color 07 - Cyan 1)
22..24
56..63
Color 08 - Blue 1)
25..27
64..71
Color 09 - Lavender 1)
28..30
72..79
Color 10 - Malve 1)
31..34
80..87
Color 11 - Magenta 1)
35..37
88..95
Color 12 - Pink 1)
38..40
96..103
White - CTO
3200K
41..43
104..111
White
5600K
44..46
112..119
White - CTB
7200K
47..49
120..127
Rainbow Effect Stop 2)
50
128
Rainbow Effect 3)
slow - fast
51..88
129..223
Random colors
slow - fast
89..100
224..255
96
Red
Color mixing system - Red
0 - 100%
0..100
0..255
97
Green
Color mixing system - Green
0 - 100%
0..100
0..255
98
Blue
Color mixing system - Blue
0 - 100%
0..100
0..255
99
White
Color mixing system - White
0 - 100%
0..100
0..255
100
Zoom
Wide (flood) - narrow (spot)
34° - 3.5°
0..100
0..255
101
CTO
No function
Applicable for
0..3
0..7
Variable CTO (10,000K - 2,700K)
all colors
4..100
8..255
Output 12
102
Intensity
Intensity
0 - 100%
0..100
0..255
103
Shutter
Shutter closed
0..5
0..15
Random strobe
random / slow - fast
6..18
16..47
Ramp up
random / slow - fast
19..31
48..79
Ramp down
random / slow - fast
32..43
80..111
Pulse
random / slow - fast
44..62
112..143
Strobe with b/o pause
random / slow - fast
63..77
144..199
Strobe - Slow to Fast
random / slow - fast
78..98
200..239

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.2119
Shutter Open
95..100
239..255
104
Color (fixed)
Colors adjustable via RGB
0..2
0..7
Color 01 - Red 1)
3..5
8..15
Color 02 - Amber 1)
6..8
16..23
Color 03 - Warm Yellow 1)
9..12
24..31
Color 04 - Yellow 1)
13..15
32..39
Color 05 - Green 1)
16..18
40..47
Color 06 - Turquoise 1)
19..21
48..55
Color 07 - Cyan 1)
22..24
56..63
Color 08 - Blue 1)
25..27
64..71
Color 09 - Lavender 1)
28..30
72..79
Color 10 - Malve 1)
31..34
80..87
Color 11 - Magenta 1)
35..37
88..95
Color 12 - Pink 1)
38..40
96..103
White - CTO
3200K
41..43
104..111
White
5600K
44..46
112..119
White - CTB
7200K
47..49
120..127
Rainbow Effect Stop 2)
50
128
Rainbow Effect 3)
slow - fast
51..88
129..223
Random colors
slow - fast
89..100
224..255
105
Red
Color mixing system - Red
0 - 100%
0..100
0..255
106
Green
Color mixing system - Green
0 - 100%
0..100
0..255
107
Blue
Color mixing system - Blue
0 - 100%
0..100
0..255
108
White
Color mixing system - White
0 - 100%
0..100
0..255
109
Zoom
Wide (flood) - narrow (spot)
34° - 3.5°
0..100
0..255
110
CTO
No function
Applicable for
0..3
0..7
Variable CTO (10,000K - 2,700K)
all colors
4..100
8..255
!
1) The predefined colors can be used as start-colors for the Rainbow effect. Please select
first a desired start-color before you activate the rainbow effect. All X4 Atom will then start
from that color and will execute the rainbow effect synchronously. Different X4 Atom can
have different start-colors but will still execute the rainbow effect synchronously. If you
choose a color different from the ones marked with 1) in the tables above the rainbow
start-color will be red.
2) Rainbow-effect Stop will pause this function. After resuming the rainbow-effect will be
continued from the current color.
3) The Rainbow-effect will run synchronously only if started from one of the predefined
colors (see also 1) before).

GLP German Light Products
X4 Atom PSU12 manual (v1.0) from software version: v1.2120
7Maintaining and Cleaning
The X4 ATOM PSU 12 is a fixture of very low maintenance. It is only necessary to
clean the air inlets and outlets from time to time. For safe operation it is
absolutely essential that the fixture is kept clean and that dust, dirt and smoke-
fluid residues must not build up on, or within the fixture. Otherwise the fixture's
cooling will be significantly reduced or damages can occur. Regular cleaning
will not only ensure the maximum performance, but will also allow the fixture to
operate reliably throughout its life.
7.1 Safety regulations
•Pull out the mains power plug!
•Wait min. 15 minutes after disconnecting power to allow the fixture to
cool down.
7.2 Maintenance and Interval (rule-of-thumb)
The contamination of the fixture depends on the environment details. Hence
no general guidelines can be given. The intervals given below are only
suggestions from our experience.
Position
Interval
In this way
Fan and air channel
monthly
vacuum cleaner, airbrush,
etc.
