GLP Ipression XL User manual

Instruction Manual
from Software Version 1.09/0.3
(Manual Version 1.06)
e-mail: [email protected]
Internet: http://www.glp.de

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 2
For your notes:

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 3
Table of content
1 Description of Device........................................................................................................4
1.1 Safety Instructions.......................................................................................................................5
2 Preparation and Installation..............................................................................................6
2.1 Mounting......................................................................................................................................6
2.1.1 Mounting on the floor (upright) ....................................................................................7
2.1.2 Mounting in hanging position (Head down).................................................................7
2.1.3 Mounting in sideway position.......................................................................................8
2.2 Securing the Device ....................................................................................................................9
2.3 Connections.................................................................................................................................9
2.3.1 Power Supply...............................................................................................................9
2.3.2 DMX.............................................................................................................................9
3 The Menu Field ................................................................................................................10
4 DMX Channel Sheet.........................................................................................................12
5
5 Maintaining and Cleaning the I IM MP PR RE ES SS SI IO ON N X XL L ............................................................17
5.1 Safety regulations..................................................................................................................... 17
5.2 Maintenance Intervals (rule-of-thumb) ..................................................................................... 17
6 Technical Specifications.................................................................................................18
7 Index.................................................................................................................................20

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 4
1 Description of Device
1. Moving head (actively and
passively cooled)
2. Arm with various cooling
vents
3. Tilt-lock to secure and lock
the tilt movement see also
1.1
4. LCD-Display/Menu (data
entry)
5. Base with various connectors
and Camlock mounting
system


Safety eyelets
1
2
4
5
3
base side 1
10
6
7
8
9
10
base side 2
11
12
13
14
6. DMX- Output (5 Pin)
7. DMX- Output (3 Pin)
8. Micro-fuse 6.3x32mm, T15A
9. Power On/Off
10.2x Safety eyelets
11.Powercon (Mains supply)
12.Blank panel
13.DMX- Input (3 Pin)
14.DMX- Input (5 in)
Note: Only connect one cable to the
DMX-Out/Input at a time!

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 5
1.1 Safety Instructions
The I IM MP PR RE ES SS SI IO ON N X XL L is an advanced technology product. To guarantee
smooth operation, it is necessary to follow the following instructions.
The manufacturer of this device will not take responsibility of damages
through any disregard of the information in this user manual. Warranty claims
will also be cancelled in the event of the system casing being opened.
1. Make sure that before powering up the fixture, the fans and air inlets are
clean and not blocked by anything.
2. Before powering up the fixture, ensure that the moving head part of the
fixture can rotate unhindered through its full range of movement.
3. A safety distance of at least 0.5 m to any easily flammable material (e.g.
decoration material) must be adhered to.
4. Attention! Don’t touch the device during operation. Parts of the fixture can
become hot and can cause injuries and / or damages.
5. The system doesn’t contain any user serviceable parts. Opening the fixture
will void the manufacturers warranty.
6. Danger of burning. Wait at least 15 minutes after disconnecting the AC
power before changing the optical carrier on the fixture. Pay attention to
possible hot parts of the system.
7. Never look directly into the beam of light or one of the LEDs. Never use
optical apertures with a distance less than 0.5 m to observe the beam of
light. LED Class 2M. Not following these precautions can result in serious
injury to your eyes and in particular, your retina.
Attention:
LED Class 2M can cause injuries of your eyes even
without optical instruments in front of them or within a distance
of less than 0.5m and short exposure time.
Avoid direct radiation to your eyes!
8. To ensure proper operation, you must also follow the installation guide
described in chapter 2 of this manual. Operating the I IM MP PR RE ES SS SI IO ON N X XL L
without suitable mounting devices can increase the risk of an accident.
9. The I IM MP PR RE ES SS SI IO ON N X XL Lfeatures a unique small and lightweight design with
no specific carrying handles. Care needs to be shown when handling the
fixture to ensure that no unnecessary damage should occur. Fragile areas
include the LCD display and cover on one side arm and the front bezel.
Pressure in these areas could result in damages which will not be covered
by the standard warranty.

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 6
10. Repair-, maintenance- and installation work should only be performed by
qualified or GLP certified staff. You need to pay attention to the common
rules of technology that are not explicit mentioned in this manual.
11. Use only original spare parts. Any structural modification on the system will
terminate all warranty claims.
12. Please keep this instruction manual for future reference.

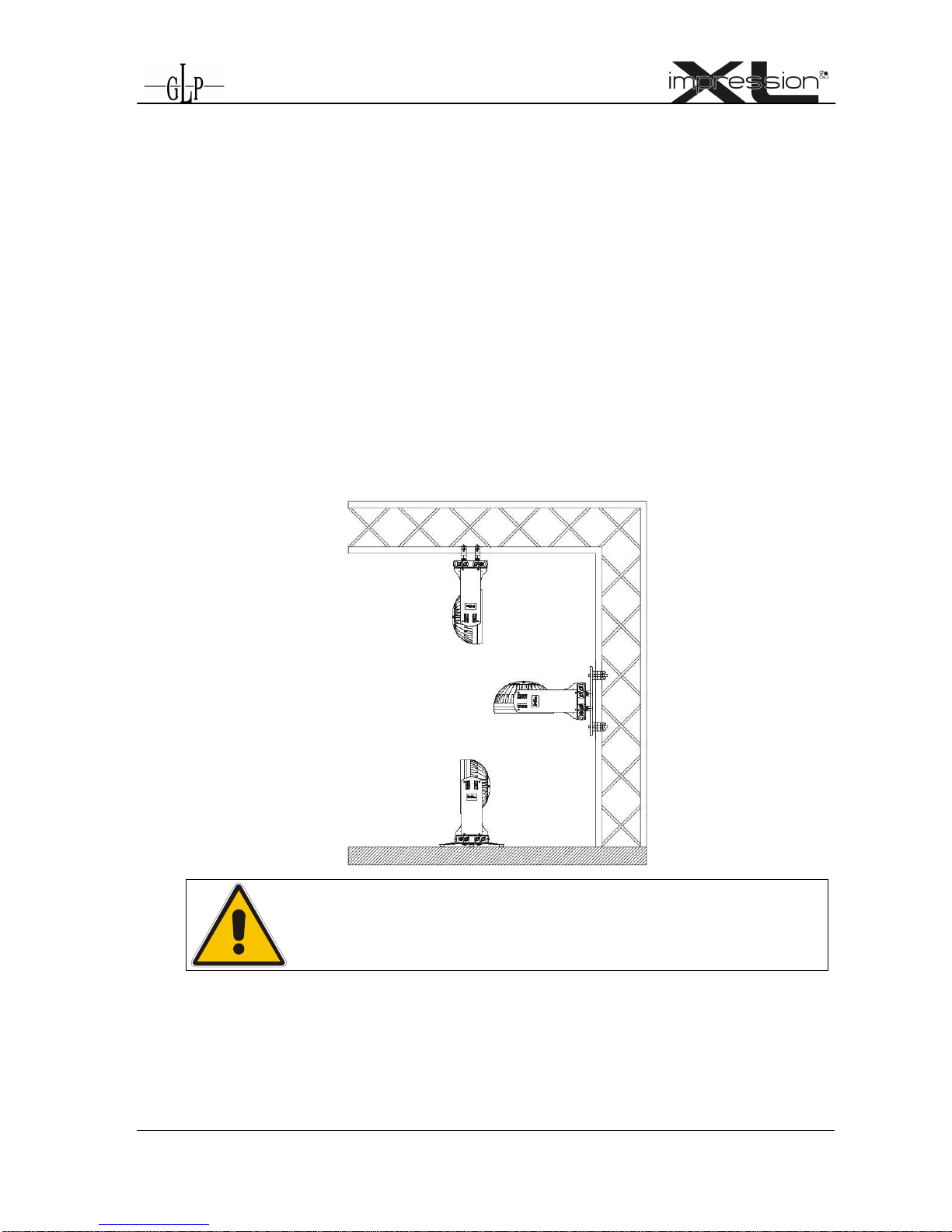

2 Preparation and Installation
2.1 Mounting
The I IM MP PR RE ES SS SI IO ON N X XL L is fully operational whether it hangs or is mounted to a
wall. It can also be operated while standing on the floor. Keep a safety distance
of 0.5 m from any easily inflammable materials (decoration etc.).
Pay attention to the regulations of: BGV C1 (former VBG 70)
and DIN VDE 0711-217.
The installation shall be done by qualified personal only.
For the various mounting positions of the I IM MP PR RE ES SS SI IO ON N X XL L(standing on the
floor, sideways or hanging) different accessories kits are available. Using any
required kits, along with the standard mounting connectors on the base of the
fixture, will ensure a safe and firm installation.

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 7

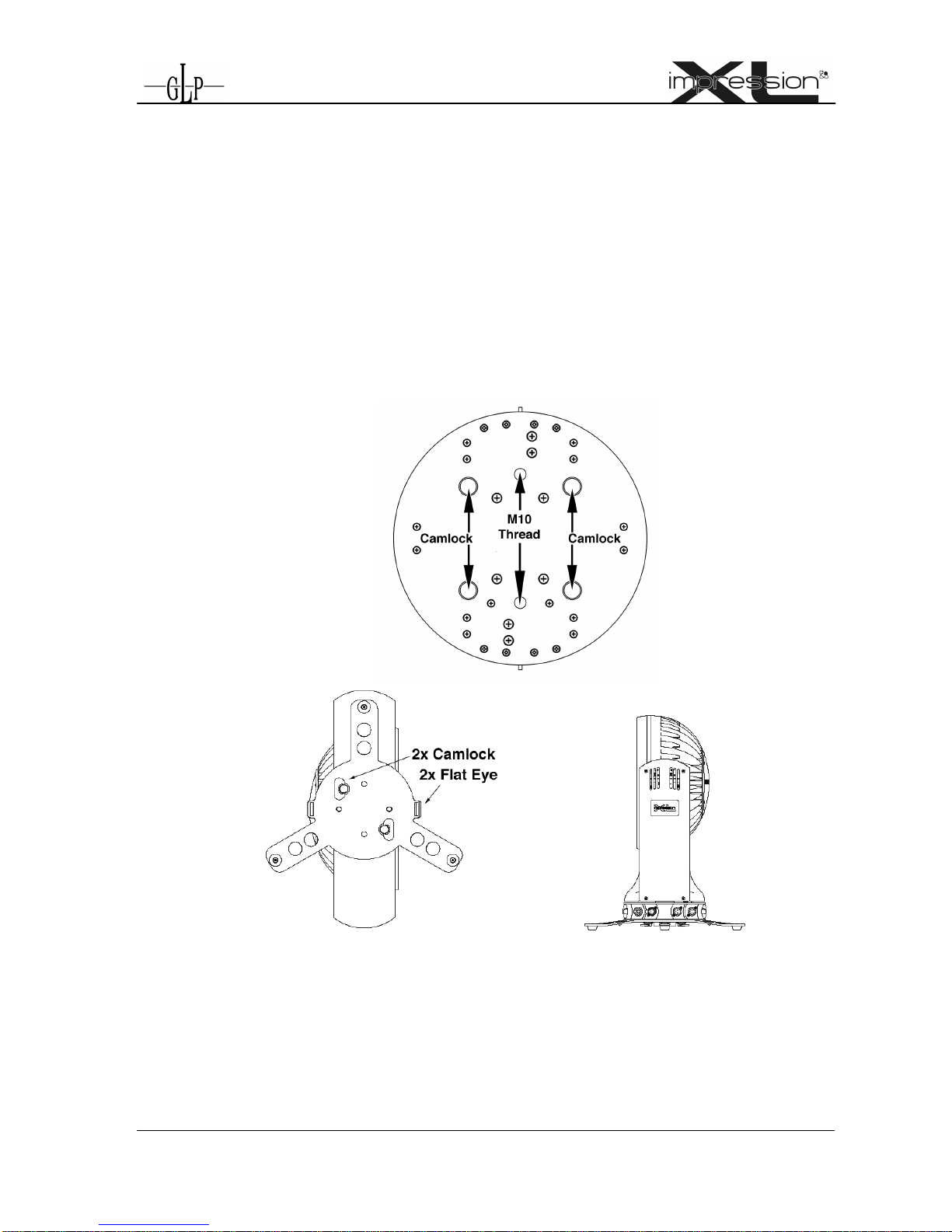

2.1.1 Mounting on the floor (upright)
To operate the I IM MP PR RE ES SS SI IO ON NXL in an upright position, please use the
dedicated floor-stand which ships with all original fixtures. The floor
stand is mounted to the base of the fixture using the two Camlock
quarter turn fasteners. Line up and engage the camlock connectors from
the floor stand into the base of the fixture and turn the two fasteners 90°
to lock them. Do the opposite to release them again. On both sides you'll
find eyelets to pull though a fixing strap. This allows additional bracing of
the floor-stand during the upright operation.
2.1.2 Mounting in hanging position (Head down)
To operate the I IM MP PR RE ES SS SI IO ON NXL in a hanging position, two omega
brackets can be mounted directly to the bottom of the base using the
four Camlock connectors.

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 8
2.1.3 Mounting in sideway position
To operate the I IM MP PR RE ES SS SI IO ON N X XL Lin a sideways position, please use an
additional mounting bar, available from GLP or one of their agents.. This
mounting bar is fixed via the four camlock quick-release connectors. Two
half-couplers or clamps are then used to hang the mounting bar. This
technique is necessary to cope with the additional torque in this
mounting position. Never use the "Mounting in hanging position"
technique described above to secure the fixture in a sideway position, as
the fixtures base can become damaged, and a secure installation cannot
be assured.
Without mounting bar

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 9
2.2 Securing the Device
Regardless of the mounting method of the I IM MP PR RE ES SS SI IO ON N X XL L you'll have to use
a secondary safety wire. This safety wire can be attached to the fixture by
threading it through one of the two holes provided on the base of the fixture.
Ensure that the safety wire is securely fastened through the fixture and the
fixtures mounting support. Install a safety wire that can hold at least 10 times
the weight of the fixture
2.3 Connections
2.3.1 Power Supply
~100-240 Volt AC, 50-60 Hz, earth contact type plug - Powercon
Connected load 1200 VA (W) <=> T15A (micro-fuse 6.3x32mm)
Please see printing on the case for the correct mains supply!
Disconnect from the mains supply for changing the fuse and use
only the above described micro-fuse type.
2.3.2 DMX
USITT DMX-512 Standard input/output in 3 pole and 5 pole connectors.
3 pole: Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+]
5 pole: Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+] / Pin 4/5 n.c.
The DMX- Addressing starts at the DMX- Address [001].

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 10

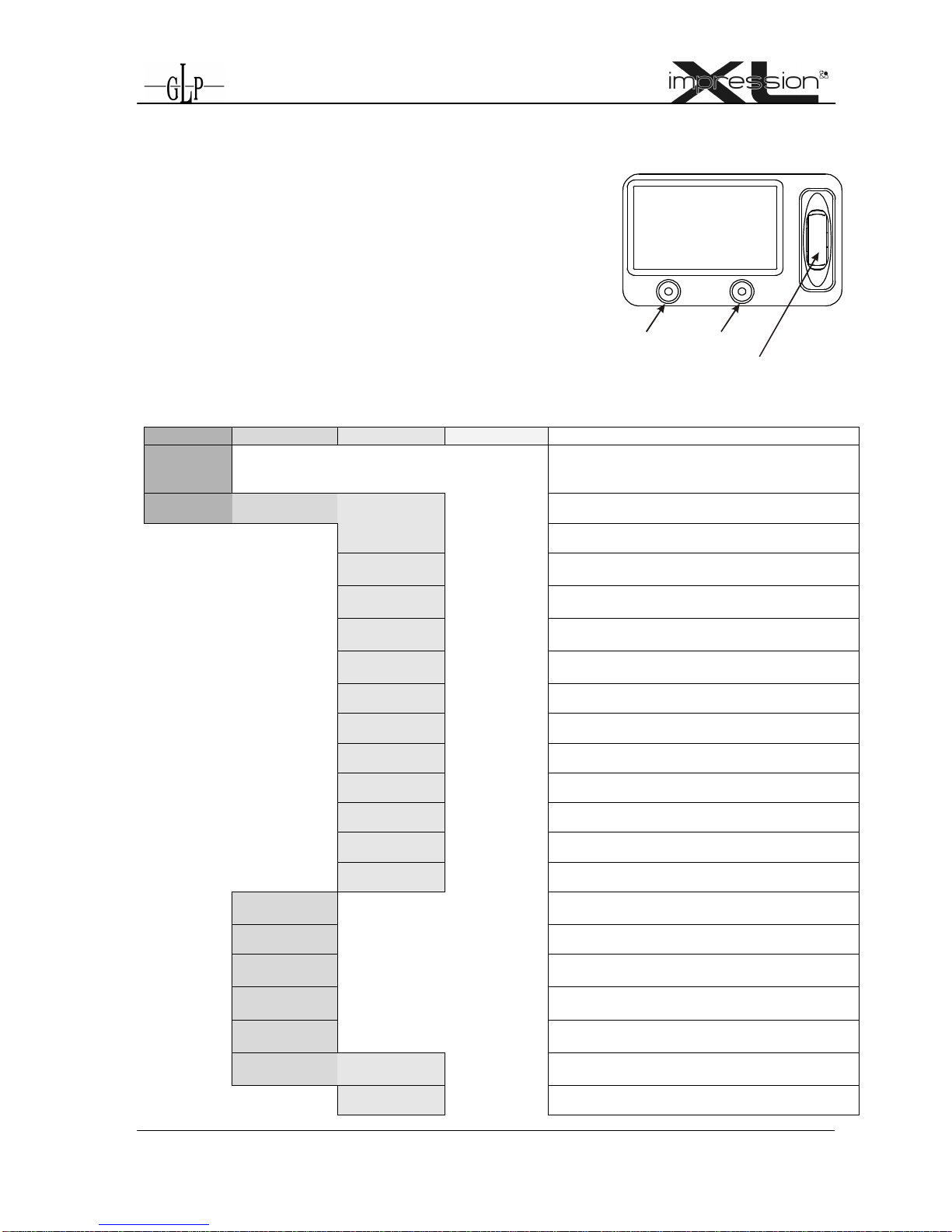

3 The Menu Field
You’ll find the control board on the side of the arm. It allows
you to make all necessary adjustments of the I IM MP PR RE ES SS SI IO ON N
X
XL L. . With the Mode-key you get into the main menu.
Afterwards you can navigate through the menu with the
Up/Down-keys. Push the Enter-key to get to the next menu
level or to confirm your settings. Select ON/ OFF function
settings with the Up/Down-keys. Confirm and save with the
Enter-key (the display shows OK). Push the Mode-key to
cancel the entry and go back to the main menu.
Mode
Scroll wheel - Up & Down
Enter

 
DOWN - UP 
 



MODE - ENTER 


Level1
Level 2
Level 3
Level 4
Remark
DMX Start
Address
001 Define the DMX start address
Special Manual DMX Manual control of all system functions
Pan Manual control for Pan (X-movement)
Speed
Movements Speed adjustment for Pan/Tilt movements 
see also item below
Pan/Tilt
Movements Manual control for Pan/Tilt movement
Special Activate the White- or Full-Power Mode; see
also DMX table
White
Temperature Adjustment of the white color temperature
Dimmer Manual control for dimmer
Shutter Manual control for shutter
Blue Manual control for blue
Green Manual control for green
Red Manual control for red
Color Wheel Manual control for the color wheel
Tilt Manual control for tilt (Y-movement)
Display
Contrast Adjustment for the Display contrast
Default Set Resetting all functions to original values
Set Dimmer
Frequency Changes PMW frequency between 600Hz and
1200Hz
LED Dimmer
Version Reads out the current LED dimmer (software)
version
ImpressionXL
Version Reads out the current CPU software version
Adjust
Key code
xxxx Use the code for entering the calibration menu
(for authorized persons only)
Pan Offset Calibration for Pan-Offset

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 11
Tilt Offset Calibration for Tilt-Offset
Clear
EEPROM Erase EEPROM memory
Diagnose Diagnose functions
Pos F
eed Pan
Delta Internal data and function diagnose
Anz Ti0
-
Int
-
Err Internal data and function diagnose
PFC Voltage Show the present PFC voltage
LED PWM
Vers 1 Shows Dimmer-1-Software Version
LED PWM
Vers 2 Shows Dimmer-2-Software Version
LED PWM
Vers 3 Shows Dimmer-3-Software Version
Pos Feed Tilt
Delta Internal data and function diagnose
Temperature
Arm Indicates the present arm temperature

 
DOWN - UP 
 

Temperature
Head Indicates the present head temperature
PAN/TILT
Motor Power Switches power for Pan/Tilt ON or OFF
(disconnected from power)
PAN/TILT
Silent Mode Reduces maximum speed for Pan/Tilt
DMX Hold Defines whether the last DMX signal is stored or
the lamp is switched OFF in case of signal
interruption
Position
Feedback Automatically position feedback (correction) for
Pan/Tilt movement
White Adjust Adjustments for a uniform white color (white
balance); only in white-mode
Red Input for red adjustments
Blue Input for blue adjustments
Green Input for green adjustments
Set DMX
Image Stores the Scene currently sent to the unit
DMX input
Monitor Indicates the presently received DMX signal per
DMX channel
Pan Instantaneous value for Pan
Speed
Movements Speed adjustment for Pan/Tilt movements 
see item below
Pan/Tilt
Movements Instantaneous value for Pan/Tilt movements
Special Instantaneous value for Special
White
Temperature Adjustment of the color temperature for WHITE
Dimmer Instantaneous value for dimmer

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 12
Shutter Instantaneous value for shutter
Blue Instantaneous value for blue
Green Instantaneous value for green
Red Instantaneous value for red
Color Wheel Instantaneous value for Color Mixing unit
Tilt Instantaneous value for Tilt movement
Live time Indicates the overall operation time of the
system
Display Adjust the display

 
DOWN - UP 
 

Blackout ON/OFF: Display OFF
Select DMX
Mode Please select the desired DMX Mode
Compressed Fixture works in "Compressed" mode see
also sectiion 4
Normal Fixture works in "Normal" mode see also
section 4
High
-
Resolution Fixture works in "High Resolution" mode see
also section 4
White
Mode ON/OFF: Adjustments for white-balance are
activated
Reverse
Pan Selects Inverse Pan, on or off
Reverse
Tilt SelectsInverse Tilt on or off
Reset RESET all functions
4 DMX Channel Sheet
Normal-Mode 14 DMX channels
Channel
Function
Time and Value
DMX
HEX
%
1) PAN
-
coarse 0 .. 660° 0..255 00..FF 0..100
2) PAN
-
fine
High- Pos ... High- Pos + 2,6°(16 Bit) 0..255 00..FF 0..100
3) Tilt
-
coarse 0 .. 300° 0..255 00..FF 0..100
4) Tilt
-
fine
High- Pos … High- Pos + 1,2°(16 Bit) 0..255 00..FF 0..100
5) Co
lor
Colors adjustable via RGB 0..7 00..07 0..2,5
(fixed)
Color 01 - Red
1)
8..15 08..0F 3..5,5
Color 02 - Amber
1)
16..23 10..17 6..8,5
Color 03 - Warm Yellow
1)
24..31 18..1F 9..12,5
Color 04 - Yellow
1)
32..39 20..27 13..15,5
Color 05 - Green
1)
40..47 28..2F 16..18,5
Color 06 - Turquoise
1)
48..55 30..37 19..21,5
Color 07 - Cyan
1)
56..63 38..3F 22..24,5
Color 08 - Blue
1)
64..71 40..47 25..27,5
Color 09 - Lavender
1)
72..79 48..4F 28..30,5

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 13
Channel
Function
Time and Value
DMX
HEX
%
Color 10 - Mauve
1)
80..87 50..57 31..34,5
Color 11 - Magenta
1)
88..95 58..5F 35..37,5
Color 12 - Pink
1)
96..103 60..67 38..40,5
White - CTO Color temperature
3200K 104..111
68..6F 41..43,5
White Color temperature
5600K 112..119
70..77 44..46,5
White - CTB Color temperature
7200K 120..127
78..7F 47..49,5
Rainbow Effect Stop
2)
128 80 50
Rainbow Effect
3)
slow - fast 129..223
81..DF 51..88
Rainbow Effect, random colors slow - fast 224.255 E=..FF
89..100
6) Red
Color mixing system - Red 0 - 100% 0..255 00..FF 0..100
7
) Green
Color mixing system - Green 0 - 100% 0..255 00..FF 0..100
8) Blue
Color mixing system - Blue 0 - 100% 0..255 00..FF 0..100
9) Shutter
Shutter closed 0..15 00..0F 0..5,5
Random Pulse effect slow - fast 16..47 10..2F 6..18,5
Up-dimming then Shutter closing
(random patterns) slow - fast 48..79 30..4F 19..31
Shutter open then down-dimming
(random patterns) slow - fast 80..111 50..6F 32..43
Up-dimming then down-dimming
(random patterns) slow - fast 112..143
70..8F 44..56
Strobe effect pause 5s to 1s 144..199
A0..C7
57..77
Strobe effect, slow - fast 1 Hz .. 10 Hz 200..239
C8..EF
78..94
Shutter open 240..255
F0..FF 95..100
10) Dimmer
Dimmer 0% - 100% 0..255 0..FF 0..100
11) Color
No color temperature correction 0..6 0..06 0..2
temp
erature
Continuous color temperature
correction between 3200k - 7200k Applicable only for White color
5)
7..255 07..FF 3..100
12) Special
Max. Power-Mode
4)
Max. light output without
white balance 0..15 0..0F 0..5,5
White-Mode
4)
White balance used 16..31 10..1F 6..12,5
Fan min. as long as temp. < 90°C 224..229
E0..E5 88..89,5
RESET (Normal Mode)
250..255
FA..FF
98..100
13) Move
-
No movement
0 00 0
ment
Movement
Size
Phase
PAN 1 0° 01..01 01..01 0,5
1 90° 02..03 02..03 1,0
1 180° 04..05 04..05 1,7
1 270° 06..07 06..07 2,5
PAN 2 0° 08..09 08..09 3,3
2 90° 10..11 0A..0B 4,1
2 180° 12..13 0C..0D
4,9
2 270° 14..15 0E..0F 5,7
PAN 3 0° 16..17 11..11 6,5
3 90° 18..19 12..13 7,3
3 180° 20..21 14..15 8,0
3 270° 22..23 16..17 8,8
PAN 4 0° 24..25 18..19 9,6
4 90° 26..27 1A..1B 10,4
4 180° 28..29 1C..1D
11,2
4 270° 30..31 1E..1F 12

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 14
Channel
Function
Time and Value
DMX
HEX
%
TILT size / phase see also PAN 32..63 20..3F 13..25
PAN / TILT size / phase see also PAN 64..95 40..5F 26..37
PAN / TILT (inverse) size / phase see also PAN 96..127 60..7F 38..50
Circle size / phase see also PAN 128..159
80..9F 51..62
Circle (inverse) size / phase see also PAN 160..191
A0..BF
63..75
Lying eight size / phase see also PAN 192..223
C0..DF
76..87
Random movement size see also PAN 224..255
E0..FF 88..100
14) Speed
Pan/Tilt relative movement 0..1 00..01 0..0,5
Pan/Tilt
Pan/Tilt slow – fast
Use this channel 14) also for the speed
of the movements (channel 13).
Pan Min. 660°= 200s
Pan Max. 660°
Tilt Min. 300°= 110s
Tilt Max. 300°
2..255 02..FF 1..100
4)
Max. Power-Mode vs. White-Mode
The I IM MP PR RE ES SS SI IO ON N X XL Lcan use the white-balance adjustments for each individual color setting.
Whether the White-Mode is used with RGB can be selected in the Normal DMX-Mode by using the
Special DMX channel. If the Special channel is set to a value between DMX 0..15, the White-Mode is
not used and the RGB goes for the maximum light output. If the Special channel is set to a value
between DMX 16..31, the white balance is used for the RGB output.
Since there is no Special DMX channel in the Compress DMX-Mode, the possibility exists to likewise
select these settings also in the display menu. If the White-Mode is set to “ON”, the white-balance is
activated. If the White-Mode is set to “OFF”, the RGB goes for the maximum light output (Max. Power-
Mode).
5)
The continuous color temperature correction is applicable only for the White color i.e. if this function
is selected (DMX ≥ 001) the
I
Im mp pr re es ss si io on n X XL L will change the color to white immediately and will then
be adjustable in the color temperature in a range between 3200K and 7200K. Hence a color correction
for others than white is not intended.
Compress-Mode 10 DMX channels
Channel
Function
Time and Value
DMX
HEX
%
1) PAN
-
coarse 0 .. 660° 0..255 00..FF 0..100
2) PAN
-
fine
High- Pos ... High- Pos + 2,6°(16 Bit) 0..255 00..FF 0..100
3) Tilt
-
coarse 0 .. 300° 0..255 00..FF 0..100
4) Tilt
-
fine
High- Pos … High- Pos + 1,2°(16 Bit) 0..255 00..FF 0..100
5) Color
Colors adjustable via RGB 0..7 00..07 0..2,5
(fixed)
Color 01 - Red
1)
8..15 08..0F 3..5,5
Color 02 - Amber
1)
16..23 10..17 6..8,5
Color 03 - Warm Yellow
1)
24..31 18..1F 9..12,5
Color 04 - Yellow
1)
32..39 20..27 13..15,5
Color 05 - Green
1)
40..47 28..2F 16..18,5
Color 06 - Turquoise
1)
48..55 30..37 19..21,5
Color 07 - Cyan
1)
56..63 38..3F 22..24,5
Color 08 - Blue
1)
64..71 40..47 25..27,5

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 15
Channel
Function
Time and Value
DMX
HEX
%
Color 09 - Lavender
1)
72..79 48..4F 28..30,5
Color 10 - Mauve
1)
80..87 50..57 31..34,5
Color 11 - Magenta
1)
88..95 58..5F 35..37,5
Color 12 - Pink
1)
96..103 60..67 38..40,5
White - CTO Color temperature
3200K 104..111
68..6F 41..43,5
White Color temperature
5600K 112..119
70..77 44..46,5
White - CTB Color temperature
7200K 120..127
78..7F 47..49,5
Rainbow Effect Stop
2)
128 80 50
Rainbow Effect
3)
slow - fast 129..223
81..DF 51..88
Rainbow Effect, random colors slow - fast 224.255 E=..FF
89..100
6
) Red
Color mixing system - Red 0 - 100% 0..255 00..FF 0..100
7) Green
Color mixing system - Green 0 - 100% 0..255 00..FF 0..100
8) Blue
Color mixing system - Blue 0 - 100% 0..255 00..FF 0..100
9) Shutter
Shutter closed 0..15 00..0F 0..5,5
Random Pulse effect slow - fast 16..47 10..2F 6..18,5
Up-dimming then Shutter closing
(random patterns) slow - fast 48..79 30..4F 19..31,5
Shutter open then down-dimming
(random patterns) slow - fast 80..111 50..6F 32..43
Up-dimming then down-dimming
(random patterns) slow - fast 112..143
70..8F 44..56
Strobe effect pause 5s to 1s 144..199
A0..C7
57..77
Strobe effect, slow - fast 1 Hz .. 10 Hz 200..239
C8..EF
78..94
Shutter open 240...249
F0..F9 95..97,5
RESET
Min. 3 Sec.
250
FA
98
Shutter open 251..255
FB..FF
99..100
10) Dimmer
Dimmer (0% - 100%) 0..255 0..FF 0..100
High Resolution (Extended) -Mode 13 DMX Channels
Channel
Function
Time and Value
DMX
HEX
%
1) PAN
-
coarse 0 .. 660° 0..255 00..FF 0..100
2) PAN
-
fine
High- Pos ... High- Pos + 2,6°(16 Bit) 0..255 00..FF 0..100
3) Tilt
-
coarse 0 .. 300° 0..255 00..FF 0..100
4) Tilt
-
fine
High- Pos … High- Pos + 1,2°(16 Bit) 0..255 00..FF 0..100
5) Red
-
coarse Color mixing system – Red 0 - 100% 0..255 00..FF 0..100
6) Red
-
fine
Color mixing system – Red-Low 0..255 00..FF 0..100
7) Green
-
coarse Color mixing system – Green 0 - 100% 0..255 00..FF 0..100
8) Green
-
fine Color mixing system – Green-Low 0..255 00..FF 0..100
9) Blue
-
coarse Color mixing system – Blue 0 - 100% 0..255 00..FF 0..100
10) Blue
-
fine
Color mixing system – Blue-Low 0..255 00..FF 0..100

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 16
Channel
Function
Time and Value
DMX
HEX
%
11) Shutter
Shutter closed 0..15 00..0F 0..5,5
Random Pulse effect slow - fast 16..47 10..2F 6..18,5
Up-dimming then Shutter closing
(random patterns) slow - fast 48..79 30..4F 19..31,5
Shutter open then down-dimming
(random patterns) slow - fast 80..111 50..6F 32..43
Up-dimming then down-dimming
(random patterns) slow - fast 112..143
70..8F 44..56
Strobe effect pause 5s to 1s 144..199
A0..C7
57..77
Strobe effect, slow - fast 1 Hz .. 10 Hz 200..239
C8..EF
78..94
Shutter open 240...249
F0..F9 95..97,5
RESET
Min. 3 Sec.
250
FA
98
Shutter open 251..255
FB..FF
99..100
12) Dimmer
-
coarse Dimmer 0% - 100% 0..255 0..FF 0..100
13) Dimmer
-
fine Dimmer - Low 0..255 0..FF 0..100
1)
The predefined colors can be used as start colors for the Rainbow effect. First select a desired start
color, then activate the rainbow effect. All
I
IM MP PR RE ES SS SI IO ON N X XL L will then begin from that color and
execute the rainbow effect synchronously. Different
I
IM MP PR RE ES SS SI IO ON N X XL L can have different start colors
but will still execute the rainbow effect synchronously. If you choose a color different from the ones
marked with
1)
in the tables above the rainbow start-color will be red.
2)
Rainbow-effect Stop will pause this function. After resuming the rainbow-effect will be continued with
the current color.
3)
The Rainbow-effect will run synchronously only if it is started from one of the predefined colors (see
also
1)
before).
Locking and unlocking the Control Panel
You can lock and unlock the control panel by pressing the menu keys MODE & ENTER & UP at the
same time.
Additional shortcut features when switching on the fixture
a) 1200Hz Mode (Hold down the UP- button during power ON)
After switching on, the fixture the LEDs will be operated with a Pulse Width Modulation
(PWM) of 1200Hz.
In addition, all standard settings will be loaded (DMX start address [001], Normal Mode).
b) 600Hz Mode (Hold down the DOWN- button during power ON)
After switching on, the fixture the LEDs will be operated with a Pulse Width Modulation
(PWM) of 600Hz.
In addition, all standard settings will be loaded (DMX start address [001], Normal Mode).

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 17
c) Standard Mode (Hold down the ENTER- button during power ON)
After switching on the fixture, the DMX start address will be set to [001]. All other settings
will remain unchanged.
Additional Display Indications
As a default you'll find the following additional information in the first row of the LCD display:
XX/X/XX
06 = 600Hz / 12 = 1200Hz
N = Normal Mode / C = Compressed Mode / H = High Res. Mode
N = Tilt normal / I = Tilt inverted
N = Pan normal / I = Pan inverted
5
5 Maintaining and Cleaning the I IM MP PR RE ES SS SI IO ON N X XL L
The I IM MP PR RE ES SS SI IO ON N X XL Lis a low maintenance fixture. It is only necessary to clean the
air inlets and outlets as well as the optical LED lenses from time to time. For safe
operation it is absolutely essential that the fixture is kept clean and that dust, dirt and
smoke-fluid residues must not build up on, or within, the fixture. If they do, the
fixture's light output will be significantly reduced, and damages to the fixture may
occur. Regular cleaning will not only ensure the maximum light output, but will also
allow the fixture to operate reliably throughout its entire life.
A soft lint-free cloth moistened with any good glass cleaning fluid is recom-
mended. Under no circumstances should alcohol or solvents be used to clean
the fixture or its lenses!
5.1 Safety regulations
•Disconnect the fixture from the mains power before commencing any maintenance
work!
•Wait minimum 15 minutes after removing the power to allow the fixture to cool down.
5.2 Maintenance Intervals (rule-of-thumb)
The maintenance schedule of any given fixture depends on the installation environment. Hence
no specific guidelines can be given. The cleaning intervals given below are suggestions, based
on practical experience. We suggest that you start with these and develop your own
maintenance schedule as you see the fixtures performance in your specific environment.
Maintenance Task Interval How
Cleaning of LED lenses and
optical system weekly soft brush /lint-free cloth

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 18
Cleaning of fans and air channels monthly vacuum cleaner, airbrush, etc.
Attention:
•
Never let optical parts come into contact with oil or fat.
•Before running the fixture wait until all parts are touch dry.
•Never touch lenses with bare fingers.
6 Technical Specifications
Power supply
Power consumption 1200 VA (Watt)
Power Input ~100-240 V AC, 50-60 Hz (auto sensing input)
Fuse protection Micro-fuse 6.3x32 mm, T15A
Operational Parameters
Max. Ambient
Temperature 45°C / 113°F (integrated overheating switch)
Mounting Position Any (see chapter mounting)
Lighting System - Additive Color mixing
LED Type 240x Luxeon K2 High-power- LEDs
Lifetime 50.000 h
78 red, 84 green, 78 blue LEDs, wavelength optimized for maximum presentable color space.
Optical System
High efficient Collimator cluster
Exchangeable optical carrier with 10°light distribution angle (25°optional)

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 19
Scattering light aperture
Shutter / Dimmer (8/16 Bit)
Strobe- Effect with variable speed between 1 - 10 flashes per second, Random-Strobe, Pulse-
Effects
Continuous Dimmer 0 - 100%
DMX Control
Standard USITT DMX-512, 3/5 pole XLR; [+] = Pin 3 [-] = Pin 2 [Ground] = Pin 1.
DMX- Addressing starts at the DMX channel [001].
Pan / Tilt (8/16 Bit)
Pan- movement 660°(Position Feedback)
Tilt- movement 300°(Position Feedback)
Weights and Measures
Width of the base
521 mm
Length of the base
217 mm
Height (head vertical)
550 mm
Fixture weight (net)
23,5 kg
Floor Mount weight
(net) 2 kg

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Manual Version 1.06) / from Software Version 1.09/0.3) 20
7 Index
B
BGV C1............................................................6
C
Circumference...............................................17
Cleaning.........................................................16
Compress-Mode ....................................14, 15
D
Description of Device....................................4
DIN VDE 0711-217..........................................6
DMX.................................................................9
E
e-mail...............................................................1
Enter-key.........................................................9
Eyelets.............................................................6
H
Half-couplers (clamps).....................................8
I
Internet.............................................................1
K
Key code.......................................................10
L
LED Class 2M.................................................5
M
Maintenance..................................................16
Manual Version................................................1
Max. Power-Mode........................................13
Micro-fuse........................................................8
Mode-key.........................................................9
Mounting.........................................................6
Mounting in hanging Position.......................... 7
Mounting in sidewise Position......................... 8
Mounting on the Floor..................................... 6
N
Normal-Mode...............................................12
O
Optical parts................................................17
P
Pan- Movement.............................................18
Power Supply................................................ 8
Powercon (Mains supply................................. 4
S
Safety distance ............................................... 6
Safety Instructions .......................................... 5
Secure the Device......................................... 8
Software Version............................................. 1
T
Technical Specifications............................18
The Menu Field...............................................9
Tilt- Movement..............................................18
U
Up/Down-keys................................................ 9
V
VBG 70 ........................................................... 6
W
Warranty claims .............................................. 5
Weights and Measures.................................18
White-Mode..................................................13
