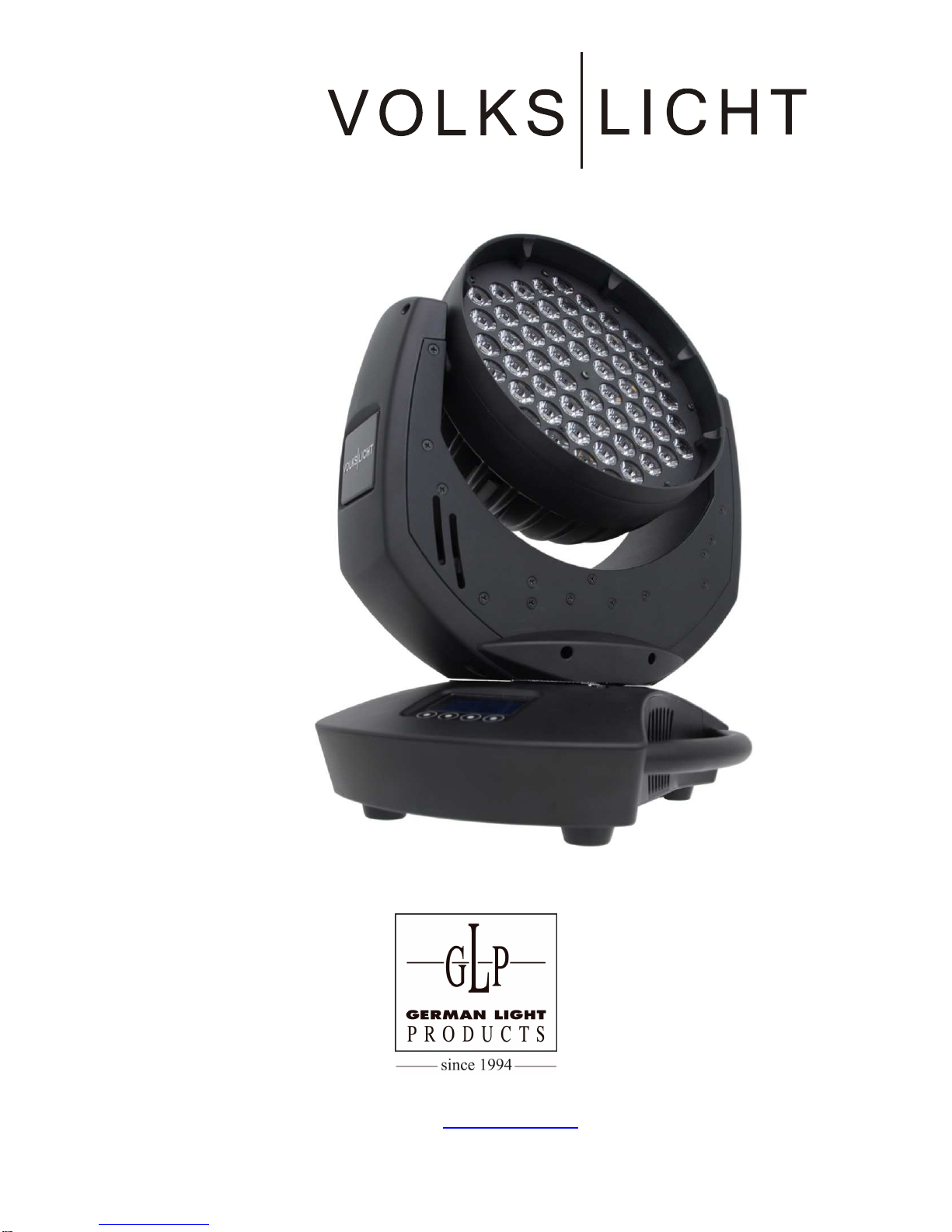

GLP Volks Licht R-G-B User manual

Instruction Manual
from software version 1.15
(Instruction version 1.7)
e-mail: [email protected]
Internet: http://www.glp.de
R
-
G
-
B

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.7) / from software version 1..15) 2
Notes:

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.7) / from software version 1..15) 3
Table of content
1 Description of Device..............................................................................................4
1.1 Safety Instructions............................................................................................5
2 Preparation and Installation...................................................................................6
2.1 Mounting...........................................................................................................6
2.1.1 Mounting on the floor (upright).............................................................7
2.1.2 Mounting in hanging position (Head down)..........................................7
2.1.3 Mounting in a sideway Position............................................................7
2.2 Securing the Device..........................................................................................8
2.3 Connections......................................................................................................8
2.3.1 Power Supply.......................................................................................8
2.3.2 DMX.....................................................................................................8
3 The Menu Field........................................................................................................9
4 DMX Channel Selection (DMX Protocol) .............................................................11
5
5 Maintaining and Cleaning the V VO OL LK KS SL LI IC CH HT T.......................................................13
5.1 Safety regulations...........................................................................................13
5.2 Circumference and Interval (rule-of-thumb)....................................................13
6 Technical Specifications ......................................................................................14

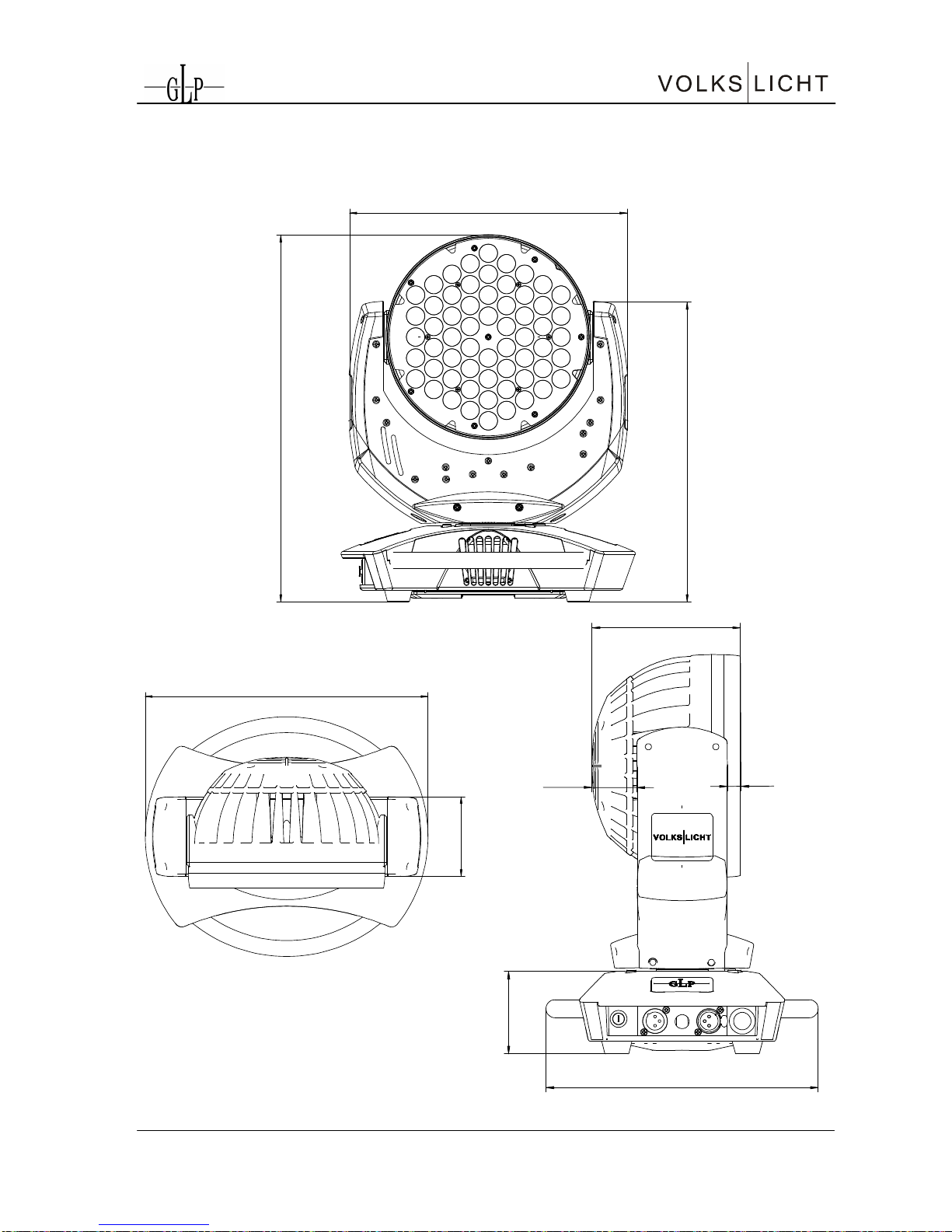

7 System dimensions (in mm).................................................................................15
8 Index.......................................................................................................................16

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.7) / from software version 1..15) 4
1 Description of Device
1. Moving head (actively and
passively cooled)
2. Arm with various cooling vents
3. LCD-Display/Menu (data entry)
4. Base with various connectors and
Camlock mounting system
5. Carrying handle. It is also used to
attach the safety cable
6
7
8
9
6. Micro-fuse 5x20mm, T2A
7. DMX- Input (3 pole)
8. DMX- Output (3 pole)
9. Power On-/Off

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.7) / from software version 1..15) 5
1.1 Safety Instructions
The V VO OL LK KS SL LI IC CH HT T is an advanced technology product. To
guarantee smooth operation, it is necessary to follow the
following instructions.
The manufacturer of this device will not take responsibility of
damages through any disregard of the information in this user
manual. Warranty claims will also be cancelled in the event of
the system casing being opened.
If the external cable of this lighting is damaged, it should be
replaced by the manufacturer or its service agent or a qualified
person, to avoid danger.
1. Make sure that before powering up the fixture, the fans and air inlets are
clean and not blocked by anything.
2. Before powering up the fixture, ensure that the moving head part of the
fixture can rotate unhindered through its full range of movement.
3. A safety distance of at least 0.5 m to any easily flammable material (e.g.
decoration material) must be adhered to.
4. Attention! Don’t touch the device during operation. Parts of the fixture can
become hot and can cause injuries and / or damages.
5. The system doesn’t contain any user serviceable parts. Opening the fixture
will void the manufacturers warranty.
6. Danger of burning. Wait at least 15 minutes after disconnecting the AC
power before changing the optical carrier on the fixture. Pay attention to
possible hot parts of the system.
7. Never look directly into the beam of light or one of the LEDs. Never use
optical apertures with a distance less than 0.5 m to observe the beam of
light. LED Class 2M. Not following these precautions can result in serious
injury to your eyes and in particular, your retina.
8.
Attention: LED Class 2M can cause inju
ries of your eyes even
without optical instruments in front of them or within a distance
of less than 0.5m and short exposure time.
Avoid direct radiation to your eyes!

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.7) / from software version 1..15) 6
9. To ensure proper operation, you must also follow the installation guide
described in chapter 2 of this manual. Operating the V VO OL LK KS SL LI IC CH HT T without
suitable mounting devices can increase the risk of an accident.
10. The V VO OL LK KS SL LI IC CH HT Tfeatures a unique small and lightweight design with no
specific carrying handles. Care needs to be shown when handling the
fixture to ensure that no unnecessary damage should occur. Fragile areas
include the LCD display and cover on one side arm and the front bezel.
Pressure in these areas could result in damages which will not be covered
by the standard warranty.
11. Repair-, maintenance- and installation work should only be performed by
qualified or GLP certified staff. You need to pay attention to the common
rules of technology that are not explicit mentioned in this manual.
12. Use only original spare parts. Any structural modification on the system will
terminate all warranty claims.
13. Please keep this instruction manual for future reference.
2 Preparation and Installation
2.1 Mounting
The V VO OL LK KS SL LI IC CH HT T is fully operational whether it hangs or is mounted to a wall.
It can also be operated while standing on the floor. Keep a safety distance of
0.5 m from any easily inflammable materials (decoration etc.).

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.7) / from software version 1..15) 7
Pay attention to the regulations of: BGV C1 (former VBG 70)
and DIN VDE 0711-217.
The installation shall be done by qualified staff only.
For the various mounting positions of the V VO OL LK KS SL LI IC CH HT T(standing on the floor,
sideways or hanging) different accessories kits are available. Using any
required kits, along with the standard mounting connectors on the base of the
fixture, will ensure a safe and firm installation.
2.1.1 Mounting on the floor (upright)
The V VO OL LK KS SL LI IC CH HT Tis equipped with four robust rubber feet. This allows
a firm and safe stand on even surfaces.

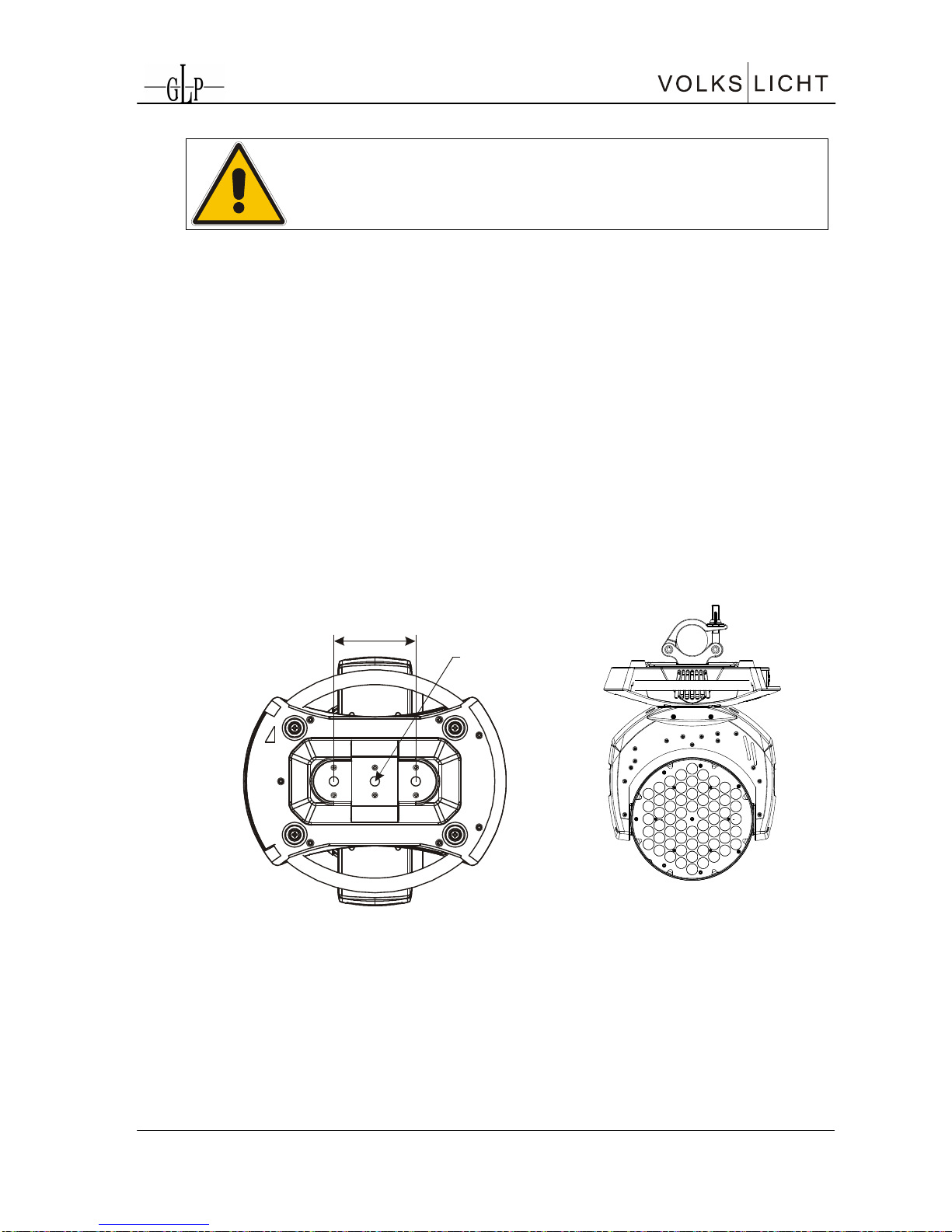

2.1.2 Mounting in hanging position (Head down)
To operate the V VO OL LK KS SL LI IC CH HT Tin an hanging position, please use a half-
coupler (clamp) which is mounted directly onto the bottom side of the
system. It is fixed centrically with a M10 thread bolt (max. length 11 mm).
89
3x M10
(max. length 11mm)

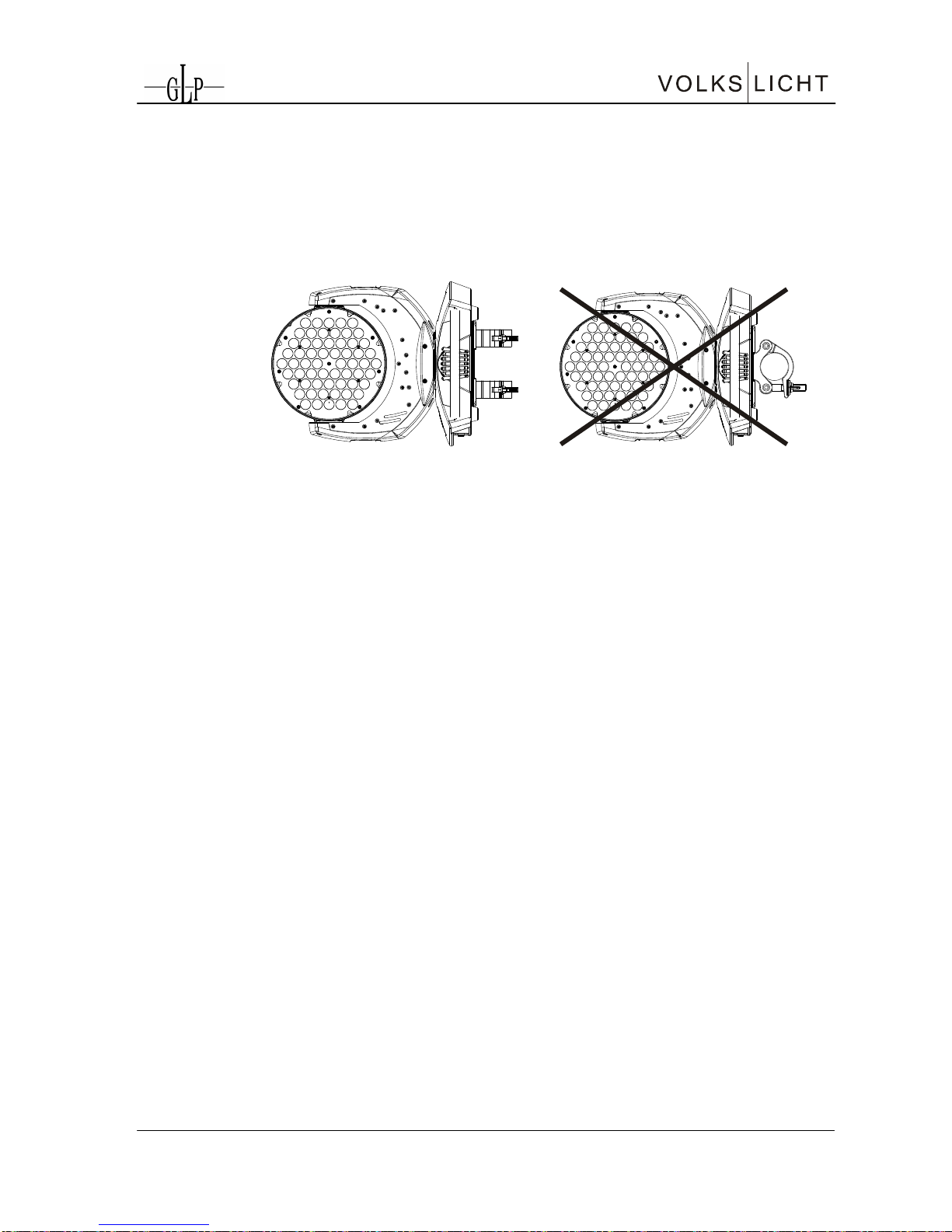

2.1.3 Mounting in a sideway Position
To operate the V VO OL LK KS SL LI IC CH HT Tin a sidewise position, please use two
half-couplers (clamps) which are mounted directly onto the bottom side
of the system. They are fixed with two M10 thread bolts (max. length 11
mm).
This technique is necessary to cope with the torque which accrues in this
mounting position. In addition it allows a concentrically position between

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.7) / from software version 1..15) 8
two truss belts. Never use the "Mounting in hanging position" technique
described above to secure the fixture in a sideway position, as the
fixtures base can become damaged, and a secure installation cannot be
assured.
2.2 Securing the Device
Regardless of the mounting method of the V VO OL LK KS SL LI IC CH HT T you'll have to use a
secondary safety wire. This safety wire can be attached to the fixture by
threading it through one of the two holes provided on the base of the fixture.
Ensure that the safety wire is securely fastened through the fixture and the
fixtures mounting support. Install a safety wire that can hold at least 10 times
the weight of the fixture.
2.3 Connections
2.3.1 Power Supply
~100-240 Volt AC, 50-60 Hz, earth contact type plug, via Powercon
Connected load 180 VA (W) <=> T2A (micro-fuse 5x20mm)
Please see printing on the case for the right electronic supply!
Disconnect from the mains supply for changing the fuse and use
only the above described micro-fuse type.
2.3.2 DMX
USITT DMX-512 Standard input/output in 3 pole connectors.
3 pole: Pin 1 = [Ground] / Pin 2 = [-] / Pin 3 = [+]
The DMX- Addressing starts at the DMX- Address [001].

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.7) / from software version 1..15) 9
3 The Menu Field
You'll find the illuminated control board on the upper side of
the base. It allows you to make all necessary adjustments
of the system.
The current DMX address will be shown on the top level of
the menu. Use the Enter-key to adjust the DMX address or
press the Menu-key to reach the next level of the menu
where other settings can be made.
Menu Enter
1
DMX Start Address
With the
Enter
-
key you reach the main menu. Afterwards
you can navigate through the menu with the Up/Down-
keys. Push the Enter-key to get in the next menu level or
to confirm your settings. Adjust them and set functions
ON/OFF with the Up/Down-keys. Confirm and save it with
the Enter-key (the display shows OK).
Use the Back-key to cancel the entry and to go back to the
main menu.
Back DownUP Enter
DMX Start Address
Reset
Special
VOLKSL CHT Menü


BACK - ENTER 


Level1 Level 2 Level 3 Level 4 Remark
DMX Start
Address Define the DMX start address
Special Manual DMX Manual control of all system functions
Pan Manual control for Pan (X-movement)
Tilt Manual control for Tilt (Y-movement)
Speed Speed adjustment for Pan/Tilt movements see
also item below

 
DOWN - UP 
 

P/T Manual control for Pan/Tilt macro movement
Color
Wheel Manual control for the color wheel
Red Manual control for red
Green Manual control for green
Blue Manual control for blue
Special Manual control for special
Dimmer Manual control for the dimmer
Shutter Manual control for the shutter
Contrast Adjustment for the Display contrast
Default Set Resetting all functions to original values
Versions Reads out the current LED dimmer (software) version

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.7) / from software version 1..15) 10
Adjust
Key code
xxxx Use the code for entering the calibration menu (for
authorized persons only)
Diagnose Diagnose functions
Pan Offset Calibration for Pan-Offset
Tilt Offset Calibration for Tilt-Offset
Clear
EEPROM Erase EEPROM memory
P/T Speed Normal Speed and Fast Speed
Temperatures
Indicates the head and base temperature
Testmode Performs an automatic self-test
DMX Hold Defines whether the last DMX signal is stored or the
lamp is switched OFF in case of signal interruption
Position
Feedback Automatically position feedback (correction) for
Pan/Tilt movement. ON/OFF
Adjust White Adjustments for a uniform white color (white balance);
only in white-mode
Red Input for red adjustments
Green Input for blue adjustments
Blue Input for green adjustments
DMX Monitor Indicates the presently received DMX signal per DMX
channel
Pan Instantaneous value for Pan

 
DOWN - UP 
 

Tilt Instantaneous value for Tilt
Speed Instantaneous value for Speed
P/T Instantaneous value for Pan/Tilt movements
Color
Wheel Instantaneous value for Colors
Red Instantaneous value for Red
Green Instantaneous value for Green
Blue Instantaneous value for Blue
Special Instantaneous value for Special
Dimmer Instantaneous value for the Dimmer
Shutter Instantaneous value for the Shutter
Live time Indicates the overall operation time of the system
Display Adjust the display
Blackout
ON/OFF: Display OFF
Reverse Pan ON/OFF: Invert Pan movements
Reverse Tilt ON/OFF: Invert Tilt movements
Reset RESET and new calibration for all functions

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.7) / from software version 1..15) 11
4 DMX Channel Selection (DMX Protocol)
Channel
Function
Time and Value
DMX
HEX
%
1) PAN
-
coarse 0 .. 660° 0..255 00..FF 0..100
2) PAN
-
fine
High- Pos ... High- Pos + 2,6°(16 Bit) 0..255 00..FF 0..100
3) Tilt
-
coarse 0 .. 300° 0..255 00..FF 0..100
4) Tilt
-
fine
High- Pos … High- Pos + 1,2°(16 Bit) 0..255 00..FF 0..100
5) Color
Colors adjustable via RGB 0..7 00..07 0..2,5
(fixed)
Color 01 - Red
1)
8..15 08..0F 3..5,5
Color 02 - Amber
1)
16..23 10..17 6..8,5
Color 03 - Warm Yellow
1)
24..31 18..1F 9..12,5
Color 04 - Yellow
1)
32..39 20..27 13..15,5
Color 05 - Green
1)
40..47 28..2F 16..18,5
Color 06 - Turquoise
1)
48..55 30..37 19..21,5
Color 07 - Cyan
1)
56..63 38..3F 22..24,5
Color 08 - Blue
1)
64..71 40..47 25..27,5
Color 09 - Lavender
1)
72..79 48..4F 28..30,5
Color 10 - Mauve
1)
80..87 50..57 31..34,5
Color 11 - Magenta
1)
88..95 58..5F 35..37,5
Color 12 - Pink
1)
96..103 60..67 38..40,5
White - CTO Color temperature
3200K 104..111
68..6F 41..43,5
White Color temperature
5600K 112..119
70..77 44..46,5
White - CTB Color temperature
7200K 120..127
78..7F 47..49,5
Rainbow Effect Stop
2)
128 80 50
Rainbow Effect
3)
slow - fast 129..223
81..DF 51..88
Rainbow Effect, random colors slow - fast 224.255 E0..FF 89..100
6) Red
Color mixing system - Red 0 - 100% 0..255 00..FF 0..100
7) Green
Color mixing system - Green 0 - 100% 0..255 00..FF 0..100
8) Blue
Color mixing system - Blue 0 - 100% 0..255 00..FF 0..100
9) Shutter
Shutter closed 0..15 00..0F 0..5,5
Random Pulse effect slow - fast 16..47 10..2F 6..18,5
Up-dimming then Shutter closing
(random patterns) slow - fast 48..79 30..4F 19..31
Shutter open then down-dimming
(random patterns) slow - fast 80..111 50..6F 32..43
Up-dimming then down-dimming
(random patterns) slow - fast 112..143
70..8F 44..56
Strobe effect pause 5s .. 1s 144..199
A0..C7 57..77
Strobe effect, slow - fast 1 Hz .. 10 Hz 200..239
C8..EF 78..94
Strobe effect
4)
25 Hz 240 F0 94,4
Strobe effect
4)
50 Hz 241 F1 94,8
Shutter open 242..255
F3..FF 95..100
10) Dimmer
Dimmer 0 - 100% 0..255 0..FF 0..100
11) Special
RESET
250..255
FA..FF
98..100
12) Move
-
No movement
0 0 0
ment
Movement
Size
Phase
PAN 1 0° 01..01 01..01 0,5
1 90° 02..03 02..03 1,0
1 180° 04..05 04..05 1,7

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.7) / from software version 1..15) 12
Channel
Function
Time and Value
DMX
HEX
%
1 270° 06..07 06..07 2,5
PAN 2 0° 08..09 08..09 3,3
2 90° 10..11 0A..0B 4,1
2 180° 12..13 0C..0D 4,9
2 270° 14..15 0E..0F 5,7
PAN 3 0° 16..17 11..11 6,5
3 90° 18..19 12..13 7,3
3 180° 20..21 14..15 8,0
3 270° 22..23 16..17 8,8
PAN 4 0° 24..25 18..19 9,6
4 90° 26..27 1A..1B 10,4
4 180° 28..29 1C..1D 11,2
4 270° 30..31 1E..1F 12
TILT size / phase see also PAN 32..63 20..3F 13..25
PAN / TILT size / phase see also PAN 64..95 40..5F 26..37
PAN / TILT (inverse) size / phase see also PAN 96..127 60..7F 38..50
Circle size / phase see also PAN 128..159
80..9F 51..62
Circle (inverse) size / phase see also PAN 160..191
A0..BF 63..75
Lying eight size / phase see also PAN 192..223
C0..DF
76..87
Random movement size see also PAN 224..255
E0..FF 88..100
13) Speed
This channel is only for the SPEED of the movements not for
Pan/Tilt 0..255 00..FF 0..100
Pan/Tilt
1)
The predefined colors can be used as start colors for the Rainbow effect. First select a desired start
color, then activate the rainbow effect. All
V
VO OL LK KS SL LI IC CH HT T will then begin from that color and execute
the rainbow effect synchronously. Different
V
VO OL LK KS SL LI IC CH HT T can have different start colors but will still
execute the rainbow effect synchronously. If you choose a color different from the ones marked with
1)
in the tables above the rainbow start-color will be red.
2)
Rainbow-effect Stop will pause this function. After resuming the rainbow-effect will be continued with
the current color.
3)
The Rainbow-effect will run synchronously only if it is started from one of the predefined colors (see
also
1)
before).
4)
Attention: Please note that shutter frequencies over 10 Hz are prohibited in some countries.
Especially frequencies in the range of 5 - 12 Hz can possibly cause epileptic seizures continuous
blink irritation with a latency period of min. 70 ms. Please also refer to the relevant legislation of each
country (For Germany for example: BGI 810-4 (Anhang 2) "Sicherheit bei Produktionen und
Veranstaltungen - Scheinwerfer").

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.7) / from software version 1..15) 13
5
5 Maintaining and Cleaning the V VO OL LK KS SL LI IC CH HT T
The V VO OL LK KS SL LI IC CH HT Tis a low maintenance fixture. It is only necessary to clean the air
inlets and outlets as well as the optical LED lenses from time to time. For safe
operation it is absolutely essential that the fixture is kept clean and that dust, dirt and
smoke-fluid residues must not build up on, or within, the fixture. If they do, the
fixture's light output will be significantly reduced, and damages to the fixture may
occur. Regular cleaning will not only ensure the maximum light output, but will also
allow the fixture to operate reliably throughout its entire life.
A soft lint-free cloth moistened with any good glass cleaning fluid is recom-
mended. Under no circumstances should alcohol or solvents be used to clean
the fixture or its lenses!
5.1 Safety regulations
•Disconnect the fixture from the mains power before commencing any
maintenance work!
•Wait minimum 15 minutes after removing the power to allow the fixture to
cool down.
5.2 Circumference and Interval (rule-of-thumb)
The contamination of the fixture depends on the environment details. Hence no
general guidelines can be given. The intervals given below are only suggestions
from our practice experience.
Maintenance Task Interval How
Cleaning of LED lenses and
optical system weekly soft brush /lint-free cloth
Cleaning of fans and air channels monthly vacuum cleaner, airbrush, etc.
Attention:
•Never let optical parts come into contact with oil or fat.
•Before running the fixture wait until all parts are touch dry.
•Never touch lenses with bare fingers.

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.7) / from software version 1..15) 14
6 Technical Specifications
Power supply
Power consumption 180 VA (Watt)
Power Input ~100-240 V AC, 50-60 Hz (auto sensing input)
Fuse protection Micro-fuse 5x20 mm, T2A
Operational Parameters
Max. Ambient
Temperature 45°C / 113°F (integrated overheating switch)
Mounting Position Any (see chapter mounting)
Lighting System - Additive Color mixing
LED Type 60x Luxeon Rebel High-power- LEDs
Lifetime 50.000 h
21x LEDs blue, 21x LEDs green und 18x LEDs red
Wavelength optimized for maximum presentable color space
Optical System
High efficient Collimator cluster
Exchangeable optical carrier with 10°light distribution angle (25°optional)
Scattering light aperture
Shutter / Dimmer (8 Bit)
Strobe- Effect with variable speed between 1 - 10 flashes per second, Random-Strobe, Pulse-
Effects
Continuous Dimmer 0 - 100%
DMX Control
Standard USITT DMX-512, 3 pole XLR; [+] = Pin 3 [-] = Pin 2 [Ground] = Pin 1.
Die DMX- Addressing starts at the DMX channel [001].
Pan/Tilt (8/16 Bit)
Pan- movement 660°in min. 2 seconds, with position feedback
Tilt- movement 300°in min. 1 seconds, with position feedback
Weights and Measures
Width of the base
285 mm
Length of the base
242 mm
height (head vertical)
356 mm
Weight (net)
7,8 kg

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.7) / from software version 1..15) 15
7 System dimensions (in mm)
3
5
6
290
268
285
80
242
132
1
2
40
7
4

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.7) / from software version 1..15) 16
8 Index
B
BGV C1............................................................6
C
Circumference...............................................13
Cleaning.........................................................13
D
Description of Device.......................................4
DIN VDE 0711-217..........................................6
DMX.................................................................8
DMX Protocol ................................................11
E
e-mail...............................................................1
Enter-key.........................................................9
I
Instruction Version...........................................1
Internet.............................................................1
L
LED Class 2M.................................................5
M
Maintenance..................................................13
Menu Field.......................................................9
Micro-fuse........................................................8
Mode-key.........................................................9
Mounting.........................................................6
Mounting in hanging Position ..........................7
Mounting in sidewise Position......................... 7
Mounting on the Floor..................................... 7
O
Optical parts................................................13
P
Pan- Movement.............................................14
Power Supply ................................................ 8
S
Safety distance ............................................... 6
Safety Instructions .......................................... 5
Secure the Device......................................... 8
Software Version............................................. 1
T
Technical Specifications............................ 14
Tilt- Movement..............................................14
U
Up/Down-keys................................................ 9
V
VBG 70 ........................................................... 6
W
Warranty claims .............................................. 6
Weights and Measures.................................14

R
R
R-
-
-G
G
G-
-
-B
B
B
GLP German Light Products GmbH (Instruction version 1.7) / from software version 1..15) 17
