Goldmedal Econo-Pop 14 Popper User manual

© 2016 Gold Medal Products Co. Part No. 110073
Instruction Manual
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
Econo
-
Pop 14 Popper
Export Model No. 2121NSX

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 2
gmpopcorn.com

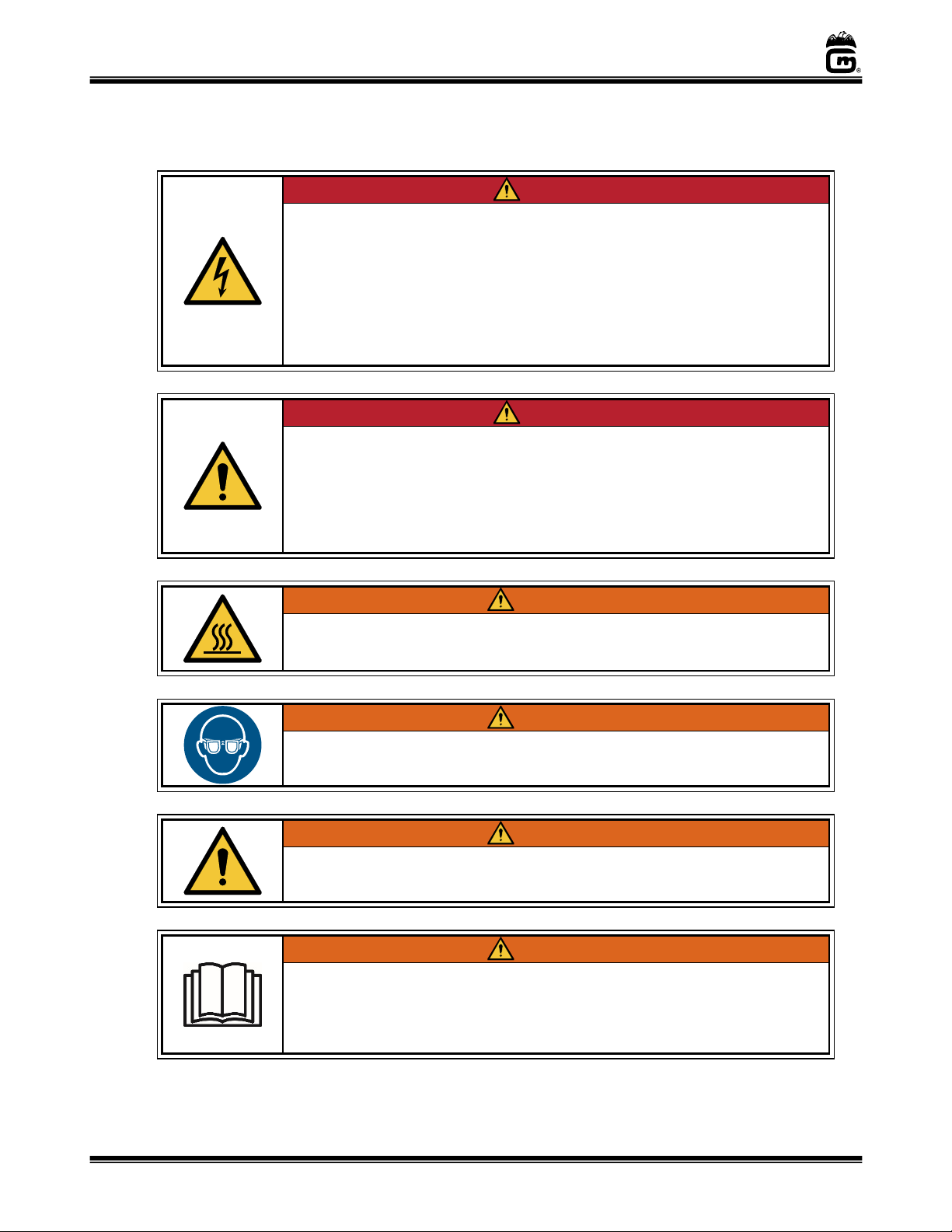

SAFETY PRECAUTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment will
void the warranty and may cause a dangerous condition. NEVER make
alterations to this equipment. Read the Installation, Operating, and
Maintenance Instructions thoroughly before installing, servicing, or operating
this equipment.
014_051514
WARNING
To avoid burns, DO NOT touch the kettle or any heated surface.
DO NOT place or leave objects in contact with heated surfaces.
013_092414
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,
Cincinnati, OH 45241 USA 1-(800)-543-0862
022_060215

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 3
gmpopcorn.com
SAFETY PRECAUTIONS (continued)
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefully read all instructions before operation.
012_010914
WARNING
This machine is NOT to be operated by minors.
007_010914
Note: Improvements are always being made to Gold Medal’s equipment. This
information may not be the latest available for your purposes. It is critical that
you call Gold Medal’s Technical Service Department at -800-543-0862 for any
questions about your machine operations, replacement parts, or any service
questions. (Gold Medal Products Co. does not assume any liability for injury due
to careless handling and/or reckless operation of this equipment.)

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 4
gmpopcorn.com
INSTALLATION INSTRUCTIONS
Inspection of Shipment
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims
should be filed immediately with the transportation company. The warranty does not cover
damage that occurs in transit, or damage caused by abuse, or consequential damage due to the
operation of this machine, since it is beyond our control (reference warranty in back of manual).
Manual
Read and understand the operator’s manual and all other safety instructions before using this
equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold
Medal Products Co., 0700 Medallion Drive, Cincinnati, OH 4524 USA -(800)-543-0862.
Model Description
2121NSX: Export 4 oz. Econo-Pop Popper

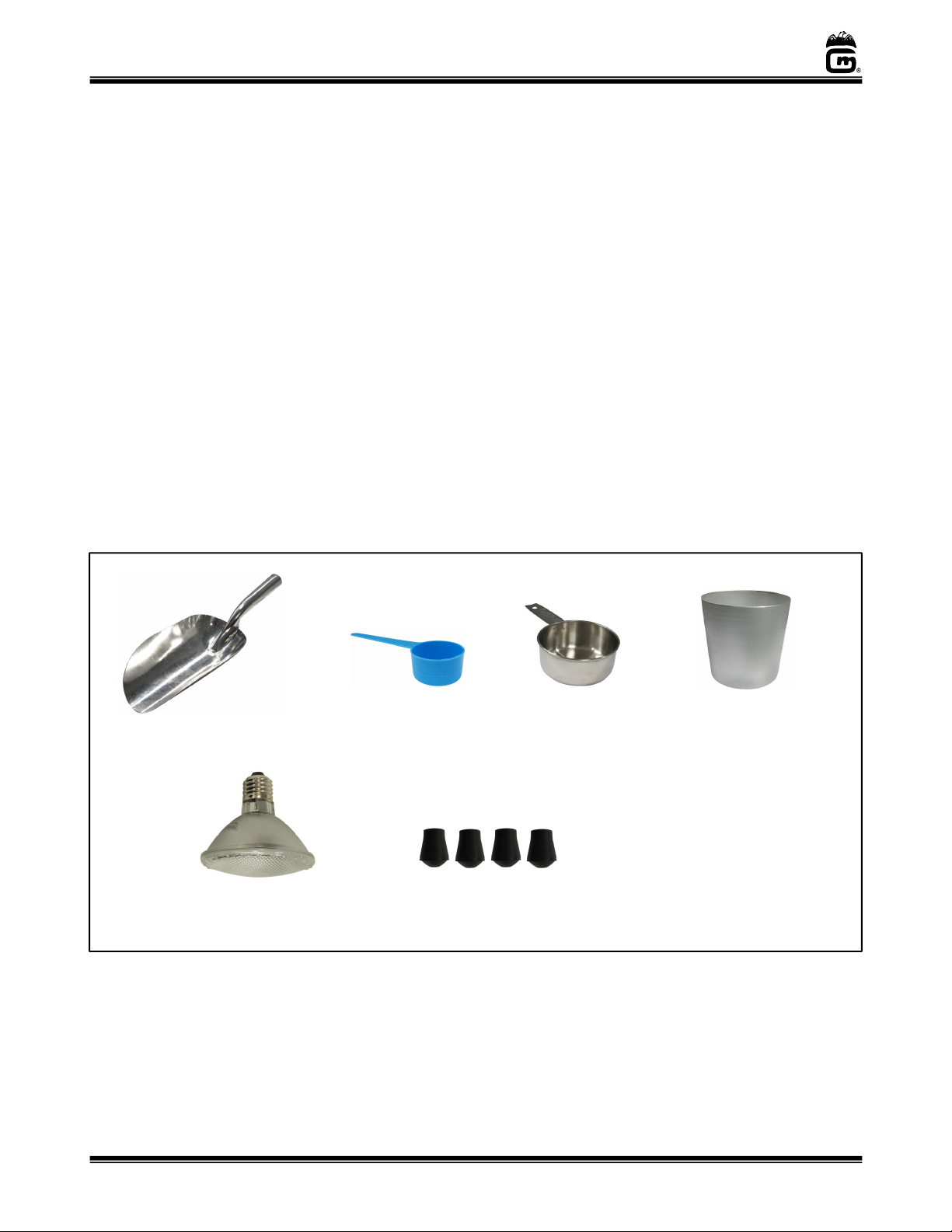

Items Included with this Unit
Aluminum Scoop Measure 14.7 cc
14 oz. Corn Measure
Black Crutch Tips
Bul for Ca inet
Interior
1/2 Cup Oil Measure

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 5
gmpopcorn.com
Setup
This unit has been tested at the factory.
. Remove all packaging and tape prior to operation.
2. Place the unit on a sturdy, level base.
3. The popper unit has 4 glide feet preinstalled at the factory. Install a Black Crutch Tip
on each of the 4 glide feet. Firmly push the crutch tip over the glide until it covers the
glide entirely.
4. The door knobs are shipped facing the inside of the machine. Re-adjust the door knobs
to face the outside of the machine.
5. Carefully install the light bulb (do not over-tighten) into the lamp holder located in the
cabinet interior. Ensure the unit is OFF and unplugged before installing or changing
the bulb (reference the Electrical Requirements section).
6. After setup, the unit should be cleaned prior to use (see Care and Cleaning section of
this manual).

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 6
gmpopcorn.com
Electrical Requirements
The following power supply must be provided:
2121NSX: 230 V~, 420 W, 50 Hz
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
A certified electrician must furnish sufficient power for proper machine operation and install any
supplied receptacle. We recommend this equipment be on a dedicated and protected circuit.
Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold
Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The
use of extension cords is not recommended due to safety concerns, and may cause sacrificed
and/or reduced performance. Make sure cord is located to prevent a trip hazard or unit upset.
Before You Plug In Machine
. Make sure all machine switches are in the OFF position before plugging the equipment
into the receptacle.
2. Make sure the wall outlet can accept the grounded plugs (where applicable) on the
power supply cord.
3. The wall outlet must have the proper polarity. If in doubt, have a competent
electrician inspect the outlet and correct if necessary.
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable).
5. Install the unit in a level position.
CAUTION
If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,
its service agent or similarly qualified persons in order to avoid a hazard.
039_080614

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 7
gmpopcorn.com
OPERATING INSTRUCTIONS
Controls and Their Functions
LIGHTS/WARMER SWITCH
Two position, ON/OFF lighted rocker switch - supplies power to the interior cabinet light
and to the corn pan heat element. The green switch light ON indicates there is power to
the light and corn pan heat element.
KETTLE MOTOR SWITCH
Two position, ON/OFF lighted rocker switch - operates the kettle agitator motor. The
Kettle Motor Switch MUST be ON at all times when there is popcorn (popped or un-
popped) in the kettle.
KETTLE HEAT SWITCH
Two position, ON/OFF lighted rocker switch - supplies power to the heating elements in the
popping kettle. The green switch light ON indicates there is power to the kettle heating
element.
Callout
Light and
Warmer Switch
Kettle Heat
Switch
Kettle Motor
Switch

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 8
gmpopcorn.com
Popping Corn
This section describes instructions for popping Standard (salted popcorn).
Your new popper is equipped with a corn, salt, and oil measure. We recommend flavored and
colored coconut oil. Popcorn popped in coconut oil stays fresh longer and does not leave black
deposits in your kettle like other oils. Use only top quality, fresh popcorn from reputable suppliers.
Ingredient amounts for popping Standard Popcorn:
Kettle
Size
Popcorn
Charge
Oil
Charge
Flavacol (Salt)
4 oz.
4 oz. (4 4 ml)
4.5 oz. (
33
ml)
Tblsp. (
5
cc)
For best results use Mega-Pop® 2 oz. premeasured pouches (Item# 2839).
Popping Standard (Salted) Popcorn
. Turn the Lights/Warmer, Kettle Heat and Kettle Motor Switches ON.
2. To determine when the kettle is ready to pop corn (about 4 minutes), test pop three
kernels of corn and one ounce (30 ml) of popping oil. When the kernels pop, the kettle
is ready for use.
3. Lift the kettle lid and load the Mega-Pop® premeasured popcorn and oil pouch into
kettle, or pour in the popcorn and Flavacol, then add oil in the premeasured amounts
specified above. Close lid.
4. When the corn has finished popping, gently dump the popcorn.
5. On the final kettle of corn, turn the Kettle Heat Switch OFF just as the lids are forced
open by the popping corn. This procedure saves electricity, since the kettle has plenty
of heat, and helps eliminate smoke/odor from any oil residue that remains after
popping has stopped.
6. When finished popping, make sure KETTLE HEAT and KETTLE MOTOR switches are
turned OFF.
NEVER LEAVE THE HEAT ON WHEN YOU ARE NOT POPPING CORN!

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 9
gmpopcorn.com
Care and Cleaning
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
DO NOT immerse in water.
Always unplug the equipment before cleaning or servicing.
025_020314
WARNING
To avoid serious burns, DO NOT touch the kettle while it is hot!
028_082715
Good sanitation practice demands that all food preparation equipment be cleaned regularly (only
use non-toxic, food grade cleaners). A clean looking, well-kept machine is one of the best ways of
advertising your product.
Note: It is extremely important to follow all of the cleaning procedures, otherwise parts
damage and equipment failure will result. The warranty does not cover parts that
are damaged due to improper cleaning.
Daily Kettle Cleaning Instructions
CAUTION: A hot kettle will cause burns if you touch it with your hand. Allow kettle to cool
at least hour before attempting to clean. DO NOT use ice or water to cool
down a hot kettle! Severe kettle damage will result!
. When cool, wipe the outside of the kettle with a clean, soft cloth. DO NOT use oven
cleaners or abrasive materials as they will damage the kettle.
2. Every night, mix Gold Medal’s Heat’n Kleen solution (Item No. 2095), 2 tablespoons
per gallon of water. It is not necessary to use the entire gallon at once; only use
enough to fill the kettle /2 inch deep.
3. Turn the kettle heat ON. When the water starts to boil, turn the kettle heat OFF.
4. Allow to cool for at least hour, then dump the solution into a bucket and wipe the
inside of the kettle with a clean cloth. Make sure all of the solution goes into the
bucket; do not spill any in the interior of the machine.
For an extra dirty kettle, the process may be repeated; or, after turning the kettle heat
OFF, allow solution to sit in the kettle overnight. The next morning, dump the solution
into a bucket and wipe the inside of the kettle with a clean cloth.
5. With the unit OFF and unplugged, wipe the kettle lead cord with a clean SLIGHTLY damp
cloth. DO NOT get moisture into the kettle lead-in cord, severe damage will result.

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 10
gmpopcorn.com
Daily Unit Cleaning Instructions
. With the machine OFF, unplug the unit and allow it to cool before attempting to clean.
2. Make sure to clean all pans/accessories in order to sanitize them before each use.
3. Take a clean, SLIGHTLY damp cloth and wipe excess grease from the glass and cabinet.
4. Wipe the stainless steel parts with a clean cloth and cleaner designed for stainless
steel, such as Gold Medal Watchdog Stainless Cleaner (Item No. 2088).
DO NOT use oven cleaners or abrasive materials as they will damage parts of the
machine.
5. Clean the glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item
No. 2588) is recommended.
Ammonia cleaners will damage the plastic doors. Use only non-ammonia cleaners,
such as Gold Medal Watchdog Glass Cleaner (Item No. 2588).

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 11
gmpopcorn.com
Troubleshooting
Issue
Possi le Cause
Solution
Power to the Unit
A.
Power to
the
Unit
A.
Make sure the
unit’s power
cord is plugged in.
Kettle Does Not Heat
A.
Power to the Kettle
A.
Make sure kettle
lead
-
in cord is plugged in and
twisted to lock into the kettle receptacle.
B.
Kettle Heat Switch
B.
Have a qualified service person c
heck the
voltage to and from the Kettle Heat Switch; if
switch is defective, replace it.
C.
Heating Element
C.
Heating element in
the kettle may
be burned
out. Check with a qualified service person for
inspection/repair.
Long Popping Cycles
(Longer than 4 minutes for
Salt Popcorn)
A.
Low Voltage
A.
If the machine is operated on low voltage, this
could cause the kettle not to reach the proper
operating temperature. Check with a qualified
electrician.
B.
Inadequate Supply Lines
B.
Inadequately sized electrical supply lines
or
use of extension cord, in addition to being a
fire hazard, would also prevent the kettle from
reaching the proper operating temperature.
Check with a qualified electrician.
C.
Inferior Corn
C.
Inferior quality corn would result in longer
popping cycles. Use only top quality hybrid
popcorn from reputable suppliers. Even then,
if you let your corn pick up moisture or dry
out, your popping cycles will be slow.
Kettle Agitator Shaft not
Rotating
A.
Kettle Motor Switch
A.
If the kettle agitator shaft is not rotating,
DO NOT pop corn. Make sure the Kettle Motor
Switch is ON. If the switch is ON, and the shaft
is not rotating, the switch or motor may be
faulty, contact qualified service personnel for
inspection/repair.
B.
Kettle Agitator
S
haft
/Stir
Blade not rotating. (Unit
must e OFF, unplugged
and cool prior to
checking or adjusting
the agitator assem ly.)
B.
If the kettle agitator shaft is not rotating,
DO NOT pop corn. Check the clearance
between the kettle bottom and the stir blade;
it should be /32” (use a dime). To adjust,
reference the Agitator Set Collar Adjustment
section.

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 12
gmpopcorn.com
Agitator Set Collar Adjustment
The following instructions describe how to properly adjust set collars on an agitator assembly
with a floating stir rod.
Step 1:
Make sure machine is OFF and
unplugged, then allow unit to cool completely
before attempting to adjust the agitator height.
Step 2: Loosen the set screw in each set collar
to be adjusted.
Step 3: With the kettle mounted in the popper,
adjust the shaft so the Agitator’s Spur Gear
contacts half of the Drive Motor Spur Gear
(reference Spur Gear Placement image at right).
DO NOT set spur gears at full gear contact; it
can cause binding as the kettle is dumped.
Step 4: Once shaft is positioned correctly,
re-tighten the set screw in the set collar above
the crossbar to secure in place.
Step 5: Adjust clearance between the bottom of
the crossbar and the lower set collar to /32”
(thickness of a dime); then re-tighten set screw
to secure in place (see image below).
Step 6: Adjust set collar for agitator weight to
be between 3/ 6” to /4” above the agitator
weight. Once adjusted, re-tighten set screw to
secure in place.
Drive Motor
Spur Gear
Agitator’s Spur Gear
Agitator’s Spur Gear
should set halfway
up on Drive Motor
Spur Gear.
Set Collar
w/Set screw
Agitator shown for general image
reference only (lids not shown for
clarity).
Set Collar a ove
Cross ar
Lower Set Collar
(below Crossbar)
Adjust clearance to
thickness of a dime.
Set Collar (for Agitator Weight)
Agitator Weight
3/16” to 1/4” max.
Stir Rod
Spur Gear Placement
Steps to Adjust Set Collars
Cross ar

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 13
gmpopcorn.com
MAINTENANCE INSTRUCTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
DO NOT immerse any part of this equipment in water.
DO NOT use excessive water when cleaning.
Keep cord and plug off the ground and away from moisture.
Always unplug the equipment before cleaning or servicing.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle.
008_051514
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment will
void the warranty and may cause a dangerous condition. NEVER make
alterations to this equipment. Read the Installation, Operating, and
Maintenance Instructions thoroughly before installing, servicing, or operating
this equipment.
014_051514
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY
FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH
ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.
027_010914

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 14
gmpopcorn.com
ORDERING SPARE PARTS
. Identify the needed part by checking it against the photos, illustrations, and/or
parts list.
2. Use only approved replacement parts when servicing this unit.
3. When ordering, please include part number, part name, and quantity needed.
4. Please include your model number, serial number, and date of manufacture (located
on the machine nameplate/data plate) with your order.
5. Address all parts orders to:
Parts Department
Gold Medal Products Co.
0700 Medallion Drive
Cincinnati, Ohio 4524 -4807
Or, place orders by phone or online:
Phone: [phone]
(5 3) 769-7676
Fax: [phone]
(5 3) 769-8500
E-mail: [email protected]
Web Page: gmpopcorn.com

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 15
gmpopcorn.com
Replacing Broken Glass
Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be
obtained from a local glass shop and always purchase tempered glass.
. Remove all loose pieces of glass.
2. Remove all rigid glass channels from around the glass to be replaced. Set it aside as it
must be reused.
3. Carefully remove the rest of the broken glass.
4. Apply decals (if desired) to the new glass panel.
5. Slide rigid glass channels over the exposed sides and bottom of new glass panel.
6. Fasten new glass panel in machine with the existing glass strips. (On some units, the
front and side glass slide under top and is then lowered into the bottom channel.)
GLASS DIMENSIONS (W x H x D)
Front Glass: 24 3/ 6” X 24” X /8” ( Piece)
Side Glass: 6 3/4” X 24 3/ 6” X /8” (2 Pieces)

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 16
gmpopcorn.com

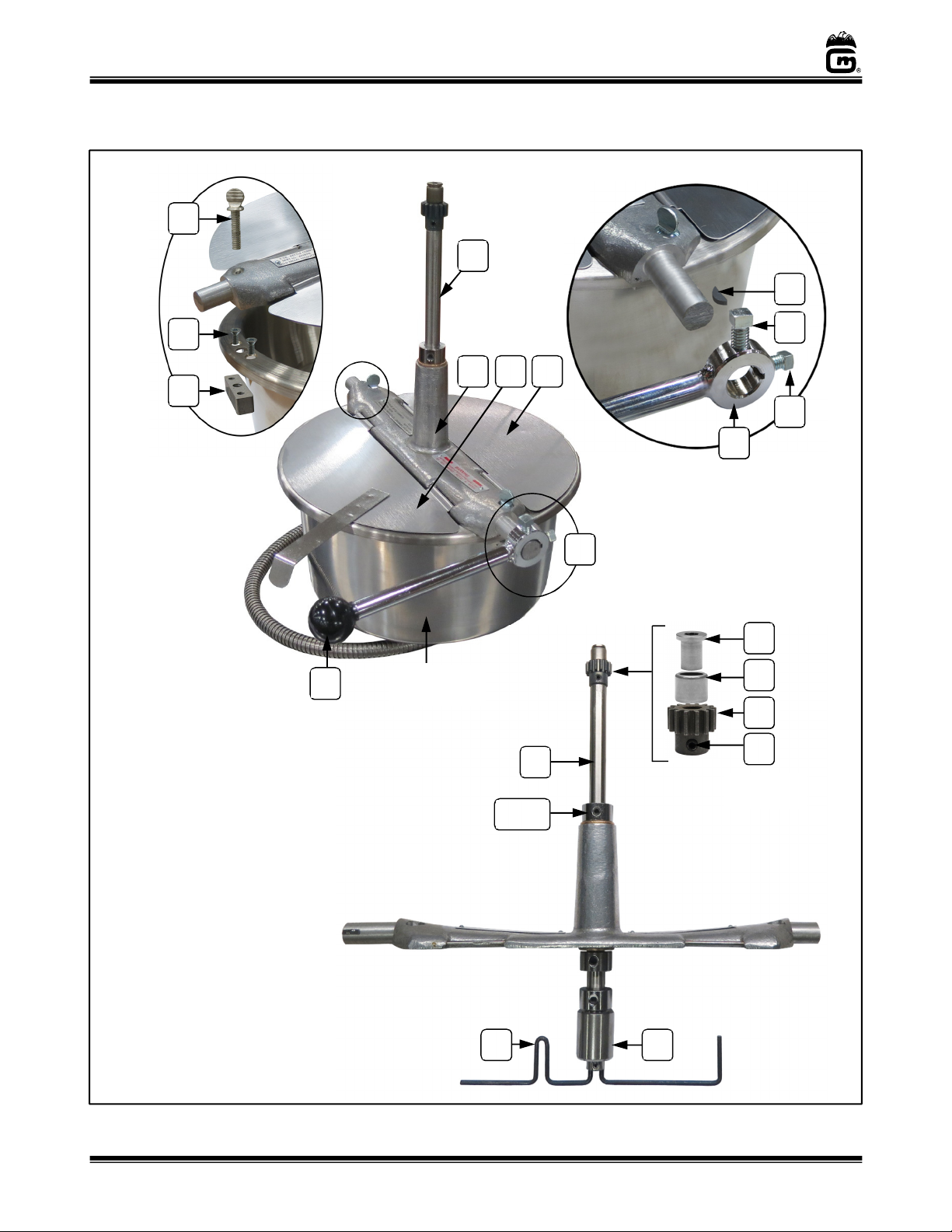

12/14 oz. Kettle Assy. (58220EX) – Agitator Assy.
18
19, 20
22 21
Co
mplete Agitator Assem ly
(Includes Lids)
Complete Kettle Assem ly
1
2
3
See Kettle
Bottom Assy.
9
8
5 6 7
4
Complete Agitator
Assem ly
(Includes Lids)
13
12
11
10
*See Parts
List note.
14
15
16*
17
.58220 Overall Image

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 17
gmpopcorn.com
12/14 oz. Kettle Assy. (58220EX) – Agitator Assy. – Parts List
Item Part Description Part Num er
58
220
EX
/4
-
20 X .25 THUMB SCREW
6 068
2
8
-
32 X /2 PHILL
FLAT M/S ZINC
20066
3
SHELL & KETTLE BLOCK
6 0 3
4
2/ 4 OZ LID&AGITATOR AS
S
Y
(Complete Assy.)
582 9EX
5
CROSSBAR ASSEMBLY
6 025
6
FORMED LID
4726
7
REAR KETTLE LID
47 9
8
DUMP HANDLE ASSEMBLY (assembly includes
Handle, Knob, 2 SQ HD Screws, and Key) 47 02
9
DUMP HANDLE KNOB
47 0
0
DUMP HANDLE
47707
5/ 6
-
8 X 3/8 SQ HD SCREW (
Holds Key
)
47662
2
5/ 6
-
8 X /2 SQ HD SCREW
47725
3
WOODRUFF KEY #3 /8X /2
4 730
4
AGITATOR B
EA
R
IN
G HUB
43434
5
NEEDLE BEARING
47 06
6
SPUR GEAR Kit
(Includes 2 gears with set screws.
Always replace Agitator Spur Gear and Kettle
Drive Motor Gear as a set.)
47059K
7
0
-
32 X 3/ 6
SET SCREW
4 742
8*
AGITATOR SHAFT
6 092
9
/2ID X 7/8OD SET COLLAR
47326
20
SET SCREW /4
-
20 X 3/ 6
4775
2
AGITATOR WEIGHT
6 093
22
STIR ROD
490

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 18
gmpopcorn.com

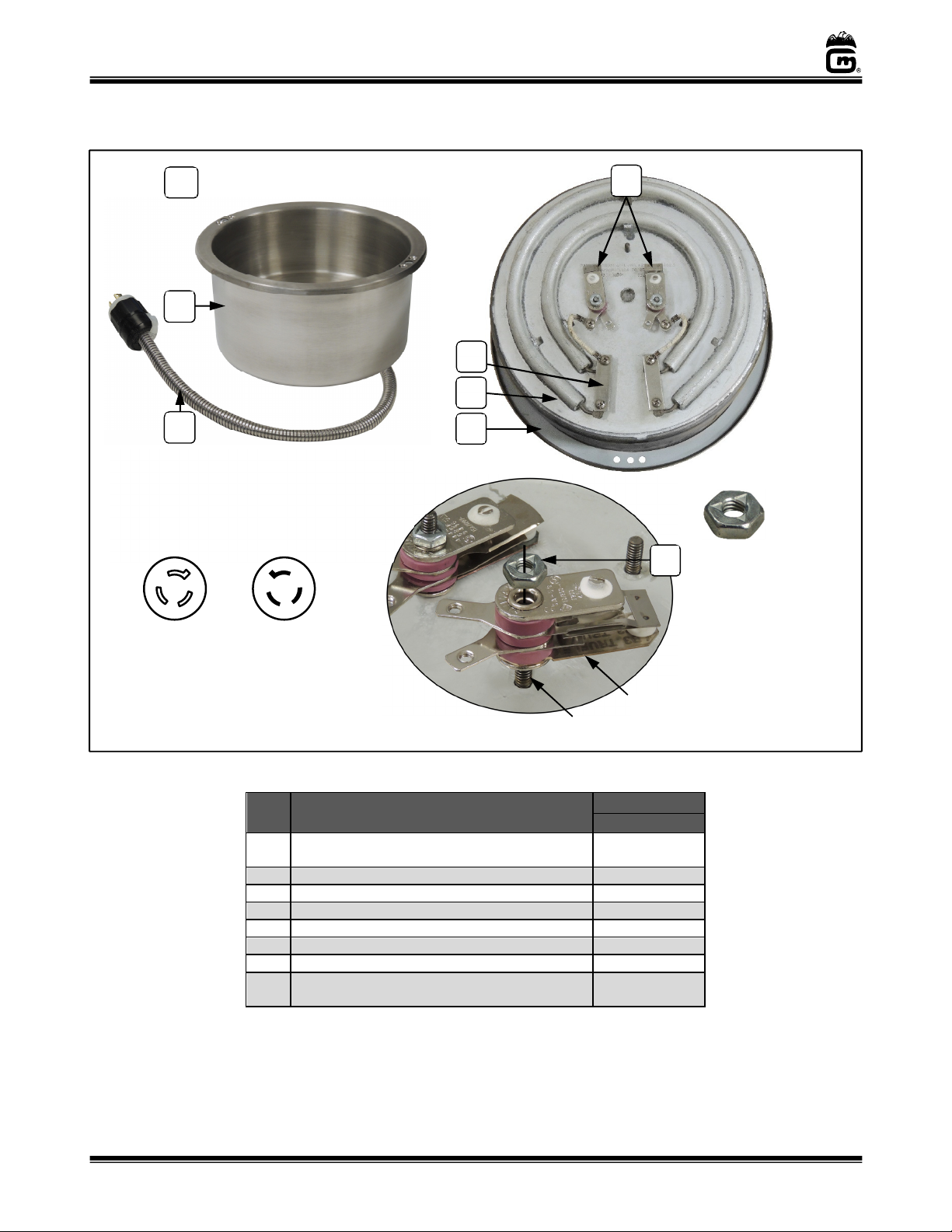

12/14 oz. Kettle Assembly (58220EX) – Kettle Bottom View
Item Part Description Part Num er
58220EX
2/ 4 OZ. KETTLE BOTTOM ASSEMBLY
(includes parts listed below) 5822 EX
2
KETTLE SHELL
6 0 7
3
KETTLE LEAD ASSY
6 030
4
KETTLE GASKET
6 0 2
5
2/ 4 KETTLE WITH HEATER
580 EX
6
2/ 4OZ SHUNT BAR
77879
7
8
-
32 TOP LOCK NUT (always replace
if removed)
67943
8
482°
F
THERMOSTAT (includes two 6
-
32 screws)
(two thermostats required) 76708
8
Element View
Lock Nut View
Top Lock Nut
-
Fastens
each thermostat and
ground. Install Lock Nut
with triangle in UP
position (as shown).
ONE TIME USE ONLY,
REPLACE NUT if
removed.
Thermostat
Welded Stud
7
2
3
Kettle Bottom Assem ly
1
5
4
6
As of
February
, 20
6,
the
EXPORT
Kettle
Lead-in Assembly Plug is 230V (NEMA L-6).
When replacing the lead-in assembly, ensure
the kettle receptacle will match the new
configuration (see image below).
Export L6
-
15
R
Kettle Recpt.
(P/N 49330EX)
Export L6
-
15P
Kettle Plug
Configuration

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 19
gmpopcorn.com
Cabinet Exterior – Front View
Item Part Description Part No.
2121NS
X
RED POWDER COAT DOME
6 23
2
GLASS CHAN 23 3/ 6
(side channel used on
front glass and side glass) 47695
3
GLASS CHAN 6 / 6
(top and bottom channel
for side glass) 47693
4
GLASS CHAN 24 (top and bottom channel for
front glass) 47696
5
GLIDE
47328
6
BLACK CRUTCH TIP
49 23
1
6
5
2
For Glass Panels,
see Replacing
Glass section.
3, 4

Econo-Pop 14 Popper Export Model No. 2121NSX
Page 20
gmpopcorn.com

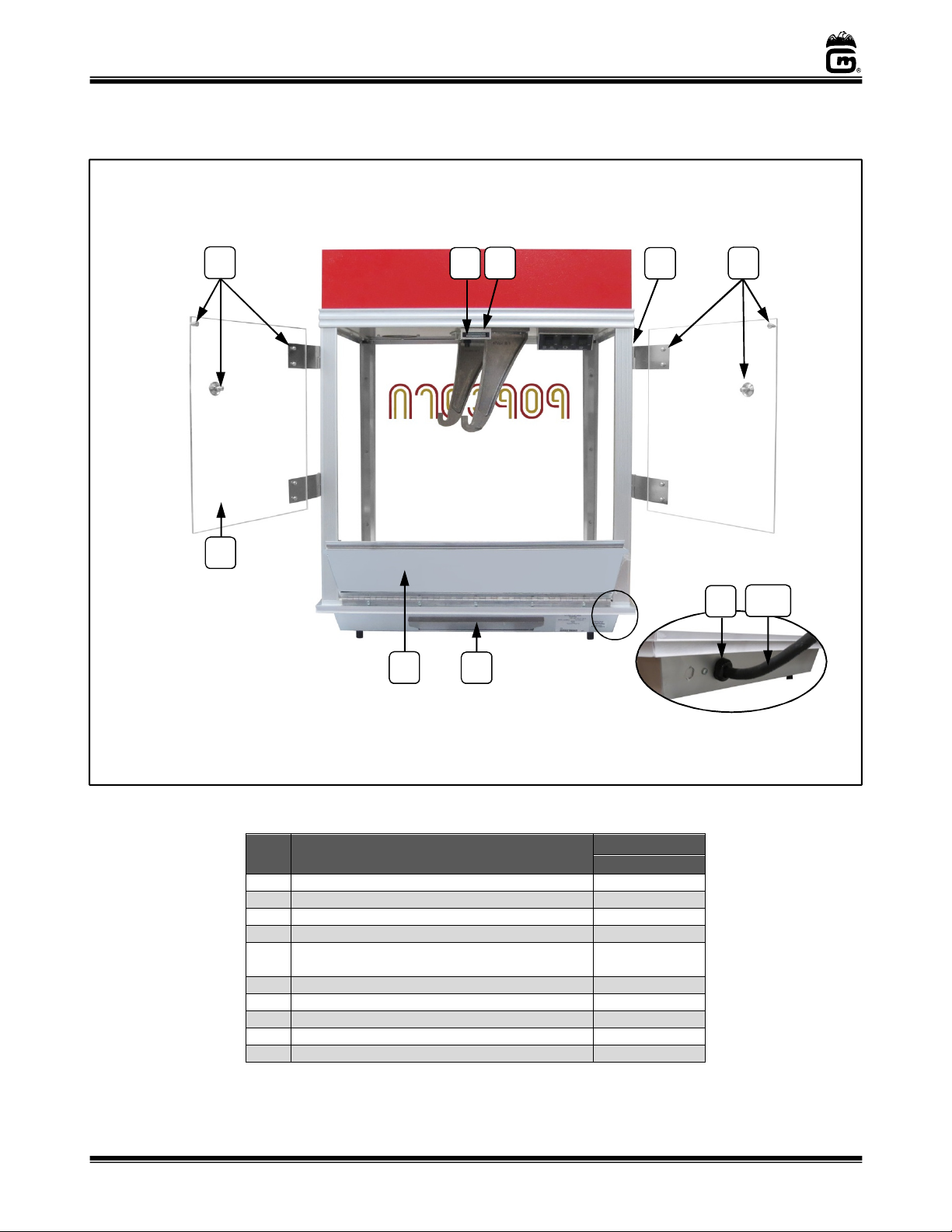

Cabinet Exterior – Rear View
Item Part Description Part No.
2121NS
X
MAGNETIC CATCH
4756
2
MAGNETIC CATCH MOUNT BRACKET
47559
3
*
CO
MPLETE HARDWARE KIT FOR LH DOOR
47054
4
*
CO
MPLETE HARDWARE KIT FOR RH DOOR
47055
5
8
-
32 X 3/8 SLT HWH M/S
(Frame hinge screws
not included with Door Hardware Kit) 42044
6
PLEXIGLASS DOOR
77058
7
DROP PANEL ASSEMBLY
47006
8
OLD MAID PAN
47003
9
#SR
-
6W
-
STRAIN RELIEF
82220
0
**
EXPORT POWER SUPPLY CORD
42369
*
Complete Left and Right Hand Door
Hardware Kits - See next page for
individual
component reakdown.
5
3*
4*
6
2
1
7
8
*
*
CAUTION: If supply cord is damaged, it must e replaced y
Gold Medal Products Co., its service agent, or similarly
qualified persons in order to avoid a hazard.
9
10**
