Grundig SI 5340 User manual

DE EN NL FR IT ES
SI 5340
Product code 1807602
STEAM IRON

A
B
I
J
K
L
M
C
D
E
F
G
H

3
________________________________________________________
A
B
I
J
K
L
M
C
D
E
F
G
H

ENGLISH18
SAFETY AND SET-UP _________________________
Please read this instruction manual thoroughly before
using this appliance. Follow all the safety instructions
to avoid damage caused by improper use.
Keep this instruction manual for future reference. If this
appliance is given to a third party, then this instruction
manual must also be handed over.
The appliance is designed for domestic use only. It
should not be used for any commercial purpose.
Use this appliance for its intended purpose.
Only use this appliance indoors. Do not use this
appliance in the bathroom or outside.
No liability can be assumed for possible damages
that may have been caused by incorrect usage or
mishandling of the appliance.
The iron must not be left unattended while it is
connected to the supply mains. Extreme caution
is advised when the appliance is being used near
children and persons who are restricted in their
physical, sensory or mental abilities.
Keep the iron and its cord out of reach of children
less than 8 years of age when it is energized or
cooling down.
The plug must be removed from the socket-outlet
before the water reservoir is filled.

ENGLISH 19
SAFETY AND SET-UP _________________________
The iron must be used and rested on a stable
surface.
When placing the iron on its stand, ensure that the
surface on which the stand is placed is stable.
The iron is not to be used if it has been dropped, if
there are visible signs of damage or if it is leaking
This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities, or lack
of experience and knowledge, if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not
be made by children without supervision.
CAUTION. Hot Surface. Surface is liable to
get hot during use.
Do not place this appliance on hotplates (gas,
electric or coal stoves etc.). Keep this appliance
away from all hot surfaces.
Always operate this appliance on a heat-resistant,
stable, dry, non-slip surface. The iron must be used
and rested on a stable surface.
Do not dismantle the appliance under any
circumstances. No warranty claims are accepted for
damage caused by improper handling.

ENGLISH20
Our GRUNDIG Household Appliances meet
applicable safety standards. Therefore, if the
appliance or supply cord (power cord) is damaged
it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid
a hazard. Faulty or unqualified repair work may
cause danger and risk to the user.
The iron is not to be used if it has been dropped, if
there are visible signs of damage or if it is leaking.
Never use this appliance with damp or wet hands.
Only use the original accessories or those that are
recommended by the manufacturer.
Danger of suffocation! Keep all packaging materials
away from children.
Remove all packaging materials and labels and
dispose of them according to the applicable legal
regulations. Please contact your local authority in
regard to disposal and recycling in your area.
Clean all parts prior to usage.
This appliance is only suitable for household use.
Make sure that your local power supply
corresponds to the information on the label. The
only way to disconnect the appliance from the
power supply is to pull the power plug out of the
power outlet.
SAFETY AND SET-UP _________________________

ENGLISH 21
SAFETY AND SET-UP _________________________
For additional protection, this appliance should be
connected to a household residual current device
with a rating of no more than 30 mA. Consult your
electrician for advice.
Dry the appliance and all accessories before
connecting it to a power supply and prior to
attaching the accessories.
Make sure that there is no danger that the power
cord could be accidentally pulled or that someone
could trip over it when the appliance is in use.
Position the appliance in a way that the power plug
is always accessible.
Unplug the appliance before cleaning when it is not
in use.
Avoid damaging the power cord by not squeezing,
bending or rubbing it on sharp edges. Keep the
power cord away from hot surfaces and open
flames.
Do not wrap the power cord around the appliance.
Always connect the appliance to an earthed wall
socket.
Do not use an extension cord with the appliance.
Do not submerge the appliance, the power cord or
power plug in water or any other liquid.

ENGLISH22
Only clean this appliance with a slightly damp cloth.
Always keep hair, clothing and other objects away
from the appliance while it is in use to prevent injury
or damage.
Warning – Danger of burns!
Do not touch the hot soleplate or lean over the
iron while it is being used. Heat rises from the iron
during usage, especially when you are ironing on
the corner of an ironing board! Only touch the iron
by the handle. Beware that surfaces (such as the
ironing board or ironed fabric) are liable to get hot
during use.
Do not iron over zips, metal buttons or other metal
parts, as this could damage the soleplate.
To guarantee the safety of the appliance, do not
alter the safety features in any way.
When you have finished ironing, when you clean the
appliance, when you fill or empty the water tank, or
when you leave the iron for a brief moment: set the
steam control to the “dry” position, place the iron
upright on its heel and unplug it from the wall socket.
When placing the iron on its stand, ensure that the
surface on which the stand is placed is stable.
Always sit the iron upright on its heel when you are
not ironing, leaving it to cool before cleaning or
storing it away.
SAFETY AND SET-UP _________________________

ENGLISH 23
Never point the hot soleplate towards people,
animals, or electrical devices while it is emitting
steam.
The plug must be removed from the socket-outlet
before the water reservoir is filled with water.
Do not fill the iron directly from the tap. Use the
measuring beaker provided.
Do not fill past MAX, or water may escape when
you are using the appliance.
After use, always let the iron cool down completely
in a location out of reach of children and persons
who are restricted in their physical, sensory or
mental abilities. Wait until the appliance has
completely cooled down before storing it away.
Products sold in the UK have a British Standard
plug. In the event of an electrical overload the fuse
may blow. Please have the fuse replaced by the
manufacturer or qualified service personnel.
SAFETY AND SET-UP _________________________

ENGLISH24
AT A GLANCE _______________________________
Dear Customer,
Congratulations on the purchase of your new
GRUNDIG Steam Iron SI 5340.
Please read the following user notes carefully so you
can enjoy your quality GRUNDIG product for many
years to come.
A responsible approach!
GRUNDIG focuses on contractually agreed
social working conditions with fair wages for
both internal employees and suppliers, as
well as on the efficient use of raw materials
with continual waste reduction of several
tones of plastic each year.
For a future worth living.
For a good reason. Grundig.
Special features
The GRUNDIG Steam Iron is equipped with:
2600W power capacity for fast, efficient ironing.
350ml water tank.
Aluminium, ceramic-coated soleplate.
Powerful vertical steam function.
Flexible swivel cord.
Anti-drip system and anti-scale mechanism.
Easy self-clean system.
Automatic shut-off safety system.
Controls and parts
Please refer to the illustration on page 3.
A Handle
B Temperature indicator light
C Steam boost button
D Water spray button
E Steam control switch
F Water-filling opening with cap
G Spray nozzle
H Soleplate
I Power cord and plug
J Heel rest
K Temperature control dial
L Water level indicator
M Measuring beaker

ENGLISH 25
OPERATION ________________________________
Preparation
1 Remove all packaging material, stickers and
protective foil. Dispose of them according to the
applicable statutory regulations.
2 Clean the outer parts of the appliance as
described in the “Cleaning and care” section.
3 Place the iron upright on its heel rest J on a heat-
resistant, even, stable, dry, non-slip surface.
Caution
When ironing for the first time, use an old, clean
cloth so that any manufacturing residues or odours
are removed. Turn the iron up high so you can use
the steam function as this will also help to flush out
any impurities.
Do not fill the iron with vinegar, descaling agents,
starch, perfume or ironing aids.
While you are adjusting clothes on your ironing
board, rest the iron on the heel rest J or position
it safely in your ironing board’s cradle.
Selecting the temperature and steam
setting
1 Turn the temperature control dial K to the
correct setting for the fabric you are ironing
(see Table 1). The temperature indicator light B
illuminates to show the iron is heating. Place the
iron on its heel rest J while you wait for it to
heat up.
Caution
Always read the care label on your garment before
setting the temperature.
2 Set the steam control switch E to your desired
setting (see Table 2). There are two steam levels:
low steam
high steam
Caution
For the steam function to work, you must set the
temperature control dial K between ●● and MAX.
Do not use the steam function at a low temperature
setting or when dry ironing.
3 The blue temperature indicator light B appears
while the iron is heating up. When the iron reaches
the set temperature, the temperature indicator light
turns off and your iron is ready to use. While you
are ironing, this light will turn on and off to indicate
that the set temperature is being regulated.
Table 1
Fabric type Temperature
symbol
Temperature Steam
function
Silk, nylon, acetates,
synthetic fabrics ● 120° max.
Wool, polyester
mixtures ●● 160° max.
Cotton, linen, rayon,
rayon mixtures ●●● 180° max.
Linen, cotton MAX 210° max.
Table 2
Steam symbol Meaning
Dry – emits no steam
Low steam volume
High steam volume
Self-clean steam function

ENGLISH26
OPERATION ________________________________
Dry ironing
1 Place the iron on a heat-resistant, even, stable, dry,
non-slip surface.
2 Set the steam control switch E to .
3 Insert the power plug into an earthed wall socket.
4 Set the temperature as described in the “Selecting
the temperature and steam setting” section.
5 You can start ironing when the blue temperature
indicator light B turns off. Do not turn the steam
control switch on during dry ironing.
Caution
When taking a break from ironing, always place the
iron upright and at a suitable distance to prevent you
from being burned by the soleplate.
6 When you have finished ironing, set the
temperature control dial K to MIN. Disconnect the
plug from the earthed wall socket and let the iron
cool down in a location that is safely out of the
reach of children.
Filling the water tank
The water tank can be refilled at any time when you
are using the iron. Please fill the water tank with the
measuring beaker M.
1 Make sure the iron is unplugged.
2 Turn the steam control switch E to .
3 Hold the iron in one hand and slightly tilt it. Open
the cap on the water-filling opening F. Fill the
water tank with tap water or distilled water to the
MAX mark. The maximum quantity is 350 ml.
4 Close the water-filling opening cap F until you
hear a click.
5 You can now plug in your iron.
Tip
If your tap water is very hard, we recommend that
you mix 50% tap water with 50% distilled water,
or use distilled water only.
Steam ironing
1 Place the iron on a heat-resistant, even, stable, dry,
non-slip surface.
2 Fill the water tank as described in the “Filling the
water tank” section.
3 Insert the power plug into an earthed wall socket.
4 Set the temperature and steam control as
described in the “Selecting the temperature and
steam setting” section.
5 You can start ironing when the blue temperature
indicator light B turns off.
– If your laundry is very dry, press the water spray
button D.
– Press the steam boost button C to remove
stubborn creases.
6 When you have finished ironing, set the
temperature control dial K to MIN and the steam
control switch E to . Disconnect the plug
from the earthed wall socket and let the iron cool
down in a location that is safely out of the reach
of children.
Spray function
At any temperature, simply press the water spray button
D several times to moisten the article and remove
stubborn creases. Make sure there is water in the water
tank.
Steam boost function
When the temperature setting is between ●●● and
MAX, press and release the steam boost button C
to remove stubborn creases and increase the steam’s
distribution across your garment.

ENGLISH 27
OPERATION ________________________________
Vertical steam ironing
Vertical steam ironing can be applied to hanging
curtains or clothes such as suits, jackets and coats.
1 Place the iron on a heat-resistant, even, stable, dry,
non-slip surface.
2 Fill the water tank as described in the “Filling the
water tank” section.
3 Insert the power plug into an earthed wall socket.
4 Set the temperature control dial K between ●●●
and MAX and the steam control switch E to .
5 When the blue indicator light turns off, hold the
iron in a vertical position approximately 1-2 cm
away from the hanging item and press the steam
boost button C. Release the steam boost button
when you want to stop steaming.
6 When you have finished ironing, set the
temperature control dial K to MIN and the steam
control switch E to . Disconnect the plug
from the earthed wall socket and let the iron cool
down in a location that is safely out of the reach
of children.
Caution
Never direct the steam at people or animals.
After ironing
When you have finished ironing, set the temperature
control dial K to MIN and the steam control switch E
to . Unplug the iron and let it cool down completely
in a safe place out of the reach of children.
Anti-drip function
The iron automatically stops steaming if the temperature
is too low to prevent water from dripping out of the
soleplate.
Automatic shut-off
The automatic safety shut-off feature activates when
the iron has not been moved for a while. The blue
temperature indicator light B will flash and several
beeps will sound. This will happen when the iron
has been:
– Positioned horizontally for 30 seconds.
– Positioned on its side for 30 seconds.
– Positioned vertically for 8 minutes.
To start using the iron again:
1 Pick up the iron or move it slightly to turn it on and
the blue light will stop blinking:
– If the blue light is steady, wait for it to turn off
before you start ironing.
– If the blue light does not turn on, the iron is
ready to use.
Auto-decalcification feature
There is a decalcification box inside the iron that reduces
the growth of calcium deposits. The decalcification box
absorbs unsolvable calcium ion and sends out solvable
sodium ion so that water can be softened

ENGLISH28
INFORMATION _____________________________
Tips for ironing
Before ironing, always check the garment label
to ensure you use the correct temperature setting.
Since an iron heats up much quicker than it cools
down, synthetic or mixed textiles, silk or similar
fabrics should be ironed first using lower temperature
settings.
Silk, wool or shiny textiles should be ironed inside
out. Velvet or similar fabrics should be ironed with
very little pressure and in one direction.
When ironing fabrics that require a lower
temperature setting, keep moving the iron so that it
does not stick to the fabric.
Do not use the steam function on silk; it could cause
stains.
100% wool garments can be ironed using steam.
Set the temperature control dial to MAX and the
steam control switch to . Lay a dry towel between
the garment and the iron.
Caution
Never iron on metal parts, such as zips, rivets or
metal buttons as they could damage the soleplate.
Always iron around these metal parts.
Cleaning and care
Caution
Never use petrol, solvents or abrasive cleaners, steel
wool, hard brushes or wood to clean any part of the
appliance.
Danger of burns! Do not touch the hot soleplate with
bare hands directly after ironing.
Remove limescale and other mineral deposits on
a regular basis.
Never hold the iron under running water and never
submerge it in water or any other liquid.
1 Before cleaning, turn the iron off and disconnect
the power plug from the earthed wall socket.
2 Let the iron cool down completely.
3 Use a slightly damp cloth to clean the exterior
of the iron. Then dry it thoroughly.
4 Wipe deposits off the soleplate with a slightly
damp cloth or if necessary, with a mild, non-
abrasive liquid cleaner.
Descaling the iron
Your iron has a decalcification box inside it to absorb
mineral deposits and soften the water. Although this
reduces the build-up of limescale and other deposits,
you still need to clean it. Descaling your iron extends
the quality and life of your iron and your clothes. If the
water is very hard in your area, you will need to use the
self-clean function more frequently.
1 Set the steam control switch E to .
2 Fill the water tank to MAX.
3 Put the plug in the earthed wall socket.
4 Set the temperature control dial K to MAX.
5 When the blue light goes out, unplug the iron.
6 Hold the iron over a sink making sure the soleplate
is facing down. Press and hold the steam control
switch E to self-clean .
7 Gently shake the iron until all the water has gone.
8 Repeat the process until you can no longer see
limescale deposits and then turn the iron off.
Tip
If your tap water is very hard, mix 50% tap water
with 50% distilled water, or use distilled water.
Caution
If too much limescale builds up the appliance might
stop working. If that happens, take it to your service
centre.
Do not use any descaling products. They could
damage the appliance.
Storage
If you will not be using the steam iron for a long period
of time, please store it carefully.
Make sure the iron is disconnected from the power
supply.
Empty the water tank and make sure it is completely
dry when storing it away.
Store it in a cool, dry place.
Make sure the appliance is always kept out of the
reach of children.

ENGLISH 29
INFORMATION _____________________________
Environmental note
This product has been manufactured with high quality
parts and materials that can be reused and are suitable
for recycling.
This marking indicates that this product should not be
disposed with other household waste throughout the EU.
To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the
return and collection systems or contact the retailer
where the product was purchased. They can take this
product for environmentally safe recycling.
Help protect the environment by recycling used
products.
Technical data
This product conforms to the European
directives 2004/108/EC, 2006/95/
EC, 2009/125/EC and 2011/65/EU.
Power supply: 220 V – 240 V ~, 50/60 Hz
Power consumption: 2200 – 2600 W
Steam rate: 35 g / min
Shot of steam: 150 g
Water tank capacity: 350 ml
Technical and design modifications reserved.

TCC Global N.V., 10/Floor, Tower H, World Trade Center
Amsterdam, Zuidplein 84, 1077XV Amsterdam, The Netherlands
www.grundig.com
72011 909 3000 14/43
This manual suits for next models
1
Table of contents
Other Grundig Iron manuals

Grundig
Grundig SIS 8670 User manual

Grundig
Grundig SI 4850 User manual

Grundig
Grundig SIS 7040 User manual

Grundig
Grundig SX 8570 User manual

Grundig
Grundig SI 4550 User manual

Grundig
Grundig SI 4550 User manual

Grundig
Grundig SI 4550 User manual

Grundig
Grundig SIS 9870 User manual

Grundig

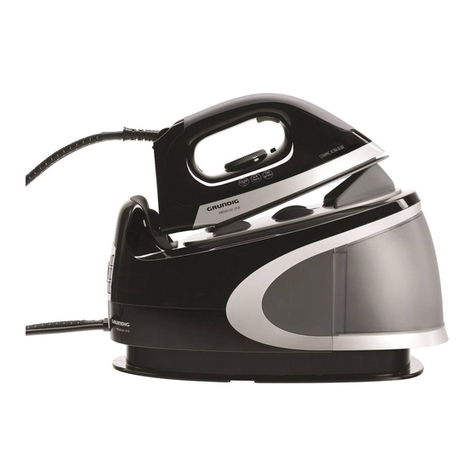

Grundig SIS 8250 User manual

Grundig
Grundig SIS 9870 User manual

Grundig
Grundig SI 7450 User manual

Grundig
Grundig SIS 9870 User manual

Grundig
Grundig SIS 9450 User manual

Grundig
Grundig SIS 8670 User manual

Grundig
Grundig SI 3350 User manual

Grundig
Grundig SIS 8250 User manual

Grundig
Grundig SIS 6170 User manual

Grundig

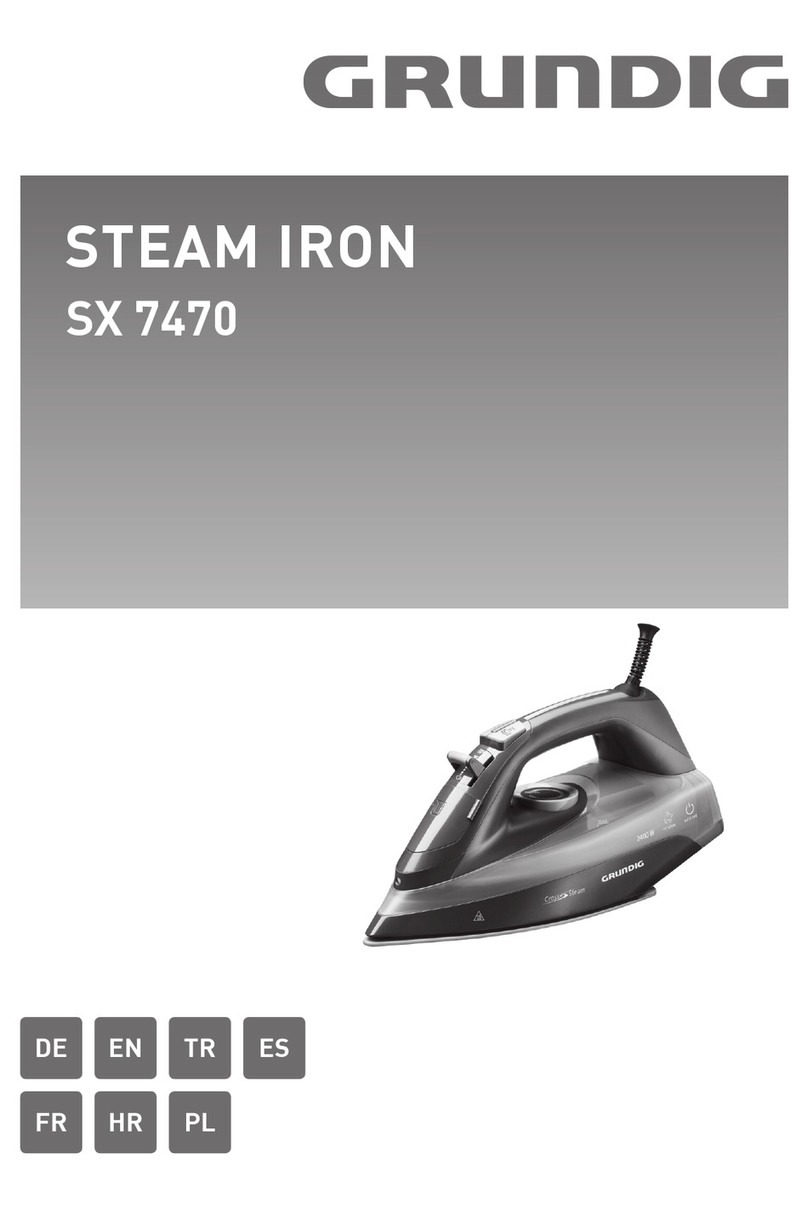

Grundig SX 7470 User manual

Grundig
Grundig SIS 7040 User manual
