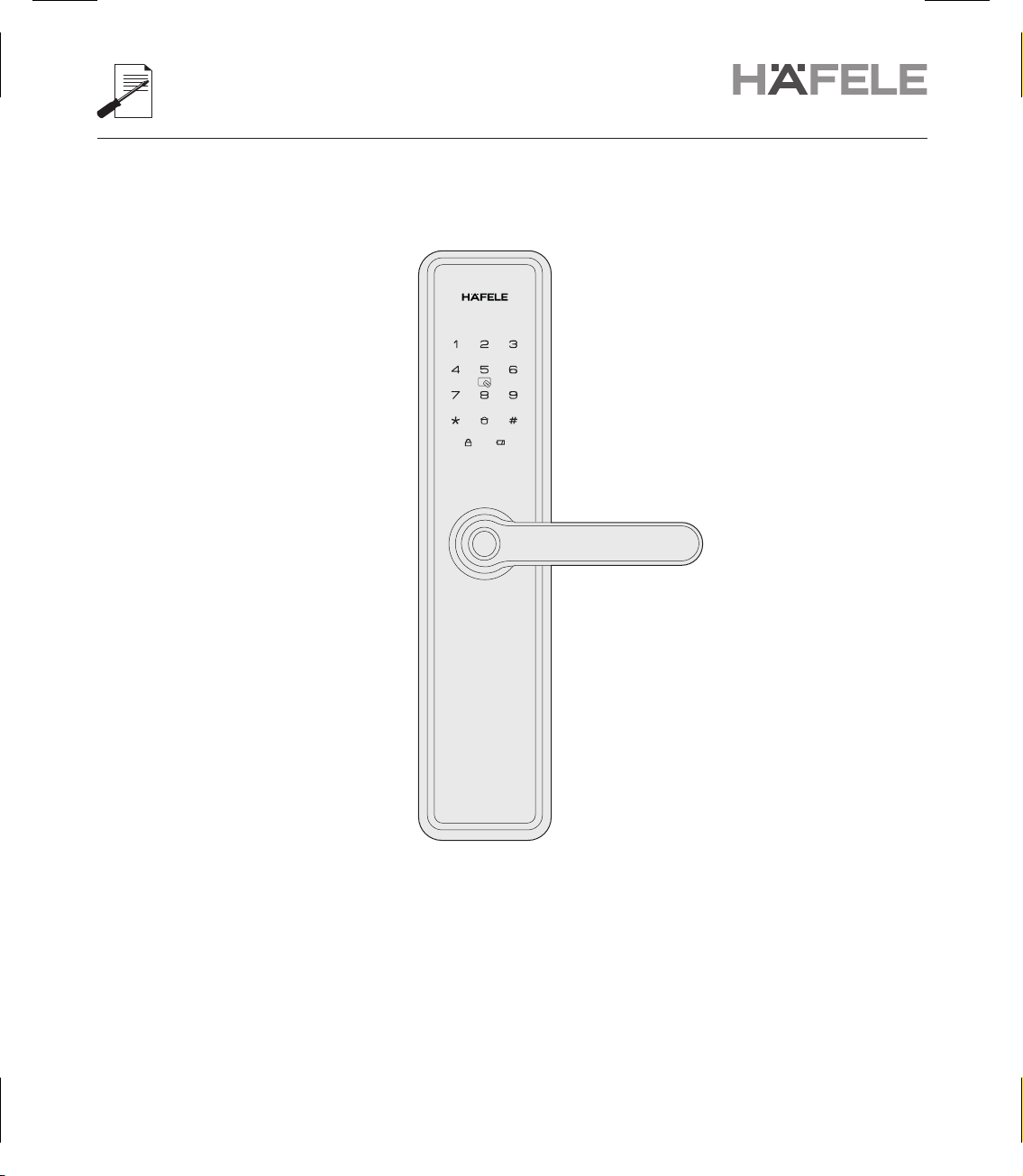

Häfele DL7600 User manual

www.hafele.com
Model DL7600
Digital door lock
* The contents of this user manual are subject to change without prior notice
to the user in order to enhance performance of the products.
DL7600
User manual

1
Contents
Read before using How to use
Lock operation
Product features ...................................... 2
Warnings ................................................. 3
Product specifications ............................. 3
Factory default settings ............................4
Quick setup guide .................................... 4
How to open the door .........................12
How to open the door from inside ........12
How to lock the door ..........................13
Restore to factory setting ....................13
Micro USB emergency power supply...13
Reboot button......................................14
Replace batteries.................................14
Network module..................................14
How to change master PIN code ............. 5
How to add user PIN code ...................... 5
How to add fingerprint ............................. 5
How to add key card ............................... 6
How to delete user PIN code ................... 6
How to delete fingerprint .......................... 6
How to delete key card ............................ 7
Opening mode setting ............................. 7
Voice guide setting .................................. 7
Language setting ..................................... 8
System query serial number ..................... 8
Network module (Optionally available) ......8
Bluetooth setting.............................................. 9
Defense mode ......................................... 9
Auto/Manual mode .................................. 9
Privacy mode .......................................... 10
Safe handle switch .................................. 10
Mute/Voice switch (Temporary setting) .... 10
Menu table .............................................. 11

Auto lock / Auto re-lock function
When the door is closed, the lock will lock automatically (In case of auto locking mode).
Alarm for battery replacement time
When the power of battery is too low, a warning voice will appear.
Please replace all batteries immediately.
Prevent mischief and hacking
When entering 5 times a wrong user PIN code, key card and ngerprint, the lock is suspended
2 minutes. After that the lock will activate again. While the lock is suspended, the system will
alarm when you are trying to use keypad.
Burglary alarm function
When the door is opened by force, the lock is suspended with alarm.
When the privacy function is activated the door cannot be opened from outside with
user PIN code, key card or ngerprint except with master PIN code.
Privacy function
Random security coding function
The random number can be added before or after the real user PIN code but the maximum length
is 32 digits. This feature will prevent the real user PIN code from being exposed.
Defense mode
If someone break in and exit from inside, the lock will alarm.
5 way solution
Five electronic locking modes: master PIN code/user PIN code, key card, ngerprint, App and
emergency key.
5
Master PIN code/ User PIN code/ Key card/ and Fingerprint identication
1 master PIN code, up to 10 user PIN codes, 100 key cards, 100 ngerprints.
2

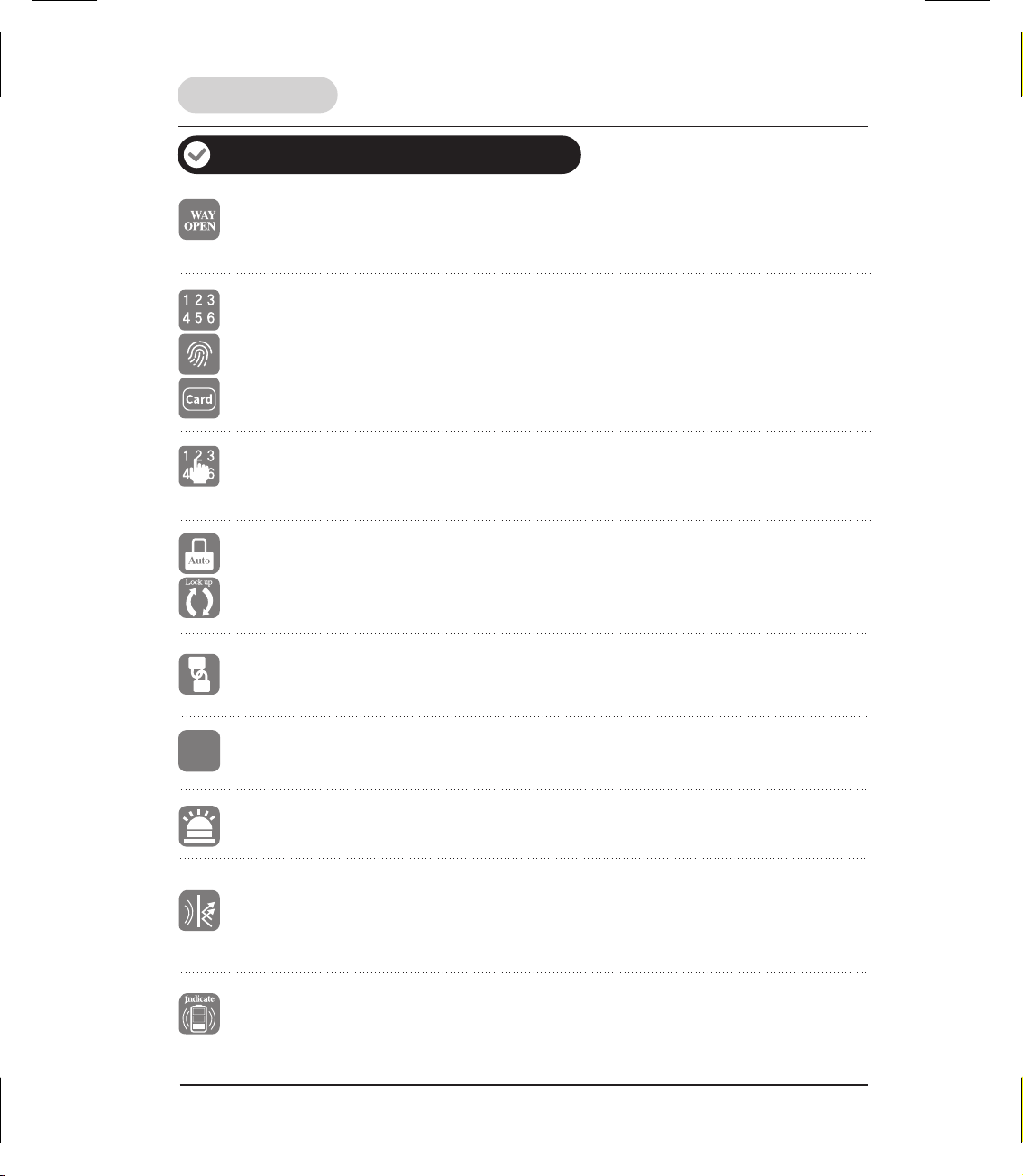

Product features
Read before using
Defense
mode

Warnings
Product specications
Read before using
* Read and understand all instructions before use.
* If damage is caused by failure to follow this instructions, the warranty does not apply.
* Only use the alkaline batteries.
* Do not expose the product and accessories to rain or water.
* Do not expose the product to corrosive substances to avoid damage to the protective cover.
* Do not scrape the fingerprint sensor with any sharp objects, otherwise it may cause permanent damage.
* When cleaning the product, please wipe with a soft cloth.
* If there is a low battery alert, please replace all the batteries in time and make sure they are properly installed.
1. You can follow the voice guide by multi-language (English/Chinese).
2. Master PIN code (6~12 digits): Default master PIN code is “12345678”, please modify it after installation.
3. User PIN code (6~12 digits): Maximum capacity is 10 with user number [00-09].
4. Fingerprint: Maximum capacity is 100 with user number [00-99].
5. Card: Maximum capacity is 100 with user number [00-99].
3

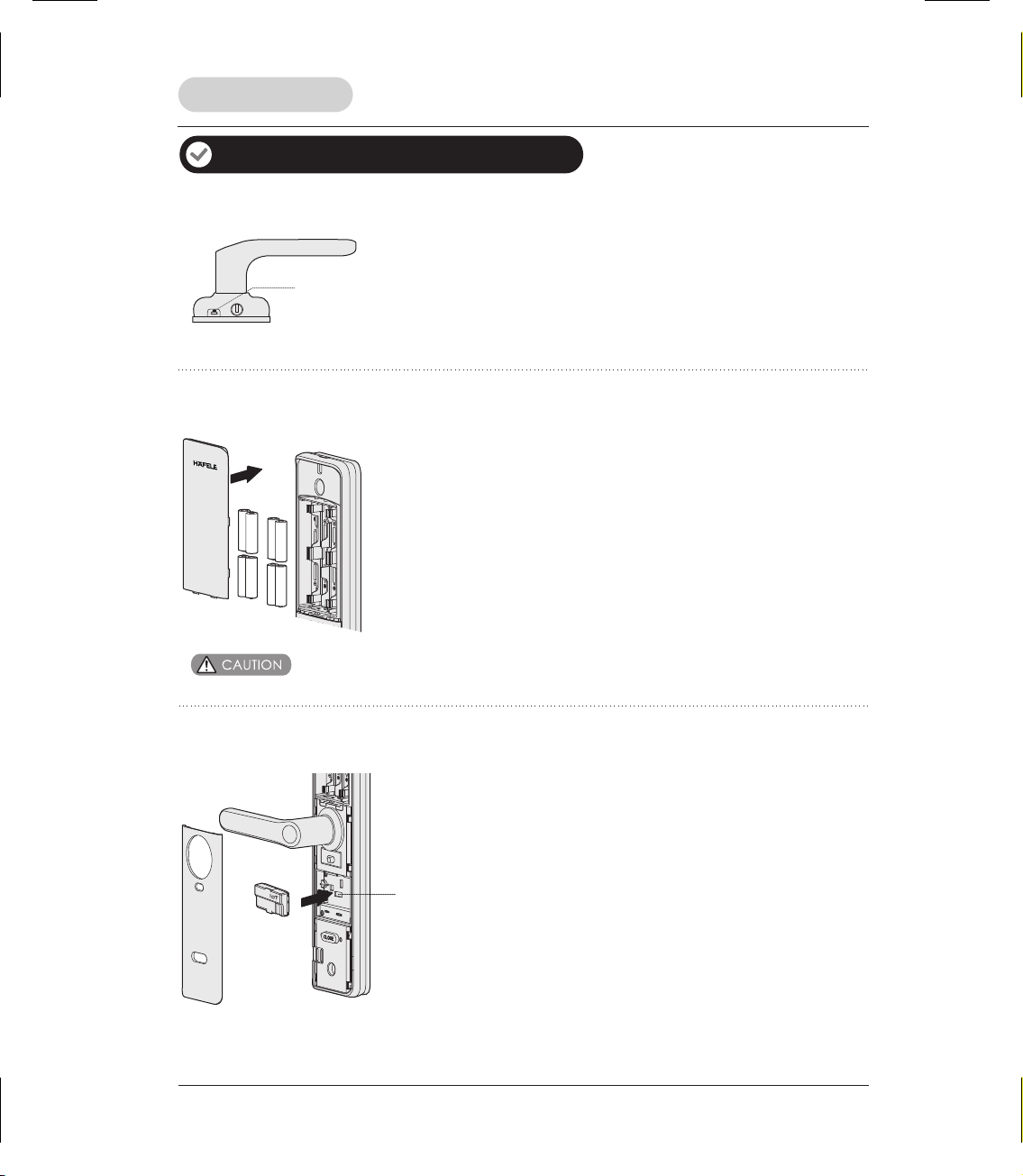

Inside panelOutside panel
Key cylinder
Emergency
power port
Reboot button
Touch keypad
Card reader area
Fingerprint sensor
CLOSE/OPEN
button
Reset button
Safe handle
switch
Battery cover
Bottom cover
Key cylinder
Emergency power port
Reboot button
Door handle

4

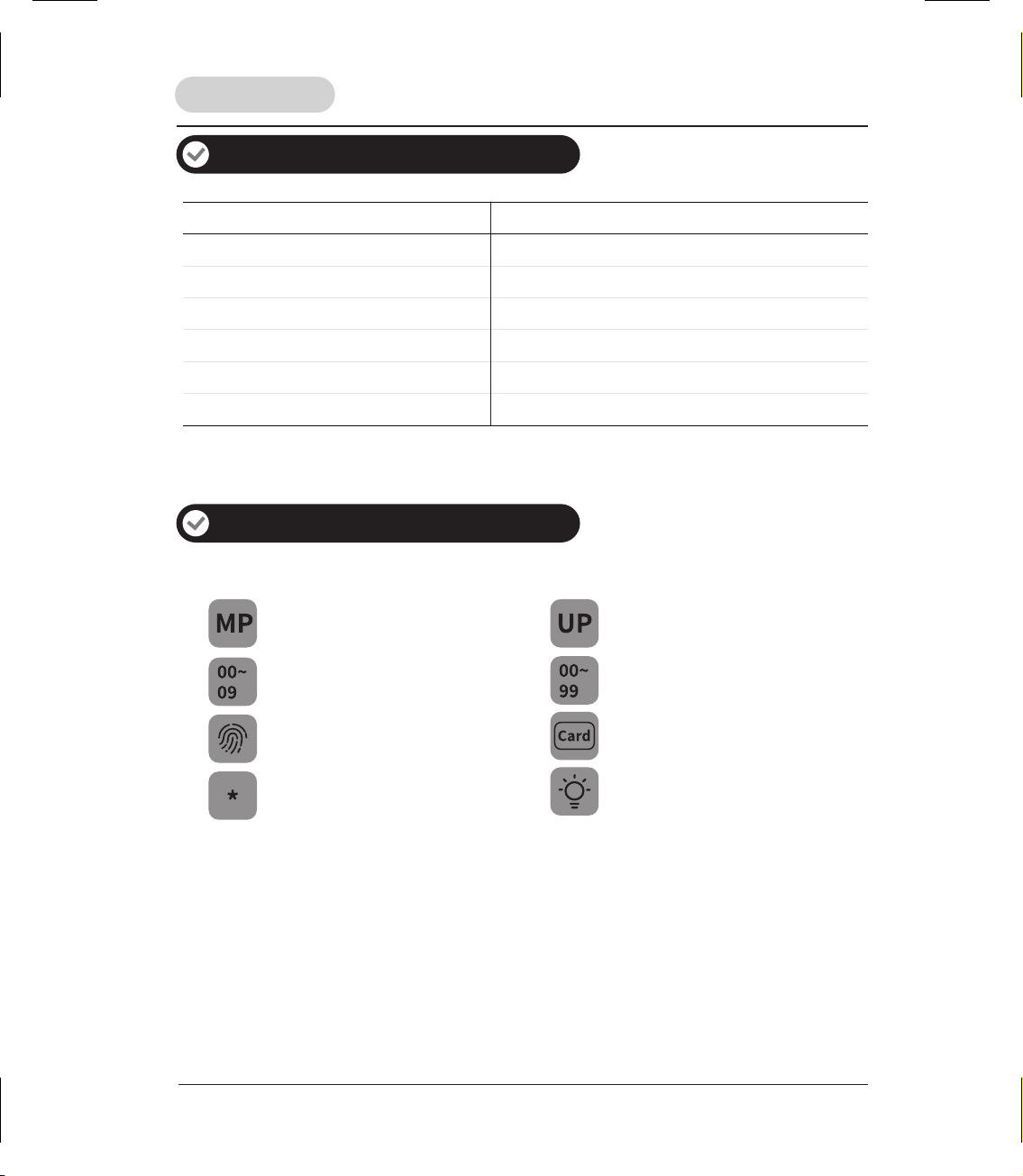

Factory default settings
Quick setup guide
Read before using
Master PIN code
Enter fingerprint
Star key, return to previous menu
User PIN code
Input number (00~99)Input number (00~09)
Enter card
Touch the screen to activate lock
Settings
Master PIN code*
Opening mode setting
*Important: First step is to set your own master PIN code.
Speaker
Wrong code entry limit
Shutdown time
Voice guide language
Factory defaults
12345678
Normal mode
Enabled
5 times
2 mins
English

5
Lock operation
Add/Change access data

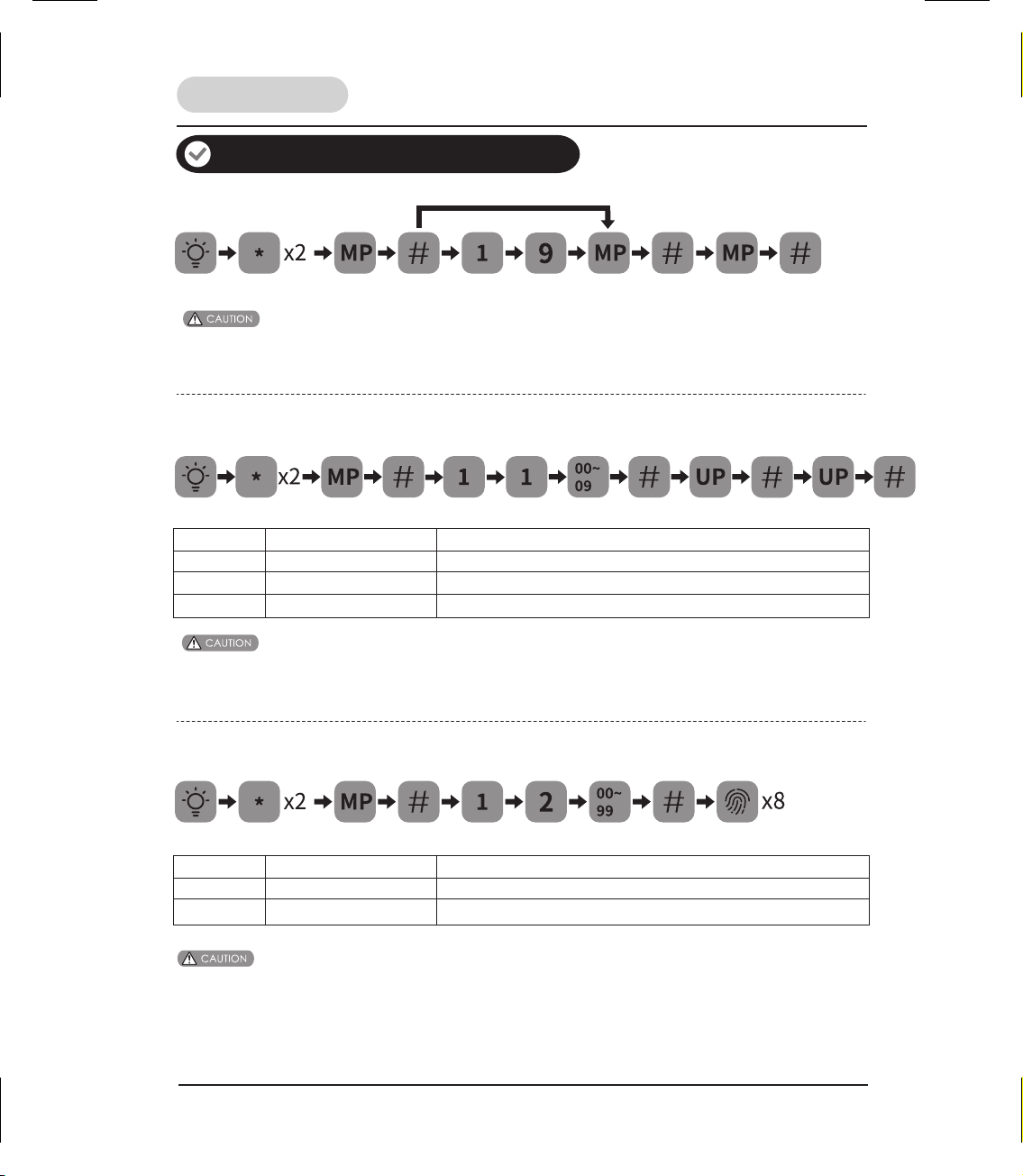

How to change master PIN code
1. Before changing default master PIN code, all other setting menu will be disabled. You have to change master PIN code
first, then do other lock settings.
(first setting use
12345678)
(first time setting)
(6 –12 digits)
(6 –12 digits)
(6 –12 digits)
(6 –12 digits) (confirm)
(confirm)
How to add user PIN codes
1. When registering user PIN codes, the code must be entered within 10 seconds.
2. At any time you can return to the previous menu by pressing the “ *” key.
How to add ngerprints
1. When registering user fingerprint, the fingerprint must be entered within 10 seconds.
2. At any time you can return to the previous menu by pressing the “ *” key.
User Number User Type Notes
00-04 Normal User * Permanent
05-08 Temporary User * Invalid after using one time or in safety mode
09 Reserved * Only used in combination with network Module expansion
User Number User Type Notes
00-94 Normal User * Permanent
95-99 Reserved * Only used in combination with network Module expansion

Add/Change access data
6
Delete access data
Lock operation
How to delete user PIN code
Delete one user PIN code
(6 –12 digits)
Delete all user PIN code (Unusable in safe mode)
(6 –12 digits)
1. When deleting user PIN codes, the user number must be entered within 10 seconds.
2. At any time you can return to the previous menu by pressing the “*” key.
(6 –12 digits)
How to add key cards
1. When registering user card, the card must be entered within 10 seconds.
2. At any time you can return to the previous menu by pressing the “*” key.
Delete one user fingerprint
Delete all user fingerprints (Unusable in safe mode)
How to delete user fingerprint
(6 –12 digits)
(6 –12 digits)
Fingerprint
to be deleted
1. When deleting user fingerprint, the fingerprint or user number must be entered within 10 seconds.
2. At any time you can return to the previous menu by pressing the “*” key.
or

7
Delete access data
Lock operation
(6 –12 digits)
(6 –12 digits)
(6 –12 digits)
(6 –12 digits)
Voice guide setting
Turn on voice guide
Turn off voice guide (Excluding alarm and menu operation)
Opening mode setting
Normal mode: Single verification means opening by PIN code or fingerprint or card.
Safe mode: Double verification means opening by PIN code + fingerprint or PIN code
+ card or fingerprint + card.
Delete one key card
Delete all key cards (Unusable in safe mode)
How to delete key card
1. When deleting key card, the card or user number must be entered within 10 seconds.
2. At any time you can return to the previous menu by pressing the “*” key.
(6 –12 digits)
(6 –12 digits)
Key card
to be deleted or

(6 –12 digits)
8
Delete log-in data
Lock operation
Language setting
System query serial number
Additional lock features
(6 –12 digits)
Chinese English
or
Join network
Log off network
(6 –12 digits)
(6 –12 digits)
Network module (Optionally available)

Delete log-in dataAdditional lock features
Lock operation
9

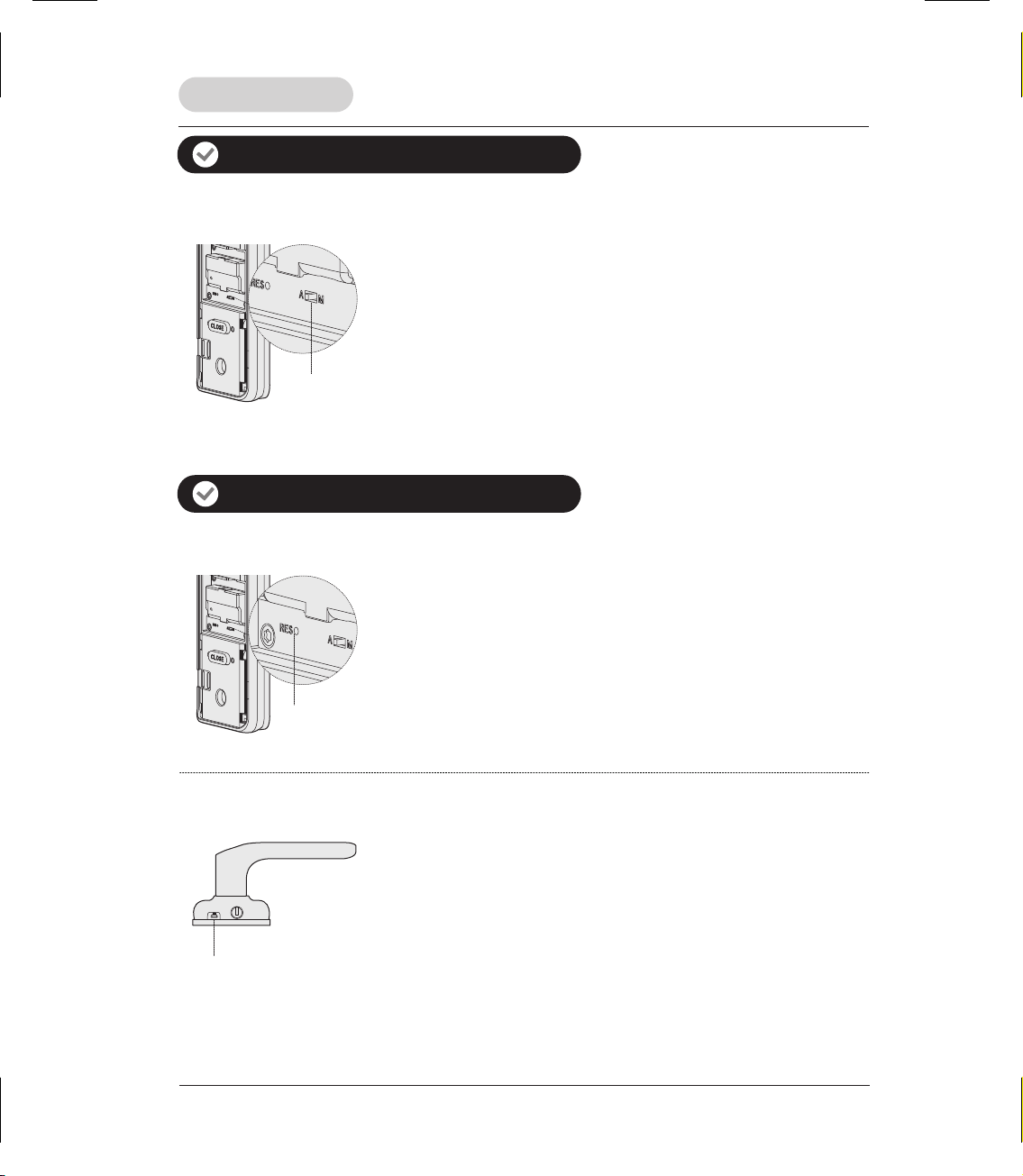

Auto/Manual mode 1. Remove buttom cover to find the A/M switch.
2. [ A ] means auto mode: when door is closed, the deadbolt will
drive out automatically, the door will be in locked status.
3. [ M ] means manual mode: when door is closed, the deadbolt will
not drived out, then the door will be in unlocked status.
Defense mode
1. Enable: After door is locked, press [ ] button to enable defense
mode. Voice prompt “Outside forced lock enabled”. In this mode,
when the door is unlocked from inside, the alarm will be triggered.
2. Disable: Once the door is opened properly from outside, the
defense mode will be disabled.
Defense button
A/M switch
Bluetooth settings
Manage Bluetooth (under Bluetooth turned on)
Enable Bluetooth
(6 –12 digits)
(6 –12 digits)
or or
Connect Bluetooth Disconnect Bluetooth Disable Bluetooth
1. The default setting for Bluetooth is disabled.
2. Please enabling the Bluetooth first, before you manage Bluetooth. And please keep it is turned on, when you use it.
In manual mode, when the door is closed, please verify user fingerprint/Pin code/card to lock the
door from outside or press the [CLOSE] button on the back panel to lock from inside

10
Additional lock features
Lock operation
Mute/Voice switch
Mute/Voice switch (Temporary setting)
Voice> Mute: When default setting is voice mode, long press [ # ]
button to enable mute mode. After the lock wake up from
sleeping status, mute mode will be disabled automatically.
Mute> Voice: When default setting is mute mode, long press [ # ]
button to enable voice mode. After the lock wake up from
sleeping status, voice mode will be disabled automatically.
When door is locked, long press [ CLOSE ] button to switch on privacy
mode. Voice prompt “Inside deadlock enabled”, only Master PIN code
and mechanical key can open the door from outside. User PIN code/
Fingerprint/Card is prohibited.
Privacy mode
Safe handle feature
Safe handle
switch
1. Enable: Move the safe handle switch to display “red” mark. Once
safe handle feature is enabled, the indoor handle will be locked.
2. Disable: Move the safe handle switch to display “green” mark.
The indoor handle can be pressed down freely.

11
Menu table
Lock operation
1. User setting
2. System setting
3. System query
4. Function extension
5. Bluetooth setting
Press [ 1 ]
1. Enroll user PIN code
2. Enroll fingerprint
3. Enroll card
4. Delete user PIN code
5. Delete fingerprint
6. Delete card
7. Opening mode Setting
9. Change master PIN code
1. Voice guide setting
2. Language setting
1. System query serial number
1. Join network
2. Log off network
Press [ 2 ]
Press [ 3 ]
Press [ 4 ]
1. Enable Bluetooth
Press [ 5 ]
1. Connect Bluetooth
2. Disconnect Bluetooth
3. Disable Bluetooth
Bluetooth disabled Bluetoth enabled

Open & Lock the door
How to use
12
How to open the door from outside
How to open the door from inside
PIN code Fingerprint Card
1. Touch keypad by palm to lighten
keypad.
2. Enter the enrolled PIN code with end
of [ # ]. Voice prompt “Verification
Succeeded”.
3. Press down the handle to open the door.
1. Place the enrolled finger properly on
the fingerprint sensor area until one
beep sound and voice prompt
“Verification Succeeded”.
2. Press down the handle to open the door.
1. Place the enrolled card properly on the
card icon area until one beep sound and
voice prompt “Verification Succeeded”.
2. Press down the handle to open the door.
Insert the key into key hole and rotate it with proper angles.
Then press down handle to open the door.
Random security coding function
The random number can be added before or after the real user PIN code but the maximum length is 32 digits.
This feature will prevent the real user PIN code from being exposed.
Mechanical key
Mechanical key
Door handle
Press down the handle to open
the door
CLOSE/OPEN button
Press [ CLOSE ] button 2 times
to open.

Open & Lock the door
Service features
How to use
13
How to lock the door
Auto locking
In auto mode, door will be locked automatically in 1.5 seconds
after closing.
Manual locking
In manual mode, press [ CLOSE ] button to lock the door from
inside or verify user fingerprint/PIN code/card to lock the door
from outside.
Restore to factory default settings
Operation instructions:
1. Open buttom cover and find the reset button.
2. Use a paper clip to double click [ RES ] button, then voice prompt
"Restored to factory settings. Change master PIN code."
3. After that all user data and settings will be deleted.
Micro USB emergency power supply
When the battery voltage is too low and cannot be opened from
outside, connect a 5V power supply via Micro USB port at the front.
Then unlock the door and replace all barreries immediately.
Emergency power port
Reset
button
A/M switch

Reboot button
Reboot
button
Press the reboot button to restart the lock when the system is
unresponsive, no user data is deleted.
Service features
How to use
14
Replace batteries
1.5V AA Alkaline Battery is required. Total is 8 pcs, divided
into 2 groups.
One group is ok for power supply, two groups is used for
longer time.
Do not mix old and new batteries together in replacement.
Network module
Please contact Hafele customer service center for more details.
Access into master mode and press [ 4 ] for function extension,
which is reserved for wireless communication and other
smart home interface.
Network
module
interface
Network module
(optionally available)
