Introduction
Thank you for choosing a Handicare stairlift.
Please read these operating instructions carefully.
Your Handicare stairlift has been designed and
built with careful attention to detail.
In order to obtain many years of trouble free
use please follow the instructions, paying
particular attention to the care and maintenance
requirements. Handicare recommend that you
do not undertake any maintenance tasks other
than the routine care and cleaning explained in
this handbook.
Please contact your Handicare dealer or our
Customer Service Department in the United
Kingdom on [phone] if your stairlift
requires attention and we would be pleased to
help you.
PLEASE OTE: This is a generic user manual
which refers to features found on different
models. This means some features may not
be relevant to specific customer models.
If in doubt, please contact the local customer
services team.
European Standards
Handicare has been accredited as conforming
to the international standard of manufacturing,
recognised by the award of ISO 9001.
All Handicare stairlifts are built and tested
to conform to the European Standards –
EN 81-40:2008 as well as ISO 9386 -2:2000.
They also carry the CE mark.
Handicare are audited regularly to ensure we
continue to conform to ISO 9001 and this
provides you with the assurance of using a high
quality and well manufactured product.
In accordance with EN81-40:2008 the emission
sound pressure at the stairlift operators position
is expected not to exceed 70dB(A).
Issue o of this manual is 0116-1
ORIGI AL LA GUAGE E GLISH

USER MANUA 3
E GLISH
3
Features of your Handicare stairlift
6 6
5
1
7
4
1
2
3
4
6
7
8
9
8
Folding armrests
Diagnostic display
Emergency stop button
Footrest button
Manual swivel
Folding seat base
Swivel seat/toggle control
Remote control
Folding footrest with safety edges
Simple to operate key switch control
5
9
2
10
10
3

4USER MANUA 4

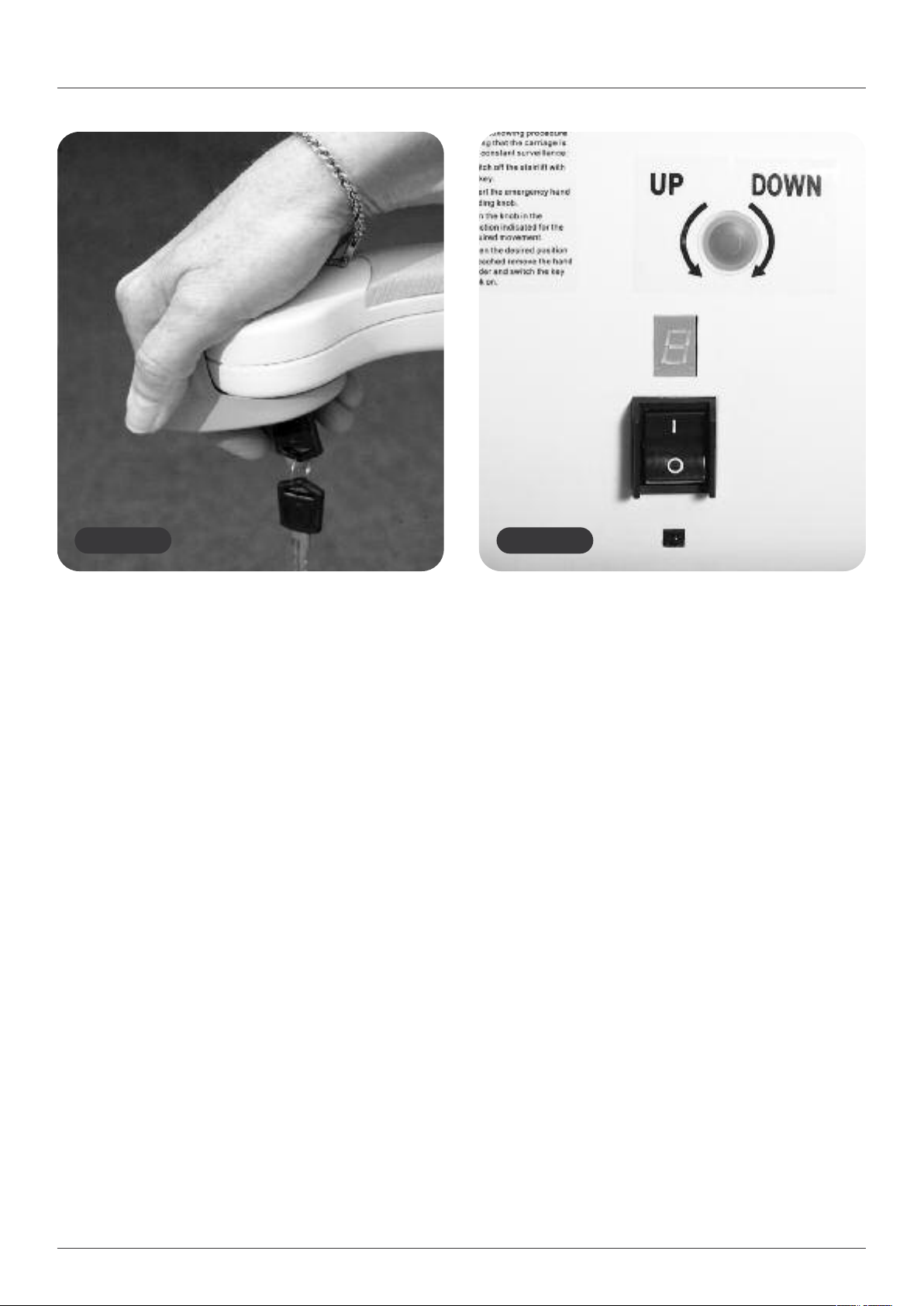

Figure 2Figure 1
Operating your Handicare stairlift
Before use
Before using your stairlift, MOST IMPORTANT Y
please ensure the stairs are clear of other people,
pets or any objects which may obstruct your
stairlift. Then ensure that the arms, footplate and
seat are folded down for use to ensure your
safety (Figure 1).
For your safety the stairlift will not operate
from the operating lever unless both arms
are in the down position.
BEFORE OPERATI G YOUR
STAIRLIFT ALWAYS FASTE
YOUR SAFETY BELT.
Users with poor upper body positioning or
control should have a body harness fitted.
On/off switch
As well as a key switch your stairlift is fitted with
an on/off switch (Figure 2). This switch is either
located on the lower front panel of the lift or on
the downside panel of the main body of the lift
depending on your particular model.
Ensure that this is left in the ‘ON’ position.
The fault diagnosis display panel will be
illuminated to indicate this.
If you intend to be away from home for a long
period, and decide to switch off the mains supply,
it is important that you also switch off the lift from
this on/off switch.
This will ensure that the lift batteries will remain
charged while you are away.

USER MANUA 5
E GLISH
5
Figure 3 Figure 4
Operating your Handicare stairlift
Key switch

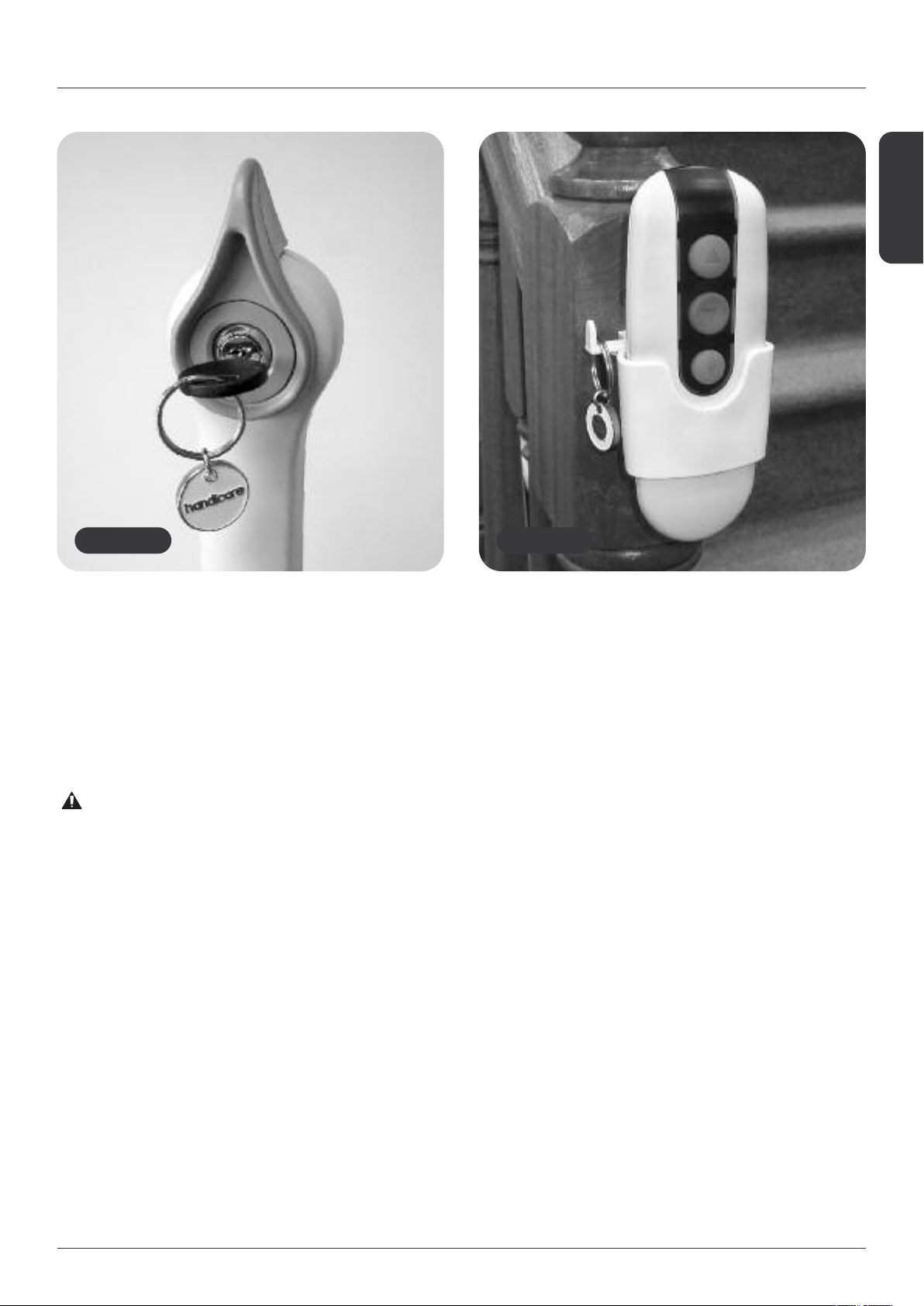

Your Handicare stairlift is fitted with a metal key
switch (Figure 3). The switch can only be turned
‘ON’ or ‘OFF’ with the key inserted into the lock.
The stairlift will only operate with the switch
turned to the ‘ON’ position.
The key can be removed with the switch
in the ‘ON’ or ‘OFF’ position. If the key is
removed, it should be stored in a safe place.
The lift will continue to operate without the
key and will charge normally provided it is
parked on the charge contact points.
The On/Off key (Figure 3) can be removed
from the key switch if preferred. The key may
be supplied with a token depending upon which
seat is installed. If the keys are removed from
the key switch, it is recommended that they be
stored close to the stairlift by hanging a key on
the handset wall bracket (Figure 4).
Wall brackets are normally located close to the
top and bottom of the stairlift. It is possible to
hang one key on each wall bracket for easy
retrieval by the operator.
Remote control
The remote control (Figure 4) is used to call
the lift to either the top/bottom of the stairs or
to operate a powered folding hinge where fitted.
The control may also be used by an attendant
where the user is unable to operate the stairlift
themselves.
The attendant should always remain off
the staircase until the stairlift is stationary.

6USER MANUA
Figure 5 Figure 6
Operating your Handicare stairlift
Diagnostic display
The stairlift is fitted with a diagnostic display
(Figure 6) that displays a code to help diagnose
faults. The display is either mounted on the lower
front panel of the lift or on the downside panel
of the main body of the lift depending on your
particular model. Refer to Appendix 1 for an
explanation of the diagnostic codes. If you
should experience a problem with your lift please
examine the display and make a note of any
codes that are displayed. Please inform the
customer services operator of these codes
when reporting any fault.
Operating toggle
Your Handicare stairlift is operated by simply
pressing and holding the operating toggle in
the direction you wish to travel (Figure 5).
The stairlift will automatically stop when the
toggle is released or the stairlift has reached
the end of its travel.
PLEASE OTE:
In the interest of safety, initial activation of the
stairlift is delayed by 1 second from pressing and
holding the operating toggle to avoid accidental
operation. If the toggle is released while the lift is
in motion, the lift will stop and a delay of 1 second
will occur before the toggle will re start the lift.
When changing the direction of travel the delay
will be 3 seconds before the lift begins to move.

USER MANUA 77
Figure 7
E GLISH
Operating your Handicare stairlift
Manual swivel
A swivel seat is provided to enable you to
mount/dismount the seat more easily at the top
of the stairs by swivelling you on to the landing.
To operate the seat swivel, wait until the stairlift
has stopped.
To swivel the seat hold either (there is one both
sides of the seat) swivel lever down or pull it up
(only up on the Simplicity or Simplicity model).
This will release the seat lock and allow you to
move the seat round by pushing away from the
footplate. When the seat reaches 90° it will lock
in position (Figure 7).
You should not attempt to leave the seat until
it has firmly ‘clicked’ into its locked position.
To swivel in the opposite direction follow the same
procedure, but push away from the landing.
Power operated swivel (optional)
In order to swivel the seat hold the operating
toggle (Figure 8 ) in the up direction. When the
stairlift reaches the top of the stairs continue to
hold the operating toggle in the up direction. The
stairlift will beep three times and then the seat will
swivel. When the seat is fully swivelled to 90° the
seat will stop.
You should not attempt to leave the seat until
it is fully rotated.
To swivel in the opposite direction follow the
same procedure in reverse. Push the operating
lever in the down direction. The seat will beep
three times and then after a short pause it will
rotate to the driving position. Continue to hold
the operating lever in the down direction. The
stairlift will then again beep three times before
beginning its descent.
Figure 8
Operating the swivel

8USER MANUA
Figure 9 Figure 10
Operating your Handicare stairlift
PLEASE OTE:
In an emergency, should the power swivel fail
to operate, a manually operated ‘emergency
release switch’ can be activated, releasing the

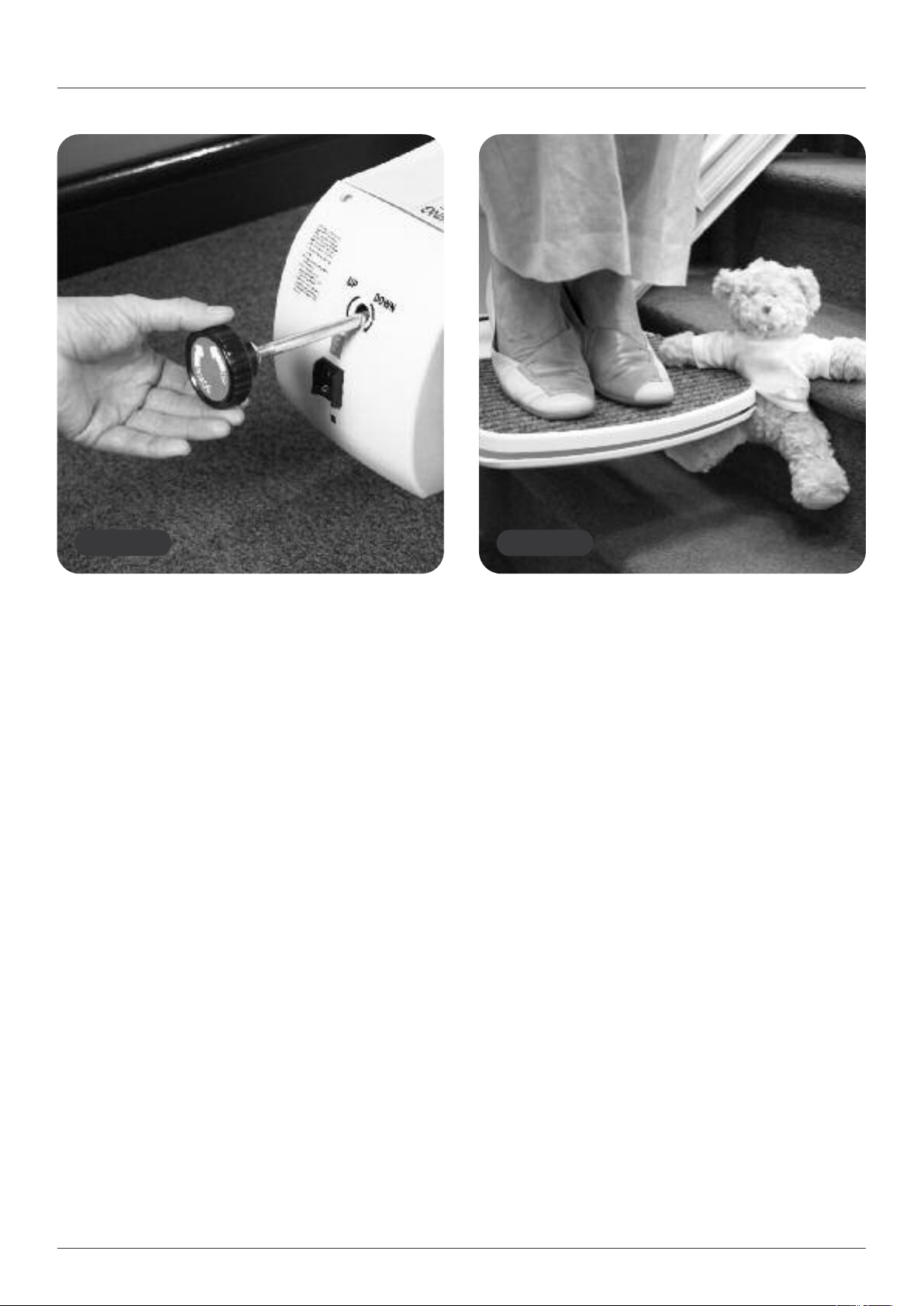

seat to swivel as required. The ‘release button’
is located on both sides of the seat (Figure 9).
Emergency release button operation
To activate the button manually, please use the
round disc provided. Insert the disc into the
slotted button and twist to release the seat.
The button may need to be unlocked more than
once to turn the seat through 90° (¼ turn)
(Figure 10).
IMPORTA T OTE:
The seat mechanism will ‘lock’ into fixed
positions every 45°. Return the seat to the
start position before resuming normal use.
YOU SHOU D REPORT A FAI URE IN
THE POWER SWIVE MECHANISM
IMMEDIATE Y TO YOUR SERVICE
PROVIDER.
Seats with powered swivel options, have different
swivel release buttons. The Smart seat (Figures
9 and 10) includes a round button with twist
release. The Style seat (Figure 11) uses a square
button with push release.

USER MANUA 9
E GLISH
9
PLEASE OTE:
In an emergency, should the power swivel fail to
operate, a manual ‘emergency release switch’
can be activated. The release button is located
on the side of the seat, under the seat cushion
(Figure 11).
Emergency release button operation
To activate the emergency override, push and
hold down, the black square button. At the
same time, twist the seat to the desired and
safe position.
IMPORTA T OTE:
The seat position will lock and secure when you
release the black square button. Return the seat
to the start and normal position before resuming
normal use.
Operating your Handicare stairlift
SAFETY PRECAUTIO S
EVER
Swivel the seat without the safety belt fastened.
EVER
Mount or dismount the swivel seat unless it is
locked in position.
EVER
Try to operate the swivel seat whilst the stairlift is
in motion. (As a safety precaution, should you try
to use it whilst the lift is in motion, it will cause
the lift to stop).
EVER
Attempt to travel up or down the staircase unless
the seat is in the correct position (i.e. facing
directly across the staircase).
Figure 11

Operating your Handicare stairlift
10 USER MANUA
Figure 12 Figure 13
Folding your stairlift
Your Handicare stairlift seat, armrests and
footrest can be folded to allow easier passage up
and down stairs when it is not in use (Figure 12).
SAFETY PRECAUTIO
A WAYS RETURN THE STAIR IFT TO ITS
STOWED POSITION. I.E. WITH ARMRESTS,
SEAT AND FOOTREST FO DED AND THE
CHAIR PARA E TO THE TRACK AS
SHOWN IN FIGURE 12, SO THAT EXITS
ARE NOT OBSTRUCTED.
Power footplate –
seat squab operated (optional)
If your stairlift is fitted with a power footplate
operated from the seat squab it will automatically
fold away the footplate when the front seat
squab is lifted. It will also lower the footplate
when the front seat squab is lowered.
Power footplate –
arm switch operated (optional)
If your stairlift is fitted with a power footplate
operated from the arm it will have an additional
switch under the arm (Figure 13). To lower the
footplate, use the rocker switch under the arm.
To lift the footplate move the rocker switch to
its alternate position.
PLEASE OTE:
If moving the footplate while seated on the
stairlift please ensure your feet do not obstruct
the footplate whilst it is in motion.

Operating your Handicare stairlift
USER MANUA 11
E GLISH
Figure 14
IN THIS SITUATION KEEP THE TOGG E
PRESSED IN THE DIRECTION OF TRAVE
UNTI A MOTION HAS CEASED.
Parking the Stairlift
WHEN THE STAIR IFT IS NOT IN USE IT
SHOU D BE MOVED AWAY FROM THE
BOTTOM OF THE STAIRS SO THAT IT DOES
NOT CAUSE AN OBSTRUCTION.
To park the stairlift, press and hold the UP button
on the handset. The lift will travel up the stairs
and the Slide Track will move in the UP direction.
Continue to hold the UP button until the Slide
Track and stairlift are no longer causing an
obstruction. If you release the UP button the lift
or Slide Track will stop moving. To continue,
press and hold the UP button again. After a short
delay movement will start again.
WAR I G
BEFORE YOU OPERATE THE S IDE TRACK
P EASE REMOVE ANY OBSTAC ES
WHICH MAY OBSTRUCT THE TRACK.
Handicare Slide Track
or Hinged track
In some installations a hinged track or Handicare
Slide Track may be necessary, usually to move
the track out of the way of the doorway at the
foot of the stairs.
The Handicare powered hinged track and Slide
Track are fully automatic in operation and will
function as follows:
Handicare Slide Track
(optional)
Going up the stairs
Mount the stairlift as previously directed and push
the operating toggle in the up direction. The stairlift
will, after a short delay, move up the stairs. Both
the stairlift and the Slide Track will move at the
same time, though the stairlift will only travel at half
speed whilst the track is also moving.
Once the Slide Track has reached the end of its
travel (maximum 400mm) the stairlift will gradually
increase to its normal running speed and
continue to the top of the stairs – KEEP THE
TOGG E PRESSED IN THE UP DIRECTION.
Going down the stairs
Mount the stairlift as previously directed and
push the operating toggle in the down direction.
The stairlift will, after a short delay, move down
the stairs. Both the stairlift and the Slide Track will
move at the same time, though the stairlift will
only travel at half speed whilst the track is also
moving. Once the Slide Track has reached the
end of its travel (maximum 400mm) the stairlift
will gradually increase to its normal running
speed and continue to the bottom of the stairs –
KEEP THE TOGG E PRESSED IN THE DOWN
DIRECTION. ON SHORTER TRACKS THE
STAIR IFT MAY REACH THE END OF THE
TRACK BEFORE THE S IDE TRACK REACHES
THE END OF ITS TRAVE .

12 USER MANUA
Figure 15 Figure 16
Locking
bolt
Operating your Handicare stairlift
Hinged track
powered (optional)
Going up the stairs
Mount the stairlift as previously directed and
push the operating toggle in the up direction.
The stairlift will, after a short delay, move up the
stairs. Once the lift has passed the hinged track
section it will stop – KEEP THE TOGG E
PRESSED IN THE UP DIRECTION. At this time
the seat will beep three times whilst the hinge
track automatically folds itself away. When the
hinge is fully folded the stairlift will continue to
the top of the stairs.
Going down the stairs
Mount the stairlift as previously directed and
push the operating toggle in the down direction.
The stairlift will, after a short delay, move down
the stairs. Before the lift has reached the hinged
track section it will stop – KEEP THE TOGG E
PRESSED IN THE DOWN DIRECTION.
Emergency Manual Override
Your Slide Track is fitted with a manual override
that allows the track to be moved in case of
an emergency. This is positioned towards the
bottom of the track (Figure 14).

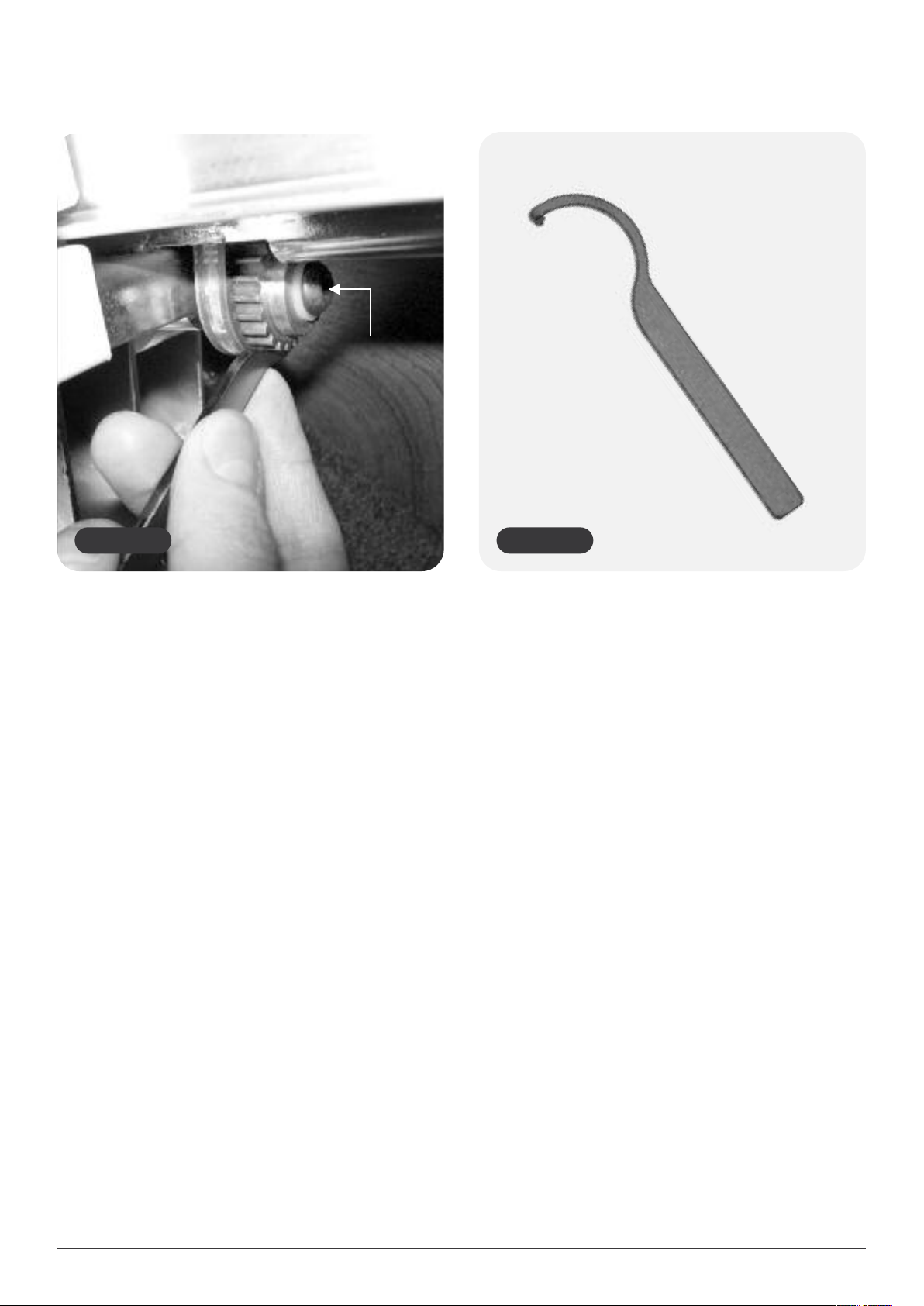

To move the Slide Track manually you must first
loosen the locking bolt (Figure 15). Use the
spanner supplied (Figure 16) as shown in
(Figure 15) to move the Slide Track.

USER MANUA 13
E GLISH
13
Figure 17 Figure 18
Operating your Handicare stairlift
At this time the seat will beep three times
whilst the hinge track automatically folds open
(Figure 17). When the hinge is fully open the
stairlift will continue to the bottom of the stairs.
Parking the Stairlift
WHEN THE STAIR IFT IS NOT IN USE IT
SHOU D BE MOVED TO ITS PARK POSITION
SO THAT IT DOES NOT CAUSE AN
OBSTRUCTION.
THE STAIR IFT DOES NOT CHARGE WHEN IT
IS PARKED AT THE BOTTOM OF THE STAIRS.
To park the stairlift, press and hold the P button
on the handset (Figure 18 ). The lift will travel up
the stairs to its park position and the hinge will
automatically fold itself. If you release the P
button the lift or track will stop moving. To
continue, press and hold the P button again.
After a short delay movement will start again.
WAR I G
BEFORE YOU OPERATE THE HINGED
TRACK P EASE REMOVE ANY OBSTAC ES
WHICH MAY OBSTRUCT THE TRACK.
Hinged track
manual (optional)
Before raising the manual hinged track park
the stairlift on the charge points, above the
hinge, or at the top of the stairs.
Your stairlift will not work unless the track has
been lowered.
When you stairlift is not in use it should always
be positioned away from the hinged section
at a charging point with the hinge in the raised
position.
WAR I G
BEFORE YOU OPERATE THE HINGED
TRACK P EASE REMOVE ANY OBSTAC ES
WHICH MAY OBSTRUCT THE TRACK.

14 USER MANUA
Figure 19 Figure 20
Operating your Handicare stairlift
Trapped articles
Your stairlift is fitted with safety edges on the
bottom of the footrest and on the lift itself that
will stop the stairlift should any article become
trapped by the footrest (Figure 20).
To remove the article reverse the stairlift
away from the object then have the object
removed from the staircase. Proceed on
your stairlift as normal.
Emergency hand
winding instructions
In the unlikely event that the lift has a total power
failure or runs on to the final track stops there is
an emergency hand winding procedure. Please
follow these steps:
1 Switch off the stairlift with the key.
2 Insert the emergency hand winding knob
(Figure 19). The position of the hand winding
hole will always be on the downside main
body panel, regardless of the model that you
have.
3 Turn the knob in the direction indicated for the
required movement.
4 When the desired position is reached remove
the hand winder and switch the lift on.
If in any doubt contact your local Handicare
approved dealer or ring Handicare direct on
[phone].

USER MANUA 15
E GLISH
15
Operating your Handicare stairlift
Figure 21 Figure 22
Emergency Stop button on stairlifts
(E-stop button)
All Handicare stairlifts include an emergency
stop feature which is activated by a red ‘E-stop’
button. This feature is designed for use in
emergency situations when powered travel up
or down the track and powered features need
to stop immediately. This button is incorporated
into the design of all Handicare stairlifts in
different locations depending upon the model.
It is usually located on the left or right side
below the seat.
When operated, ‘E-stop’ will immediately disable
the stairlift preventing powered travel up or down
the track and powered features operating. The
button will remain locked in a compressed position
until it is unlocked. To unlock the E-stop button, it
should be twisted clockwise. The button will ‘pop’
out and the stairlift will regain functionality.
Please be aware that the button may sometimes
be activated by accident. Follow the simple
un-locking procedure to regain functionality.
PLEASE OTE:
ocation of the E-stop button varies depending
upon the stairlift seat design. For example:
Figure 21 – Handicare Smart seat showing
E-stop located on the side towards the rear
of the seat.
Figure 22 – Handicare 2000 Style seat showing
E-stop located on the side towards the front of
the seat.

16 USER MANUA
Safety and servicing
Annual service
Services are not needed within the first year of
ownership. We recommend a service during the
second year of ownership and regularly every
twelve months thereafter. The service history log
must be filled in regularly as a proof of specified
maintenance. Failure to do so may invalidate
the product warranty.
This work must be carried out by a competent
person, i.e. a Handicare approved dealer.
If in doubt, please contact the Handicare Service
Department on [phone].
If you own your stairlift and no longer require it
your dealer or Handicare may be interested in
purchasing it.
Warnings and
precautions
EVER
Allow more than one person to use the stairlift at
any one time.
The maximum carrying capacity is dependant on
the model that you have:
EVER
Allow children to play on or with the stairlift.
EVER
Allow water to come into contact with the
components in the stairlift. If you have to
transport liquids DO SO WITH CARE.
EVER
Use the stairlift without using the safety belt,
or any other harnesses fitted.
EVER
Use the stairlift in a standing position.
EVER
Place objects in the track or leave objects on
the stairs, where they could come into contact
with the lift in operation. Your stairlift is fitted with
pressure sensitive side edges and undertray on
the footplate, which will automatically stop the
lift if it detects any obstructions.
ALWAYS
Keep your FEET ON THE FOOTP ATE whilst the
stairlift is in motion, and try to avoid your feet
hanging over the edges of the footplate.
EVER
Swivel the seat until the lift has come to a stop
at the top or bottom of the staircase.
ALWAYS
Fold the chair when it is not in use to avoid
obstructing exits.
WAR I G
If the overspeed governor is activated it should
only be reset by a competent person, i.e. a
Handicare approved dealer. Activation of the
overspeed governor is indicated by the lift not
being able to be driven down the stairs and the
diagnostic display showing 0.
EVER
Use for firefighting or evacuation during a fire.
EVER
Use the track as a handrail.
Simplicity 950 series 140kg (22 Stone/310lb)
Simplicity 950 series
with Slide Track/hinge 120kg (19 Stone/265lb)
1000 series standard
or with hinge/platform 137kg (21 ½ Stone/300lb)
1000 series heavy duty 160kg (25 Stone/350lb)
1000 series US standard
2000 series 115kg (18 Stone/252lb)
2000 series heavy duty 137kg (21 ½ Stone/300lb)

USER MANUA 17
Routine care and maintenance
E GLISH
Care and cleaning
Before cleaning any part of your Handicare stairlift,
please ensure you have removed the key.
Your Handicare stairlift is manufactured from a
variety of materials, all with easy “wipe clean”
surfaces. The seat and body covers can be wiped
over with a damp, NOT WET, cloth and a small
quantity of washing up liquid.
PLEASE DO OT use abrasive cleaners, bleach
or solvent based cleaners, as these will damage
the seat.
To clean the track, first send the stairlift to the
top of the stairs. The track can be cleaned with
a damp cloth. When most of the track is clean,
move the stairlift to the bottom of the stairs and
finish cleaning the track making sure that none
of the cleaning debris falls on to it.
To maintain your Handicare stairlift in good
mechanical order, it is recommended that annual
services are carried out by qualified service
engineers.
Disposal
of your stairlift
Your stairlift has been manufactured using high
quality materials and components, which can be
recycled and reused.
The crossed out wheeled bin symbol
indicates that your stairlift is covered
by the European Directive 2002/96/EC,
which governs the disposal of waste
electrical and electronic equipment.
This means that your stairlift should not be
disposed of as household waste but should
be appropriately disposed of for recycling.
Recycling this product will help to protect the
environment by ensuring that all materials
contained in the stairlift are appropriately handled.
Please contact Handicare on +44 (0) 3700
118282, your dealer or your local civic
office for further disposal information.
Battery care
and charging
Your Handicare stairlift is battery powered and
will continue to work for a period of time even
if you have a power cut. You should normally
be able to travel up and down the stairs at least
10 times without needing to charge the batteries.
Particularly in the event of a power cut, however
you should always ensure that there is sufficient
light to allow safe travel, and especially at each
end of the track where you get on and off the lift.
Your stairlift track is fitted with charging points,
normally at the top and bottom of the staircase.
Your stairlift should be left on one of these
charging points when not in use to ensure that
the batteries are charged. If the stairlift makes
a beeping noise and/or the display show a “2”
when it is left on a charging point and it is not
in use IT IS NOT CHARGING. Please check that
the power supply for the stairlift is switched on.
If it is switched on and the beeping continues
please contact your dealer or the Handicare
Service Department on [phone].
WAR I G
If you are leaving the stairlift unattended
for a long period of time and the power
supply is turned off you MUST turn the
main on/off switch on the stairlift to the off
position to prevent damage to your batteries
(see page 4). Failure to do so could cause
permanent damage to the batteries and
require them to be replaced.
Maintenance
There are no user serviceable parts fitted to your
stairlift. If any damage is visible or your stairlift
sounds or behaves unusually contact Handicare or
your approved dealer immediately. We advise that
your stairlift is serviced after the first 12 months
and thereafter AT EAST EVERY 12 MONTHS.

18 USER MANUA
Appendix 1
Code: Meaning:
None No display.
Self help action:
Press the toggle switch and see if display
comes on. Check that the main power
switch on the lift is turned on. If this does
not clear the fault, contact your dealer or
Handicare.
Code: Meaning:
Okay Charging.
Self help action:
If lift does not drive check that the arms
are down. If this does not clear the fault,
contact your dealer or Handicare.
Code: Meaning:
0 Final limit activated
or cable short circuit.
Self help action:
Check (1) the red emergency stop button
is not activated (2) the key switch is ‘ON’
(3) the seat is fully swivelled to the drive
position. If the fault continues, contact your
dealer or Handicare.
0
Code: Meaning:
1 Requires charge.
Self help action:
The stairlift batteries require charging.
Drive the lift to the charge contacts – if the
‘Okay’ code does not show contact your
dealer or Handicare.
1 Code: Meaning:
2 Off charge.
Self help action:
The stairlift is not parked on a charging
position or is not charging. Drive the lift to
the charge contacts – if the ‘Okay’ code does
not show or the lift is already on the charge
contacts check the power supply is on.
Failing this contact your dealer or Handicare.
2
Code: Meaning:
3 Ends limit activated.
Self help action:
Contact your dealer or Handicare.
3 Code: Meaning:
4 Safety edge activated
(up/down direction).
Self help action:
Contact your dealer or Handicare.
4
Diagnostic Display

USER MANUA 19
E GLISH
19
Appendix 1
Code: Meaning:
5 Ends limit activated
(up/down direction).
Self help action:
Contact your dealer or Handicare.
5 Code: Meaning:
6 Safety edge activated
(up/down direction).
Self help action:
Contact your dealer or Handicare.
6
Code: Meaning:
7 Batteries approaching
critical level.
Self help action:
The stairlift batteries require charging.
Drive the lift to the charge contacts – if the
‘Okay’ code does not show contact your
dealer or Handicare.
7 Code: Meaning:
8 Shows when the toggle
switch is activated in
the up direction.
Self help action:
N/A.
8
Code: Meaning:
9 Shows when the toggle
switch is activated in
the down direction.
Self help action:
N/A.
Code: Meaning:
A Hinge is open.
Self help action:
N/A.
A
Code: Meaning:
b A switch is active at
power on (ie: toggle
up/down, IR up/down).
Self help action:
Contact your dealer or Handicare.
Code: Meaning:
C The IR address (remote
control dip switch)
does not match the
power pack.
Self help action:
Contact your dealer or Handicare.
C

20 USER MANUA
Appendix 1
Code: Meaning:
d The main power relay
is welded closed.
Self help action:
Contact your dealer or Handicare.
Code: Meaning:
E The main power relay
did not close.
Self help action:
Contact your dealer or Handicare.
E
Code: Meaning:
F Brake semi-conductor
failed.
Self help action:
Contact your dealer or Handicare.
F Code: Meaning:
g Brake not connected.
Self help action:
Contact your dealer or Handicare.
Code: Meaning:
H The main power relay
has closed early.
Self help action:
Contact your dealer or Handicare.
H Code: Meaning:
J Hinge interlock
switch error.
Self help action:
Push the up direction on the toggle or
remote until the lift stops at the top of the
stairs. If this does not clear the fault contact
your dealer or Handicare.
L
Code: Meaning:
Current limit exceeded.
Self help action:
Contact your dealer or Handicare.
L Code: Meaning:
n Half speed.
Self help action:
If permanently showing contact your dealer
or Handicare.
