6118/6120/6122
OPERATOR’S MANUAL
FLEX-FRAME
RAKE

CONTENTS
Warranty & Warranty Registration Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2

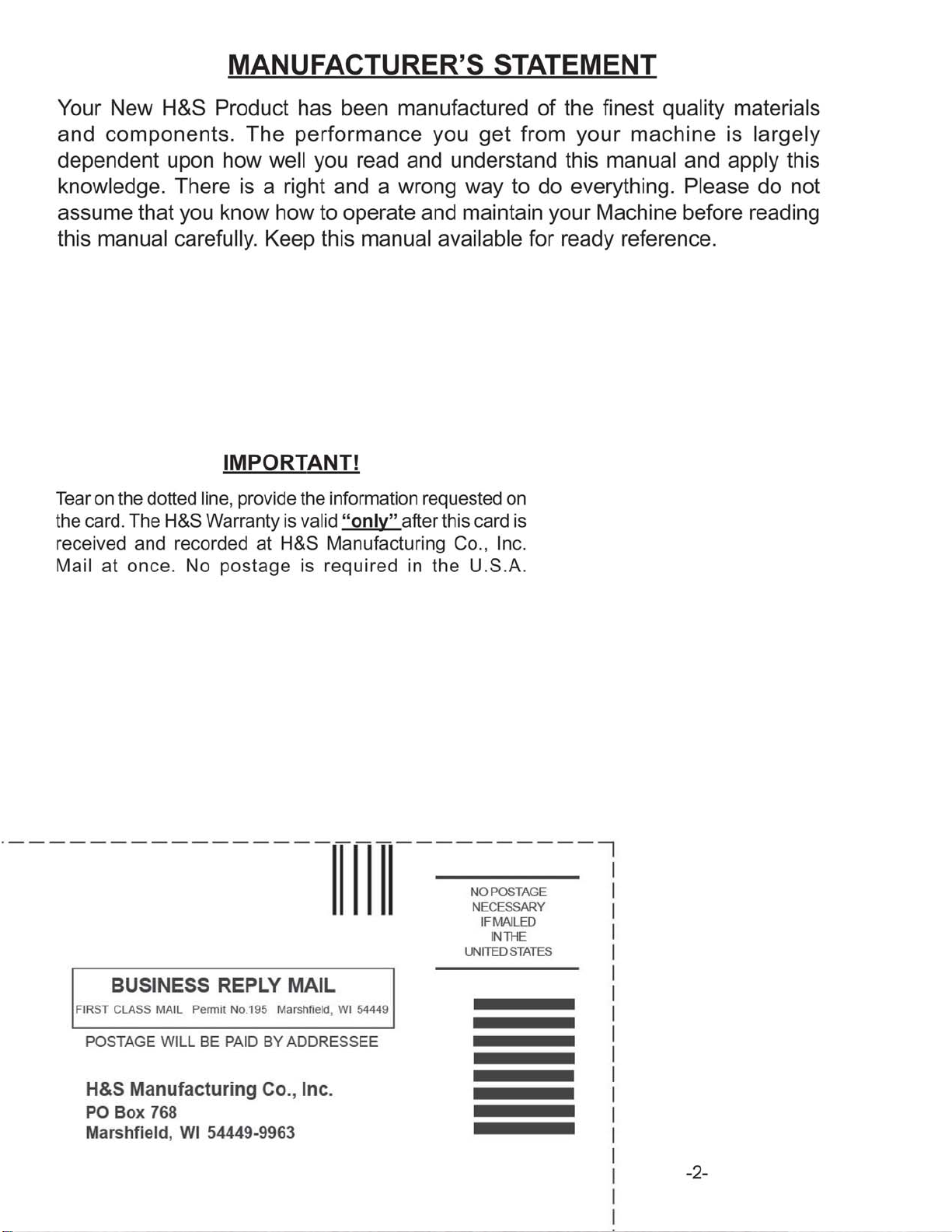

Manufacturers Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Dealer Pre-Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Dealer Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Safety Information - Be Alert Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Safety Information - Explanation of Safety Signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Safety Information - Warning - Owner Must Read and Understand . . . . . . . . . . . . . . . . . . . . . .10

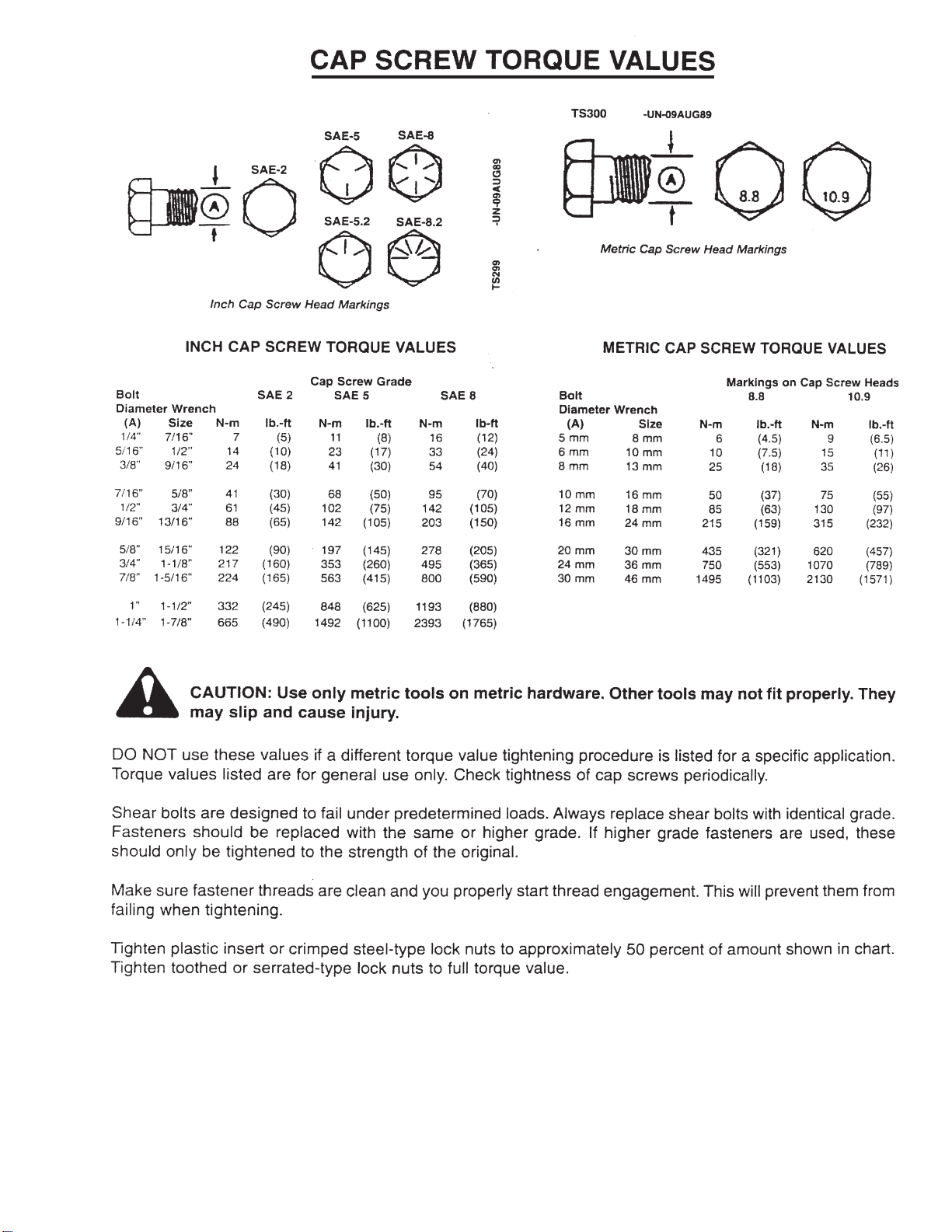

Cap Screw Torque Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Set-up & Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Preparing for Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Operation & Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15-16
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Lubrication Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-19
Decal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20-25
Trouble Shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Service Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27-28

-3-
(Remove Dealers File Copy At Perforation)
DEALER PRE-DELIVERYCHECK LIST
AFTER COMPLETION, DEALER SHOULD REMOVEAND RETAIN FOR RECORDS
After the rake has been completely set-up, check to be certain it is in correct operating order before
delivering to the customer. The following is a list of points to inspect. Check off each item as you
have made the proper adjustments and found the item operating satisfactorily.
Rake was not damaged in shipment. Check for dents and loose or missing parts.
Report damage immediately to H&S Manufacturing Co., Inc.
Rake has been correctly assembled according to instructions in this manual. Wheel
nuts and all other fasteners are tightly secured.
All bolts and fasteners are tight.
All grease fittings have been lubricated. See Lubrication Chapter of this manual for
details.
Hoses and fittings are properly attached and there are no visible leaks.
All mechanisms are operating trouble free.
Rake wheels touch ground in unison when lowered into position. (Rake setting level)
Wheels are properly mounted.
Tires are inflated to correct pressure.
Decals are in place and legible.
ModelNumber
Serial Number
Dealer’s Name
Inspection Date
Signature of Pre-Delivery Inspector

IntentionallyLeftBlank
-4-

DEALER DELIVERYCHECK LIST
AFTER COMPLETION, DEALER SHOULD REMOVEAND RETAIN FOR RECORDS
Thischecklistthat follows is an important reminderofvaluableinformation that should be passed
on to the customer at the time this Rake is delivered.
Check off each item as you explain it to the customer.
This delivery check list, when properly filled out and signed assures the customer that the
Pre-delivery service was satisfactorily performed.
Explain to the customer that the pre-delivery inspection was made.
Explain to the customer all the safety precautions they must exercise when operating
this unit.
Explain raking and windrow width adjustments.
Explaintocustomer that regular lubrication is requiredforproperoperation and long life of
machine.
Show customer the lubrication section of Owner’s Manual.
Give the customer Owner’s Manual and make sure they read and understand all operating
and service instructions.
Have the customer sign a completed “Warranty Registration”, and mail it.
Date Delivered
Dealer’s Name
By
Signature of Original Buyer
Note: Warranty is not valid until warranty card is completed and returned to H&S Mfg. Co., Inc.
-5-
(Remove Dealers File Copy At Perforation)

IntentionallyLeftBlank
-6-

-7-
SAFETYINFORMATION
BE
ALERT! YOURSAFETY
ISINVOLVED.
THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY
IS INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE
BEST OPERATOR. MOST ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN
PRECAUTIONS MUST BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR
DAMAGE.
H&S MANUFACTURING CO., INC.

RECOGNIZE SAFETY INFORMATION
This is the safety-alert symbol. When you see this symbol
on your machine or in this manual, be alert to the potential
for personal injury.
Follow recommended precautions and safe operating
practices.
UNDERSTAND SIGNAL WORDS
Asignalword; DANGER, WARNING,orCAUTION-is used
with the safety-alert symbol. DANGER identifies the most
serious hazards.
Safety signs with signal word DANGER or WARNING are
typically near specific hazards.
General precautions are listed on CAUTION safety signs.
FOLLOW SAFETY INSTRUCTIONS
Carefully read all safety messages in this manual, and all safety signs on your machine. Follow all
recommended precautions and safe operating procedures.
Keep signs in good condition. Immediately replace any missing or damaged signs.
-8-
SAFETYINFORMATION
OBSERVE MAXIMUM TRANSPORT SPEED
The maximum transport speed for this implement is 32 km/h (20 m.p.h.).
Some tractors are capable of operating at speeds that exceed the maximum
transport speed of this implement. Regardless of the maximum speed capability
of the tractor being used to tow this implement, do not exceed the implement’s
maximum transport speed.
Exceeding the implements maximum transport speed can result in:
* Loss of control of the tractor/implement combination
* Reduced or no ability to stop during braking
* Implement tire failure
* Damage to the implement structure or its components
Use additional caution and reduce speed when towing under adverse surface
conditions, when turning, and when on inclines.
Do not attempt transport if the fully loaded implement weighs more than 1.5 times
the weight of the tractor.

-9-
SAFETYINFORMATION

-10-
WARNING
TO PREVENT SERIOUS INJURY OR DEATH
Study The Above Safety Rules
ATTENTION - BEALERT - YOUR SAFETY IS INVOLVED
H&S Manufacturing Co. always takes the operator and their safety into consideration and guards exposed
moving partsfortheirprotection.However,someareascannotbeguardedorshieldedinordertoassureproper
operation. In addition, the operators manual and decals on the machine itself warn you of further danger
and should be read and observed closely.
DO NOTALLOW PERSONNEL OTHER THAN THE QUALIFIED OPERATOR NEAR THE MACHINE.
Stop the tractor engine, remove ignition key, and allow all mechanisms to stop before cleaning,
working, or adjusting on machine.
DO NOT attempt to perform maintenance or repair with tractor running.
DO NOT step up on machine at any time.
DO NOT allow minors to operate or be near the machine.
Loose or floppy clothing should not be worn by the operator.
Stay clear of hydraulic lines, they may be under extreme pressure or heat.
Stay clear of the rake when opening or closing main rake arm beams, opening the backbone or raising
and lowering the rake wheels.
For transport, always make sure that the hair pin at the rear of the lift pipes, and the transport lock bars
with safety clip pins for main rake beam, are securely locked in place.
To reduce stress on rake arms, lift pipe, springs and spring brackets, reduce the oil flow from the tractor
to the lift cylinders whenever possible.
Be sure to raise the rake wheels before opening or closing the main rake beams.
TRACTOR:
This operators manual uses the term “Tractor” when identifying the power source.
BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING
INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS
WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE
SAFETYPRECAUTIONS.

-11-

SET-UP &ASSEMBLY
NOTE: Determine the right or left side of the wheel rake by viewing it from the rear. If instructions or
parts lists call for hardened bolts, refer to the Cap Screw Torque Value Chart.
1. Assemble the rake or check the rake for proper assembly and adjustment. Make sure that all
bolts are tightened.
2. Attach the wheels with tires, using the lug nuts furnished and torque the mounting hardware to
95 ft./lbs. of torque. Check wheel bolts periodically thereafter.
3. Check tires and inflate to the recommended pressure. (11L x 15 to 36 pounds)
4. Lubricate the rake completely (See Lubrication Chapter in This Manual).
5. Tooth bolts must be torqued to 40 ft./lbs. to help prevent excessive tooth breakage.
Re-torque rake tooth bolts after the first 100 acres. Check periodically thereafter.

-12-

-13-
TRANSPORT LOCKS
Rake Beam Locks
Transport locks are mounted to the front of the pole. (A) Shows the rake locked into transport position.
(B) Shows the transport locks in the convenient storage position, to be used when in the raking mode.
Rake Wheel Locks
Located on the lift pipe, is a hair pin which is used to secure the rake wheels in the up position for
transport (C). When in the down, or raking position, place the locking hair pin in the convenient
storage position (D).
A B
C
D
TRANSPORTING
TOWING ON HIGHWAY
Followstateandlocalregulationswhentowingfarmequipment on public highways. Never tow the rake
on a public highway at a speed greater than 20 m.p.h. (32 kph).
REFLECTORS
Red andAmber reflectivesafety decals are onthe rake forsafety. Refer tothe Decal Placement Chapter
for location.

-14-
1. Adjust the tractor hitch (13 to 17 inches above
ground) and attach the rake to the tractor with a
hitch pin and a safety locking device.
2. There are twelve different positions to adjust the
hitch on your Rake. The clevis hitch can be flipped
for more settings.
PREPARING FOR OPERATION
4. Connect the hydraulic hoses for raising and lowering the rake wheels to a double acting valve on the
tractor.
5. Connect the hydraulic hoses for opening and closing the rake to a double acting valve on the tractor.
6.Ifthe rake is equipped with theoptionalHydraulicRear Opening Width Cylinder, connect the hydraulic
hoses to a double acting valve on the tractor.
7. Connect the 7-pin electrical connector to tractor if the rake is equipped with optional lighting.
3.Removetheweight from lift jack. Remove the jack from the pipe and place it on the convenient storage
mount located on the front top of pole.

-15-
OPERATION & ADJUSTMENTS
RAKING WIDTH
Raking width is determined by setting the spring
loaded stop, located above the rear pole section
as shown.
WINDROW WIDTH
Windrow width adjustment is made by the
ratchetjack located ontheright rearofthe rake
as shown.
EMERGENCY SHUTDOWN
Stop the tractor engine, remove ignition key, and allow all mechanisms to stop before
cleaning or working on the machine.

-16-
OPERATION & ADJUSTMENTS
GAUGE WHEELS
Outboard gauge wheels are located on the forward section of
each rake beam. These gauge wheels support the rake beams to
allow the rake wheels to better follow the contour of the ground.
Located on each gauge wheel pivot spindle is an adjustable brake
assembly. Adjust the brake by tightening bolt and nut. The brake
shouldhaveenoughtensiontopreventzig-zagmotion,butstill allow
the wheel to pivot when making corners.
Adjustable
Brake
Assembly
GROUND PRESSURE
Rakewheelto ground pressure is adjusted
by turning the tab nut on the threaded rod
while the rake wheels are in the raised
position. The further forward that the nut
is on the threaded rod, the lesser the
amount of rake wheel ground pressure.
The further back that the nut is on the
threadedrod,thegreatertheamount ofrake
wheel ground pressure.

-17-
OPTIONALEQUIPMENT
REAR TANDEM AXLE
Tandem walking beam axles are optional on all models of
Flex-Frame Rakes.Asingle axle is standard.
HYDRAULIC OPENING WINDROW
WIDTH ADJUSTMENT
Hydraulic Opening Windrow Width Adjustment
is optional in place of the standard ratchet jack.
This option requires a 3rd tractor remote.
LIGHTING PACKAGE
ALighting Packagethat includestaillightsandwork
lights is optional.
3-WHEEL CENTER KICKER
A 3-Wheel Center Kicker Assembly disturbes and
moves the un-raked crop in the center.

LUBRICATION GUIDE
GREASE FITTINGS
There are numerous grease fittings on the Flex-Frame Rake. If lubricated properly and often enough, it
will prolong the life of your Rake. Grease daily during normal use and before and after storage and
after power washing. Use a good grade of high quality grease. Make sure that grease comes out
around the shaft on sleeve type bearings. Wipe off excessive grease to prevent accumulation of chaff or
grit around the bearing.
LOCATION
Listed and shown are the description of location and number of grease fittings.
A. (4) One on each Gauge Wheel
B. (6 or 8) One on each Transport Wheel Hub - (Single/Tandem)
C. (2) One on each RakeArm Swing Pivot
D. (2) One on each Rake Arm Raise/Lower Rear Flex Pivot
E. (2) One on each Middle FlexArm Pivot
F. (1) One on the Windrow WidthAdjustment Cylinder/Jack Pivot
G. (6) Three on each Rear RakeArm Linkage PivotAssembly
A.
One on
each
Gauge
Wheel
B.
One on each Transport
Wheel Hub
D.
One on each
RakeArm
Raise/Lower
Rear Flex Pivot
C.
One on each
RakeArm
Swing Pivot
-18-
Shown w/optional tandem axles
