H&s Hay machine ii Installation and maintenance instructions

OPERATOR’S MANUAL

and

PARTS LIST

Manufactured By

H&S MANUFACTURING CO., INC.

P.O. BOX 768 • (715) 387-3414 FAX (715) 384-5463

MARSHFIELD, WISCONSIN 54449

WARNING READ AND UNDERSTAND THIS MANUAL

BEFORE OPERATING THIS EQUIPMENT.

UNSAFE OPERATION OR MAINTENANCE OF THIS EQUIPMENT CAN RESULT IN SERIOUS

INJURY OR DEATH.

H&S

HAYMACHINE II

2-28-09

H&S

HAYMACHINE II

OPERATOR’S AND PARTS MANUAL

CONTENTS

Warranty & Warranty Registration Card ............................................................1-2

Dealer Pre-Delivery & Delivery Checklist.............................................................3

Be Alert Symbol.....................................................................................................5

Explanation of Safety Signs ..................................................................................6

Danger - Warning Signs........................................................................................7

Warning - Owner Must Read & Understand .........................................................8

Operation - Attaching to Tractor - Loading............................................................9

Adjustments - Beater Control....................................................................10-11-12

Lubrication Guide...........................................................................................12-13

Field Operation....................................................................................................14

Optional Equipment.............................................................................................15

Decal Location & Identification ......................................................................16-17

Instructions for Ordering Parts - About Improvements........................................18

Service Notes......................................................................................................19

Figure 1 - Main Frame Assembly - Description .............................................20-21

Figure 2 - Reel Assembly - Description .........................................................22-23

Figure 3 - Rake Beam Assembly - Description..............................................24-25

Figure 4 - Rake Hydraulics - Description.......................................................26-27

Figure 5 - Lift Cylinder - Description ...................................................................28

Figure 6 - Opening Cylinder - Description ..........................................................29

Figure 7 - Optional Fourth Wheel Assembly - Description ............................30-31

Service Notes......................................................................................................32

SPECIFICA

SPECIFICATIONS

TIONS...................................................................Inside Back Cover

WARRANTY

Mr. Owner: Before Operating–Read and Understand Operating and Safety Instructions

H&S Manufacturing Co., Inc. truly believes you have made a wise choice and a sound and lasting investment. Many

years of development have made available these quality machines to assure you the performance and reliability you

need. We ask you to read the following agreement and warranty as this unit is subject to this warranty and

agreement and no other.

THE H&S WARRANTY

WARRANTY REGISTRATION

Date of Purchase ___________________________________________________________________

Purchaser _________________________________ Address ________________________________

City ______________________________ State _____________________ Zip __________________

Product ___________________________ Model # __________________ Serial #_______________

Dealer ____________________________________ Address ________________________________

City _____________________________ State _______________________ Zip _________________

Signature of original buyer

FILL OUT AND MAIL

IMMEDIATELY TO MAKE

WARRANTY EFFECTIVE 

-1-

2/16/04

H&S Manufacturing Co., Inc. (“H&S”) warrants this product to be free from defect in material and workmanship. Except as

noted below, this warranty term is twelve (12) months from the date of delivery of the product to the original purchaser by an

authorized H&S dealer. Under this warranty, H&S will repair or replace, at its option, any covered part which is found to be

defective in material or workmanship during the applicable warranty term. In no case will the covered repair cost of a part or parts

exceed the replacement cost of that part. Warranty service must be performed by H&S or a dealer authorized by H&S to sell

and/or service the product involved, which will use only new or remanufactured parts or components furnished by H&S. This

warranty includes approved parts and labor to fix the product but does not include, and the purchaser is responsible for, any service

call and/or transportation of the product to and from the dealer’s place of business, for any premium charged for overtime labor

requested by the purchaser, and for any service work not directly related to any defect covered under this warranty. This warranty

includes only those components of the product manufactured by H&S. Warranty for any component not manufactured by H&S

including, but not limited to, engines, batteries, tires, rims, hydraulic motors, pumps, etc. are covered by the warranty, if any, provided

separately by their respective manufacturers.

This warranty in all its parts, is extended solely to the original purchaser of the product, is terminated upon any subsequent

transfer or sale from or by the original purchaser and extends no third party benefits or rights whatsoever.

The warranty term for any product used in any commercial, custom, for hire or rental application, is limited to six (6) months

from the date of delivery of the product to the original purchaser by an authorized H&S dealer.

Polybonded (polyethylene and plywood) panels utilized in H&S Manure Spreaders are warrantied, to the original purchaser,

to not wear through and the polyethylene overlay to not tear free of the plywood for the functional life of the spreader. This specific

warranty on polybonded panels includes only replacement of any defective panel part without any allowance for labor beyond the

terms of the general warranty (12 or 6 months), and is further limited to manure spreaders used to spread normal agicultural manure.

This warranty does not include: (1) Any product that has been altered or modified in ways not approved by H&S; (2) Depreciation

or damage caused by normal wear, misuse, improper or insufficient maintenance, improper operation, accident or failure to follow

the product Operator’s Manual recommendations and product decal recommendations; (3) Normal maintenance parts and service;

(4) Repairs made with parts other than those available from H&S or performed by anyone other than H&S or a dealer authorized

by H&S to sell and/or service the product involved.

To secure warranty service the purchaser must report the product defect to a dealer authorized by H&S to sell and/or service

the product involved within the applicable warranty term together with evidence of the warranty start date and make the product

available to that dealer within a reasonable period of time.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THIS WARRANTY. H&S

and the companies affiliated with it makes no warranties, representations, or promises, express or implied, as to the performance or

freedom from defect of its products other than those set forth above and NO IMPLIED WARRANTY OF MERCHANTABILITY,

FITNESS OR FITNESS FOR A PARTICULAR PURPOSE IS MADE. IN NO EVENT WILL THE DEALER, H&S OR ANY COMPANY

AFFILIATED WITH H&S BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. The ONLY REMEDY the purchaser has

in connection with the breach of performance of any warranty on H&S products are those set forth above.

The selling dealer has no authority to make any representation or promise on behalf of H&S, or to modify the terms or limitations

of this warranty in any way.

-2-

IMPORTANT!

Tear on dotted line, provide the information requested on

the card. The H&S Warranty is valid “only” after this card

is received and recorded at H&S Mfg. Co. Mail at

once. No postage is required in the U.S.A.

This is Your Warranty Card

Please Fill Out

And Mail Immediately



-2-

AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS

H&S

DEALER PRE-DELIVERY CHECK LIST

After Haymachine II has been completely set-up, check to be certain it is in correct running order before deliver-

ing to the customer. The following is a list of points to inspect. Check off each item as you have made the proper

adjustments and found the item operating satisfactorily.

All Shields and Guards are in place and fastened.

All grease fittings have been lubricated - See lubrication guide in this manual.

All mechanisms are operating trouble free.

Belts are properly adjusted.

All bolts and fasteners are tight.

All decals are in place, and legible.

__________________________________________ ____________________ _________________________

Dealer’s Name Model No. Serial No.

_________________________________________________________ ______________________________

(Signature of Pre-Delivery Inspector) Date of Inspection

DEALER DELIVERY CHECK LIST

This check list that follows is an important reminder of valuable information that should be passed on to the cus-

tomer at the time this Haymachine II is delivered.

Check off each item as you explain it to the customer.

This pre-delivery check list, when properly filled out and signed assures the customer that the pre-delivery serv-

ice was satisfactorily performed.

Explain to the customer that pre-delivery inspection was made.

Explain to the customer all the safety precautions they must exercise when operating

this unit.

Explain the adjustment for proper material fluffing.

Explain to customer that regular lubrication is required for proper operation and long life

of machine. Show customer the lubrication section of Owner’s Manual.

Give customer Owner's Manual and make sure he reads and understands all operating

and service instructions.

Record Model and Serial Numbers on Page 18 of this Manual.

Have customer sign a completed “Warranty Registration,” and mail it promptly.

Date Delivered_________________________ Dealer’s Name ______________________________________________

By ________________________________________________________

__________________________________________________________

Signature of Original Buyer

Note: Warranty is not valid until warranty card is completed and returned to H&S Mfg. Co., Inc.

(Remove Dealers File Copy At Perforation)

-3-

-5-

ALERT!

THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY IS INVOLVED.

TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE BEST OPERATOR. MOST

ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN PRECAUTIONS MUST BE OBSERVED TO PRE-

VENT THE POSSIBILITY OF INJURY OR DAMAGE.

TRACTORS

This operator's manual uses the term “Tractor” when identifying the power source for the Haymachine II.

H&S MANUFACTURING CO., INC.

YOUR SAFETY

IS INVOLVED.

RECOGNIZE SAFETY INFORMATION

This is the safety-alert symbol. When you see this symbol

on your machine or in this manual, be alert to the potential

for personal injury.

Follow recommended precautions and safe operating

practices.

UNDERSTAND SIGNAL WORDS

A signal word –DANGER, WARNING, or CAUTION–

is used with the safety-alert symbol.

DANGER identifies the most serious hazards.

Safety signs with signal word DANGER or WARNING are

typically near specific hazards.

General precautions are listed on CAUTION safety signs.

CAUTION

FOLLOW SAFETY INSTRUCTIONS

Carefully read all safety messages in this manual, and

all safety signs on your machine. Follow all

recommended precautions and safe operating

procedures.

Keep signs in good condition. Immediately replace

any missing or damaged signs.

-6-

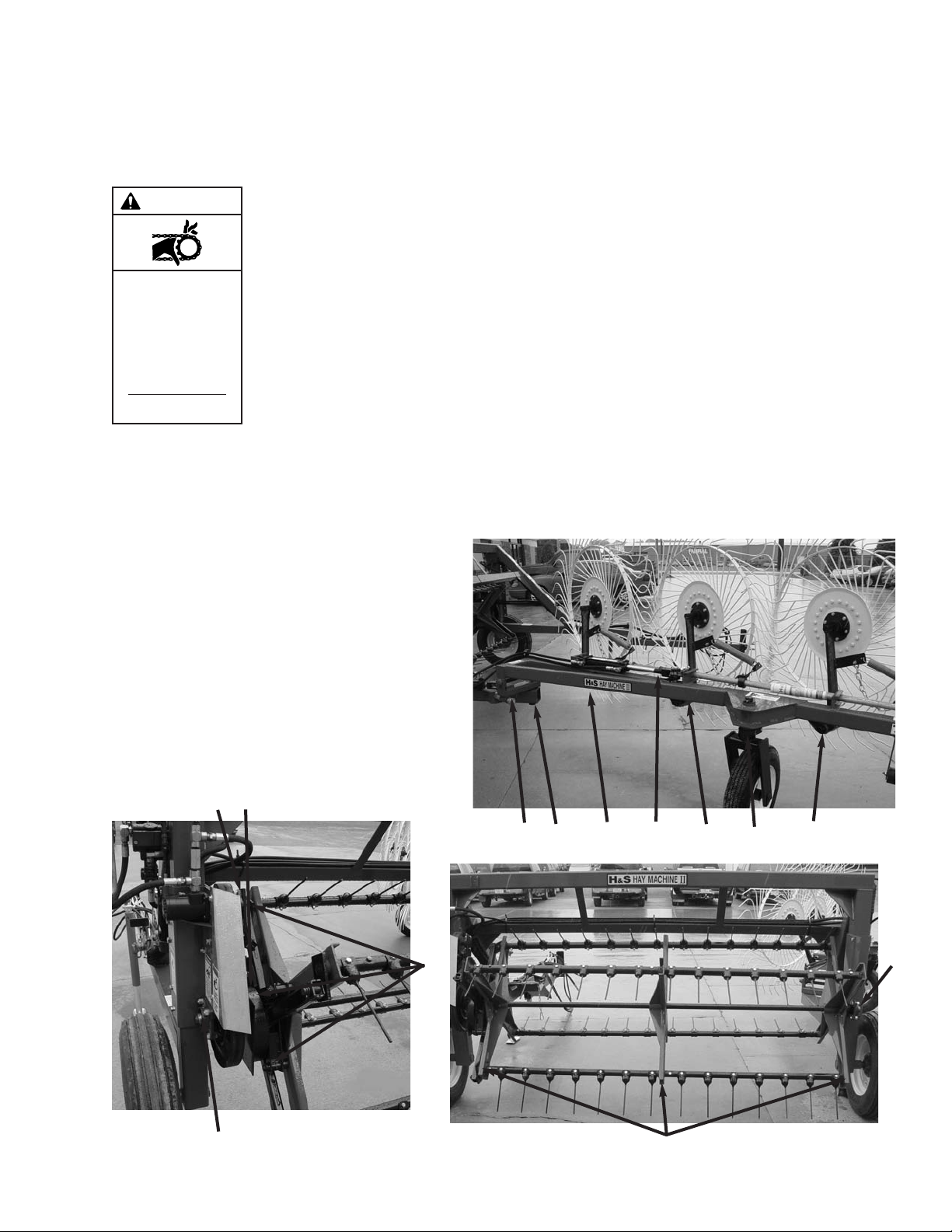

DANGER

WARNING

CAUTION

-7-

H&S HAYMACHINE II

-8-

W A R N I N G

TO PREVENT SERIOUS INJURY OR DEATH

BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING

INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR

WORKS WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR

WITH THESE SAFETY PRECAUTIONS.

KNOW HOW TO STOP MECHANISM BEFORE STARTING IT

If the machine becomes clogged, disengage the tractor hydraulics, stop the tractor engine and allow

all mechanisms to stop before cleaning or working on the machine.

DO NOT attempt to perform maintenance or repair with tractor running or hydraulics engaged.

DO NOT step up on machine at any time.

NEVER manually feed material into the reel.

DO NOT allow minors to operate or be near the machine.

DO NOT ALLOW PERSONNEL OTHER THAN THE QUALIFIED OPERATOR NEAR THE MACHINE.

STAY CLEAR of rake arm when opening and closing.

Keep hands, feet, and clothing away from REEL WHEN IT IS REVOLVING.

Loose or floppy clothing should not be worn by the operator.

Be sure the machine is clear of people, tools, and other objects before engaging tractor hydraulics.

NEVER start Haymachine II until all guards and safety shields are secured in place.

DO NOT adjust height or speed of reel when tractor is running or hydraulics are engaged.

DO NOT adjust angle of tedder teeth when tractor is running or hydraulics are engaged.

STAY CLEAR of hydraulic lines. They may be under extreme pressure or heat.

BE SURE to raise rake wheels before closing to transport position.

H&S Mfg. Co. always takes the operator and his safety into consideration and guards exposed mov-

ing parts for his protection. However, some areas cannot be guarded or shielded in order to assure

proper operation. In addition, the operator’s manual and decals on the machine itself warn you of fur-

ther danger and should be read and observed closely.

Study the Above Safety Rules

ATTENTION-BE ALERT-YOUR SAFETY IS INVOLVED

OPERATION

1. Check for proper assembly, and adjustments, and make sure that all bolts and set screws are tightened.

Securely retighten after a few hours of operation, as bolts can loosen up on new machinery. Check wheel

bolts upon delivery, wheel bolts should be tightened at 55 to 60 ft. lbs. of torque.

2. Check tires and inflate to proper pressure.

3. Adjust the tractor hitch and attach Haymachine II to the tractor as described in the following section.

4. Lubricate the machine completely as described in the lubrication section. (Pages 12-13)

5. Before operation run machine slowly to make sure the Haymachine II is operating and lubricated

properly.

TRACTOR HITCH

ATTACHING TO THE TRACTOR

1. Fasten the Haymachine II hitch to the drawbar using a 3/4” diameter hitch pin that has a

locking device, insuring that it cannot bounce out.

2. Remove the weight from the jack. Swing jack forward into its horizontal position, and lock

it to provide maximum ground clearance.

3. Shut off tractor before connecting hydraulic hoses from machine to tractor. Tractor

hydraulics could accidentally engage causing possible instant operation of Haymachine II.

4. Attach two 3/8” hydraulic hoses from Haymachine II to one set of tractor remotes with

properly fitting hydraulic quick couplers. This set of hoses is used to raise and lower the

rake wheels.

5. Attach two 1/2” hydraulic hoses from Haymachine II to another set of tractor remotes with

properly fitting hydraulic quick couplers. This set of hoses is used to open and close rake

beam and also turn the tedder reel.

6. Attach directional valve control rope to a convenient place on the tractor, allowing sufficient slack in the

rope for turning. This valve is used when opening and closing the rake arm.

Be certain to disengage hydraulics and shut off tractor before servicing or adjusting. Keep pant

cuffs and other loose clothing away from all belts, reel and other moving parts. Keep off the

equipment and keep all safety shields in place. DO NOT attempt to clean, grease, lubricate, or

adjust while the machine is running. Never allow riders on the machine.

-9-

Adjust the tractor drawbar so that it is 13 to 22

inches above the ground. The hitch of the

Haymachine II is adjustable to accommodate dif-

ferent drawbar heights. Adjust hitch so that in

transport position the gauge wheel is lifted off of

the ground.

STAY CLEAR OF

REEL AND ALL

ROTATING PARTS

WHEN TRACTOR IS

RUNNING OR

HYDS. ARE

ENGAGED. FAIL-

URE TO HEED MAY

RESULT IN SERI-

OUS INJURY OR

DEATH.

DANGER

-10-

DO NOT ADJUST SPEED OR HEIGHT OF REEL

WHEN TRACTOR IS RUNNING OR HYDRAULICS ARE

ENGAGED. REEL CAN START AUTOMATICALLY

WHEN HYDRAULICS ARE ENGAGED. FAILURE TO

HEED MAY RESULT IN INJURY OR DEATH.

DANGER

ADJUSTMENTS

While using your H&S Haymachine II, which is capable of turning and tedding quickly and efficiently, you might

want to make adjustment changes to make it more efficient. As various conditions will effect the efficiency of your

Haymachine II, only with experience will you know how to properly adjust the machine. Field conditions, weather

conditions, and type and size of windrow and swath are some of the determining factors for proper teeth adjust-

ment, height adjustment, and reel and ground speed to make your Haymachine II most efficient in gently moving,

picking up, and fluffing all the hay.

The following are explanations of the various adjustments

on this machine.

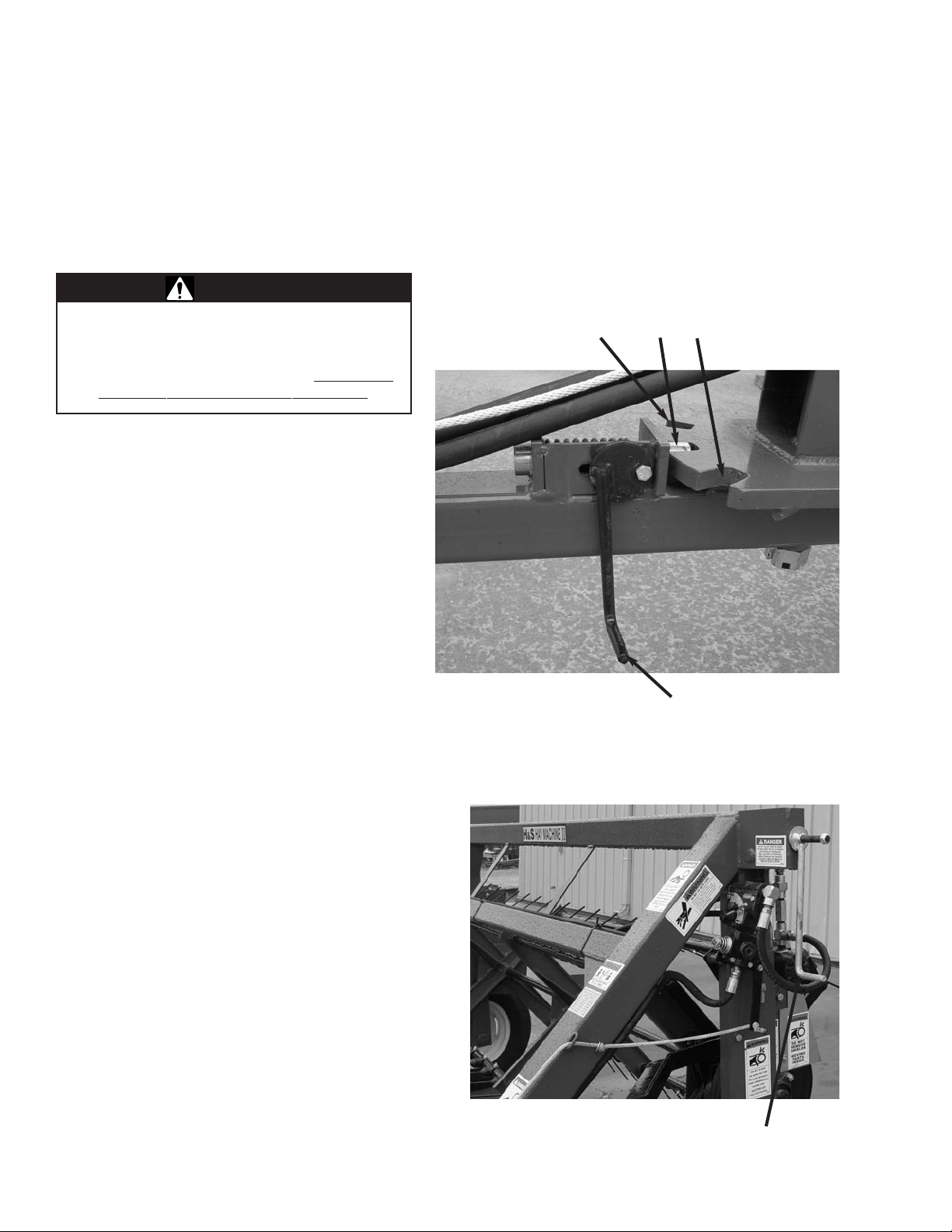

POLE POSITION

There are three positions (A-B-C) in which the pole

can be locked for normal Haymachine II operation.

To change position, lift locking lever (D), and swing

pole to the desired position. Lower locking lever so

spring loaded pin slides into locking notch.

Position (A) is used for transport. This positions the

Haymachine II more directly behind the tractor to

lessen the overall transport width.

The pole MUST be in positions (B or C) when open-

ing or closing rake wheel arm to avoid hitting tractor

tire with rake beam.

The three positions (A-B-C) should allow the operator to position the tractor properly between windrows or to strad-

dle a windrow if necessary. Always make sure locking lever (D) is in the lowered position and locking pin is in the

appropriate notch during operation.

TEDDER REEL HEIGHT

Your H&S Haymachine II incorporates two individual

machines into one to provide outstanding ground speed

yet gently moving hay off of damp ground and fluffing it

up. The height of the tedding reel in relation to the ground

can be adjusted by turning the hand crank (A) located on

top left hand side of the machine. Turning hand crank

clockwise will raise the tedder reel. Turning counterclock-

wise will lower the reel. Tedder reel should be adjusted so

tedder teeth just clear the ground. Adjusting the reel too

low will cause excess stress on the machine resulting in

damage to the teeth, reel, and drive mechanism.

ABC

TEDDER REEL SPEED

The tedder reel is driven hydraulically to allow the opera-

tor to better coordinate the speed of the reel with the

ground speed and teeth angle. Adjust reel speed with

ground speed so when tedder reel passes over the

windrow it gently lifts and fluffs the hay, but does not

throw hay into the air. To adjust reel speed, shut off the

tractor and disengage the tractor hydraulics. Move selec-

tor lever (A) located on speed control valve to the desired

speed. Correct reel speed will vary depending on hay

conditions, tooth angle, and ground speed.

TEDDER TEETH

The aggressiveness of the tedder

teeth to gently lift and fluff various

types of hay can be regulated by

moving the adjustment lever (A)

located on the left hand side of the

Haymachine II. There are eight (8)

different settings. Moving the lever

forward will make the teeth move

aggressive and lift hay higher, while

moving the lever rearward will lessen

this effect. After changing the angle

of the teeth, recheck the height

adjustment of the tedder reel to

assure proper and most efficient

operation of the Haymachine II.

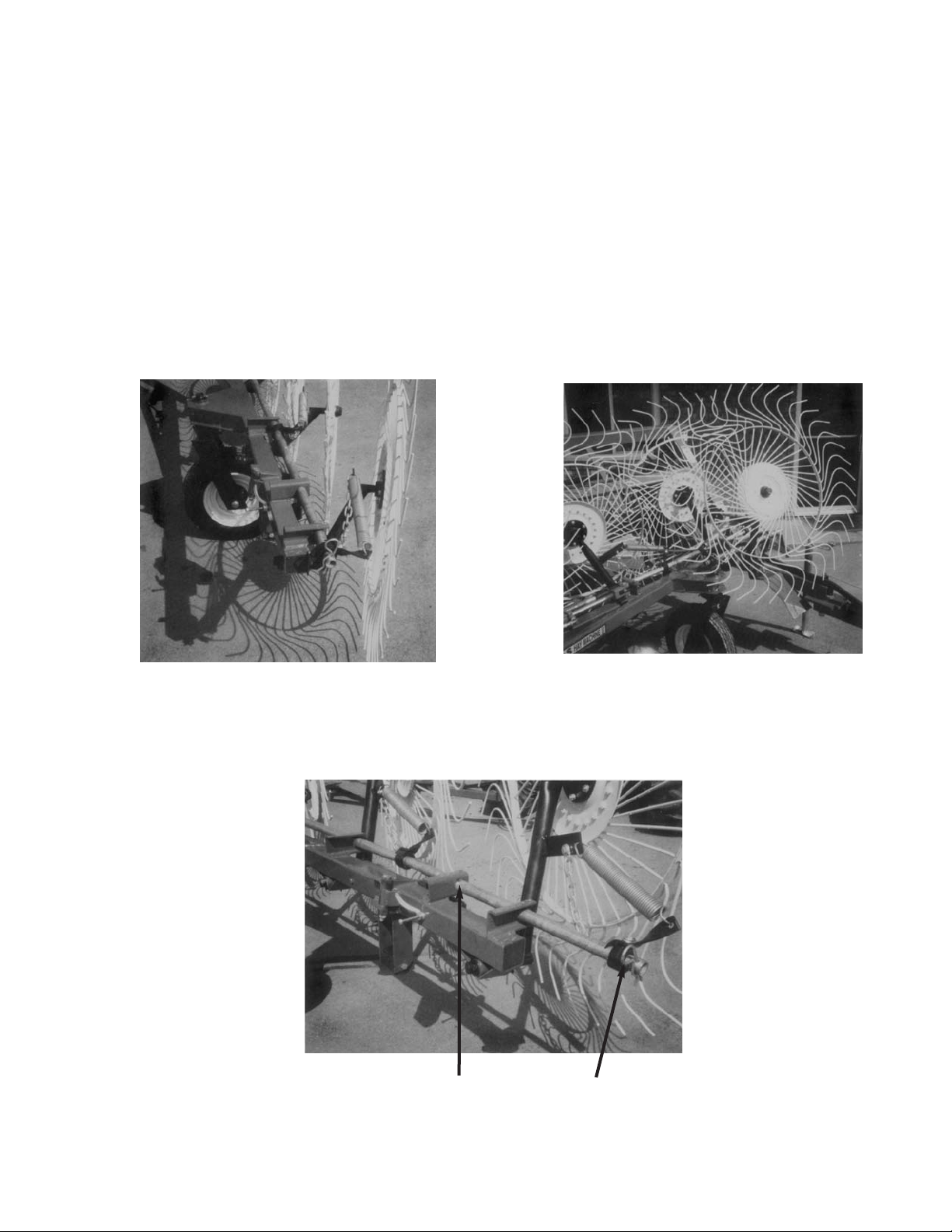

RAKE BEAM

The angle of the main rake beam can be changed to accommodate dif-

ferent windrow widths and crop conditions. The three rake wheels will

turn up to approximately a four and a half foot windrow depending on the

angle of the rake beam. To change the angle of rake beam, increase or

decrease the

number of

spacers (A) on

adjustment

shaft (B)

between adjustment stop (C) and adjustment shaft hold-

er (D). Increasing the number of spacers will lessen the

angle of rake wheels and decrease raking width. This will

also make the rake wheels more aggressive when raking

hay that has been rained on or is very heavy and green.

To adjust angle of the rake beam, partially close rake

bream. Remove clip pin from adjustment shaft (B) and

remove shaft from holder bracket (D). Place desired num-

ber of spacers (A) on adjustment shaft and insert shaft

back into holder on rake beam from cylinder side of hold-

er. Place remaining spacers on shaft and install clip pin.

-11-

DO NOT SHIFT

LEVER WHEN

TRACTOR IS RUN-

NING OR HYDS.

ARE ENGAGED.

FAILURE TO HEED

MAY RESULT IN

SERIOUS INJURY

OR DEATH.

STAY CLEAR OF RAKE WHEN

OPENING OR CLOSING. FAILURE

TO HEED MAY RESULT IN PER-

SONAL INJURY OR DEATH. KEEP

CLOTHING, YOURSELF

AND OTHERS WELL CLEAR.

DANGER

C B ADA

Start the tractor and open the rate beam until it contacts the stop. Attempt normal operation of Haymachine II to

determine if desired raking angle has been attained. If not, readjust following the same procedure previously

described.

RAKE WHEELS

The pressure of the rake wheels on the ground can

be changed by changing the position of the spring

where it attaches to the rake arm. This spring is set

at the factory to provide the most ground pressure.

If you feel that the rake wheels are scratching the

ground too hard, reposition the spring from hole A

to B as shown. This will lessen the ground pres-

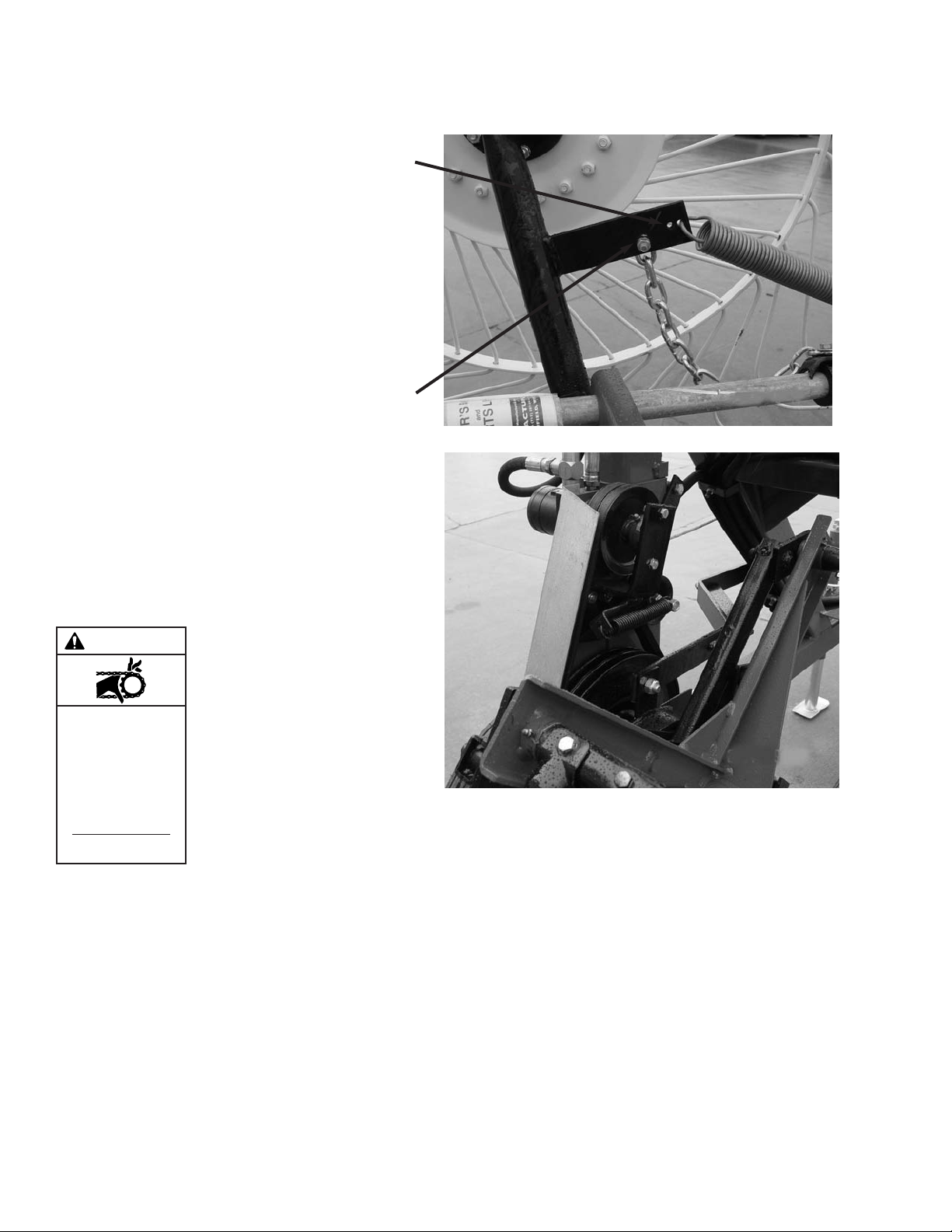

sure. The collars on the lift pipe are factory set and

should not be changed.

V-BELT DRIVE

The v-belt drive absorbs shock and helps pre-

vent damage to the machine should the reel

strike an obstruction. Tension on the v-belts is

provided by a spring loaded tightener. Spring

tension is factory pre-set and requires no adjust-

ment.

LUBRICATION GUIDE

ROAD WHEEL HUBS

The wheel axle bearings have been packed with grease at the factory. However, they should be checked periodi-

cally to insure proper operation. To adjust the wheel hubs, remove cotter pin from spindle. Tighten the castellated

nut on the spindle to a point where there is no end play and a slight drag on the bearing. Reinstall cotter pin.

RAKE WHEEL HUBS

The bearings in the rake wheel hubs have been packed with grease at the factory. These should be checked peri-

odically to insure smooth and proper rotation of rake wheels. Improperly greased or improperly tightened bearings

will cause rake wheels to not rotate freely, thus causing improper operation.

-12-

DO NOT CLEAN OR

WORK ON THIS

MACHINE WITHOUT

FIRST DISENGAG-

ING POWER AND

SHUTTING OFF

TRACTOR ENGINE

WARNING

Top Hole

Bottom

Hole

-13-

LUBRICATION (CONTINUED)

The operator should become familiar with all lubrication points, and establish a systematic routine to insure com-

plete and quick lubrication of the machine. Life expectancy of this or any other machine is dependent on regular

maintenance including lubrication, proper adjustment, and bolt torque.

GREASE FITTINGS

There are 36 grease fittings on this machine. If these are lubricated properly and often enough

it will prolong the life of your Haymachine II. Grease daily during normal use, and before and

after storage. Use a good grade of high quality grease. Make certain the grease fittings are

free of paint and dirt. Grease them until grease comes out around the shaft on the sleeve type

bearings. On the sealed ball bearings, grease should be added slowly until a slight bead forms

at the seals indicating the correct amount of lubricant. Wipe off the excess grease to prevent

the accumulation of chaff and grit around the bearings.

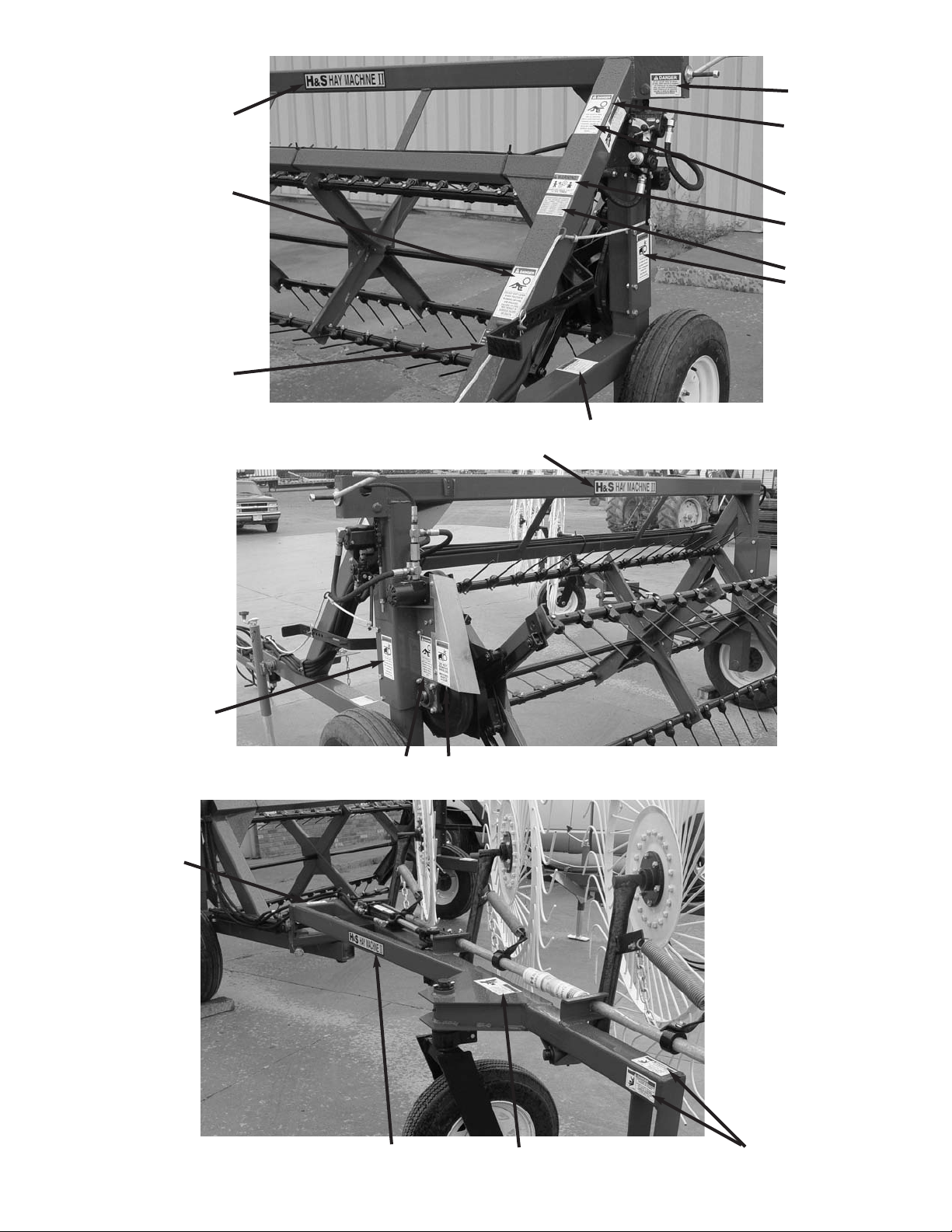

LOCATION OF GREASE FITTINGS

A. (2) one at each end of reel main shaft (sealed bearings).

B. One on upper drive pulley support bearing (sealed bearing).

C. One on cam center bearing.

D. (12) three on each set of cam arms.

E. (12) one at end of each arm of each reel cross.

F. One on rake wheel beam pivot.

G. (3) one on each rake arm pivot.

H. One on hydraulic lift bracket.

I. One on gauge wheel pivot.

J. (2) One on each side of rake beam pivot

DO NOT CLEAN OR

WORK ON THIS

MACHINE WITHOUT

FIRST DISENGAG-

ING POWER AND

SHUTTING OFF

TRACTOR ENGINE

WARNING

J F G H G I G

B C

FIELD OPERATION

Now that you have properly checked over the H&S Haymachine II, lubricated it, and have it safely attached to the

tractor, you are ready to put it into operation. The following steps will aid in proper and most effective operation of

the Haymachine.

1. Move pole from transport position to position B or C as described previously.

2. Unhook transport safety chain from rake wheel beam.

3. With operator in the tractor seat and all others well clear of the machine, pull and hold directional valve

control rope. This will direct the flow of hydraulic oil to the rake wheel beam cylinder.

4. While maintaining tension on the rope, activate the tractor hydraulics to swing the rake beam open.

Open rake beam until it engages the stops set for desired angle. Release control rope.

5. Adjust pole to desired angle to properly position the tractor with the windrows.

6. With tractor shut off and hydraulics disengaged, set the adjustment angle of the tedder teeth.

7. Adjust the height of the tedder reel. Tedder teeth should just clear the ground.

8. Set speed control for tedder reel to desired speed and lock in place.

9. Start the tractor and engage hydraulics to lower the rake wheels.

10. Engage hydraulic lever to operate the tedder reel. This lever must remain engaged to keep reel turning.

11. On all rake wheels, tooth bolts must be torqued to 40 ft. lbs. to help prevent excessive tooth breakage.

Re-torque rake tooth bolts after the first 100 acres. (Part No. T175) Check periodically thereafter.

12. Adjust tractor RPM and ground speed and commence operation of the Haymachine II.

NOTE: If the tedder reel is too aggressive and the hay is being thrown up into the air, do one or more of

the following:

1. Move tooth angle adjustment lever rearward to lessen aggressiveness of the teeth.

2. Slow down the tedder reel speed.

3. Increase the tractor ground speed.

NOTE: If the rake wheels are not moving the hay properly or are skipping hay, do one or more of the

following:

1. Check ground pressure of rake wheel and adjust accordingly. (Top hole in spring attaching

bracket provides less pressure, bottom hole more pressure.)

2. Change angle of rake beam to make rake wheels run more straight with windrow.

3. Increase or decrease tractor ground speed.

-14-

OPTIONAL EQUIPMENT

FOURTH RAKE WHEEL

Under normal conditions the three rake wheels will turn up to a 41/2’ swath or windrow. If you feel the need to

increase raking width, a fourth rake wheel may be added to the rake beam. This extra wheel will allow you to turn

up to a six foot swath or windrow. The mounting bracket for the fourth wheel is bolted on to the end of the main

rake beam. This extra wheel folds back against the main rake beam to allow rake beam to fold for transport. To

fold for transport, raise rake wheels. Remove transport lock hair pin (A) from end of lift pipe and place in the sec-

ond hole (B) from end of pipe. Fold rake wheel and mounting beam back against main rake beam. Beam from

fourth wheel will rest on top of gauge wheel mounting bracket. (See pages 30-31)

-15-

B A

Raking Position Transport Position

-16-

DECAL LOCATION

Your H&S Haymachine II was manufactured with operator safety in mind. Located on the Haymachine II are vari-

ous decals to aid in operation, and warn of danger or caution areas. Pay close attention to all the decals on your

Haymachine II.

DO NOT REMOVE ANY OF THESE DECALS. IF DECALS ARE LOST, DAM-

AGED, OR IF HAYMACHINE II IS REPAINTED, REPLACE DECALS. REMEM-

BER: DECALS ARE FOR YOUR PROTECTION AND INFORMATION.

Listed below and illustrated on the next page are the decals on your Haymachine II. These decals may be ordered

individually by part number or by ordering a complete set.

ITEM PART NO. DESCRIPTION

A 102693 H&S Haymachine II (2)

B 12494A DANGER - Do Not Shift Lever

C Model and Serial Numbers

D 72203A WARNING - Help Avoid Injury

E 12494C DANGER - Do Not Adjust

F 12494B DANGER - Stay Clear Of Reel (3)

G 1494J WARNING - Do Not Clean Or Adjust

H1494K WARNING - Do Not Remove Shields

I 11694B DANGER - Stay Clear Of Rake (3)

J 102793 H&S Haymachine II

K 2495 WARNING - Keep Children Away

L 2195 WARNING - Stay Clear When Raising

M 11599 WARNING - Do Not Go Near Leaks

N H&S 404 Patent Numbers

11704 HM Complete Set of Decals

Paint - H&S Red

ZX21 Gallon

ZX22 Quart

ZX23 Pint

-17-

F H

J L I

Instructions for Ordering Parts

All service parts should be ordered through your H&S dealer. He will be able to give you faster service if you will

provide him with the following.

1. Model number - H&S Haymachine II

Serial number -

2. All references to left or right, apply to the machine as viewed from rear.

3. Parts should not be ordered from the illustration only. Use complete parts number and description, as

shown in the parts lists.

4. If the dealer has to order the part - give the shipping instructions.

VIA truck - large pieces (Specify local delivery truck line)

VIA United Parcel Service

Record numbers in spaces provided above from the Serial Number tag off machine, as a handy record for quick

reference.

ABOUT IMPROVEMENTS

H&S is continually striving to improve its products.

We must therefore, reserve the right to make improvements or changes when it becomes practical to do so, with-

out incurring any obligation to make changes or additions to the equipment previously sold.

-18-

HAYMACHINE II

-19-

~ SERVICE NOTES ~

__________________________________________________________________________________________

Table of contents

Popular Farm Equipment manuals by other brands

Kubota

Kubota AP-SA35 Operator's manual

SaMASZ

SaMASZ SAMBA 160 Operator's manual

Checchi & Magli

Checchi & Magli WOLF COMPACT/3 Use and maintenance manual

Goldacres

Goldacres Crop Cruiser G6 Operator's manual

ATI Technologies

ATI Technologies 39-0305 Installation

LANDY

LANDY S-BH380 Operator's manual

Humbaur

Humbaur HS Series operating instructions

Tume

Tume Draco 3000 user manual

HG E1000 user manual

WIL-RICH

WIL-RICH 483 Chisel Pro Operator's manual

Nogueira

Nogueira EN-9F3B instruction manual

Unverferth

Unverferth BRENT 678 manual

GH Trading

GH Trading Mill installation manual

Spearhead

Spearhead Q1200-OS Handbook & Parts Manual

Checchi & Magli

Checchi & Magli SP 150 onion Use and maintenance manual

Degelman

Degelman STRAWMASTER 700 Series Operator's Manual/Parts Catalog

Purivox

Purivox Triplex V instruction manual

Kerbl

Kerbl 291130 operating instructions

H&S HAY MACHINE II Installation and maintenance instructions

Popular Farm Equipment manuals by other brands
