H&S HDII RAKE Installation and maintenance instructions

HDII RAKE
Manufactured By
H&S MANUFACTURING CO.,INC.
P.O. BOX 768 [phone] FAX [phone]
MARSHFIELD, WISCONSIN 54449
OPERAOPERA
OPERAOPERA
OPERATT
TT
TOR’S MANUOR’S MANU
OR’S MANUOR’S MANU
OR’S MANUALAL
ALAL
AL
ANDAND
ANDAND
AND
PP
PP
PARAR
ARAR
ARTS LISTTS LIST
TS LISTTS LIST
TS LIST
WARNING READ AND UNDERSTAND THIS MANUAL
BEFORE OPERATING THIS EQUIPMENT
UNSAFE OPERATION OR MAINTENANCE OF THIS EQUIPMENT CAN RESULT IN
SERIOUS INJURY OR DEATH
HSMFG0311
Revision # 1
Starting Serial #110429

PARTS AND OPERATOR’S MANUAL CONTENTS
Warranty & Warranty Registration Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
Dealer Pre-Delivery & Delivery Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Be Alert Symbol. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Explanation of Safety Signs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Danger - Warning Signs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Warning - Owner Must Read and Understand. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

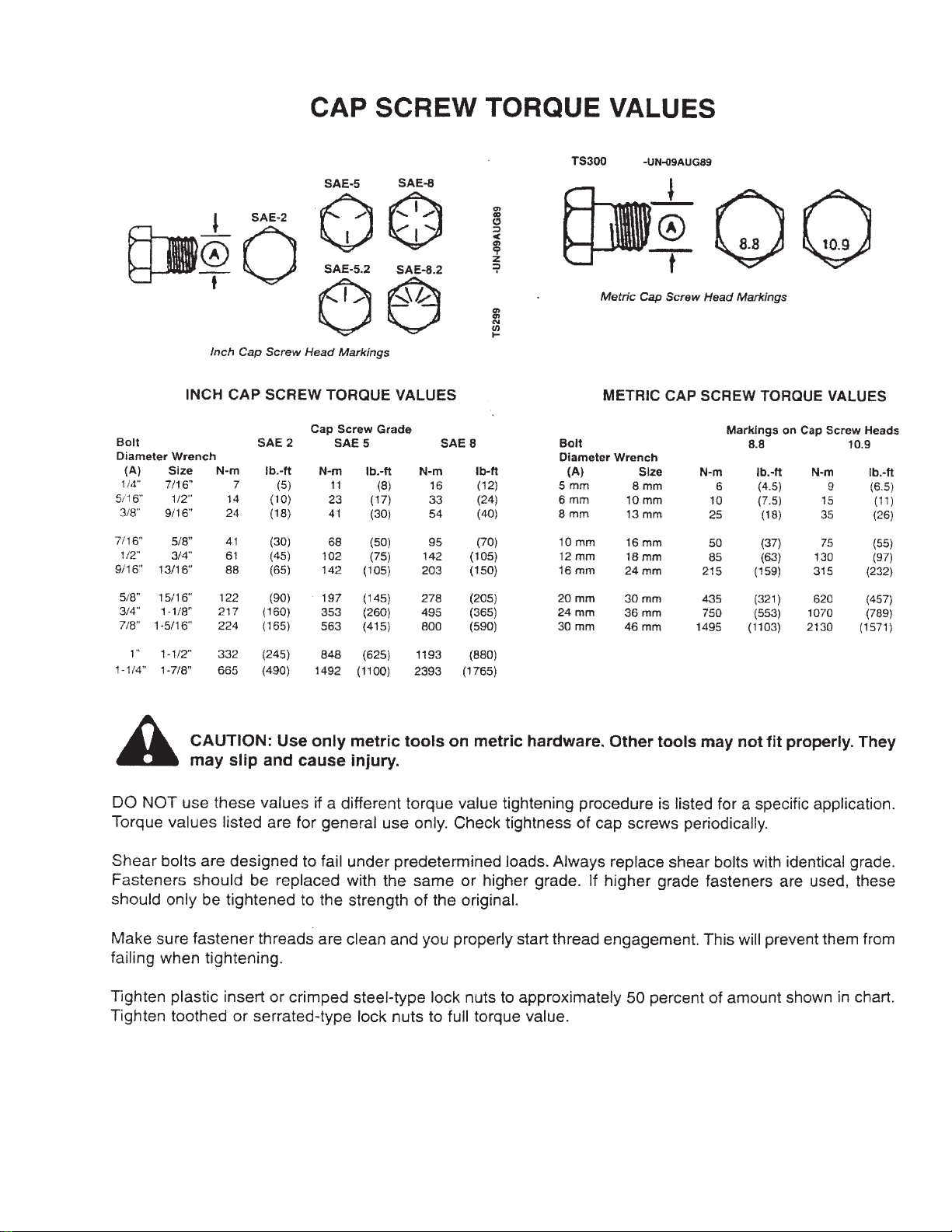

Bolt Torque Chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-12
Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-14
Lubrication Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Decal Location & Identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Trouble Shooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Optional Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Instructions for Ordering parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Service And Parts Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 1 - Main Frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-23
Figure 2 - Rake Beams. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-27
Figure 3 - Hydraulics (Model). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28-29
Figure 4 - Hydraulics (Manual Model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30-31
Figure 5 - Wiring (Hydraulic Model). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32-33
Figure 6 - Wiring (Manual Model) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34-35
Figure 7 - Hydraulic Cylinders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36-37
Figure 8 - Hydraulics Valve. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Figure 9 - Main Wiring Harness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Figure 10 - Control Box Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Figure 11 - Open Center Change. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Figure 12 - Front Rake Wheel Extention. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42-43
Figure 13 - Right Rear Wheel Extention. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44-45
Service Records. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Inside Back Cover
H & S HDII RAKE

WARRANTY
FILL OUT AND MAIL
IMMEDIATELY TO MAKE
WARRANTY EFFECTIVE
WARRANTY REGISTRATION
Date of Purchase
Purchaser Address
City State Zip
Product Model# Serial#
Dealer Address
City State Zip
Signature of Original Buyer
2/04
H & S WARRANTY
H & S Manufacturing Co., Inc. (“H & S”) warrants this product to be free from defect in material and workmanship. Except as
noted below, this warranty term is twelve (12) months from the date of delivery of the product to the original purchaser by an
authorized H & S dealer. Under this warranty , H & S will repair or replace, at its option, any covered part which is found to be
defective in material or workmanship during the applicable warranty term. In no case will the covered repair cost of a part or parts
exceed the replacement cost of that part. Warranty service must be performed by H & S or a dealer authorized by H & S to sell
and/or service the product involved, which will use only new or remanufactured parts or components furnished by H & S. This
warranty includes approved parts and labor to fix the product but does not include, and the purchaser is responsible for, any service
call and/or transportation of the product to and from the dealer’s place of business, for any premium charged for overtime labor
requested by the purchaser, and for any service work not directly related to any defect covered under this warranty. This warranty
includes only those components of the product manufactured by H & S. Warranty for any component not manufactured by H & S
including, but not limited to, engines, batteries, tires, rims, hydraulic motors, pumps, etc. are covered by the warranty, if any, provided
separately by their respective manufacturers.
This warranty in all its parts, is extended solely to the original purchaser of the product, is terminated upon any subsequent
transfer or sale from or by the original purchaser and extends no third party benefits or rights whatsoever.
The warranty term for any product used in any commercial, custom, for hire or rental application, is limited to six (6) months
from the date of delivery of the product to the original purchaser by an authorized H & S dealer.
Polybonded (polyethylene and plywood) panels utilized in H & S Manure Spreaders are warrantied, to the original purchaser,
to not wear through and the polyethylene overlay to not tear free of the plywood for the functional life of the spreader. This specific
warranty on polybonded panels includes only replacement of any defective panel part without any allowance for labor beyond the
terms of the general warranty (12 or 6 months), and is further limited to manure spreaders used to spread normal agicultural manure.
This warranty does not include: (1) Any product that has been altered or modified in ways not approved by H & S; (2) Depreciation
or damage caused by normal wear, misuse, improper or insufficient maintenance, improper operation, accident or failure to follow
the product Operator’s Manual recommendations and product decal recommendations; (3) Normal maintenance parts and service;
(4) Repairs made with parts other than those available from H & S or performed by anyone other than H & S or a dealer authorized
by H & S to sell and/or service the product involved.
To secure warranty service the purchaser must report the product defect to a dealer authorized by H & S to sell and/or service
the product involved within the applicable warranty term together with evidence of the warranty start date and make the product
available to that dealer within a reasonable period of time.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE OF THIS WARRANTY. H & S
and the companies affiliated with it makes no warranties, representations, or promises, express or implied, as to the performance or
freedom from defect of its products other than those set forth above and NO IMPLIED WARRANTY OF MERCHANTABILITY,
FITNESS OR FITNESS FOR A PARTICULAR PURPOSE IS MADE. IN NO EVENT WILL THE DEALER, H&S OR ANY COMPANY
AFFILIATED WITH H&S BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. The ONLY REMEDY the purchaser has
in connection with the breach of performance of any warranty on H & S products are those set forth above.
The selling dealer has no authority to make any representation or promise on behalf of H & S, or to modify the terms or limitations
of this warranty in any way.
-1-

BUSINESS REPLY MAIL
FIRST CLASS MAIL Permit No.195 Marshfield, WI 54449
POSTAGE WILL BE PAID BYADDRESSEE
H&S Manufacturing Co., Inc.
PO Box 768
Marshfield, WI 54449-9963
NO POSTAGE
NECESSARY
IF MAILED
IN THE
UNITED STATES
IMPORTANT!
Tear on dotted line, provide the information requested on
the card. The H&S Warranty is valid “only” after this card
is received and recorded at H&S Mfg. Co. Mail at
once. No postage is required in the U.S.A.
-2-

Explain to the customer that the pre-delivery inspection was made.
Explain to the customer all the safety precautions they must excercise when
operatingthisunit.
Explain raking and windrow width adjustments.
Explain to customer that regular lubrication is required for proper operation and
long life of machine. Show customer the lubrication section of Owner’s Manual.
Give the customer Owner’s Manual and make sure they read and understand all
operating and service instructions.

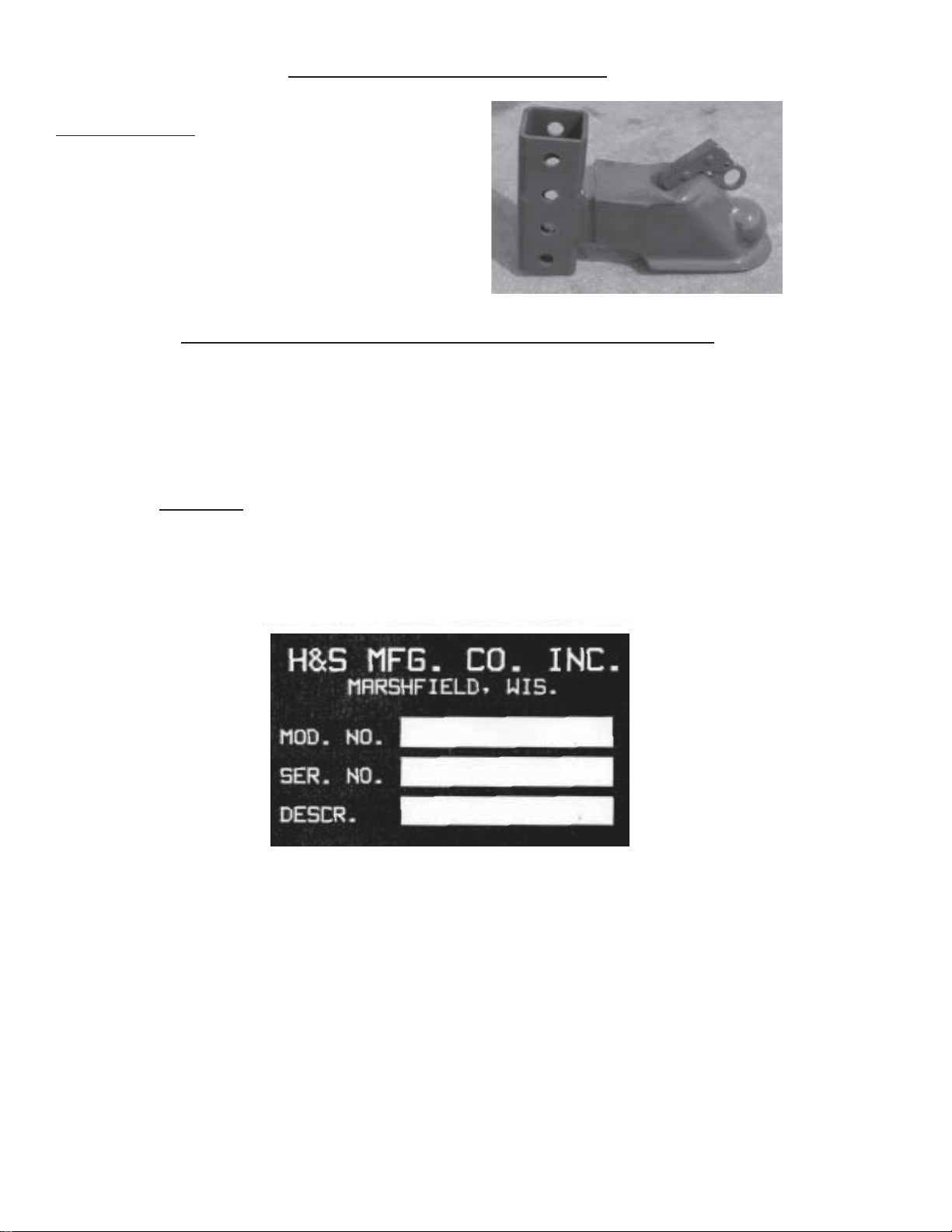

Record Serial Number on page 18 of this Manual.
Have customer sign a completed “Warranty Registration,” and mail it promptly.
All grease fittings have been lubricated
(See lubrication guide in this manual).
All mechanisms are operating trouble free.
Rake wheels touch ground in unison when lowered into position.
(Rake setting level)
All bolts and fasteners are tight.
All decals are in place and legible.
Control Box with mount accompanies rake.
AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS
H & S DEALER PRE-DELIVERYCHECK LIST
After the HDII Rake has been completely set-up, check to be certain it is in correct operating order before
delivering to the customer. The following is a list of points to inspect. Check off each item as you have
made the proper adjustments and found the item operating satisfactorily.
DEALER DELIVERYCHECK LIST
!
!
!
!
!
!
!
!
!
!
-3-
Note: Warranty is not valid until warranty card is completed and returned to H & S Mfg. Co., Inc.
!
!
!
(Dealer’s Name)
(Signature of Pre-Delivery Inspector)
Serial Number
ModelNumber
(Inspection Date)
(Date Delivered)
(Dealer’s Name)
(By)
(Signature of Original Buyer)
This check list that follows is an important reminder of valuable information that should be
passed on to the customer at the time this HDII Rake is delivered.
Check off each item as you explain it to the customer.
This delivery check list, when properly filled out and signed assures the customer that the
Pre-delivery service was satisfactorily performed.

-4-

BE
ALERT! YOUR SAFETY IS INVOLVED.
THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY IS
INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE BEST
OPERATOR. MOST ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN PRECAUTIONS
MUST BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR DAMAGE.
TRACTORS
This operator’s manual uses the term “Tractor” when identifying the power source.
-5-
H & S MANUFACTURING CO. INC.
SAFETY INFORMATION

RECOGNIZE SAFETY INFORMATION
This is the safety-alert symbol. When you see this
symbolonyourmachineor in this manual,bealerttothe
potential for personal injury.
Follow recommended precautions and safe operating
practices.
UNDERSTAND SIGNAL WORDS
A signal word- DANGER, WARNING, or CAUTION - isused
with the safety-alert symbol. DANGER identifies the most
serious hazards.
Safety signs with signal word DANGER or WARNING are
typically near specific hazards.
General precautions are listed on CAUTION safety signs.
Carefullyreadallsafety messagesinthismanual,
and all safety signs on your machine. Follow all
recommended precautions and safe operating
procedures.
Keepsignsingoodcondition. Immediatelyreplace
any missing or damaged signs.
-6-
FOLLOW SAFETY INSTRUCTIONS
SAFETY INFORMATION

-7-
SAFETY IMFORMATION

TRACTORS
This operators manual uses the term “Tractor” when identifying the the power source.
WARNING
TO PREVENT SERIOUS INJURY OR DEATH
Study The Above Safety Rules
ATTENTION - BE ALERT - YOUR SAFETY IS INVOLVED
BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE
FOLLOWING INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO
OPERATES OR WORKS WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR
EMPLOYEE,ISFAMILIARWITHTHESESAFTEYPRECAUTIONS.
.
-8-
DO NOT attempt to perform maintenance or repair with tractor running.
DO NOT step up on machine at any time.
DO NOT allow minors to operate or be near the machine.
DO NOT ALLOW PERSONNEL OTHER THAN THE QUALIFIED
OPERATOR NEAR THE MACHINE.
Loose or floppy clothing should not be worn by the operator.
Stop the tractor engine, remove ignition key, and allow all mechanisms to stop before cleaning,
working, or adjusting on machine.
Stay clear of hydraulic lines, they may be under extreme pressure or heat.
Stay clear of rake when opening or closing main rake arm beams, or raising or lowering rake
wheels.

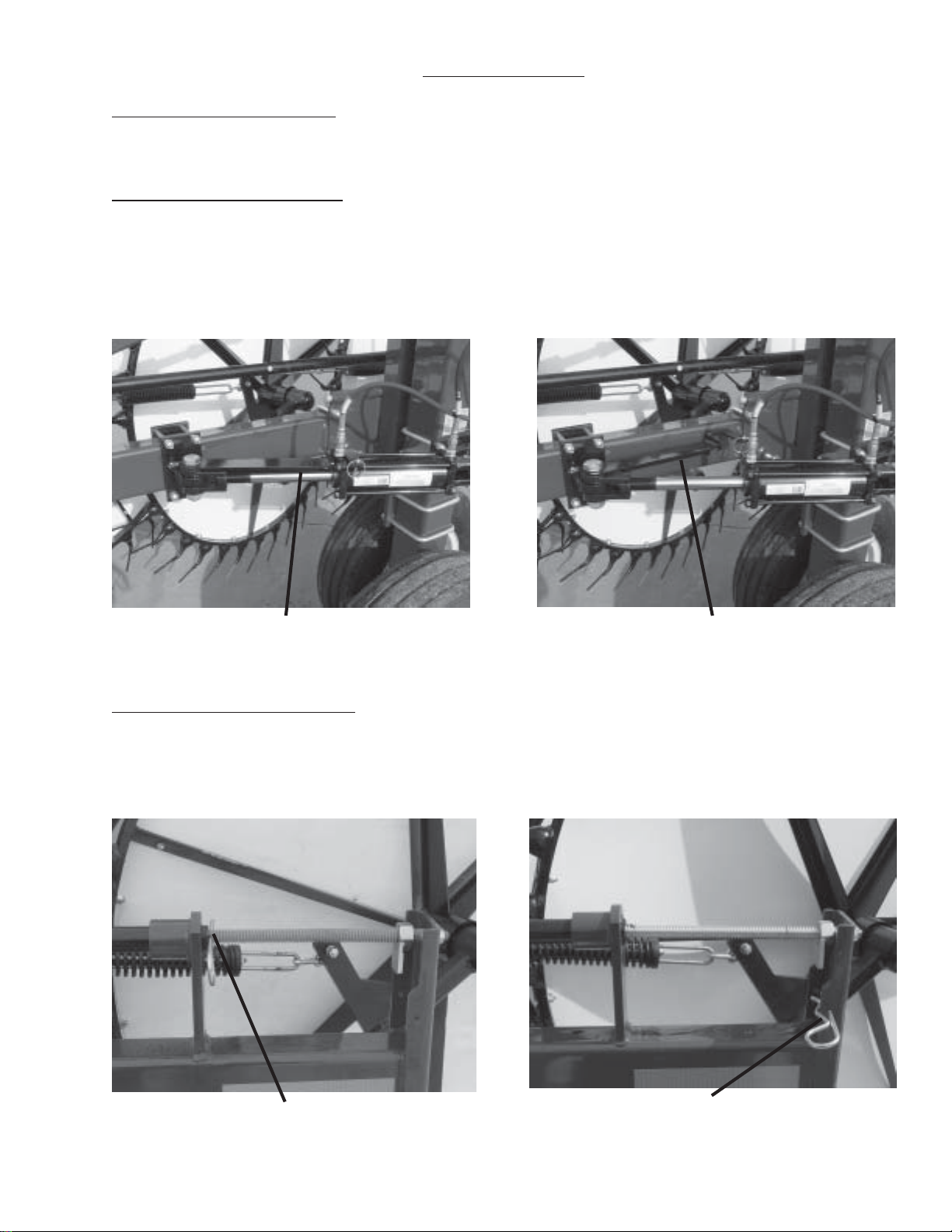

For transport, always make sure that the hair pin at the rear of the lift pipes, and the transport lock
bracket with safety linch pins for main rake beam cylinders, are securely locked in place.
To reduce stress on rake arms, lift pipe, springs and spring brackets, reduce oil flow from tractor
to lift cylinders whenever possible.
Be sure to raise rake wheels before opening or closing main rake beams.
H&S Mfg. Co. always takes the operator and his safety into consideration and guards exposed
moving parts for their protection. However, some areas cannot be guarded or shielded in order to
assure proper operation. In addition, the operators manual and decals on the machine itself warn
you of further danger and should be read and observed closely.

-9-

OPERATION

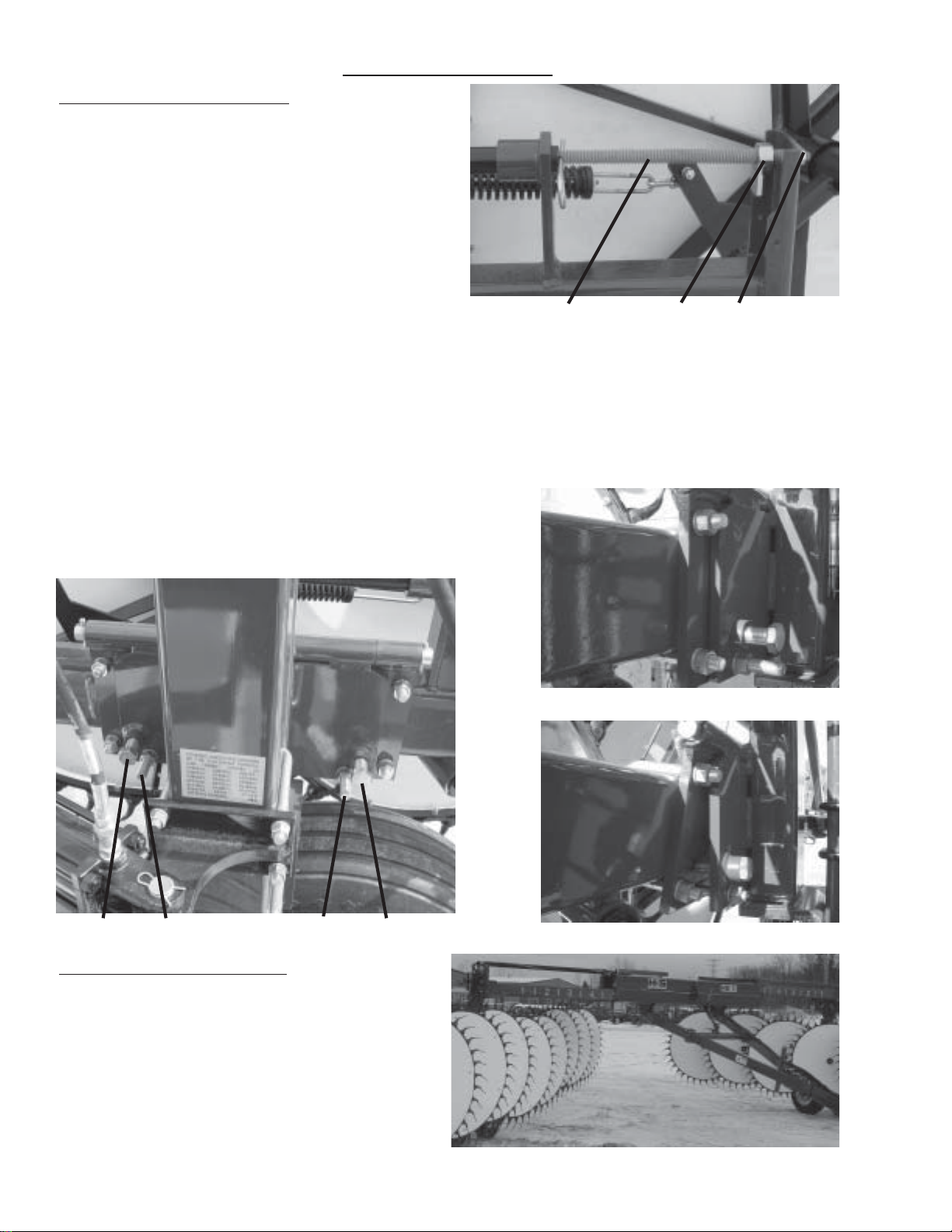

1. Check for proper assembly and adjustment and make sure that all bolts are tightened. Securely
retighten after a few hours of operation as bolts can loosen up on new machinery. Check wheel
boltsupon delivery and periodically thereafter. Wheel bolts should be tightened at 85-95 ft./lbs.
torque.
2. Check tires and inflate to recommended pressure (9.5L x 15SL to 44 PSI).
3. Adjust the tractor hitch (13 to 17 inches above ground) and attach to tractor with a hitch pin that
has a safety locking device.

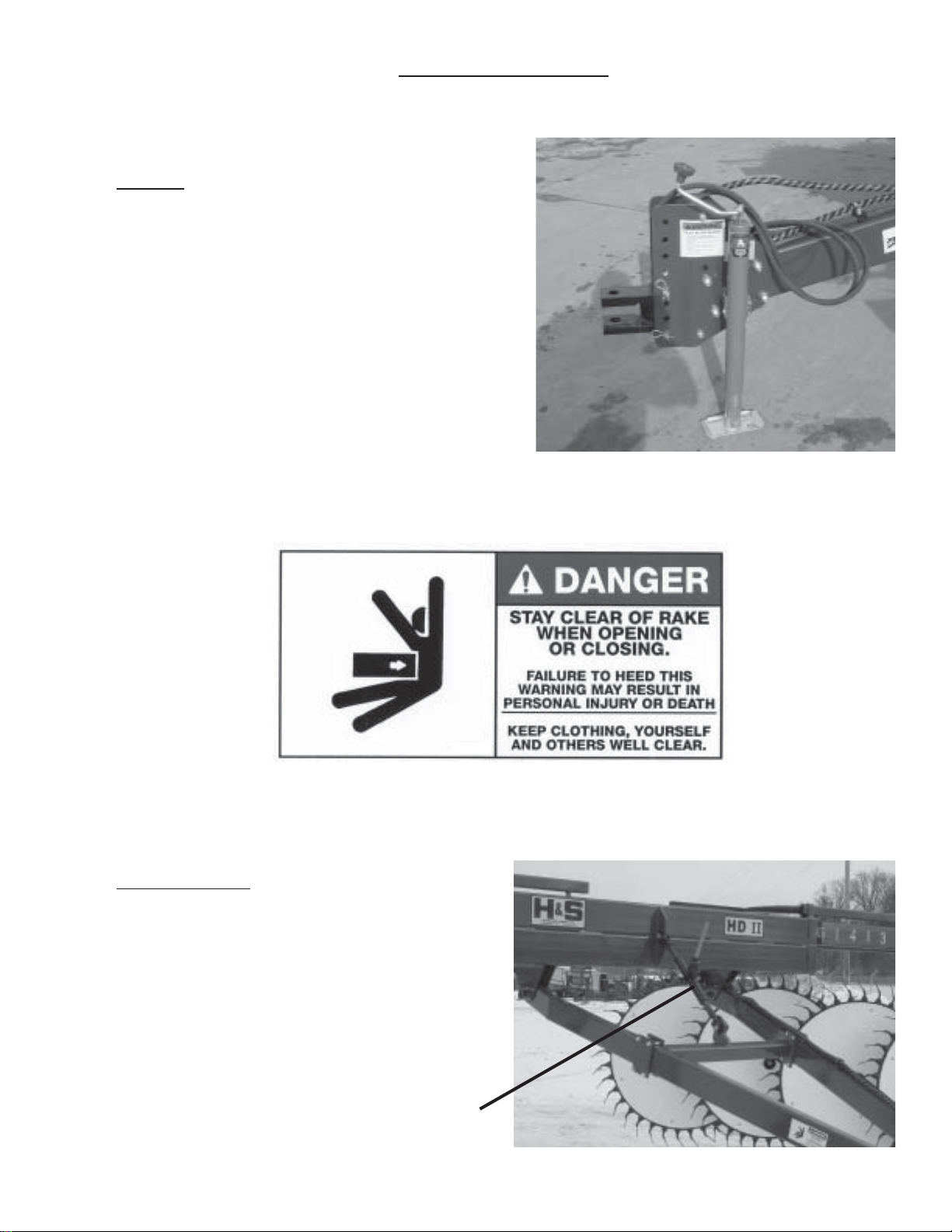

4. Remove weight from lift jack. Remove jack from pipe mount and place on convenient storage
mount located at the rear of the front pole assembly (See Picture Below).
5. Connect hydraulic hoses for all rake functions to a double acting valve on the tractor.
6. Check tractor hydraulic system, determine if tractor is closed or open center system. The rake is
factory set-up for closed center (To change to open center, see instructions on page 33).
7. Mount control box in a convenient location on tractor. Plug 7-pin electrical connector on main
harnness of rake into tractor (This will power up the control box, work lighting and safety(lighting).
Plug control box into main harness. Note: If tractor is not equipped with a 7-pin connetor the
tractor must be outfitted with one.
8. Lubricate the rake completely (See Lubrication Section in This Manual).
9. Check all bolts on rake after 100 acres. Re-torque if necessary.
NOTE:Determineright or left side ofyourHDIIRakebyviewing it from the rear. If instructionsorparts lists
call for hardened bolts. See page # 9 to identify.
-10-
JACK STORAGE POSITION

OPERATION
TRANSPORT LOCKS
RAKE BEAM LOCKS
Mounted on the rake beams are Self-storing transport locks for rake beam arms. Remove the clip pin and
swingthetransportlocktoward the rake beam.Thereshouldbea fair amount ofdragrequiredtoswing the
lock. (A) shows the transport lock in the engaged position. (B) shows the transport lock in the storage
position, to be used when in the raking mode.
RAKE WHEEL LOCKS
Located at the rear of the lift pipe, is a hair pin which is used to secure the rake wheels in the up position
for transport (C). When in the down, or raking position, place the locking hair pin in the convenient storage
position as shown (D).
-11-
A B
C D

OPERATION

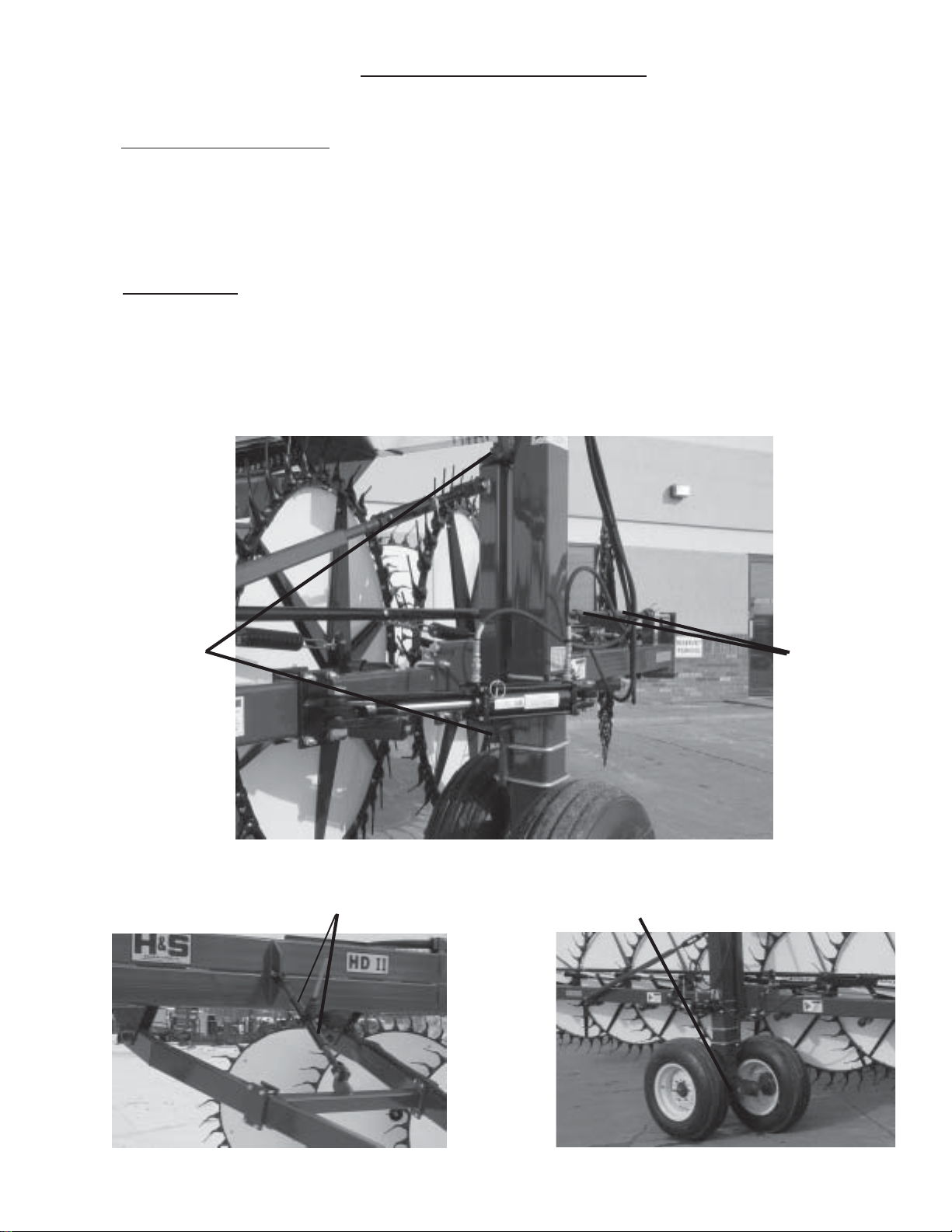

CENTER FRAME
When opening or closing the center frame of the
rake,itis necessary tohave forwardorrearward
motion to prevent any serious damage to rake.
Each side has it’s own switch on the control box.
There is a convenient number system on the two
slider tubes to let the operator know where each
side is located.
The right and left rake wheel beam can be angled
separately by their own switch on the control box.
By angling each side more or less the desired
windrow width can be accomplished.
CONTROL BOX
Thecontrolboxallowsthe operator tomakemany
adjustments from the tractor seat. It is set up in
three basic areas. The left side has two switches,
one (A) for sliding the left center frame in or out,
the other switch (B) controls the rake wheel beam
angle.Therightside alsohastwoswitches one(C)
for sliding the right center frame in or out, the
other switch (D) controls the rake wheel beam
angle. In the center of the control box there are
three switches. The switch on the left (E) will raise
andlowerthethe left siderakewheels.The switch
on the right (F) will raise and lower the right side
rakewheels.Theswitch in the center(G)willraise
and lower both left and right rake wheels.
B E F D
A G C
NUMBERS
-12-
NOTE: TRACTOR HYDRAULIC LEVER MUST BE ENGAGED TO PROVIDE OIL FLOW TO RAKE.
RAKING ANGLE/WINDROW WIDTH

ADJUSTMENTS
RAKE BEAM
Rake beams should be adjusted so they are
level to slightly up in the front. They can be
adjusted by using the rachet jack located
near the center of the rake. This adjustment
is important to keep rake wheel ground pressure
even along the rake beam. Failure to do this
will cause the front wheels to make heavier
contact with the ground.
RATCHET JACK
-13-
HITCH
Thereareten differentpositionstoadjust thehitch
on the HDII Rake. Hitch should be adjusted so
rake beams are level or parallel to the ground.

ADJUSTMENTS
-14-
RAKE BEAM TILT
The rake beam can be tilted from 0° to 10°. The 0° setting is to be used in normal conditions (dry and fluffy
hay). The settings up to 10° are used in harsh conditions (heavy green hay or rained on hay that is matted
into the stubble). To adjust the beam tilt, loosen the two Tension Bolts (A). Turn the two Adjustment Bolts
(B) to desired tilt (make sure the two adjustment bolts are turned in evenly). Retighten the two Tension
Bolts (A) securely. Repeat the same process on opposite rake beam.
RAKE BEAM ANGLE
Before the rake beams can be angled the center
frame must be widened first (as described in the
operation section), or the rear rake wheels will
make contact. After the center frame has been
widened, angle the rake beams to the desired
angle by using the left and right switches located
on the control box.
GROUND PRESSURE
Rake wheel ground pressure is adjusted by turn-
inglockingNut andCollar(A) intodecreasepres-
sure or out to increase pressure. The length
of the Threaded Rod (B), between (A) and rear
Support (C), will determine the rake wheel
ground pressure. Measuring this distance or
counting the threads will give you the same
ground pressure on both rake beams.
BAC
NO BEAM TILT
FULL BEAM TILT
B A A B

LUBRICATION GUIDE
GREASE FITTINGS
Therearetwelvegrease fittings ontheHDII Rake.If lubricated properlyandoftenenough, it willprolong
the life of your HDII Rake. Grease daily during normal use and before and after storage and after
power washing. Useagoodgradeof high quality grease.Makesurethatgrease comes out aroundthe
shaft on sleeve type bearings. Wipe off excessive grease to prevent accumulation of chaff or grit
around the bearing.
LOCATION
Listed and shown are the description of location and number of grease fittings.
A. (4) Two on each Lifting Cylinder Mount
B. (2) One on each Tandem Pin
C. (4) Two on each Beam Pivot (1) Top Pivot (1) Bottom Pivot
D. (2) Ratchet Jack
-15-
C A
D B

DECAL LOCATION
Your H & S HDII Rake was manufactured with operator safety in mind. Located on the HDII Rake are
various decals to aid in operation, and warn of caution areas. Pay close attention to all decals.
DO NOT REMOVE ANY OF THESE DECALS. IF DECALS ARE LOST, DAMAGED,
OR IF HDII RAKE IS REPAINTED, REPLACE DECALS. REMEMBER: DECALS
ARE FOR YOUR PROTECTION AND INFORMATION.
Listed below are the decals on your HDII Rake. These decals may be ordered individually by part number
or by ordering a complete set.
A. 11694A (4) DANGER - Stay Clear of Rake
B. (1) H&S HDII - Decal (Right)
B. (1) H&S HDII - Decal (Left)
C. (2) H&S HDII - Front / Back
D. 2195 (4) WARNING - Stay Clear of Rake
E. 71188B Jack Storage
F. 102-3185 (2) Red Reflectors (2x9)
G. (4) Amber Reflectors
H. 11599 (4) WARNING - Do Not Go Near Leaks
I. H&S Patent Numbers
J. Serial Number
K. 72203 (2)WARNING - HelpAvoidInjury
L. 12197A (2) ATTENTION - Raise Rake Wheels
O. 61003 Control Box Decal
P. 21804 (2)ATTENTION - NeverAdjust Frame
Q. 22405 (2) WARNING - InstallTransport Locks
0204-HDII Complete Set of Decals
-16-
F F
H
EG
KI
P L H J A B A G D
O
P L
Q
C
ITEM PART # DESCRIPTION

TROUBLE SHOOTING
WARNING
MAKE SURE THAT THE TRACTOR IS SHUT OFF AND THE RAKE CAN NOT MOVE
BEFORE SERVICING THE HDII RAKE. MAINTENANCE AND REPAIR SERVICE
WORK TO BE PERFORMED BY A QUALIFIED SERVICE PERSON ONLY.
Main Frame Will Not Open No Electrical Power to Control Box Check and Make Sure There
is Power to Control Box
Blown Fuse or Circuit Breaker Check and Replace Fuse or Circuit
on Tractor Breaker
Hydraulic Lever Not Engaged or Engage HydraulicLeveror Move
Engaged in Wrong Direction Hydraulic Lever in Opposite Direction
Hydraulic Hoses Not Connected to Check Hydraulic Hoses For Proper
Tractor Properly Connection
Solenoid Valve Sticking or Not Check Solenoid and Valve
Working Properly
Rake Beams Will Not No Electrical Power to Control Box Check and Make SureThere is
Open or Close Power to Control Box
Transport Locks Still Engaged Remove Clip Pin and Swing Self
Storing Transport Locks Toward
Frame (See Page # 11)
Blown Fuse or Circuit Breaker Check and Replace Fuse or Circuit
on Tractor Breaker
Hydraulic Lever Not Engaged or Engage HydraulicLeveror Move
Engaged in Wrong Direction Hydraulic Lever in Opposite Direction
Hydraulic Hoses Not Connected to Check Hydraulic Hoses For Proper
Tractor Properly Connection
Solenoid Valve Sticking or Not Check Solenoid and Valve
Working Properly
Rake Wheels Will Not No Electrical Power to Control Box Check and Make Sure There is
Raise or Lower Power to Control Box
Transport Lock Hair Pins Still Remove Transport Lock Hair
Engaged Pins and Place in Storage Position
(See Page #11)
Blown Fuse or Circuit Breaker Check and Replace Fuse or Circuit
on Tractor Breaker
Hydraulic Lever Not Engaged or Engage HydraulicLeveror Move
Engaged in Wrong Direction Hydraulic Lever in Opposite Direction
Hydraulic Hoses Not Connected to Check Hydraulic Hoses For Proper
Tractor Properly Connection
Solenoid Valve Sticking or Not Check Solenoid and Valve
Working Properly
-17-
TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
or Close

-18-
INSTRUCTIONS FOR ORDERING PARTS
PLEASE RECORD NUMBERS FOR YOUR UNIT FOR QUICK REFERENCE
ABOUT IMPROVEMENTS
H & S IS CONTINUALLY STRIVING TO IMPROVE IT’S PRODUCTS
We must therfore, reserve the right to make improvements or changes whenever it becomes practical to do
so without incuring any obligation to make changes or additions to the equipment previously sold.
All service parts should be ordered through your authorized H & S dealer. They will be able to
give you faster service if you will provide them with the following
1. Model & Serial number is located on the inside right pole mount, under center frame.
2. All reference to left or right apply to the machine as viewed from the rear.
3. Parts should not be ordered from illustration only. Please order by complete part number.
4. If your dealer has to order parts - give shipping instructions:
VIA truck - large pieces (please specify local truck lines)
VIA United Parcel Service (include full address)
OPTIONAL EQUIPMENT
BALL HITCH
The ball hitch is an option that can be added
at any time. It allows for smoother operation in the
field,byeliminatingthe distancebetweentheclevis
hitch and the tractor drawbar. Simply remove the
clevis hitch and replace it with the ball coupler and
install a 2-5/16” ball to the tractor drawbar.
