H&S 3108 User manual

3108/3110/31123108/3110/3112
ActionAction
RAKERAKE
MM
AA
NN
UU
AA
LL
OO
PP
EE
RR
AA
TT
OO
RR
SS
Part #75891 Rev. #02 HSMFG0319Part #75891 Rev. #02 HSMFG0319
READ AND UNDERSTAND THIS MANUAL BEFOREREAD AND UNDERSTAND THIS MANUAL BEFORE
OPERATING THIS EQUIPMENT. UNSAFE OPERATIONOPERATING THIS EQUIPMENT. UNSAFE OPERATION
OR MAINTENANCE OF THIS EQUIPMENT CAN RESULTOR MAINTENANCE OF THIS EQUIPMENT CAN RESULT
IN SERIOUS INJURY OR DEATH.IN SERIOUS INJURY OR DEATH.
WARNINGWARNING
3108 Starting Serial #911SS0800013108 Starting Serial #911SS080001
3110 Starting Serial #911SS1000013110 Starting Serial #911SS100001
3112 Starting Serial #911SS1200013112 Starting Serial #911SS120001

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

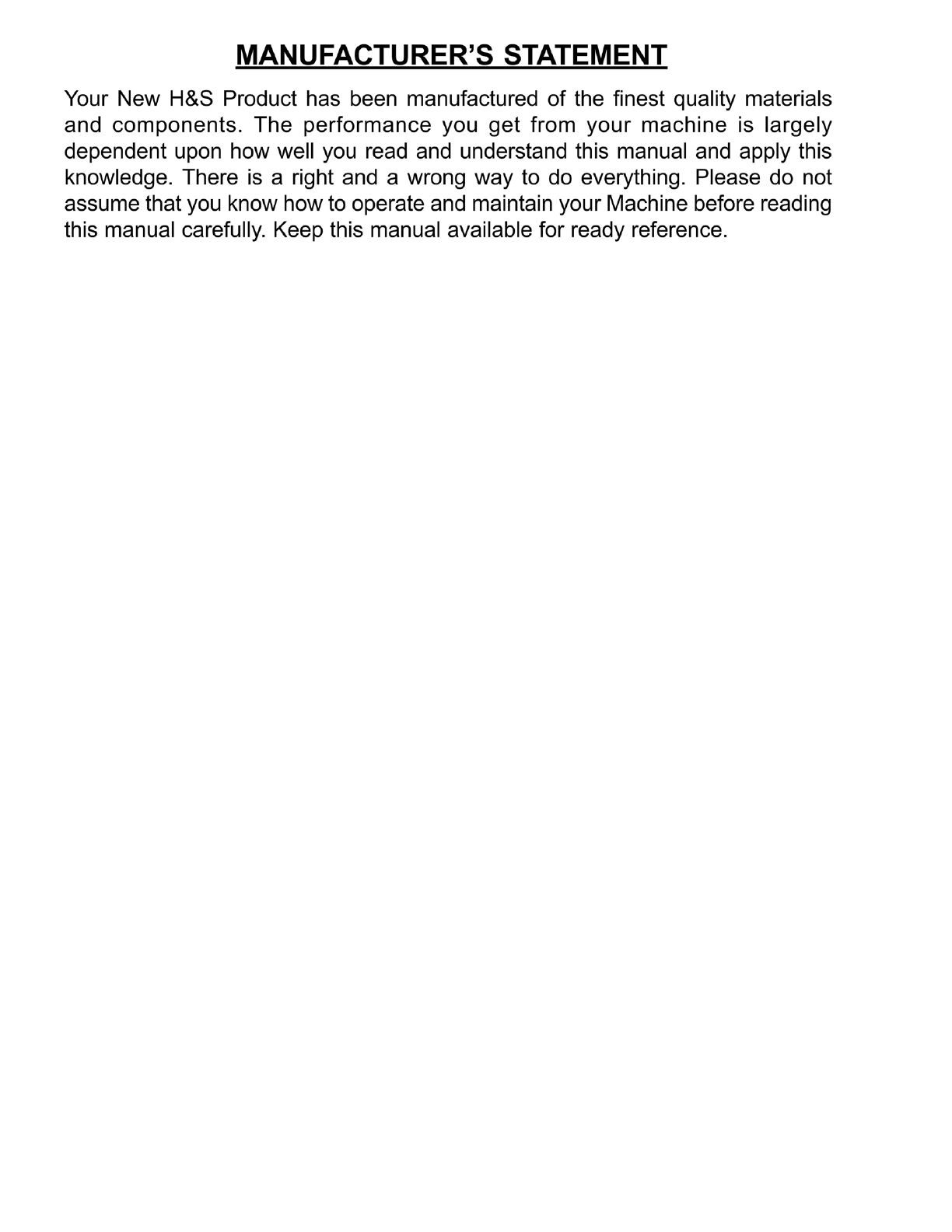

Manufacturer’s Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

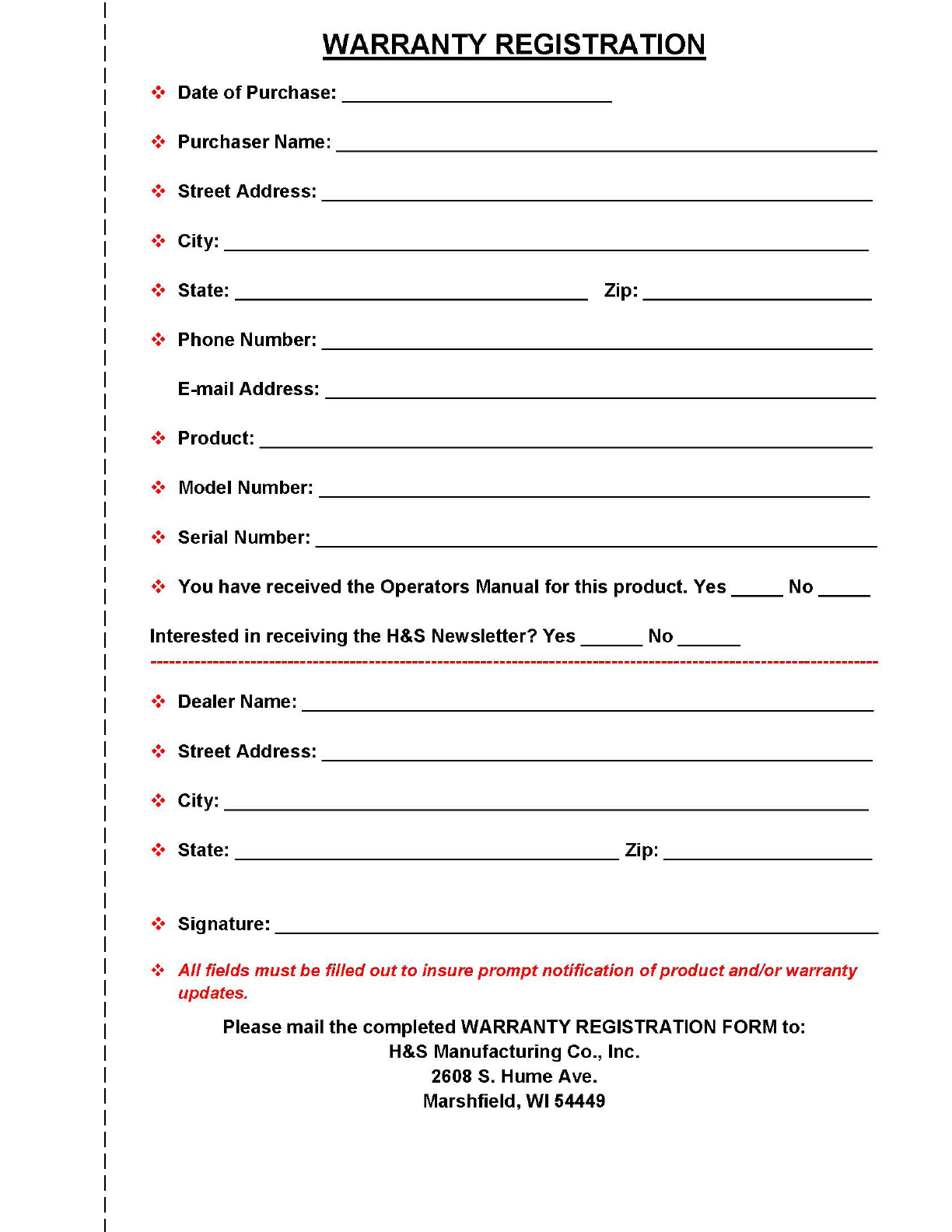

Warranty Registration Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Dealer Pre-Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety Information - Be Alert Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Explanation of Safety Signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Safety Information - Warning - Owner Must Read and Understand . . . . . . . . . . . . . . . . . . . . . . 12
Cap Screw Torque Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Set-Up & Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Preparing for Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Operation & Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17-19
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Lubrication Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22
Decal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-26
Troubleshooting Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Service Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Specications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Inside Back Cover
CONTENTS

-1-

-2-
H&S reserves the right to make changes or add improvements to its products
at any time without incurring any obligation to make such changes to products
previously manufactured. Specications, statements and descriptions of Products
contained in this publication are subject to change without prior notication.

-3-
(Remove Copy At Perforation)

-4-
Intentionally Left Blank

-5-
 Rake was not damaged in shipment. Check for dents and loose or missing parts.
Report damage immediately to H&S Manufacturing Co., Inc.
 Rake has been correctly assembled according to the set-up instruction document,
and instructions in this manual.
 Wheel nuts are torqued per torque specications.
 All bolts and fasteners are tight.
 All grease ttings have been lubricated. See Lubrication Chapter of this manual for
details.
 Hoses and ttings are properly attached and there are no visible leaks.
 All mechanisms are operating trouble free.
 Rake wheels touch ground in unison when lowered into position (rake setting level).
 Wheels are properly mounted.
 Tires are inated to correct pressure (ST205/75R15 - 25-30 PSI).
 Decals are in place and legible.
After the Rake has been completely set up, check to be certain it is in correct operating order before
delivering to the customer. The following is a list of points to inspect. Check o󰀨 each item as you
have made the proper adjustments and found the item operating satisfactorily.
Serial Number
Dealer’s Name
Signature of Pre-Delivery Inspector
(Remove Dealers File Copy At Perforation)
DEALER PRE-DELIVERY CHECKLIST
AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS
Inspection Date
Model Number

-6-
Intentionally Left Blank

-7-
This checklist that follows is an important reminder of valuable information that should be passed
on to the customer at the time this Rake is delivered.
Check o󰀨 each item as you explain it to the customer.
This delivery checklist, when properly lled out and signed, assures the customer that the
pre-delivery service was satisfactorily performed.
Explain to the customer that the pre-delivery inspection was made.
Explain to the customer all the safety precautions they must exercise when operating
this unit.
Explain raking and windrow width adjustments.
Explain to customer that regular lubrication is required for proper operation and long life
of machine.
Show customer the lubrication section of Owner’s Manual.
Give the customer Owner’s Manual and make sure they read and understand all
operating and service instructions.
 Have the customer sign a completed ″Warranty Registration″ and mail it.
DEALER DELIVERY CHECKLIST

(Remove Dealer File Copy At Perforation)
AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS





Date Delivered
Dealer’s Name
By
Signature of Original Buyer
Note: Warranty is not valid until warranty card is completed and returned to H&S Mfg. Co., Inc.

-8-
Intentionally Left Blank

-9-
YOUR SAFETY
IS INVOLVED.
THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY IS
INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE BEST
OPERATOR. MOST ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN PRECAUTIONS MUST
BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR DAMAGE.
SAFETY INFORMATION
H&S MANUFACTURING CO., INC.
BE
ALERT!

-10-
RECOGNIZE SAFETY INFORMATION
This is the safety alert symbol. When you see this symbol
on your machine or in this manual, be alert to the potential
for personal injury.
Follow recommended precautions and safe operating
practices.
UNDERSTAND SIGNAL WORDS
A signal word - DANGER, WARNING, or CAUTION - is used
with the safety-alert symbol. DANGER identies the most
serious hazards.
Safety signs with signal word DANGER or WARNING are
typically near specic hazards.
General precautions are listed on CAUTION safety signs.
FOLLOW SAFETY INSTRUCTIONS
Carefully read all safety messages in this manual, and all safety signs on your machine. Follow all
recommended precautions and safe operating procedures.
SAFETY INFORMATION
OBSERVE MAXIMUM TRANSPORT SPEED
The maximum transport speed for this implement is 32 km/h (20 mph).
Some tractors are capable of operating at speeds that exceed the maximum
transport speed of this implement. Regardless of the maximum speed capability
of the tractor being used to tow this implement, do not exceed the implement’s
maximum transport speed.
Exceeding the implement’s maximum transport speed can result in:
* Loss of control of the tractor/implement combination
* Reduced or no ability to stop during braking
* Implement tire failure
* Damage to the implement structure or its components
Use additional caution and reduce speed when towing under adverse surface
conditions, when turning, and when on inclines.
Do not attempt transport if the fully loaded implement weighs more than 1.5 times
the weight of the tractor.
Keep signs in good condition. Immediately replace any missing or damaged signs.

-11-
SAFETY INFORMATION

-12-
TRACTOR:
This operator’s manual uses the term ″Tractor″ when identifying the power source.
WARNING
Study The Above Safety Rules
ATTENTION - BE ALERT - YOUR SAFETY IS INVOLVED
BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING
INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS
WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE
SAFETY PRECAUTIONS.
H&S Manufacturing always takes the operator and his safety into consideration and guards exposed
moving parts for their protection. However, some areas cannot be guarded or shielded in order to ensure
proper operation. In addition, the operator’s manual and decals on the machine itself warn you of further
danger and should be read and observed closely.
If the machine becomes clogged or for servicing, Stop the tractor engine, remove ignition key and
allow all mechanisms to stop.
Before cleaning or working on the machine, completely disengage the tractor hydraulics. IF THE
RAKE ARMS ARE IN THE RAISED POSITION, MAKE SURE THE HYDRAULIC TRANSPORT LOCK
VALVES TO LOCK THE RAKE ARMS ARE IN THE CLOSED POSITION BEFORE DISCONNECTING
THE HYDRAULIC HOSES.
DO NOT attempt to perform maintenance or repair with tractor running and hydraulic hoses connected to
the tractor.
DO NOT ALLOW PERSONNEL OTHER THAN THE QUALIFIED OPERATOR NEAR THE RAKE.
DO NOT step up on machine at any time.
DO NOT allow minors to operate or be near the machine.
STAY CLEAR of rake when raising or lowering main rake beams.
STAY CLEAR of hydraulic lines - they may be under extreme pressure or heat.
For transport and storage, always make sure that the transport lock valves are in the closed position.
TO PREVENT SERIOUS INJURY OR DEATH

-13-

-14-
1. Assemble the Rake or check the Rake for proper assembly and adjustment. Make sure that all
bolts are tightened.
2. Attach the wheels with tires, using the lug nuts furnished and torque the mounting hardware to
85-95 ft./lbs. of torque. Check wheel bolts periodically thereafter.
3. Check tires and inate to the recommended pressure for eld use. (ST205/75R15 - 25-30 PSI)
4. Lubricate the rake completely. (See Lubrication Chapter in this Manual)
5. Tooth bolts must be torqued to 40 ft./lbs. to help prevent excessive tooth breakage.
Re-torque rake tooth bolts after the rst 100 acres. Check periodically thereafter.
NOTE: Determine right or left side of the Rake by viewing it from the rear. If instructions or parts
lists call for hardened bolts, refer to the Cap Screw Torque Values page to identify.
SET-UP & ASSEMBLY

-15-
TRANSPORTING
TOWING ON HIGHWAY
Follow state and local regulations when towing farm equipment on public highways. Never tow the rake
on a public highway at a speed greater than 20 mph (32 kph).
TRANSPORT LOCKS
There are two hydraulic transport lock valves
on the rake that must be turned to the closed
position during transport in case of tractor valve
leakage, or hose breakage.
REFLECTORS
Front, side amber, and rear red reective decals on the outer edges of the rake for safety.
Front Amber
Side Amber
Rear Red

-16-
PREPARING FOR OPERATION
ADJUSTMENTS
There are 5 sets of holes on the adjustable hitch. In addition, the
hitch can also be ipped upside down to obtain 5 more positions, for
a total of 10 positions to adjust for levelness.
1. Attach rake to tractor with a hitch pin that has a safety locking
device. The hitch should be adjusted so the pole/tongue is level.
The main rake beams should also be level, or parallel to the ground
when in the raking position. If the rake beams are not level, refer
to the OPERATION & ADJUSTMENT Chapter in this Operator’s
Manual for adjustment information.
3. Connect the 2 hydraulic hoses for raising
and lowering rake arms to the tractor.
Open the 2 hydraulic transport lock valves
and operate the tractor valve to ll the
hydraulic lines and operate the cylinders.
Add hydraulic uid to the tractor system,
as required.
2. Remove the weight from the lift
jack. Place the jack in the storage
position.
Kwik Pik System
The Kwik PikTM system allows the operator to raise the rake wheels half way up, then lower it to the raking
position. Both wings should touch the ground at approximately the same time. This system allows for a
quicker turn around at the end of the eld.
When you have nished raking, and after the rake arms have returned to the transport position, close the
transport lock valves before transporting.

-17-
OPERATION & ADJUSTMENTS
TRANSPORT LOCKS
Before the rake arms can be hydraulically
lowered for raking, the two hydraulic transport
lock valves on the rake that must be turned to
the open position.
EMERGENCY SHUTDOWN
Stop the tractor engine, remove ignition key, and allow all mechanisms to stop before
cleaning or working on the machine.
IMPORTANT:
Retighten all bolts on the rake after 100 acres as bolts can loosen up on new machinery.
Re-torque rake tooth bolts after rst 100 acres. Check periodically thereafter.
WINDROW WIDTH
ADJUSTMENT
Remove the jack from jack storage position.
Position the jack mount tube on the top of the rake
beam pin with the jack foot in position as shown.
Remove the pin and clip from the rake arm.
The windrow width can now be adjusted on each
side of the rake. There are three adjustments.
After the desired windrow width has been reached,
reinsert the pin in the desired hole, remove the jack
and return it to the storage position.
RAKING WIDTH ADJUSTMENT
There are ten width adjustments on the 10 & 12-wheel
rake beam, and 6 width adjustments on the 8-wheel. The
beam angle link also has an adjustable eye on the end
for ne tuning the raking & windrow width.
Each rake beam angle can be adjusted
independently for multiple raking conditions.

-18-
OPERATION & ADJUSTMENTS
HYDRAULIC SYSTEM
The Rake utilizes a 2-hose hook-up with a
Master/Slave cylinder system. When the rake
arms are lowered, the axles rotate forward,
raising the main frame for more clearance.
When the rake arms are raised, the axles
rotate rearward, lowering the main frame for
transport. This system is incorporated with the
raising and lowering of the rake arms.
RAKE BEAM LEVEL ADJUSTMENT
After the pole/tongue has been leveled and the rake
lowered to the raking position, check the levelness of
the right and left rake beams. If the rake beams are not
level, follow the procedure below to adjust levelness:
1. Remove the cotter pin and clevis pin from the back
cylinder clevis.
2. Loosen the clevis bolt or set screw.
3. If the front of the rake beam measures higher from
the ground than the back of the rake beam, extend
the cylinder clevis out a couple of threads. If the front
of the rake beam measures lower from the ground
than the back of the rake beam, turn the clevis onto
the rod a thread or two. When the cylinder is collapsed,
the cylinder pin center-to-center measurement should
be between 14-3/8″ to 14-1/2″.
4. Tighten the cylinder clevis bolt or set screw and
reinstall the clevis pin with cotter pin.
