H&S 2217 User manual

22172217
STANDARD DUTYSTANDARD DUTY
SPREADERSPREADER
MM
AA
NN
UU
AA
LL
OO
PP
EE
RR
AA
TT
OO
RR
SS
Part#91916 Rev. #00 HSMFG1221Part#91916 Rev. #00 HSMFG1221
READ AND UNDERSTAND THIS MANUAL BEFOREREAD AND UNDERSTAND THIS MANUAL BEFORE
OPERATING THIS EQUIPMENT. UNSAFE OPERATIONOPERATING THIS EQUIPMENT. UNSAFE OPERATION
OR MAINTENANCE OF THIS EQUIPMENT CAN RESULTOR MAINTENANCE OF THIS EQUIPMENT CAN RESULT
IN SERIOUS INJURY OR DEATH.IN SERIOUS INJURY OR DEATH.
WARNINGWARNING
Revision #00
Starting Serial #222PD17001

CONTENTS
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Manufacturer’s Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warranty Registration Form . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Pre-Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Delivery Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety Information - Be Alert Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Explanation of Safety Signs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12
Safety Information - Warning - Owner Must Read and Understand . . . . . . . . . . . . . . . . . . . . . . . 13
Cap Screw Torque Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Set-Up & Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Preparing for Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Lubrication Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-24
Decal Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-28
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Service Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

-1-

-2-
H&S reserves the right to make changes or add improvements to its products
at any time without incurring any obligation to make such changes to products
previously manufactured. Specications, statements and descriptions of Products
contained in this publication are subject to change without prior notication.

-3-
(Remove Copy At Perforation)

-4-
Intentionally Left Blank

-5-
Manure Spreader was not damaged in shipment. Check for dents and loose or missing parts.
Report damage immediately to H&S Manufacturing Co., Inc.
All bolts and fasteners are tight.
Manure Spreader has been correctly assembled according to instructions in this manual.
All grease ttings have been lubricated. Gearbox is lled to proper level.
Hoses and ttings are properly attached and there are no visible leaks.
Guards and shields are secure.
Wheels are properly mounted to torque specications.
 Tires are inated to correct pressure.
Drive chain tension and alignment is correct.
Decals are in place and legible.
Main apron chains are adjusted properly.
DEALER PRE-DELIVERY CHECKLIST
AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS
After the Manure Spreader has been completely set-up, check to be certain it is in correct operating
order before delivering to the customer. The following is a list of points to inspect. Check o󰀨 each item
as you have made the proper adjustments and found the item operating satisfactorily.
Connect the Manure Spreader onto a proper horsepower tractor and attach the PTO and connect
the lights. Connect the hydraulic hoses (if applicable) to the tractor remote outlets. Run the
Manure spreader and make sure all components operate properly.
PTO guard turns freely.
Hydraulic end gate operates smoothly.
Main apron operates smoothly.
Hydraulic system does not leak under pressure.
Lights and wiring functioning properly.
Implement and all components are functioning properly.
(Remove Dealer File Copy At Perforation)
Serial #
Dealer’s Name
Signature of Pre-Delivery Inspector
Inspection Date
Model Number

-6-
Intentionally Left Blank

-7-
This checklist that follows is an important reminder of valuable information that should be passed
on to the customer at the time this Manure Spreader is delivered.
Check o󰀨 each item as you explain it to the customer.
This delivery checklist, when properly lled out and signed, assures the customer that the
pre-delivery service was satisfactorily performed.
Explain to the customer that the pre-delivery inspection was made.
Explain to the customer all the safety precautions they must exercise when operating
this unit.
Explain recommended loads for di󰀨erent types of materials.
Explain to customer that regular lubrication is required for proper operation and long life
of machine.
Show customer the lubrication section of Owner’s Manual.
Give the customer Owner’s Manual and make sure they read and understand all
operating and service instructions.
Have the customer sign a completed “Warranty Registration” and mail it.
DEALER DELIVERY CHECKLIST

(Remove Dealer File Copy At Perforation)
AFTER COMPLETION, DEALER SHOULD REMOVE AND RETAIN FOR RECORDS





Date Delivered
Dealer’s Name
By
Signature of Original Buyer
Note: Warranty is not valid until warranty card is completed and returned to H&S Mfg. Co., Inc.

-8-
Intentionally Left Blank

-9-
BE
ALERT!
YOUR SAFETY
IS INVOLVED.
THIS SYMBOL IS USED THROUGHOUT THIS BOOK WHENEVER YOUR PERSONAL SAFETY IS
INVOLVED. TAKE TIME TO BE CAREFUL. REMEMBER: THE CAREFUL OPERATOR IS THE BEST
OPERATOR. MOST ACCIDENTS ARE CAUSED BY HUMAN ERROR. CERTAIN PRECAUTIONS MUST
BE OBSERVED TO PREVENT THE POSSIBILITY OF INJURY OR DAMAGE.
SAFETY INFORMATION
H&S MANUFACTURING CO., INC.

-10-
RECOGNIZE SAFETY INFORMATION
This is the safety alert symbol. When you see this
symbol on your machine or in this manual, be alert to
the potential for personal injury.
Follow recommended precautions and safe operating
practices.
UNDERSTAND SIGNAL WORDS
A signal word - DANGER, WARNING, or CAUTION - is
used with the safety alert symbol. DANGER identies the
most serious hazards.
Safety signs with signal word DANGER or WARNING are
typically near specic hazards.
General precautions are listed on CAUTION safety signs.
FOLLOW SAFETY INSTRUCTIONS
Carefully read all safety messages in this manual, and all safety signs on your machine. Follow all
recommended precautions and safe operating procedures.
SAFETY INFORMATION
OBSERVE MAXIMUM TRANSPORT SPEED
The maximum transport speed for this implement is 32 km/h (20 mph).
Some tractors are capable of operating at speeds that exceed the maximum
transport speed of this implement. Regardless of the maximum speed capability
of the tractor being used to tow this implement, do not exceed the implement’s
maximum transport speed.
Exceeding the implement’s maximum transport speed can result in:
* Loss of control of the tractor/implement combination
* Reduced or no ability to stop during braking
* Implement tire failure
* Damage to the implement structure or its components
Use additional caution and reduce speed when towing under adverse surface
conditions, when turning, and when on inclines.
Do not attempt transport if the fully loaded implement weighs more than 1.5 times
the weight of the tractor.
Keep signs in good condition. Immediately replace any missing or damaged signs.

-11-

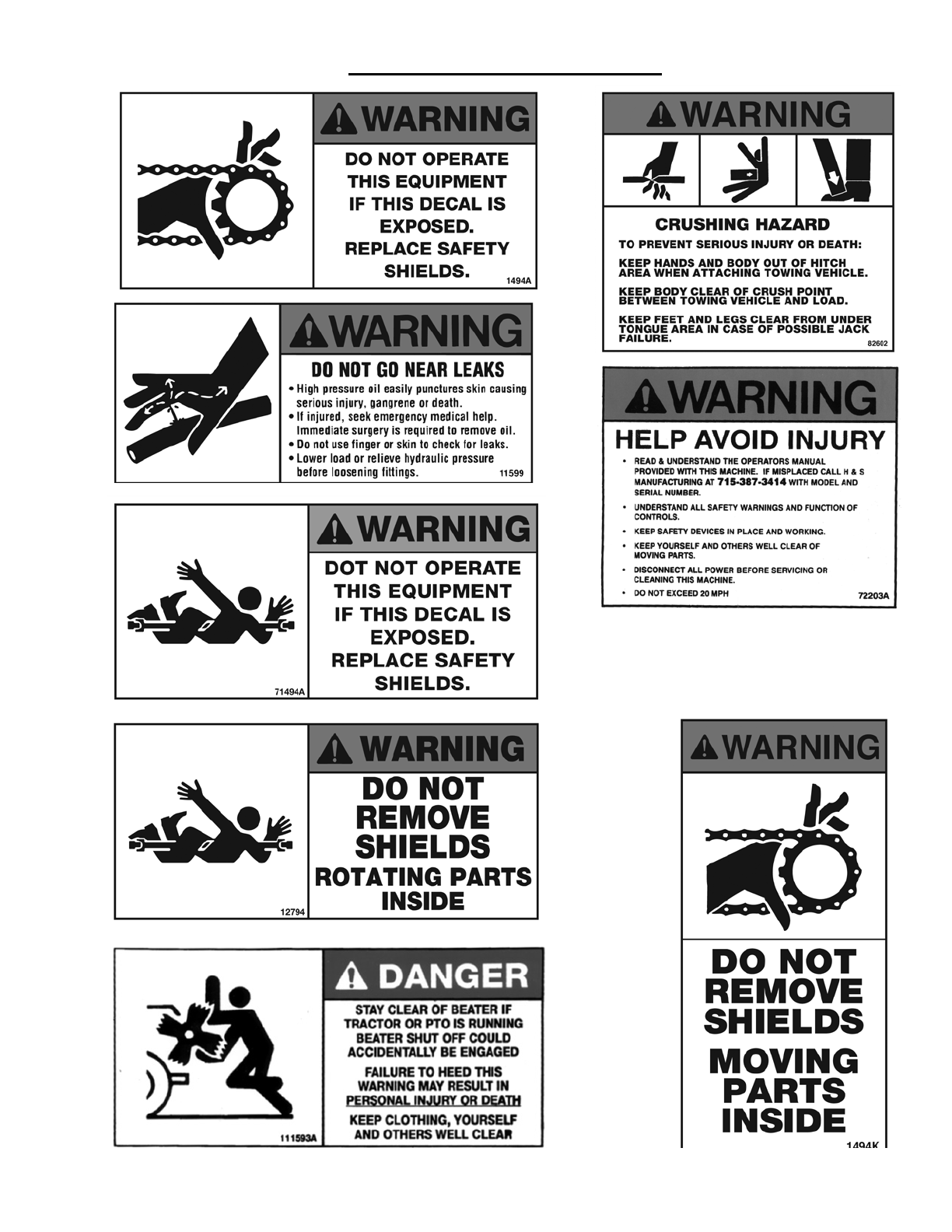

SAFETY INFORMATION

-12-
SAFETY INFORMATION

-13-
TO PREVENT SERIOUS INJURY OR DEATH
Study The Above Safety Rules
ATTENTION - BE ALERT - YOUR SAFETY IS INVOLVED
BEFORE YOU ATTEMPT TO OPERATE THIS EQUIPMENT, READ AND STUDY THE FOLLOWING
INFORMATION. IN ADDITION, MAKE SURE THAT EVERY INDIVIDUAL WHO OPERATES OR WORKS
WITH THIS EQUIPMENT, WHETHER FAMILY MEMBER OR EMPLOYEE, IS FAMILIAR WITH THESE
SAFETY PRECAUTIONS.
KNOW HOW TO STOP UNLOADING MECHANISM BEFORE STARTING IT.
If the machine becomes clogged, disengage the PTO. Stop the tractor engine, remove ignition key,
and allow all mechanisms to stop before cleaning or working on the machine.
DO NOT get o󰀨 the tractor while the spreader is in operation.
DO NOT attempt to perform maintenance or repair with tractor running and PTO or hydraulic lines
DO NOT step up on machine at any time.
NEVER manually feed material into the beaters.
DO NOT allow minors to operate or be near the machine.
DO NOT ALLOW PERSONNEL OTHER THAN THE QUALIFIED OPERATOR NEAR THE MACHINE.
Before starting tractor, be sure PTO shields turn freely and PTO is securely locked to tractor.
DO NOT clean, adjust, or lubricate the machine when any part is in operation.
Keep hands, feet, and clothing away from beaters when they are revolving.
Loose or oppy clothing should not be worn by the operator.
Be sure the machine is clear of people, tools, and other objects before engaging PTO.
DO NOT step over power take o󰀨 shaft. Stay clear of PTO at all times.
NEVER start manure spreader until all guards and safety shields are secured in place.
STAY CLEAR of Hydraulic Lines. They may be under extreme pressure or heat.
H&S always takes the operator and his safety into consideration and guards exposed moving parts for
his protection. However, some areas cannot be guarded or shielded in order to assure proper operation. In
addition, the operator’s manual and decals on the machine itself warn you of further danger and should
be read and observed closely.
TRACTOR:
This operator’s manual uses the term “Tractor” when identifying the power or the towing source.
WARNING
SAFETY INFORMATION

-14-

-15-
SET-UP & ASSEMBLY
PREPARING MANURE SPREADER
The Manure Spreader may be shipped without the wheels/tires installed.
1. Attach the wheels with tires, using the lug nuts furnished and torque the mounting hardware to
the appropriate torque. Wheel bolts should be tightened at 85-95 ft./lbs. of torque.
2. Check the tires and inate to the recommended pressure. (10.00x22.5 tires to 75-85 psi.).
3. Check for proper assembly and adjustment and make sure that all bolts are tightened.
4. Securely retighten after a few hours of operation, as bolts can loosen up on new machinery.
5. Lubricate the machine completely, check the oil level of the gearbox, and ll if necessary.
NOTE: Determine right or left side of the Manure Spreader by viewing it from the rear. If instructions
or parts lists call for hardened bolts, refer to the Cap Screw Torque Value Chart.
TRANSPORTING
SAFETY CHAIN (Optional)
Follow state and local regulations regarding use of a safety chain and transport lighting when towing
farm equipment on public highways. A proper safety chain should be used to retain the safety connection
between the towing and towed machines, in the event of separation of the primary attaching system.
Check with local law enforcement agencies for your own particular regulations. Never tow the manure
spreader on a public highway at a speed greater than 20 mph (32 kph).
1. Chain is su󰀩ciently slack to allow turns and movements of either the tractor or the manure spreader,
without placing tension on the chain.
2. Chain is of su󰀩cient strength to hold the decoupled implement (and its load) and tow it to the
shoulder.
REFLECTORS
Regularly clean the reective tape at the rear of the spreader. There is a holder provided for your SMV
sign. Unless otherwise prohibited, use a slow-moving vehicle emblem.

-16-
PREPARING FOR OPERATION
Tractor Hitch
Fasten the spreader hitch to the drawbar with a hitch pin with a safety locking device. Remove the
weight from the jack (jack is not to be used when spreader is loaded). Remove jack from pipe mount and
place on convenient storage mount located on the left front of spreader. This allows protection of jack from
tractor tires during turns. The hitch of the spreader is designed for a standardized tractor hitch. Adjust the
drawbar so that it is 13 to 17 inches above the ground. Extend or shorten it so that the horizontal distance
from the end of the tractor power takeo󰀨 shaft to the center of the hitch pin hole is 14 inches for 540 PTO
as shown in drawing. An improperly located hitch point may cause damage to the universal joints of the
power takeo󰀨. Secure the drawbar so that the hitch pin hole is directly below the power drive line.
TRACTOR CONNECTIONS
If this implement is attached to a tractor with a clevis
hitch (hammer-strap) style drawbar, the hammer-
strap must be removed to prevent damage to the
IID guarding and the IID telescoping members. [See
Figure1]
If this implement is attached to a tractor with an
oset in the drawbar, be certain it is in the down
position to prevent damage to the IID guarding
and the IID telescoping members. [See Figure 2]
PTO
Attach the PTO of the spreader to the tractor by sliding the spring loaded
locking collar on PTO yoke rearward, then sliding it onto the tractor PTO
shaft. Release spring-loaded collar. Be sure the pins fall into the groove
of the tractor PTO shaft and collar snaps forward into locking position.
Attach the chain for the back half of the PTO to the manure spreader frame
as shown in the picture to secure the PTO shield. Attach the chain for
the front half of the PTO to the tractor drawbar to secure the PTO shield.
CAUTION: Do not use a steel hammer to aid in joining PTO parts.

-17-
LOADING
In freezing weather, make certain that hydraulic tail gate (if equipped with one) is not frozen to the sides
or on the oor of the spreader. Make sure the apron chain is not frozen to the spreader oor or any
lumps of manure are frozen to the oor. Begin loading the spreader at the front end and work toward the
rear until loading is completed. Loading this way permits the material to be spread uniformly. Loading
front to rear is particularly important when the spreader is loaded by a mechanical loader because this
type of load requires more power to spread than others loads. When hauling extremely heavy materials
with a large portion of dirt, it may be necessary to reduce the load size to prevent excessive shear bolt
breakage. Never dump material onto the beater. Do not use extra sideboards. Do not overload spreader.
Overloading decreases spreading e󰀨ectiveness. Do not load more than 15 inches above the beater.
SPREADING
NOTE: Two speed apron drive and beater engage/disengage mechanisms are contained in a single
gearbox at the rear of spreader. This gearbox is controlled by one rope leading to the tractor.
1. Make sure that the gear box is in the “low” position, with the shifter dog all the way to the “low” side
of the indicator slot.
2. Raise the hydraulic endgate (if so equipped).
3. Throttle tractor down, engage PTO, then increase the throttle to 540 RPMs and begin moving.
4. The apron speed may be increased from 4-1/2 FPM to 8-1/2 FPM (at 540 RPM) by pulling once on
the control rope until the shifter stops and locks into the “high speed” position. The beater will continue to
operate in this position.
5. When the spreader is almost empty, the bed can be cleaned out by again, pulling once on the control
rope until the shifter dog locks into the “clean-out/beater disengaged” position. The beater will stop,
and the apron will continue to run in the “high” speed position, thus saving unloading time.
6. When spreader is empty, SHUT OFF PTO. With the PTO o󰀨, pull the control rope once again and
release it. The shifter will return to the “low” position, ready to begin unloading the next load.
DO NOT SHIFT FROM CLEAN OUT TO LOW POSITION WITH THE PTO RUNNING.
7. NEVER operate the spreader with a PTO speed greater than 540 RPM.
FAILURE TO FOLLOW THE RECOMMENDED ADJUSTMENTS WILL VOID WARRANTY

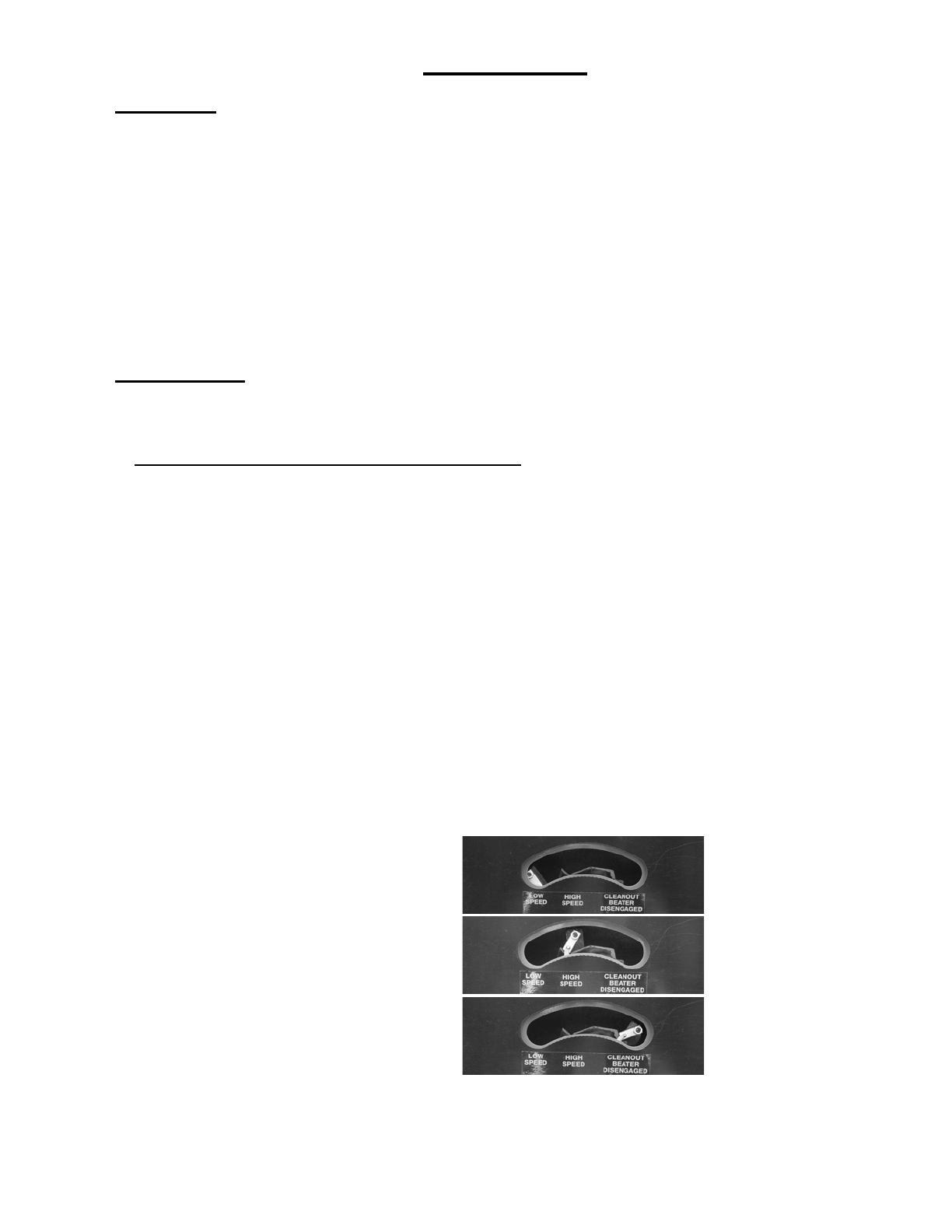

High Speed
Low Speed
Clean Out
OPERATION

-18-
ADJUSTMENTS
DRIVE CHAIN
To adjust front drive chain, slightly loosen bolts holding pillow
block bearing at rear of front jack shaft. Loosen jam nut on
tightener rod. Turn adjusting nut (located at the right hand front
side of spreader) clockwise. There should be 1/2” deection at
the center of the drive chain. Overtightening or too loose of a
chain will result in excessive wear on the bearing, chain and
sprockets. Retighten bolts holding bearing. Recheck chain
tension. Retighten jam nut.
BEARING
Shields Removed For Clarity
TIGHTENER BOLT
ATTACHING CHAIN TURNBUCKLE
Shields
Removed
for
Clarity
APRON SPEED AND BEATER CONTROL
One cable controls the beater and apron drive two speed gearbox. To compensate for wear or stretching
of this cable, adjust the turnbuckle behind shield at left hand front of spreader.

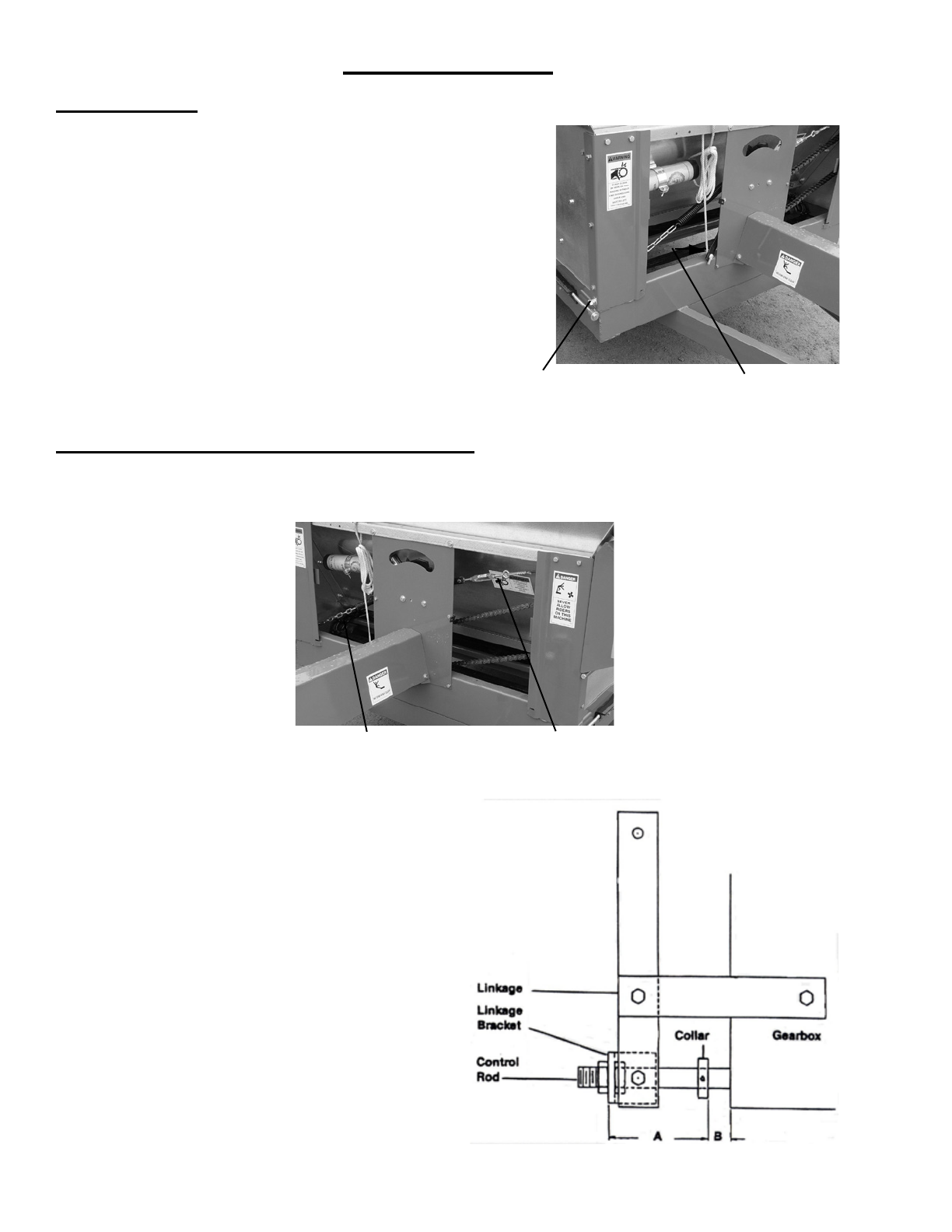

Refer to drawing at right to properly adjust manure
spreader. Position speed control in HI Speed.
Measurement (A) is 2-1/2 inches.
This is factory set and should not be changed. Do not
move bracket or collar on control rod. The distance
between collar and face of gearbox should be as
follows for the di󰀨erent speeds: (distance B)
LO Speed: 0” (tight against gearbox)
HI Speed: 7/16 -1/2”
CLEAN OUT: 3/4-1 1/16”
If collar on control rod does not pull tight to gearbox
in LO Speed, after HI Speed has been properly ad-
justed, apply more tension to return spring behind
shield at right hand front of spreader. To adjust spring,
hook end of spring one chain link shorter on spring
attaching chain.
