Hantek 1060 User manual

Hantek Electronic co.,Ltd.
No.177 zhuzhou road(huite industry city),
QingDao,China
Hantek®

DSO1000SERIES
HANDHELD OSCILLOSCOPE
1060/1200/1600/1600H
USER’S
MANUAL
www.hantek.com.cn


DSO1000 SERIES
USER’S MANUAL
1060 / 1200 / 1600 / 1600H
HANDHELD OSCILLOSOPE


1060/1200/1600/1600H
Content
General Safety Notice …………………………………….…..3
Digital ll………………………..…………… … …4
CHAPTER 1: Getting Start…………………………………... 6
General Check…………………………………… … ....7
User’s Interface……………………………………...…7
Input Connections………………………………… .... .12
Function Check………………………………… … ….13
To compensate probes………………………… ….. ...14
To display a signal automatically…………………....15
Using the ll…………………………… ... .16
CHAPTER 2: Operating ll……………………..19
Set Vertical System…………………………… ……. ..20
Set Horizontal System………………………… ……. .36
Set Trigger System……………………………… ….. .40
Save / Recall Waveforms and Setups……………...48
Utility Function…………………………… ………… ...52
Signal Measurement…………………………… ….. ..63
Cursor Measurement………………………… …....... 66
IO Set.......................................................................70
CHAPTER 3: Using examples………………………… …...73
CHAPTER 4: Multimeter………………………………….....81
CHAPTER 5: Troubleshooting……………………… …… ...95
CHAPTER 6: Specications…………… ……………… …...96
CHAPTER 7: Appendix...................................................100


DSO1000 SERIES
General Safety Notice
1. Safety Terms and Symbols
Terms in this manual:
These terms may appear in this manual:
WARNING: Warning statements identify conditions or practices that could result in injury
or loss of life.
CAUTION: Caution statements identify conditions or practices that could result in
damage to this product or other property.
Terms on the Product:
These terms may appear on the product:
DANGER: indicates an injury hazard may be immediately accessible.
WARNING: indicates an injury hazard may be not immediately accessible.
CAUTION: indicates that a potential damage to the instrument or other property
might occur.

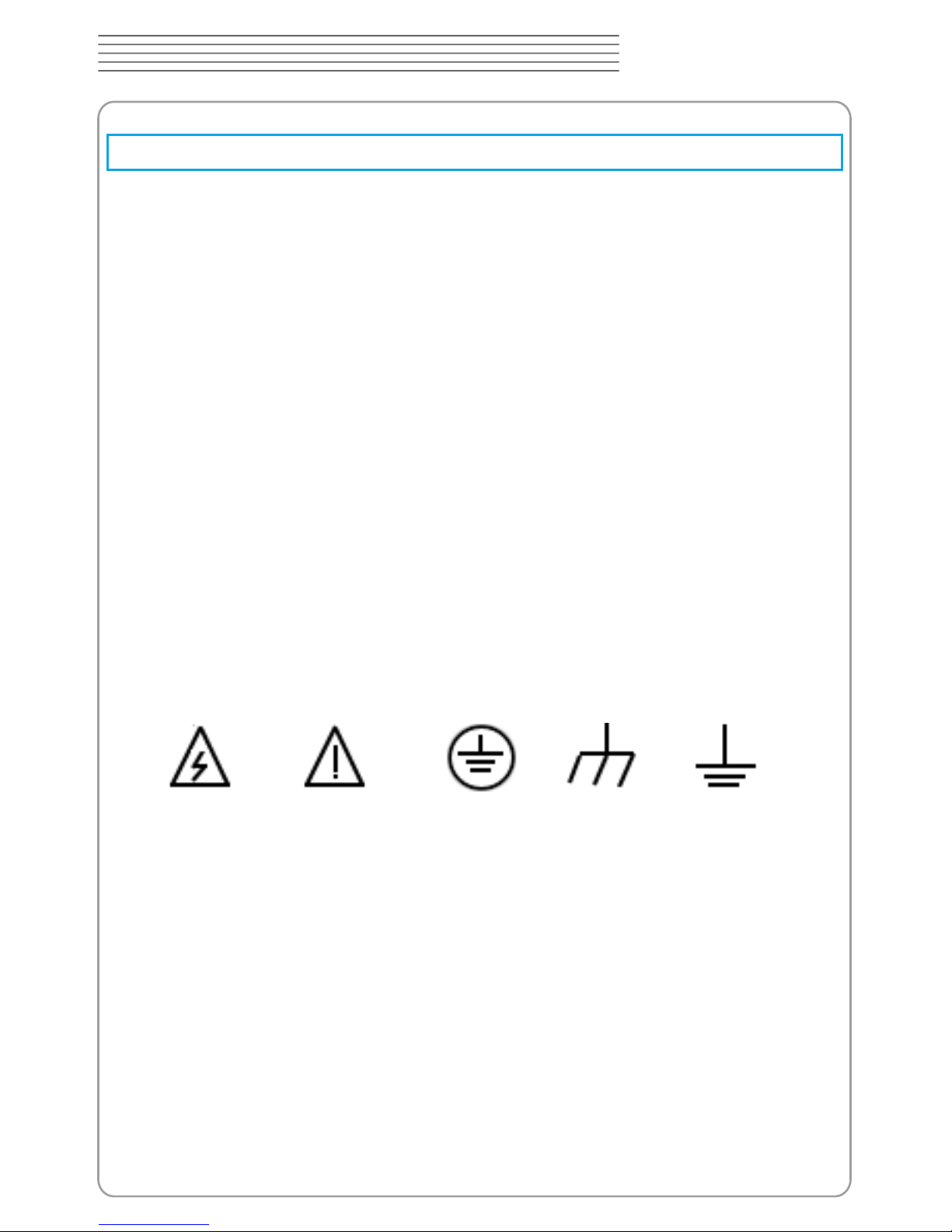

Symbols on the Product:
These symbols may appear on the product:
Hazardous Refer to Protective Grounding Test
Voltage Instructions Earth Terminal Terminal Grounding
of Chassis Terrninal
2. General Safety Information
Carefully read the following safety information in order to avoid any personal injury
or damage on this product or any products connected with it. Review the following
safety precautions carefully before operate the device to avoid any personal injuries or
damages to the device and any products connected to it. To avoid potential hazards use
the device as specied by this user’s manual only.
■ To Avoid Fire or Personal Injury.
■ Use Proper Power adapter. Use only the power cord specied for this product
and certied for the country of use.
HANDHELD OSCILLOSOPE


1060/1200/1600/1600H
■ Connect and Disconnect Properly. Do not connect or disconnect probes or test
leads while they are connected to a voltage source.
■ Connect and Disconnect Properly. Connect the probe output to the
measurement device before connecting the probe to the circuit under test. Disconnect
the probe input and the probe reference lead from the circuit under test before
disconnecting the probe from the measurement device.
■ Observe All Terminal Ratings. To avoid re or shock hazard, observe all ratings
and markings on the product. Consult the product manual for further ratings
information before making connections to the product.
■ Use Proper Probe. To avoid shock hazard, use a properly rated probe for your
measurement.
■ Avoid Circuit or Wire Exposure. Do not touch exposed connections and
components when power is on.
■ Do Not Operate With Suspected Failures. If suspected damage occurs with the
device, have it inspected by qualied service personnel before further operations.
■ Provide Proper Ventilation. Refer to the installation instructions for proper
ventilation of the device.
■ Do not operate in Wet/Damp Conditions.
■ Do not operate in an Explosive Atmosphere.
■ Keep Product Surfaces Clean and Dry.
Digital Oscilloscopes
DSO1000 Series digital lls offer exceptional waveform viewing and
measurements in a compact, lightweight package. DSO1000 series is ideal for
production test, eld service, research, design, education and training involving
applications of analog circuit tests and troubleshooting.
Product features:
■ Dual Channel, Bandwidth:
60MHz (DSO1060)
200MHz (DSO1200)
600MHz (DSO1600)
600MHz (DSO1600H)


DSO1000 SERIES
■ Maximum real-time sampling rate:
250MSa/s (DSO1060)
500MSa/s (DSO1200)
1GSa/s (DSO1600)
2GSa/s (DSO1600H)
■ Memory depth:
32K points (Single Channel), 16K points (Dual Channels)
■ Color TFT LCD, 320×240 pixels resolution.
■ USB storage and printing supports, rmware upgrade via USB interface.
■ Adjustable waveform intensity, more effective waveform viewing.
■ One-touch automatic setup, ease of use (AUTOSET).
■ 15 Waveforms, 15 setups, supports CSV and bitmap format.
■ 22 Automatic measurements.
■ Automatic cursor tracking measurements.
■ Waveform recorder, record and replay dynamic waveforms.
■ User selectable fast offset calibration.
■ Built-in FFT function, Frequency Counter.
■ Pass/Fail Function.
■ Addition, Subtraction, Multiplication and Division Mathematic Functions.
■ Advanced trigger types include: Edge, Pulse width,ALT,Video.
■ Multiple Language User Interface.
■ Pop-up menu makes it easy to read and easy to use.
■ Built-in multi-language help system.
■ Easy-to-use le system supports Multi-Language characters le name
input.
■ Selectable bandwidth limit:
DSO1060:20MHz
DSO1200:20MHz,100MHz
DSO1600:20MHz,100MHz,200MHz,350MHz
DSO1600H:20MHz,100MHz,200MHz,350MHz
HANDHELD OSCILLOSOPE


1060/1200/1600/1600H
CHAPTER 1: Getting Start
This chapter covers the following topics:
■ General Check
■ Functional Check
■ The User Interface
■ Input Connections
■ To compensate probes
■ To display a signal automatically
■ Using the ll


DSO1000 SERIES
General Check
When you have got a new DSO1000 series ll, it is suggested that you should
perform a general inspection on the instrument according to the following steps:
■ Check the shipping container for damage:
Keep the damaged shipping container or cushioning material until the contents of the
shipment have been checked for completeness and the instrument has been checked
mechanically and electrically.
■ Check the accessories:
Accessories supplied with the instrument are listed in “Accessories” in this guide. If the
contents are incomplete or damaged,please notify our distributor at your local area or
the overseas sales dept.
■ Check the instrument:
In case there is any mechanical damage or defect, or the instrument does not operate
properly or fails performance tests, please notify our distributor at your local area or
the overseas sales dept.
User’s Interface
The rst thing to do with a new oscilloscope is to know its front panel. This chapter
helps to be familiar with the layout of the keys and how to use them. Read this chapter
carefully before further operations.
Front Panel (Figure 1-1):
The buttons not only allow you to use some of the functions directly but also bring up the
manual keys on the screen, which enable the access to many measurement features
associated with advanced functions, mathematics, and reference or to run control
features.
HANDHELD OSCILLOSOPE


1060/1200/1600/1600H

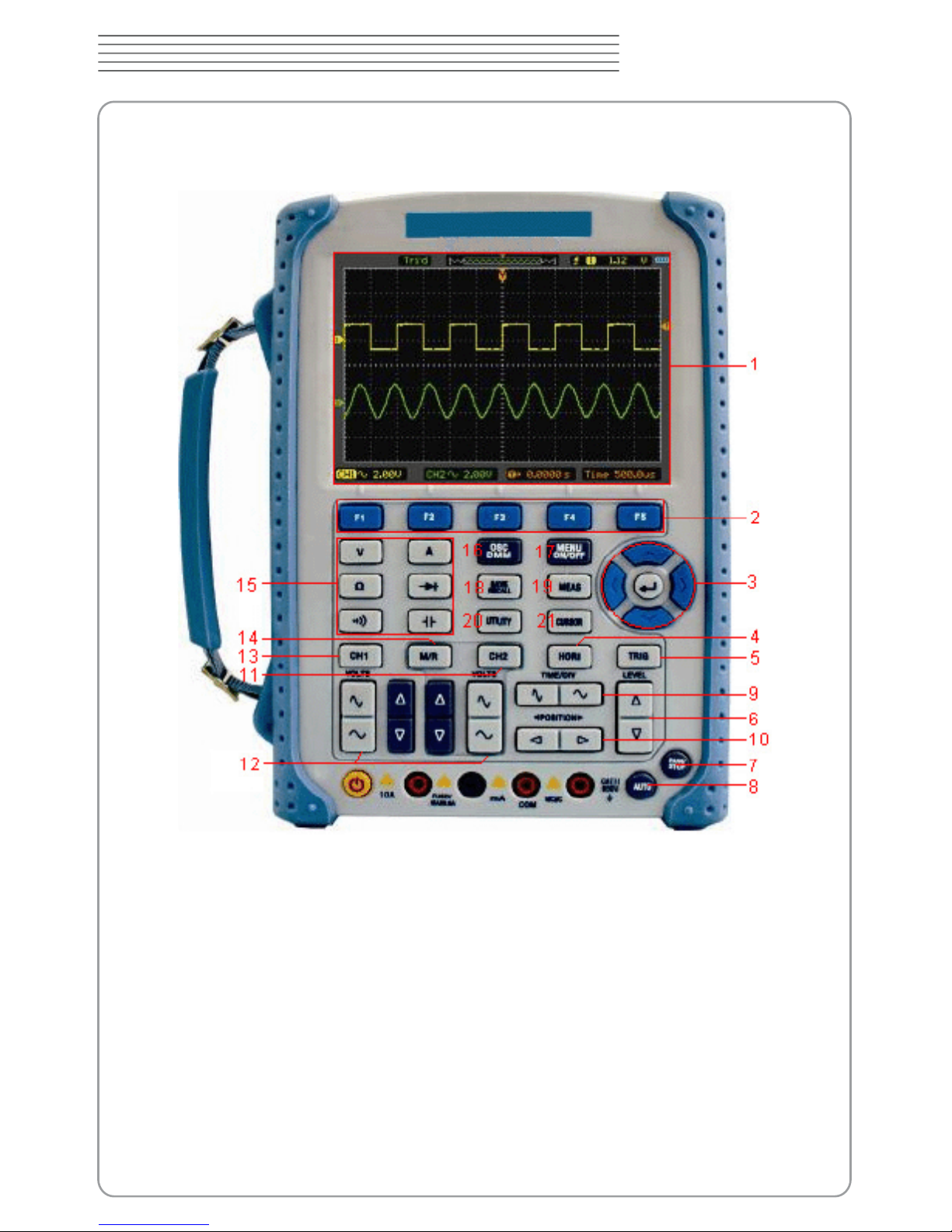

Figure 1-1 ll Front Panel


DSO1000 SERIES
Figure 1-2 Front Panel Description
Description
1. LCD Display
2. F1~F5: Sets or switch options for the menu
3. Arrow Keys
4. HORI: Shows Horizontal menu
5. TRIG: Shows Trigger menu
6. LEVEL: Adjust the trigger level
7. RUN/STOP: key for running or stopping the operation
8. AUTO: Be used for auto setting under the oscilloscope operation mode
HANDHELD OSCILLOSOPE

0
1060/1200/1600/1600H
9. TIME/DIV: Decrease or Increase the time base
10. POSITION: Adjust the horizontal trigger position
11. CH2: Shows the CH2 menu
12. VOLTS: Decrease or Increase the voltage/div
13. CH1: Shows the CH1 menu
14. M/R: Shows the Math or REF menu
15. DMM Buttons: The DMM control buttons
16. DMM/SCOPE: Switch DMM or Scope function
17. MENU ON/OFF: Turn on/off the menu
18. SAVE RECALL: Shows SAVE or RECALL menu
19. MEAS: Shows Measurement menu
20. UTILITY: Shows Utility menu
21. CURSOR: Shows Cursor menu
Display screen
2
10
13
11
12
14
9
16
17
18
19
20
21
1 15 3 4 5 6 7 8

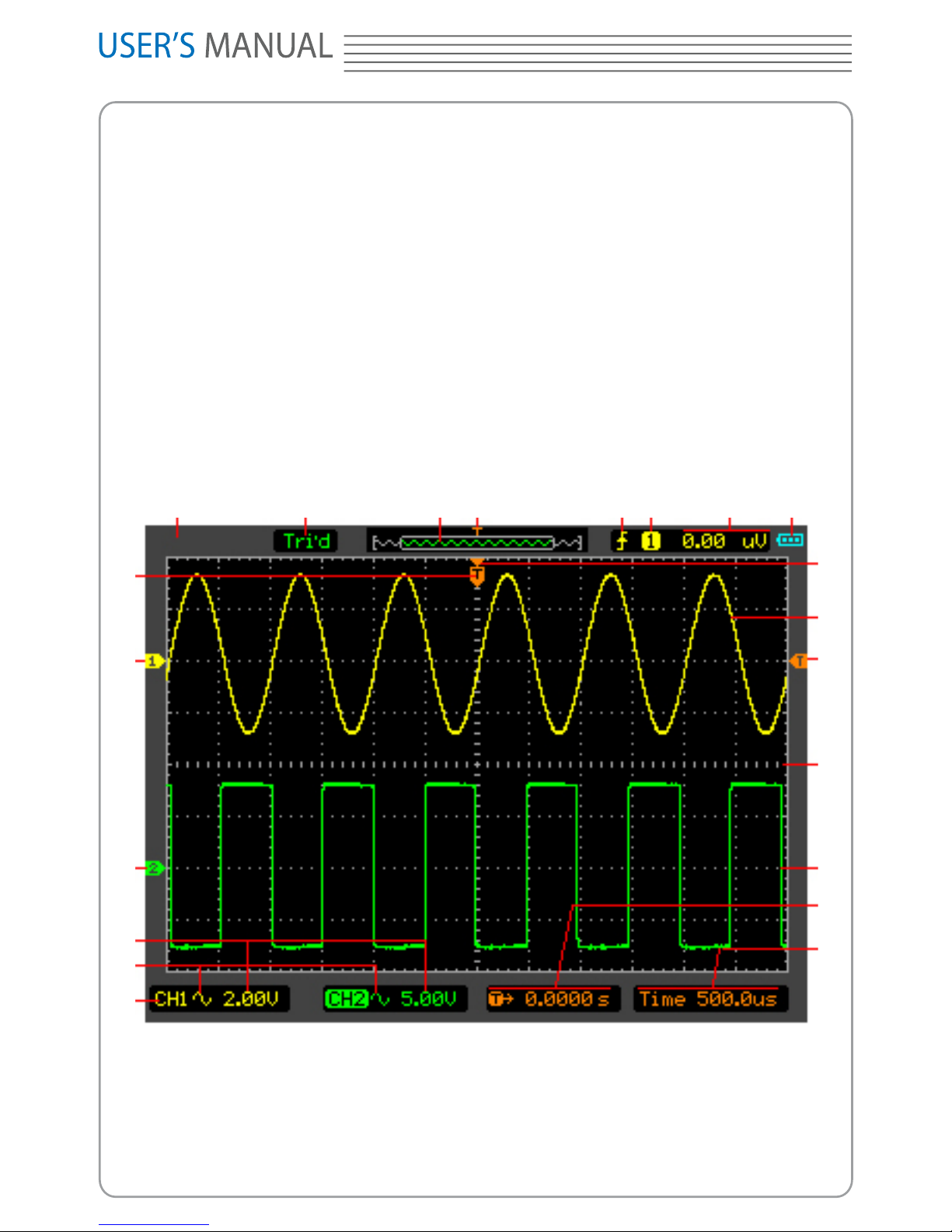

Figure 1-3 LCD Display screen
Description
1. Shows Brand


DSO1000 SERIES
2. Shows horizontal trigger time
3. Shows location of the current waveform in the memory
4. Shows the trigger position in the memory
5. Shows the trigger mode
6. Shows the trigger source
7. Shows the trigger level
8. Shows the power
9. The center of current waveform window
10. CH1 waveform
11. The trigger level symbol
12. The grid
13. CH2 waveform
14. Shows the time base
15. Shows running staturs
16. CH1/CH2
17. Shows the coupling
18. Shows the voltage/div
19. CH2 mark
20. CH1 mark
21. Shows the trigger position in current waveform window
HANDHELD OSCILLOSOPE


1060/1200/1600/1600H
Input Connections
See the following Figure 1-4:
1
5
2
3
4
Figure 1-4 Input Connections
Description:
1. The power adapter is supplied for AC power supply and battery recharging.
2. Multi-meter input jacks, including four circular banana jacks .The four circular jacks
are used for voltage,resistance,mA range current and A range current inputs.
3. Multi-meter test lead.
4. ll probes.
5. ll input channels.


DSO1000 SERIES
Function Check
Perform this quick functional check to verify that your oscilloscope is operating correctly.
1. Turn on the instrument.
Use the power adapter designed for your oscilloscope only. Use a power source that
delivers 100 to 240 VACRMS, 50Hz. Turn on the oscilloscope.
2. Input a signal to a channel.
Set the attenuation switch on the probe to X10 and connect the probe to CH1 on the
oscilloscope.
To do this:
■ Align the slot in the probe connector with the key on the CH1 BNC connector.
■ Push to connect, and twist to the right to lock the probe in place.
■ Attach the probe tip and ground lead to the PROBE COMP connector.
Set the probe attenuation of the oscilloscope to 10X.To do this, push CH1→Probe→10X
.

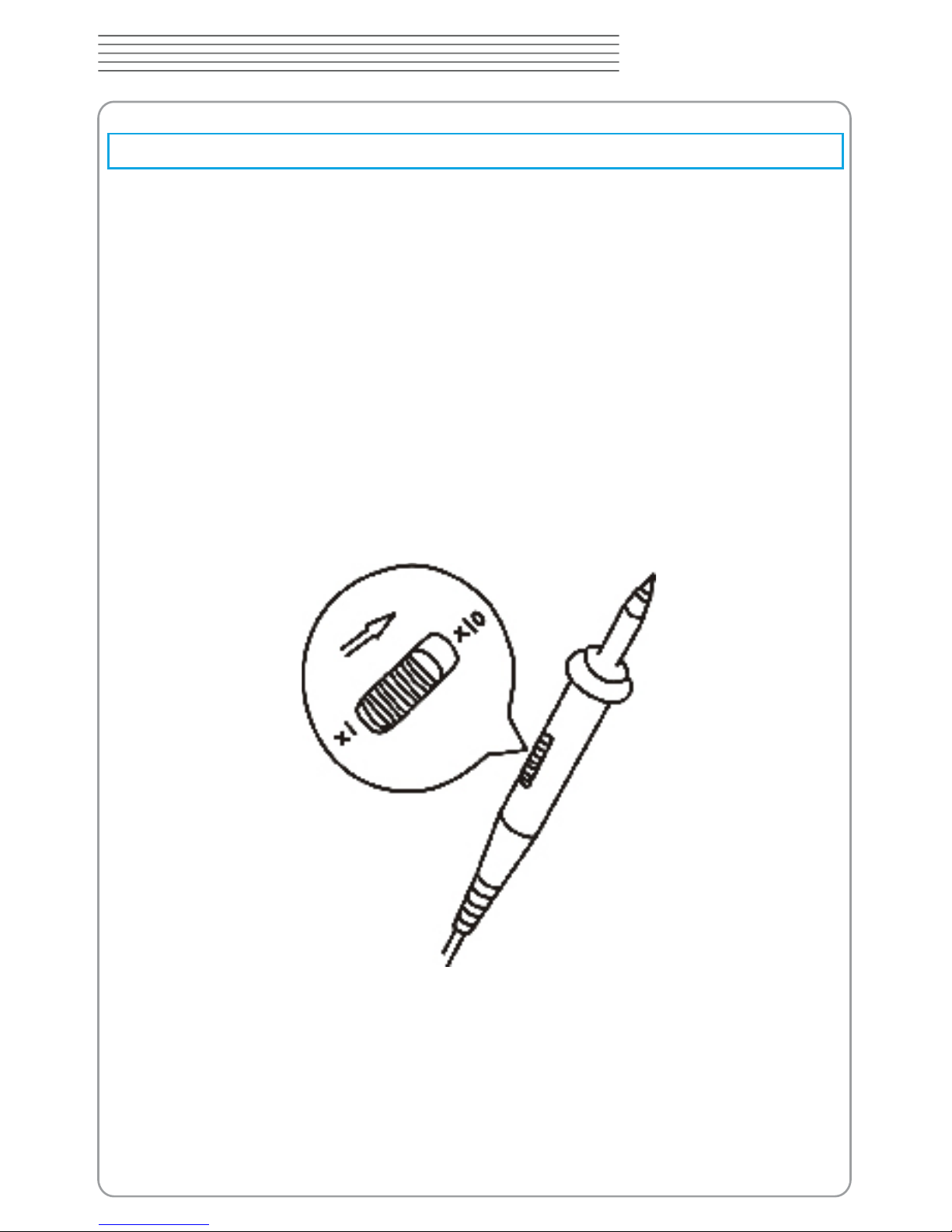

Figure 1-5 Set the probe
3. Push the AUTO button. Within a few seconds, a square wave will display
(approximately 1 kHz 2 V peak- to- peak).
Turn off CH1 and turn on CH2, repeat steps 2 and 3.
HANDHELD OSCILLOSOPE


1060/1200/1600/1600H
To compensate probes
Perform this adjustment to match the characteristics of the probe and the channel input.
This should be performed whenever attaching a probe to any input channel the rst time.
1. From CH1 menu, set the probe attenuation to 10X (press CH1→Probe→10X).
Set the switch to X10 on the probe and connect it to CH1 of the oscilloscope.
When using the probe hook-tip, insert the tip onto the probe rmly to ensure proper
connection.
Attach the probe tip to the probe compensator connector and the reference lead to the
ground pin, Select CH1, and then press AUTO.
2. Check the shape of the displayed waveform.
Correctly Compensated

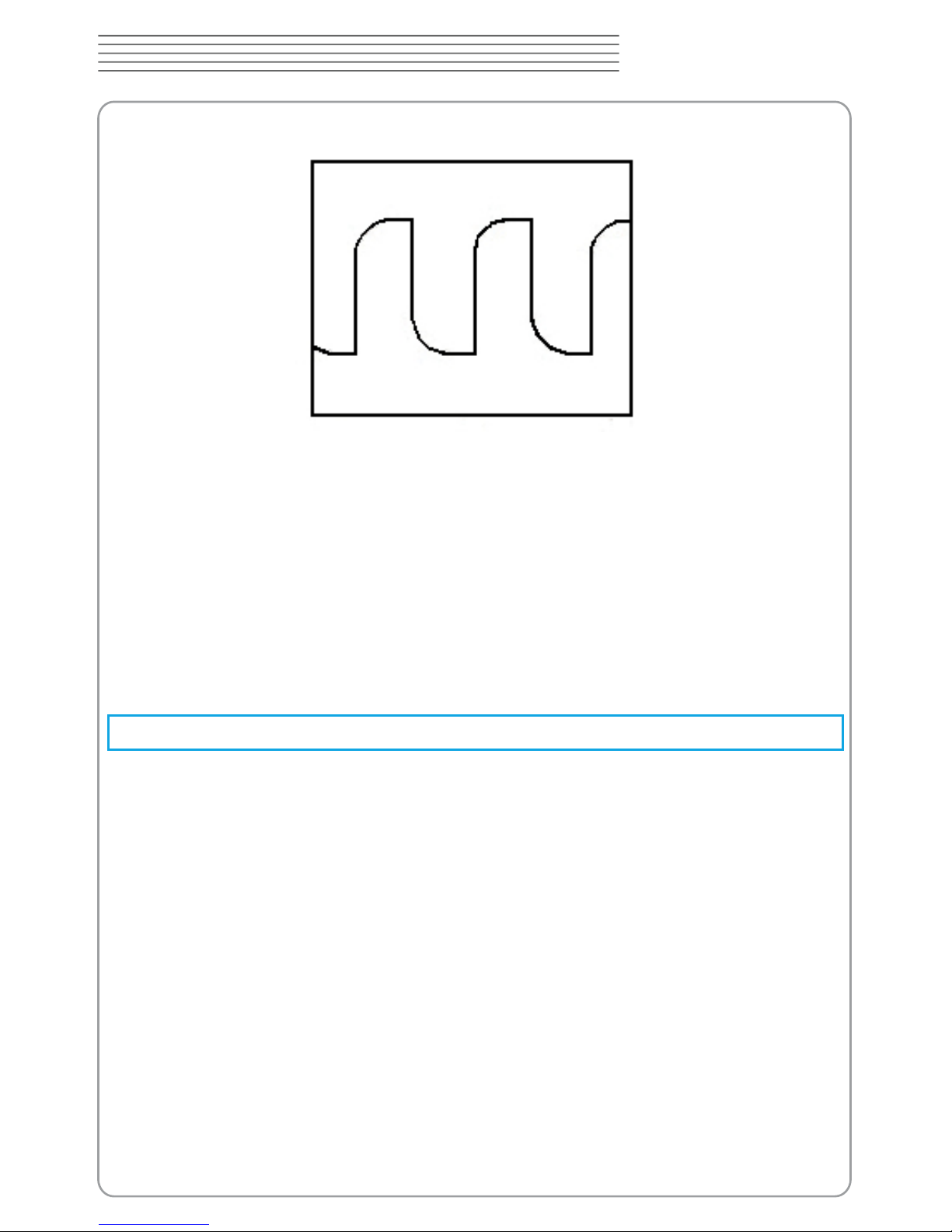

Over compensated


DSO1000 SERIES
Under Compensated
3. If necessary, use a non-metallic tool to adjust the trimmer capacitor of the probe for
the attest square wave being displayed on the oscilloscope.
4. Repeat if necessary.
WARNNING: To avoid electric shock while using the probe, be sure the perfection of
the insulated cable, and do not touch the metallic portions of the probe head while it is
connected with a voltage source.
To display a signal automatically
The oscilloscope has an Auto feature that automatically sets up the oscilloscope to best
display the input signal. Using Auto requires signals with a frequency greater than or
equal to 50 Hz and a duty cycle greater than 1%.
Press the AUTO button, the oscilloscope turns on and scales all channels that have
signals applied, and it selects a time base range based on the trigger source. The trigger
source selected is the lowest numbered input that has a signal applied. The oscilloscope
has two-channels input . Connect a signal to the CH1 input.
1.Connect a signal to the oscilloscope.
2.Press AUTO.
The oscilloscope may change the current setting to display the signal. It will automatically
adjust the vertical and horizontal scaling, the trigger coupling, type, position, slope, level,
and mode settings.
HANDHELD OSCILLOSOPE


1060/1200/1600/1600H
Using the Oscilloscope
This part provides a step-by-step introduction to the scope functions. The introduction
does not cover all of the capabilities of the scope functions but gives basic examples to
show how to use the menus and perform basic operations.
Turn on the oscilloscope
Connect ll to AC power via a power adapter. (The ll can still work
with built-in Li-ion battery even without AC power supply.)
Turn the ll on by pressing down the power on/off key.
The instrument then performs Self-checking after power on. The welcome picture will
display on the screen when the system nishes Self-checking.
The ll is powered up in its last setup conguration.
Figure 1-6 The Login window
Menu Operation
The following example shows how to use the tools menus to select a function, as shown
in the following gure.


DSO1000 SERIES
Figure 1-7 The Menu
1. Press the MENU ON/OFF key to display the Function Menu on the bottom of the
screen and the corresponding optional settings on the bottom. Press MENU ON/
OFF again to hide the Function Menu.
2. Choose one key from F1 to F5 and press it to change function setting.
Set up the vertical system
1. Change the vertical setup and notice that each change affects the
status bar differently.
■ Change the vertical sensitivity with or button and notice the change in the
status bar.
2. Move the signal vertically.
■ The / button moves the signal vertically. Also notice that the channel symbol
on the left side of the display moves in conjunction with the button.
To set up the horizontal system
1. Change the time base.
HANDHELD OSCILLOSOPE


1060/1200/1600/1600H
■ The or button changes the time base in a 1-2-5 step sequence, and displays
thevalue in the status bar.
2. Move signal horizontally.
■ The or button moves displayed signal horizontally on waveform window. It sets
the trigger point position.
Set up the trigger system
1. Change the trigger Level
■ The or button changes the trigger level. The trigger level value is displayed
at the top-right of the screen and a line is displayed showing the location of the trigger
level.
2. Change the trigger setup and notice these changes in the status bar.
■ Press TRIG button in the key panel.Choose one key from F1 to F5 and press it to
change function setting.
