Harbor Breeze BOLTZ 42300 User manual

1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-888-251-1003, 8 a.m. - 8 p.m., EST, Monday - Sunday. You could also
contact us at [email protected] or visit www.lowespartsplus.com.
ATTACH YOUR RECEIPT HERE
Purchase Date _________________________
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
SM20655
ITEM #3025021
BOLTZ CEILING FAN
MODEL #42300
Español p. 21

2
TABLE OF CONTENTS
Package Contents .................................................................3
Hardware Contents ................................................................4
Safety Information .................................................................5
Preparation ......................................................................6
Initial Installation ..................................................................7
Wiring .........................................................................11
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operating Instructions .............................................................15
Care and Maintenance ............................................................17
Troubleshooting..................................................................17
Limited Lifetime Warranty ..........................................................19
Replacement Parts List ............................................................20

3
PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Downrod 1
B Downrod Pin (preassembled to Downrod [A]) 1
C Downrod Clip (preassembled to Downrod [A]) 1
D Mounting Bracket (preassembled to Canopy [E]) 1
E Canopy 1
F Canopy Cover (preassembled to Canopy [E]) 1
G Mounting Bracket Screw (preassembled to Mounting Bracket [D]) 4
H Set Screw (preassembled to Motor Assembly [I]) 2
IMotor Assembly 1
J Fitter Plate (preassembled to Motor Assembly [I]) 1
K Fitter Plate Screw (preassembled to Fitter Plate [J]) 3
L Yoke Cover 1
M Light Pan 1
N Light Pan Screw (preassembled to Light Pan [M]) 3
O Light Kit 1
P Glass Bowl 1
Q Blade 4
R Remote Pack 1
A
B
C
M
P
O
D
E
F
G
Q
R
H
I
N
K
J
L

4
HARDWARE CONTENTS (shown actual size)
Wire Connector
Qty. 3
+ 1 extra
Blade Screw
Qty. 12
+ 1 extra
Blade Washer
Qty. 12
+ 1 extra
AA BB CC

5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning o󰀨 the circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the oor and at least 30 in. from the end of the blades to any obstruction.
• The net weight of this fan is: 14.75 lb (6,69 kg).
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noise from the fan. To reduce the risk of re or electric shock, do NOT use this fan with any solid-state
speed control device.
WARNING: To reduce the risk of re, electric shock or personal injury, mount the fan to an outlet
box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with the
outlet box. Most outlet boxes commonly used for the support of lighting xtures are not acceptable
for fan support and may need to be replaced. Consult a qualied electrician if in doubt. Secure the
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of re, electric shock or personal injury, wire connectors provided
with this fan are designed to accept only one12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge and/or there is more than one house wire to connect to the
two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of re, electric shock or personal injury, do not bend the blade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAUTION: This device complies with part 15 of FCC Rules. Operation is subject to the following
two conditions: 1) This device may cause harmful interference, and 2) this device must accept any
interference received, including interference that may cause undesired operation.
CAUTION: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment o󰀨 and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
--Reorient or relocate the receiving antenna.
--Increase the separation between the equipment and receiver
--Connect the equipment into an outlet on a circuit di󰀨erent from that to which the receiver is
connected.
--Consult the dealer or an experienced radio/TV technician for help.
Please note changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
HKC-US
3350 Players Club Parkway, Suite 225
Memphis, TN 38125
1-888-251-1003
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook

7
INITIAL INSTALLATION
1. Turn o󰀨 the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power supply
prior to installation may result in serious injury or death.
2. Determine the mounting method to use.
Standard Mounting is best suited for ceilings 8 ft. or
higher. For taller ceilings you may want to use a longer
downrod (not included).
Angle Mounting is best suited for angled or vaulted
ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance. Note: If using the angle
mount, check to ensure the ceiling angle is not steeper
than 16°.
Flushmount installation is not available for this item.
Closemount installation is not available for this item.
Standard Mounting
Flushmount Closemount
Angle Mounting
3. Ensure the blades (Q) will be at least 30 in. from any
obstructions. Also check the downrod (A) length to
ensure the blades (Q) will be at least 7 ft. above the
oor.
7 feet
minimum
30 in.
minimum
3
1
Q
A
2

8
D
INITIAL INSTALLATION

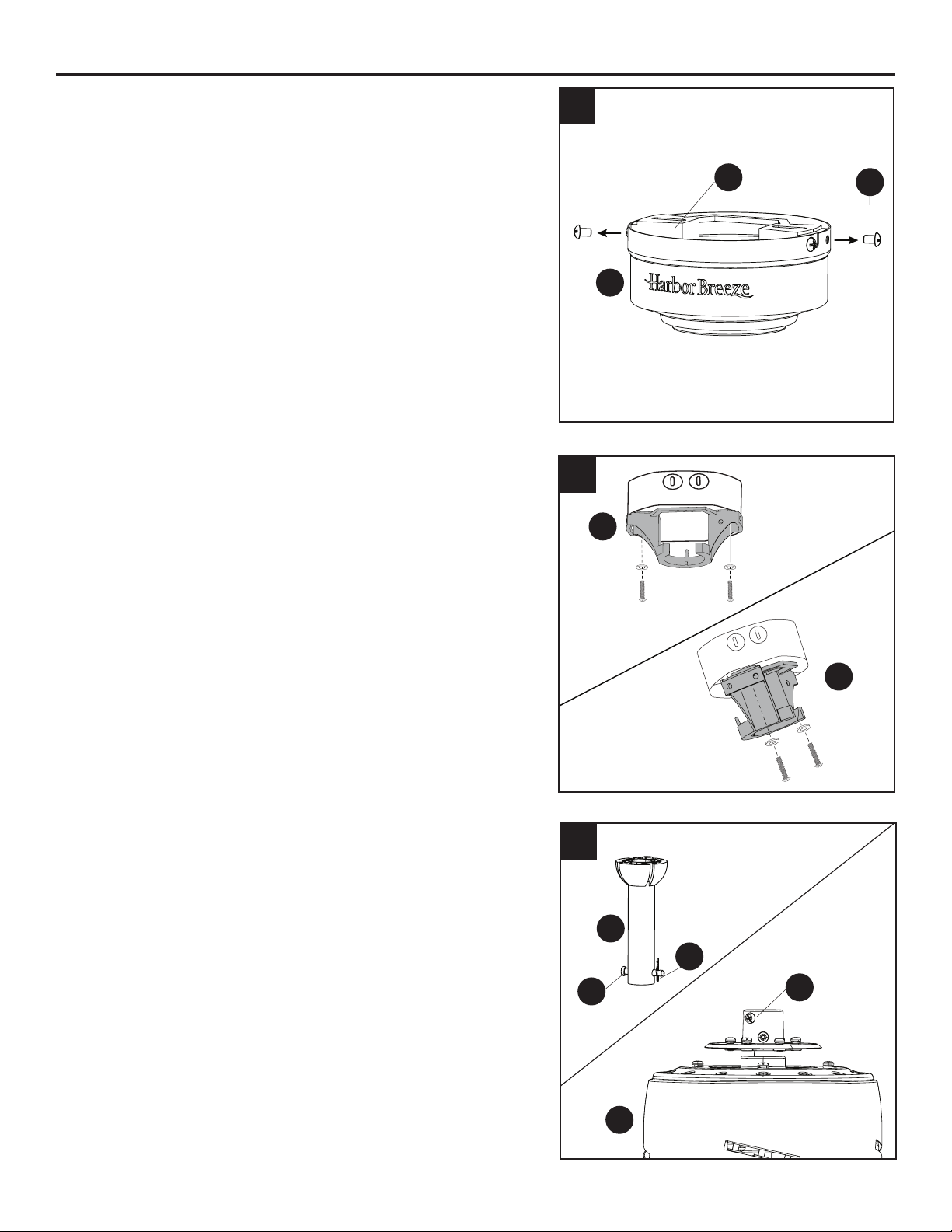

4. Loosen all four preassembled mounting bracket
screws (G), then completely remove the two
mounting bracket screws (G) from the round holes
of canopy (E). Set aside for later use. Turn the
canopy in a counterclockwise direction. Detach
mounting bracket (D) from canopy (E).
5. Attach mounting bracket (D) to outlet box (not
included) using screws and washers provided with
the outlet box.
WARNING: It is very important to use the proper
hardware when installing the mounting bracket (D) as
this will support the fan.
6. Remove the downrod clip (C) and downrod pin (B)
from the downrod (A). Then partially loosen the
set screws (H) in the yoke at the top of the motor
assembly (I).
5
6
E
D
D
D
G
C
B
I
A
H
4
Standard
Mount
Angle
Mount

9
INITIAL INSTALLATION

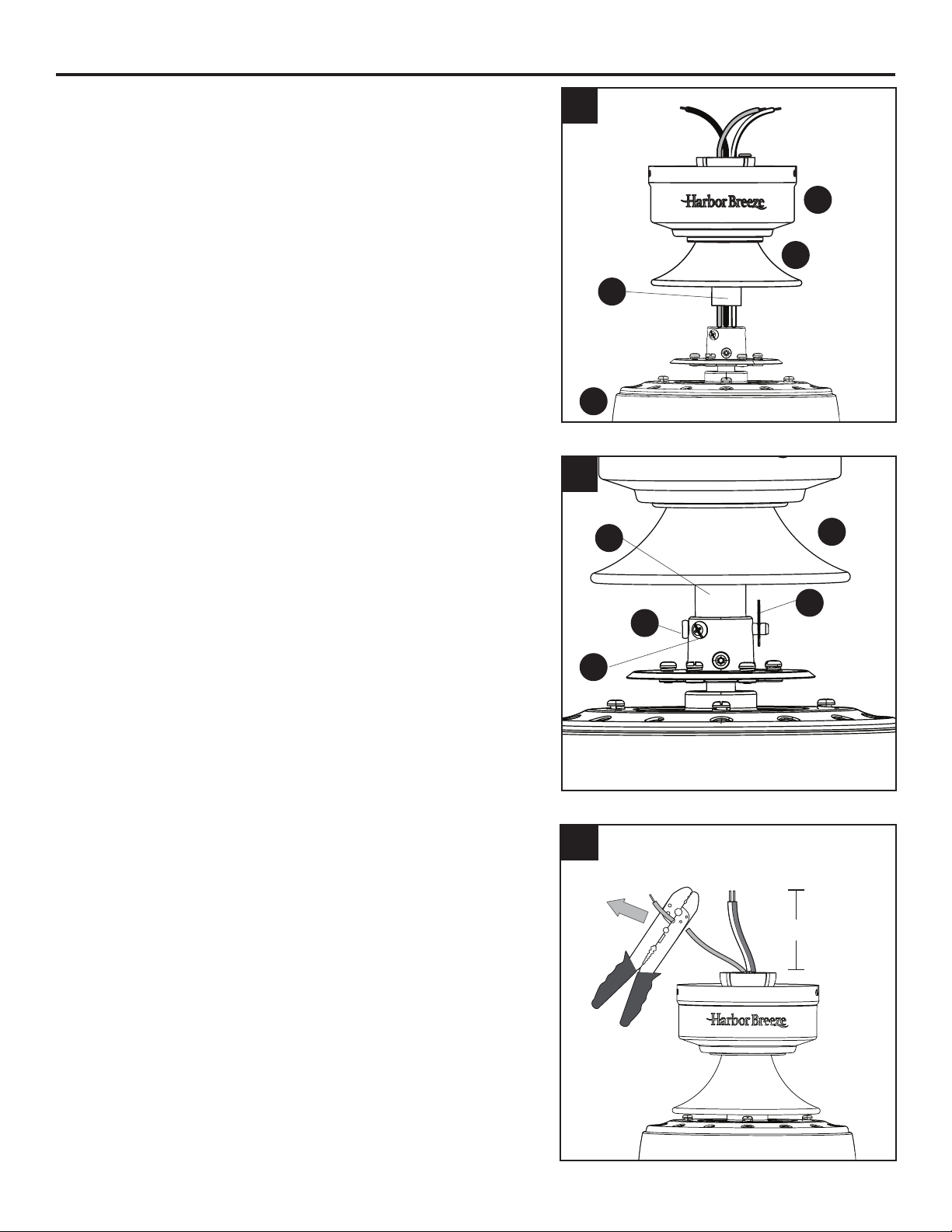

7. Insert the downrod (A) through the canopy (E)
and yoke cover (L). Feed the wires from the motor
assembly (I) through the downrod (A).
8. Slide the downrod (A) into the yoke of the motor
assembly (I), align the holes, then re-install the
downrod pin (B) and downrod clip (C). Secure with the
two set screws (H) and slide the yoke cover (L) down
until it rests on top of the motor assembly (I).
9. Depending on the length of downrod you use, you
may need to cut the lead wires back to simplify the
wiring. If you decide to cut back the lead wires, take
the lead wires and make sure you have pulled them
all the way through the top of the downrod. Measure
at least 8 inches of lead wire, then cut the excess wire
o󰀨 with wire cutters (not included).
7
8
9
8 in.
E
L
L
H
C
A
B
I
A

10
INITIAL INSTALLATION
10. If you decided to cut back the lead wire in Step 9, strip
1/2 in. of insulation from the end of the white wire.
Twist the stripped ends of each strand of wire within the
insulation with pliers (not included). Repeat this step for
the black wire.
Note: If you did not cut back the lead wires in Step 9,
Step 10 is not necessary and you may proceed to Step
11.
11. Install the ball end of the downrod (A) into the opening
of mounting bracket (D). Align one of the four slots in
the ball with the tab in the mounting bracket (D). Note:
The downrod (A) should not rotate if installed correctly.
DANGER: Failure to align the slot in the downrod
(A) with the tab of the mounting bracket (D) may cause
the fan to wobble or fall, which could result in serious
injury or death.
10
11
A
D
Slot
Tab

11
WIRING
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.

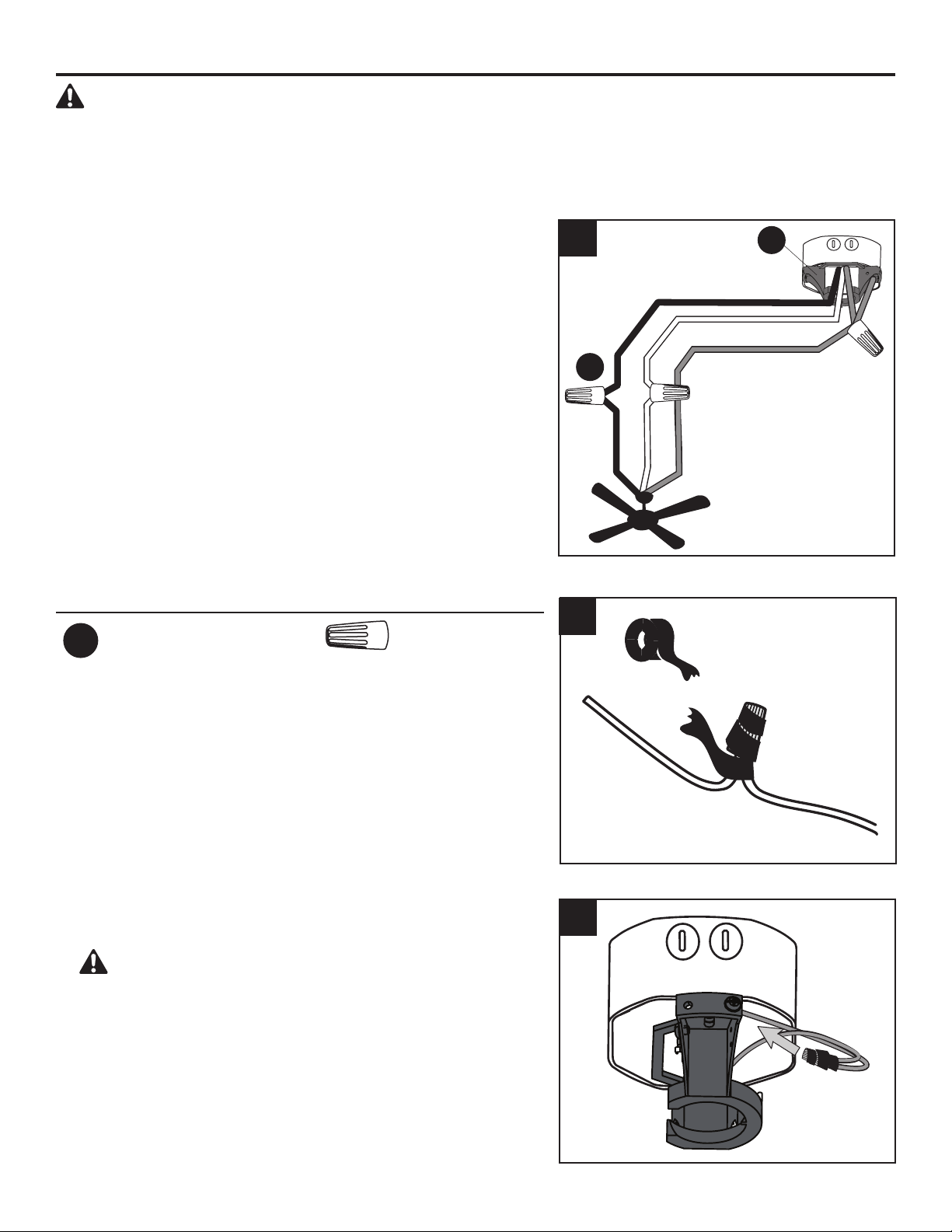

1. Connect household supply and fan wires according to
the diagram and these steps:
• Connect the Green wire from downrod (A) and
mounting bracket (D) to the Bare/Green supply wire.
• Connect the White wire from the fan to the White
supply wire.
• Connect the Black wire from the fan to the Black
supply wire.
• Secure all wiring connections together with wire
connectors (AA).
Note: The Black wire is hot power for the fan. The White
wire is common for the fan and light kit. The Green wire
is the ground wire. If household supply wires are di󰀨erent
colors than referred to above, it is recommended a
professional electrician determines the proper wiring.
Hardware Used
AA Wire Connector x 3
Black (hot)
White (neutral)
Bare/Green
(ground)
Black White
Green
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push the
wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire or wire strands
are visible after making connections. Place the Green
and White wire connections on the opposite side of the
outlet box from the Black wire connections.
1
3
AA
D
2
Warning:Do NOT use
this fan with any solid-state
speed control device.

12
FINAL INSTALLATION
1. Align the canopy (E) over the loosened mounting
bracket screws (G) preassembled on mounting
bracket (D). Place the keyhole slot of the canopy (E)
onto the mounting bracket screws (G) and rotate the
canopy (E) clockwise. Secure the canopy (E) with
the mounting bracket screws (G) previously removed
(Step 4, page 8). Tighten all mounting bracket screws
(G) securely.
2. Insert blade (Q) through slot in the side of the motor
assembly (I). Align the holes of one blade (Q) with
three blade screw holes in underside of the motor
assembly (I). Secure blade (Q) with three blade
screws (BB) and blade washers (CC). Repeat for the
remaining blades (Q).
Hardware Used
BB Blade Screw x 12
Blade Washer x 12
3. Remove one and loosen the other two tter plate
screws (K) but do not remove from tter plate (K).
Feed the 6-pin connector through center hole in light
pan. Align the two key slots in the light pan (M) with
the loosened tter plate screws (K). Place the light
pan (M) over the two screws and turn the light pan (M)
clockwise. Then tighten the two tter plate screws (K).
Re-install the previously removed tter plate screw (K)
and tighten rmly.
1
2
E
Q
M
K
CC
BB
G
3
CC
9-Pin Connector
Slot
Keyhole
Slot

13
FINAL INSTALLATION
4. Remove one and loosen the other two light pan
screws (N) from the underside of the light pan (M).
Connect the 6-pin connector from the fan to the 6-pin
connector from the light kit (O). Align the key slot in
the light kit (O) with the loosened screws in the light
pan (M). Turn light kit (O) clockwise and replace the
previously removed light pan screw (N). Tighten all
screws.
5. The LED has ve color settings that range from 2700K
(soft white) to 6500K (cool white). The factory setting
for the LED is 2700K. If desired, adjust the LED color
switch change the color temperature.
6. Lift the glass bowl (P) into the light kit (O) and turn in a
clockwise direction until it is secure. CAUTION: Avoid
cross-threading the glass during installation. Improper
installation could cause the glass bowl (P) to be
di󰀩cult to remove or fall, which could cause serious
injury.
4
5
O
6
P
O
N
LED Color Switch
M
6-Pin Connector

14
FINAL INSTALLATION
7. If desired, the mounting bracket in remote pack (R)
can be installed to a wall using the provided mounting
screws. The remote from remote pack (R) can be stored
in the mounting bracket for easy access.
8. Turn on power supply to the fan.
Assembly is complete.
7
8
Mounting Bracket
Mounting
Bracket
Mounting
Screw

15
OPERATING INSTRUCTIONS
1. Remove the battery cover from the back of the remote
found in remote pack (R). Insert the battery from remote
pack (R) into the remote; ensuring the polarity of the
battery matches the polarity indicated in the battery
compartment -- positive (+) to positive (+) and negative
(-) to negative (-). Replace the battery cover and press
the fan power button on the remote to ensure the LED
indicator illuminates and the remote turns on the fan.
Note: If remote doesn’t turn on the fan, see
TROUBLESHOOTING (page 18).
2. To operate the fan using the remote, press and release
the following buttons:
1 - High fan speed
2 - Medium fan speed
3 - Low fan speed
4 - Fan Power - Turns the fan o󰀨.
Light Delay O󰀨 mode - Press and hold the fan
power button (4) for ve seconds, which will turn
o󰀨 light after one minute. The LED indicator on the
remote will ash four times to conrm mode setting.
5 - Light Control: Tap light control button to turn the light
o󰀨 and on. Press and hold light control button to dim
or brighten the lights.
6 - D/CFL Switch - set to “D” at the factory. The switch
should remain in the “D” position to ensure the
halogen bulb is dimmable.
1
2
3
4
5
6
2
1Remote
Front Back
Battery
Battery
Compartment
2
LED Indicator
LED Indicator
Fan Power

16
OPERATING INSTRUCTIONS
3. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
setting in winter without feeling a di󰀨erence in your
comfort.

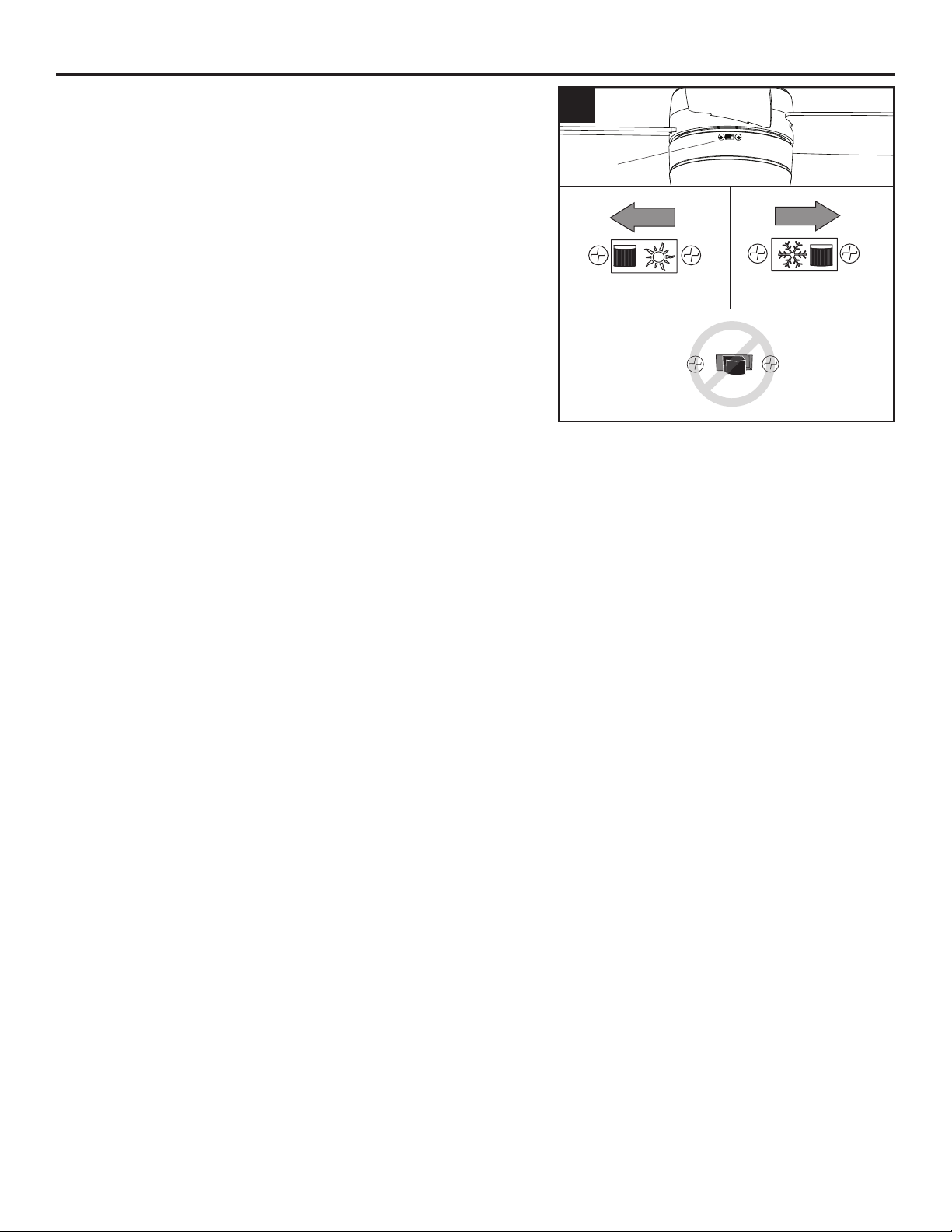

In warmer weather, push the reverse switch left to
display a sun icon, which will result in downward airow
creating a wind chill e󰀨ect (Fig. 3a).
In cooler weather, push the reverse switch right to
display a snowake icon, which will result in upward
airow that can help move hot air o󰀨 the ceiling area
(Fig. 3b).
Important: The reverse switch must be set either
completely left or right for the fan to function correctly. If
the reverse switch is set in the middle position, the fan
will not operate (Fig. 3c).
Fig. 3a Fig. 3b
Fig. 3c
3
Reverse
Switch

17
CARE AND MAINTENANCE
At least twice each year, lower the canopy to check the downrod assembly, and then tighten all
screws on the fan. Clean the motor housing with only a soft brush or lint-free cloth to avoid scratching
the nish. Clean the blades with a lint-free cloth.
Total xture wattage is 16 watts; do not attempt to replace LED.
Battery Replacement: Use a A23, 12-volt alkaline battery. Exhausted batteries should be removed
from remote. Non-rechargeable batteries should not be recharged. Do not dispose of batteries in re,
as they may explode or leak.
Important: Shut o󰀨 the main power supply before you begin any maintenance tasks. Do not use
water or a damp cloth to clean the ceiling fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The reverse switch is not engaged.
2. The wall switch is turned o󰀨.
3. The power is o󰀨 or the fuse
(breaker) is blown.
4. There is a faulty wire connection.
1. Firmly push the reverse switch
completely left or right.
2. Make sure the wall switch is turned
on.
3. Turn the power on or check the
fuse (breaker).
4. Turn the power o󰀨 and check all
connections at the ceiling outlet
box.
The fan operates
correctly, but the
lights are not
working.
1. The light kit wire plugs are not
connected properly.
2. There is a faulty wire connection.
1. Ensure the 6-pin connectors in the
light kit are connected properly.
2. Turn the power o󰀨 and check all
connections at the ceiling outlet
box.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not compatible
with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the motor.
2. Replace the cracked blade.
3. Do not use a full range dimmer
switch to control the fan speed.
4. Ensure the outlet box is secured
to the building structure.
5. Ensure the mounting bracket is
secured to the outlet box and that
the screws are tight.

18
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is excessive
wobbling.
1. The blades and/or blade
arms are loose.
2. The blades are unbalanced.
3. The fan mounting is not
secure.
4. The fan is too close to the
vaulted ceiling.
5. The set screw on the motor
housing yoke is loose.
1. Check and tighten all screws that hold
the fan blades to the blade arms and
the blade arms to the motor.
2. Switch one blade with a blade from
the opposite side. Or balance the
fan using a blade balancing kit (sold
separately).
3. Turn o󰀨 the power. Loosen the
canopy and verify that the mounting
bracket is secure to the electrical
outlet box. The bracket must be ush
without movement against the outlet
box.
4. Use a longer downrod (sold
separately) or move the fan to
another location.
5. Lift the yoke cover and tighten the set
screw to the yoke until secure.
Remote control
does not work.
1. Power surge may have cleared
memory and remote needs to
be re-synced to the receiver.
2. Battery in remote control needs
to be replaced.
3. Interference from another
remote.
1. Turn o󰀨 the main power, then turn it
back on. Within 30 seconds, press and
hold the high and low speed buttons
on the remote at the same time for
5 seconds. The LED indicator will
ash 3 times, signaling a successful
synchronization. Once complete, the fan
will start on the low speed with the light
(if applicable) o󰀨.
2. Insert new 12V battery in battery
compartment of the remote control (see
page 15).
3. If there are several fans in proximity, turn
power o󰀨 to other fans and re-sync the
remote (see Corrective Action 1 above).

19
LIMITED LIFETIME WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
misuse or improper installation or by a󰀩xing any accessories, is not covered by this warranty. The
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
Due to varying climate conditions, this warranty does not cover any changes in brass nish, including
rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give their longest useful life
when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.
Any replacement of defective parts from the ceiling fan must be reported within the rst year from the
date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
which cannot be disclaimed is limited to the time period as specied in the expressed warranty. The
manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This
warranty gives specic legal rights, and you may also have other rights which vary from state to state.
This warranty supersedes all prior warranties.
Note:A small amount of “wobble” is normal and should not be considered a defect.

20
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 1-888-251-1003, 8 a.m. - 8 p.m., EST,
Monday - Sunday. You could also contact us at [email protected] or visit www.lowespartsplus.com.
PART DESCRIPTION PART #
A Downrod 4L000006400
D Mounting Bracket 4L000006410
E Canopy 4L000007150
F Canopy Cover 4L000000830
L Yoke Cover 4L000014450
O Light Kit 4L000014420
P Glass Bowl 4L166650001
Q Blade (x4) 4L085980001
R Remote Pack 4L000014440
HW Hardware Kit 4L000014430
9709 PB • 112020
P Q R
OL
A
D
E
F
HW
