Installation Manual
Model 491BB
115 Gallon Preservative Applicator
For New Holland BigBaler and Case IH LB 4
Forage Harvester

2
(Intentionally blank)

3
Harvest Tec Model 491 Installation Table of Contents
Page
number
Introduction
4
Installation Kit Reference Chart
4
Tools Needed
4
Installation of Applicator
5-11
1. Removal of tank straps and tank
5
2. Installation of saddle legs and saddle
6
3. Installation of pump and handrail
7
4. Installation of the spray shield
8-9
For standard and packer cut balers
8
For roto-cutter balers
9
5. Installation of gauge and hose
10
6. Installation of drain fill line
10
7. Installation of controls
11
Parts Breakdowns
12-14
Tank, Saddle, & Saddle Legs
12
Control Box, Wiring Harnesses, Gauge, and Pump Assembly
13
Installation Kits: Baler Specific
4533 & 4534
4535 & 4536
14
14
15
Notes
16-18
Warranty statement
19

4
Introduction
Thank you and Congratulations on purchasing a Harvest Tec Model 491 Applicator. Please read this manual
carefully to ensure correct steps are done to attach the applicator to the baler. This applicator is designed to
apply Harvest Tec buffered propionic acid. The model 491 base kit includes the following parts: Tank, Frame,
Pump, Hose, and Miscellaneous Hardware. The applicator is designed for New Holland BB 330-340 & Case
IH LB 334-434 balers. Before installing the unit on the baler, make sure you have the proper installation kit.
(See the chart below.) If you are unsure about your installation kit, contact your local authorized dealer for
specifications. For your convenience we have included a parts break down for the model 491 applicator.
Right and Left sides are determined by facing in the direction of forward travel.
Installation Kit Reference Chart
BALER MAKE
MODEL
INSTALL KIT
Case IH
LB 334 3 x 3 standard packer
LB 334 3 x 3 roto cut
LB 434 4 x 3 standard packer
LB 434 4 x 3 roto cut
030-4533
030-4535
030-4534
030-4536
New Holland
BB 330 3 x 3 standard packer
BB 330 3 x 3 roto cut
BB 340 3 x 4 standard packer
BB 340 3 x 4 roto cut
030-4533
030-4535
030-4534
030-4536
Tools Needed:
- Standard wrench set
- Electric drill and bits
- Side cutter
- Crescent wrench
- Standard screwdriver
- Standard nut driver set
- Standard socket set
- Hammer
- Metal cutting tools
- Hose cutter
- Center punch

5
Installation of Applicator
1. Removal of tank straps and tank
1. Remove the two tank straps (001-6707P) by removing all eight 3/8” hex nuts. Figure 1
2. Lift the tank (005-9218) away from the saddle (001-6707N) and place the tank on a smooth flat surface.
3. Install the pump supply elbow (003-EL3412) on the bottom of the tank. Figure 1
4. Install the drain/fill elbow (003-EL3434) on the side of the tank below the sight gauge.
001-6707P
001-6707P
003-EL3412
Figure 1
001-6707ML
001-6707MR
001-6707N
001-6707HR
001-6707Q

6

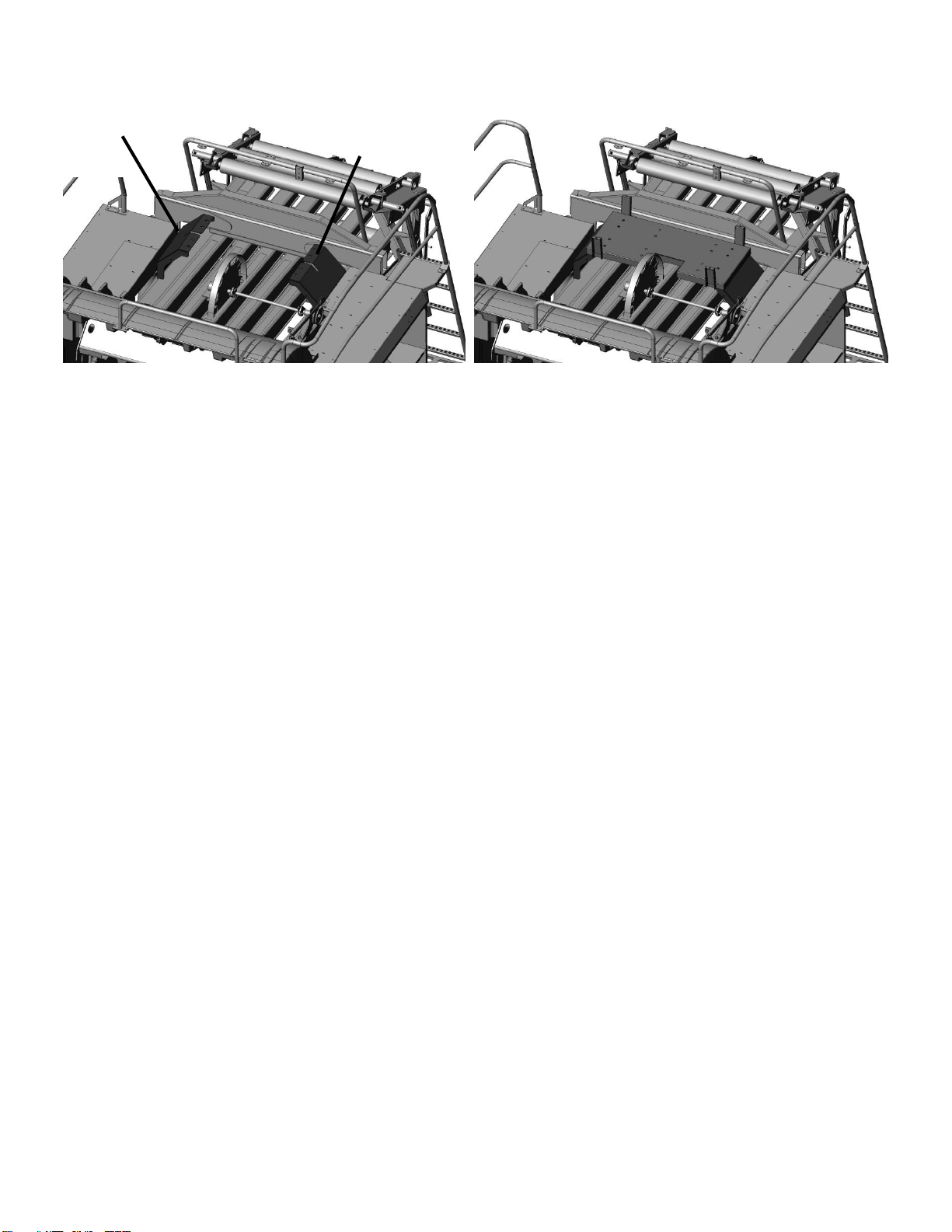

2. Installation of saddle legs and saddle
1. Locate parts bag 5.
2. Install the two saddle legs (001-6707MR & 001-6707ML) on to the top of the baler chute as shown.
Figure 2
3. Secure the two legs with six (three per side) 1/2” x 1-3/4” carriage bolts, flats washers, locks washers,
and hex nuts. The six holes will be already punched out of the baler frame and will line up with the
saddle legs. Make sure the bolt head is in the chamber.
4. Install the tank saddle (001-6707N) on top of the saddle legs. Figure 3
5. Secure the tank saddle to the saddle legs using eight (four per side) 1/2" x 1-3/4” carriage bolts, flat
washers, lock washers, and hex nuts. Use the outside set of holes for four foot wide balers and the
inside set of holes for three foot wide balers. Figure 3
6. Make sure the carriage bolt heads are on top of the saddle and the bolt points towards the bale
chamber.
7. Install the tank and secure with the straps and hardware removed from before. The tank straps will
need to be secured with a double nut.
001-6707MR
001-6707ML
Figure 2
Figure 3

7
3. Installation of pump and hand rail
1. Locate parts bag 5.
2. Install the handrail (001-6707HR) above the pump manifold using two 3/8” x 3/4" flange bolts. Figure 4
3. Install the pump bracket to the tank using four 3/8” x 3/4” flange bolts.
4. Locate the 1/2" hose and connect the filter bowl assembly to the tank fitting using the supplied two hose
clamps. Connect the 1/2” hose to the pump using either the supplied elbow (003-EL1212) or straight
fitting (003-A1212). Figure 4
001-6707HR
001-6707Q &
Pump
Figure 4

8

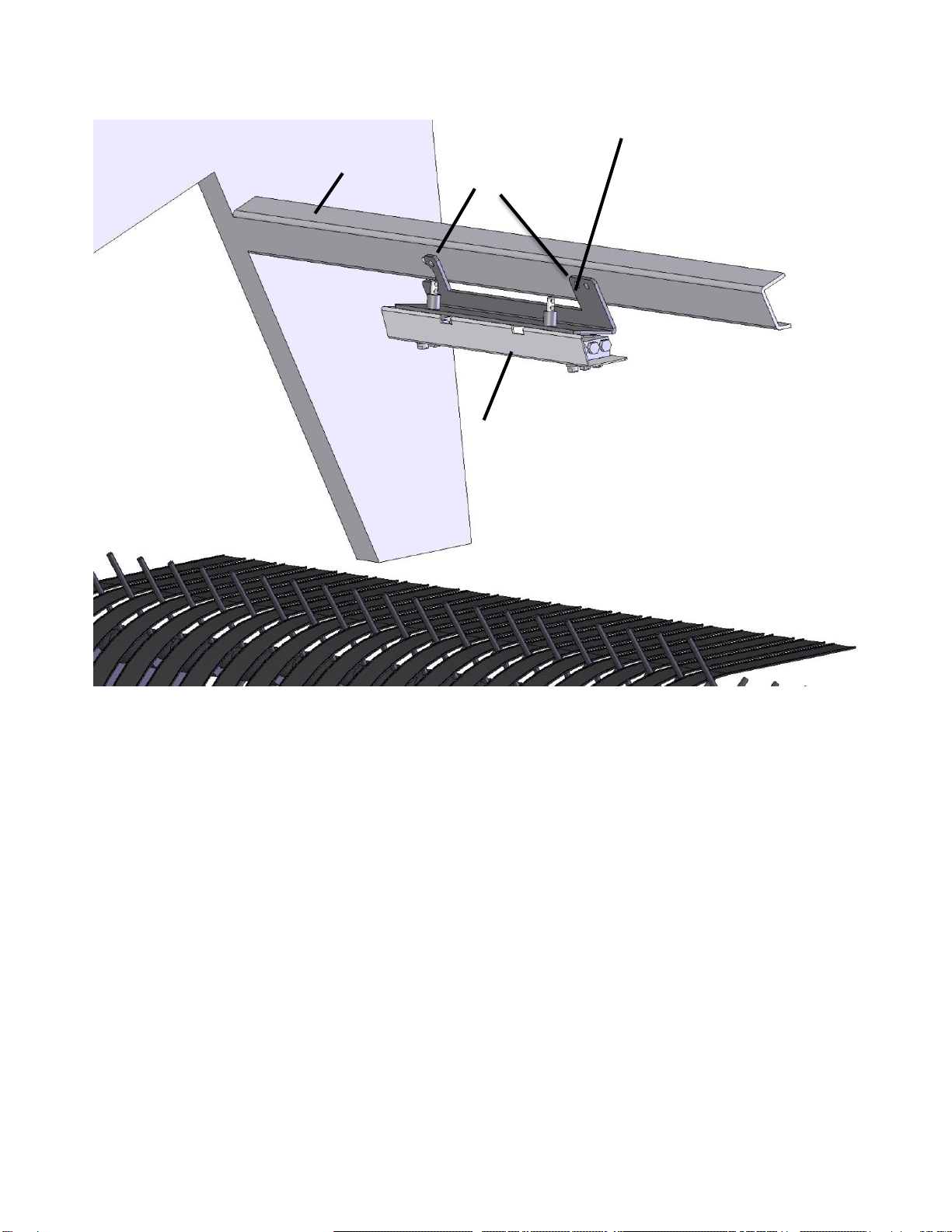

4. Installation of the Spray Shield Assembly
Installation Kits 4533 (for 3 ft wide) & 4534 (for 4 ft wide) for Standard and Packer Balers
1. Locate the flat steel directly above the stuffer forks. Figure 15, Point A
2. Align the spray shield holder (001-4435NCX) to the center of the flat steel.
3. Using the shield holder (001-4435NCX) as a template clamp the holder to the baler, mark the four holes
and drill them to 7/16” diameter ( figure 15 point B).
4. Attach the shield holder (001-4435NCX) to the baler through the two center holes using the two 3/8” x
1-1/4” hex bolts, six flat washers, two lock washers, and two hex nuts. Six washers (three per side)
may need to go between the baler and the spray shield holder (figure 15 point C).
5. Install the spray shield (001-4435NSX) to the holder and secure by using two lynch pins. Remove
washers if necessary (Point C), but allow for a tight fit.
001-4435NSX
001-4435NCX
Figure 15
A
B
C

9

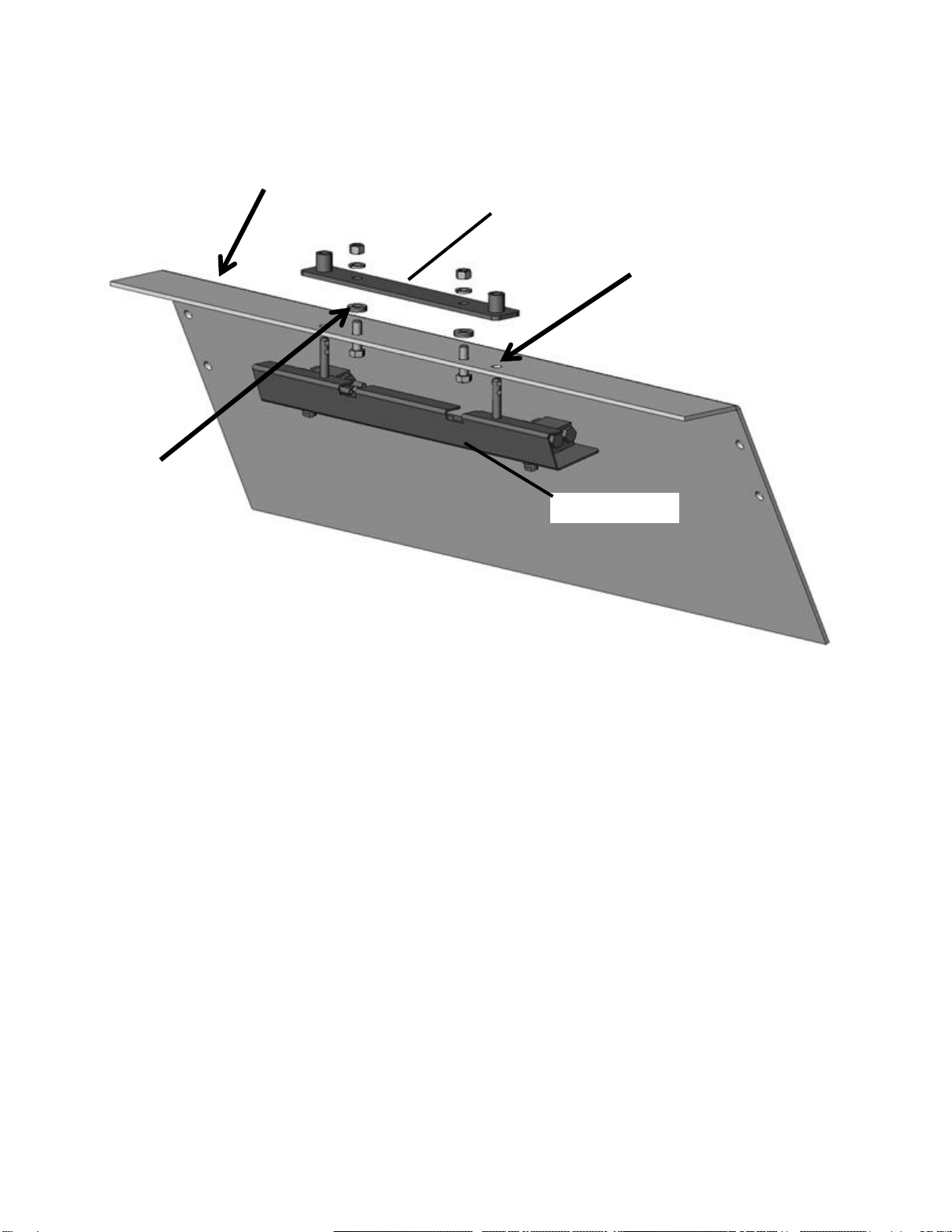

Installation Kits 4535 (for 3 ft wide) & 4536 (for 4 ft wide) for Roto-Cut Balers
1. Locate the baler cross member directly above the rotor (figure 16 point A).
2. Locate the four pre-drilled holes on the cross member (figure 16 point B).
3. Install the spray shield holder (001-4435NC) to baler using three 5/16” x 1” bolts, lock washers, and hex
nuts.
4. Install the spray shield (001-4435NSX) to the the shield holder (001-4435NC) and secure with supplied
lynch pins.
001-4435NC
Figure 16
A
B
001-4435NSX

10
5. Installation of gauge and hose
1. Locate parts bag 13.
2. Place the gauge on the upper right corner of the baler, a place that is visible form the seat of the tractor.
3. Next, run the hose from the pump outlet to the hose fitting on the gauge. Then cut the hose to length.
Place hose clamps on hose ends.
4. Connect the quick connection from your parts bag to the other end of the gauge.
5. Run hose from that fitting to the spray shield. Then cut the hose to length.
6. Installation of the drain fill line
1. Locate parts bag 1.
2. Thread 3/4” elbow fitting into end of tank.
3. Run hose from the elbow down the frame to the bottom of the baler.
4. Drill 1/4” holes to accept the valve holder bracket and use 5/16” x 1” self-tapping screws.
5. Connect valve assembly to other end of hose. Place hose clamps on both ends.
6. Secure hose to frame using cable locks.

11
7. Installation of the Controls
Route the wire to the starter solenoid on all 12v tractors. Connect the green lead marked +to the hot terminal
on the starter. Connect the black lead to a good ground. Do not reverse the leads. Be sure to use a
voltmeter to verify that you do have 12 volts running to the box.
Note: For tractors with 24v starters, connect the power leads to the tractor’s right hand battery. Do not
connect the leads to the starter. Connect the lead marked + to the positive battery terminal and the lead
marked- to the negative on the battery. Wiring connections to the battery normally results in corrosion;
terminal coating is recommended.
Caution: Do not run a pump or use an electronic control box directly off a battery charger. For stationary use,
the applicator can be connected to a new battery and the battery connected to a charger.

Parts Breakdown

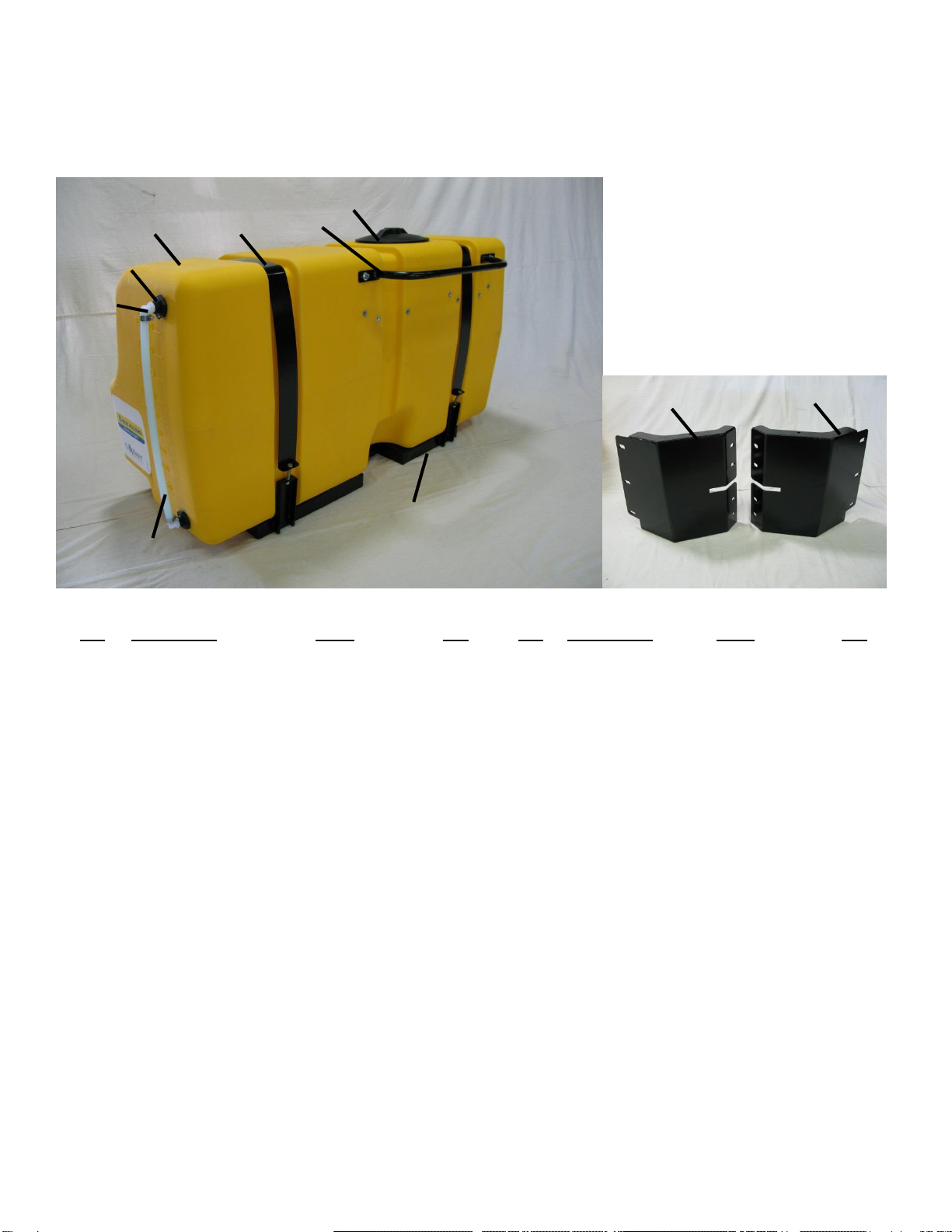

Tank, Saddle & Saddle Legs
Ref
Description
Part#
Qty
Ref
Description
Part#
Qty
1
Tank
005-9218
1
9
Right saddle leg
001-6707MR
1
2
1/2" tank fitting
005-9104
2
10
1/2" hose
002-9001
2
3
Elbow
003-EL1212
2
NP
Elbow
003-EL3434
1
4
Tank straps
001-6707P
2
NP
Elbow
003-EL3412
1
5
Tank saddle
001-6707N
1
NP
Tank lid strainer
005-9022HBS
1
6
Handrail
001-6707HR
1
NP
3/4" tank fitting
005-9100
2
7
Tank lid
005-9022H
1
NP
Pump Mount
001-6707Q
1
8
Left saddle leg
001-6707ML
1
1
2
3
4
5
6
7
8
9
10

13
Control Box and Wiring Harnesses, Gauge, and Pump Assembly
Ref
Description
Part#
Qty
Ref
Description
Part#
Qty
1
Control box
030-0457
1
8
Gauge
002-2208Z
1
2
Speed control
006-2022
1
9
Gauge holder
001-4717
1
3
Power cord
006-4580C
1
10
Tee fitting
003-TT14
1
4
Pump lead
006-4583
1
11
Elbow fitting
003-EL1412
1
5
Knobs
008-0923
2
12
Straight fitting
003-A1412
1
6
U-Bracket
001-2012E
1
7
Hay indicator plug
006-7500Z
1
Ref
Description
Part#
Qty
Ref
Description
Part#
Qty
1
Pump
007-4120S
1
9
Straight fitting
003-A3434
1
2
Ball valve
002-2212
1
10
Ball valve
002-2200
1
3
Reducing nipple
006-M1238
1
11
Valve holder
001-6702H
1
4
Street elbow
003-SE12
1
12
Female coupler
002-2204A
1
5
Filter bowl
002-4315
1
13
Male coupler
002-2205G
1
6
Elbow
003-EL1212
1
14
Elbow
003-EL3434
1
7
Nipple
003-M1212
1
15
Jiffy clip
008-9010
3
8
Elbow
003-EL3812
1
16
Hose clamp
002-9004
2
NP
Straight fitting
003-A1212
1
1
2
3
4
5
7
6
8
9
10
11
12
1
6
2
8
3
4
5
7
9
10
11
12
13
14
15
16

14

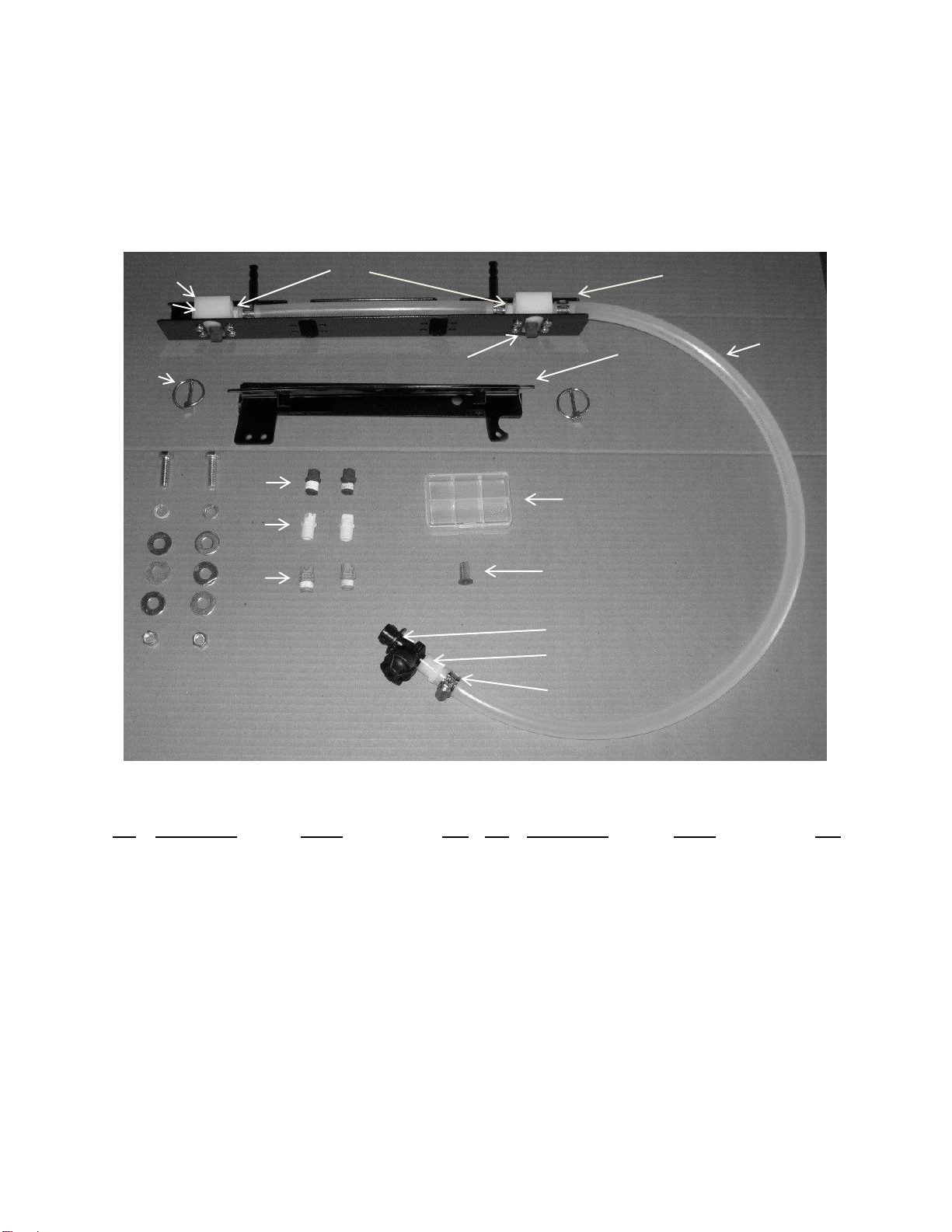

Harvest Tec Model 4533 and 4534 Installation Kit
(4534 pictured)
(4533 has shorter EVA tube between Manifold Blocks)
Ref
Description
Part #
Qty
Ref
Description
Part #
Qty
1
Holder
001-4435NCX
1
11
Fitting
003-A1412
3
2
Shield
001-4435NSX
1
12
Lynch Pin
008-4576
2
3
Hose-1/2”
002-9001
4 ft
13
Manifold Block
001-4435NSB
2
4
Tip-Yellow
004-T8005-PT
2
14
Fitting
003-F14
1
5
Tip-Red
004-T8003-PT
2
6
Tip-Brown
004-T80015-PT
2
NP
Tip Strainer
004-1203-100
1
7
Tip-Pink
004-T8001-PT
2
NP
Mini Plano Box
008-9001
8
Check Valve
004-1207V
1
9
Fitting
003-A1412F
1
10
Hose Clamp
003-9003
4
12
14
13
11
1
2
3
4
5
7
6
8
9
10

15
Harvest Tec Model 4535 and 4536 Installation Kit
(4536 pictured)
(4535 has shorter EVA tube between Manifold Blocks)
Ref
Description
Part #
Qty
Ref
Description
Part #
Qty
1
Shield
001-4435NSX
1
11
Tip-Yellow
004-T8005-PT
2
2
Holder
001-4435NC
1
12
Tip-Pink
004-T8001-PT
2
3
Hose –1/2"
002-9001
4 ft
13
Lynch Pin
006-4576
2
4
Plano Box
008-9001
1
14
Fitting
003-F14
1
5
Strainer
004-1203-100
1
15
Manifold Block
001-4435NSB
2
6
Check Valve
004-1207V
2
16
Fitting
003-A1412
3
7
Fitting
003-A1412F
1
8
Hose Clamp
003-9003
4
9
Tip-Red
004-T8003-PT
2
10
Tip-Brown
004-T80015-PT
2
*Purchase common hardware locally
3
1
2
4
5
7
9
13
8
12
11
10
15
16
14
6

16
NOTES:

17
NOTES:

18
NOTES:

19
WARRANTY AND LIABILITY AGREEMENT
Harvest Tec, Inc. will repair or replace components that are found to be defective within 12 months from the
date of manufacture. Under no circumstances does this warranty cover any components which in the opinion
of Harvest Tec, Inc. have been subjected to negligent use, misuse, alteration, accident, or if repairs have been
made with parts other than those manufactured and obtainable from Harvest Tec, Inc.
Our obligation under this warranty is limited to repairing or replacing free of charge to the original purchaser
any part that in our judgment shows evidence of defective or improper workmanship, provided the part is
returned to Harvest Tec, Inc. within 30 days of the failure. Parts must be returned through the selling dealer
and distributor, transportation charges prepaid.
This warranty shall not be interpreted to render Harvest Tec, Inc. liable for injury or damages of any kind,
direct, consequential, or contingent, to persons or property. Furthermore, this warranty does not extend to loss
of crop, losses caused by delays or any expense prospective profits or for any other reason. Harvest Tec, Inc.
shall not be liable for any recovery greater in amount than the cost or repair of defects in workmanship.
There are no warranties, either expressed or implied, of merchantability or fitness for particular purpose
intended or fitness for any other reason.
This warranty cannot guarantee that existing conditions beyond the control of Harvest Tec, Inc. will not affect
our ability to obtain materials or manufacture necessary replacement parts.
Harvest Tec, Inc. reserves the right to make design changes, improve design, or change specifications, at any
time without any contingent obligation to purchasers of machines and parts previously sold.
Note: The warranty registration card supplied with the installation manual must be filled out and returned to the
manufacturer within fifteen days of purchase. Without record of receipt of warranty registration at the
manufacturer, the warranty is not valid.
Revised 02/01/2012

20
HARVEST TEC, INC.
P.O. BOX 63
2821 HARVEY STREET
HUDSON, WI 54016
PHONE: [phone]
1-800-635-7468
FAX: [phone]
Email: [e-mail]
