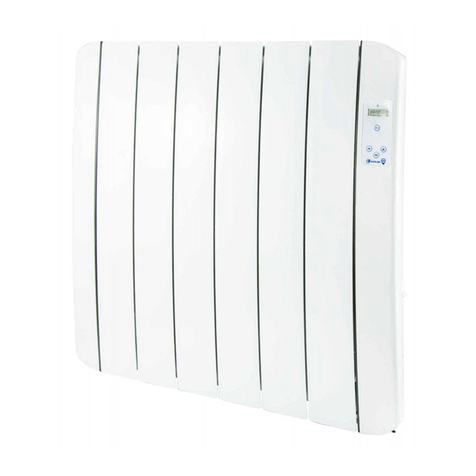

Haverland ECODRY-GPS Operating instructions

V01 –24/10/2019
ECODRY-GPS SIMPLIFIED PROGRAMMING GUIDE
Please verify that the switch on the unit placed on the right side is on the ON position.
Your radiator will then switch on.
1. SETTING THE CLOCK AND DAY OF THE WEEK
To access the clock menu, press the PROG button for 3 seconds. On the top of the display one of the
numbers will start flashing. Select current day of the week with the UP or DOWN buttons:
1–Monday; 2-Tuesday; 3 –Wednesday; 4 –Thursday; 5 –Friday; 6 –Saturday; 7 –Sunday.
Press OK to confirm.
The hour will start flashing, select the current hour with the UP/DOWN buttons and press OK. Select
the minutes with the UP/DOWN buttons and press OK.
Please note that if the radiator is connected to the App (Smartbox) the hour will be automatically set
on the unit. The clock will follow the time zone the Smartbox is connected to and it will automatically
update if needed.
2. HOW DO I CHANGE THE COMFORT / ECONOMY / ANTI-FREEZE TEMPERATURE?
To change the programming temperatures, press the PROG button once (do not hold the button). The
temperature icons will start flashing, press the OK button.
The first temperature displayed is the Comfort temperature (SUN icon displayed). This temperature is
the highest temperature you select for the Comfort periods, for example 21ºC. If you wish to change
the temperature, please press the UP or DOWN arrows and press OK to confirm. The recommended
Comfort Temperature, from 18ºC to 24ºC.
The next temperature displayed is the Economy Temperature (Half-moon icon). This temperature is
selected for periods where the room is going to be unoccupied of when you need a background
heating lower than the Comfort. Please note that the Economy Temperature must always be at least
2ºC lower than the Comfort Temperature. To change the Economy Temperature please press the UP or
DOWN arrows and press OK to confirm. Recommended Economy Temperature, from 10ºC to 18ºC.
The last temperature displayed is the Anti-freeze Temperature (Snowflake icon). This temperature is
selected so the room will never freeze during periods of unoccupancy. This temperature must always
be lower than the Economy Temperature. To change the Anti-freeze Temperature please press the UP
or DOWN arrows and press OK to confirm. Recommended Anti-freeze Temperature, from 5ºC to 7ºC.
To exit the temperature menu please press PROG.
HAVERLAND UK LIMITED
Challenge House, Sherwood Drive
Bletchley, MK3 6DP
Tel: [phone] –Fax: [phone]

V01 –24/10/2019
3. BESPOKE PROGRAMMING OPTIONS
Your radiator has 4 programming options. With the UP/DOWN buttons please select the plan that
adapts the better to your needs, then press OK.
PROGRAMMING OPTIONS
•OnE: Every day with a different programme. You will need to program each day of the week
independently.
•ALL: Same programme for each day of the week, you will only need to program one day and it
will be repeated all 7 days of the week. (1,2,3,4,5,6,7)
•PArt: Weekdays and weekends programme. You will first program a schedule for the weekdays
(1,2,3,4,5) and then you will program a second schedule for the weekends (6,7)
•W-E: Weekend programming. (5,6,7). You will select a schedule for Friday, Saturday and
Sunday, the rest of the days the unit will stay OFF by default.
4. CONFIGURE YOUR PLAN TO YOUR NEEDS
To access the programming menu, press the PROG button for 3 seconds. If the clock/date is displayed,
please press PROG until the name of the program is displayed. With the UP/DOWN arrows select your
desired bespoke programme and press OK.
After pressing OK, we will start programming our schedule. At the top of the display the day or days of
the week we are programming are displayed. Depending on the plan selected, different number of days
will be displayed. Please note that day 1 stands for Monday and day 7 for Sunday.
The hour we are programming is also displayed, in our case 00:00. This means that we are going to select
which temperature/mode we want for the first hour of the day (from midnight 00:00 to 1 am). In order
to select the temperature/mode please press the OK button until the desired temperature/mode is
displayed (Sun –Comfort; Moon –Economy; Snowflake –Antifreeze; OFF –radiator turned off).
Once you have chosen your desired temperature/mode please press the UP arrow to select the next
hour of the day 01:00 (period from 1am to 2am). We then repeat the process above, please press the
OK button until the desired icon is displayed and then please press the UP arrow to go to the next hour
of the day.
If you wish to go backwards to the previous hour, please press the DOWN arrow, but please note that if
you wish to save the changes made you will need to press UP arrow and go forward until you reach the
last hour of the day.
HAVERLAND UK LIMITED
Challenge House, Sherwood Drive
Bletchley, MK3 6DP
Tel: [phone] –Fax: [phone]

V01 –24/10/2019
Repeat the process above for the rest of the hours / days. To verify which day or days are we
programming please check the numbers from 1 to 7 at the top of the display.
Once you finish selecting your schedule please select the programming mode (PRO) by pressing the OK
button until PRO is displayed. You will be able to check what temperature is selected for the current
time and you can check the current day of the week at the top of the display.
5. MANUAL MODE
To select the manual mode please press the OK button until the HAND icon is displayed on the right-
hand side. To choose your desired temperature on the Manual mode please press the UP/DOWN
arrows. Depending on the temperature selected the background light will be red, yellow or green.
Please note that the Manual mode temperature is independent from the Comfort/Economy/Antifreeze
temperatures selected on the programming mode.
6. OFF MODE
If you want to turn off the radiator, please press the OK button until OFF is displayed on the right-hand
side. The unit will not heat up regardless the temperature of the room and it will remain OFF until you
select a different mode again.
7. 2 HOUR BOOST
This function puts the device into operation at full power for two hours, regardless of the operation
mode that is selected. This function has priority over any other. To activate this function, simultaneously
press the UP and OK buttons until the “bSt” appears on screen. You can deactivate the Boost function
before the 2 hours have elapsed by pressing any button
8. KEYBOARD LOCK
To lock the keyboard please press the UP and DOWN arrows simultaneously for 3 seconds until “LocH”
is displayed.
To unlock the keyboard please press again the UP and DOWN arrows simultaneously for 3 seconds.
HAVERLAND UK LIMITED
Challenge House, Sherwood Drive
Bletchley, MK3 6DP
Tel: [phone] –Fax: [phone]

V01 –24/10/2019
9. ADVANCED FUNCTIONS
To access the advanced functions, press the PROG button until the temperature icons start flashing at
the top right-hand corner (Sun/Moon/Snowflake), and then press PROG again for 3 seconds until “C1”
is displayed. Use the UP/DOWN buttons to choose your setting and press OK to confirm. To exit the
Advanced Functions menu please press PROG.
•C1 –This setting allows to change from degrees Celsius (C) to degrees Fahrenheit (F).
•C2 - This setting is for users with extensive knowledge in electronics. PLEASE DO NOT ENTER
THIS FUNCTION, IT COULD RECONFIGURE THE DEVICE.
•C3 - This allows you to calibrate and adjust the temperature measured by the thermostat. For
example, you are able to change accuracy of the sensor in case you want to pair it with an
external room temperature located on a different position.
•C4 –Information on the version of the device’s firmware.
•C5 - This allows you to activate or deactivate the open windows function. The function is
activated by default. This function activates when there is a sudden drop in the room’s
temperature. The radiator will disconnect to avoid losing energy. Once the temperature of the
room is stable again, the radiator will return to the state it was in before it was disconnected.
•C6 - This allows you to activate or deactivate the ITCS function. The function is deactivated by
default. This system activates the start-up of the device before the programmed time (2 hours
maximum), to ensure that the desired temperature is achieved at the indicated time and by
following the established weekly programme.
•C7 - This allows you to activate or deactivate the “Pilot wire” function. The function is
deactivated by default. This function is only available in France.
