Hawking HI-GAIN HAW2R1 User manual

A. Using a computer
with wireless network-
ing access, connect to
the Repeater by
searching for the
wireless network
named:
Smart_Repeater_Pro
Click Scan to find your wireless Internet connection. After the list appears,
select the connection and click Connect.
The Setup Wizard will now prompt you to automatically
configure your IP settings (recommended) and enter a
security key if the network you are connecting to is an
encrypted network. Enter the key and click Continue.
If you do not know the security key of the network you are connecting to,
consult your network administrator.
IP Settings Wireless Security
The setup of your Repeater is now complete. If you
wish to change the name (SSID) of your home/office
wireless network (Smart_Repeater_Pro) you may do so
here.
Click Finish to complete your setup then click Apply to
confirm settings and reboot. During the reboot, your
computer may be disconnected. If it is, reconnect and
then test the internet connection.
The HAW2R1 has many additional setup features. To
access these settings you may click on any of the main
menu tabs located on the interface: General Setup,
Status and Tools.
For more information on the advanced features and settings of the
Hi-Gain Wireless-300N Smart Repeater Pro please refer to
the User’s Manual located on the CD-ROM.
If you wish to add wireless
security to your home/office
network you may enter one
here. All users logging in
through the Repeater will be
required to enter this
passcode.
TECHNICAL SUPPORT
Tel: [phone]
E-mail: techsuppor[email protected]
© 2010 Hawking Technologies, Inc. All rights reserved.
www.hawkingtech.com
Your Hi-Gain Wireless-300N Smart Repeater Pro should be placed in an optimal location in your home or office
to obtain the best performance. Find a location that is closest to the wireless Internet connection that you are
trying to connect to.
Make sure the Repeater is placed in a location where it can receive a
strong signal from your desired wireless Internet connection. The
Repeater will not work without a signal that it can repeat.
HotSpot
Hi-Gain
™
Wireless-300N
Smart Repeater Pro
HAW2R1
Internet
Home Network
4 Find an Installation Location
2 Accessing your Smart Repeater for Initial Configuration
3 Configuration Settings
A. Attach the Antennas to the Repeater.
Locate the three antennas provided with the Repeater and attach them to the
Hi-Gain Wireless-300N Smart Repeater Pro. The two 3dBi antennas (the smaller black ones)
should be placed on “Antenna 1” and “Antenna 2” (Grey Label).
The 13dBi antenna should be placed on the “Internet Antenna” (Green Label).
This is the antenna that will be aimed at your Internet Source.
B. Plug in the Power Adapter.
When you have completed the antenna setup, plug the included power adapter into the nearest power outlet.
Connect with your MAC Connect with your Windows PC
Smart_Repeater_Pro
When the “Network
Availability” window pops
up on the “Start” toolbar,
Click on the “Connect to a
network” link. Once the
“Connect to a network”
window opens, Select on
the “Smart_Repeater_Pro”
Network.
Click on the
“Airport” icon in
the “apple”
toolbar.
Click on the
“Smart_Repeater
_Pro” network
from the drop-
down menu.
* If your computer can not
access the Repeater
wirelessly, use the
included Ethernet cable to
connect your computer to
the Repeater’s ‘wired’
ports. (LAN ports 1-4). Go
to step 2B after this.
B. Using the same computer, open a web browser and type in the following web
address in the web address bar:
http://setup.hawkingtech.com
(If the above address fails use the following address in your web browser address bar: http://192.168.5.200)
Once the page loads, enter the
following login information:
Login: admin
Password: 1234
Click Login to
continue.
If the signal strength is low or your
network does not appear, you may need
to readjust your location of your Repeater
or the position of its antennas.
Click
Scan to try again.
Click Connect to continue.

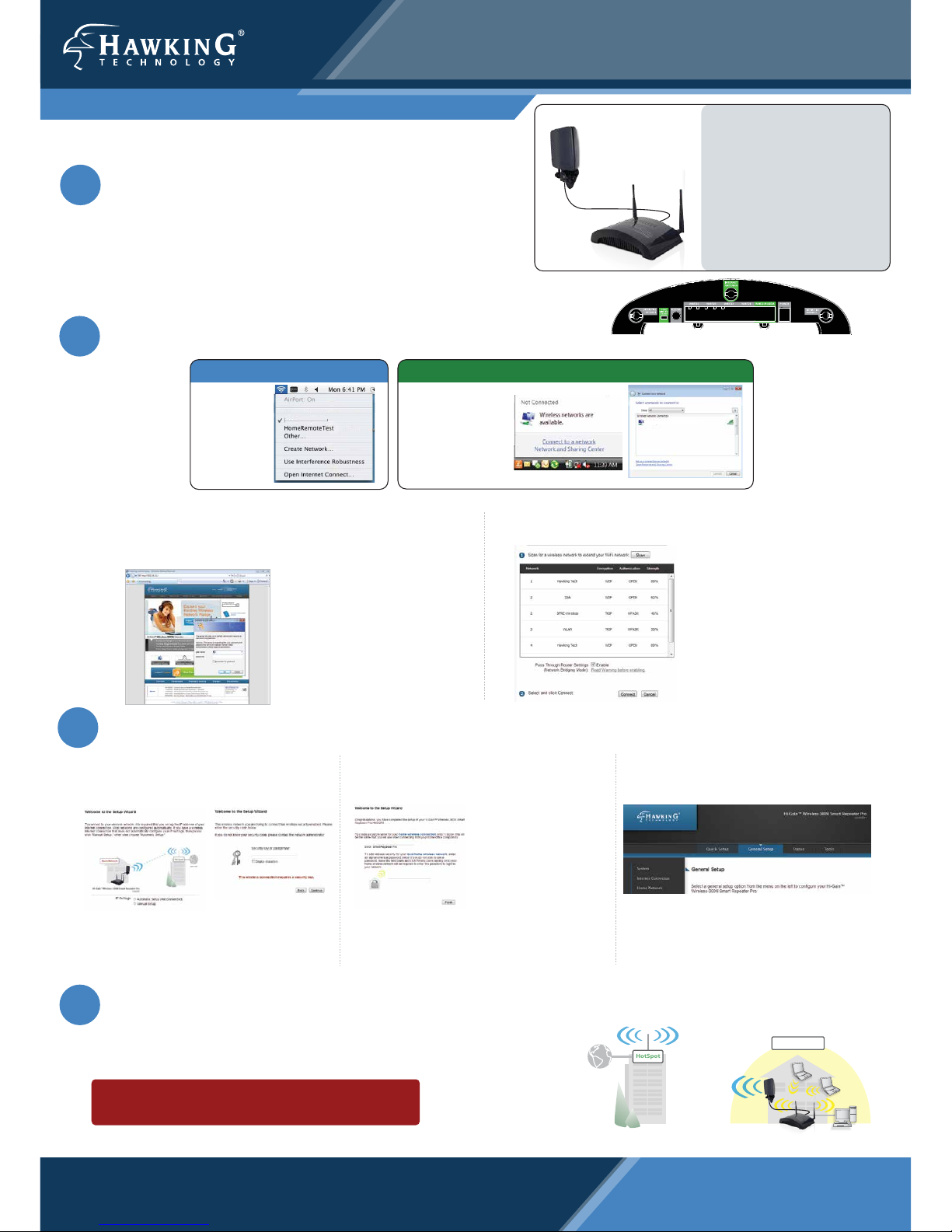

QUICK INSTALLATION GUIDE
Part No. HAW2R1 Hi-GainTM Wireless-300N Smart Repeater Pro
Start Here 
1 Hardware Setup
Package Contents
•1x Wireless-300N Smart Repeater Pro
•1x Power Adapter
•1x Ethernet Cable
•1x Setup CD-ROM
•2x 3dBi Wi-Fi Antennas
•1x 13dBi Directional Antenna
Requirements
•Wired or Wireless Internet Connection
•Computer with Wireless or Wired Access
•Power Outlet
•Hi-Gain Antenna (Optional Upgrade)
Smart_Repeater_Pro

Different Ways to Use Your Hi-Gain™Wireless-300N Smart Repeater Pro
© 2015 Hawking Technologies, Inc. All rights reserved. All trademarks herein are the property of
their respective owners. Apple and Mac are registered trademarks of Apple Computer, Inc. No
affiliation implied or expressed.
Technical Support: 1.888.202.3344 or [email protected] www.hawkingtech.com
Application Guide 
Office
Marine
RV
Hawking Hi-Gain™Antennas and Accessories (Sold Separately, More Products Available Online)
Hi-Gain™15dBi Outdoor
Omni-Directional Antenna
HAO15SIP
Hi-Gain™14dBi Outdoor
Directional Antenna Kit
HAO14SDP
N-Plug Outdoor Cable Extension 30 feet
(for Outdoor Antenna kits)
HAC30N
http://www.gohawking.com
To purchase Hawking Hi-Gain Antennas and Accessories, visit
• Connect to an on shore wireless Internet connection to
provide wireless Internet access for your boat or yacht
• Access available Internet connections to browse the Internet
while close to shore
• Use Hi-Gain antennas to increase connection distance to
on-shore wireless Internet sources
FOR MARINERS
Hi-Gain™Wireless-300N
Smart Repeater Pro
HAW2R1
N-Plug Outdoor Cable Extension 30 feet
(for Outdoor Antenna kits)
HAC30N
Hi-Gain™15dBi Outdoor
Omni-Directional Antenna
HAO15SIP
On Shore
Access Point
On Shore
Access Point
RV
HotSpot
• Connect to camp ground wireless Internet connections to
provide Internet access within your RV
• Use Hi-Gain antennas for more distance in connecting to
wireless hotspots while on the road or while parked
FOR YOUR RV
Hi-Gain™Wireless-300N
Smart Repeater Pro
HAW2R1
Hi-Gain™Wireless-300N
Smart Repeater Pro
HAW2R1
HotSpot
• Extend the wireless network from your home to your
backhouse or backyard
• Share the Internet connection from a nearby coffee shop
hotspot or from a ‘participating’ neighbor’s wireless
connection
• Eliminate wireless dead spots within your home or repeat the
wireless signal from one area of your home to another
FOR HOME
Wireless RouterAccess Point
Hi-Gain™Wireless-300N
Smart Repeater Pro
HAW2R1
N-Plug Outdoor
Cable Extension 30 feet
(for Outdoor Antenna kits)
HAC30N
N-Plug Outdoor
Cable Extension 30 feet
(for Outdoor Antenna kits)
HAC30N
Hi-Gain™14dBi Outdoor
Directional Antenna Kit
HAO14SDP
Hi-Gain™14dBi Outdoor
Directional Antenna Kit
HAO14SDP
• Extend the office network wirelessly from one location to
another, (using Hi-Gain outdoor antennas) up to one mile
• Use one Internet connection for two or more nearby office
locations
• Eliminate wireless dead spots within your office or repeat the
wireless signal from one office floor to another
FOR OFFICE
