Hearth & Home PH-MR User manual

1
Hearth & Home Technologies • PH-MR Instructions • 2583-970 Rev. B • 1/23
PH-MR
Models: 6K, 8K, 6KL, 8KL, 6KX, 8KX, CAL36, CAL42, CAL36X, CAL42X,
MER36, MER42, MER36P, MER42P, 6KMOD, 8KMOD, MER36MN, MER42MN
Passive Heat Kit Installation Instructions
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
CAUTION! Do not install damaged components.
If any parts are missing or damaged, contact your dealer before
starting installation. DO NOT install a damaged kit.
Introduction
The Passive Heat (PH-MR) Heat Management System
conveys warm air from the replace into the same room
through either one front discharge slot, two side discharge
heat registers or an open top discharge.
Installation of the Passive Heat kit must be done in con-
junction with the appliance installation. Installation of this
kit MUST be performed by a qualied service technician.
WARNING! Risk of Fire! DO NOT install the Passive
Heat (PH-MR) Heat Management System with models
that are not approved. Overheating will occur.
The Passive Heat Trim Kit is also available for installation
with the Front Discharge Passive Heat systems and must
be purchased separately. Contact your dealer to order
the appropriate kit:
PH-FRTTRIM-36
PH-FRTTRIM-42
Side Discharge Passive Heat systems require the use of
the Register Cover Kit (PH-SIDETRIM), which must be
purchased separately, to complete the installation. Contact
your dealer to order the kit.
Follow instructions included with the trim kit to complete
installation of the Passive Heat system.
The Passive Heat kit is tested and safe when installed in
accordance with this installation manual. It is your respon-
sibility to read all instructions before starting installation
and to follow these instructions carefully during installation.
The Passive Heat kit is carefully engineered and must
be installed only as specied. If you modify it or any of
its components you will void the warranty, and you may
possibly cause a re hazard. Installation must be done
according to applicable local, state, provincial, and/or
national codes.
Table of Contents
Introduction .......................................1
Preparation .......................................1
Kit Contents.......................................2
Clearances .......................................3
Good Faith TV Guidelines ............................4
Framing Dimensions- Passive Heat Front Discharge .......5
Framing Dimensions - Passive Heat Side Discharge .......6
Framing Dimensions - Passive Heat Open Top Discharge ..7

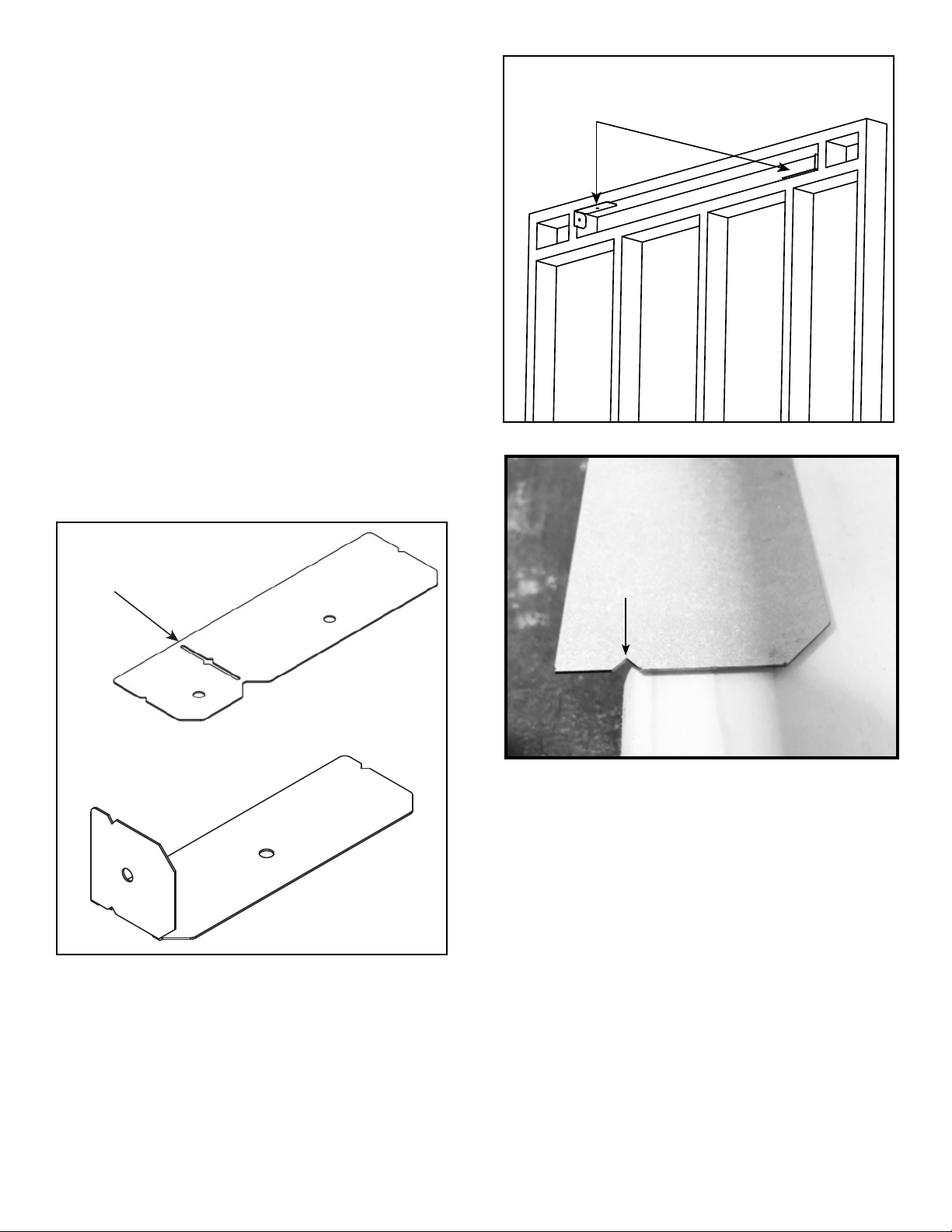

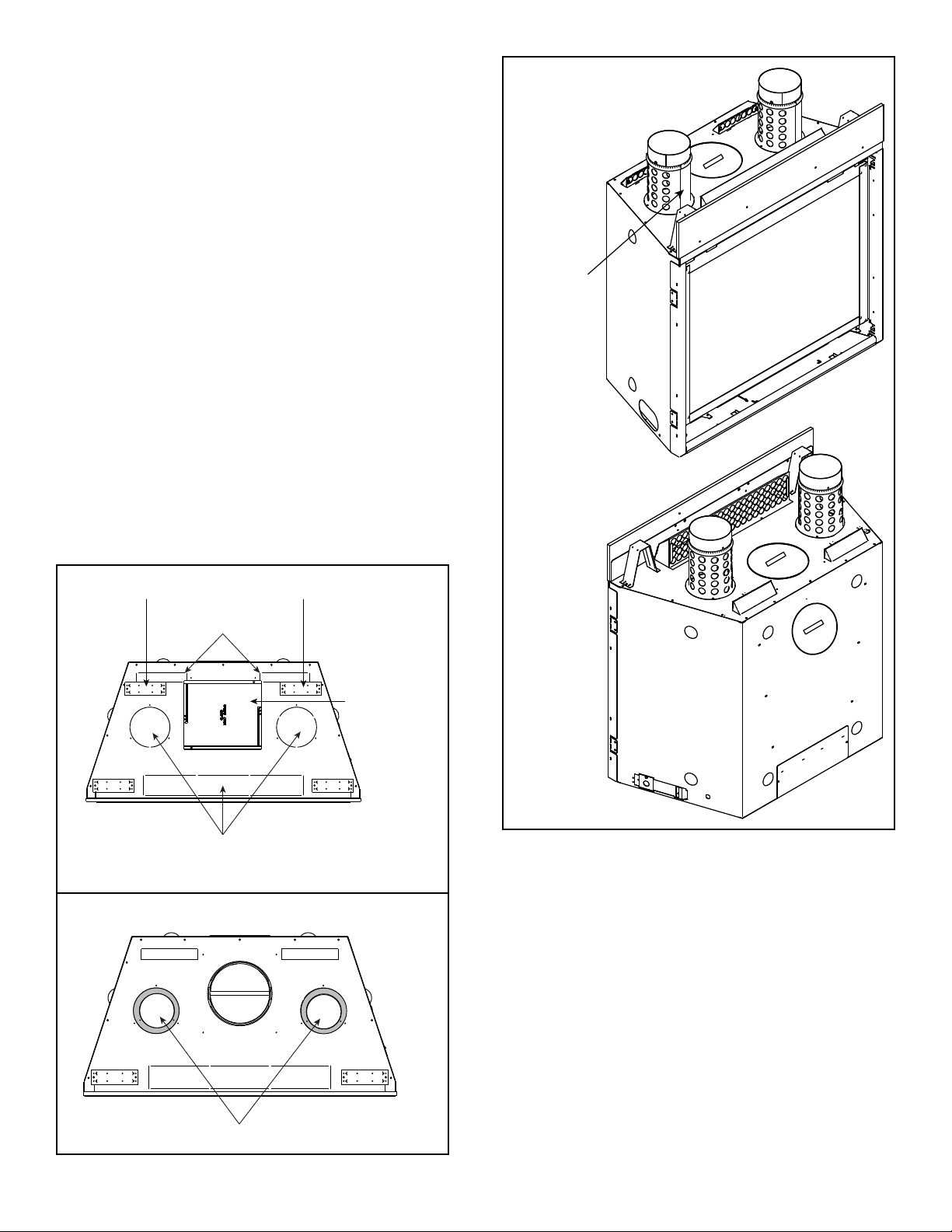

Adapter Installation - Front, Side and Open Top Discharge ..8
Passive Heat Template - Front and Side Discharge ........9

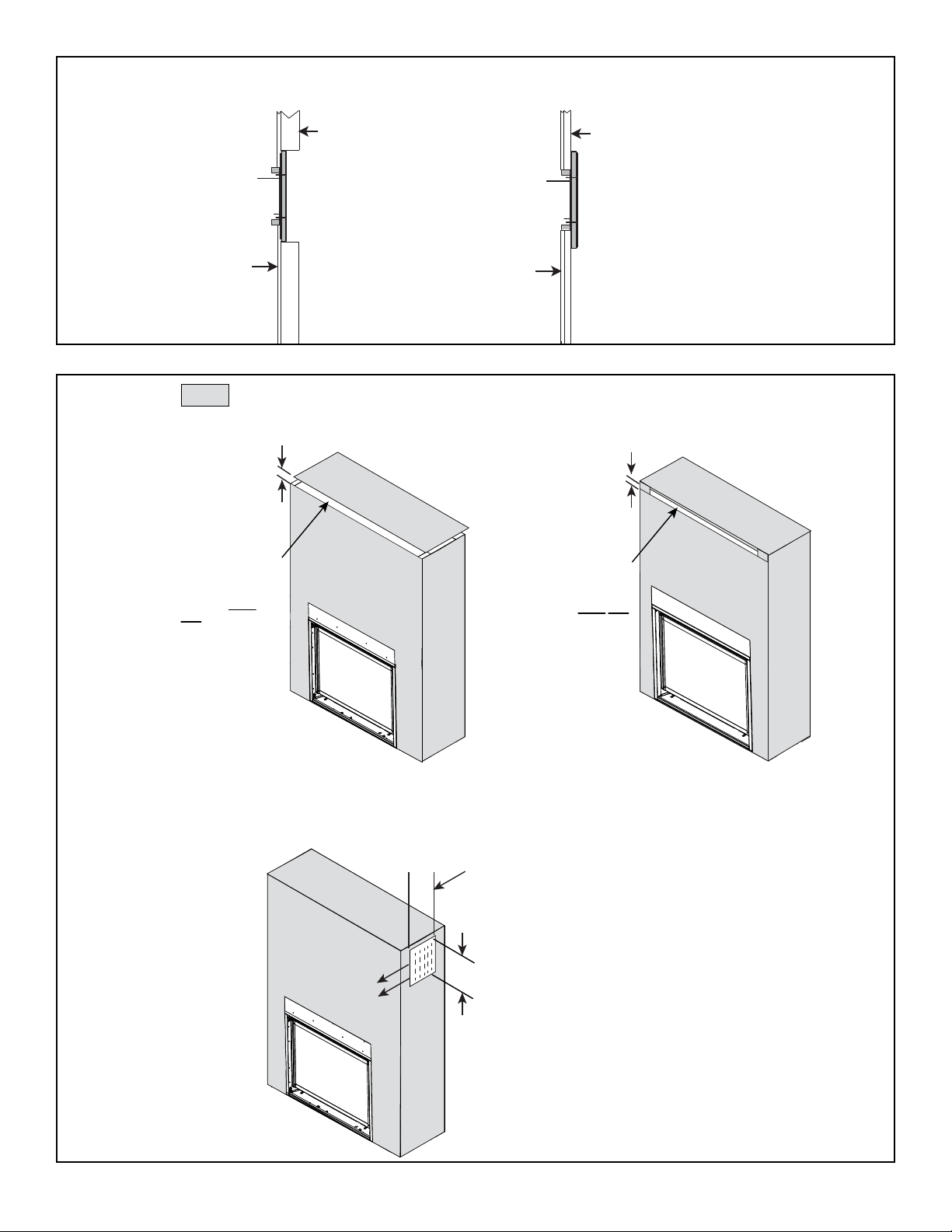

Finishing ........................................10
Painting .........................................10
Install Register Cover - Side Discharge Only ............12

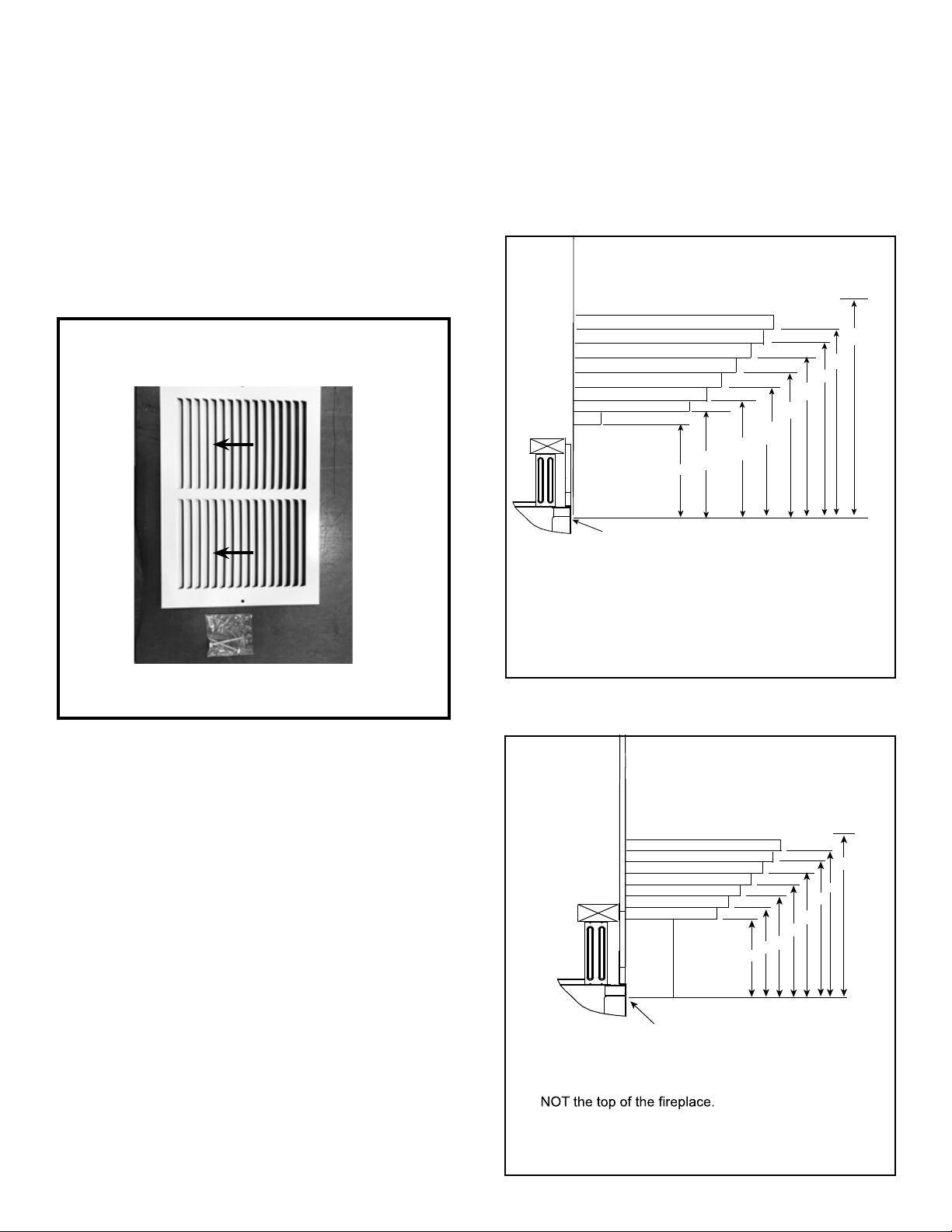

Mantel Projections.................................12
Installation of Passive Heat with Other Optional Heat
Management Systems ...........................13
Maintenance .....................................13
Preparation
Plan the location of the appliance.
Determine whether front, open top or side discharge is
to be installed and follow instructions for the appropriate
application.
CAUTION! Risk of Burns!
• The replace should be turned o and cooled before
kit is installed.
• Shut o gas supply.
NOTICE: A mantel is required if a fan is installed. Damage
to TV could occur.

2Hearth & Home Technologies • PH-MR Instructions • 2583-970 Rev. B • 1/23

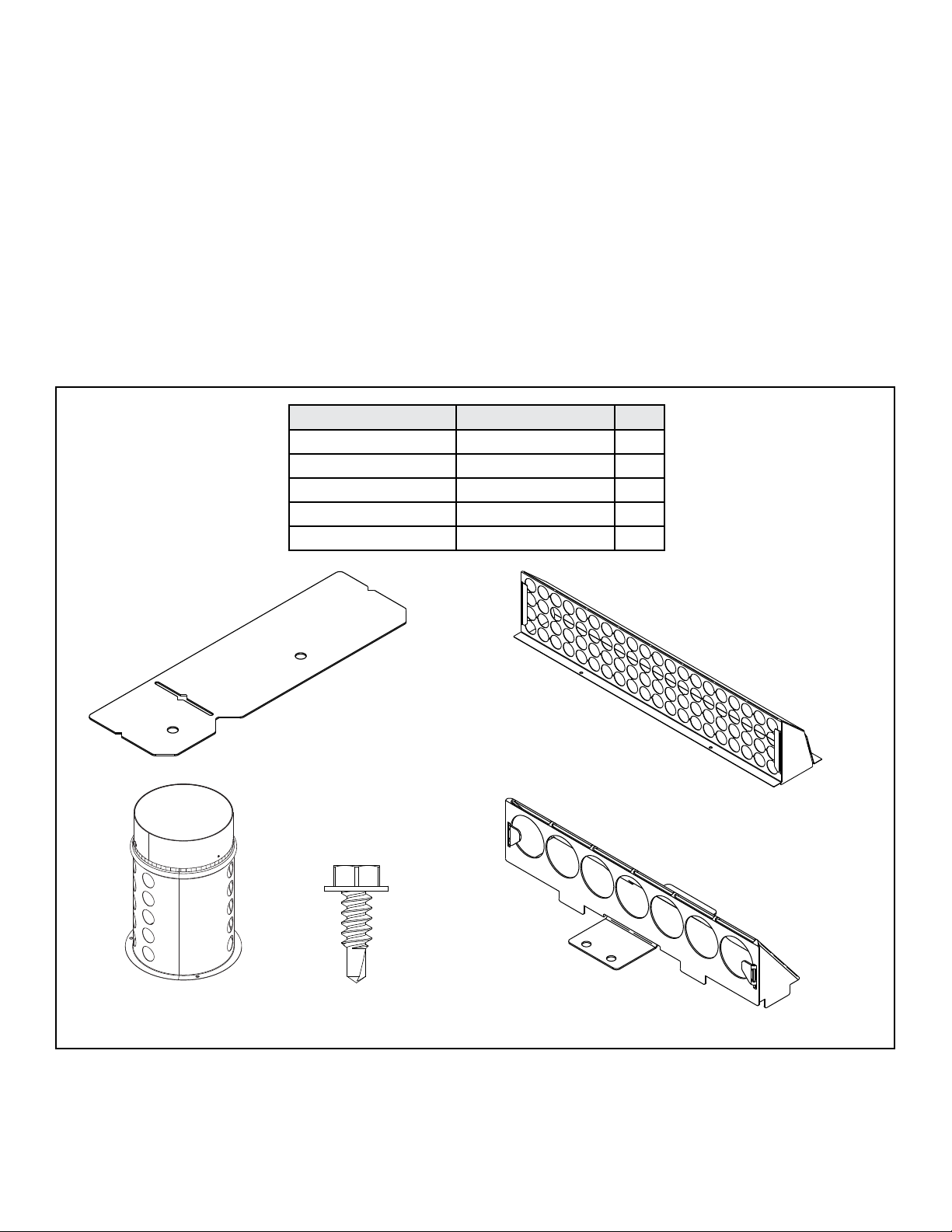

Figure 1 Passive Heat Kit Contents
DESCRIPTION SERVICE PART NO. QTY
Passive Heat Template 2617-137 4
Passive Heat Adapter 2617-302 2
Rear Cover 2583-185 2
Front Cover 2583-186 1
Screw 030-860/8 1
PH-MR Kit Contents
Kit Contents
Verify and remove contents from packaging before
beginning installation. See Figure 1.
2617-302
Passive Heat Adapter
030-860/8
Screw
Power Vent Option
If an optional power vent will be installed in conjunction
with the Passive Heat Kit, Hearth & Home Technologies
recommends the PVLP-SLP or PVV-SLP power vent
options. If the application does not allow for the PVLP-SLP
or PVV-SLP to be used, the PVI-SLP-B may be used. The
PVI-SLP-B must be mounted outside the chase due to the
higher noise level created.
For AU models, PVLP-SLP-AU is approved to be used in
conjunction with the Passive Heat Kit.
2583-186
Front Cover
2583-185
Rear Cover
2617-137
Passive Heat Template

3
Hearth & Home Technologies • PH-MR Instructions • 2583-970 Rev. B • 1/23
Clearances
Ensure all clearances are maintained.
• Maintain minimum distance from top of appliance
opening to the room ceiling. Refer to the gures in the
Framing section of this instruction.
• An open space, or “cavity,” is allowed up to three inches
above the top of the passive heat discharge opening. A
chase ceiling is required when the open space “cavity”
exceeds three inches above the discharge opening.
Construct the false ceiling from material such as metal,
drywall or plywood.
WARNING! Risk of Fire! Maintain clearances to
combustibles as specied.
INTERIOR WALL
FLOOR
CEILING
36 IN.
36 IN.
6 IN.
18 IN.
18 IN.
PASSIVE HEAT FRONT DISCHARGE OPENING
(Clearances for front and side discharge installations)
FIREPLACE
*CEILING
INTERIOR WALL
6 IN.
36 IN.
= SPRINKLER HEAD
PASSIVE HEAT OPEN TOP DISCHARGE OPENING
(914 mm)
(914 mm)
(457 mm)
(457 mm)
(15 mm)
(914 mm)
(15 mm)

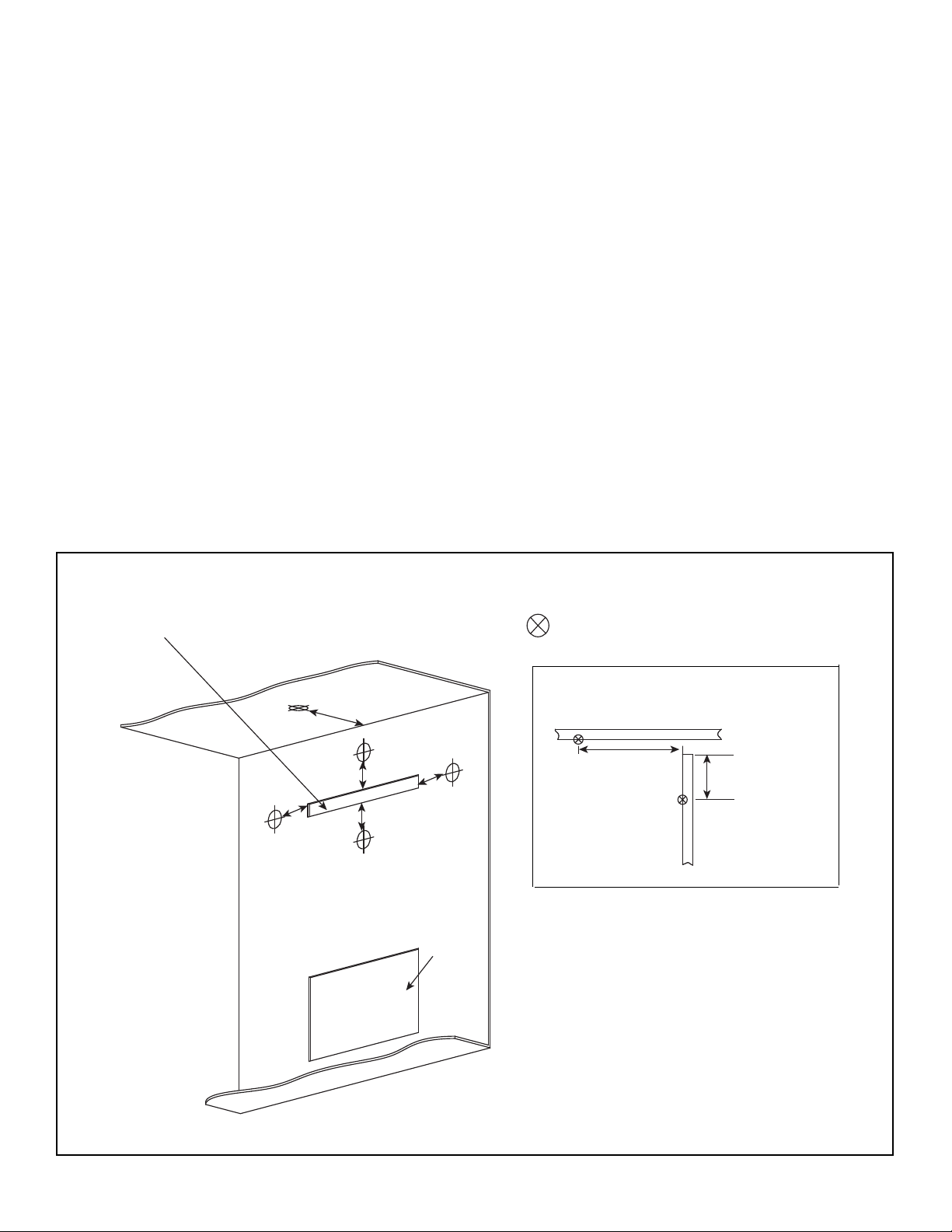

Clearance - Sprinkler to Passive Heat
Figure 2 references the clearances that must be adhered
to when installing a sprinkler head near a passive heat
discharge opening.
* If the distance from the top of the passive heat front
discharge opening to the ceiling is 36 in. (914 mm) or
greater, then there is no 36 in. (914 mm) clearance
requirement. This is for a ceiling sprinkler head
installation only.
Note: When installing a sprinkler head near a heat
discharge opening, it is recommended to use
a sprinkler head with an Extra High sprinkler
activation temperature rating.
• When installing a sprinkler head exterior of the chase,
maintain the following clearances to discharge openings
(convection slots, passive heat registers, heat zone
registers, etc.): 36 in. (914 mm) top, 18 in. (457 mm)
sides and 6 in. (152 mm) bottom.
• DO NOT install a sprinkler head inside a chase that is
set up for passive heat.
Figure 2

4Hearth & Home Technologies • PH-MR Instructions • 2583-970 Rev. B • 1/23
WARNING! Risk of Fire! Mesh screen required on bottom of discharge opening when discharge
opening is greater than 3 in. (76 mm). Secure mesh to top of framing.
Good Faith TV Guidelines
Figure 3
Mantel Requirements: Some mantel restrictions apply depending on model, installation or additional
accessories. See Mantel Projections section for details.
NOTICE: A mantel is required if a fan is installed. Damage to TV could occur.
Measurement from top edge
of opening to bottom of
appliance = 33-1/2 IN. (851 mm)
ROOM CEILING
1-1/2 IN. (2 X 4 FRAMING)
FRONT DISCHARGE 2 IN. MIN. (51 mm)
TV
12 IN. MIN.
(305 mm)
4 IN. MIN.
(102 mm)
*Wire mesh required for front discharge or open top discharge passive heat installations with discharge
opening of three inches or greater.
Good Faith Guidelines for TV Installations
Above a Fireplace with Passive Heat Option
83-1/2 IN. (2121 mm) MIN.
(Appliance may be
installed off of floor)
CHASE CEILING - SEE FIGURES 4 and 5
(FRONT AND SIDE DISCHARGE ONLY)
41 IN. MIN. (1041 mm)
(MINIMUM CLEARANCE TO
DISCHARGE OPENING)
NOTE: The TV installation requirements are the same regardless of whether the Passive Heat kit is installed with a
top discharge, side discharge or open top discharge.
36 IN. MODELS: 76 IN. MIN. (1930 mm)
42 IN. MODELS: 78 IN. MIN. (1981 mm)
(Appliance may be installed
off of floor)
FIREPLACE
OPENING
(90 x 35 mm for AU)
2 X 4 FRAMING
2 X 4 OR 2 X 6
(90 x 35 mm for AU)
(90 x 35 mm for AU)
FRAMING
= NON-COMBUSTIBLE ZONE
1/2 IN. X 1/2 IN. WIRE MESH*

5
Hearth & Home Technologies • PH-MR Instructions • 2583-970 Rev. B • 1/23

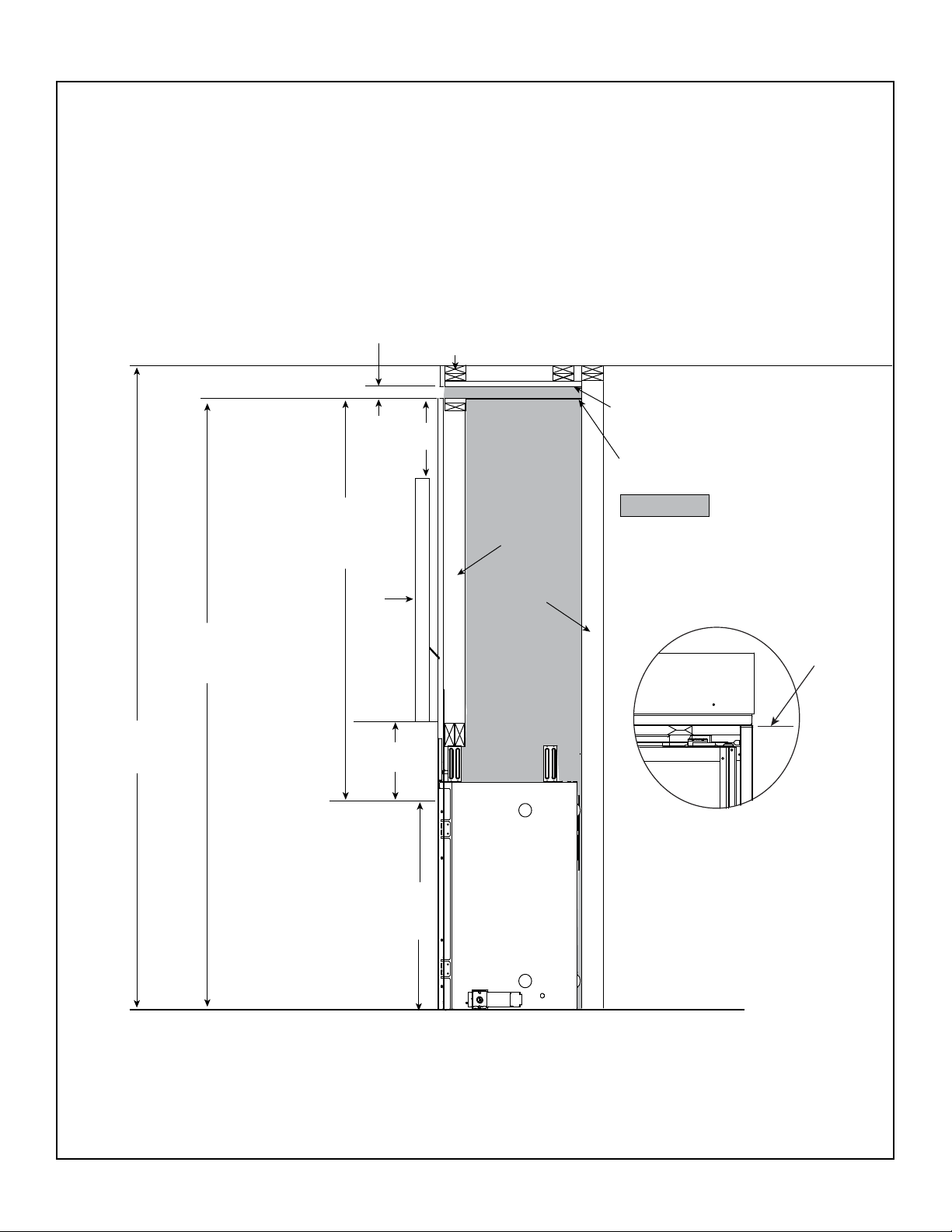

Figure 4 Passive Heat Front Discharge Framing Dimensions With and Without a Trim Kit
Framing Dimensions- Passive Heat Front Discharge
Front Discharge: Air conveyed into the room through one front discharge slot.
FRONT DISCHARGE MINIMUM FRAMING DIMENSIONS
A
B C D E
TRIM KIT*
INSTALLED
NO TRIM
KIT**
Required Height of
Discharge Opening
Height of
Discharge
Opening
Clearance to
Top of
Discharge
Opening
Width of
Discharge
Opening
Clearance to
Top of Discharge
Opening From
Bottom of
Appliance
Clearance to
Bottom of Discharge
Opening from
Bottom of Appliance
6000 / 36
Inches 3-1/2 2 41 36-1/2 78 76
millimeters 89 51 1041 927 1981 1930
8000 / 42
Inches 3-1/2 2 43 42-1/2 80 78
millimeters 89 51 1092 1080 2032 1981
WARNING! Risk of Fire! Wire mesh required on
bottom of discharge opening (Dimension A) when
nished discharge opening is greater than 3 in.
(76 mm). Secure mesh to top of framing.
ROOM CEILING
1-1/2 IN. (2 X 4 FRAMING)
2 IN. MIN.
TV
1/2 IN. X 1/2 IN.
(13 mm x 13 mm)
WIRE MESH**
CHASE CEILING REQUIRED
WITHIN 3 IN. (76 mm) OF TOP
OF OPENING
WIRE MESH**
= PASSIVE HEAT
DISCHARGE OPENING
0-3 IN.
= CHASE CEILING ZONE
(0-76 mm)
(51 mm)
(90 x 35 mm for AU)
CHASE DETAIL
* Measurement for Trim Kit (PH-FRTTRIM-36 or PH-FRTTRIM-42) = 3-1/2 in. (89 mm) + Additional Finishing Material
Thickness
** Measurement without Trim Kit = 2 in. (51 mm) + Additional Finishing Material Thickness. If nished discharge
opening height is greater than 3 in. (76 mm), wire mesh is required.
A
D
B
E
C

6Hearth & Home Technologies • PH-MR Instructions • 2583-970 Rev. B • 1/23
Figure 5 Passive Heat Side Discharge Framing Dimensions
Framing Dimensions - Passive Heat Side Discharge
Side Discharge: Air conveyed into the room through two discharge registers,
one on each side of appliance.
WARNING! Risk of Fire! DO NOT place combustible
objects or combustible materials in non-combustible
zone. Appliance and combustible materials will overheat.
ROOM CEILING
1-1/2 IN. (2 X 4 FRAMING)
= PASSIVE HEAT
DISCHARGE OPENING
0-3 IN.
= CHASE CEILING ZONE
DISCHARGE OPENING
CHASE CEILING ZONE
CHASE CEILING REQUIRED WITHIN 3 IN.
OF TOP OF OPENING
(0-76 mm)
(90 x 35 mm for AU)
CHASE DETAIL
SIDE DISCHARGE FRAMING DIMENSIONS
A B C D E
Height of
Discharge
Opening
Width of
Discharge
Opening
Minimum
Clearance to
Discharge Opening From
Bottom of Appliance
Minimum
Clearance to Ceiling from
Bottom of Appliance
Minimum
Clearance to
Combustible
Materials
6000 / 36
8000 / 42
Inches 12-1/4 8-3/4 68-1/4 83-1/2 18
millimeters 311 222 1734 2121 457
Note: Trim Kit (PH-SIDETRIM) Required
APPLIANCE MAY BE INSTALLED
OFF OF FLOOR
B
A
D
C
E

7
Hearth & Home Technologies • PH-MR Instructions • 2583-970 Rev. B • 1/23
Figure 6 Passive Heat Minimum Framing Dimensions Open Top Discharge
*Mesh screen required for front discharge or open top discharge passive heat installations with discharge
opening of 3 in. (76 mm) or greater.
Framing Dimensions - Passive Heat Open Top Discharge
WARNING! Risk of Fire! Mesh screen required on bottom of discharge opening when discharge
opening is greater than 3 in, (76 mm). Secure mesh to top of framing.
Open Top Discharge: Both sides and the top are open allowing air to be conveyed into the room.
OPEN TOP DISCHARGE MINIMUM FRAMING DIMENSIONS
A* B C
Height of
Discharge Opening
Clearance to
Discharge Opening
Width of
Discharge Opening
6000 / 36 Inches 2 41 36-1/2
millimeters 51 1041 927
8000 / 42 Inches 2 41 42-1/2
millimeters 51 1041 1080
C
A
B

8Hearth & Home Technologies • PH-MR Instructions • 2583-970 Rev. B • 1/23
Adapter Installation - Front, Side and Open
Top Discharge
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
1. Remove rear stando󰀨s and discard. Retain two
screws. See Figure 7.
2. Remove ve knockouts from outer wrap as shown in
Figure 7 (A). It is recommended to use a tin snips
for removal of knockouts in order to avoid damage
to appliance. Remove the remaining two knockouts,
located inside the upper heat shield, as shown in
Figure 7 (B). Discard knockout pieces and ensure no
other material or debris is blocking the hole created
by removing the knockout.
3. Remove the elbow heat shield. See Figure 7.A.
4. Center adapter over opening with the solid portion
facing the front of the appliance as shown in Figure
8. Attach both adapters to appliance by installing
three screws per adapter. Figure 8 shows adapters
installed.
Note: If installing an additional Heat Management
System, refer to the instructions included with the kit for
further installation instructions.
Figure 7 Remove Knockouts
REMOVE
KNOCKOUTS
REMOVE KNOCKOUTS
REMOVE INSIDE KNOCKOUTS
A
B
ELBOW
HEAT SHIELD
REMOVE REAR STANDOFFS
Figure 8 Adapters Installed
FRONT VIEW
REAR VIEW
SOLID
PORTION

9
Hearth & Home Technologies • PH-MR Instructions • 2583-970 Rev. B • 1/23
Passive Heat Template - Front and Side
Discharge
Install the passive heat templates to prevent nishing
material from being installed over passive heat discharge
openings. Use two templates for front discharge and four
templates for side discharge.
1. Hand bend templates as shown in Figure 9.
2. Place one template into the top left corner of the
discharge opening as shown in Figure 10. Align
the outside edge of the framing with the notch in the
template as shown in Figure 11. Attach to framing
using wood screws.
3. Place the second template into the bottom right
corner and attach using the same method as in
Step 2. If installing templates on framing for a side
discharge kit, repeat the process for the additional
two templates on the other side discharge opening.
4. Once the wall nishing material has been installed,
remove the templates and discard. After the
templates have been removed, the trim kit, register,
or other nishing options may be installed.
TEMPLATES INSTALLED
(FRONT DISCHARGE SHOWN)
HAND BEND LINE
Figure 9 Hand Bending the Template
Figure 10 Template Installation
Figure 11 Template Notch Alignment
ALIGN NOTCH WITH
EDGE OF FRAMING

10 Hearth & Home Technologies • PH-MR Instructions • 2583-970 Rev. B • 1/23
Painting
Side Discharge:
If desired nishing includes a painted register cover,
Hearth & Home Technologies recommends using high
temperature paint with a minimum of 300 °F (149 °C) con-
tinuous exposure rating.
Finishing
1. Apply wall sheathing material, such as drywall up to
1/2 in. (13mm) thick up to the edge of the discharge
opening.
Front Discharge and Open Top Discharge:
The location of the Passive Heat discharge opening could
allow for venting and other construction materials to be
visible. It is acceptable to paint the vent pipe and other
construction materials using a high temperature paint
with a minimum of 300 °F (149 °C) continuous exposure
rating. Hearth & Home Technologies recommends using
black touch up paint (part number TUP-GBK-12) avail-
able from your Hearth & Home Technologies dealer.
WARNING! Risk of Overheating! DO NOT apply wall
sheathing past the edge of discharge opening or nishing
templates. Remove nishing templates before appliance
operation. Overheating of appliance and combustible
materials will occur.
2. Facing Material with Front Trim Kit (PH-FRTTRIM)
1 Inch Thick or Less: When using Non-Combustible fac-
ing material in this thickness range, the Overlap Fit meth-
od may be used. See Figure 12. Place facing materials
up to the edge of the discharge opening and install trim kit
as instructed. Facing must not interfere with the air ow
through the trim kit.
Greater than 1 Inch: Non-Combustible facing material in
this thickness range must use the Inside Fit method. See
Figure 12. Place facing materials up to ½ in. (13mm)
away from the edge of the trim kit to allow for proper re-
moval of the vent cover. Install trim kit as instructed. Con-
sult the appliance Installation Manual to determine maxi-
mum facing material thickness.
3. Facing Material with Side Discharge (PH-SIDETRIM)
1 Inch Thick or Less: When using Non-Combustible fac-
ing material in this thickness range, the Overlap Fit meth-
od may be used. See Figure 12. Place facing materials up
to the edge of the discharge opening and install register
covers as instructed. Facing must not interfere with the air
ow through the trim kit.
Greater than 1 Inch: Non-Combustible facing material in
this thickness range must use the Inside Fit method. See
Figure 12. Place facing materials up to the edge of the
register covers. Install register covers as instructed. See
Figure 14. Consult the appliance Installation Manual to
determine maximum facing material thickness.
4. Install trim kit (PH-FRTTRIM or PH-SIDETRIM) as in-
structed.
Side Discharge: The PH-SIDETRIM kit is required to
complete installation.
Front Discharge: The trim kit (PH-FRTTRIM-36 or PH-
FRTTRIM-42) is an optional nishing method. Other stan-
dard nishing methods may be used as well.
5. See Figure 13 to understand details and
requirements for Passive Heat nishing requirements.

11
Hearth & Home Technologies • PH-MR Instructions • 2583-970 Rev. B • 1/23
Figure 13 Finishing Material Installed
2 IN. MIN.*
DO NOT INSTALL
FINISHING MATERIAL
ON THIS SURFACE.
2 IN. (51 mm) MIN.
OPENING MUST
NOT BE BLOCKED
CEILING
CEILING
2 IN. MIN.*
DO NOT INSTALL
FINISHING MATERIAL
ON THIS SURFACE.
2 IN. (51 mm) MIN.
OPENING MUST NOT
BE BLOCKED
CEILING
SIDE DISCHARGE
(DISCHARGE SLOTS ON BOTH SIDES OF APPLIANCE)
FRONT DISCHARGE
OPEN TOP DISCHARGE
= COMBUSTIBLE MATERIAL ALLOWED
*= Mesh screen required for front discharge or open top discharge passive heat installations with
discharge opening of 3 in. (76 mm) or greater.
(51 mm) (51 mm)
8-3/4 IN.
(222 mm)
12-1/4 IN.
(311 mm)
REGISTER COVER
SLOTS FACE FRONT
OF APPLIANCE
NON-COMBUSTIBLE
FINISHING MATERIAL
INSIDE FIT = GREATER THAN
1 IN. THICK
1/2 IN. THICK WALL
SHEATHING
NON-COMBUSTIBLE
FINISHING MATERIAL
OVERLAP FIT = 0-1 IN. THICK
1/2 IN. THICK WALL
SHEATHING
INSIDE FIT OVERLAP FIT
Figure 12 Inside Fit and Overlap Fit

12 Hearth & Home Technologies • PH-MR Instructions • 2583-970 Rev. B • 1/23
Mantel Projections
If installing a television (TV) above the appliance, see
Section 2.B of the appliance Installation Manual.
NOTICE: A mantel is required if a fan is installed. Damage
to TV could occur.
Combustible Mantels - Passive Heat Installed
Figure 15 Minimum Vertical and Maximum Horizontal
Dimensions of Combustibles - Passive Heat Kit
Installed
6
12
Measurement from fireplace
opening to bottom of appliance:
= 33-1/2 IN. (36 INCH MODELS)
= 35-1/2 IN. (42 INCH MODELS)
Note:
All measurements
in inches.
Note: Measurement is taken from top of the opening,
NOT the top of the fireplace.
5
2-1/2
13
14
15
16
17
18
11
12
50
TO CEILING
7
8
9
10
6
12
13
14
15
16
17
18
Measurement from fireplace
opening to bottom of appliance:
= 33-1/2 IN. (36 INCH MODELS)
= 35-1/2 IN. (42 INCH MODELS)
Note: Measurement is taken from top of the opening,
78
9
10
11
12
6
50
TO CEILING
Note: All
measurements
in inches.
Figure 16 Minimum Vertical and Maximum Horizontal
Dimensions of Non-Combustibles - Passive Heat
Kit Installed
Non-Combustible Mantels - Passive Heat Installed
Install Register Cover - Side Discharge Only
WARNING! Risk of Overheating! Both passive heat
side discharge assemblies included with kit MUST be
installed and operational. Overheating will occur.
LOUVERS FACING THE FRONT OF THE APPLIANCE
(CONTROL SIDE)
Figure 14 Correct Register Orientation
WARNING! Risk of Fire! DO NOT block passive heat
registers! Overheating will occur.
1. Install register cover with louvers facing the front of
the replace (control side) using provided screws See
Figure 14.

13
Hearth & Home Technologies • PH-MR Instructions • 2583-970 Rev. B • 1/23
Passive Heat Kit Installed with Optional Heat-Zone-Gas
• Only one Heat-Zone-Gas kit may be installed and
used in conjunction with the Passive Heat System.
Installation of the HZMR-ADP kit is not required.
Passive Heat Kit Installed with Optional Heat-Out-Gas
• One Heat-Out-Gas kit may be installed and used in
conjunction with the Passive Heat Heat Management
System.
There are other heat management options available for
use with these models. Consult the appliance manual for
compatible options.
Installation of Passive Heat with Other
Optional Heat Management Systems
Please contact your Hearth & Home Technologies dealer
with any questions or concerns.
For the location of your nearest Hearth & Home
Technologies dealer,
please visit www.hearthnhome.com.
Hearth & Home Technologies
7571 215th Street West, Lakeville, MN 55044
www.hearthnhome.com
Maintenance
Service and maintain the gas replace per instructions.
Keep the air register(s) clean and free of any blockage.
The Passive Heat Kit is compatible with a GFK-160A or
GFK210-240V fan. Consult the appliance Installation
Manual for mantel projection information and TV
guidelines.
NOTICE: Cap must be removed from adapter prior to
attaching venting for the heat management kit. Heat-
Zone®-Gas and Heat-Out-Gas system will not function
properly if cap remains attached.
Figure 17 Adapter Prepared for Venting to be Attached
• Remove cap from the Passive Heat adapter and dis-
card the cap. The venting for the Heat-Zone-Gas kit
will attach directly on top of the Passive heat adapter.
See Figure 17.
• Refer to the instructions included with the Heat-Zone-
Gas kit for more information.
WARNING! Risk of Overheating! Be sure the venting
does not does not extend past the rib on Passive Heat
adapter. If venting or insulation is blocking holes in the
Passive Heat adapter overheating of chase could occur.
• Remove covers from the Passive Heat adapters and
discard the covers. The venting for the Heat-Out-Gas
kit will attach directly on top of the Passive heat adapt-
er. See Figure 17.
• Refer to the instructions included with the HEAT-OUT-
GAS kit for more information.
WARNING! Risk of Overheating! DO NOT block the
holes on the Passive Heat adapter. Venting MUST not
extend past the rib on the Passive Heat adapter. If venting
or insulation is blocking holes in the Passive Heat adapter
overheating of chase could occur.
REMOVE COVERS FROM ADAPTERS
VENTING
ATTACHES HERE
VENTING
ATTACHES
HERE
VENT
MUST NOT
COVER
HOLES
NO VENTING
BEYOND RIB
RIB
RIB
