Heidolph REAX 2 User manual

Leading Safety Standards Superior Ease of Use Reduced Cost of Ownership
Temperature
Controlled Shaking
Overhead Shaker Hei-MIX Reax 2
Operating manual must be read before initial start-up.
Please follow the safety instructions provided.
Please keep for future reference.
Überkopfschüttler Hei-MIX Reax 2
Betriebsanleitung vor Erstinbetriebnahme unbedingt lesen.
Sicherheitshinweise beachten.
Für künftige Verwendung aufbewahren.
Operating Manual Page 2
Original-Betriebsanleitung Seite 22

Contents
Inhaltsverzeichnis
About this Document 4
Version .............................................................................................................4
About this manual ..............................................................................................4
Terms and signs used..........................................................................................5
Safety Instructions 6
General safety instructions...................................................................................6
EC Declaration of Conformity.........................................................................6
Intended use...............................................................................................6
Installation / Electrical safety .......................................................................7
Personnel qualication..................................................................................7
Operating company’s obligations...........................................................................7
Installation site ...........................................................................................7
Changes to the unit .....................................................................................8
Safety for the personnel ...............................................................................8
Safety during use ...............................................................................................8
Disposal ............................................................................................................8
Device Description 9
Device overview .................................................................................................9
Overall view................................................................................................9
Control panel ..............................................................................................9
Start-Up 10
Setting up device .............................................................................................10
Switch unit on and off .......................................................................................10
Connect/disconnect power cord ..........................................................................10

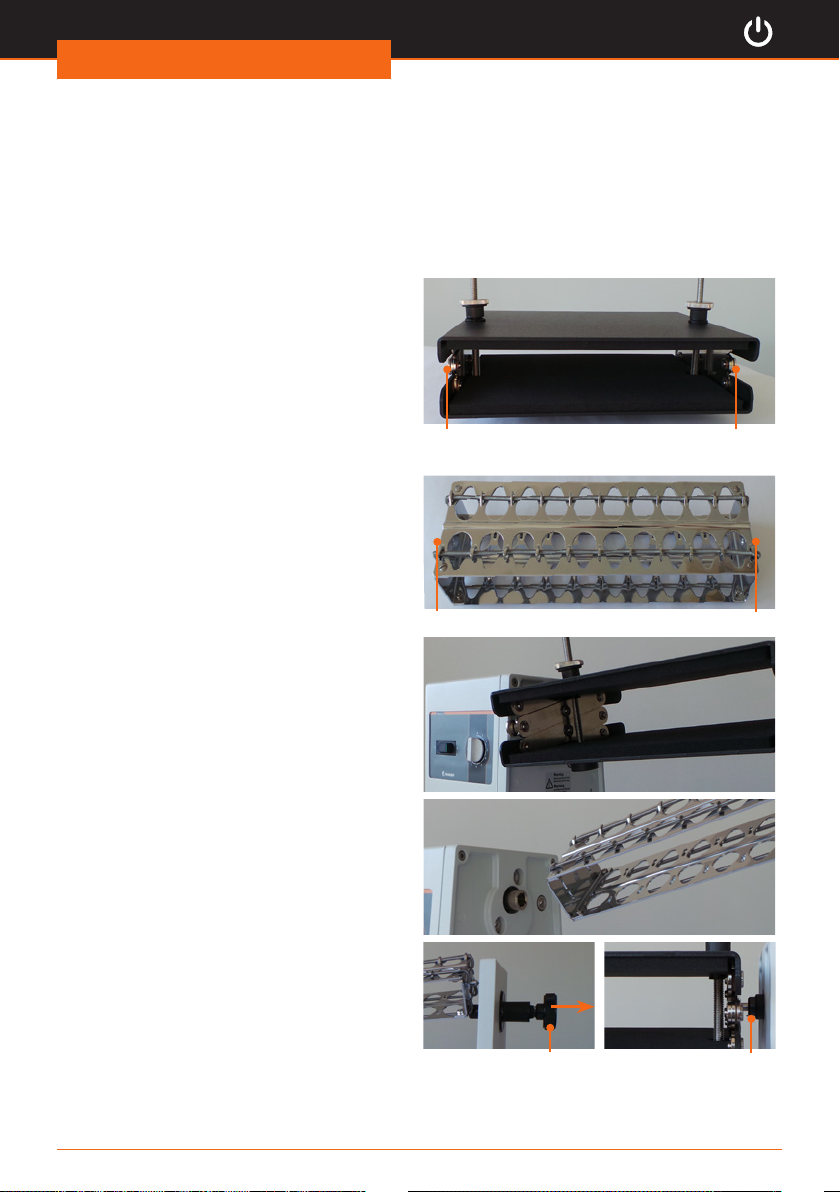

Inserting Adaptor .............................................................................................11
Operation 12
Operation and controls ......................................................................................12
Installing vessels: Universal adaptor ............................................................12
Installing vessels: Adaptor 1 .......................................................................12
Starting rotation........................................................................................13
Operating Manual

Contents
Cleaning and Maintenance 14
Cleaning..........................................................................................................14
Maintenance ....................................................................................................14
Troubleshooting 14
Possible errors and how to resolve ......................................................................14
Assembly 15

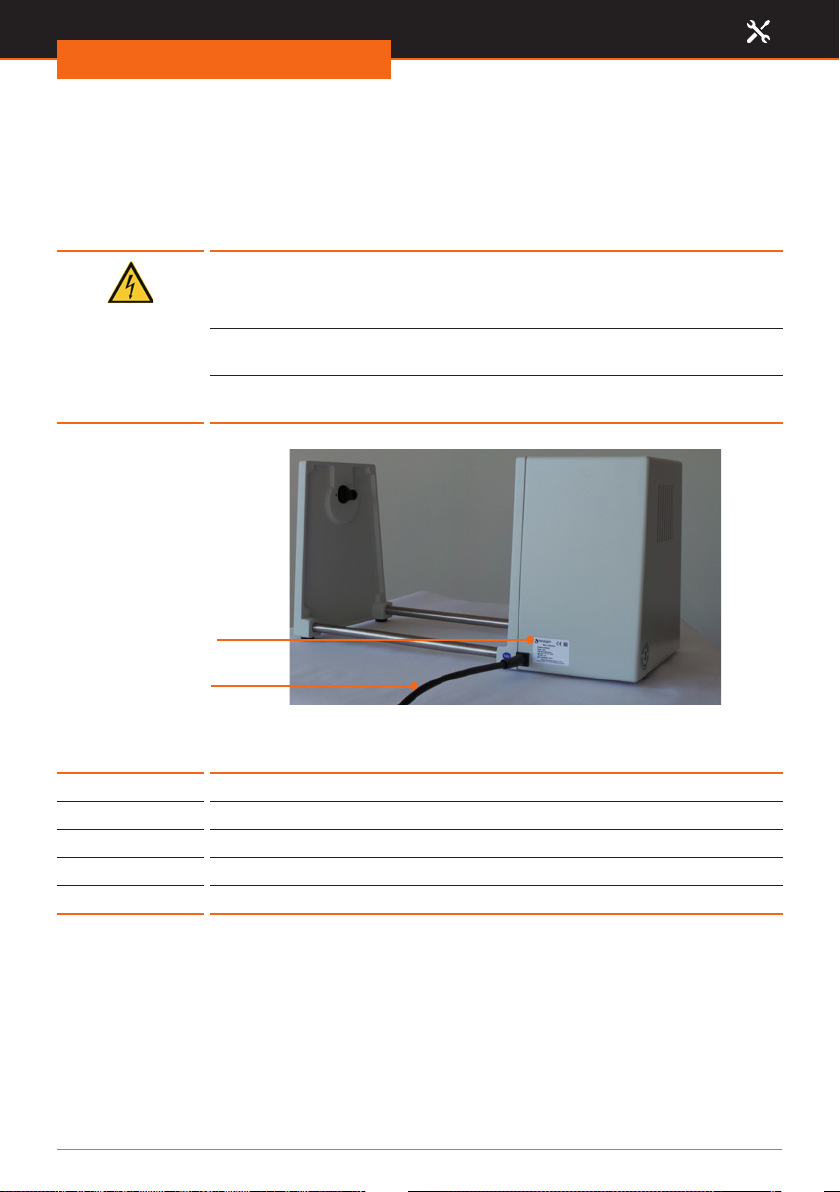

Electrical connections........................................................................................15
Disassembly and Storage 16
Dismantling, transportation and storage ..............................................................16
Dismantling ..............................................................................................16
Transportation and storage .........................................................................16
Accessories and Spare Parts 17
Scope of delivery..............................................................................................17
Accessories......................................................................................................17
Attachments 18
Technical data ..................................................................................................18
Service 19
Contact / Technical Service ................................................................................19
Warranty.........................................................................................................20
Conrmation of condition of unit.........................................................................21

About this Document
4
About this Document
Version
Version
This manual describes the function, operation and maintenance of the Overhead Shaker
Hei-MIX Reax 2.
Version Alteration date
1.1 04/2016
About this manual
This operating manual is a component of the device described here.
➜Please read this manual carefully and obey all safety and warning
notices.
➜Ensure that every operator reads this manual.
➜Ensure that this manual is accessible for every operator.
➜Pass on the operating manual to the subsequent owner.
For the current version of this operating manual in pdf format, please
go to:
http://www.heidolph-instruments.com/Support/Operation Manuals/
Shakers & Mixers/Reax and Multi Reax/Reax 2
In addition, please observe the regional regulations.

5
About this Document
Terms and signs used
In this manual you will  nd standardized terms and signs to warn you of possible dangers
or give important hints. Please take special notice to these signs to avoid personal injury
or damage to the appliance.
The following terms and type of signs (basic drawing elements) are used:
Symbol Additional term / Description
Warning signs The yellow triangle indicates hazardous situations. It is used in
combination with the following terms:
DANGER:
Indicates a hazardous situation which, if not avoided, will result in
irreversible injury or death.
WARNING:
Indicates a hazardous situation which, if not avoided, could result in
serious injury or material damage.
CAUTION:
Indicates a hazardous situation which, if not avoided, may result in a
minor injury or material damage.
Prohibitory
signs Not to do:
The red circle indicates a situation that should be avoided under all
circumstances to avoid injury or damage.
Mandatory
signs
To do:
The blue circle indicates important information. Please obey to avoid
property damage.
Other signs used
Symbol Description
➜Handling instruction, action required
✓Result of action
▪
▪
▪
List of information
a.
b.
c.
List of variants

Safety Instructions
6
Safety Instructions
General safety instructions
EC Declaration of Conformity
This device complies with the following EC-Directives*:
▪2006/42/EC Machinery Directive
▪2006/95/EC Low-Voltage Directive
▪2004/108/EC Electromagnetic Compatibility Directive
*Also see attachment „EC Declaration of Conformity”.
The device has been constructed according to state-of-the-art technology and recognized
safety regulations. However, risks may still arise during installation, operation and
maintenance.
➜Please ensure the operating manual is available at all times.
The device may only be used under the following circumstances:
➜Only operate the device, if it is in full working order.
➜Ensure all operators of the device possess the necessary safety and risk awareness.
➜Operate the device according to the instructions stipulated in this manual only.
➜If there is something you do not understand, or certain information is missing, ask
your manager or contact the manufacturer.
➜Do not do anything on the device without authorization.
➜Only use the device according to its intended use.
Intended use
The device is intended for use by trained and authorized personnel only.
The device is suitable for the
following use:
▪stirring
▪mixing
▪blending of solvents and/or solids
The operation for the device
is suitable in one of the
following locations:
▪in any research application
Improper use
Any use which deviates from the device’s intended use is considered to be improper. The
manufacturer does not accept liability for any damages resulting from non-permitted
uses. The risk is carried by the operator alone.

7
Safety Instructions
Installation / Electrical safety
▪The device may only be connected when the mains voltage corresponds to the infor-
mation on the type plate of the unit.
▪The mains connection must be accessible at all times.
▪Repairs may only be performed by a qualied electrician.
▪Never operate the unit with a damaged power cord.
▪Always turn the unit OFF and disconnect mains power before performing any
maintenance or service.
Personnel qualication
▪The device may only be operated by qualied persons.
▪The device may only be operated by individuals who have been instructed in its
proper use by qualied persons.
▪The device may only be operated and maintained by persons who are of legal age.
▪Other personnel may only work with the unit under continuous supervision of an
experienced qualied operator.
▪This manual must be read and understood by all persons working with the device.
▪The personnel must have received special safety instructions in order to guarantee
responsible and safe work procedures.
Operating company’s obligations
Installation site
▪The device must be positioned in a suitable location.
▪The device must be installed sufciently stable.
▪Ensure sufcient space in near proximity to the unit to allow free rotation.
▪All screw connections must be securely tightened.
▪Do not operate the device in proximity of highly inammable and explosive substances.
▪Installation and operation of the device is only permitted in facilities which are tted
with the appropriate laboratory equipment (e.g. with air extraction units).
▪We recommend operation in fume hood enclosures.
▪The device may only be operated in enclosed spaces and under the following environ-
mental conditions:
Ambient temperature ▪5 - 31 °C at 80 % relative humidity, no condensation
▪32 - 40 °C decrease linearly till max. 50 % relative
humidity
Depending on the medium used:
➜Only operate the device in conjunction with an extractor hood (at least 10-fold air
change, with error monitoring), see DIN EN 14175 and DIN 12924.

Safety Instructions
8
Changes to the unit
▪No unauthorized changes may be made to the unit.
▪No parts may be used which have not been approved by the manufacturer.
▪Unauthorized changes result in the EC Declaration of Conformity loosing its validity,
and the appliance may no longer be operated.
▪The manufacturer is not liable for any damage, danger or injuries that result from
unauthorized changes or from operating the unit other than described in this manual.
Safety for the personnel
➜Ensure that only qualied personnel operate the device.
➜Observe the following regulations:
- Laboratory guidelines
- Accident prevention regulation
- Ordinance on Hazardous Substances
- Other generally accepted rules of safety engineering and occupational health
- Local regulations
Safety during use
➜Wear the appropriate protective clothing when working on the device (protective
glasses and, if necessary, safety gloves).
➜Do not use the device in potentially explosive areas. The device is not protected
against explosion. There is no explosion or ATEX protection available.
➜Do not operate or assemble devices in the vicinity which are emission or radiation
sources (electromagnetic waves) for the frequency range (3*1011 Hz to 3*1015 Hz).
➜Avoid putting pressure on the display when you do not operate the device.
➜Eliminate errors immediately.
➜Do not use abrasive material to clean the glass surfaces. Only wipe with damp cloths.
➜Always switch the mains off after use.
Disposal
➜Check the device components for hazardous substances and solvents.
➜Clean all components before disposal.
➜Dispose of the device according to the valid national legal regulations.
➜Dispose of the packaging material in accordance with the valid national legal
regulations.

Device Description
9
Device Description
Device overview
Overall view
Universal adaptor
overhead rotation
Control panel
Example
Erlenmeyer asks
Control panel
Analog knob:
set rotation speed
Toggle switch
ON/OFF

Start-Up
10
Start-Up
Setting up device
Warning:
Risk of slipping device!
As a result of vibrations generated during operation the device might
slide off the table top.
The surface must be smooth and clean, should be properly leveled
and has to feature an anti-skid surface coat.
➜Locate the shaker on a stable, horizontal surface.
➜Clean surface and feet with a damp cloth and ethanol regularly.

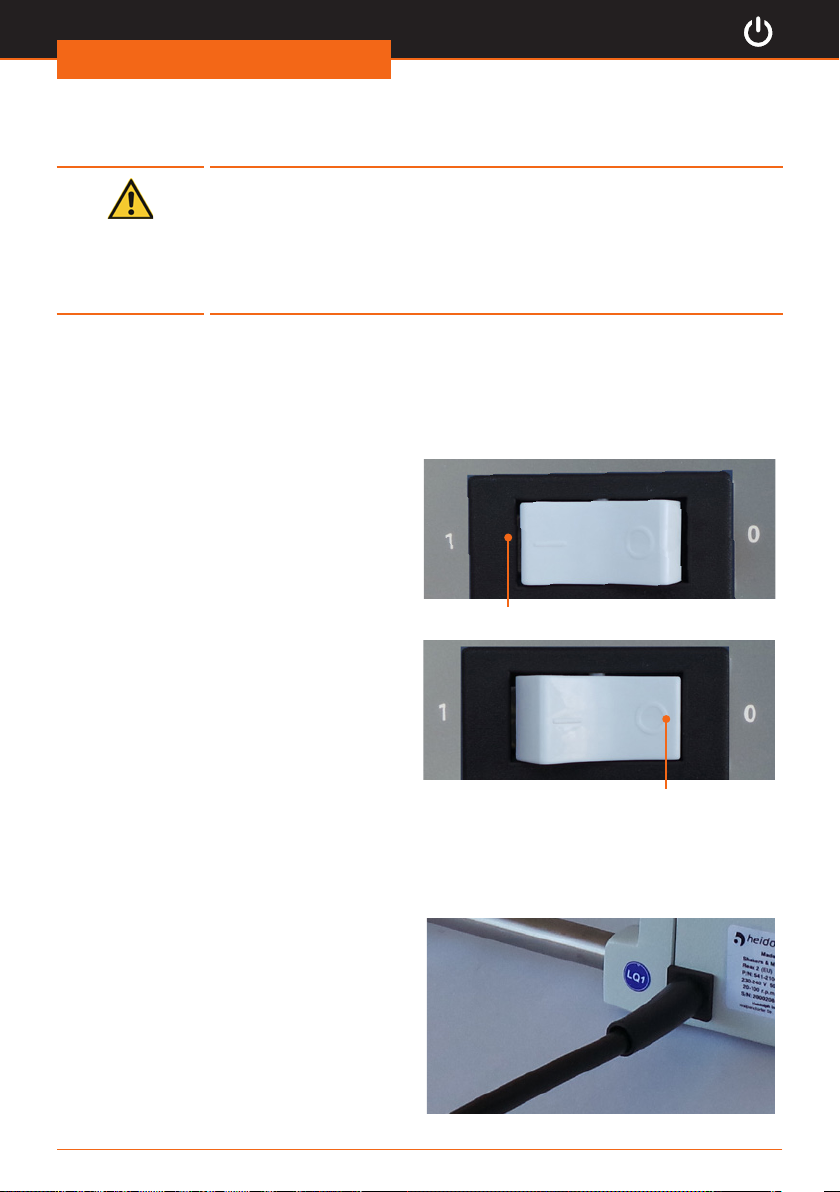

Switch unit on and off
Switch unit on
➜Press the ON/OFF switch at the left
side.
✓The green control light switches on.
✓The unit is switched on.
ON/OFF switch: device switched on
Switch unit off
➜Press the ON/OFF switch at the right
side.
✓The green control light switches off.
✓The unit is switched off.
ON/OFF switch: device switched off
Connect/disconnect power cord
The three-phase socket is rmly connected
to the unit.
The connection is at the rear side of the
unit.
✓The toggle switch ON/OFF is in the “Off
“position.
➜Connect the power cord with a
grounded socket.
➜Disconnect the plug if the unit is not
in use.

Start-Up
11
Inserting Adaptor
There are two adaptors available to meet with a wide range of applications:
▪„Universal adaptor” for any kind of vessels or racks
▪„Adaptor 1” for test tubes
A square bolt is situated on one side of
the adaptor.
On the opposite you will nd a rounded
pin.
Square bolt Rounded pin
Universal adaptor
Square bolt Rounded pin
Adaptor 1
➜First this square bolt is inserted into
the carrier at the right side of the
housing.
➜Then the knurled grip is drawn and the
rounded pin is placed in the receptacle.
➜Release knurled grip.
Knurled grip Receptacle

Operation
12
Operation
Operation and controls
Installing vessels: Universal adaptor
The construction of the universal adaptor allows to x different vessels with ground-in
stoppers or screwed caps as well as complete test tube racks.
Dimensions of vessels suitable for usage:
▪height min./max. 45 mm/160 mm
▪width max. 230 mm
➜To that end, the two quick-clamping
nuts are loosened by turning them
once or twice.
➜When they are in an inclined position,
the quick-clamping nuts can be moved
along the threaded bolt.
✓The universal adaptor can be
opened to a width from 45-160 mm,
depending on the case of application.
➜Then the vessels or the test tube rack
can be put into the adaptor, as shown
in the illustration.
➜Next the cover plate is pressed down
and secured with the quick-clamping
nuts. (To this end, move the quick-
clamping nuts along the threaded bolt
and tighten them by turning them
once or twice.)
Cover plate
Quick-clamping nuts
Threaded bolts
Installing vessels: Adaptor 1
Adaptor 1 can hold 20 test tubes with diameters from 10 -18 mm.
A tension ring runs above the gap of the
test tubes in two levels.
➜Pull the tension ring on the 1st level
above the gap towards the middle of
the adaptor.
➜Move the test tube in front of the
tension spring through the gap, so that
the tension ring pushes the test tube
against the narrow side of the gap to
the outside.
➜Move the test tube further through the
2nd level and repeat to tensioning the
spring.
Test tubes

Operation
13
Starting rotation
Caution:
Risk of breakage and spillage
If the vessels are not attached securely they may fall out and spill
the sample.
Prior to switching the unit on ensure that all vessels are securely
fastened.
Warning:
Risk of poisoning
Open vessels will result in samples splashing.
Close all vessels tight especially if sample is dangerous or toxic.
Adjust rotation speed step by step until you have reached the
required rpm settings.
Wear safety glasses and especially with dangerous and toxic samples
appropriate protective clothing.
A single  ask should be arranged in the middle of the shaker plate.
Several  asks should be distributed equally on the plate.
The rotation of the adaptor is steplessly adjustable in the range from 20-100 rpm
through the control knob. Rotation starts as soon as unit is switched on.
An electronic overspeed monitor provides for constant rotation.
➜Turn unit on with the ON/OFF switch.
➜Set rotation speed with analog knob.
➜When the ON/OFF switch is switched off the adaptor can be turned to the desired
position by hand.
When using shakers inside conditioning cabinets, make reference to
ambient conditions as stipulated in the “Technical data” section.

14
Cleaning and Maintenance
Cleaning and Maintenance
Cleaning
All surfaces of the unit allow for cleaning with a damp cloth and if required a mild soap lotion.
Attention:
Damage to the surfaces
All surfaces can be damaged by improper cleaning.
In any case do not use:
▪Chlorine bleach or any cleaning agent including chlorine
▪Ammonia
▪Abrasive cleaning agents such as cleaning rags, scrubbing agents
or any other agents which include metal components
As a result of vibrations generated during operation the device might
slide off the table top.
To ensure a stable position clean surface and feet with a damp cloth
and ethanol regularly.
Maintenance
The unit is maintenance-free. Any necessary repair must be performed by an authorized
Heidolph distributor.
Please contact Heidolph Instruments or your local Heidolph Instruments distributor.
Troubleshooting
Possible errors and how to resolve
Malfunctions Possible reason Troubleshooting
On-/Off switch does not
enlighten
No power ▪Check size and shape of
plug and compatibility to
your electrical socket
▪Check circuit breakers
Light diode defective Contact your local Heidolph
Instruments distributor
Unit stops rotating Thermal motor circuit
breaker triggered by motor
overload.
Wait 20 minutes, decrease
overall load
▪Mechanical parts broken
▪Electronic failure
Contact your local Heidolph
Instruments distributor
If you experience a malfunction which can not be resolved, please contact your authorized
Heidolph Instruments distributor immediately.

Assembly
15
Assembly
Electrical connections
▪This unit must only be connected by a professional electrician.
▪Repairs of any kind are allowed by qualied professionals only.
Any improper repair can result in a dangerous situation. Contact your local Heidolph
Instruments distributor for any repair you may have.
Warning:
Electric shock!
This unit must only be connected to a grounded electrical socket.
The unit and voltage must match. The type label on the back side of
the unit provides all voltage specics (see picture below).
When shipped, the unit is grounded. In case the original plug is
changed, the new plug must have a protective conductor!
Rating plate
Power cord
Color code for electrical connections:
Green/Yellow PE: Protective conductor (Earth)
Blue N: Neutral conductor
Brown P: Phase
Black P: Phase
Grey P: Phase
The unit is connected with the power cord supplied to the electrical socket. It plugs into
the housing on the rear side of the unit.
For countries utilizing a plug other than the standard one supplied:
▪The plug supplied may only be changed by a professional electrician.
▪If utilizing an adaptor ensure that it is approved by the local regulations.

Disassembly and Storage
16
Disassembly and Storage
Dismantling, transportation and storage
Dismantling
Warning:
Risk of injury!
While the unit is plugged in you might be at harm if the device is
accidentally switched to ON mode.
Prior to dismantling unit ensure that the unit is switched off and the
plug is pulled from the electric socket.
✓The unit is switched off.
➜Disconnect plug from power socket.
➜Remove all vessels.
➜Remove adaptor.
Transportation and storage
➜Store and transport the unit and its components only if they were emptied and
cleaned in the original packing material.
➜Alternatively store and transport the unit in a container which prevents damages
during transportation.
➜Seal the packing carefully against unauthorized or mistaken opening.
➜Store the unit in a dry place.
Improper transportation may result in damages to the system and
the mechanical components.
Avoid any kind of shocks during transportation.

Accessories and Spare Parts
17
Accessories and Spare Parts
Scope of delivery
Component Quantity Product number
Hei-MIX Reax 2 1 541-21001-00
Universal adaptor 1 549-30000-00
Operating Manual English / German 1 01-005-001-49
Warranty registration / Conrmation of condition 1 01-006-002-78
EC Declaration of Conformity 1 01-001-025-06
Power cord 1 depending on country
Accessories
Component Quantity Product number
Adaptor 1 for 20 test tubes 1 509-08100-00
Additional accessories are shown in the general catalog or on our website at
www.heidolph-instruments.com

Attachments
18
Attachments
Technical data
Hei-MIX Reax 2
Standard supply voltage 230 V/50 Hz or 115 V/60 Hz
Operational voltage 85 - 260 V (50/60 Hz)
Supply power (W) 27
Protection class
(DIN EN 60529)
IP 21
Drive EC-motor
Overload overheat protection, self reset
Speed control electronic
Motion overhead rotation
Speed range (rpm) 20 - 100
Rotation speed setting analog
Dimensions (mm) (w x h x d) 510 x 180 x 235
Effective area 230 x 160
Weight (kg) 5.2
Load capacity (kg) 1
Permissible ambient conditions ▪5 - 40 °C
▪80 % relative humidity, no condensation at 5 - 31 °C,
linear decreasing to 50 % at 40 °C

19
Service
Service
Contact / Technical Service
Questions / Repair work
If any aspect of installation, operation or maintenance remains unanswered in the
present manual, please get in touch with the following address.
For repairs please call Heidolph Instruments or your local authorized Heidolph
Instruments distributor.
Warning:
Danger of poisoning!
Contaminated units can lead to severe injury or death of our
employees!
When shipping items for repair that may have been contaminated by
hazardous substances, please
▪advise exact substance
▪take adequate protective action towards our parts receiving and
service personnel
▪mark the pack in accordance with Ordinance on Hazardous
Substances
Included at the end of this manual you will  nd a „Con rmation of condition of unit”.
➜Kindly copy and  ll in this form and submit it prior to shipping the unit for repair.
Contact details:
Heidolph Instruments Germany
Heidolph Instruments GmbH & Co. KG
Technical Service
Walpersdorfer Str. 12
D-91126 Schwabach / Germany
Tel.: +49 – 9122 - 9920-74
Fax: +49 – 9122 - 9920-84
E-Mail: [email protected]
www.heidolph.de
Heidolph Instruments North America
Phone: [phone]
E-mail: [email protected]
www.heidolphNA.com
Heidolph Instruments United Kingdom
Phone: 01799 - 5133-20
E-mail: [email protected]
www.heidolph-instruments.co.uk
All other countries
You will  nd contact details of your local Heidolph distributor at
www.heidolph.com

20
Service
Warranty
Heidolph Instruments provides a 3-year warranty for the
products described here (excluding glass and wearing parts)
if you register using the warranty card enclosed or online
(www.heidolph.com). The warranty is valid from the point of
registration. The serial number is also valid without registering.
The warranty covers part and manufacturing defects.
In the case of a part or manufacturing defect, the device shall be repaired or replaced
free of charge under the terms of the warranty.
Heidolph Instruments shall not assume liability for any damages incurred as a result of
improper handling or transport.
Warranty claim?
➜Please inform Heidolph Instruments or your local Heidolph distributor should you wish
to make a warranty claim.
