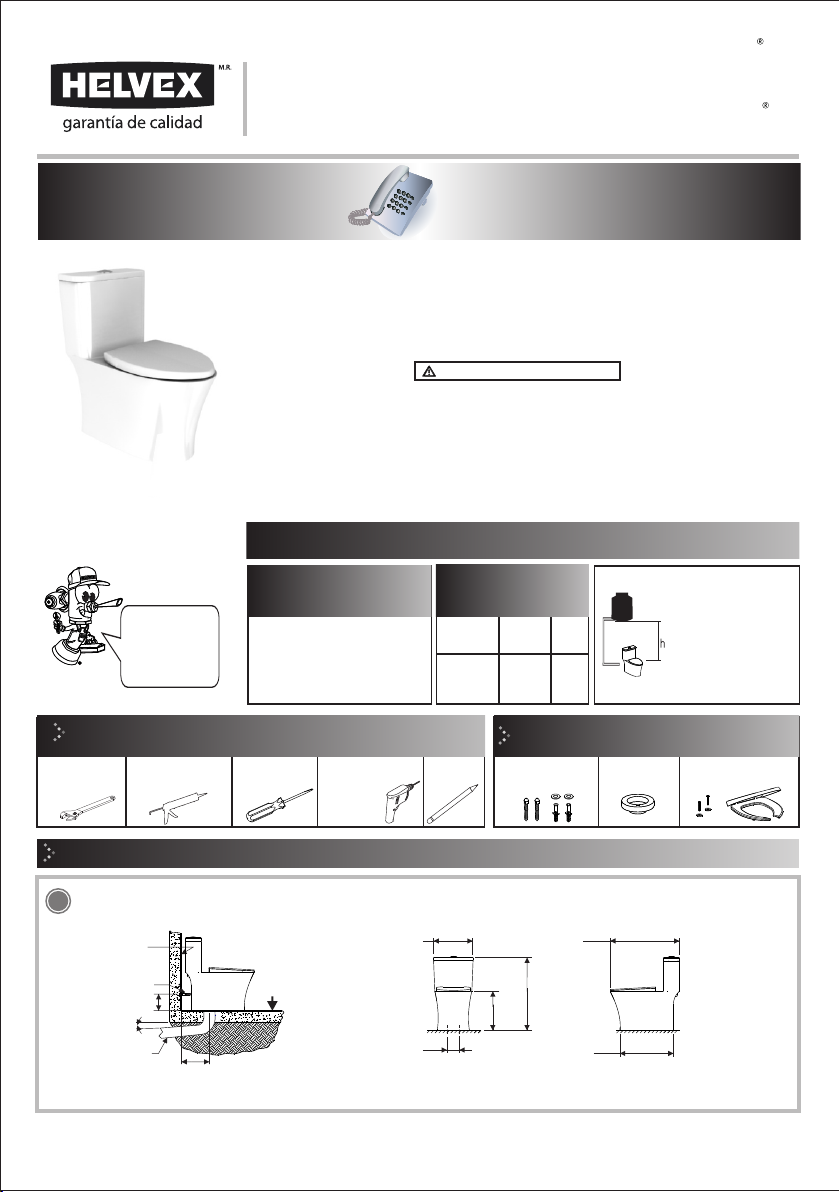

Helvex OP RIVOLI PLUS User manual

*15 cm (5,9”)
tubería de
PVC Ø 4”
(Nivel de Piso
Terminado)
pared con
acabado final
válvula de paso
*30,5 cm (12”)
NPT
2%
wall finish
off valve
PVC pipe Ø 4 “
(Finished Floor
Level)
silicone antifungal
silicón antihongos
screwdriver
destornillador
Ø 3/8“ dril bit
taladro con broca
de Ø 3/8” pencil
lápiz
Artículos incluidos en el Producto
/ Items Included in the Product
Instalación General / General Installation
fixing package
paquete de fijación
*Medidas Recomendadas
Instale la taza de acuerdo a las distancias que se muestran en la figura. / Attach the toilet according to the distances shown in Fig.
* Recommended Dimmensions
41,3 cm
(16,2”)
79,1 cm
(31,1”)
40,5 cm
(15,9”)
Hola soy Fluxy, te
ayudaré a instalar
tu producto.
INSTALLATION GUIDE
GUÍA DE INSTALACIÓN
Hi I'm Fluxy, I'll
help you to install
your product.
One Piece RIVOLI PLUS Trampa Oculta, una Descarga 4.8 l,
con Asiento de Cierre Lento, Color Marfil. / RIVOLI PLUS
Concealed Trap, 4.8 l per Flush, Bone Color, One Piece Toilet
with Slow Closing Seat.
2,5 m
30 m
60 m
PSI
Altura (h)
3,55
42,67
85,34
kg/cm²
0,25
3,0
6,0
Cada metro de altura de su
producto a la base del tinaco
equivalen a (0,1 kg/cm²) [1,42
psi].
Every meter of height of your
product to the base of the tub
is equivalent to (0,1 kg/cm²)
[1,42 psi].
Height (h)
Para el correcto funcionamiento de este
producto, la presión mínima es de (0,25
kg/cm²) 3,55 PSI y la máxima es de (6,0
kg/cm²) 85,34 PSI.
For the correct operation of this product, the
minimum pressure is (0,25 kg/cm²) 3,55 PSI
and the maximum is (6,0 kg/cm²) 85,34 PSI.
seat AT-4
asiento AT-4
wax ring
cuello de cera
ADVERTENCIA / WARNING
Para disminuir el riesgo de lesiones o daños a la propiedad, lea todas las instrucciones antes de
instalar el producto. Utilice gafas de seguridad. En obras de construcción, instalación, modificación,
ampliación y reparación deben cumplir con el reglamento de construcción y obras de su localidad.
El producto ilustrado puede sufrir cambios de aspecto como resultado de la mejora continua a la que
está sujeto.
Agradecemos su elección por los productos HELVEX. Estamos seguros de que su confiabilidad por el
producto excederá sus más altas expectativas, cuya funcionalidad, estética, durabilidad, respaldo
integral y alta calidad le otorgarán plena satisfacción por años, reflejando el compromiso con la
calidad, innovación y el medio ambiente que forman parte de Helvex.
Thank you for choosing HELVEX products. We are confident that the product reliability will exceed
your maximum expectations. The functionality, aesthetics, durability, quality and support will grant you
full satisfaction for years, it is Helvex commitment to the quality, innovation and the environment.
To reduce the risk of injury or property damage, read all instructions. Before installing the product,
please remember to use safety glasses. Apply building normative for any construction, installation,
alteration, extension or repair. As result of continuous improvement, the product illustration may
change in appearance.
Esta guía de instalación aplica al producto en cualquier acabado. / This installation
guide applies to the product in any finish.
Requerimientos de
Instalación
Relación
Altura Tinaco-Presión
Installation Requirements Relation
Tub Height-Pressure
Herramienta Requerida / Required Tools
2
53,4 cm
(21,0”)
75,0 cm
(29,5”)
Vista Frontal / Front View Vista Lateral / Side View
OP RIVOLI PLUS M
OP RIVOLI PLUS
One Piece RIVOLI PLUS Trampa Oculta, una Descarga 4.8 l,
con Asiento de Cierre Lento, Color Blanco. / RIVOLI PLUS
Concealed Trap, 4.8 l per Flush, White Color, One Piece Toilet
with Slow Closing Seat.
[email protected]
Original Spare Parts:
Consultancy and Technical
01(55)53339431
01800 909 2020 01 (55) 53 33 94 00
Refacciones Originales:
Asesoría y Servicio Técnico:
Ext. 5068, 5815 y 5913
Service:
53 33 94 21
01 800 890 0594
[email protected]
Inodoro para
Discapacitados
Toilet for people
with disability
15,0 cm
(5,9”)
1
perico
adjustable
wrench
drain
Wall Finish
Vista Superior / Top View
90° Muro Terminado
30,5 cm
(12”)
15,0 cm
(5,9”)
válvula de paso (no incluida)
20 cm
(7,8”)
desagüe
Shutoff valve (not included)
Trace sus líneas como se indica. /
Trace lines as indicated.
tubo de
drenaje
drain tube
12,5 cm
(4,9”)
tubo de
drenaje
drain tube
barreno
hole
tuerca (incluida)
pija
(incluida)
pija con
tuerca
screw with nut
nut (included)
lag
(included)
4 cm mín.
(1,57" min.)
5
Instale el cuello de cera (incluido) o la brida sanitaria (no incluida) y coloque la taza presionando hacia abajo. / Install the wax ring or toilet flange
(not included) and place the bowl by pressing down.
tuerca
pija
No apretar las tuercas más de lo necesario, para evitar daños a su
producto. / Do not tight more than necessary to avoid damage
Instalación One Piece / Toilet Installation
cuello de cera
(incluido)
Instalación con
brida sanitaria
drain
wax ring
(included)
nut
screw
brida sanitaria
(no incuida)
toilet flange
(not included)
rondana
washer
Barrene con broca de Ø 3/8” para
concreto (no incluída) y coloque los
taquetes (incluidos) en los barrenos. /
Drill with Ø 3/8" drill bit for concrete (not
included) and place the anchors
(includes) into the holes.
Enrosque las pijas (incluidas) en los
taquetes al piso. / Screw the lags
(included) in the ground anchors.
taquetes
(incluidos)
anchors
(included)
Coloque el sistema de sujeción como se muestra acontinuación. /Place the fastening system as shown below.
desagüe
Installation with toilet flange
Instalación con
cuello de cera
Installation with wax ring
2
Nota: Puede utilizar los barrenos para fijación que están
alineados a la descarga o los que se encuentran
desplazados hacia atrás. / Note: You can use the
mounting drill holes that are aligned to the drain or the
ones displaced backwards.
2 3 4
5
6
Instalación Manguera / Hose Installation
Enrosque la manguera (no incluida) a la reducción (incluida). /
Screw the hose (not included) to reducing (included).
Coloque la tapa. / Place the lid of the tank.
manguera 1/2-14 NPSM a 1/2-14 NPSM (no incluida)
hose 1/2-14 NPSM to 1/2-14 NPSM (not included)
Instalación Asiento / Installing Seat
Abra los cubretornillos y coloque el asiento en el inodoro,
introduzca la rondana como se muestra y enrosque el tornillo
hasta apretar. / Open the cover screws and place the seat in the
toilet, enter the washer as shown and tighten the screw until tight.
Enrosque la manguera (no incluida) a la llave angular (no
incluida). / Tighten hose (not included) to the shutoff (not
included).
Purgue la línea de alimentación antes de conectar.
Purge the supply line before connecting.
llave angular
hose
not included
shutoff valve
Aplique silicón antihongos (no incluido) en la periferia del W. C.
/ Apply antifungal silicone (not included) in the periphery of the
toilet.
manguera
(no incluida)
cubretornillos
cover screw
tornillo
screw
rondana
washer
Cierre los cubretornillos / Close the cover screws
cover screw
cubre tornillos
silicón antihongos
(no incluido)
antifungal silicone
(not included)
3
válvula de alimentación
15/16”-14 NS-1
con reducción a 1/2-14 NPSM
feed valve
15/16 "-14 NS-1
with reduction to 1/2-14 NPSM
Nota: Se incluye una reducción ø15/16-14 NS-1 a 1/2-14 NPSM para la válvula de
admisión. Note: It includes a reduction ø15 / 16-14 NS-1 to 1/2-14 NPSM for the intake
valve.
78
910
11 12
*Recommended Dimmensions
*Medidas Recomendadas
Verifique la distancia del espárrago del botón, para una óptima descarga. / Check the length of the stud for optimal flush.
Ajuste, si es necesario.
/ Adjust if necessary.
botón de descarga (4,8 l)
flush button (1,26 gal)
Abra la línea de alimentación y oprima el botón de descarga una sóla vez. El inodoro cuenta con un sistema de limpieza única que opera con
4,8 l. / Open the supply line and press the button only once. The toilet has a unique cleaning system that operates with 1,26 gal.
Operación del Inodoro / Toilet Operation
llave angular
(no incluida)
shutoff valve
(not included)
Operación Asiento / Seat Operation
Para abrir levante la tapa y/o asiento y para cerrar sólo empuje el asiento o tapa hacia la taza. / To open, lift the cover and / or seat and to close
just push the seat or cover to the toilet.
Para abrir / To open Para cerrar / To close
*8,3 cm
*(3,2”)
espárrago
stud
Evite mantener oprimido el botón por
mas de 1 segundo para evitar descargas
mayores. / Do not press the button for
more than 1 second to avoid water waste.
4
13
14
15
Con un cepillo suave limpie el filtro, la malla y el o’ring a chorro
de agua. / Use a soft brush to clean the filter, the mesh and the
oring with water jet.
filtro
filter
Desenrosque la reducción, retire el filtro y la
malla con el o’ring. / Unscrew the reduction,
remove the filter and mesh with the oring.
filtro
filter
Inserte el filtro y la malla con el o’ring; enrosque la reducción y la
manguera (no incluida). / Insert the filter and tighten the
reduction and the hose (not included).
filtro
filter
manguera
(no incluida)
hose
(not included)
Cierre la línea de alimentación y desenrosque la manguera de la reducción. /
Close the supply line and unscrew the hose from the reduction.
Mantenimiento del Filtro / Filter Maintenance
reducción
reduction
llave angular
(no incluida)
shutoff valve
(not included)
manguera
(no incluida)
hose
(not included)
5
Sólo si el nivel de agua del tanque no es el
indicado, por desajuste, proceda a lo sig.:
Gire el tornillo de ajuste flotador (4) hacia la
derecha gradualmente para llenar hasta el nivel
de agua indicado, ó gire a la izquierda para bajar
dicho nivel. / Only if the water level is not in the
indicated range, proceed to turn clockwise the
float set screw (4) to fill until the water level
indicated or counter clockwise to down such level.
tornillo del
flotador
float set
screw
Ajuste del Flotador / Float adjusment
reducción
(incluida)
reduction
(included)
1. Válvula de Admisión / Fill Valve
2. Válvula de Descarga / Flush Valve
3. Flotador / Float
4. Tornillo del Flotador / Float Set Screw
5. Rebosadero / Rebosadero
6. Restrictor / Restrictor
7. Manguera Refil / Hose Refil
Los componentes se encuentran instalados y calibrados para una máxima
eficiencia. / The components are installed and calibrated for a maximum
efficiency.
marca del nivel
de agua
water level mark
14
7
3
2
65
reducción
(incluida)
reduction
(included)
Componentes Internos del Tanque / Tank Internal Components
malla con
o’ring
mesh with
oring
16 17
18
19
20 21
HELVEX, S. A. DE C. V. Calzada Coltongo 293, Col. Industrial Vallejo 02300 Del. Azcapotzalco, México, CDMX Tel. (55) 53-33-94-00.
Es muy importante seguir las siguientes instrucciones para conservar los
acabados de los productos HELVEX, con brillo y en perfecto estado:
1. Utilice únicamente agua y un paño limpio.
2. No utilice fibras, polvos, abrasivos, ni productos químicos.
3. No utilice objetos punzo-cortantes para limpiar los acabados.
4. Se recomienda realizar la limpieza de su producto diariamente.
Nota: Vea nuestros tips en la pag. www.helvex.com.mx
It is very important to follow the instructions below to preserve HELVEX products
finishes, shiny and in perfect condition:
1. Use only water and a clean cloth.
2. Do not use fibers, powders, abrasives, or chemicals.
3. Do not use sharp objects to clean the finish.
4. It is recommended to clean your product daily.
Note: See our tips on: www.helvex.com.mx
Recomendaciones de Limpieza / Cleaning Recommendations
Posibles Causas y Soluciones / Troubleshooting
In Guadalajara:
Contact:
Enter our free
training courses.
In Monterrey:
En la Ciudad de México:
In Mexico City:
En Monterrey:
En Guadalajara:
01 55 53 33 94 00
Ext. 5804, 5805 y 5806 (0133) 36 19 01 13
Comunícate:
Participa en nuestros
cursos gratuitos
de capacitación.
(0181) 83 33 57 67
(0181) 83 33 61 78
6
P r o bl e m a / P r o b l e m Ca usa / C a u se S ol uc i ón / S o l u t i on
Gi r e gr adual ment e el tor ni l l o del f l ot ador a l a der ec ha( pag. 3
" Aj ust e del f l ot ador " ) / T ur n cl ock wi se the f l oat s et sc r ew (page 3
" Fl oat adj us t ment " ).
Se queda ti r ando agua / Wat er
f l owi ng i n the bowl .
I mpur ez as del empaque vál v ul a de des car ga / Debr i s i n
t he f l ush val ve gask et .
V er i f i car el empaque pr oc eda a l i mpi ar , s i es nec esar i o
r eempl ac el o (pági na 3 " Component es I nt er nos del T anque" ) /
V er i f y t he gas ket and cl ean i t. If i t i s nec es sar y r epl ac ed i t (page 3
" T ank Int er nal Component s" ).
E l bot ón t oc a l a vál v ul a de des car ga / But ton i s t ouchi ng
t he f l ush val ve.
V er i f i car que l a medi da del es pár r ago del bot ón sea l a
i ndi cada(P ag. 4 A j us te de bot ón) / V er i f y t he but t on l engt h (P age 4
B ut t on adj us ment " ).
V ál vul a de admi si ón no ci er r a / I nl et val ve does not
cl os e. V er i f i car el ni v el de agua / V er i f y the w at er l evel .
Fuga de agua del t anque a l a t aza /
Leak f r om t he tank to the bowl .
No s e bar r en cor r ec tament e l os
deper di ci os / T he t oi l et does not
cl ean wel l .
Remueva el f i l t r o de l a vál v ul a de admi si ón y pr oc eda a l i mpi ar (pag.
5 " M ant eni mi ent o del f i l t r o" ) / Remov e f i l t er f r om t he i nl et val ve
and cl ean i t (page 5 " Fi l ter M ai nt enanc e" ).
E l bot ón no es opr i mi do adec uadament e / T he bot ton i s
not pr es sed w el l .
Opr i ma una s ól a vez c on f i r meza ( pag. 4 " Oper ac i ón" ) / P r ess onc e
f i r ml y (page 4 " Oper at i on) .
E l ni v el de agua en el tanque est á por debaj o del mar cado
/ Wat er l ev el i s under the mar k.

This manual suits for next models

1

Other Helvex Toilet manuals

Helvex AF-1 User manual

Helvex

Helvex AF-1 User manual

Helvex WC MIURA 16 TCC User manual

Helvex

Helvex WC MIURA 16 TCC User manual

Helvex WC AUSTRAL User manual

Helvex

Helvex WC AUSTRAL User manual

Helvex AT-5 User manual

Helvex

Helvex AT-5 User manual

Helvex TZF NAO PARED User manual

Helvex

Helvex TZF NAO PARED User manual

Helvex WC OP CAPRI User manual

Helvex

Helvex WC OP CAPRI User manual

Helvex AT-1 User manual

Helvex

Helvex AT-1 User manual

Helvex WC AUSTRAL L 2P User manual

Helvex

Helvex WC AUSTRAL L 2P User manual

Helvex WC MURANO User manual

Helvex

Helvex WC MURANO User manual

Helvex WC ULTRA 2P User manual

Helvex

Helvex WC ULTRA 2P User manual

Helvex ATM User manual

Helvex

Helvex ATM User manual

Helvex WC AUSTRAL P User manual

Helvex

Helvex WC AUSTRAL P User manual

Helvex WC DRAKAR User manual

Helvex

Helvex WC DRAKAR User manual

Helvex WC-OPTION-AT2 User manual

Helvex

Helvex WC-OPTION-AT2 User manual

Helvex MG GOBI TDS User manual

Helvex

Helvex MG GOBI TDS User manual

Helvex UMG GOBI TDS User manual

Helvex

Helvex UMG GOBI TDS User manual

Helvex WC AUSTRAL 2P W User manual

Helvex

Helvex WC AUSTRAL 2P W User manual

Helvex MG-MOJAVE User manual

Helvex

Helvex MG-MOJAVE User manual

Helvex OP CAPRI PLUS User manual

Helvex

Helvex OP CAPRI PLUS User manual

Helvex WC BOLMEN User manual

Helvex

Helvex WC BOLMEN User manual

Helvex WC DRAKAR2 User manual

Helvex

Helvex WC DRAKAR2 User manual

Helvex WC MURANO 2P User manual

Helvex

Helvex WC MURANO 2P User manual

Helvex WC 2.5 User manual

Helvex

Helvex WC 2.5 User manual

Helvex TZF NAO User manual

Helvex

Helvex TZF NAO User manual

Popular Toilet manuals by other brands

GoodHome Cavally 3663602690566 manual

GoodHome

GoodHome Cavally 3663602690566 manual

American Standard Vormax 7381426-100.0070A instructions

American Standard

American Standard Vormax 7381426-100.0070A instructions

Toto Washlet TCF4914E Series instruction manual

Toto

Toto Washlet TCF4914E Series instruction manual

DURAVIT Ben 0847370000 Mounting instructions

DURAVIT

DURAVIT Ben 0847370000 Mounting instructions

VITRA V-Care 5674/431470 user manual

VITRA

VITRA V-Care 5674/431470 user manual

Woodbridge BID 02 installation manual

Woodbridge

Woodbridge BID 02 installation manual

SAT OptimFlush SATOFSHFS3 installation instructions

SAT

SAT OptimFlush SATOFSHFS3 installation instructions

Sanela Alessi SLP 24R Instructions for use

Sanela

Sanela Alessi SLP 24R Instructions for use

brondell Swash T44 owner's manual

brondell

brondell Swash T44 owner's manual

Hindware OLYMPUS URINAL installation instructions

Hindware

Hindware OLYMPUS URINAL installation instructions

Franke VR99-086 Installation and operating instructions

Franke

Franke VR99-086 Installation and operating instructions

Dometic SeaLand MasterFlush MF 7200 Series Operation manual

Dometic

Dometic SeaLand MasterFlush MF 7200 Series Operation manual

Kohler OVE K-25217T-S2 installation instructions

Kohler

Kohler OVE K-25217T-S2 installation instructions

Camargue CLEAN & DRY installation guide

Camargue

Camargue CLEAN & DRY installation guide

Kohler STERLING quick start guide

Kohler

Kohler STERLING quick start guide

Reece Laufen Pro A 1813059 installation instructions

Reece

Reece Laufen Pro A 1813059 installation instructions

Moen SW8001A installation instructions

Moen

Moen SW8001A installation instructions

Kohler K-4026 installation guide

Kohler

Kohler K-4026 installation guide

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
