YCanvas Office Landscape®Credenzas Instructions
Drawer adjustment & leveling:
Product may become unsafe and cause personal injury or
property damage if installation instructions are not followed.
WARNING
!
Important Loading Information
Tools Required:
Any le system can tip if improperly used or loaded.
Follow these simple guidelines for proper use.
1. Move les only when they are unloaded.
2. Store les only in their upright positions for long term storage.
3. Distribute weight evenly. Load all les from the bottom drawer up. Do not
leave the bottom drawers empty. Remove materials from the top drawers rst.
Power Driver Phillips Screwdriver 3/8” Socket 3/8” Wrench
Or
5/16” Allen Wrench Carpenter’s Level T-30 Torx Bit

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 2
Part no. 1bcb5t rev A.
Procedures
A. Leveling for 2 1/4” base on Metal Credanzas
1. Place credenza in desired location. Make sure to break glides free rst.
Locking Tab
Slide
Slide
Slide
Slide
Locking Tab
2. Pull bottom drawer all the way out. Working one side at a time, press
drawer sides in toward center of le so locking tabs clear drawer slides.
3. Making sure that locking tabs clear drawer slides, lift drawer from slide
and remove drawer from le.

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 3
Part no. 1bcb5t rev A.
Glide
Slide Slot
Drawer Tab
4. Using 5/16” Allen wrench, turn leveling glides clockwise to raise corner,
counterclockwise to lower corner.
5. Check for side-to-side and front-to-back leveling. Once level, turn the two
front leveling glides 1/4 turn clockwise. When “leveling” cabinets with 6
leveling glides, make sure all 6 glides are properly adjusted starting with
the center glides.
6. Working one side at a time, replace drawer by aligning both drawer tabs
with corresponding slide slots and pushing down until locking tabs snap
into place.
B. Leveling for 4” leg base and 2 1/4” wood base
1. Reach in with 3/8” wrench.
2. Level center glides rst and outer glides last.

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 4
Part no. 1bcb5t rev A.
Thin Top Installation:
Parts Included:
ThinTop
A
1. Remove Thin Top(A) from cabinet. Make sure inner top is clean.
2. Rotate Thin Top 180 degrees,as it is placed backwards for shipping. Plastic
Channel will go toward front of cabinet.
A
Assembly Instructions:

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 5
Part no. 1bcb5t rev A.
3. Remove protective lm from round Dual Lock Pads.
4. Place Thin Top(A) on cabinet while holding back edge up off of Dual Lock.
Dual Lock Pad
Dual Lock Pad
Dual Lock Pad
Clip
Spacer
A

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 6
Part no. 1bcb5t rev A.
Align
Thin Top
Clip
J-Channel
J-Channel
Foam Tape
Bottom View of Top
6. Align front and sides of Thin Top with front of cabinet. Once aligned, push
down on Thin Top over Dual Lock Pads. If adjustments is needed, a wait time
of no less than 5 minutes is required before pulling top back up. This allows the
adhesive to stay.
5. Slide Thin Top toward back of cabinet, engaging J-Channel under Metal Clips
along front of cabinet. Align
Thin Top

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 7
Part no. 1bcb5t rev A.
Hinge Adjustment:
The bottom surface of the door
should be ush with the bottom of
the cabinet frame. To adjust door
up, turn cam screw clockwise on
right hinge. To adjust door down,
turn cam screw clockwise on left
hinge. Adjust both hinges on each
door as necessary until proper door
height is set.
To adjust door up/down:
Cam Screw
The front surface of a door should be ush
with any adjacent doors and drawer fronts.
Also the gap between the door and the sides
of the cabinet should have a uniform gap.
Turn screw clockwise to move door closer
to side panels. Counter-clockwise to move
door farther away from side panels.
To adjust door in/out:
To adjust door(s) left or right and or
to tilt door(s) left or right, use lateral
adjustment screw in hinge arm.
Adjust screws in both upper and lower
hinges to move SCREW doors left or
right, or adjust screw in one hinge to
tilt door left or right. Turning screw(s)
clockwise moves door towards
hinged side. Counter-clockwise to
move door away from hinged side.
Turn counter-clockwise for opposite
door movement.
To adjust door left/right:
Screw
Lateral Adjustment
Screw

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 8
Part no. 1bcb5t rev A.
Powered Storage Installation:

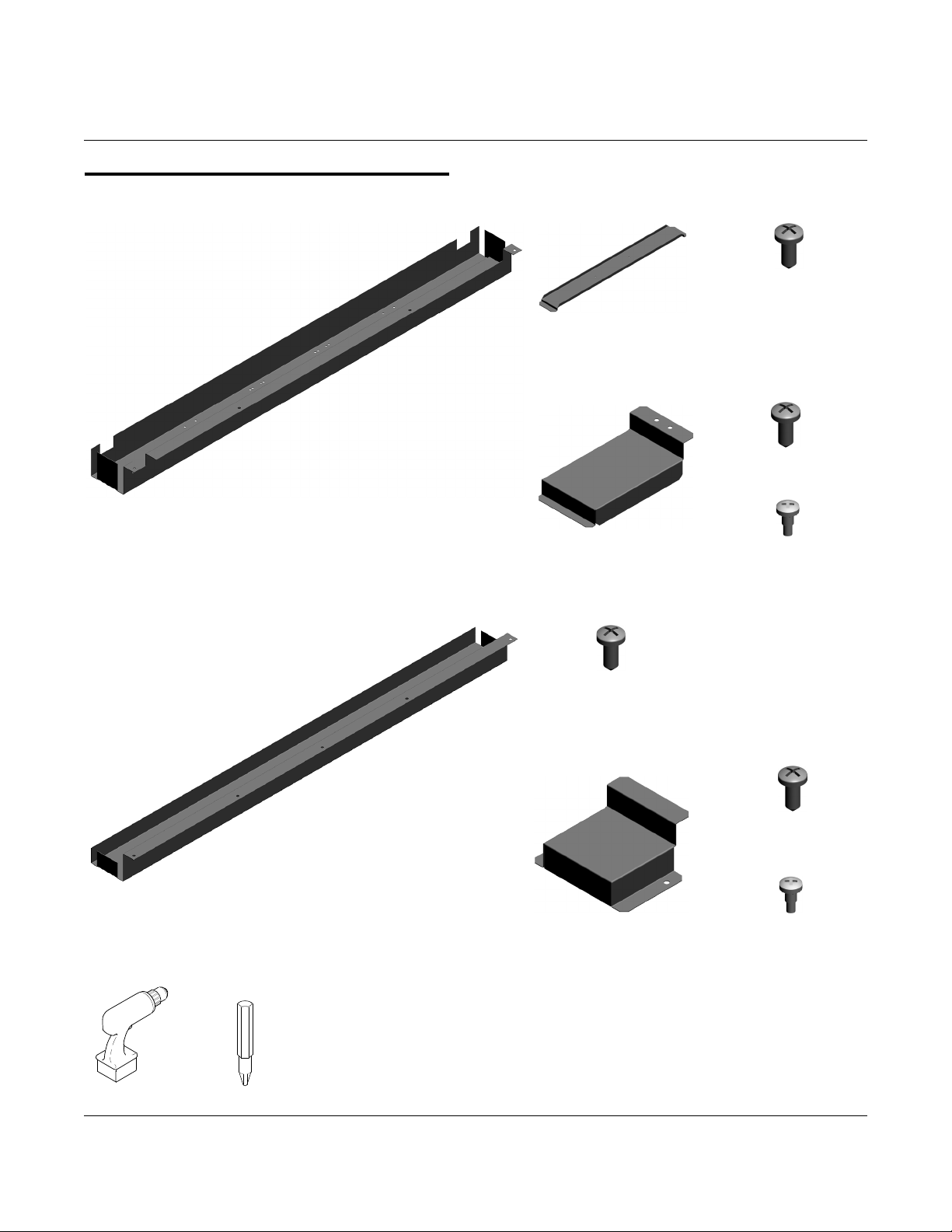

Parts Included:
Power/Data Unit
A
Tools Required:
Power Driver #2 Phillips Bit
NOTICE
All electrical connections to building electrical
sources must be made by a qualied electrician
according to national, state and local electrical codes.
Safety Glasses
Assembly Instructions:

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 9
Part no. 1bcb5t rev A.
1. Open or remove Door. (Door shown removed for clarity.)
2. Remove Shelf.
3. Remove Screw(s) securing False Back to credenza.
4. Lift False Back up and out from credenza.
Credenza With Doors:
Shelf
False Back False Back
Screw
Screw
Wood Cabinet Metal Cabinet

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 10
Part no. 1bcb5t rev A.
8. Slide Thumbscrew Brackets
outward.
9. Tighten Thumbscrews.
10. Feed conduit through opening in
bottom of credenza.
11. Lay credenza on back.
Conduit

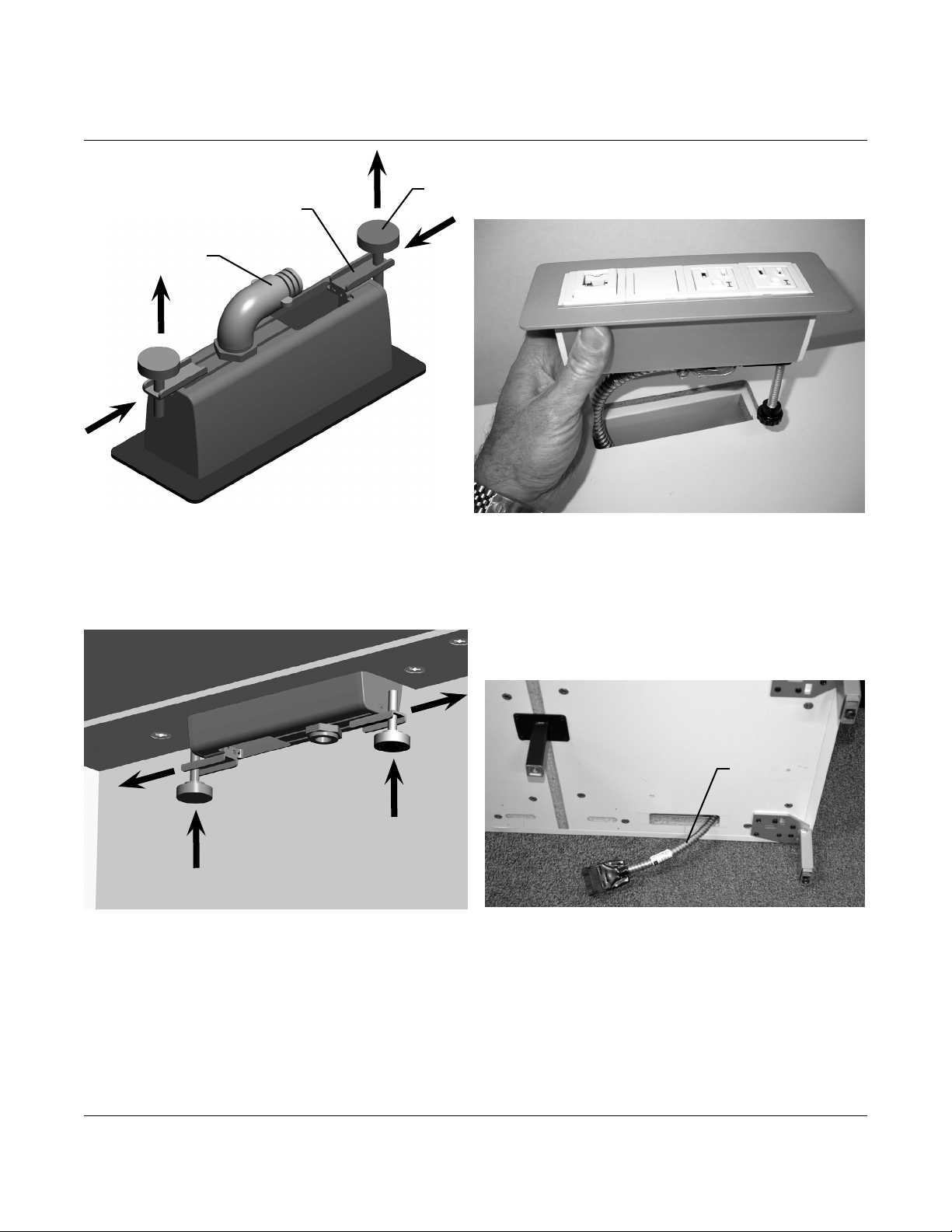

7. Insert Power/Data Unit into cutout
in top credenza.
5. Back out Thumbscrews on Power/
Data Unit(A).
6. Slide Thumbscrew Brackets inward.
Thumbscrew
Thumbscrew Bracket
A

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 11
Part no. 1bcb5t rev A.
15. Assemble Junction Block to Bracket. 16. Connect Jumper Harness (Y1353.)
to Junction Block.
18. Install Conduit Clamps(Y1339.)
as needed to support harnesses.
17. Connect Power Entry
Harness(Y1351.) to Junction Block.
12. Position Junction Block Mounting
Bracket(Y1354.H) onto underside
of cabinet. Make sure it is placed
in reach of Power/Data Unit
electrical harness.
13. Secure Bracket to cabinet with
screws provided.
14. Connect Junction Block(Y1354.H) to
Power/Data Unit Electrical Harness.
Jumper
Harness
Power Entry
Harness
Junction Block
Junction Block
Mounting
Bracket
Power/Data
Harness
Conduit Clamp
WARNING
!
Electrically interconnected units must be
mechanically interconnected.

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 12
Part no. 1bcb5t rev A.

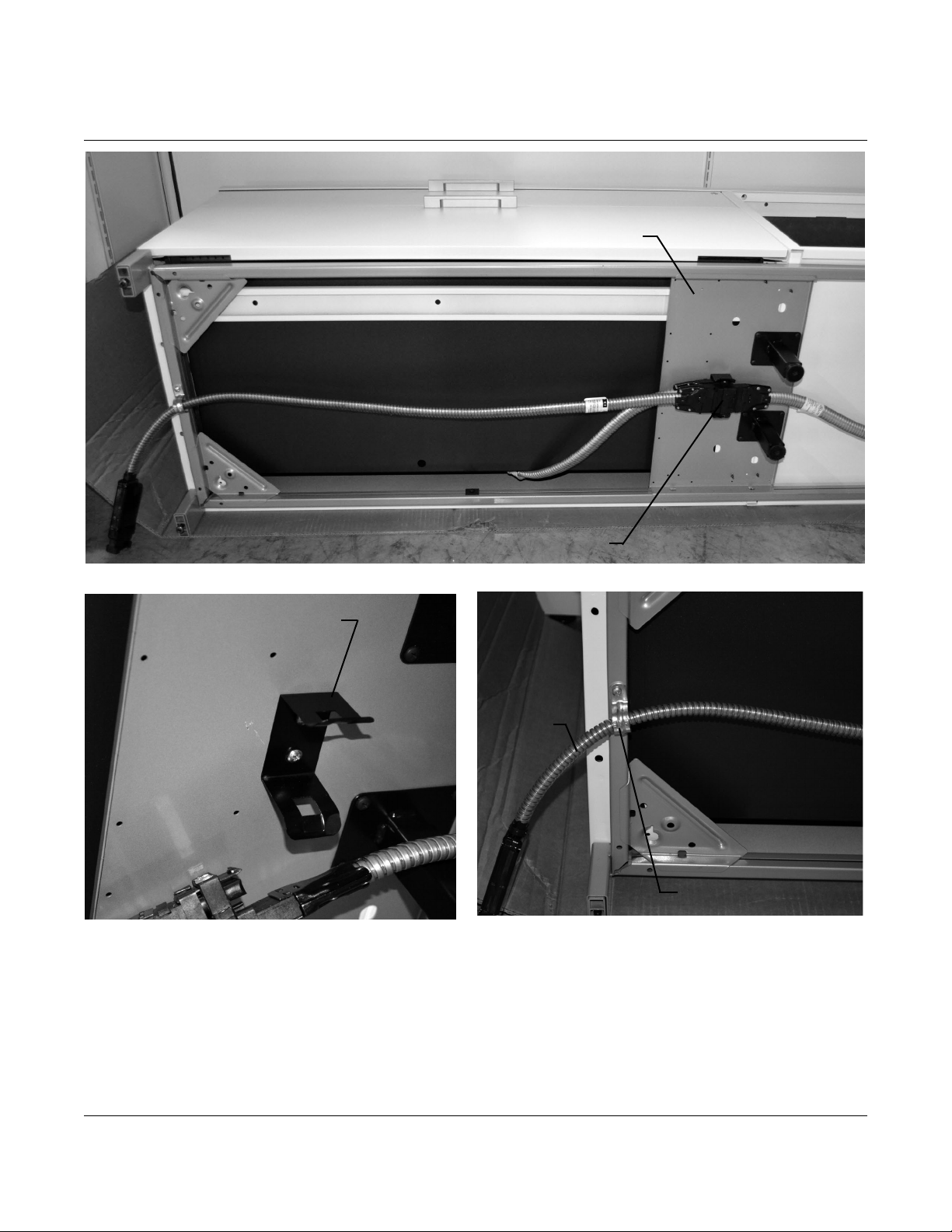

Install Harnesses for Metal Cabinets in much the same fashion as Wood Cabinet.
Install Junction Block Mounting Bracket(Y1354.H) onto Bottom Plate with screws
provided using mounting holes in Plate.
Loosen Conduit Clamps furnished at each end of cabinet. Capture Harness with
clamp, then tighten. Remove or swivel out of sight any clamps not used.
Bottom Plate
Junction Block
Harness
Junction Block Mounting
Bracket
Conduit Clamp

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 13
Part no. 1bcb5t rev A.
19. Return False Back to Credenza.
20. Secure in place with screw(s) previously removed.
21. Return shelf to credenza.
22. Return door to credenza if previously removed.
False Back False Back
Shelf
Screw
Screw
Wood Cabinet Metal Cabinet

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 14
Part no. 1bcb5t rev A.
27. Use Conduit Clamps to secure
Conduit to inside back of credenza.
28. Follow instructions 11 thru 15
above to complete Power/Data
Unit Installation.
25. Slide Thumbscrew Brackets
outward.
26. Tighten Thumbscrews.
29. Return Drawers to Credenza.
Conduit Clamp
Drawers
Drawers 24. Insert Power/Data Unit into cutout
in top credenza.
23. Remove Drawers.
Credenza With Drawers:

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 15
Part no. 1bcb5t rev A.
Credenza With Open Shelf:
30. Remove Shelf.
33. Assemble Power/Data Unit to cutout
in False Back as described above.
34. Position Back into Credenza while
feeding conduit through opening in
bottom.
35. Secure Back in place with Screw
previously removed.
31. Remove Screw securing False
Back to credenza.
32. Lift False Back up and out from
credenza.
36. Lay credenza on back.
37. Install Conduit Clamps(Y1339.) as
needed.
38. Secure conduit to bottom of
Credenza. Connect to distribution
harness as described above.
Shelf False Back
Screw
Conduit Clamp
Conduit Clamp
Conduit
Screw

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 16
Part no. 1bcb5t rev A.
Cable Cover Installation:
Parts Included:
Wire Trough
Wire Trough
Cross Member
Distributor Cover
Distributor Cover
Pan Head Tapping
Screw (4)
Pan Head Tapping
Screw (2)
Pan Head Self
Drilling Screw (2)
Pan Head Self
Drilling Screw (2)
Pan Head Tapping
Screw (4)
Pan Head Tapping
Screw (4)
A
F
B
D
G
C
C
E
E
C
C
Tools Required:
Power Driver #2 Phillips Bit
FPS910.M
FPS910.F
FPS911.F
FPS911.M

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 17
Part no. 1bcb5t rev A.
1. Set storage unit on it’s end or back on clean padded surface. (1)
2. Position 2 Cross Members(B) into grove of unit. Make sure that Cross
Members are above Electrical Harness. (2)
3. Place Wire Trough(A) over Electrical Harnesses and positioned onto Storage
Unit. (2)
4. Slide Cross Members in grooves to align screw holes. (3)
5. Secure Wire Trough to Cross Members with Pan Head Tapping Screws(C). (3)
Metal Storage:
A
B
12
3
B
B
C
D
Power Harness

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 18
Part no. 1bcb5t rev A.
Groove
6. Place Distributor Cover(D) over
Power Harness. (4)
7. Insert lip on Cover into groove in
base of cabinet. (5)
8. Secure Distributer Cover to Wire
Trough with 2 Pan Head
Screws(C) or Self Drilling
Screws(E) for locations without
screw holes in Wire Trough. (6)
D
CE
or
4 5
6

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 19
Part no. 1bcb5t rev A.
1. Position Wire Trough(F) over
Electrical Harness 4” from back. (8)
3. Install rest of Pan Head Tapping
Screws(C). (10)
2. Drive Pan Head Tapping Screw(C)
through bottom of side cover. (9)
Wooden Storage:
F
F
G
C
C
78
910
4”

Z
© 2013 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
®Y, L, Canvas Office Landscape are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 20
Part no. 1bcb5t rev A.
End Tab
Power Harness
C
G
11 12
13 14
4. Place Distributor Cover(G) over Power Harness. (12)
5. Secure Distributer Cover to Wire Trough with 2 Pan Head Screws(C). (13)
6. If Storage Units are to be ganged together with connecting Electrical Harness:
bend End Tabs in to allow Harness to run between units. (14)
