Herman Miller Everywhere Series User manual

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 1
Part no. 1b6k0d rev G
Table of Content
1. Post Leg Installation (‘P’ option)..........................................................................2
2. T & C - Leg Installation (T & C options)..............................................................4
3. T & C - Adjustable Leg Installation (A + D option)..............................................7
4. Flip Top Leg & Assembly Installation (DT5A Product)......................................10
5. 4X Leg Installation (X - option).........................................................................14
6. Single Column Leg Installation (S option)........................................................17
7. Y3 Leg Installation (E option)............................................................................21
8. Y2 Leg Installation (G option)...........................................................................24
9. Byrne Interlink...................................................................................................27
10. Extended Meeting Table..................................................................................28
1 B 6 K 0 D

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 2
Part no. 1b6k0d rev G
YEverywhere Tables™Post Leg Installation (P)
and Disassembly for Recycling Instructions

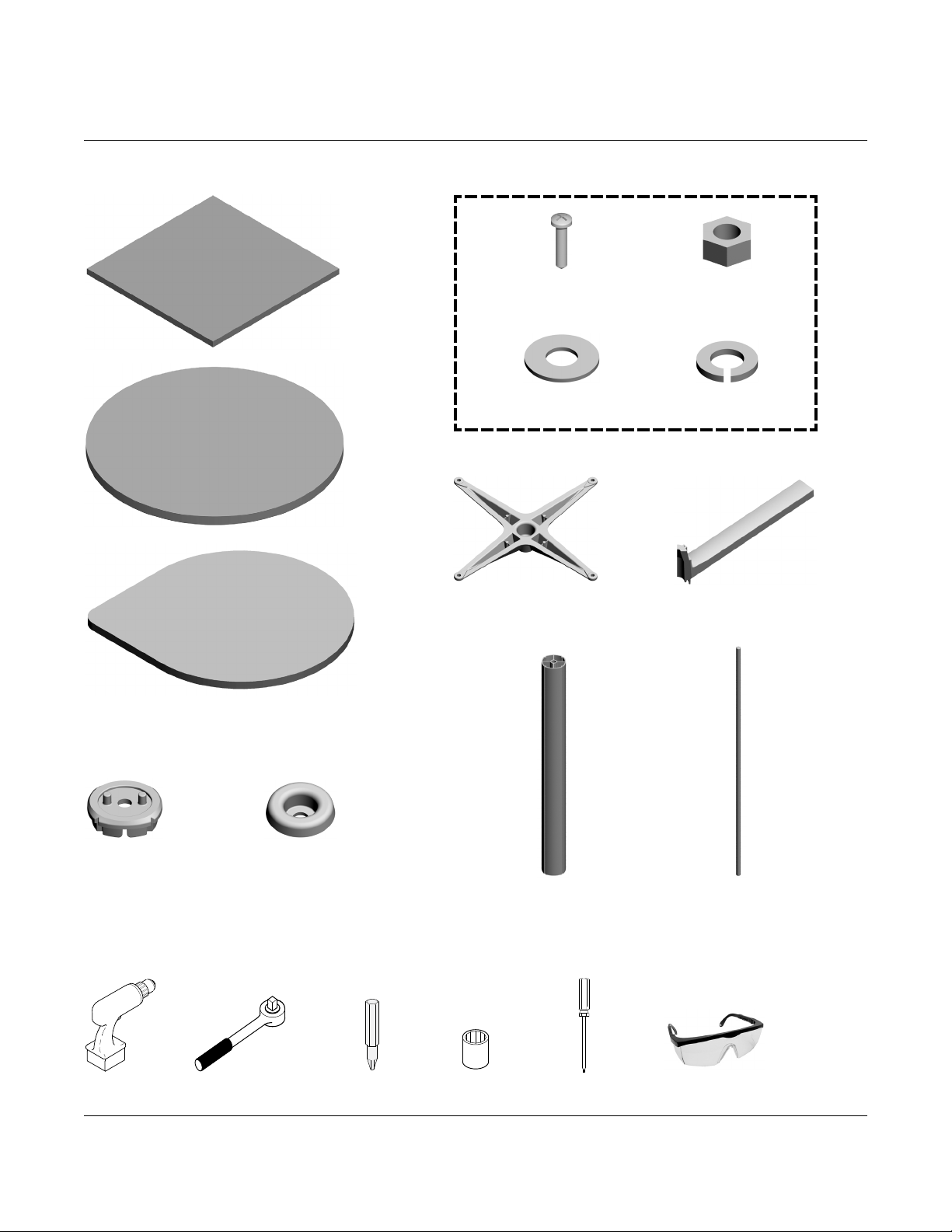

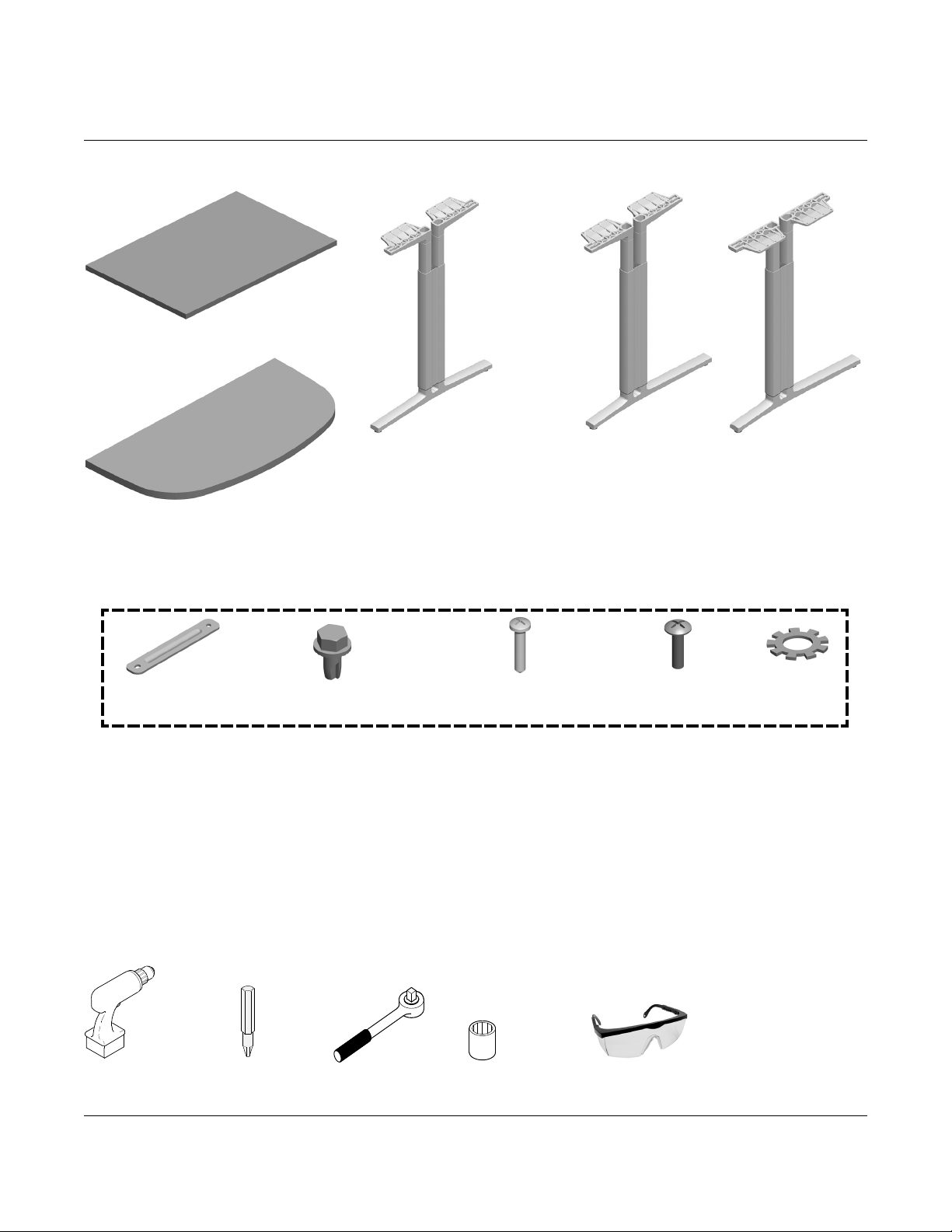

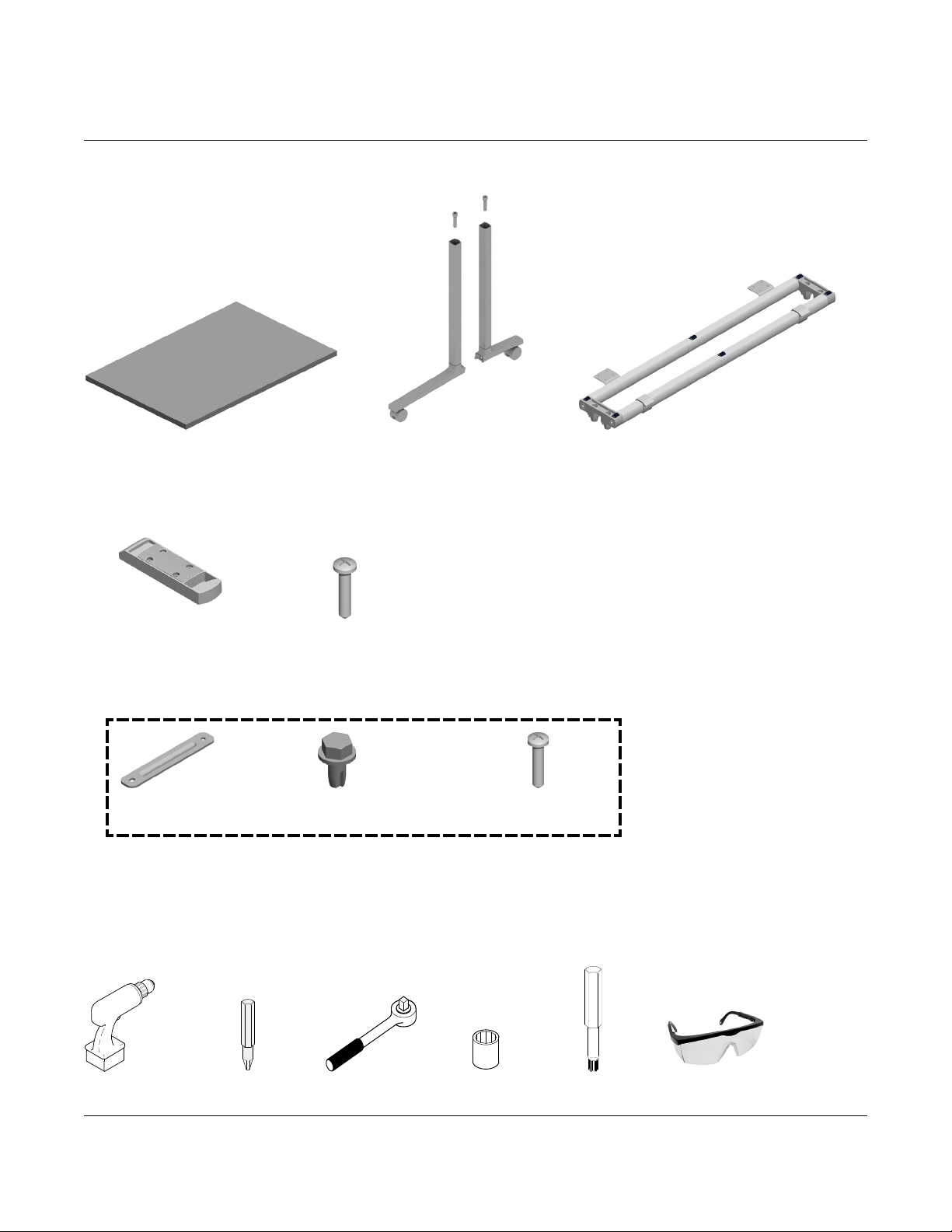

Parts Included:
Tools Required:
Work Surface Options
A#2 Phillips Bit
Power Driver
BPost Leg Option
(2 Sets)
CD E
Pan Head Tapping
Screw (40)
Machine
Screw (4)
Star
Washer (4)
Hardware Pack
For Painted MDF Tops Only
Safety Glasses

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 3
Part no. 1b6k0d rev G
1. Align Holes in Post Legs (B) with outermost holes in Work Surface (A).
2. Install 8 Pan Head Tapping Screws (C) per Leg (HPL + Veneer) or 7 pan head
Screws per leg (C) (Painted MDF).
3. For use on ‘painted MDF tops’ use (D)+(E) in locations where an insert is
present in the hole pattern.
B
C
A
B
Assembly Instructions:
Disassembly for Recycling:
Materials Identication and Segregation:
Where possible, plastic components are marked with ASTM recycling codes.
Use these codes to identify material type for recycling. Non marked components
should be treated as mixed plastic. Ferrous metals can be identied using a
small magnet for recycling. Non-ferrous metals should be separated and recycled
separately.
To disassemble product, reverse steps 3 through 1.

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 4
Part no. 1b6k0d rev G
Parts Included:
Tools Required:
Work Surface Options
A
BT Leg Option
(2 Sets)
#2 Phillips Bit
Power Driver
CC Leg Option
Ratchet Wrench 3/8” Socket
DConnection
Bracket (2) EHex Flange Tapping
Screw (4) FGH
Pan Head Tapping
Screw (32)
Machine
Screw (2)
Star
Washer (2)
Hardware Pack
For Painted MDF Tops Only
YEverywhere Tables™T & C Leg Installation (T & C options)
and Disassembly for Recycling Instructions
Safety Glasses

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 5
Part no. 1b6k0d rev G
B or C
1. Hold Leg segments (B or C) at 15 degree angle to one another.
2. Insert Hooks on base of leg segments into notches in adjoining leg segments.
3. Secure Leg segments together with Connection Bracket (D) and 2 Hex
Flange Tapping Screws (E). (Per Leg) Do not overtighten.
Notch
Hook
E
D
E
B or C
4. Position Leg Assembly at each end on bottom side of Work Surface (A) so
that Foot Assembly is centered on depth of Work Surface.
5. Install Pan head tapping screws (F) 16 per Leg Assembly. Exception on
painted MDF tops, use machine screw (G) and star washer (H) in locations
where insert is present in the hole pattern.
“T” Leg “C” Leg
F
AA
F
Foot Assembly Foot Assembly
Assembly Instructions:

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 6
Part no. 1b6k0d rev G
Disassembly for Recycling:
Materials Identication and Segregation:
Where possible, plastic components are marked with ASTM recycling codes.
Use these codes to identify material type for recycling. Non marked components
should be treated as mixed plastic. Ferrous metals can be identied using a
small magnet for recycling. Non-ferrous metals should be separated and recycled
separately.
To disassemble product, reverse steps 5 through 1.

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 7
Part no. 1b6k0d rev G
Everywhere Tables™Adjustable Leg Table Installation
(A + D options) and Disassembly for Recycling Instructions
Y
Parts Included:
Tools Required:
Work Surface Options
A
BT Adjustable Leg
Option (2 Sets) (A)
#2 Phillips Bit
Power Driver
CC Adjustable Leg
Option (D)
Ratchet Wrench 3/8” Socket
DConnection
Bracket (2) EHex Flange Tapping
Screw (4) FG H
Pan Head Tapping
Screw (32)
Machine
Screw (2)
Star
Washer (2)
Hardware Pack
For Painted MDF Tops Only
Safety Glasses

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 8
Part no. 1b6k0d rev G
Adjustable Leg Installation:
B
F
A
B
E
E
D
A
F
“T” Leg “C” Leg

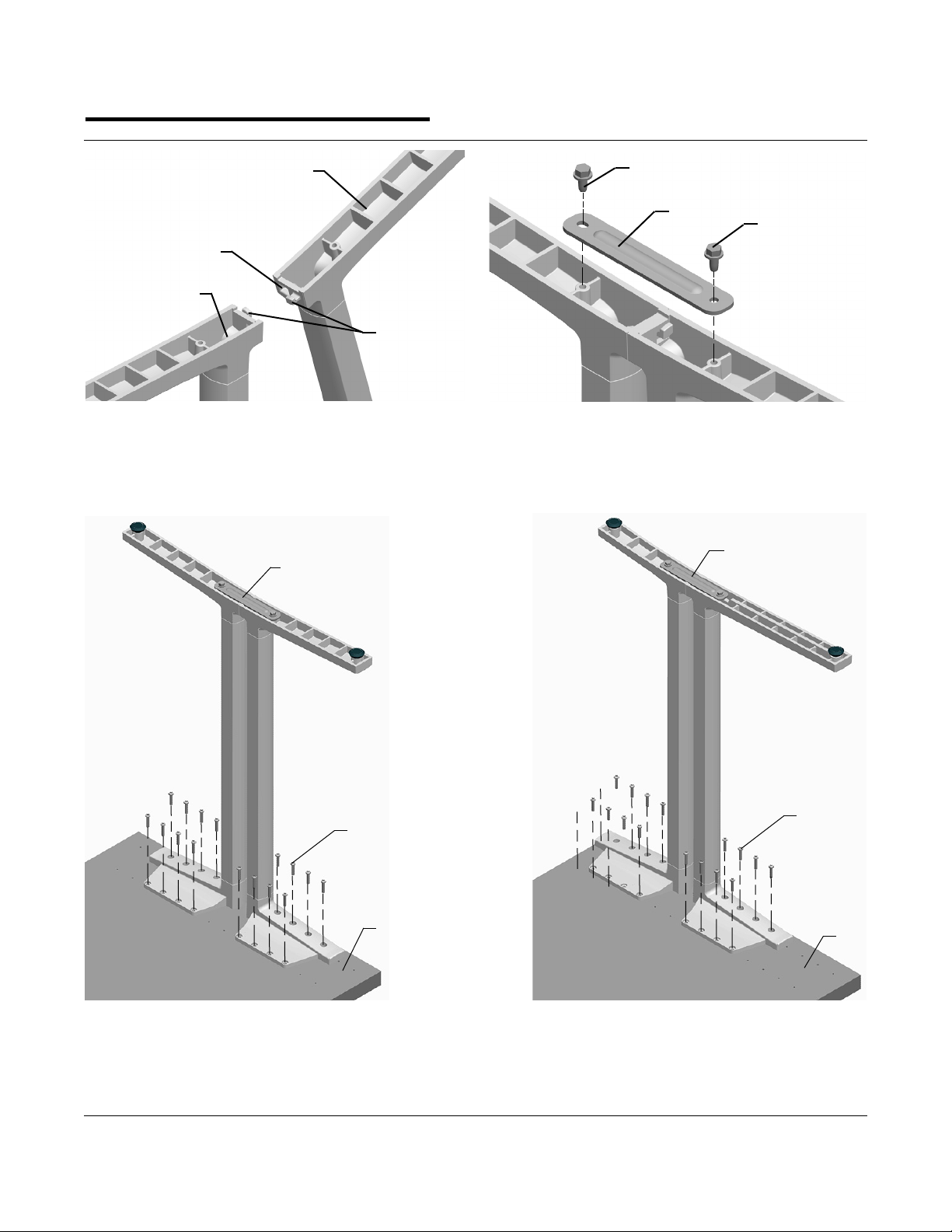

1. Secure leg segments together with connecting bracket (D) and 2 Hex Flange
tapping screws (E) (per leg assembly).
2. Position Leg Assembly at each end on bottom side of Work Surface (A) so
that Foot Assembly is centered on depth of Work Surface.
3. Install Pan head tapping screws (16) per leg assembly. Exception painted
MDF tops. Use machine screw(G) and star washer (H) in locations where
insert is present in the hole pattern.
Foot Assembly
Foot Assembly
4. To Adjust work surface height, support work surface then push
down on button on Legs.
5. Raise or lower work surface to desired height.
Button
Leg
E
E
D
Assembly Instructions:

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 9
Part no. 1b6k0d rev G
Disassembly for Recycling:
Materials Identication and Segregation:
Where possible, plastic components are marked with ASTM recycling codes.
Use these codes to identify material type for recycling. Non marked components
should be treated as mixed plastic. Ferrous metals can be identied using a
small magnet for recycling. Non-ferrous metals should be separated and recycled
separately.
To disassemble product, reverse steps 5 through 1.

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 10
Part no. 1b6k0d rev G
Everywhere Tables™Flip - Top Table Installation
and Disassembly for Recycling Instructions
Y
Parts Included:
Tools Required:
Work Surface Options
A
#2 Phillips Bit
Power Driver
CCross Member Assembly BLeg Assembly (2)
FConnection
Bracket (2) GHex Flange Tapping
Screw (4) H
DE
Pan Head Tapping
Screw 3/4” long (8)
Paddle (2)
Assembly
Pan Head Tapping
1.5” long screws(8)
Hardware Pack
Ratchet Wrench T-50 Torx Bit 3/8” Socket Safety Glasses

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 11
Part no. 1b6k0d rev G
B
1. If legs have casters, use 1-locking caster and 1-non locking caster per leg
assyembly.
2. Hold Leg segments (B) at 15 degree angle to one another.
3. Insert Hooks on base of leg segments into notches in adjoining leg segments.
4. Secure Leg segments together with Connection Bracket (F) and 2 Hex Flange
Tapping Screws (G). Do not over tighten.
Notch
Hook
G
F
G
B
5. Remove pre-assembled T-50 Torx head screws from top of the Legs
(hold for Assembly).
6. Insert Leg Assemblies (B) into Cross Member Assembly (C).
7. Secure Legs to Cross Member with T-50 torx head screws.
Note: Locking Casters to be on Paddle side.
B
B
C
Assembly Instructions:
Hinge
Side
Paddle
Side

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 12
Part no. 1b6k0d rev G
H
A
8. Position Flip Top Assembly onto Work Surface (A).
9. Install 8 Pan Head Tapping Screws 3/4” long (H).
Flip Top Assembly
H
10. Position Paddles (D) up against Collars on Cross Members.
11. Pull back polished Aluminium retaining bracket to Align predrilled pilot holes.
12. Install 8-1 1/2” long Pan Head Tapping screws (E) (part of paddle kit).
Flip Top Assembly (Paddle)
(Polished Aliminum
retaining bracket)
H
E
E
D
D
D

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 13
Part no. 1b6k0d rev G
Disassembly for Recycling:
Materials Identication and Segregation:
Where possible, plastic components are marked with ASTM recycling codes.
Use these codes to identify material type for recycling. Non marked components
should be treated as mixed plastic. Ferrous metals can be identied using a
small magnet for recycling. Non-ferrous metals should be separated and recycled
separately.
To disassemble product, reverse steps 12 through 1 and remove the casters.

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 14
Part no. 1b6k0d rev G
Parts Included:
Tools Required:
Work Surface Options
A
C
T Leg (4)
#2 Phillips Bit
Power Driver
B
Ratchet Wrench 3/8” Socket
EHex Flange Tapping
Screw (5) FPan Head Tapping Screw (32)
D
4-Way Base
Connector
Connection
Bracket (2)
YEverywhere Tables™4 X (X - Option) Installation
and Disassembly for Recycling Instructions
Safety Glasses

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 15
Part no. 1b6k0d rev G
B
F
C
B
E
A
D

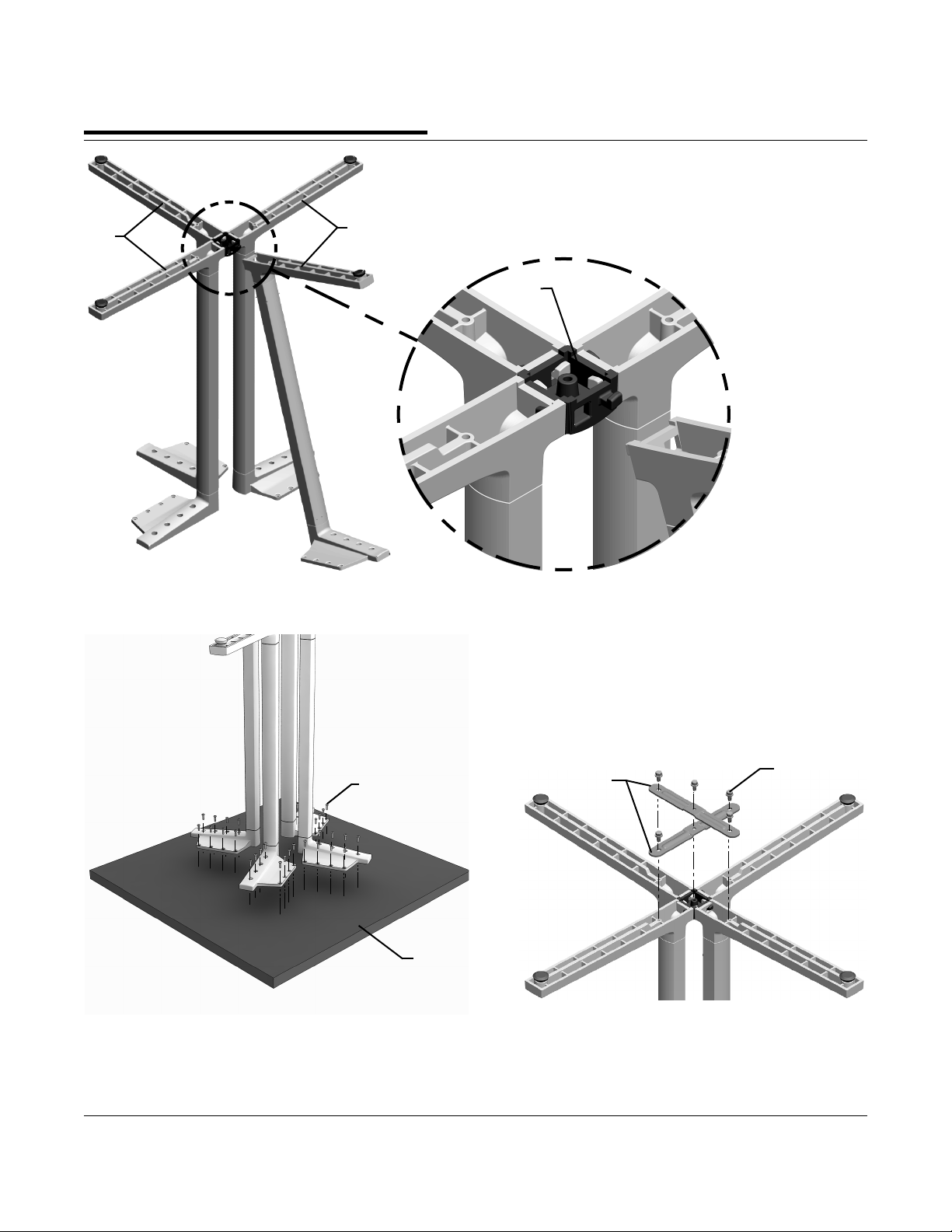

1. Hold Leg segments(B) at 15 degree angle.
2. Interlock Leg Bases onto Base Connector(C).
3. Position Leg Assembly onto bottom of Table Top(A).
4. Install 8 screws(F) per Leg.
5. Tie Legs together with 2 Leg Brackets(D) and 5 Hex Flange Screws(E). Do not
overtighten.
Assembly Instructions:

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 16
Part no. 1b6k0d rev G
Disassembly for Recycling:
Materials Identication and Segregation:
Where possible, plastic components are marked with ASTM recycling codes.
Use these codes to identify material type for recycling. Non marked components
should be treated as mixed plastic. Ferrous metals can be identied using a
small magnet for recycling. Non-ferrous metals should be separated and recycled
separately.
To disassemble product, reverse steps 5 through 1.

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 17
Part no. 1b6k0d rev G
Parts Included:
Tools Required:
Work Surface Options
A
#2 Phillips Bit
Power Driver Ratchet Wrench 3/8” Socket T-50 Torx Driver
HPan Head Tapping
Screw (4)
Hardware Pack
BLeg Extrusion
D
J
KL
Cap
Hex Nut(2)
Flat Washer Lock Washer(2)
G4-Leg Base
C
E
F
Threaded Rod
Lock Ring
Spider
YEverywhere Tables™Single Column Base (S)
Installation and Disassembly for Recycling Instructions
Safety Glasses

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 18
Part no. 1b6k0d rev G

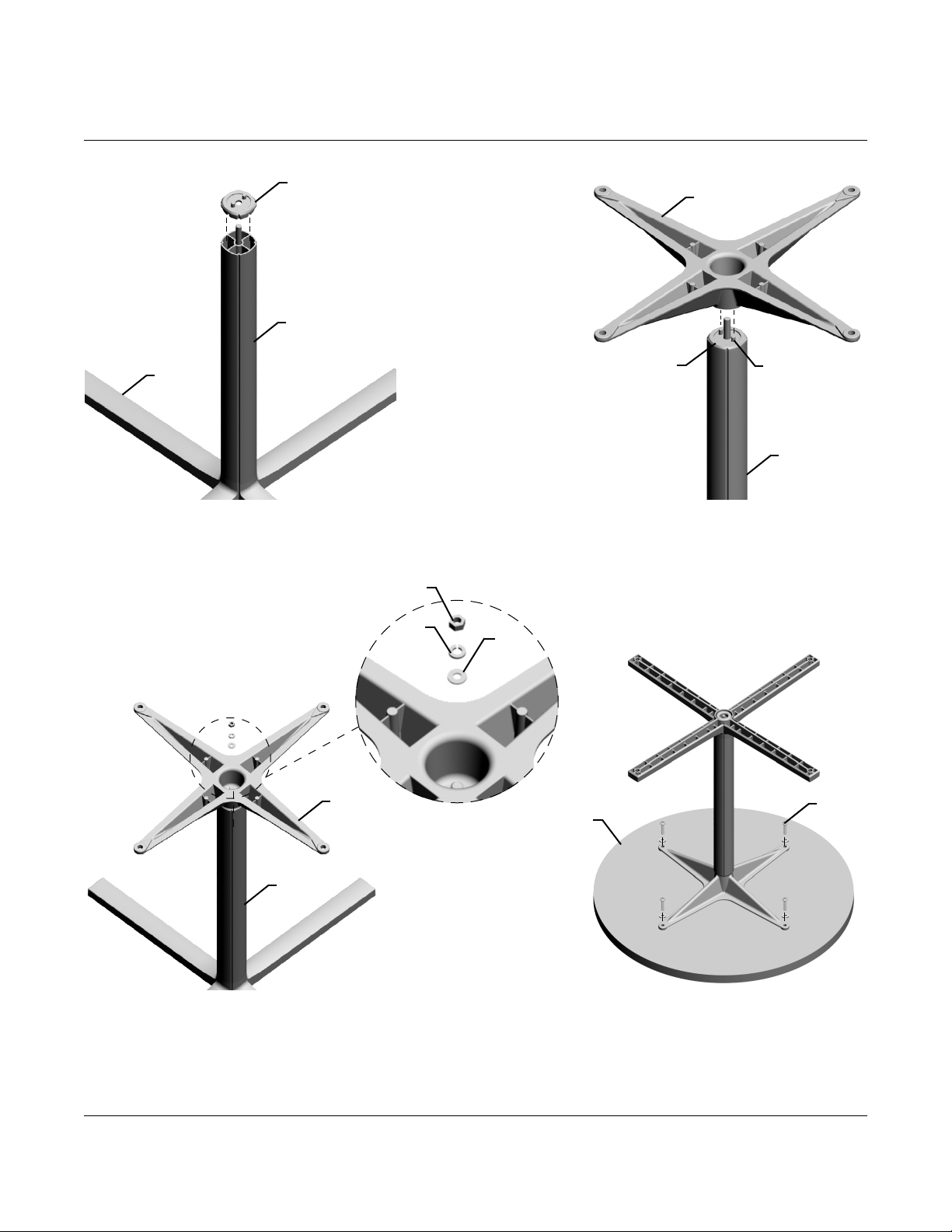

1. Assemble 4-leg base(G) together.
2. 4 Leg Bases(G) t into Leg Extrusion(B).
3. Assemble Lock Ring(E) to bottom of Leg base(G).
4. Insert Threaded Rod(C) with Lock Washer(L) & Hex Nut(J) at bottom of Leg
Base(G).
G
G
B
GG
C
L
J
BB
E
0.125”
Assembly Instructions:

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 19
Part no. 1b6k0d rev G
5. Assemble Cap(D) on top of Leg Extrusion(N).
6. Place Spider(F) on top of Cap(D). Make sure pins are in holes in Spider(F).
7. Place Flat Washer(K), Lock Washer(L) and Hex Nut(J) to top of Threaded
Rod(C). Tighten.
8. Using Pan Head screw(H) assemble Work Surface(A) with Leg Base
assembly.
B
G
B
B
H
D
D
A
F
F
J
LK
Pins

Z
© 2019 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
TM Y, L, Everywhere Tables are among the trademarks of Herman Miller, Inc.
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products. 20
Part no. 1b6k0d rev G
Disassembly for Recycling:
Materials Identication and Segregation:
Where possible, plastic components are marked with ASTM recycling codes.
Use these codes to identify material type for recycling. Non marked components
should be treated as mixed plastic. Ferrous metals can be identied using a
small magnet for recycling. Non-ferrous metals should be separated and recycled
separately.
To disassemble product, reverse steps 8 through 1.
