ORIGINAL OPERATING INSTRUCTIONS
TE 30-A36 cordless combihammer
It is essential that the operating instruc-
tions are read before the power tool is op-
erated for the first time.
Always keep these operating instructions
together with the power tool.
Ensure that the operating instructions are
with the power tool when it is given to
other persons.
Contents Page
1. General information 18
2. Description 19
3. Insert tools, accessories 21
4. Technical data 22
5. Safety instructions 23
6. Before use 26
7. Operation 27
8. Care and maintenance 30
9. Troubleshooting 31
10. Disposal 32
11. Manufacturer’s warranty - tools 33
12. EC declaration of conformity (original) 33
1These numbers refer to the corresponding illustra-
tions. The illustrations can be found on the fold-out
cover pages. Keep these pages open while studying
the operating instructions.
In these operating instructions, the designation “the
power tool” always refers to the TE 30-A36 combi-
hammer

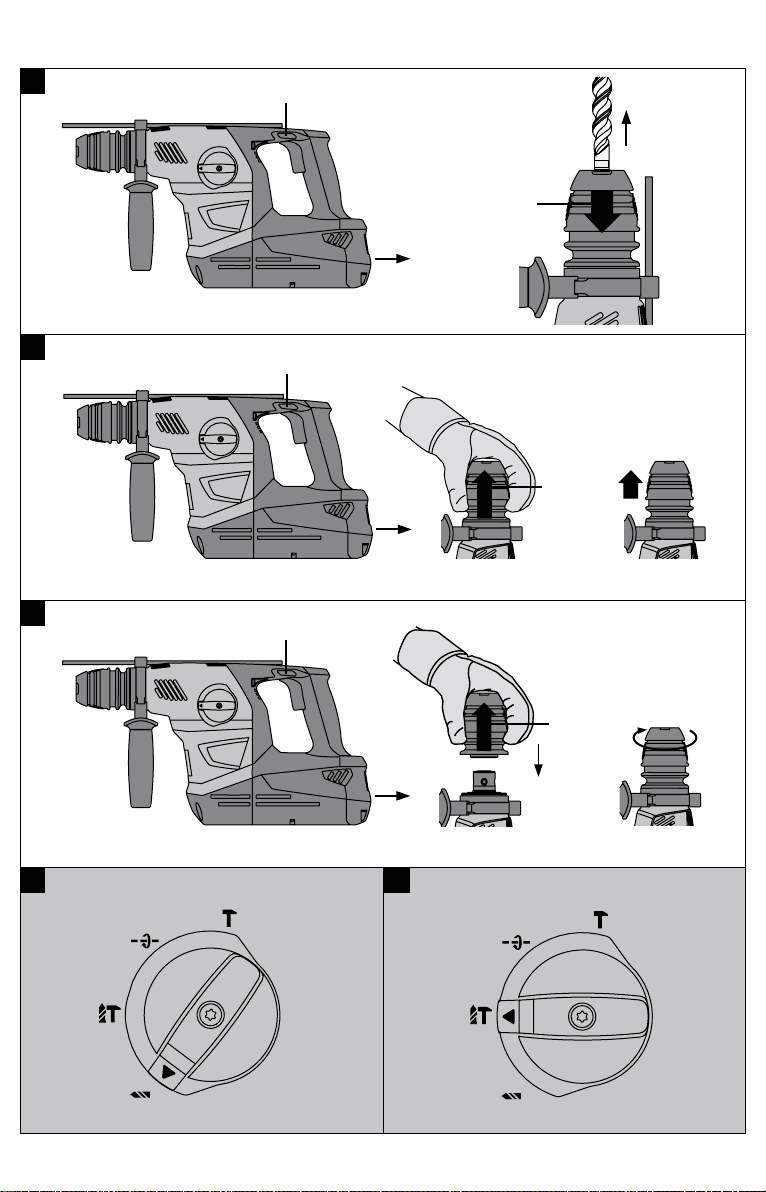

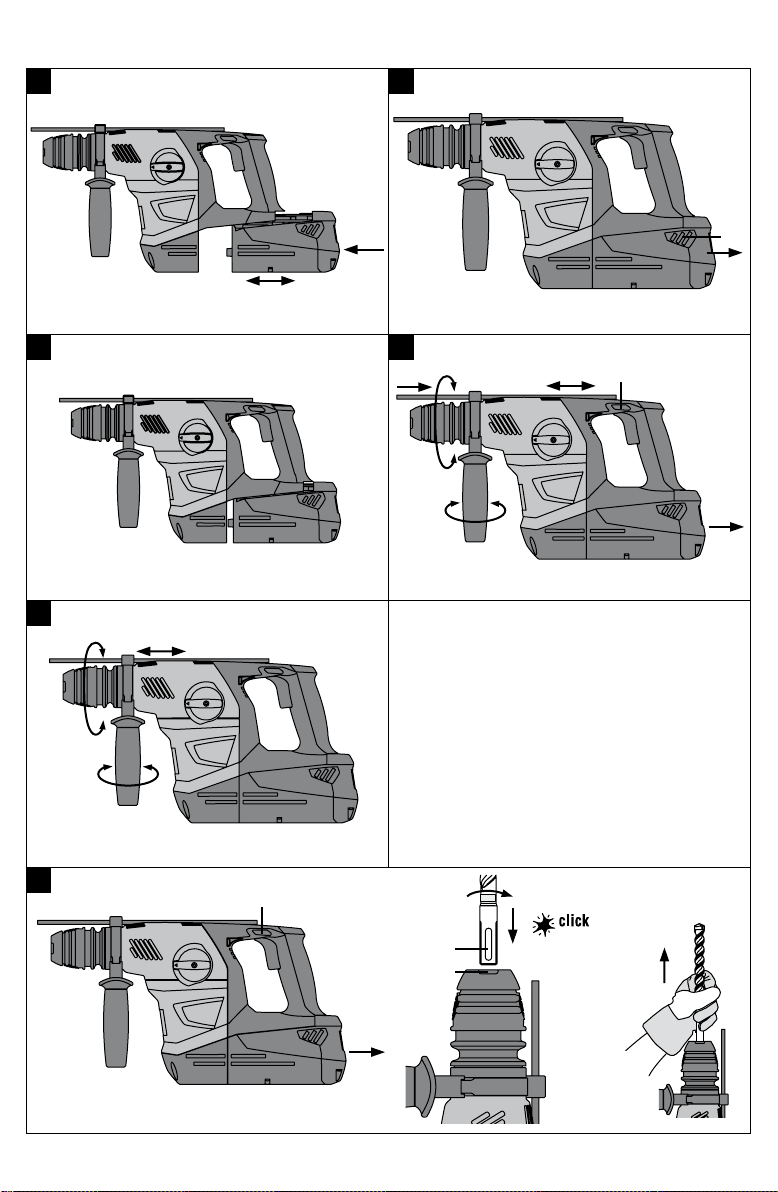

Components, operating controls and indicators 1
@Chuck
;Function selector switch
=Forward / reverse switch
%Control switch
&Battery release buttons
(Battery
)Grip
+Side handle with depth gauge
1. General information
1.1 Safety notices and their meaning
DANGER
Draws attention to imminent danger that will lead to
serious bodily injury or fatality.
WARNING
Draws attention to a potentially dangerous situation
that could lead to serious personal injury or fatality.
CAUTION
Draws attention to a potentially dangerous situation
that could lead to slight personal injury or damage to
the equipment or other property.
NOTE
Draws attention to an instruction or other useful
information.
1.2 Explanation of the pictograms and other
information
Warning signs
General
warning
Warning:
electricity
Warning:
caustic
substances
