Hioki CM3286-50 User manual

CM3286-50 Instruction Manual
AC CLAMP POWER METER
EN
Dec. 2021 Edition 1
CM3286C961-00 21-12H
Read carefully before use.
Keep for future reference.
HIOKI CM3286C961-00

HIOKI CM3286C961-00

i
Contents
Introduction............................................................................................................... 1
Options...................................................................................................................... 5
Safety Information.................................................................................................... 7
Precautions for Use.................................................................................................11
Part Names.............................................................................................................. 16
Operation Keys....................................................................................................... 17
■Rotary switch................................................................................................... 19
■Power-on option table (beeping, resetting the instrument to the factory
settings, etc.) ................................................................................................... 20
Installing and Replacing Batteries....................................................................... 22
■Battery installation/replacement procedure ..................................................... 23
Z3210 Wireless Adapter (option)........................................................................... 25
■Z3210 Wireless Adapter installation/replacement procedure .......................... 26
Test Leads ............................................................................................................... 27
Inspection Before Measurement........................................................................... 30
CM3286C961-00
HIOKI CM3286C961-00

ii
Contents
Screen, Basic Operation........................................................................................ 31
■Screen display................................................................................................. 32
■Switching the information shown on the measurement display....................... 33
Connecting the Clamp and Clips .......................................................................... 36
Current/Voltage Measurement (Frequency) [ ] .......................................... 37
Power Measurement (Power, Power Factor)........................................................ 38
■AC single-phase measurement (1P2W) [var VA W] ............................................... 38
■AC single-phase measurement (1P3W) [var VA W] ............................................... 39
■AC 3-phase measurement (3P3W, balanced) [3PW]............................................ 40
■AC 3-phase measurement (3P3W, unbalanced) [3PW] ....................................... 41
■AC 3-phase measurement (3P4W, balanced) [3PW]............................................ 43
■AC 3-phase measurement (3P4W, unbalanced) [3PW] ....................................... 44
Phase Detection [Phase Detect]........................................................................... 47
Single-phase Active Energy Measurement
(Integrated Measurement) [Setting Wh] .............................................................. 49
Single-phase Energy Meter Comparison Function [Setting Wh]...................... 51
■Setting the desired meter constant.................................................................. 55
Manual Hold, Automatic Hold................................................................................ 57
HIOKI CM3286C961-00

iii
Contents
Switching Ranges................................................................................................... 60
Max., Min., and Average Values (MAX/MIN/AVG) ................................................. 61
Backlight, Automatic Power Save (APS).............................................................. 64
Measurement Using the Clamp Adapter .............................................................. 65
Wireless Communications Function .................................................................... 66
■GENNECT Cross (application software) ......................................................... 66
■Z3210-to-Excel®direct data entry function
(Excel®direct input function, HID function)...................................................... 71
Specications ......................................................................................................... 75
■General specications ..................................................................................... 75
■Input, output, and measurement specications............................................... 78
■Harmonic measurement specications (with Z3210 connected)..................... 81
Accuracy Table ....................................................................................................... 83
Equations ................................................................................................................ 94
Maintenance and Service..................................................................................... 100
Troubleshooting ................................................................................................... 102
Warranty Certicate
HIOKI CM3286C961-00

iv
Contents
HIOKI CM3286C961-00

1
Introduction
Introduction
Thank you for choosing the Hioki CM3286-50 AC Clamp Power Meter. To ensure your ability
to get the most out of this instrument over the long term, please read this manual carefully and
keep it available for future reference.
Read the separate document “Operating Precautions” carefully before using the instrument.
This clamp power meter provides functionality for measuring AC current, voltage, power, and
frequency as well as for detecting phase.
By connecting the Z3210 Wireless Adapter (option), you can record measurement data from the
instrument and create reports on a mobile device.
Latest instruction manual
The contents of this manual are subject to change, for example as a
result of product improvements or changes to specications.
The latest edition can be downloaded from Hioki’s website.
https://www.hioki.com/global/support/download
HIOKI CM3286C961-00

2
Introduction
Intended audience
This manual has been written for use by individuals who use the product or provide information
about how to use the product. In explaining how to use the product, it assumes electrical
knowledge (equivalent of the knowledge possessed by a graduate of an electrical program at a
technical high school).
Trademarks
• Microsoft Excel is a registered trademark or trademark of Microsoft Corporation in the United
States and other countries.
• The Bluetooth
®
word mark and logos are registered trademarks owned by Bluetooth SIG,
Inc. and any use of such marks by Hioki E.E. Corporation is under license. Other trademarks
and trade names are those of their respective owners.
Precautions during shipment
Handle it carefully so that it is not damaged due to a vibration or shock.
HIOKI CM3286C961-00

3
Introduction
Package contents
When you receive the instrument, inspect it carefully to ensure that no damage occurred during
shipping. In particular, check the accessories, panel switches, and connectors. If damage is
evident, or if it fails to operate according to the specications, contact your authorized Hioki
distributor or reseller.
Model CM3286-50
AC Clamp Power Meter
Accessories
Model L9257 Connection Cord
(Model L4930 Connection Cable Set (1.2 m)
+ Model L4935 Alligator Clip Set)
CAT IV 600 V, CAT III 1000 V, CAT II 1000 V, 10 A
(p. 10)
Model C0203 Carrying Case
LR03 Alkaline battery ×2
Instruction Manual (this manual)
Operating Precautions (0990A907)
HIOKI CM3286C961-00

4
Introduction
Accuracy labeling
The instrument accuracy’s is expressed by dening a percentage of the reading, a percentage
of full scale, and limit value for errors in terms of digits.
Reading
(displayed value)
Indicates the value displayed by the instrument. Limit values for reading errors
are expressed as a percentage of the reading (“% of reading” or “% rdg”).
Full scale
(maximum display value)
Indicates the maximum display value for each measurement range.
Measurement range values for the instrument indicates that maximum display
value. Limit values for full-scale errors are expressed as a percentage of full
scale (“% of full scale” or “% f.s.”).
Digit
(resolution)
Indicates the minimum display unit (in other words, the smallest digit that can
have a value of 1) for a digital measuring instrument. Limit values for digit errors
are expressed using digits (“digits” or “dgt”).
Screen display
The instrument screen displays the alphanumeric characters as follows.
1 2 3 4 5 6 7 8 9 0
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
HIOKI CM3286C961-00

5
Options
Options
The options listed below are available for the instrument. To order an option, please contact
your authorized Hioki distributor or reseller. Options are subject to change. Please check Hioki's
website for the latest information.
Model C0207 Carrying Case Model C0203 Carrying Case
This bag-style case protects
the instrument while it’s being
transported or stored.
Approx. 360W × 300H × 160D mm
This case comes with the
instrument.
Model Z3210 Wireless Adapter (p. 25)
Connecting the Z3210 to the
instrument enables the wireless
communication function.
See “Wireless Communications
Function” (p. 66)
HIOKI CM3286C961-00

6
Options

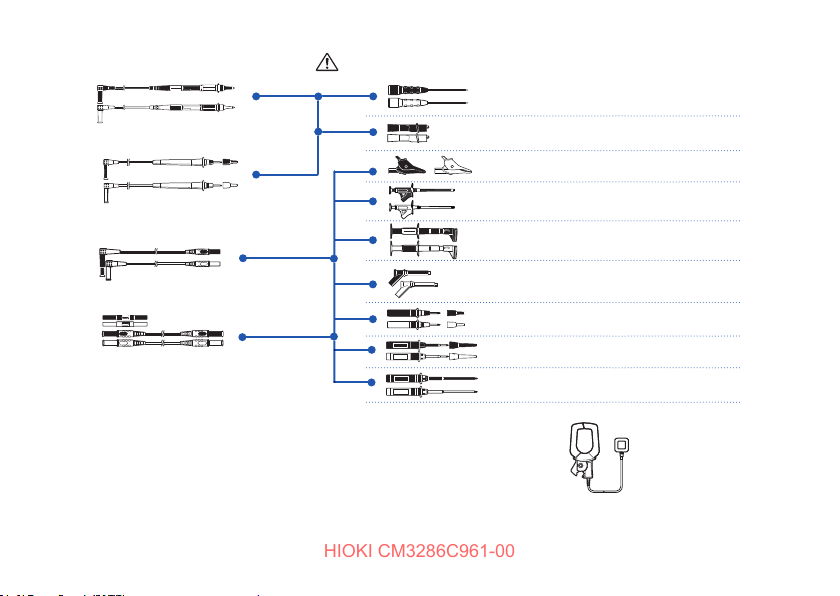

Connection cables and test leads
L4933 Contact Pin Set *6, *8
L4934 Small Alligator Clip Set *5, *8
L4935 Alligator Clip Set *2
L9243 Grabber clip *9
L4936 Bus Bar Clip Set *4
L4937 Magnetic Adapter Set *3
9804 Magnetic Adapter *10
L4932 Test Pin Set *1
L4930 Connection Cable Set
*2
(1.2 m)
L4931 Extension Cable Set
*2
(1.5 m, with the coupling connector)
L4938 Test Pin Set *7
L4939 Breaker Pin Set *11
L9207-10 Test Lead *1
,
*13
L9300 Test Lead *2
,
*13
*1: CAT IV 600 V, CAT III 1000 V, CAT II 1000 V, 10 A 9290-10
Clamp on
Adapter*12
*2: CAT IV 600 V, CAT III 1000 V, 10 A
*3: CAT III 1000 V, 2 A *4: CAT III 600 V, 5 A
*5: CAT III 300 V, CAT II 600 V, 3 A *6: AC30 V, DC60 V, 3 A
*7: CAT III 600V, CAT II 600V, 10 A *8: Can be connected to tip of the L4932
*9: CAT II 1000 V, 1 A *10: CAT IV 1000 V, 2 A
*11: CAT III 600V, 10 A *12: CAT II 600 V, 1000 A
*
13: When connecting the L4933 or L4934, congure the instrument for CAT II measurement. See “Test Leads” (p. 27).
: See p. 10
HIOKI CM3286C961-00

7
Safety Information
Safety Information
This instrument is designed to conform to IEC 61010 Safety Standards, and has been
thoroughly tested for safety prior to shipment. However, using the instrument in a way not
described in this manual may negate the provided safety features.
Before using the instrument, be certain to carefully read the following safety notes.
DANGER
Mishandling during use could result in injury or death, as well
as damage to the instrument. Be certain that you understand the
instructions and precautions in the manual before use.
WARNING
With regard to the electricity supply, there are risks of an electric
shock, a heat generation, a re, and an arc ash due to short‑circuit.
Individuals using an electrical measuring instrument for the rst time
should be supervised by a technician who has experience in electrical
measurement.
HIOKI CM3286C961-00

8
Safety Information
WARNING
Protective gear
This instrument is measured on a live line. To prevent an electric
shock, use appropriate protective insulation and adhere to applicable
laws and regulations.
Symbols and abbreviations
In this document, the risk seriousness and the hazard levels are classied as follows.
DANGER
Indicates an imminently
hazardous situation that will result
in death or serious injury to the
operator.
IMPORTANT
Indicates information related
to the operation of the
instrument or maintenance
tasks with which the
operators must be fully
familiar.
WARNING
Indicates a potentially hazardous
situation that may result in death
or serious injury to the operator.
Indicates prohibited actions.
CAUTION
Indicates a potentially hazardous
situation that may result in minor
or moderate injury to the operator
or damage to the instrument or
malfunction.
Indicates the action which
must be performed.
HIOKI CM3286C961-00

9
Safety Information

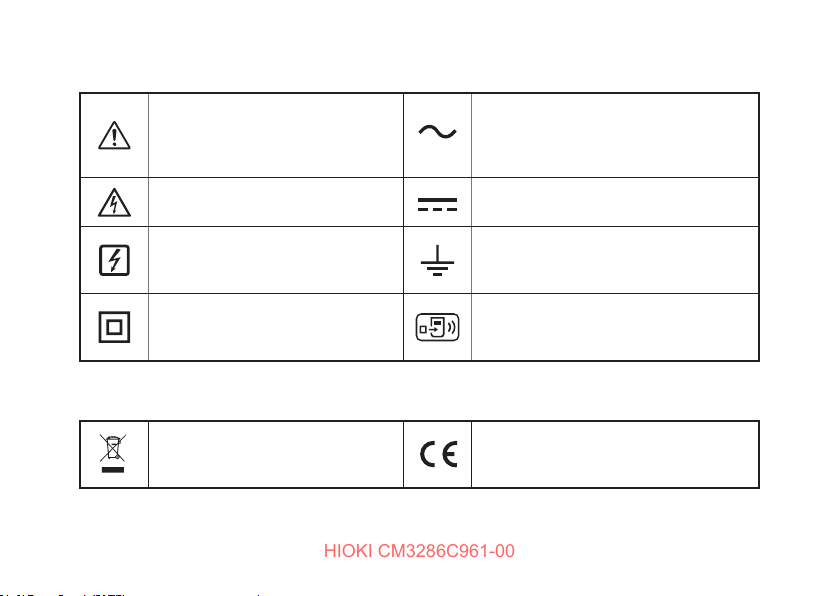

Symbols on the instrument
Indicates cautions and hazards.
When the symbol is printed on the
instrument, refer to a corresponding
topic in the Instruction Manual.
Indicates AC (Alternating Current).
Indicates that dangerous voltage may
be present at this terminal. Indicates DC (Direct Current).
Indicates that the instrument may be
connected to or disconnected from a
live conductor.
Indicates a grounding terminal.
Indicates a instrument that has been
protected throughout by double
insulation or reinforced insulation.
Indicates that the product incorporates
wireless communication function.
Symbols for various standards
Indicates the Waste Electrical and
Electronic Equipment Directive (WEEE
Directive) in EU member states.
Indicates that the product conforms to
regulations set out by the EU Directive.
HIOKI CM3286C961-00

10
Safety Information

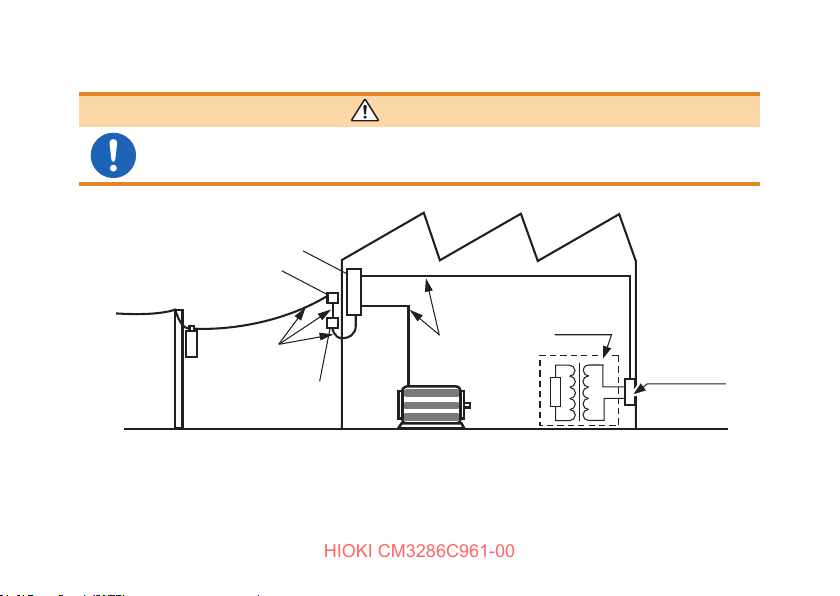

Measurement categories
WARNING
To prevent an electric shock, do not exceed the lower of the ratings
shown on the instrument and connecting cords.
T
Outlet
Internal wiring
Distribution panel
Service entrance
Service drop
CAT IV
(≤600 V)
Power meter
CAT III
(≤1000 V)
Fixed installation
CAT II
(≤1000 V)
HIOKI CM3286C961-00

11
Precautions for Use
Precautions for Use
Follow these precautions to ensure safe operation and to obtain the full benets of the various
functions.
DANGER
•Do not use the instrument with
circuits that exceed its ratings
or specications. Doing so may
damage the instrument or cause
it to become hot, resulting in
bodily injury.
•The instrument must not be used to measure
current in high‑voltage lines (1000 V or more).
Attempting to do so could cause a short‑circuit
or accident resulting in injury or death. Also,
do not perform measurement around a bare
conductor.
•To prevent an electric shock, do not touch any
areas beyond the barrier while the instrument is
in use.
Barrier
HIOKI CM3286C961-00

12
Precautions for Use
DANGER
•Do not short‑circuit two wires to be measured by bringing the clip
or jaw tip of the connecting cords into contact with them. Arcs or
such grave accidents are likely to occur.
•To prevent an electric shock, be careful to avoid shorting live lines
with the connecting cords tip.
•To prevent a short‑circuit or an electric shock, do not touch the
metal part of the connecting cords tip.
•The maximum measurement current varies with the frequency, and
the current that can be measured continuously is limited. Operating
the instrument at less than this limitation is referred to as derating.
Do not measure currents in excess of the derating curve. Doing so
may result in instrument damage or malfunction, a re, or a burn
due to sensor heating.
It is recommended to make measurements on the secondary side of
the distribution panel. Making measurements on the primary side of
the panel, where currents are higher, poses a higher risk of instrument
or equipment damage in the event of a short‑circuit.
HIOKI CM3286C961-00

13
Precautions for Use
WARNING
•Installing the instrument in inappropriate locations may cause a
malfunction of instrument or may give rise to an accident. Avoid the
following locations.
•Exposed to direct sunlight or high temperature
•Exposed to corrosive or combustible gases
•Exposed to a strong electromagnetic eld or electrostatic charge
•Near induction heating systems (such as high‑frequency induction
heating systems and IH cooking equipment)
•Susceptible to vibration
•Exposed to water, oil, chemicals, or solvents
•Exposed to high humidity or condensation
•Exposed to high quantities of dust particles
•Use only the specied connection cords. Use of any connection cord
not specied by our company does not allow safe measurements.
•Options may include connection cords which uses sleeves. To
prevent a short‑circuit accident, be sure to use the connection
cords with the sleeves attached when performing measurements in
the CAT III or CAT IV measurement categories. (For measurement
categories, see p. 10.)
•If the sleeves are removed during measurement, stop the
measurement.
HIOKI CM3286C961-00

14
Precautions for Use
CAUTION
• To avoid damage to the instrument, protect it from physical shock when
transporting and handling it. Be especially careful to avoid physical shock due to
dropping it.
• Do not place foreign objects between jaws or insert foreign objects into the gaps of
the sensor head. Doing so may worsen the performances of the sensor or interfere
with clamping action.
• Do not get the instrument wet or operate it if your hands are wet. Doing so may
cause electric shock.
• Keep the jaw closed when not in use, to avoid accumulating dust or dirt on the
facing core surfaces, which could interfere with clamp performance.
• The cord is hardened in freezing temperature. Do not bend or pull it to avoid
tearing its shield or cutting cord.
IMPORTANT
Inverter secondary-side waveforms and waveforms that include a large noise component
may not be measured accurately.
HIOKI CM3286C961-00
