Our Vigilon Plus System is the most comprehensive life safety
system available in the market today. The combination of the
powerful software in the control panel and the intelligent loop
powered devices delivers a flexible, easy to use system for all types
and sizes of buildings.

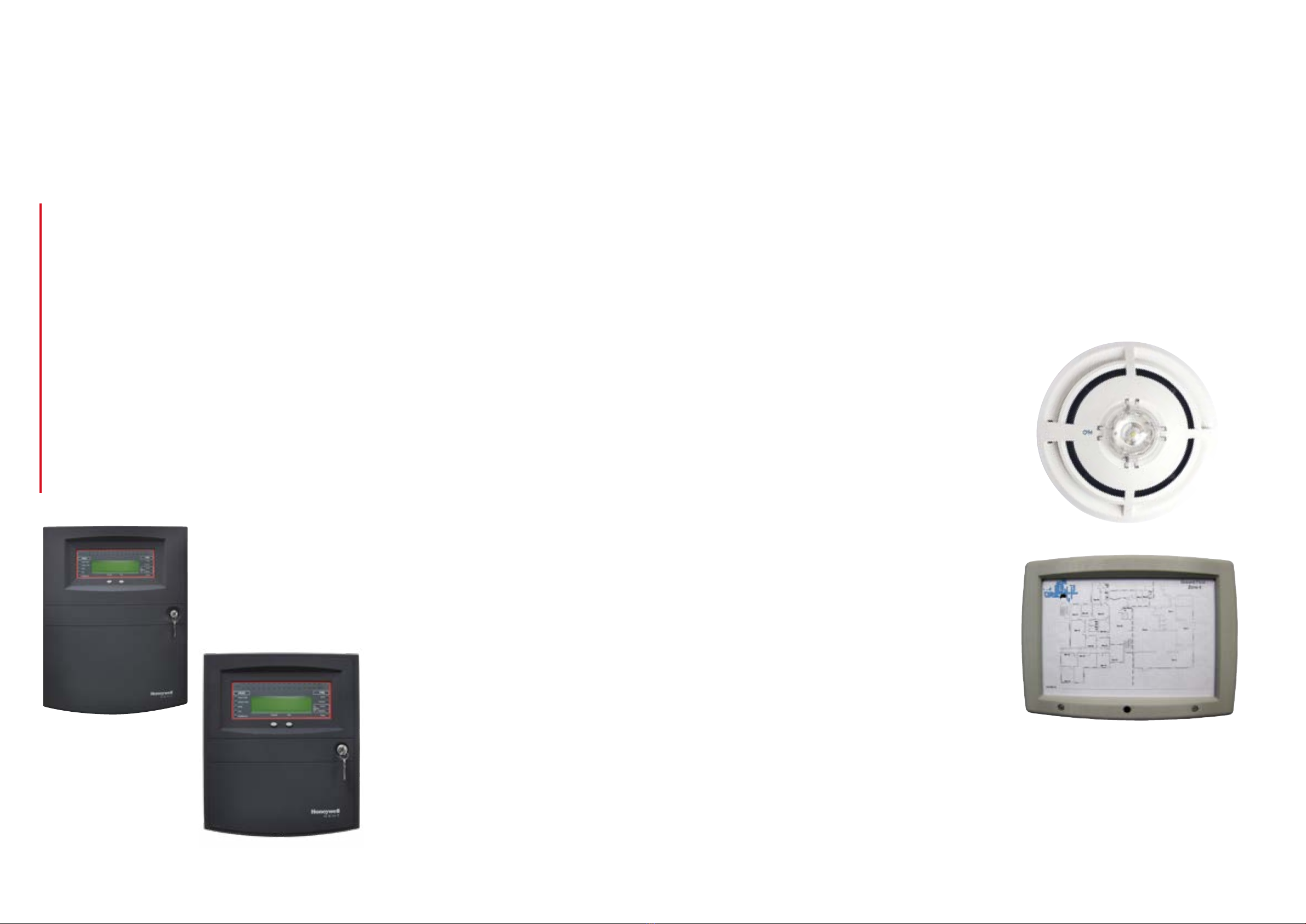

Vigilon’s modular concept makes systems simple to design for any
building. Panels can be installed as standalone units or as multi
panel networks of 200 panels/nodes.
Compact Plus is ideal for smaller systems needing up to 2 loops,
while Vigilon Plus can manage up to 6 loops, allowing easy and
flexible panel selection.
Vigilon Plus panels are available with 24 and 72 hour standby
power supply options.
Both panels can be installed in the same network.
32
RESPONDS QUICKLY TO REAL
FIRES WITHOUT THE RISK OF FALSE
ALARMS
• Vigilon’s advanced sensing technology and
powerful software processing in the control panel
quickly identifies real fires
• Powerful software algorithms are used to match
the pattern of activity in the sensor with data
from test fires stored in the panel memory. False
inputs that do not match a real fire pattern are
ignored or flagged as faults
• The latest Vigilon range of SQuad multi-sensors
incorporates four separate technologies in the
same sensor that combine to create a range
of sensing states appropriate for different
environments
• Unique programming options allow these
different sensitivity states to be used to reduce
the likelihood of known risks triggering a fire,
thus avoiding unnecessary evacuation while
maintaining the ability to give a fast response to a
real event
COST EFFECTIVE TO INSTALL
• The Vigilon loop manages the largest number and variety
of devices, with up to 200 sensors, sounders and interfaces
connected to the same 2 core loop circuit
• Vigilon loops have a high capacity for field alarm devices
with loop-powered sounders, VADs and interfaces,
removing the need for auxiliary power supplies
• Every loop device includes an integral short circuit isolator,
reducing installation costs at the same time as increasing
system integrity
• Multi-function devices combining sensor, sounder, speech
and EN5423 visual alarm reduce the number of individual
devices that need to be installed
• Every SQuad sensor has a configurable, monitored
input. This can be used instead of an interface, saving on
installation and product costs
FLEXIBLE AND SIMPLE TO USE
• The Vigilon control panels have a simple user interface with
an LCD screen, which provides accurate information in an
emergency
• Every Vigilon loop device has a unique address assigned
in software. Text labels, of up to 64 characters, can be
assigned to each address. This allows fires to be located
quickly and assists troubleshooting in commissioning and
maintenance
• PC based commissioning tools release powerful
programming options that allow complex fire plans to be
configured without extra equipment
• Flexible programming options are available at the panel, so
minor changes can be made without the need for PC tools
• Multi-panel networks can be programmed seamlessly
as one system. This allows for flexible design and system
management
• Vigilon Systems can be easily extended or changed.
Additional loops and extra panels can be added without
affecting the operation of the existing installation
PROVIDES PEACE OF MIND
• The Vigilon panel, SQuad sensors and SCubed sounders
are certified by LPCB to EN 54 (the European standard for
fire detection systems)
• Loop architecture combined with short circuit isolators in
every device ensures maximum tolerance to cable faults
• SQuad sensors can be locked into their base protecting
them from unauthorised removal
• Advanced loop and network communications protocols
ensure a rapid response to fire triggers, achieving a
response in under 3 seconds, even across networks
• Gent ensures that every system is designed, installed,
commissioned and serviced by highly trained Gent
approved System Integrators

SYSTEM
ARCHITECTURE

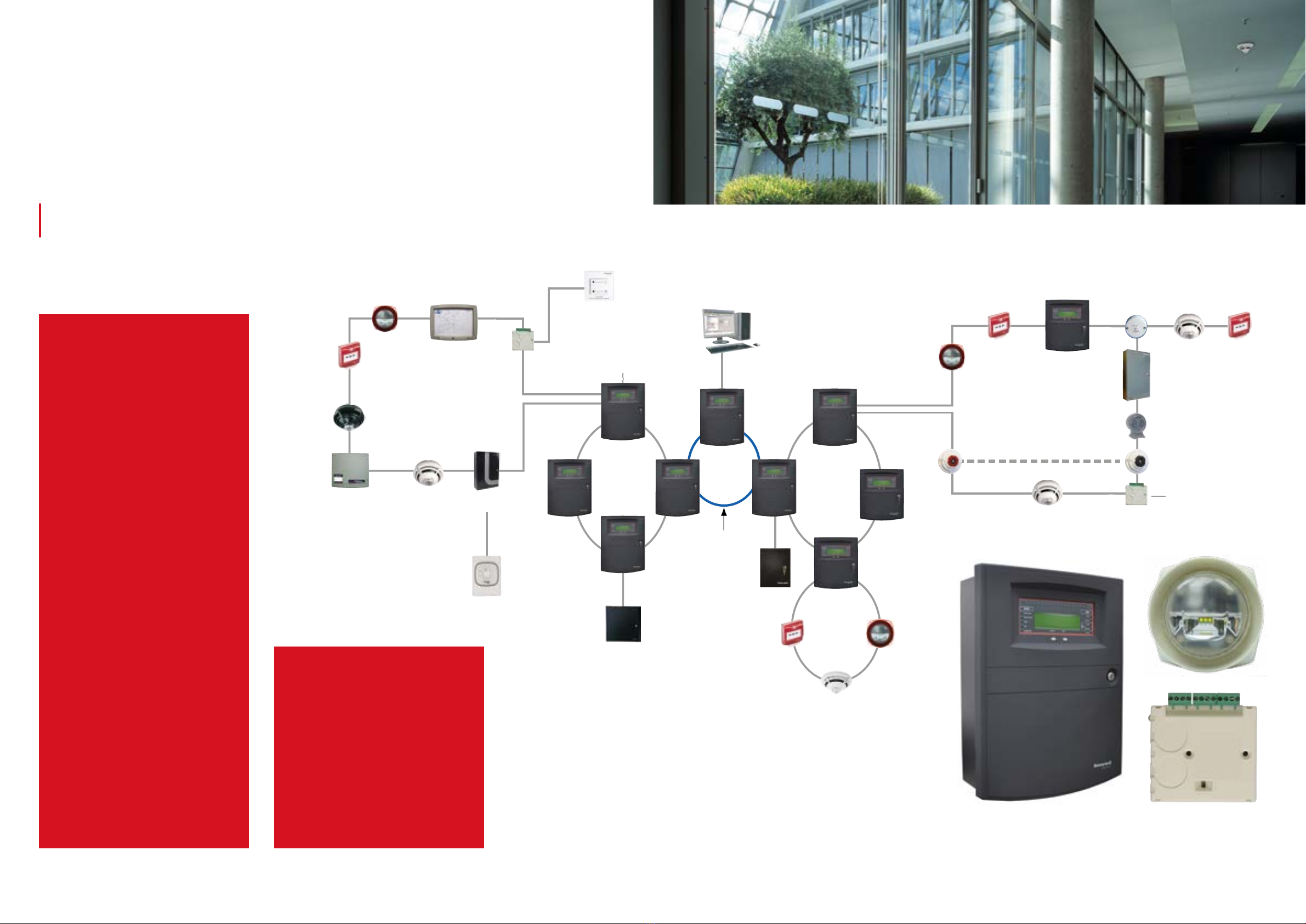

A multi-domain Vigilon Network has the capacity to support up to
200 panels per system.
54
4 Loop Vigilon Plus
WINMAG PC Based
Management System
Beam
Receiver
Duct Smoke Sensor
T-breaker
S-Quad
Sensor
Loop Powered Interface
Loop
Length 2Km
Repeat
Panel
Manual
Call Point
S-Cubed
Sounder VAD
Node
Node
Node
S-Quad Sensor
Sounder VAD
A3 Mimic
Panel
Up to 200 Devices
per Loop
S-Cubed
Sounder VAD
Secure
Copper
Network
Secure
Fibre
Network
Secure
Fibre Optic
Network
4 Loop Vigilon
S-Quad Sensor
Sounder VAD
6 Loop
Vigilon Plus
2 Loop
Vigilon
Compact
Plus
Manual
Call Point
Manual
Call Point
72 hour standby
with external enclosure
Mains Switching
Interface
Mains Powered
Interface
Beam
Transmitter
Manual
Call Point
4 Loop
Vigilon
Plus
S-Quad
Sensor
2 Loop
Vigilon
Compact
Plus
FAAST
Interface
FAAST
FLEX
SAFE
Gateway
VAD
Self-Test
Loop Powered Interface
• All products in the Vigilon System
are manufactured by Gent, which
ensures experienced, consistent
workmanship throughout your entire
life safety system
• The Vigilon System has fully
integrated solutions with Voice
Alarm and Public Address systems,
as well as the cloud-based
Connected Life Safety Services
(CLSS) platform. In addition, its
wide Interface range allows inputs
and outputs to other building
management and life safety
systems.
• Vigilon’s powerful software gives
you the ultimate flexibility to pre-
configure detection states based on
the time of day, building use or any
other customer driven parameter
• SOFT or SAFE addressing across
the system eliminates duplicate
addresses, allows the building
user to switch device type without
affecting the address and allows
additions to the system without
affecting site drawings
• SOFT or SAFE addressing across
the system eliminates duplicate
addresses and allows the building
user to switch device type without
affecting the address. It also allows
additions to the system without
affecting site drawings
• The Vigilon System is fully compliant
with all relevant industry standards.
The products that make up the Gent
system are LPCB approved to EN54,
complying with BS 58391
• In order to ensure your Vigilon
System is not compromised by poor
design, installation, commissioning
or maintenance, Gent has selected,
trained and approved System
Integrators to support Vigilon to its
optimum performance

S-QUAD SELF-TEST
(S4T) SERIES
SQuad’s market leading technology advances even further with our
SelfTest series of detectors (S4T). The S4T device is a brand-new
design which incorporates all the great SQuad features and more.
76
The device has a new IP21 external moulding, new detector chamber design and
a dual microprocessor PCB. This design delivers even better smoke detection and
voice storage capacity. In addition, the award-winning SelfTest feature allows both
the heat and optical sensors within the device to be tested using the CLSS App.
The SelfTest patented design performs real sensor tests by heating the heat sensing thermistor
and generating real aerosol (smoke) to test the optical sensor. The small fan within the device
gently blows the aerosol from the detection chamber, through the detector’s smoke entry points,
into the room. This method simulates a more realistic fire test than many traditional testing
methods, ensuring that the smoke entry points are not blocked and able to detect a real fire.

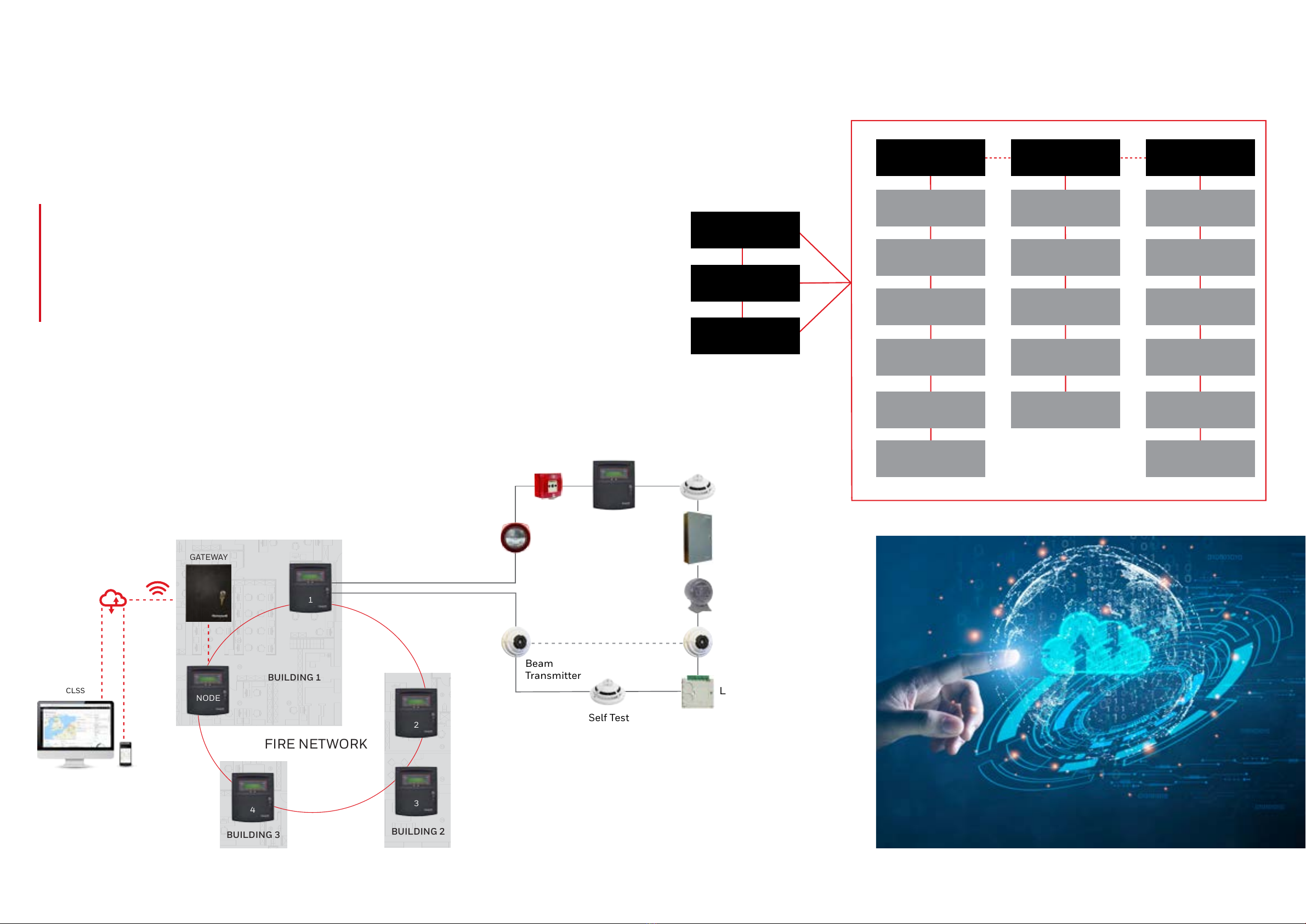

Each device also incorporates Bluetooth Low Energy (BLE). When activated, BLE acts like a
beacon in each detector that can be automatically detected by a mobile device using the CLSS
App. This has many helpful features such as finding a device automatically, ensuring the device
details are correct and proving that an engineer has been within the visual inspection range.
KEY SELF-TEST & CLSS FEATURES
• Available in a large range of multi-sensor, Part23 VAD and
sounder/ voice options.
• Enables discrete functional testing and visual inspection
of the fire alarm system by reducing the engineer toolset to
just a mobile device (phone or tablet). No more impact on
building occupiers.
• Tests both the heat and smoke sensors by heating the
thermistor and introducing small amounts of smoke into
the detection chamber.
• Gently blows the smoke out of the detection chamber and
smoke entry points to ensure they are not blocked.
• Flexible testing options allow the engineer to test in
different ways – single device, detection zone, loop(s),
panel(s).
• Allows up to 6 devices to be tested at once per loop and any
number of loops can be tested simultaneously, making the
functional testing incredibly fast.
• Device testing is fast enough to allow up to 4 functional
tests to be performed per year for the lifespan of the device.
• Eliminates all access issues when detector testing,
ensuring 100% functional testing is achieved.
• Allows the system to remain active whilst testing as each
detector is only offline for 60 seconds and outputs are not
generated.
• Any fires detected outside of the devices performing Self-
Test will stop the SelfTest process and operate the fire
systems’ Cause & Effect.
• Allows the engineer to easily locate the detector using
the App and BLE to check the device number, label, zone
description and detector type.
• Allows simple device updates to be performed through the
App, including the correction of inaccurate device labels
and loop mapping.
• The app and BLE handshake verifies that the engineer has
been within visual inspection range.
• Optional Inspection prompt LEDs on the device let the
engineer know what SelfTest devices need to be visually
inspected and will automatically turn off when the visual
inspection is complete.
• Engineers can spend more time digitally capturing non-
compliance issues and advising how to resolve them. This
includes any issues causing false alarms.
• Test Fire LED option in the App allows the fire LED to be
tested (a pending BS58391 testing requirement). This
feature can additionally confirm that they are inspecting the
correct device.
• The CLSS App allows the engineer to simulate a fire and
test the Cause & Effect logic.
• The CLSS App also allows the Cause & Effect to be
triggered through a successful SelfTest operation, allowing
a witness test to be performed using real smoke.
SYSTEM REQUIREMENTS
• SelfTest features compatible with Vigilon and Compact
Plus panels only..
• Backwards compatible as a detector and AV device only.
• MCB / MCC and loop cards will require firmware upgrades
to operate SelfTest and BLE features.
• Only supported on current EN54 loop cards (not legacy
loop cards).
• Requires a CLSS gateway (1 per network domain).
• Requires the CLSS mobile app.
REPORTING AND MONITORING
• A full compliance report can be generated on completion of
the testing.
• The number of SelfTest’s consumed per device is captured
through CLSS, enabling a quick check of usage.
• Reports identify how devices have been tested – manually
or through SelfTest.
• Reports identify how the device was visually inspected, with
or without BLE.
• Any corrective actions are also captured in the reports.

VIGILON CLOUD
CONNECTIVITY
Honeywell’s Connected Life Safety Services (CLSS) places
connectivity at the heart of fire safety, providing real-time visibility
to drive timely, accurate decision making. CLSS fully leverages the
Gent Vigilon system with a focus on asset management, events
and maintenance management, which transforms the way that
fire systems are commissioned, monitored and maintained.
98
BUILDING 2
GATEWAY
NODE
BUILDING 1
FIRE NETWORK
2
3
4
BUILDING 3
1
Loop Powered Interface
Beam Receiver
Duct Smoke Sensor
Mains Powered Interface
Self Test
Self Test
Beam
Transmitter
Manual
Call Point
Repeat
Panel
S-Cubed
Sounder VAD
CLSS
VISIBILITY & ASSET
MANAGEMENT
EVENT
MANAGEMENT
MAINTENANCE
MANAGEMENT
MULTIPLE SITES
& BUILDINGS FIRE EVENTS TESTING & VISUAL
INSPECTIONS
HOW
DOES EVERYTHING
CONNECT?
FAULT & SUB-FAULT
EVENTS
FALSE ALARM
CORRECTIONS
DEVICE TYPES
& LOCATION DISABLEMENTS NON-COMPLIANCE
CORRECTIVE ACTIONS
BUILDING CHANGES FALSE ACTIVATIONS C&E TESTING
DEVICE AGE
BUDGETING LOGBOOK REVIEW LOGBOOK
EVENTS
ASSET TAGGING AGEING DEVICE
REPLACEMENT
CUSTOMER
ACCOUNT
CUSTOMER
SITES
CUSTOMER
BUILDINGS
VIGILON SYSTEM WITH CLSS INTEGRATION
CLSS MANAGEMENT FEATURES

S-QUAD MULTI-SENSOR
DETECTION
The patented technology in the LPCB approved SQuad sensors
for Vigilon minimises the risk of false alarms whilst increasing
the integrity of the fire decision. Uniquely the SQuad sensor
range has a series of states that make it especially effective at
significantly reducing unwanted alarms.
A ground-breaker in fire sensing expertise, the LPCB approved
SQuad incorporates sensor, sounder, speech and EN54 visual
alarm functionalities in one single housing.
VIGILON AUDIO
VISUAL ALARMS
Gent’s patented SCubed Sounder
and VAD devices are fully loop
powered and do not require any
separate sounder circuits.
1110
HandiLink Infrared
remote control to
adjust the volume
remotely
ENSURES PEACE OF MIND
The capability and function of the Vigilon with
SQuad ensures that the system complies to the
requirements of:
• The Regulatory Reform (Fire Safety) Order
2005
• The Equality Act 2010
• The Building Regulations Approved
Documents B & M
• The British Standard BS 58391
All SQuad VAD signals, voice messages and
sounders are fully synchronised across the
system, as well as being synchronised with
SCubed devices.
VIGILON BEAM DETECTION
Vigilon’s Beam Sensors are connected to the
same circuit as all the other devices. Unique
in the industry, the Vigilon Beam Sensors are
loop powered with their gain settings set at the
control panel. Vigilon Beams do not require any
additional power supplies or Interfaces, making
them the most economical solution for Beam
Detection.
S-CUBED RANGE FOR VIGILON
The SCubed range of Alarm Sounders incorporates
sound speech and visual alarm effects all in one
range of alarm devices.
The SCubed range offers a choice of two body
colours, red or white, in housings and an EP range
up to IP65.
The Integrated Visual Alarm makes SCubed ideal
to meet all requirements of the BS58391 as well
as the Equality Act 2010, which requires all persons
regardless of any disability to be made aware of a
fire or an emergency in any public building. Industry
leading technology means that up to 100 Sounder
VADs can be installed on each Vigilon Loop.
As an aid to commissioning, there is the option to
use the HandiLink Infrared remote control to adjust
the volume at the device itself without the need to
be at the panel. This means that physical access is
not required to make this adjustment. The integrity
of the system is maintained by requiring the system
to be in test mode avoiding the risk of unauthorised
changes.
• SQuad is powered by the Vigilon loop so it requires just
one pair of cables to provide its multi-sensor, sounder,
speech and strobe functionalities
• SQuad offers market leading loop capacity with 200
sensors, 125 sensor sounders or 100 sensor strobes
• SQuad’s VADs are all certified to EN54 part 23 with up to
100 devcies supported by the Vigilon loop
DETECTS REAL FIRES QUICKLY
• The combined power of SQuad and Vigilon provides quick,
intelligent fire decisions
• The ability to programme sensor states for different times
of the day and night improves SQuad’s response to real
fires and minimises false alarms
• SQuad incorporates four separate sensing elements
– heat, forward optical, backward optical and carbon
monoxide that combine to detect real fires quickly
PUTS AN END TO FALSE ALARMS
• SQuad’s unique combination of sensing elements
eliminates a higher number of false alarms
• SQuad’s patented dual optical sensor allows it to
accurately distinguish between smoke and white dust or
steam
• SQuad is capable of switching between different sensor
states to suit changes in the environment
COST EFFECTIVE TO INSTALL
• SQuad incorporates sensor, sounder, speech and visual
alarm functionalities all in one single loop powered device
KEY FEATURES
• Very low power consumption means
that the Vigilon System offers more
Sounders on the loop than any other
manufacturer; each loop can support
up to 200 Voice Sounders and 100
Sounder VADs
• Visual Alarm devices are configurable
to three intensity levels to optimise the
loop loadings while allowing sounder
spacings to be matched
• Voice enhanced Sounders have 4 voice
messages and a bell tone as standard,
and are certified to EN543 Annex 0
• Sounder and Visual Alarms are actively
monitored daily as a background task
• Voice and Tone modes can be freely
mixed within the same Sounder
• SCubed can be programmed to store
customised messages
• SCubed is fully compatible with
the SQuad range and seamlessly
complements the SQuad sensor with
voice messages and complex sound
signals

VIGILON INTERFACES
Our comprehensive range of Interfaces to solve all your
interfacing requirements, which are demanded by today’s
systems. A keyswitch version can used for manual plant control.
The new, comprehensive range of Vigilon Interfaces have a neat
compact design casing to give maximum installation flexibility.
The range includes low voltage and mains switching variants
to meet all application needs. All variants can be installed as
either DIN rail mounted or housed in a Vigilon style enclosure. All
Interfaces are compliant with EN 54 part 18.
1312
LOOP POWERED 4 CHANNEL
INTERFACE
The loop powered 4 channel Interface range has
individually sectored outputs where channel 1
can be set as a loop powered zone module.
• Each channel can be configured as an input
or output independent of each other and in
accordance with the fire plan
• All Interface devices can be housed in their
own neat enclosures, DIN rail mounted or
housed in a Vigilon style box
• Interfaces with output channels do not require
additional relays – the panel monitors cable
faults and can raise an alarm if a fault occurs
• All Interfaces are seen by the panel as one
address although each input/ output can have
a separate label displayed at the panel
MAINS POWERED INTERFACE
The Vigilon Mains Powered Interface allows you
to connect to ancillary units which can not be
integrated directly onto the Vigilon loop.
• 4 Channels Input or Output
• 24V dc Supply
• 24 hour battery standby
• Fully compliant with BS72734
LOOP POWERED SINGLE CHANNEL
INTERFACE
The Vigilon System can accomodate a high
number of single channel Interfaces on the loop,
exceeding typical site requirements.
• VA high capacity of single channel Interfaces is
available on the loop
• Versions are available to provide inputs and
outputs to and from the system
• Basic building control can be achieved
through inputs from other life safety systems
such as sprinklers and conventional fire
systems
• Non fire inputs can prove current status of
systems and fault signals can be made known
through alarm outputs
• Key-operated variant for secure management
of the system
LOOP POWERED MAINS SWITCHING
INTERFACE
• The mains switching Interfaces can switch up
a resistive load of up to 16amps at 240V AC
• 4 and single channel variants with combined
inputs and outputs make these Interfaces
ideal for connecting to a control plant
VIGILON MANUAL CALL POINT
The Vigilon Manual Call Point is available as a
break glass variant or it can be supplied with a
resettable element – ideal where glass could
prove to be a safety hazard.
• The Manual Call Point is available with a
resettable element especially useful in
schools, colleges and public areas where the
incidence of rogue activation may be higher
than normal
• Surface or flush mounted variants are available
• Flushes with standard installation back box
• An anti-vandal protective cover is available
• The glass fronted variant has a simple glass
replacement process
• An LED gives confirmation of operation
• The Manual Call Point is EN 54 part II compliant
• The Manual Call Point can be supplied as an
IP55 rated unit
Loop powered
4 channel Interface
Loop powered key
switch operated
Interface
Mains powered
Interface
Loop Powered Mains
Switching Interface
Vigilon Manual
Call Point

Honeywell Gent now offers a flexible range of Voice Alarm
and Public Address systems as well as life safety products to
complement the Vigilon System.
VIGILON’S PERIPHERAL
SYSTEMS
1514
Honeywell
Voice Alarm
Fibre Optic
Network
Vigilon
Compact
Plus
4 - 6 Loop
Vigilon
Plus
Paging Mic
Emergency Mic
Ceiling
Loudspeaker
Cabinet
Loudspeaker
Projection
Loudspeaker
Honeywell
Voice Alarm
Projection
Loudspeaker
Cabinet
Loudspeaker
Ceiling
Loudspeaker
CD Player
Honeywell
Voice Alarm
Projection
Loudspeaker
Cabinet
Loudspeaker
Graphical
Management
4 - 6 Loop
Vigilon
Plus
AIR SAMPLING DETECTION
Air Sampling Detection, also known as Aspirating Smoke
Detection (ASD) systems can detect fires at a very early stage,
often before visible smouldering takes place, before an open
fire occurs and before intense smoke develops.
This early detection is vital to mission critical and high-risk
applications. The earliest possible fire detection brings
significant time benefits, enabling a fast response to the first
signs of smoke. ASD can detect fires significantly faster than
point or beam smoke detectors.
Vigilon ASD Interface integrates the Honeywell FAAST FLEX
ASD with combined power supply and loop Interface.
The VESDAE VEP series of smoke detectors bring the
latest and most advanced detection technology to provide
very early warning and the best nuisance alarm rejection
to a wide range of applications. Built on the Flair detection
technology and years of application experience, VEP
detectors achieve consistent performance over their lifetime
via absolute calibration. In addition, the VEP delivers a range
of revolutionary features that provide user value.
PAGING
The Response Paging System offers the latest innovations
in wireless paging and monitoring. It’s a cost effective and
flexible paging system that offers the ability to quickly
respond to activated alarms.
The solution consists of a wall mounted transmitter and
antennae that can send customised messages to designated
pagers and are powerful enough to cover large areas.
DISABLED REFUGE
An EVCS (Emergency Voice Communication System) or
Disabled Refuge System is designed for use in buildings that
contain refuge areas.
This type of intercom system allows emergency services
to be in constant contact with the people in the refuge
areas who seek assistance. The Equality Act (formerly The
Disability Discrimination Act) made it the responsibility of all
companies, nationwide, to ensure that access to buildings
and services is available to everyone - there must be no
discrimination.
Paging Disabled Refuge
Air Sampling
Detection
VESDA-E VEP

Honeywell Gent is synonymous with quality and innovation in the
fire detection and alarm industry. Gent technology meets rigorous
British and European standards for all projects ranging from small
installations to complex, multi-site networks.
THE VIGILON
SYSTEM
Honeywell GENT
Carlton Park
Narborough
Leicester
LE19 0LF GEN009 - CWA | VIGILON SYSTEM | 10/23
© 2023 Honeywell GENT.
