K3590-ADV3 3/06 Rev. A

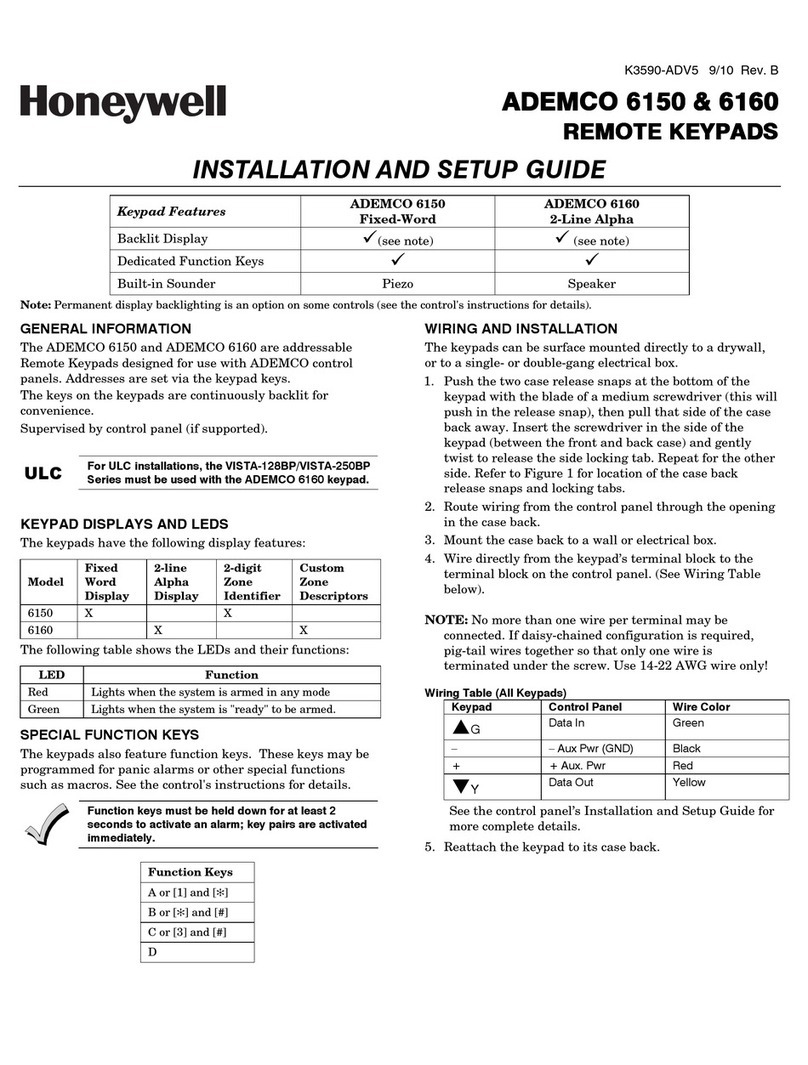

ADEMCO 6150 & 6160
ADEMCO 6150 & 6160ADEMCO 6150 & 6160
ADEMCO 6150 & 6160
REMOTE KEYPADS
REMOTE KEYPADSREMOTE KEYPADS
REMOTE KEYPADS
INSTALLATION AND SETUP GUIDE
Keypad Features ADEMCO 6150
Fixed-Word
ADEMCO 6160
2-Line Alpha
Backlit Display ✔(see note) ✔(see note)
Dedicated Function Keys ✔✔
Built-in Sounder Piezo Speaker
Note: Permanent display backlighting is an option on some controls (see the control's instructions for details).
GENERAL INFORMATION
The ADEMCO 6150 and ADEMCO 6160 are addressable
Remote Keypads designed for use with ADEMCO control
panels. Addresses are set via the keypad keys.
The keys on the keypads are continuously backlit for
convenience.
KEYPAD DISPLAYS AND LEDS
The keypads have the following display features:
Model
Fixed
Word
Display
2-line
Alpha
Display
2-digit
Zone
Identifier
Custom
Zone
Descriptors
6150 X X
6160 X X
The following table shows the LEDs and their functions:
LED Function
Red Lights when the system is armed in any mode
Green Lights when the system is "ready" to be armed.
SPECIAL FUNCTION KEYS
The keypads also feature function keys. These keys may be
programmed for panic alarms or other special functions
such as macros. See the control's instructions for details.
Function keys must be held down for at least 2
seconds to activate an alarm; key pairs are activated
immediately.
Function Keys
A or [1] and [✻]
B or [✻] and [#]
C or [3] and [#]
D
WIRING AND INSTALLATION
The keypads can be surface mounted directly to a drywall,
or to a single- or double-gang electrical box.
1. Push the two case release snaps at the bottom of the
keypad with the blade of a medium screwdriver (this will
push in the release snap), then pull that side of the case
back away. Insert the screwdriver in the side of the
keypad (between the front and back case) and gently
twist to release the side locking tab. Repeat for the other
side. Refer to Figure 1 for location of the case back
release snaps and locking tabs.
2. Route wiring from the control panel through the opening
in the case back.
3. Mount the case back to a wall or electrical box.
4. Wire directly from the keypad’s terminal block to the
terminal block on the control panel as follows:
Wiring Table (All Keypads)
Keypad Control Panel Wire Color
▲GData In Green
–– Aux Pwr (GND) Black
++ Aux. Pwr Red
▼YData Out Yellow
See the control panel’s Installation and Setup Guide for
more complete details.
5. Reattach the keypad to its case back.
NOTE:
TO REMOVE CASE BACK
PUSH IN THE TWO MOUNTING
SNAPS LOCATED ALONG THE
BOTTOM OF THE KEYPAD
AND LIFT UP.
6150-006-V0
RETAINING
SNAPS
ARMED
READY
LOCKING
TA B
Figure 1. Removing the Case Back

SETTING THE KEYPAD ADDRESS
The keypad can either be set for an address of 00-30, or to
the non-addressable mode (31). The keypad's default
address is 31.
To change the keypad's address, do the following:
1. Enter address mode: Power up the keypad. Within 60
seconds of power-up, press and hold down the [1] and [3]
keys at the same time for 3 seconds. (If unable to enter
address mode, power up and try again.)
The current keypad address will be displayed, and the
cursor will be under the "tens" digit. If 10 seconds have
passed with no key entry, the keypad automatically exits
address mode. You must power down, power up and
start address mode again.
NOTE: The keypad will not enter address mode if the
panel to which it is connected is in programming mode.
2. Set the current address to "00": Press [0] to clear the
current "tens" digit. The cursor will move to the "ones"
digit position. Press [0] to clear the current "ones" digit.
The cursor will move back to the "tens" digit position.
3. Enter the keypad's address: Enter the proper "tens" digit
of the keypad's address. The cursor will move to the
"ones" digit position. Enter the proper "ones" digit of the
keypad's address. Note that address "31" sets the
keypad to non-addressable mode.
4. Exit address mode:
Press [✻] to save the displayed address and exit address
mode.
VIEWING THE KEYPAD ADDRESS
Press and hold down the [1] and [3] keys at the same time
for about 3 seconds. The current address is displayed. No
key entry is allowed. Press any key to exit or wait 10
seconds to exit viewing mode.
FUNCTION KEY LABELS
A set of adhesive-backed labels with some typical function
symbols (i.e., fire, police, personal emergency, etc.) is
provided. These labels can be placed on or next to the keys
to identify each key's function for the end user (as
determined by the control panel's capability and
programming; see the control's instructions).
SPECIFICATIONS
Physical:
6150: 4-7/8"H x 6-1/4"W x 1"D
6160: 5-5/16"H x 7-3/8"W x 1-3/16"D
Displays:
6150: Fixed-Word LCD (backlit).
6160: 2 x 16 alpha-numeric supertwist LCD,
backlit.
Sounder:
6150: Piezo-electric (fire alarm is loud, pulsing
single
tone; (all Keypads) burglary alarm is loud,
continuous, dual tone).
6160: Speaker.
Voltage: 12VDC
Current:
6150: 70mA (ARMED LED lit, LCD backlight and
sounder on), reduces to 40mA when panel is
operating in standby mode (backlight off).
6160: 150mA (ARMED LED lit, LCD backlight
and sounder on), reduces to 40mA when
panel is operating in standby mode
(backlight off).
REFER TO INSTALLATION INSTRUCTIONS FOR THE CONTROL PANEL WITH WHICH THIS DEVICE IS USED FOR
WARRANTY INFORMATION AND LIMITATIONS OF THE ENTIRE ALARM SYSTEM.
