TREADMILL OWNER’S MANUAL
MANUEL D’UTILISATION DU TAPIS ROULANT
Read the TREADMILL GUIDE before using this OWNER’S MANUAL.
Lire le GUIDE DU TAPIS ROULANT avant de se servir du présent MANUEL D’UTILISATION.
CT5.1

2

3
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the
treadmill, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located near the on/off
power switch and power cord and enter it in the space provided below.
ENTER YOUR SERIAL NUMBER IN THE BOX BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
» Be sure to enter both the SERIAL NUMBER and MODEL NAME on your warranty card.
SERIAL NUMBER:
MODEL NAME: HORIZON CT5.1 TREADMILL
WARNING

4
ON/OFF SWITCH
CIRCUIT BREAKER
TRANSPORT WHEEL
POWER CORD
RUNNING BELT / RUNNING DECK
SPEAKERS
CONSOLE
IPOD/MP3 PLAYER POCKET
TOUCH PAD PANEL AND DISPLAY WINDOWS
SAFETY KEY PLACEMENT
MOTOR COVER
SIDE RAIL
ROLLER END CAP
REAR ROLLER
ADJUSTMENT BOLTS
CONSOLE MAST
FOOT LOCK LATCH (UNDERNEATH DECK)
SPEAKERS
WATER BOTTLE HOLDER
GRIP PULSE HANDRAILS
UNDERNEATH FOOT LATCH

5
TOOLS INCLUDED:
FScrewdriver
F6 mm T-Wrench
F5 mm L-Wrench
F4 mm L-Wrench
PARTS INCLUDED:
F1 Console Assembly
F2 Console Masts
F1 Support Bar
F2 Bottom Console Covers
F5 Hardware Bags
F1 Safety Key
F1 Audio Adapter Cable
F1 Bottle of Silicone Lubricant
(for 2 applications)
If you have questions or if
there are any missing parts,
contact Customer Tech
Support. Contact information
is located on the back panel
of this manual.
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. You may
remove the plastic wrap from console masts.
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a
protective covering on your floor. Take CAUTION when handling and transporting this
unit. Never open box when it is on its side. Once the banding straps have been removed,
do not lift or transport this unit unless it is fully assembled and in the upright folded
position, with the lock latch secure. Unpack the unit where it will be used. The enclosed
treadmill is equipped with high-pressure shocks and may spring open if mishandled.
Never grab hold of any portion of the incline frame and attempt to lift or move the treadmill.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
NEED HELP?
NOTE: During assembly, do not completely tighten any screws or bolts until step 4 is
complete!
NOTE: A light application of grease may aid in the installation of hardware. Any grease,
such as lithium bike grease is recommended.
PRE ASSEMBLY

6
ASSEMBLY STEP 1
A Cut the yellow banding straps and lift the
running deck upward until the foot
latch locks. Remove all contents from
underneath the running deck.
B Open hardware bag 1.
C With the running deck in the raised
position, attach the left console mast
to the base frame using 4 bolts (a),
4 spring washers (b) and 4 flat
washers (c).
BOLT (A)
20 mm
Qty: 4
SPRING WASHER (B)
15 mm
Qty: 4
FLAT WASHER (C)
15 mm
Qty: 4
HARDWARE BAG 1 CONTENTS :
BOLTS (A)
SPRING WASHERS (B)
FLAT WASHERS (C)
LEFT
CONSOLE
MAST
BASE FRAME
RUNNING DECK
FOOT LATCH
NOTE: Do not completely tighten any
screws or bolts until step 4 is complete!

7
ASSEMBLY STEP 2
A Open hardware bag 2.
B Pull lead wire through right console
mast. After pulling the lead wire through the
mast, the top of the console cable should
be located at the top of the mast. Detach and
discard the lead wire.
C With the running deck in the raised
position, attach the right console
mast to the base frame using 4 bolts
(a), 4 spring washers (b) and 4 flat
washers (c).
NOTE: Be careful not to pinch any wires
while assembling the right console mast.
BOLT (A)
20 mm
Qty: 4
SPRING WASHER (B)
15 mm
Qty: 4
FLAT WASHER (C)
15 mm
Qty: 4
HARDWARE BAG 2 CONTENTS :
BOLTS (A)
SPRING WASHERS (B)
FLAT WASHERS (C)
RIGHT CONSOLE MAST
CONSOLE CABLE
LEAD WIRE
BASE FRAME
RUNNING DECK
NOTE: Do not completely tighten any
screws or bolts until step 4 is complete!

8
ASSEMBLY STEP 3
BOLT (D)
25 mm
Qty: 2
FLAT WASHER (E)
16 mm
Qty: 2
HARDWARE BAG 3 CONTENTS :
BOLT (D)
FLAT WASHER (E)
CONSOLE MAST
CONSOLE CABLES
CONSOLE
ASSEMBLE
LEFT SIDE
FIRST
A Disengage the deck lock latch with your
foot to lower the running deck.
B Open hardware bag 3.
C Gently place the console on top of the
console masts. Attach the left side first
using 1 bolt (d) and 1 flat washer (e).
D Connect the console cables, carefully
tucking wires in masts to avoid damage.
E Attach the right side of the console
using 1 bolt (d) and 1 flat washer (e).
NOTE: Do not completely tighten any
screws or bolts until step 4 is complete!
NOTE: Be careful not to pinch any wires
while assembling the masts.

9
ASSEMBLY STEP 4
BOLT (H)
15 mm
Qty: 4
HARDWARE BAG 4 CONTENTS :
SUPPORT BAR
BOLTS (H)
CONSOLE MAST
CONSOLE
A Open hardware bag 4.
B Align support bar with holes in console
masts.
C Insert bolts (h) into all 4 holes of the
support bar.
Note: look into holes in the right mast before
inserting bolts to avoid pinching cables.
D Tighten all bolts completely.

10

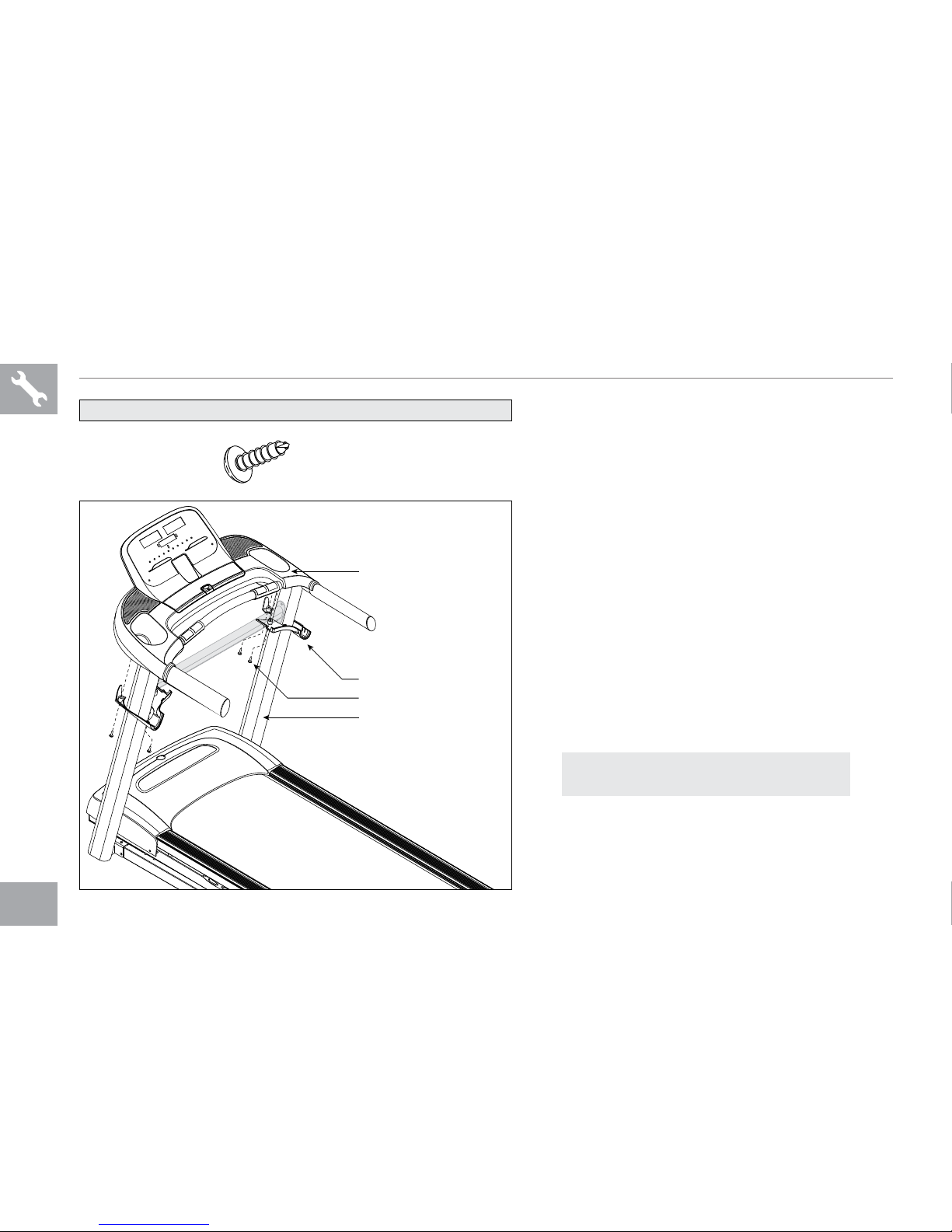

ASSEMBLY STEP 5
A Open hardware bag 5.
B Slide right bottom console cover up
console mast and align screw holes. Attach
bottom console cover to console
using 2 screws (g).
C Repeat on other side.
D Connect power plug to a power outlet. The ON/
OFF switch is located next to the power cord.
Flip this switch to the ‘ON’ position, so that
the switch is lit. You will hear a beep and the
console will turn on.
E Before the first use, lubricate the treadmill
deck by following the instructions in the
MAINTENANCE section in the TREADMILL
GUIDE.
SCREW (G)
15 mm
Qty: 4
HARDWARE BAG 5 CONTENTS :
SCREWS (G)
BOTTOM CONSOLE COVER
CONSOLE MAST
CONSOLE
YOU ARE FINISHED!

11
TREADMILL OPERATION
This section explains how to use your treadmill’s console and programming. The BASIC OPERATION section in the
TREADMILL GUIDE has instructions for the following:
• LOCATION OF THE TREADMILL
• USING THE SAFETY KEY
• FOLDING THE TREADMILL
• MOVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIONING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTION

12
TIME DISTANCE
CALORIES
INCLINE
HEART RATE
SPEED
% COMPLETE
SCAN
INTERVALS W EIGHT
LOSS HILL S ROLLING
MANUAL SAVED
MANUAL
SAVED
INTERVALS
SAVED
WEIGHT
LOSS
SAVED
HILLS
SAVED
ROLLING
LOW HIGHMED SLOW MED FAST
M y K E Y S ™
Press and hold a MyKEY™
for three seconds to set
key to current incline.
M y K E Y S ™
Press and hold a MyKEY™
for three seconds to set
key to current speed.
SP E EDIN C LI N E
A
BC
D
R
E
F J SL KHM G I
T T
P P
O
Q
N
U U

13

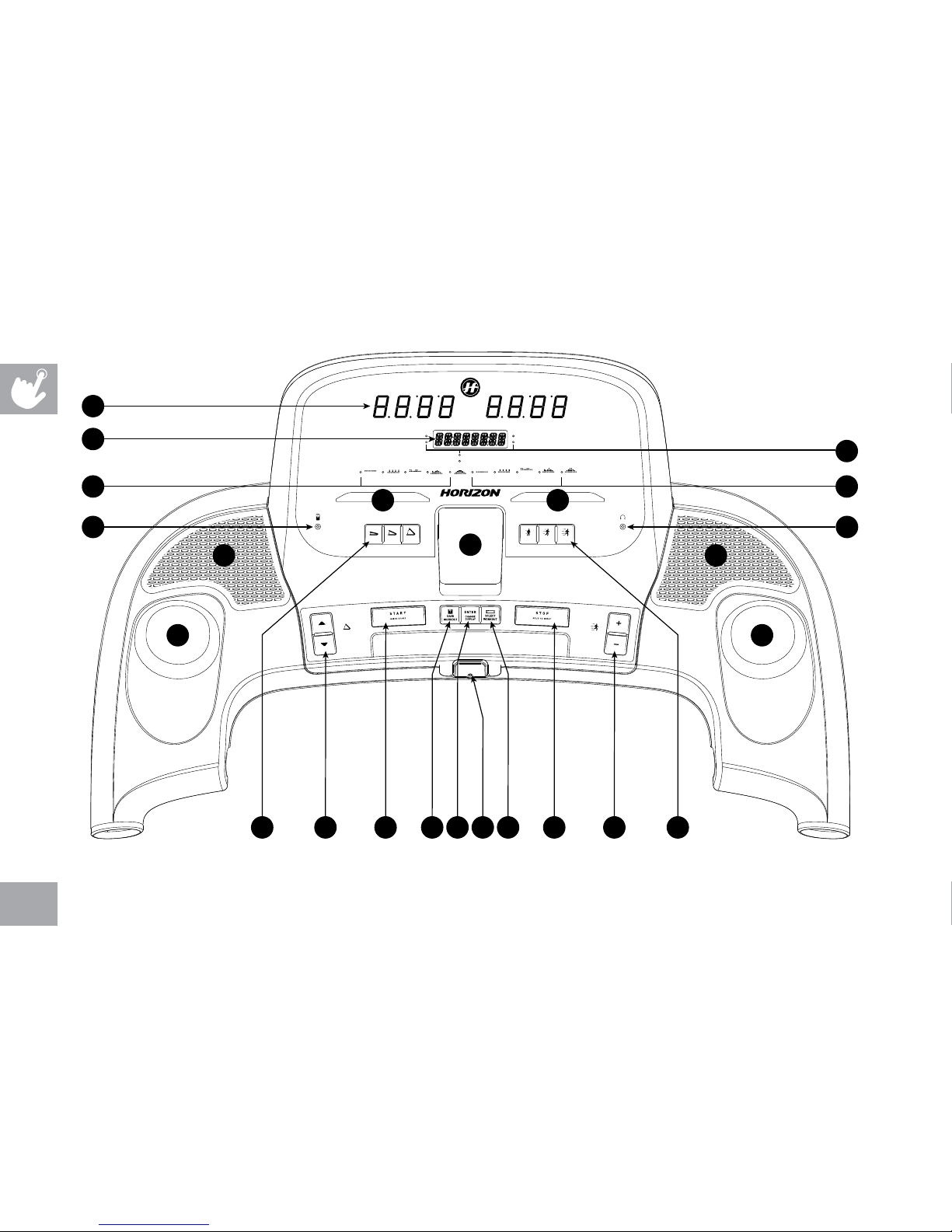

CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LARGE LED WINDOWS: time & distance.
B) LCD WINDOW: calories, heart rate, incline, speed, % complete, and scan.
C) FEEDBACK LEDS: indicate what workout feedback is currently being displayed in the lcd window.
D) PROGRAM LEDS: indicate what program is currently selected.
E) SAVED PROGRAM LEDS: indicate what saved program is currently selected.
F) START: press start to begin exercising, starts your workout, or resume exercising after pause.
G) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
H) INCLINE / KEYS: used to adjust incline in small increments (0.5% Increments).
I) SPEED + / - KEYS: used to adjust speed in small increments (0.1 Mph increments).
J) ENTER: used to select programs and confirm settings. Press to change display feedback during workout. To enter scan
mode, press enter until scan led is illuminated.
K) SELECT WORKOUT KEY: used to scroll through programs.
L) SAVE WORKOUT KEY: after your workout, press to save a workout for future use.
M) INCLINE MYKEYS™: used to reach desired incline more quickly. See next page for details.
N) SPEED MYKEYS™: used to reach desired speed more quickly. See next page for details.
O) MP3 PLAYER POCKET: used to store your mp3 player.
P) SPEAKERS: music plays through speakers when your cd / mp3 player is connected to the console.
Q) AUDIO IN JACK: plug your cd / mp3 player into the console using the included audio adaptor cable.
R) AUDIO OUT / HEADPHONE JACK: plug your headphones into this jack to listen to your music through the headphones.
Note: when headphones are plugged into the headphone jack the sound will no longer come out through the speakers.
S) SAFETY KEY POSITION: enables treadmill when safety key is inserted.
T) WATER BOTTLE POCKETS: holds personal workout equipment.
U) READING RACK: holds reading material.

14
MYKEYS™ KEY OPERATION
You can program the MyKeys to your desired speed or incline values.
TO RESET CONSOLE
Hold STOP key for 3 seconds.
FINISHING YOUR WORKOUT
When your workout is complete, the monitor display will flash
and beep. Your workout information will stay displayed on the
console for 30 seconds and then reset.
CLEAR CURRENT SELECTION
To clear the current program selection or screen, hold the STOP
button for 4-5 seconds.
The INCLINE MyKeys defaults are:
Low = 0%
Med = 3%
High = 6%
The SPEED MyKeys defaults are:
Slow = 1 mph
Med = 3 mph
Fast = 5 mph
To change the default value of any MyKEY, while in a program, first select the speed or incline level you would like to save, then
press and hold the MyKEY you wish to change for 3 seconds. The current speed or incline level will flash on the console and beep
three times indicating that the new level has been saved successfully. To use a Speed MyKEY during a workout, it is necessary to
press ENTER after pressing the MyKEY to confirm the speed. This is only necessary for the Speed MyKEYs and not the Incline
MyKEYs.
NOTE: Slow/Low cannot be set higher than Med and Med cannot be set higher than Fast/High. The console will beep once if the
values are incorrect and the value will not be saved.

15
PROGRAMS
MANUAL: Allows “on the fly” manual speed and incline changes. Time-based goal.
INTERVALS: Improves your strength, speed and endurance by increasing and decreasing the speed throughout your
workout to involve your heart and other muscles.
WEIGHT LOSS: Promotes weight loss by increasing and decreasing the speed, while keeping you in your fat burning zone.
HILLS: Simulates running up and down hills to improve stamina.
ROLLING: A less-intense version of the HILLS program.
SELECTING A PROGRAM
1) Press SELECT WORKOUT to scroll through programs.
2) Press ENTER to select a program.
3) Use the + / - keys to set maximum speed or incline.
4) Press ENTER to confirm selection.
5) Use the + / - keys to set minimum speed or incline.
6) Press ENTER to confirm selection.
7) Use the + / - keys to set program duration.
8) Press the START button to begin program.
GETTING STARTED
1) Check to make sure no objects are placed on the
belt that will hinder the movement of the treadmill.
2) Plug in the power cord and turn the treadmill ON.
3) Stand on the side rails of the treadmill.
4) Attach the safety key clip to part of your clothing
making sure that it is secure and will not become
detached during operation.
5) Insert the safety key into the safety keyhole in the
console.
6) Simply press the START key to begin working out
or select a program.

16
SAVING A WORKOUT
If you had an especially challenging workout, you may want to save that one for the future.
1) At the end of your workout, the console will prompt you if you would like to save your completed workout by
scrolling save workout.
2) If you would like to save the workout, press the SAVE WORKOUT key. If not, either press the STOP key or stop
using the treadmill until the console resets itself.
3) The LED will flash next to the type of program you used. For example, if you used the INTERVALS program, the
SAVED INTERVALS LED will flash.
4) Press and hold the SAVE WORKOUT key for 5 seconds to save the workout for future use.
5) If you would like to save over a previous workout, press and hold the SAVE WORKOUT KEY for 5 seconds.
NOTE: When using a saved workout, changes to speed or incline will not be saved.

17
LIMITED HOME-USE WARRANTY

18
WEIGHT CAPACITY = 300 lbs (136 kilograms).
FRAME • LIFETIME
Horizon Fitness warrants the frame against defects in
workmanship and materials for the lifetime of the owner, so
long as the device remains in the possession of the original
owner. (The frame is defined as the welded metal base of the
unit and does not include any parts that can be removed.)
DRIVE MOTOR/ELEVATION • LIFETIME
Horizon Fitness warrants the motor against defects in
workmanship and materials for the lifetime of the owner, so
long as the device remains in the possession of the original
owner.
ELECTRONICS & PARTS • 1 YEAR
Horizon Fitness warrants the electronic components, finish
and all original parts for a period of one year from the date
of original purchase, so long as the device remains in the
possession of the original owner.
LABOR • 1 YEAR
Horizon Fitness shall cover the labor cost for the repair of the
device for a period of one year from the date of the original
purchase, so long as the device remains in the possession of
the original owner.
EXCLUSIONS AND LIMITATIONS
Who IS covered:
• The original owner and is not transferable.
What IS covered:
• Repair or replacement of a defective motor, electronic
component, or defective part and is the sole remedy of the
warranty.
What IS NOT covered:
• Normal wear and tear, improper assembly or maintenance,
or installation of parts or accessories not originally
intended or compatible with the equipment as sold.
• Damage or failure due to accident, abuse, corrosion,
discoloration of paint or plastic, neglect, theft, vandalism,
fire, flood, wind, lightning, freezing, or other natural
disasters of any kind, power reduction, fluctuation or failure
from whatever cause, unusual atmospheric conditions,
collision, introduction of foreign objects into the covered
unit, or modifications that are unauthorized or not
recommended by Horizon Fitness.
• Incidental or consequential damages. Horizon Fitness
is not responsible or liable for indirect, special or
consequential damages, economic loss, loss of property,
or profits, loss of enjoyment or use, or other consequential
damages of whatsoever nature in connection with the
purchase, use, repair or maintenance of the equipment.

19
• Equipment used for commercial purposes or any use other
than a single family or Household, unless endorsed by
Horizon Fitness for coverage.
• Equipment owned or operated outside the US and
Canada.
• Delivery, assembly, installation, setup for original or
replacement units or labor or other costs associated with
removal or replacement of the covered unit.
• Any attempt to repair this equipment creates a risk of
injury. Horizon Fitness is not responsible or liable for any
damage, loss or liability arising from any personal injury
incurred during the course of, or as a result of any repair or
attempted repair of your fitness equipment by other than
an authorized service technician. All repairs attempted by
you on your fitness equipment are undertaken AT YOUR
OWN RISK and Horizon Fitness shall have no liability
for any injury to the person or property arising from such
repairs.
SERVICE/RETURNS
• In-home service is available within 150 miles of the nearest
authorized repair center (Mileage beyond 150 miles from
an authorized service center is the responsibility of the
consumer).
• All returns must be pre-authorized by Horizon Fitness.
• Horizon Fitness’ obligation under this warranty is limited
to replacing or repairing, at Horizon Fitness’ option, the
same or comparable model at one of its authorized service
centers.
• A Horizon Fitness authorized service center must receive
all equipment for which a warranty claim is made. This
equipment must be received with all freight and other
transportation charges prepaid, accompanied by sufficient
proof of purchase.
• Replacement units, parts and electronic components
reconditioned to As-new Condition by Horizon Fitness
or its vendors may sometimes be supplied as warranty
replacement and constitute fulfillment of warranty terms.
• This warranty gives you specific legal rights, and your
rights may vary from state to state.

CT5.1 Rev. 1.3 | © 2009 Horizon Fitness | Designed & Engineered in the U.S.A. | Made in China | Conçu et développé aux États-Unis. | Fabriqué en Chine
Tel/Tél : [phone]
Email/Courriel : [email protected]
May be covered by
one or more Patents
or Patents Pending
Ce produit peut être couvert
par un ou plusieurs brevets
ou par des brevets imminents
US 6273843
TW 494765
CN 03206094.7
US 6682460
TW 586429
US 7104930
CN 01230904.4
Horizon Fitness
1600 Landmark Drive,
Cottage Grove WI, 53527
ATTENTION
STOP
CUSTOMER TECH SUPPORT | SERVICE DE SOUTIEN TECHNIQUE À LA CLIENTÈLE
www.horizonfitness.com
DO NOT RETURN
TO THE RETAILER
if you have any
problems during
assembly or if parts
are missing.
For fast and friendly
service, please
contact one of our
trained customer
technicians via phone,
email or our website.
Every employee at Horizon Fitness
takes pride in providing you with a
high quality product.
We want to know if you have a
problem and we want to have an
opportunity to correct it for you.
NOTE: Please read the
TROUBLESHOOTING section in
the TREADMILL GUIDE before
contacting Customer Tech Support.
Additional product information is
available on our website.
En cas de difficulté lors
de l’assemblage ou si
des pièces manquent,
NE PAS RENVOYER
L’APPAREIL AU
DÉTAILLANT.
Pour un service rapide
et amical, communiquer
avec un de nos
techniciens qualifiés,
par téléphone, courriel
ou notre site Web.
Chaque employé de Horizon Fitness
est fier de fournir un produit de
grande qualité.
Horizon Fitness tient à ce qu’on lui
signale tout problème d’utilisation,
afin de pouvoir y remédier.
REMARQUE : Lire la section
DÉPANNAGE du GUIDE DU TAPIS
ROULANT avant de contacter le
service de soutien technique à la
clientèle. Pour plus ample information
sur le produit, visiter notre site Web.
