OWNER’S MANUAL

2

3
IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be followed, including the following: Read all instructions before
using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all
warnings and precautions. If you have any questions after reading this guide, contact Customer Tech Support at the number listed
on the back panel of the OWNER’S MANUAL.
This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting.
Failure to comply will void the warranty.
ENGLISH

4
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• The equipment shall be installed on a stable and levelled base.
• Never use the treadmill without securing the safety key clip to your clothing. Pull on the safety key clip first to make sure it will not
come off your clothing.
• Heart rate monitoring systems may be inaccurate. Over exercising may result in serious injury or death. If you feel faint stop
exercising immediately.
• When exercising, always maintain a comfortable pace.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• At no time should more than one person be on treadmill while in operation.
• This treadmill should not be used by persons weighing more than specified in the OWNER’S MANUAL WARRANTY SECTION. Failure
to comply will void the warranty.
• When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.
• Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp cloth
only; never use solvents. (See MAINTENANCE)
• The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or
taking off parts.
WARNING
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the treadmill from the electrical outlet immediately after using, before cleaning, performing maintenance and putting
on or taking off parts.
DANGER
ENGLISH

5
• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• Connect this exercise product to a properly grounded outlet only.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop
exercising immediately and consult your physician before continuing. Incorrect or excessive exercise may damage your health.
• Do not remove the protected covers unless instructed by Professional and your local dealer. Service should only be done by and
authorized service technician.
• Disconnect the safety key to prevent uncontrolled usage of third parties.
• While exercicing, run within the logo printed on belt to prevent possible injury.
• The sound of treadmill is less than 70dB while no user on the machine, it is higher than 70dB while using. When you feel
uncomfortable about the noise from treadmill, please stop exercise and take rest. Noise emission under load is higher than without
load.
• Make sure the treadmill comes to complete stop before folding. Do not operate the treadmill when it is folded.
• Please note that the plastic parts, such as end caps, are susceptible to wear. The treadmill’s safety level can only be maintained, if it
is checked regularly for damage and wear.
• Make sure the edge of belt parallel with the lateral position of the side rail, and do not move under the side rail. If you find the belt
is not centered, please always adjust it.
ENGLISH

6
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• At NO time should pets or children under the age of 13 be closer to the treadmill than 10 feet.
• At NO time should children under the age of 13 use the treadmill.
• Children over the age of 13 or disabled persons should not use the treadmill without adult supervision.
• Use the treadmill only for its intended use as described in the treadmill guide and owner’s manual.
• Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
• Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged,
or immersed in water. Return the treadmill to a service center for examination and repair.
• Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
• Never operate the treadmill with the air opening blocked. Keep the air opening clean, free of lint, hair, and the like.
• To prevent electrical shock, never drop or insert any object into any opening.
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms,
bathrooms, car ports or outdoors. Failure to comply will void the warranty.
• This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional setting.
Failure to comply will void the warranty.
• Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an authorized
service a technician.
It is essential that your treadmill is EN CLASS HB certified and use only indoors, in a climate controlled room. If your treadmill has
been exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to
room temperature before first time use. Failure to do so may cause premature electronic failure.
WARNING
ENGLISH

7

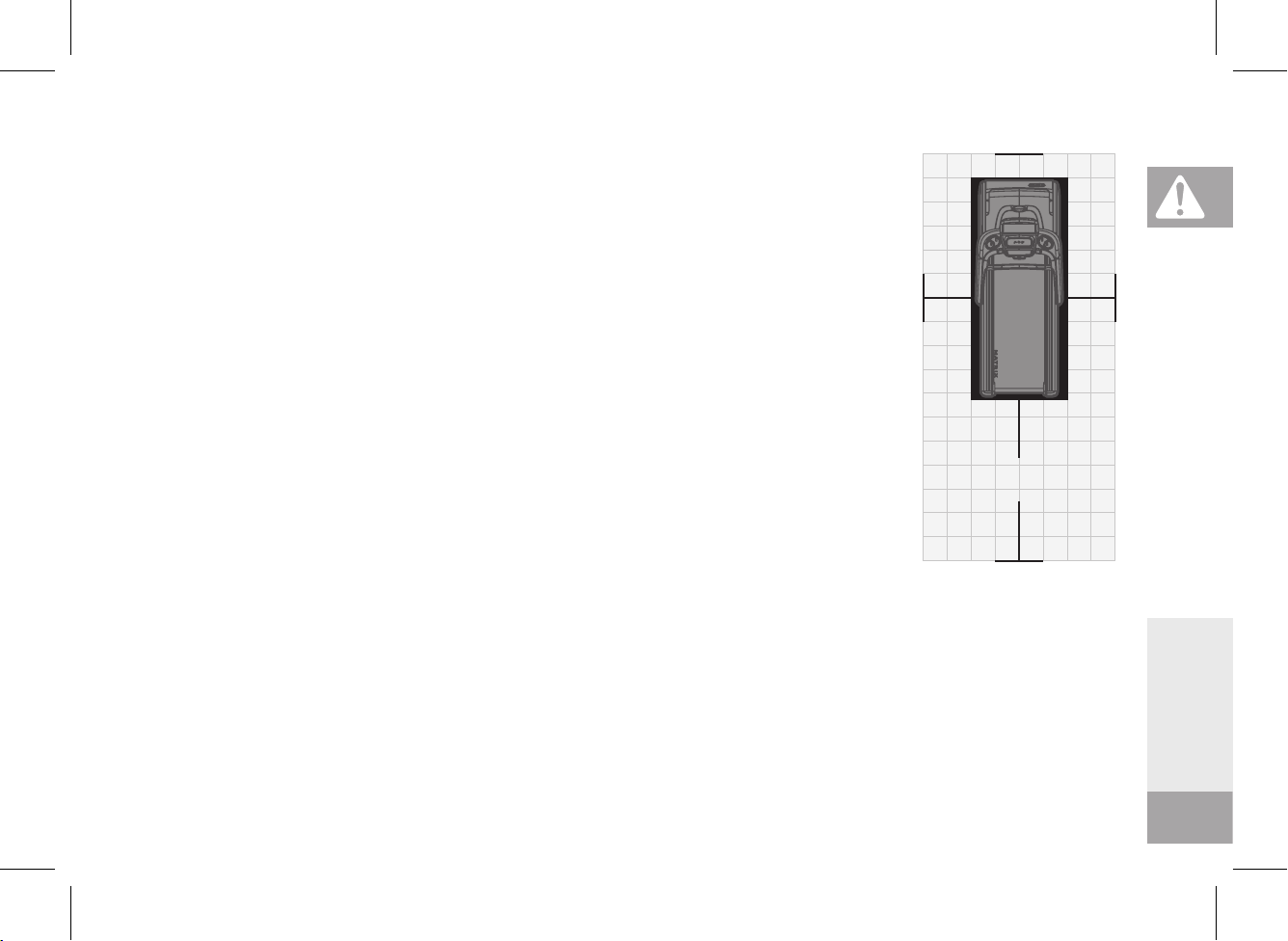

• Place the treadmill on a level and stable surface. There should be one foot of clearance in front of
the treadmill for the power cord. Please leave a clear zone behind the treadmill that is at least the
width of the treadmill and at least 79” (2 meters) long. This zone must be clear of any obstruction and
provide the user a clear exit path from the machine. In case of an emergency, place both hands on
the side arm rests to hold yourself up and place your feet onto the side rails.
For ease of access, there should be an accessible space preferentially on both sides of the treadmill
equal to 2 ft (0.6 meters) to allow a user access to the treadmill from either side.
Do not place the treadmill in any area that will block any vent or air openings. The treadmill should
not be located in a garage, covered patio, near water or outdoors.
0,6 m
(2 ft)
0,6 m
(2 ft)
2 m(79")
0,3 m(1 ft)
TRAINING
AREA
FREE
AREA
ENGLISH

8
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance for
electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding conductor
and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with
local codes and ordinances.
Connect this exercise product to a properly grounded outlet only.
Never operate product with a damaged cord or plug even if it is working
properly. Never operate any product if it appears damaged, or has been
immersed in water. Contact Customer Tech Support for replacement or repair.
WARNING
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician
or service provider if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the
product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal local voltage circuit and has a grounding plug. No adapter should be used with this product.
This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that circuit and
observe if any other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple outlets on one circuit.
ENGLISH

9
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath, stop exercising
immediately and consult your physician before continuing. Incorrect or excessive exercise may damage your health.
• When exercising, always maintain a comfortable pace.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• At no time should more than one person be on treadmill while in operation.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool rooms,
bathrooms, car ports or outdoors. Failure to comply may void the warranty.
• To prevent electrical shock, never drop or insert any object into any opening.
• The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use and before putting on or taking off parts.
• Keep power cord away from heated surfaces. Do not carry this unit by it’s supply cord or use the cord as a handle.
• Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly damp cloth
only; never use solvents. (See MAINTENANCE)
• Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
• Do not remove the protected covers unless instructed by Professional and your local dealer. Service should only be done by and
authorized service technician.
• Never operate the treadmill with the air opening blocked. Keep the air opening clean, free of lint and hair.
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
• Use the treadmill only as described in the treadmill guide and owner’s manual.
• When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.
• Disconnect the safety key to prevent uncontrolled usage of third parties.
• The equipment shall be installed on a stable and levelled base.
• Lubricate and centering the running belt regularly with instruction given.
• While exercicing, run within the logo printed on belt to prevent possible injury.
• The sound of treadmill is less than 70dB while no user on the machine, it is higher than 70dB while using. When you feel uncomfortable
about the noise from treadmill, please stop exercise and take rest. Noise emission under load is higher than without load.
WARNING
ENGLISH

10
At NO time should children under the age of 13 or pets be within 3 m (10 feet) of the treadmill.
At NO time should children under the age of 13 use the treadmill.
Children over the age of 13 or disabled persons should not use the treadmill without adult supervision.
It is essential that your treadmill is EN CLASS HB certified and use only indoors, in a climate controlled room. If your treadmill has
been exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to
room temperature before first time use. Failure to do so may cause premature electronic failure.
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance for
electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-grounding conductor
and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with
local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or
serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product. If it
will not fit the outlet, have a proper outlet installed by a qualified electrician.
This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that circuit and
observe if any other devices lose power. If so, move devices to a different circuit.
Connect this exercise product to a properly grounded outlet only.
Never operate product with a damaged cord or plug even if it is working properly. Never operate any product if it appears
damaged, or has been immersed in water. Contact your Local Dealer for replacement or repair.
The material of shoes may cause of static issue. To avoid electrical shock, wear athletic shoes with plastic bottom and make sure
the grounding cable is well connected. If you are pregnant, consult a physician and read the OWNER’S MANUAL and TREADMILL
GUIDE before starting your workout.
WARNING
ENGLISH

11
BASIC OPERATION
CONGRATULATIONS ON CHOOSING YOUR TREADMILL!
You’ve taken an important step in developing and sustaining an exercise program! Your treadmill is a tremendously effective tool
for achieving your personal fitness goals. Regular use of your treadmill can improve the quality of your life in so many ways.
Here are just a few of the health benefits of exercise:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
The key to reaping these benefits is to develop an exercise habit. Your new treadmill will help you eliminate obstacles that prevent
you from exercising. Inclement weather and darkness won’t interfere with your workout when you use your treadmill in the
comfort of your home. This guide provides you with basic information for using and enjoying your new machine.
ENGLISH

12
FOOT LATCH
DECK LOCK PIN
OR
A
T
I
P
T
O
M
O
V
E

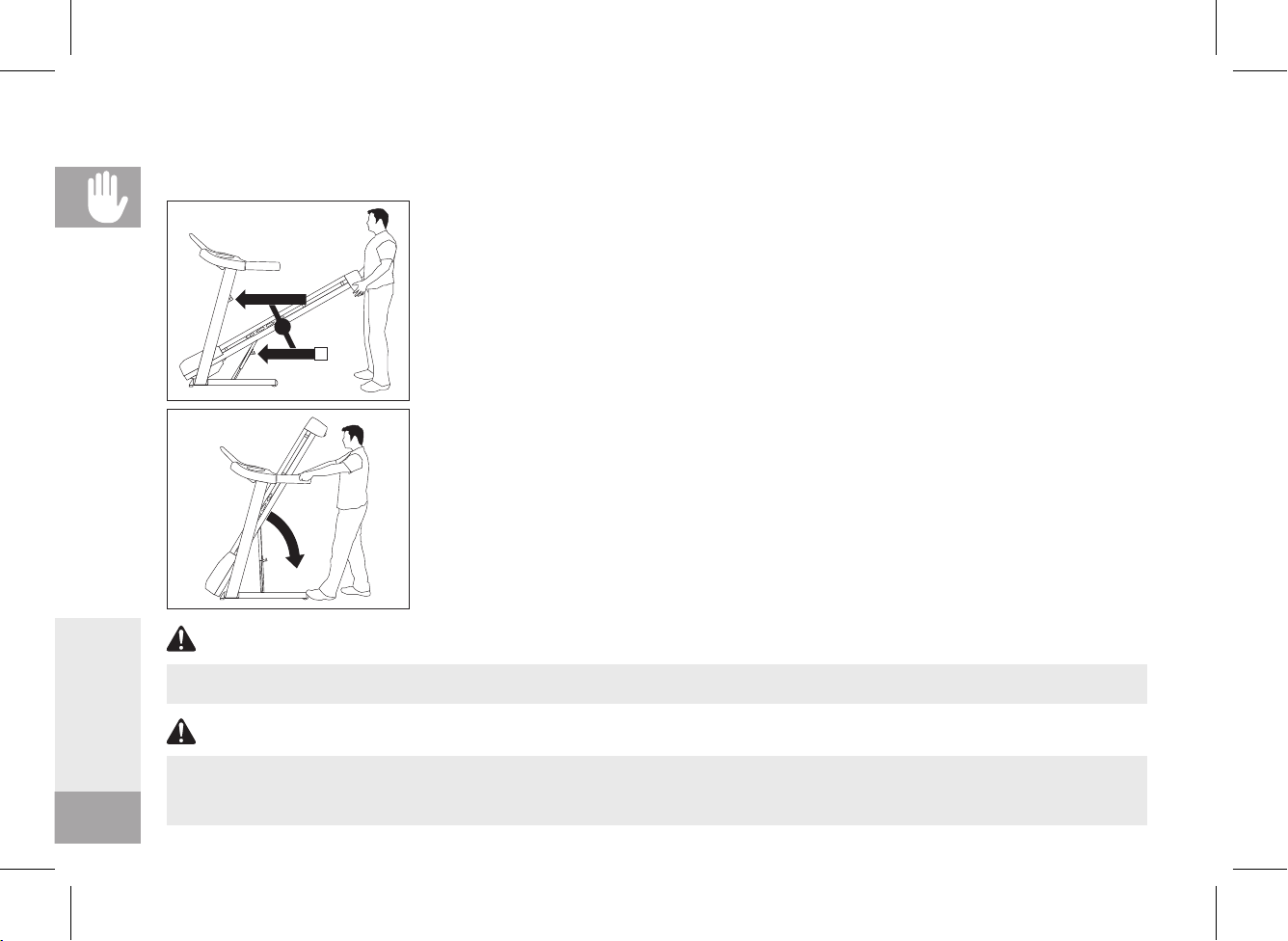

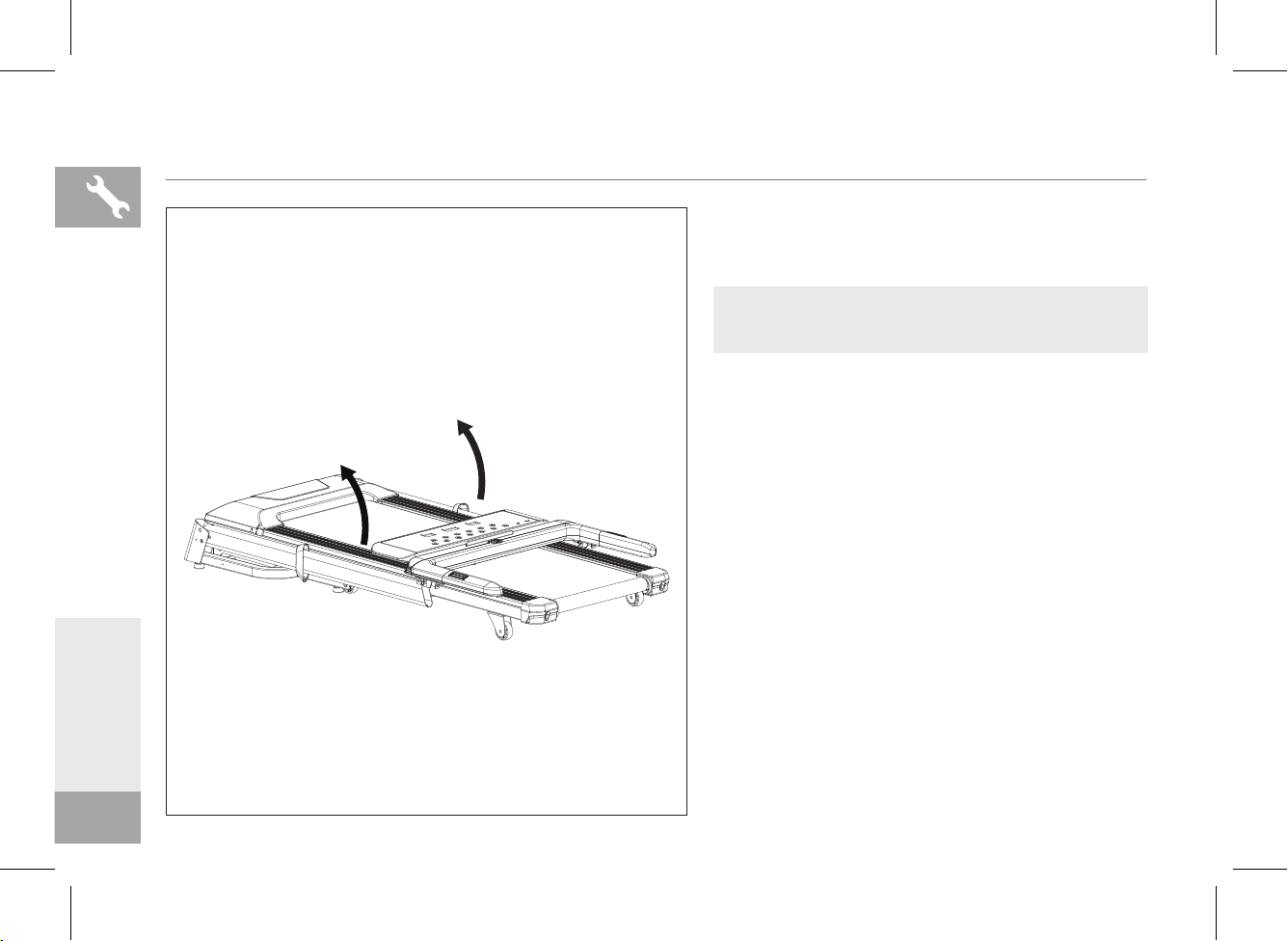

FOLDING THE TREADMILL
Firmly grasp the back end of the treadmill. Carefully lift the end of the treadmill deck into the upright
position until the foot lock latch or deck lock pin engages and securely locks the deck into position.
Make sure the deck is securely latched before letting go. To unfold, firmly grasp the back end of
the treadmill. Gently press down on the foot lock latch (A or B) with your foot until the lock latch
disengages or pull the deck lock pin to release the deck. Carefully lower the deck to the ground.
THE TREADMILL
Your treadmill has 2 transport wheels* built into the frame. To move, make sure the treadmill is
folded and securely latched.Then firmly grasp the handlebars, tilt the treadmill back and roll.
Make sure the treadmill comes to complete stop before folding. Do not operate the treadmill when it is folded.
Our Treadmills are heavy, use care and additional help if necessary when moving. Do not attempt to move or transport treadmill
unless it is in the upright, folded position with the lock latch secured. Failure to follow these instructions could result in injury.
WARNING
WARNING
EMERGENCY DISMOUNT
In case of an emergency, place both hands on the side arm rests to hold yourself up and place your feet onto the side rails.
ENGLISH

13

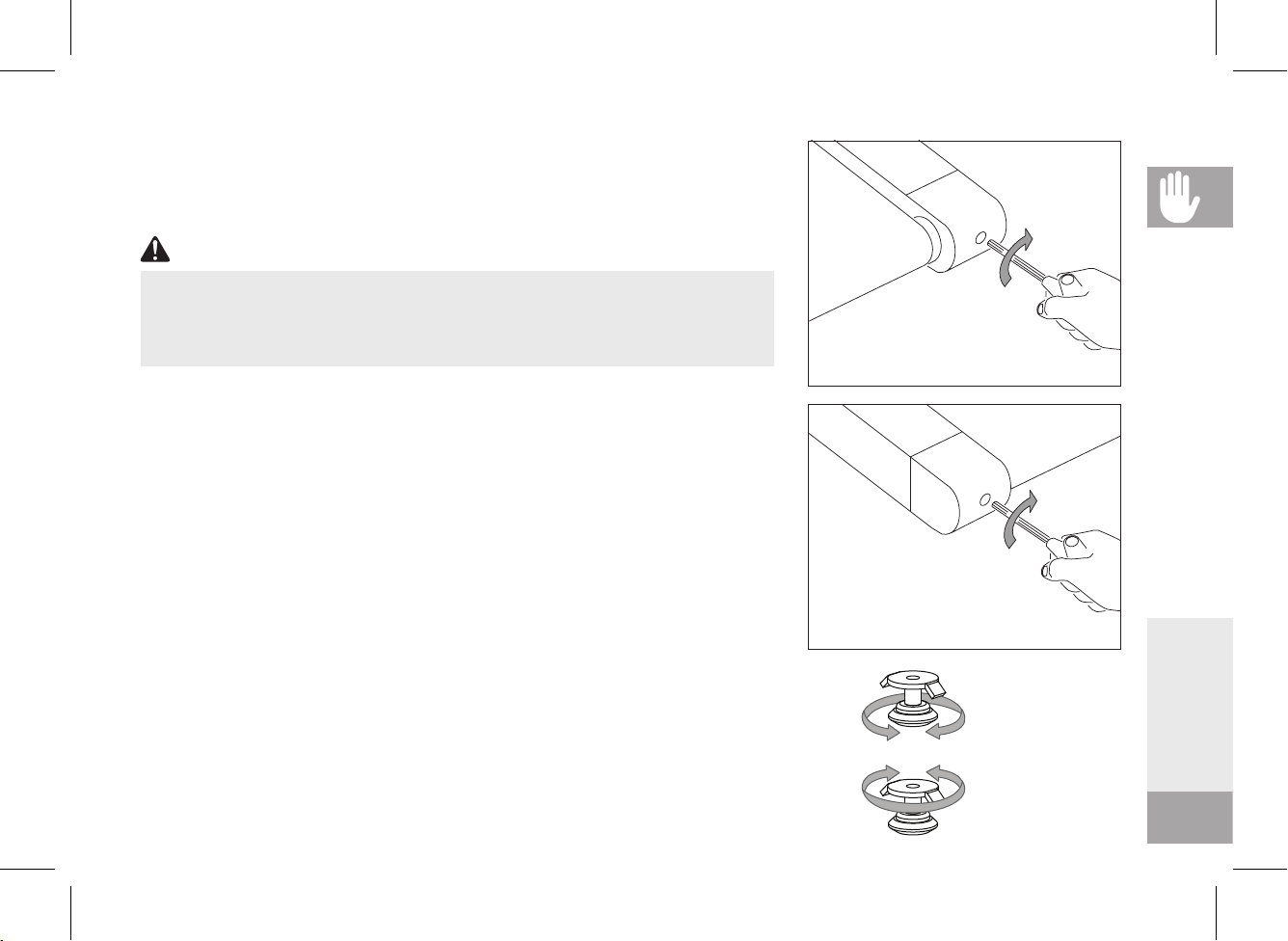

TENSIONING THE RUNNING BELT
The running belt has been properly adjusted at the factory before it was shipped. At
times the belt can move off-center during shipment.
Running belt should NOT be moving during tensioning. Over-tightening
the running belt can cause excessive wear on the treadmill as well as its
components. Never over-tighten the belt.
CAUTION
If you can feel a slipping sensation when running on the treadmill, the running belt
must be tightened. In most cases, the belt has stretched from use, causing the belt
to slip. This is a normal and common adjustment. To eliminate this slipping, turn the
treadmill off and tension both the rear roller bolts using the supplied Allen wrench,
turning them ¼turn to the right as shown. Turn the treadmill on and check for slipping.
Repeat if necessary, but never turn the roller bolts more than ¼ turn at a time. Belt is
properly tensioned when the slipping sensation is gone.
TIGHTENS RIGHT SIDE OF ROLLER
TIGHTENS LEFT SIDE OF ROLLER
LEVELING THE TREADMILL
Your treadmill should be leveled for optimum use. Once you have placed your treadmill
where you intend to use it, raise or lower one or both of the adjustable levelers located
on the bottom of the treadmill frame*. A carpenter’s level is recommended. If your
treadmill is not level, the running belt may not track properly. Once you have leveled
your treadmill, lock the levelers in place by tightening the nuts against the frame (Some
treadmills do not have levelers).
LOCK
ADJUSTMENT
ADJUST
HEIGHT
ENGLISH

14
CENTERING THE RUNNING BELT
The running belt has been properly adjusted at the factory before it was shipped. At
times the belt can move off-center during shipment. Before operating the treadmill,
make sure the belt is centered and remains centered to maintain smooth operation.
If the running belt is too far to the right side: With the treadmill running at 1 mph,
turn the left adjustment bolt counter-clockwise ¼ turn at a time (using the supplied
Allen wrench). Check the belt alignment. Allow belt to run a full cycle to gauge if more
adjustment is needed. Repeat if necessary, until the belt remains centered during use.
If the running belt is too far to the left side: With the treadmill running at 1 mph or
1.6 kmh, turn the right adjustment bolt counter-clockwise ¼ turn at a time (using the
supplied Allen wrench). Check the belt alignment. Allow belt to run a full cycle to gauge
if more adjustment is needed. Repeat if necessary, until the belt remains centered
during use.
*NOTE: Folding, moving and leveling information might vary according to the model
you buy. Please see Owner’s manual for further information.
For centering the belt: For centering the belt you may refer to the marking dot on
motor cover to line-up the edge of the logo on belt.
Do not run belt faster than 1mph or 1.6 kmh while centering. Keep fingers,
hair and clothing away from belt at all times.
CAUTION
BELT IS TOO FAR TO THE RIGHT SIDE
BELT IS TOO FAR TO THE LEFT SIDE
ENGLISH

15
USING THE HEART RATE FUNCTION
Your treadmill could be equipped with either heart rate pulse grips or a thumb pulse sensor. To find out what your model has, refer to
the beginning of the ASSEMBLY section of your OWNER’S MANUAL.
The heart rate function on this product is not a medical device. While heart rate grips or a thumb pulse sensor can provide a
relative estimation of your actual heart rate, they should not be relied on when accurate readings are necessary. Some people,
including those in a cardiac rehab program, may benefit from using an alternate heart rate monitoring system like a chest or
wrist strap. Various factors, including movement of the user, may affect the accuracy of your heart rate reading. The heart rate
reading is intended only as an exercise aid in determining heart rate trends in general. Please consult your physician.
PULSE GRIPS
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your heart rate to register.
It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When gripping the pulse handlebars, do not grip
tightly. Holding the grips tightly may elevate your blood pressure. Keep a loose, cupping hold. You may experience an erratic readout if
consistently holding the grip pulse handlebars. Make sure to clean the pulse sensors to ensure proper contact can be maintained.
Always stand still on side rails when measuring your heart rate. Checking your heart rate while in motion will cause inaccurate
readings. Do not press excessively hard on the sensor as this may cause damage.
CAUTION
ENGLISH

16
ENGLISH

17
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly
instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
treadmill could have frame parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to
the treadmill, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located on the front stabilizer tube and enter it in the space provided
below. Also locate the model name which is next to the serial number.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
WARNING
SERIAL NUMBER:
MODEL NAME: HORIZON TREADMILL
ENGLISH

18

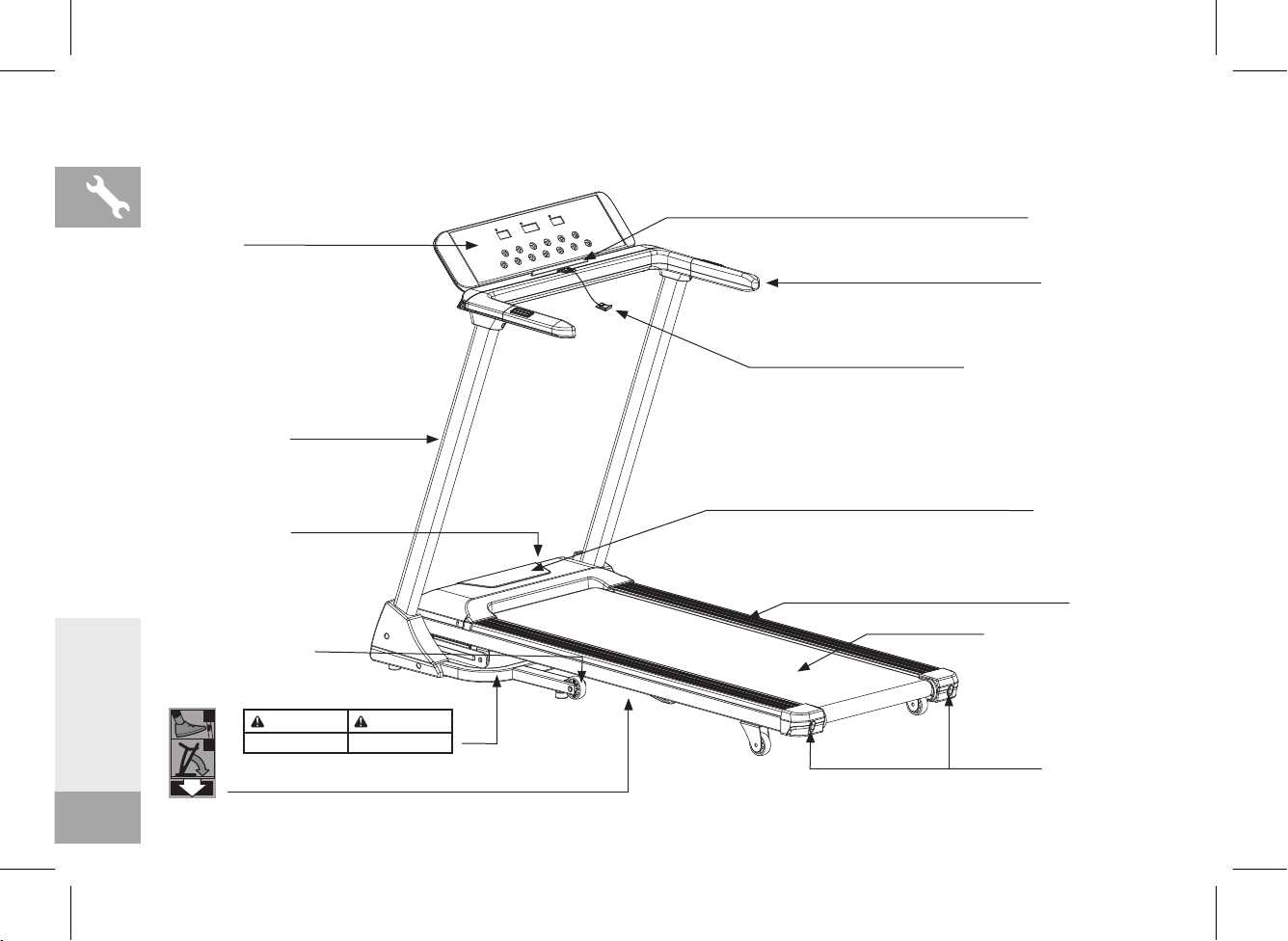

READING RACK
HANDLEBARS
SAFETY KEY PLACEMENT
CONSOLE MAST
TRANSPORT WHEEL
MOTOR COVER
SIDE RAIL
RUNNING BELT/DECK
REAR ROLLER
TENSION/ADJUSTMENT BOLTS
ON/OFF SWITCH
POWER CORD
FOOT LOCK LATCH (UNDERNEATH DECK)
CONSOLE
1
2
CAUTION ACHTUNG
KEEP HANDS AND FEET AWAY
FROM THE MOVING PARTS.
HALTEN SIE HÄNDE UND FÜSSE
VON BEWEGLICHEN TEILEN FERN.
ENGLISH

19
• DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. You may
remove the plastic wrap from console masts.
• FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place
a protective covering on your floor. Take CAUTION when handling and transporting
this unit. Never open box when it is on its side. Once the banding straps have been
removed, do not lift or transport this unit unless it is fully assembled and in the upright
folded position, with the lock latch secure. Unpack and assemble the unit where it
will be used. The enclosed treadmill is equipped with high-pressure shocks and may
spring open if mishandled. Never grab hold of any portion of the incline frame and
attempt to lift or move the treadmill.
• During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded. It is recommended you complete the full assembly of your
unit before completely tightening any ONE bolt.
• Several parts have been pre-lubricated to aid in assembly and usage. Please
do not wipe this off. If you have difficulty, a light application of lithium bike grease
is recommended.
• Removal of fixed guards should be done ONLY by a qualified service technician.
Ensure all fasteners are properly reinstalled after replacing fixed guards.
IMPORTANT NOTES
PRE ASSEMBLY
If you have questions or if there
are any missing parts, contact
Customer Tech Support.
NEED HELP?
TOOLS INCLUDED:
F5 mm L-Wrench /screwdriver
F6 mm L-Wrench
PARTS INCLUDED:
F1 Main System
F1 Safety Key
F1 Power Cord
F1 Bottle of Silicone
F1 Left Console Mast Cover
F1 Right Console Mast Cover
ENGLISH

20
ASSEMBLY STEP 1
A Open all the package and check all the parts.
B Follow the picture to pull up the CONSOLE MAST.
NOTE: Please do not damage or fold any wire during
assembly.
ENGLISH
