Horizon Fitness TR3.0 User manual

OWNER’S MANUAL
BENUTZERHANDBUCH
GEBRUIKERSHANDLEIDING
MANUEL DU PROPRIÉTAIRE
TR3.0

3 ENGLISH
25 DEUTSCH
47 NEDERLANDS
69 FRANÇAIS

3
IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
When using an electrical product, basic precautions should always be followed, including the following: Read all instructions
before using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately
informed of all warnings and precautions. If you have any questions after reading this guide, contact Customer Tech
Support at the number listed on the back panel of the OWNER’S MANUAL.
This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional
setting. Failure to comply will void the warranty.
ENGLISH

4
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
•Never use the treadmill before securing the safety tether clip to your clothing.
•If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness of breath,
stop exercising immediately and consult your physician before continuing.
•When exercising, always maintain a comfortable pace.
•Do not wear clothes that might catch on any part of the treadmill.
•Always wear athletic shoes while using this equipment.
•Do not jump on the treadmill.
•At no time should more than one person be on treadmill while in operation.
•This treadmill should not be used by persons weighing more than specified in the OWNER’S MANUAL WARRANTY
SECTION. Failure to comply will void the warranty.
•When lowering the treadmill deck, wait until rear feet are firmly on the floor before stepping on the deck.
•Disconnect all power before servicing or moving the equipment. To clean, wipe surfaces down with soap and slightly
damp clothonly; never use solvents. (See MAINTENANCE)
•The treadmill should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting
on ortaking off parts.
•Do not operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
•Connect this exercise product to a properly grounded outlet only.
WARNING
TO REDUCE THE RISK OF ELECTRICAL SHOCK:
Always unplug the treadmill from the electrical outlet immediately after using, before cleaning, performing maintenance and putting
on ortaking off parts.
DANGER
ENGLISH

5
TO REDUCE THE RISK OF BURNS, FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS:
•At NO time should pets or children under the age of 13 be closer to the treadmill than 10 feet.
•At NO time should children under the age of 13 use the treadmill.
•Children over the age of 13 or disabled persons should not use the treadmill without adult supervision.
•Use the treadmill only for its intended use as described in the treadmill guide and owner’s manual.
•Do not use other attachments that are not recommended by the manufacturer. Attachments may cause injury.
•Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped or
damaged, orimmersed in water. Return the treadmill to a service center for examination and repair.
•Keep power cord away from heated surfaces. Do not carry this unit by its supply cord or use the cord as a handle.
•Never operate the treadmill with the air opening blocked. Keep the air opening clean, free of lint, hair, and the like.
•To prevent electrical shock, never drop or insert any object into any opening.
•Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
•To disconnect, turn all controls to the off position, then remove plug from outlet.
•Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages, porches, pool
rooms, bathrooms, car ports or outdoors. Failure to comply will void the warranty.
•This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, school or institutional
setting. Failure to comply will void the warranty.
•Do not remove the console covers unless instructed by Customer Tech Support. Service should only be done by an
authorized service technician.
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been exposed
to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is warmed up to room
temperature before first time use. Failure to do so may cause premature electronic failure.
WARNING
ENGLISH

6
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path of least resistance
for electrical current to reduce the risk of electrical shock. This product is equipped with a cord having an equipment-
grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed
and grounded in accordance with local codes and ordinances.
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified
electrician or service provider if you are in doubt as to whether the product is properly grounded. Do not modify the plug
provided with the product. If it will not fit the outlet, have a proper outlet installed by a qualified electrician.
Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used
with this product.
This product must be used on a dedicated circuit. To determine if you are on a dedicated circuit, shut off the power to that
circuit and observe if any other devices lose power. If so, move devices to a different circuit. Note: There are usually multiple
outlets on one circuit.
Connect this exercise product to a properly grounded outlet only.
Never operate product with a damaged cord or plug even if it is working
properly. Never operate any product if it appears damaged, or has been
immersed in water. Contact Customer Tech Support for replacement
orrepair.
WARNING
ENGLISH

7
Place the treadmill on a level and stable surface. There should be one foot of clearance in front
of the treadmill for the power cord. Please leave a clear zone behind the treadmill that is at
least the width of the treadmill and at least 79” (2 meters) long. This zone must be clear of any
obstruction and provide the user a clear exit path from the machine. In case of an emergency,
place both hands on the side arm rests to hold yourself up and place your feet onto the side rails.
For ease of access, there should be an accessible space preferentially on both sides of the
treadmill equal to 2 ft (0.6 meters) to allow a user access to the treadmill from either side.
Do not place the treadmill in any area that will block any vent or air openings. The treadmill
should not be located in a garage, covered patio, near water or outdoors.
0,6 m
(2 ft)
0,6 m
(2 ft)
2 m(79")
0,3 m(1 ft)
TRAINING
AREA
FREE
AREA
ENGLISH

8
ENGLISH

9
ASSEMBLY
There are several areas during the assembly process that special attention must be paid. It is very important to follow the
assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed
correctly, the treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To
prevent damage to the treadmill, the assembly instructions must be reviewed and corrective actions should be taken.
Before proceeding, find your treadmill’s serial number located on a white barcode
sticker near the on/off power switch and power cord and enter it in the space
provided below.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
WARNING
SERIAL NUMBER:
TM
SERIAL NUMBER LOCATION
MODEL NAME: HORIZON TREADMILL
ENGLISH

10
TABLET/READING RACK
WATER BOTTLE HOLDER
SAFETY KEY
CONSOLE MAST
RUNNING DECK / RUNNING BELT
REAR ROLLER
TENSION/ALIGNMENT BOLTS
ROLLER END CAP
SIDE RAIL
CONSOLE
TABLET/READING RACK
CONTROL PANEL & DISPLAY
WINDOWS
WATER BOTTLE HOLDER
PULSE GRIP HANDLEBARS
MOTOR COVER
ON/OFF SWITCH
POWER CORD
CAUTION WARNUNG
KEEP HANDS AND FEET AWAY
FROM THE MOVING PARTS.
HALTEN SIE HÄNDE UND FÜSSE
VON BEWEGLICHEN TEILEN FERN.
HANDLEBAR
TRANSPORT WHEEL
ENGLISH

11
TOOLS INCLUDED:
F5 mm L-Wrench
F6 mm T-Wrench
PARTS INCLUDED:
F1 Console Assembly
F2 Console Masts
F1 Hardware Kit
F1 Safety Key
F1 Bottle of Silicone Lubricant
(for 2 applications)
F1 Power Cord
F2 Handlebars
If you have questions or if
there are any missing parts,
contact Customer
Tech Support.
DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift
treadmill from packaging until specified to do so in the assembly
instructions. You may remove the plastic wrap from console masts.
WARNING
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place
a protective covering on your floor. Take CAUTION when handling and transporting
this unit. Never open box when it is on its side. Once the banding straps have been
removed, do not lift or transport this unit unless it is fully assembled and in the
upright folded position, with the lock latch secure. Unpack and assemble the unit
where it will be used. The enclosed treadmill is equipped with high-pressure shocks
and may spring open if mishandled. Never grab hold of any portion of the incline
frame and attempt to lift or move the treadmill.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!
WARNING
NEED HELP?
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and
partially threaded in before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the installation of hardware. Any
grease, such as lithium bike grease is recommended.
PRE ASSEMBLY
ENGLISH

12
3
1
C
B
A
ASSEMBLY STEP 1
A Open HARDWARE FOR STEP 1.
B Attach the LEFT CONSOLE MAST (1) to the
BASE FRAME (3) using 4 BOLTS (A), 4 SPRING
WASHERS (B) and 4 FLAT WASHERS (C).
NOTE: Do not fully tighten bolts until STEP 4.
HARDWARE FOR STEP 1
PART TYPE DESCRIPTION QTY
ABOLT M8X1.25PX20L 4
BSPRING WASHER 8.2X15.4X2T 4
CFLAT WASHER 8.4X15.5X1.6T 4
ABC
ENGLISH

13

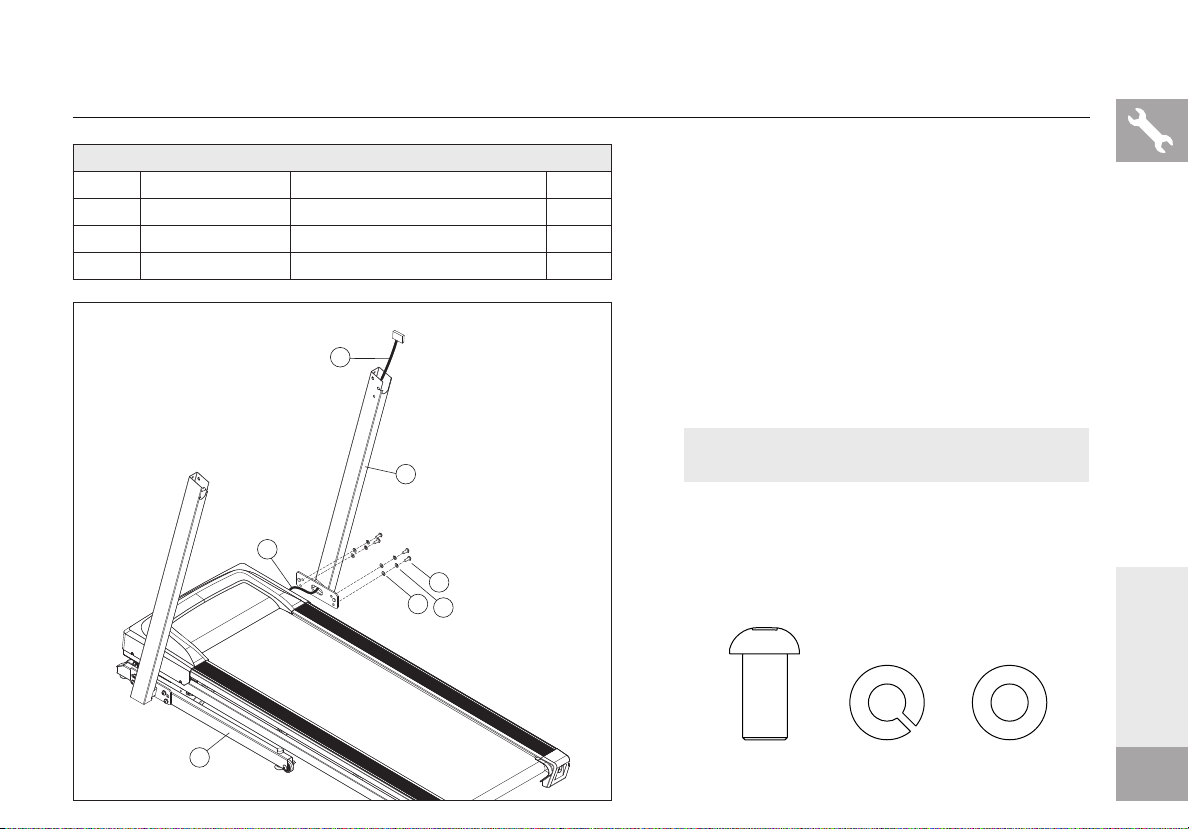

A Open HARDWARE FOR STEP 2.
B Attach LEAD WIRE to bottom end of CONSOLE
CABLE (4). Pull LEAD WIRE through RIGHT
CONSOLE MAST (2). After pulling the lead wire
through the mast, the top of the CONSOLE
CABLE (4) should be located at the top of
the mast.
C Attach the RIGHT CONSOLE MAST (2) to the
BASE FRAME (3) using 4 BOLTS (A), 4 SPRING
WASHERS (B) and 4 FLAT WASHERS (C).
ASSEMBLY STEP 2
3
CB
A
2
4
4
NOTE: Do not fully tighten bolts until STEP 4.
HARDWARE FOR STEP 2
PART TYPE DESCRIPTION QTY
ABOLT M8X1.25PX20L 4
BSPRING WASHER 8.2X15.4X2T 4
CFLAT WASHER 8.4X15.5X1.6T 4
ABC
ENGLISH

14
ASSEMBLY STEP 3
A Pull the LEAD WIRE through the bottom end of
the HANDLEBAR.
B Open HARDWARE FOR STEP 3.
C Attach the HANDLEBAR to the LEFT CONSOLE
MAST (2) using 2 BOLTS (A), 2SPRING
WASHERS(B) and 2FLAT WASHERS (C).
D Do the same above for the another HANDLEBAR.
NOTE: Do not fully tighten bolts until STEP 5.
NOTE: Be careful not to pinch any wires
while assembling the console.
B2
1
A
C
HARDWARE FOR STEP 3
PART TYPE DESCRIPTION QTY
ABOLT M8X1.25PX20L 4
BSPRING WASHER 8.2X15.4X2T 4
CFLAT WASHER 8.4X15.5X1.6T 4
ABC
ENGLISH

15

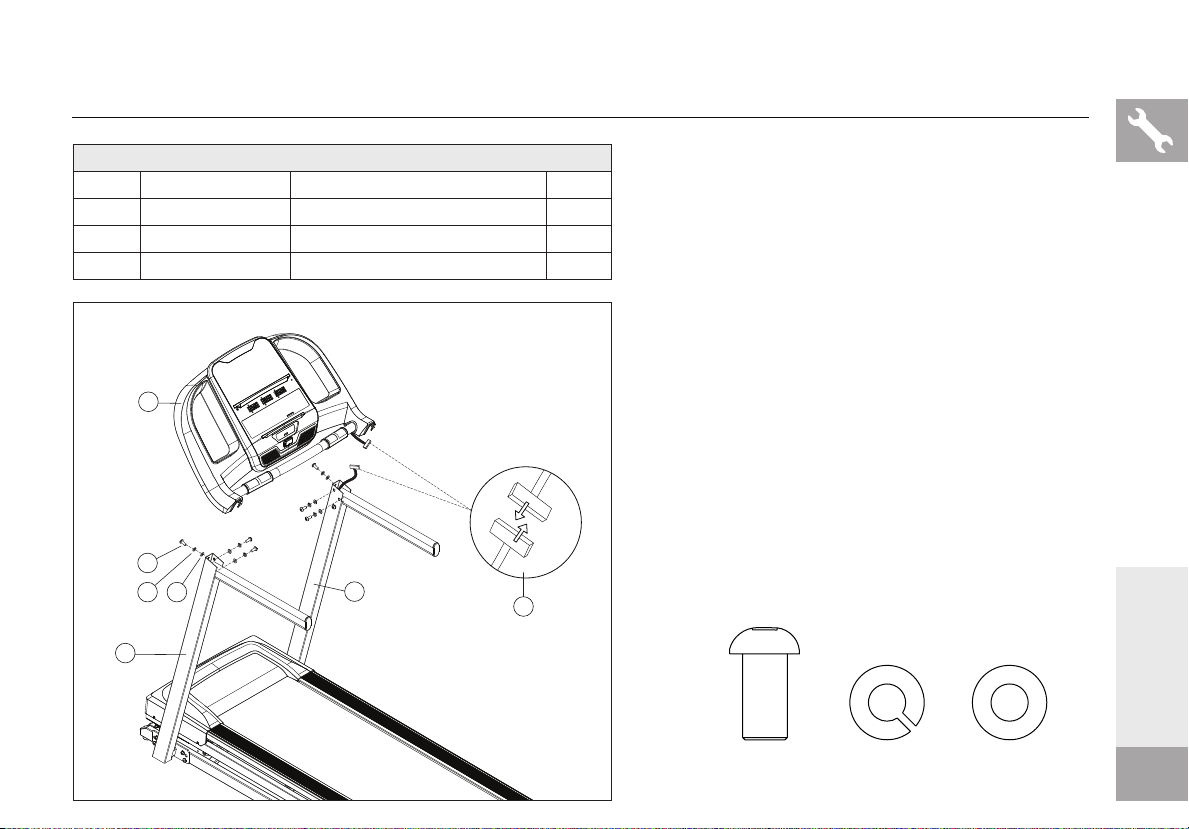

ASSEMBLY STEP 4
A Open HARDWARE FOR STEP 4.
B Gently place the CONSOLE (5) on top of the
CONSOLE MASTS (1&2). Attach the LEFT SIDE
first using 3 BOLTS (A), 3 SPRING WASHERS (B)
and 3 FLAT WASHERS (C).
C The CONSOLE CABLES (4) are tucked into
the CONSOLE MAST (2). Using the lead wire
carefully pull the CONSOLE CABLE (4) out of
the CONSOLE MAST (2). Detach and discard the
LEAD WIRE. Connect the CONSOLE CABLES
(4) and carefully tuck wires in the mast to avoid
damage.
D Attach the RIGHT SIDE of the CONSOLE (5) using
3 BOLTS (A), 3 SPRING WASHERS (B) and 3 FLAT
WASHERS (C).
4
B
1
5
A
C2
HARDWARE FOR STEP 4
PART TYPE DESCRIPTION QTY
ABOLT M8X1.25PX20L 6
BSPRING WASHER 8.2X15.4X2T 6
CFLAT WASHER 8.4X15.5X1.6T 6
ABC
ENGLISH

16
ASSEMBLY STEP 5
ASSEMBLY COMPLETE!
ENGLISH

17
TREADMILL OPERATION
This section explains how to use your treadmill’s console and programming.
The BASIC OPERATION section in the TREADMILL GUIDE has instructions for the following:
• LOCATION OF THE TREADMILL
• USING THE SAFETY KEY
• FOLDING THE TREADMILL
• MOVING THE TREADMILL
• LEVELING THE TREADMILL
• TENSIONING THE RUNNING BELT
• CENTERING THE RUNNING BELT
• USING THE HEART RATE FUNCTION
ENGLISH

18
1 2 3 5 6 10
P1 P2 P3 P5P4
G H J FFK K
I
L
B
A
J
I
E MC D
ENGLISH

19
CONSOLE OPERATION
Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
A) LED DISPLAY: Calories, Time, Distance, Speed, Heart Rate.
B) WORKOUT PROGRAMS: used to reference program code shown on LED display.
C) START: press to begin exercising, start your workout, or resume exercising after pause.
D) STOP: press to pause/end your workout. Hold for 3 seconds to reset the console.
E) SPEED +/- KEYS: used to adjust speed in small increments (0.1 mph increments).
F) SPEED QUICK KEYS: used to reach desired speed more quickly.
G) BLUETOOTH HEART RATE: press and hold 3 sec to connect to the Bluetooth heart rate strap. (APP & BT heart rate
strap could only connect one at a time)
H) ENTER/CHANGE DISPLAY: press to select item/press to change display feedback during workout.
I) WATER BOTTLE POCKETS: holds personal workout equipment.
J) TABLET/READING RACK: holds tablet or reading material.
K) HEART RATE PULSE GRIPS: used to measure heart rate.
L) BLUETOOTH: the light will be consistently on once the Bluetooth was connected.
M) SAFETY KEY: the safety key need to plug in to turn on the treadmill.
ENGLISH

20
DISPLAY WINDOWS
CALORIES: Total calories burned or calories remaining left to burn during your workout.
TIME: Set up your workout time and speed. Then start your work out.
DISTANCE: Shown as kilometer. Indicates distance traveled or distance remaining during
your workout.
SPEED: Shown as KPH. Indicates how fast your walking or running surface is moving.
HEART RATE: Shown as BPM (beats per minute). Used to monitor your heart rate
(displayed when contact is made with both pulse grips).
ENGLISH
