CONGRATULATIONS and THANK YOU for your purchase of this Horizon Series treadmill!
Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, a Horizon Series treadmill
can help you attain it – adding club-quality performance to your at-home workouts, with the ergonomics
and innovative features you need to get stronger and healthier, faster. Because we're committed to
designing fitness equipment from the inside out, we use only the highest quality components. It's a
commitment we back with one of the strongest frame-to-motor warranty packages in the industry.
You want exercise equipment that offers the most comfort, the best reliability and the highest quality
in its class.
The Horizon Series delivers.
INTRODUCTION
Important Precautions
Assembly
Before You Begin
Treadmill Operation
Conditioning Guidelines
Troubleshooting & Maintenance
Limited Warranty
CONTACT INFORMATION
4
6
13
16
25
32
35
Back Panel
TABLE OF CONTENTS

4
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
SAVE THESE INSTRUCTIONS
Read all instructions before using this treadmill. When using an electrical product, basic precautions
should always be followed, including the following: Read all instructions before using this treadmill. It is the
responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings
and precautions. If you have any questions after reading this manual, contact Customer Tech Support at the
number listed on the back panel of this manual.
Connect this exercise product to a properly grounded outlet only. See grounding
instructions.
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a path
of least resistance for electrical current to reduce the risk of electrical shock. This product is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in accordance with local codes and ordinances.
Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt
as to whether the product is properly grounded. Do not modify the plug provided
with the product. If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
This product is for use on a nominal 110-volt circuit
and has a grounding plug that looks like the illustration
to the right. This product must be used on a dedicated
circuit. To determine if you are on a dedicated circuit,
shut off the power to that circuit and observe if any other
devices lose power. If so, move devices to a different
circuit. Note: There are usually multiple outlets on one
circuit. It is recommended that the treadmill be used
with a 20 amp circuit for optimal performance.
IMPORTANT PRECAUTIONS
WARNING
WARNING
3-Pole Grounded Outlet
GROUNDED
TREADMILL
POWER CORD

5
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
At NO time should pets or children under the age of 12 be closer to the treadmill than 10 feet.
At NO time should children under the age of 12 use the treadmill.
Children over the age of 12 should not use the treadmill without adult supervision.
To reduce the risk of burns, fire, electrical shock or injury to persons:
• Never use the treadmill before securing the safety tether clip to your clothing.
• If you experience any kind of pain, including but not limited to chest pains, nausea, dizziness, or shortness
of breath, stop exercising immediately and consult your physician before continuing.
• Do not wear clothes that might catch on any part of the treadmill.
• Always wear athletic shoes while using this equipment.
• Do not jump on the treadmill.
• Keep power cord away from heated surfaces.
• Do not insert or drop any object into any opening.
• Unplug treadmill before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp
cloth only; never use solvents. (See MAINTENANCE)
• At no time should more than one person be on treadmill while in operation.
• The treadmills should not be used by persons weighing more than 300 pounds. Failure to comply will
void the warranty.
• The treadmills are intended for in-home use only. Do not use this treadmill in any commercial, rental,
school or institutional setting. Failure to comply will void the warranty.
• Do not use treadmill in any location that is not temperature controlled, such as but not limited to garages,
porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply may void the warranty.
• Use the treadmill only as described in this manual.
OTHER SAFETY TIPS FOR YOUR TREADMILL
OPERATION
To reduce the risk of damaging important components on your treadmill, it is strongly
recommended that your treadmill is plugged into a dedicated 20 amp circuit, without
the use of an additional extension cord and/or power strip. Failure to comply may void
the warranty.
IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets.
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill has been
exposed to colder temperatures or high moisture climates, it is strongly recommended that the treadmill is
warmed up to room temperature before first time use. Failure to do so may cause premature electronic failure.
WARNING
WARNING

6
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY
IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!
During the assembly process of the treadmill there are several areas that special attention must be paid.
It is very important to follow the assembly instructions correctly and to make sure all parts are firmly
tightened. If the assembly instructions are not followed correctly, the treadmill could have frame parts that
are not tightened and will seem loose and may cause irritating noises. There should be no side-to-side play
in the console masts or any forward and back play in the console assembly or handlebars. If there is any
play in these areas, the treadmill has not been properly assembled. To prevent damage to the treadmill, the
assembly instructions must be reviewed and corrective actions should be taken.
UNPACKING
Place the treadmill carton on a level flat surface. It is recommended that you place a protective covering on
your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its side.
Once the banding straps have been removed, do not lift or transport this unit unless it is fully assembled
and in the upright folded position, with the lock latch secure. Unpack the unit where it will be used. The
enclosed treadmill is equipped with high-pressure shocks and may spring open if mishandled. Never grab
hold of any portion of the incline frame and attempt to lift or move the treadmill. FAILURE TO FOLLOW THESE
INSTRUCTIONS COULD RESULT IN INJURY!
Before proceeding, find your treadmill’s serial number
and model name located to the left of the on/off
power switch and power cord and enter it in the space
provided below.
ENTER YOUR SERIAL NUMBER AND
MODEL NAME IN THE BOxES BELOW:
SERIAL NUMBER:
MODEL NAME:
* Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
* Also enter this serial number on your Warranty Card.
WARNING

7
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
READING RACK
WATER BOTTLE HOLDER
GRIP PULSE HANDRAILS
ON/OFF SWITCH
CIRCUIT BREAKER
TRANSPORT WHEEL
AIR CELL
AUDIO IN/OUT JACKS
SUPPORT BAR
GRIP PULSE HANDRAILS
SUPPORT BAR
HANDLEBAR
SPEAKERS
POWER CORD
CONSOLE
FAN
SAFETY KEY PLACEMENT
FOOT LOCK LATCH
RUNNING BELT / RUNNING DECK
SIDE RAIL
ROLLER END CAP
CONSOLE MAST
REAR ROLLER
ADJUSTMENT BOLTS
MOTOR COVER
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
For a complete exploded diagram, visit us at www.horizonfitness.com
TOOLS INCLUDED
PARTS INCLUDED
c 4 mm L-wrench
c 5 mm T-wrench
c 6 mm T-wrench
c 10 mm L-wrench
c 17mm Flat Wrench
c 1 Console Assembly
(located under treadmill deck)
c 2 Console Masts
c 1 Support Bar
c 2 Handlebars
c 5 Hardware Bags
c 1 Bottle of Silicone Lubricant
c 1 Power Cord
c 1 Audio Adaptor Cable
c 1 Safety Key

8
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
PRE-ASSEMBLY
ASSEMBLY STEP 1
FLAT WASHER (B)
20 mm
Qty: 1
WAVY WASHER (F)
29 mm
Qty: 1
BOLT (D)
Qty: 1
BOLT (A)
15 mm
Qty: 1
TEFLON WASHER (C)
18 mm
Qty: 1
FLAT WASHER (E)
27 mm
Qty: 1
HARDWARE BAG 1 CONTENTS :
TEFLON WASHER (C) ELEVATION FRAME
FLAT WASHER (B)
BOLT (A)
WAVY WASHER (F)
FLAT WASHER (E)
LEFT CONSOLE MAST
BOLT (D)
MAIN FRAME
LEFT LINKAGE ARM
A Open HARDWARE BAG 1.
B Cut banding straps. Do not move or lift treadmill from packaging.
C Move LEFT LINKAGE ARM into position. Insert BOLT (A) and FLAT WASHER (B) into LEFT
LINKAGE ARM followed by a TEFLON WASHER (C) and attach to ELEVATION FRAME.
D Lift LEFT CONSOLE MAST into upright position. Be sure to hold the console mast firmly, as
it will not stay in the upright position on its own.
E Insert BOLT (D) and 1 FLAT WASHER (E) through LEFT CONSOLE MAST followed by a
WAVY WASHER (F) and attach to MAIN FRAME.
DO NOT ATTEMPT TO LIFT THE TREADMILL!* Do not move or lift treadmill
from packaging until specified to do so in the assembly instructions. Failure to do
so may result in injury! Remove plastic wrap from console masts.
NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before
completely tightening any ONE bolt. NOTE: A light application of grease may aid in the installation of hardware.
Any grease, such as lithium bike grease is recommended.
WARNING

9
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY

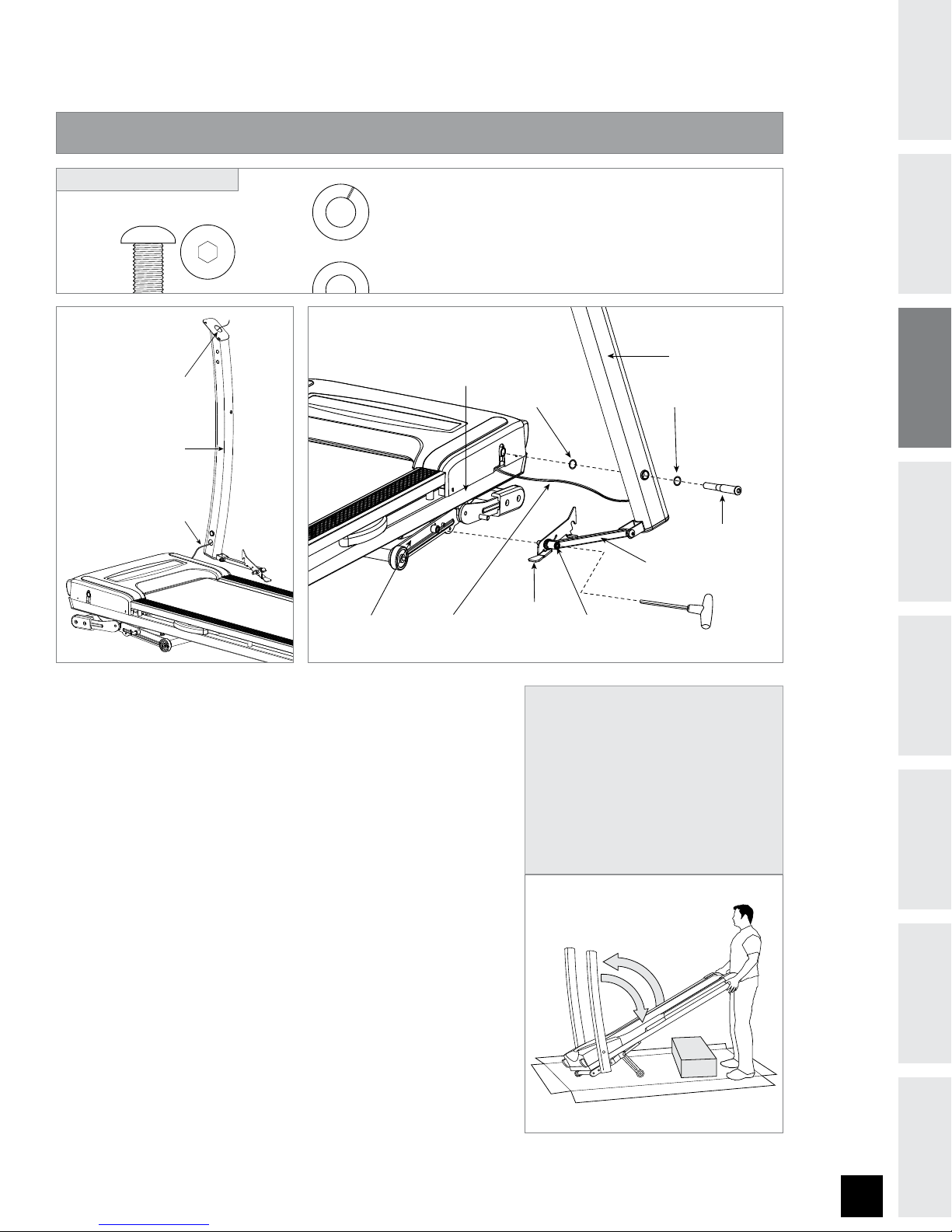

ASSEMBLY STEP 2
ELEVATION FRAME
BOLT (D)
RIGHT LINKAGE ARM
FLAT WASHER (E)
MAIN FRAME
RIGHT CONSOLE MAST
CONSOLE CABLES PRE-ATTACHED BOLT
WAVY WASHER (F)
FOOT LOCK LATCH
#0-5#
NN
2UZ
UPQWJFX
BOHMFWJFX
-0$,8"4)&3$
2UZ
"3$8"4)&3%
2UZ
HARDWARE BAG 2 CONTENTS :
RIGHT CONSOLE MAST
LEAD WIRE
CONSOLE CABLES
Pull LEAD WIRE through RIGHT CONSOLE MAST. After
pulling the LEAD WIRE through the mast, the top of the
CONSOLE CABLES should be located at the top of the
mast. Detach and discard LEAD WIRE.
Open HARDWARE BAG 2.
Move RIGHT LINKAGE ARM into position and attach to
ELEVATION FRAME.
NOTE: While holding RIGHT CONSOLE MAST in the
upright position, tighten PRE-ATTACHED BOLT using
T-wrench to attach RIGHT LINKAGE ARM.
Attach RIGHT CONSOLE MAST to MAIN FRAME using 1
BOLT (D), 1 FLAT WASHER (E) and 1 WAVY WASHER (F).
Lift the RUNNING DECK until lock latch on side of
treadmill is fully engaged.
Remove CONSOLE from box and place out of the way.
Lower the treadmill RUNNING DECK from the folded
position by stepping on LOCK LATCH on lower right side.
A.
B.
C.
D.
E.
F.
G.
1
3
2
NOTE: If you have attempted to
move the treadmill from the box
and the machine has sprung
open and cannot be assembled,
refer to the troubleshooting
section in order to restore the
treadmill to its proper position.
*

10
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY STEP 3
Step4
FLAT WASHER (B)
CONSOLE MAST
CONSOLE CABLES
SPRING WASHER (H)
BOLT (G)
CONSOLE
DO NOT ATTACH
THIS SIDE UNTIL STEP 3-D
FLAT WASHER (B)
20 mm
Qty: 4
SPRING WASHER (H)
15 mm
Qty: 4
BOLT (G)
20 mm
Qty: 4
HARDWARE BAG 3 CONTENTS :

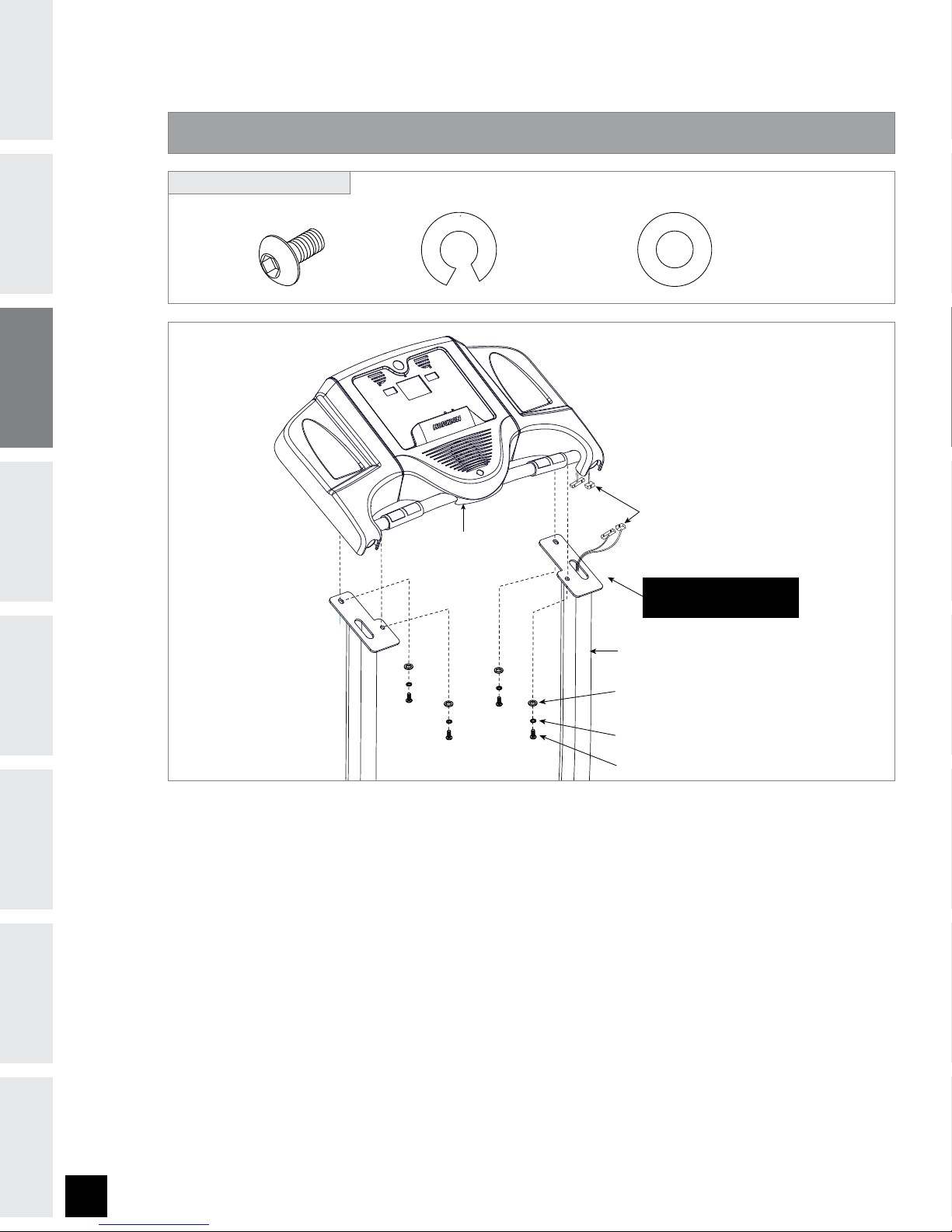

A Open HARDWARE BAG 3.
B With running deck in lowered position, place CONSOLE on the console masts. Align the
brackets that are underneath the console with the top holes of the console masts.
C To assemble the CONSOLE to the LEFT CONSOLE MAST, insert 1 BOLT (G), 1 SPRING
WASHER (H) and 1 FLAT WASHER (B) into the 2 holes in the LEFT CONSOLE MAST
and lightly tighten.
D Gently lift RIGHT side of the CONSOLE to connect the CONSOLE CABLE. Carefully tuck wire
in mast to avoid damage. NOTE: Do not pinch console cable or grip pulse wires.
E Repeat STEP C above to assemble the RIGHT CONSOLE MAST to the CONSOLE.
F Leave console bolts loose until after STEP 4 is completed.

11
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
ASSEMBLY STEP 4
BOLT (I)
CONSOLE MAST
SUPPORT BAR
HARDWARE BAG 4 CONTENTS :

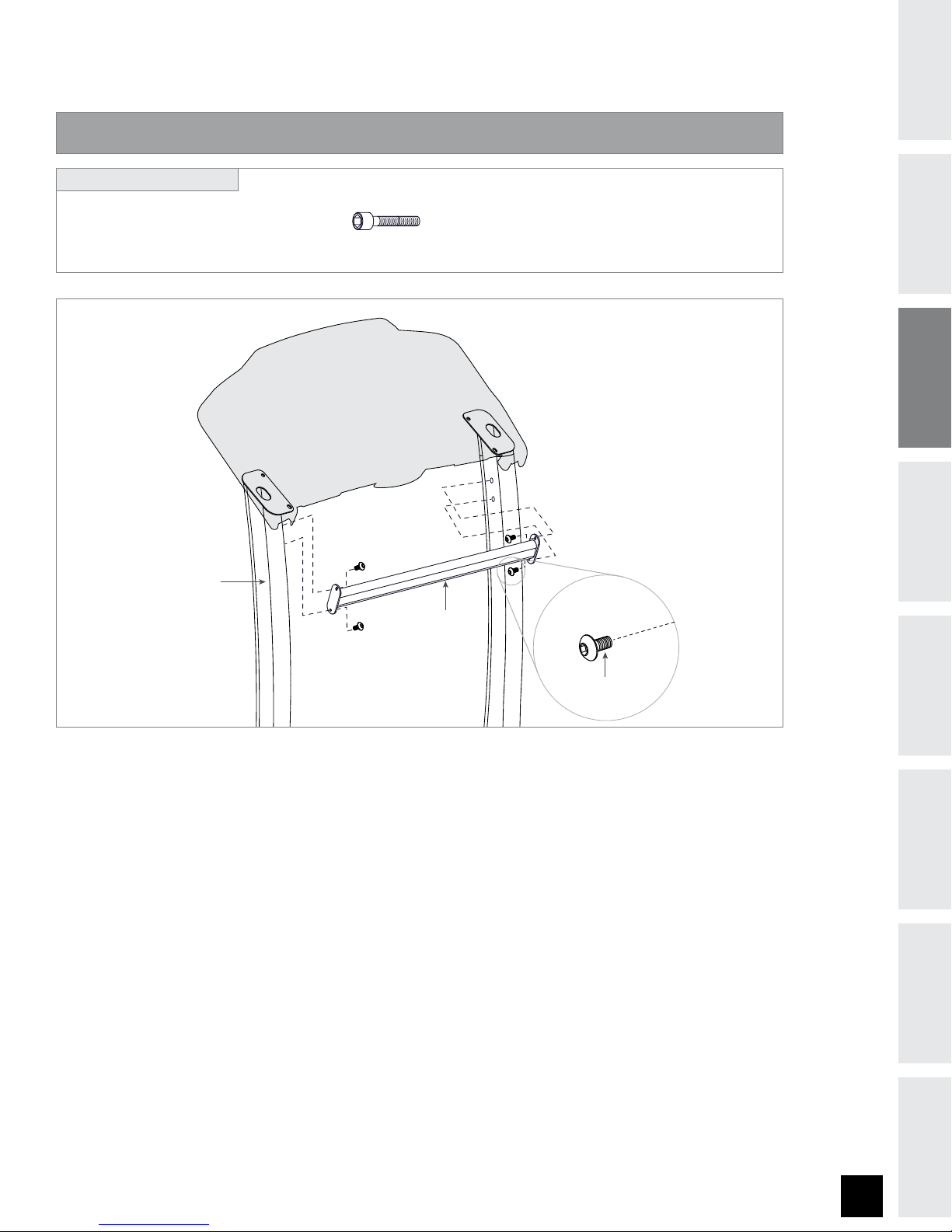

Open HARDWARE BAG 4.
Align SUPPORT BAR with holes in CONSOLE MASTS.
Insert BOLTS (I) into all 4 holes of the SUPPORT BAR.
NOTE: Look into holes in the right mast before inserting bolts to avoid pinching cables.
Tighten all console bolts (Step 3) and support bar bolts (Step 4) completely.
A.
B.
C.
D.
BOLT (I)
15 mm
Qty: 4

12
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY STEP 5
CONSOLE MAST
CONSOLE
SET SCREWS (J)
HANDLEBAR
BOLT (K)
ARC WASHER (L)
SET SCREW (J)
12 mm
Qty: 4
BOLT (K)
120 mm
Qty: 2
ARC WASHER (L)
17 mm
Qty: 2
angle view
HARDWARE BAG 5 CONTENTS :

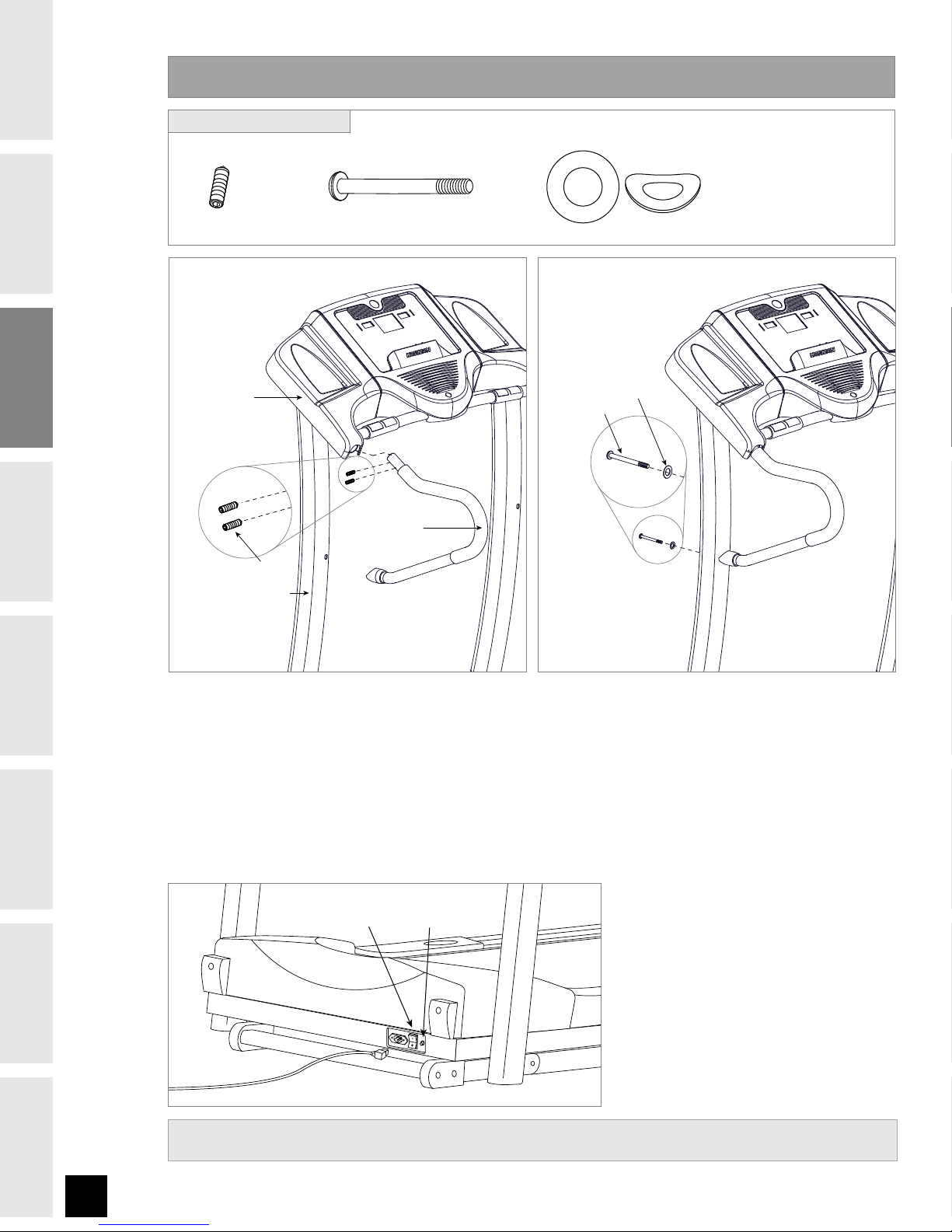

A Open HARDWARE BAG 5.
B Slide LEFT HANDLEBAR to CONSOLE and attach using 2 SET SCREWS (J).
C Attach LEFT HANDLEBAR to CONSOLE MAST using 1 BOLT (K) and 1 ARC WASHER (L).
D Repeat on other side.
NOTE: Look into holes in the right mast before inserting bolts to avoid pinching cables.
YOU’RE FINISHED!
POWER SWITCH CIRCUIT BREAKER
Connect power plug to the treadmill
and connect the cord to a power
outlet. The on/off switch is located
next to the power cord. Flip this
switch to the 'ON' position, so that
the switch is lit. You will hear a beep
and the console will turn on.
CONSOLE MAST
CONSOLE
SET SCREWS (J)
HANDLEBAR
BOLT (K)
ARC WASHER (L)

13
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
BEFORE YOU BEGIN
CONGRATULATIONS! on choosing your treadmill. You’ve taken an important step in developing and
sustaining an exercise program! Your treadmill is a tremendously effective tool for achieving your personal
fitness goals. Regular use of your treadmill can improve the quality of your life in so many ways.
HERE ARE JUST A FEW OF THE HEALTH BENEFITS OF EXERCISE:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
The key to reaping these benefits is to develop an exercise habit. Your new treadmill will help you eliminate
obstacles that prevent you from exercising. Inclement weather and darkness won't interfere with your
workout when you use your treadmill in the comfort of your home. This guide provides you with basic
information for using and enjoying your new machine.
LOCATION OF THE TREADMILL
Place the treadmill on a level surface. There should be 6 feet of clearance
behind the treadmill, 3 feet on each side and one foot in front for folding
and the power cord. Do not place the treadmill in any area that will block
any vent or air openings. The treadmill should not be located in a garage,
covered patio, near water or outdoors.
DO NOT STAND ON THE BELT
While you are preparing to use the treadmill, do not stand on the belt.
Place your feet on the side rails before starting the treadmill. Start
walking on the belt only after the belt has begun to move. Never start the
treadmill at a fast running speed and attempt to jump on!
SAFETY KEY
Your treadmill will not start unless the safety key is placed in position. Attach the clip end securely to your
clothing. This safety key is designed to cut the power to the treadmill if you should fall. Check the operation
of the safety key every 2 weeks.
NEVER USE THE TREADMILL WITHOUT SECURING THE SAFETY KEY CLIP TO YOUR
CLOTHING. PULL ON THE SAFETY KEY CLIP FIRST TO MAKE SURE IT WILL NOT
COME OFF YOUR CLOTHING.
WARNING
3 feet
6 feet
3 feet
1 foot
WARNING

14
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
PROPER USAGE
Your treadmill is capable of reaching high speeds. Always start off using a slower speed and adjust the speed in
small increments to reach a higher speed level. Never leave the treadmill unattended while it is running. When
not in use, remove the safety key, turn the on/off switch to off and unplug the power cord. Make sure to follow
the MAINTENANCE schedule located on page 33 in this manual. Keep your body and head facing forward. Do not
attempt to turn around or look backwards while the treadmill is running. Stop your workout immediately if you
feel pain, faint, dizzy or are short of breath.
Do not operate the treadmill if the power cord or plug is damaged.
If the treadmill appears to not be working properly, do not use the treadmill.
FOLDING

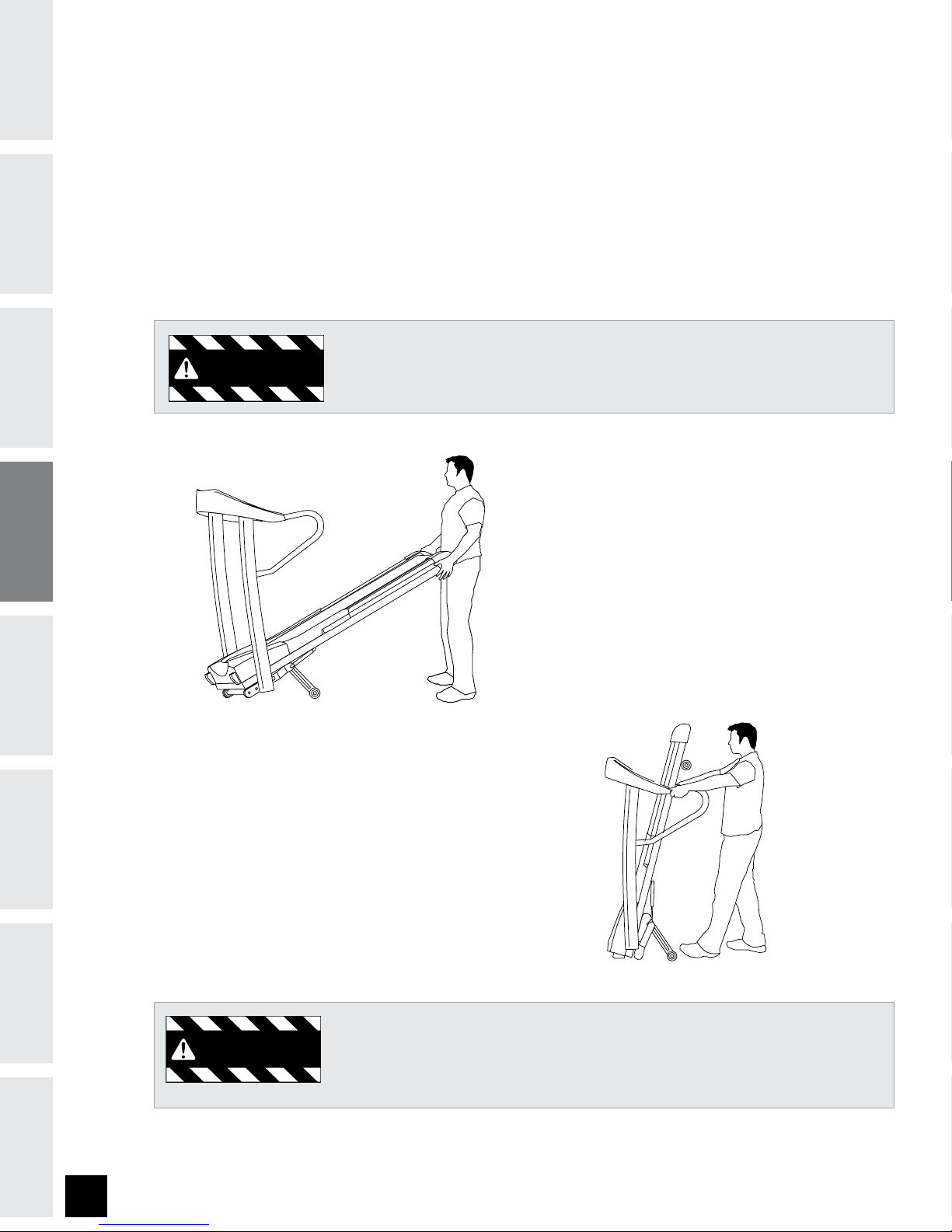

Firmly grasp the back end of the treadmill. Carefully
lift the end of the treadmill deck into the upright
position until the foot lock latch engages and
securely locks the deck into position. Make sure the
deck is securely latched before letting go. To unfold,
firmly grasp the back end of the treadmill. Gently
press down on the foot lock latch with your foot until
the lock latch disengages. Carefully lower the deck
to the ground. NOTE: The foot lock latch is located
on the bottom right side of the deck.
MOVING
Your treadmill has a pair of transport wheels
built into the frame. To move, make sure the
treadmill is folded and securely latched. Then firmly
grasp the handlebars, tilt the treadmill back and
roll. NOTE: Do not attempt to disassemble and
transport treadmill.
Our Treadmills are heavy, use care and additional help if necessary when moving.
Do not attempt to move or transport treadmill unless it is in the upright, folded
position with the lock latch secured. Failure to follow these instructions could
result in injury.
WARNING
WARNING

15
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
CENTERING THE RUNNING BELT
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment. Before operating the
treadmill, make sure the belt is centered and remains
centered to maintain smooth operation.
CAUTION: Do not run belt faster than 1/2 mph while
centering. Keep fingers, hair and clothing away from
belt at all times.
If the running belt is too far to the right side:
With the treadmill running at 1/2 mph, turn the right
adjustment bolt clockwise 1/4 TURN at a time (using
the supplied Allen wrench). Check the belt alignment.
Allow belt to run a full cycle to gauge if more adjustment
is needed. Repeat if necessary, until the belt remains
centered during use.
If the running belt is too far to the left side:
With the treadmill running at 1/2 mph, turn the right
adjustment bolt counter-clockwise 1/4 TURN at a time
(using the supplied Allen wrench). Check the belt
alignment. Allow belt to run a full cycle to gauge if more
adjustment is needed. Repeat if necessary, until the
belt remains centered during use.
Belt is too far to the right side
Belt is too far to the left side
TENSIONING THE RUNNING BELT
The running belt has been properly adjusted at the
factory before it was shipped. At times the belt can
move off-center during shipment.
CAUTION: Running belt should NOT be moving during
tensioning. Over-tightening the running belt can
cause excessive wear on the treadmill as well as its
components. Never over-tighten the belt.
If you can feel a slipping sensation when running on the
treadmill, the running belt must be tightened. In most
cases, the belt has stretched from use, causing the
belt to slip. This is a normal and common adjustment.
To eliminate this slipping, TURN THE TREADMILL OFF
and tension BOTH THE REAR ROLLER BOLTS using the
supplied Allen wrench, turning them 1/4 TURN to the
right as shown. Turn the treadmill on and check for
slipping. Repeat if necessary, but NEVER TURN the
roller bolts more than 1/4 turn at a time. Belt is properly
tensioned when the slipping sensation is gone.

16
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES

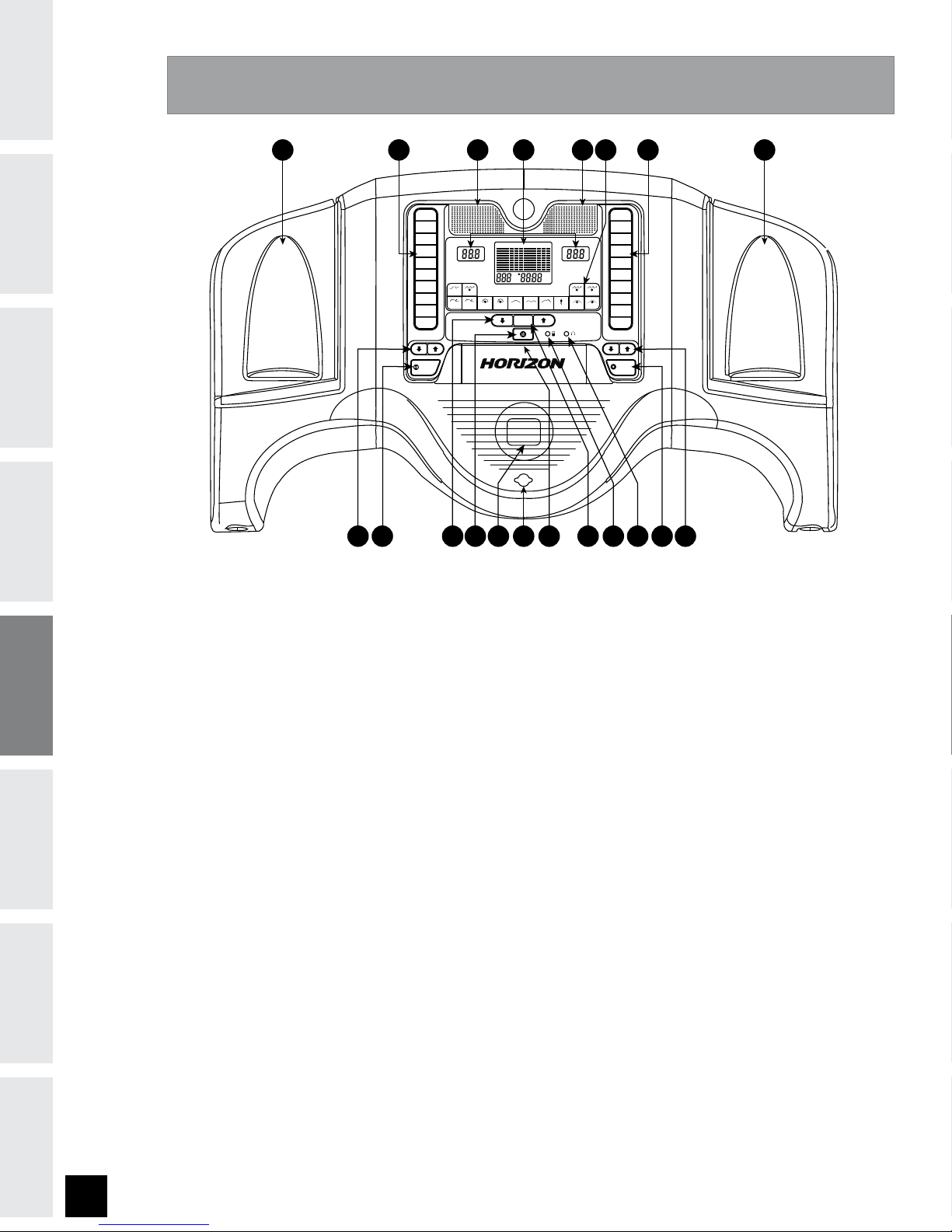

Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed.
MONITOR DISPLAY: Time, Pulse, Distance, Calories, Incline, Speed and Program Profiles.
STOP: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill.
START/PAUSE: Simply press to begin exercising; press again to pause your workout.
ENTER: Used to select Program, Level, Time and Change Display.
QUICK PROGRAM KEYS: Used to quickly select desired program.
PROGRAM SETTING KEYS: Press to adjust Time, Incline, Speed and Level.
QUICK ADJUST INCLINE KEYS: Used to reach desired incline more quickly.
QUICK ADJUST SPEED KEYS: Used to reach desired speed more quickly.
INCLINE ARROW KEYS: Used to adjust incline in small increments (0.5% increments).
SPEED ARROW KEYS: Used to adjust speed in small increments (0.1 mph increments).
SAFETY KEY POSITION: Enables treadmill when safety key is inserted.
BLOWER FAN: Personal workout blower fan.
BLOWER FAN BUTTON: Press the fan button once for low speed, twice for medium speed, three
times for high speed and four times to turn the fan off.
WATER BOTTLE / CD / MP3 HOLDERS: Holds personal workout equipment.
READING RACK: Holds reading material.
AUDIO SPEAKERS: Transmits sound from your CD / MP3 device.
AUDIO IN: Plug your CD / MP3 player into the console using the included audio adaptor cable.
AUDIO OUT / HEADPHONE JACK: Plug your headphones into this jack to listen to your music through
the headphones. NOTE: When headphones are plugged into the headphone jack the sound will no
longer come out through the speakers.
A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
K.
L.
M.
N.
O.
P.
Q.
R.
A E
K OL
N NP P
INCLINE SPEED
1 MPH
2 MPH
3 MPH
4 MPH
5 MPH
6 MPH
7 MPH
8 MPH
9 MPH
10 MPH
QUICK INCLINE
KEYS
QUICK SPEED
KEYS
ENTER
CHANGE DISPLAY
1 %
2 %
3 %
4 %
5 %
6 %
7 %
8 %
9 %
10 %
PULSE
SET THR
CALORIES
TIME
SET LEVEL
DISTANCE
PRESS ENTERTO CONFIRM PROGRAM PRESS START TOBEGIN
INCLINE SPEED
PROGRAMS
STOP
HO L D T O RE S E T
S T A R T
PAUSE
ROLLING
HILLS
MOUNTAIN
CLIMB
INTERVALS
CUSTOM CUSTOM
PACER
MANUAL
FOOTHILLS
WEIGHT
LOSS
1
INTERVALS
2
INTERVALS
3
GOLF
9-HOLE
GOLF
18-HOLE
1
WEIGHT
LOSS
2
G H
RQDF MI JBC
TREADMILL OPERATION

17
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
SPEED • Shown as MPH. Indicates how fast your walking or running surface is moving.
TIME • Shown as Minutes: Seconds. View the time remaining or the time elapsed in your workout.
PULSE • Shown as Beats Per Minute. Used to monitor your heart rate (displayed when contact is made with
both pulse grips).
DISTANCE • Shown as Miles. Indicates distance traveled during your workout.
INCLINE • Shown as Percent. Indicates the incline of your walking or running surface.
CALORIES • Total Calories burned during your workout.
PROGRAM PROFILES • Represents the profile of the program being used (speed during speed based
programs and incline during incline based programs).
PULSE GRIPS
PULSE GRIPS
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your heart
rate to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When gripping
the pulse handlebars, do not grip tightly. Holding the grips tightly may elevate your blood pressure. Keep a loose,
cupping hold. You may experience an erratic readout if consistently holding the grip pulse handlebars. Make sure
to clean the pulse sensors to ensure proper contact can be maintained. (See page 33).
MONITOR DISPLAY
INCLINE SPEED
CALORIES TIME
SET LEVEL
DISTANCE
PRESS ENTER TO CONFIRM PROGRAM PRESS START TO BEGIN
PULSE
HEART RATE

18
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
Check to make sure nothing is on or will hinder the movement of the treadmill.
Plug in the power cord and turn the treadmill ON.
Stand on the side rails of the treadmill.
Attach the safety key clip to part of your clothing.
Insert the safety key into the safety keyhole in the console.
You have two options to start your workout:
QUICK START UP
Simply press the START key to begin working out. OR...
SELECT A PROGRAM
Select a PROGRAM using the SET PROGRAM key.
Once a PROGRAM has been chosen, press ENTER.
SELECT A LEVEL
Select a PROGRAM LEVEL using the ARROW keys.
Once a PROGRAM LEVEL has been chosen, press ENTER.
SELECT A TIME
Select a Time using the ARROW keys or use the default time.
Once a TIME has been chosen, press START.
FINISHING YOUR WORKOUT
When your workout is complete, the MONITOR DISPLAY will flash and beep. Your workout information will
stay displayed on the console for 30 seconds and then reset.
CLEAR CURRENT SELECTION
To clear the current program selection or screen, hold the STOP button for 3 seconds.
A.
B.
C.
D.
GETTING STARTED / SELECTING A PROGRAM
1)
2)
3)
4)
5)
6)

19
INTRODUCTION
IMPORTANT
PRECAUTIONS
ASSEMBLY
BEFORE
YOU BEGIN
TREADMILL
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
PROGRAM INFORMATION
PROGRAM: MANUAL
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
Allows ‘On The Fly’ manual SPEED and INCLINE changes. Time-based goal.
Walk or run a series of alternating SPEED levels. Time-based goal with 10 difficulty levels to choose from.
INTERVALS 1 PROGRAM SEGMENTS
(peak segments last 30 seconds, valley segments last 90 seconds)
2:00 2:00 2:00 2:00
WARM-UP 1 2
SEGMENTS ARE REPEATED UNTIL SELECTED
TIME IS REACHED
COOL DOWN
Level 1 1.0 1.5 2.0 4.0 1.5 1.0
Level 2 1.0 1.5 2.0 4.5 1.5 1.0
Level 3 1.3 1.9 2.5 5.0 1.9 1.3
Level 4 1.3 1.9 2.5 5.5 1.9 1.3
Level 5 1.5 2.3 3.0 6.0 2.3 1.5
Level 6 1.5 2.3 3.0 6.5 2.3 1.5
Level 7 1.8 2.6 3.5 7.0 2.6 1.8
Level 8 1.8 2.6 3.5 7.5 2.6 1.8
Level 9 2.0 3.0 4.0 8.0 3.0 2.0
Level 10 2.0 3.0 4.0 8.5 3.0 2.0
(WARM-UP and COOL-DOWN last 4:00 minutes each and are included in program times)
PROGRAM: INTERVALS 1 - 3
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
INTERVALS 2 PROGRAM SEGMENTS (SPEED CHANGES)
(peak segments last 30 seconds and valley segments last 60 seconds)
2:00 2:00 2:00 2:00
WARM-UP 1 2
SEGMENTS ARE REPEATED UNTIL SELECTED
TIME IS REACHED
COOL DOWN
Level 1 1.0 1.5 2.0 4.0 1.5 1.0
Level 2 1.0 1.5 2.0 4.5 1.5 1.0
Level 3 1.3 1.9 2.5 5.0 1.9 1.3
Level 4 1.3 1.9 2.5 5.5 1.9 1.3
Level 5 1.5 2.3 3.0 6.0 2.3 1.5
Level 6 1.5 2.3 3.0 6.5 2.3 1.5
Level 7 1.8 2.6 3.5 7.0 2.6 1.8
Level 8 1.8 2.6 3.5 7.5 2.6 1.8
Level 9 2.0 3.0 4.0 8.0 3.0 2.0
Level 10 2.0 3.0 4.0 8.5 3.0 2.0
(WARM-UP and COOL-DOWN last 4:00 minutes each and are included in program times)

20
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN TREADMILL
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
PROGRAM: GOLF COURSE - 9 HOLE
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
Simulates various INCLINES and yardages for holes on a golf course, with 4 tee-off boxes and 9 holes to choose from.
Distance-based goal.
GOLF COURSE 9 HOLE PROGRAM SEGMENTS
HOLE
NUMBER: 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 TOTAL DISTANCE
Red tee
9 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 2482
Distance 309 359 283 256 113 387 91 351 333
White tee
9 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 2875
Distance 331 427 330 295 129 466 97 369 431
Blue tee
9 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 3003
Distance 345 460 337 308 142 484 97 389 441
Black tee
9 holes
Elevation 0.0 1.0 2.0 3.0 2.5 1.0 2.0 2.5 1.5 3250
Distance 376 502 374 327 187 500 106 416 462
Distance = Yards
INTERVALS 3
PROGRAM SEGMENTS (SPEED AND INCLINE CHANGES)
(peak segments last 90 seconds and valley segments last 30 seconds)
2:00 2:00 2:00 2:00
WARM-UP 1 2
SEGMENTS ARE REPEATED UNTIL SELECTED TIME IS REACHED
COOL DOWN
Level 1 SPEED 1.0 1.5 2.0 4.0 1.5 1.0
INCLINE 1.0 1.5 0.5 1.5 1.5 0.0
Level 2 SPEED 1.0 1.5 2.0 4.5 1.5 1.0
INCLINE 1.5 2.5 3.0 6.5 2.5 1.5
Level 3 SPEED 1.3 1.9 2.5 5.0 1.9 1.3
INCLINE 2.0 3.0 4.0 7.5 3.0 2.0
Level 4 SPEED 1.3 1.9 2.5 5.5 1.9 1.3
INCLINE 2.0 3.0 4.0 8.0 3.0 2.0
Level 5 SPEED 1.5 2.3 3.0 6.0 2.3 1.5
INCLINE 2.5 3.5 4.5 8.5 3.5 2.5
Level 6 SPEED 1.5 2.3 3.0 6.5 2.3 1.5
INCLINE 2.5 3.5 4.5 9.0 3.5 2.5
Level 7 SPEED 1.8 2.6 3.5 7.0 2.6 1.8
INCLINE 2.5 4.0 5.5 9.5 4.0 3.0
Level 8 SPEED 1.8 2.6 3.5 7.5 2.6 1.8
INCLINE 3.0 4.0 5.5 9.5 4.0 3.0
Level 9 SPEED 2.0 3.0 4.0 8.0 3.0 2.0
INCLINE 3.0 4.5 6.0 10.0 5.0 3.0
Level 10 SPEED 2.0 3.0 4.0 8.5 3.0 2.0
INCLINE 3.0 4.5 6.0 10.0 5.0 3.0
(WARM-UP and COOL-DOWN last 4:00 minutes each and are included in program times)
