3
STEEL
ELECTRIC SAUNA HEATER
Installation and operation manual
NB! The following instructions for electrical works must be carried out
by a certied electrician.
The HUUM STEEL electric sauna heater delivery set contains:
• electric heater;
• installation and operation manual for the electric heater.
NB! The electric heater requires a control panel and stones.
4
THINGS TO CHECK BEFORE INSTALLATION
• Does the output (kW) match the volume (m³) of the sauna room?
See Table 1.
• In case there are any uninsulated brick, tile or glass walls in the
sauna room, an additional volume of 1,5 m³ should be added to
the sauna room for each such square meter of the wall.
• The suitable output of the heater will be determined based on
Table 1.
• The producer’s warranty guarantee is invalid if the heater and
sauna room have been dimensioned incorrectly!

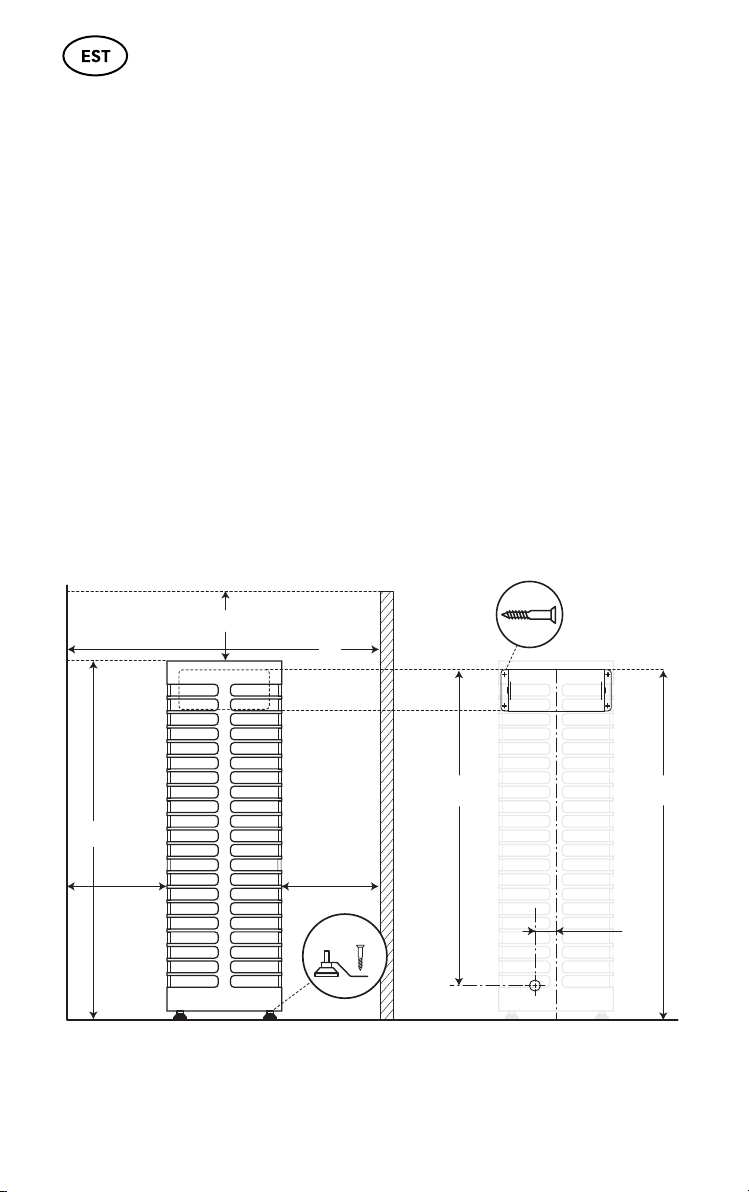

• Minimal safe distances between the sauna room’s ceiling and
walls in view of installing the electric heater are listed in Table 1.
•
the accompanying brackets. Install the bracket to the heater
A A
H
4 *
Min 1200 mm
875 mm
4
6 X 40
55 mm
835 mm
6 X 40
B
5
Table 1 Output
kW Room
m3
Weight
kg A
mm B
mm H
mm
Width/
Depth
mm
Fuse
A
Power
cable
N × mm2
STEEL
Mini 3,5 975 3 × 2,5
STEEL 6 6 15 975 5 × 1,5
STEEL 9 9 9–15 15 975 16 5 × 2,5
STEEL 11 16 975 16 5 × 2,5
INSTALLATION
Positioning the heater
• The heater must be positioned in such a way that there is a safe
of the heater. See Figure.
• In installing the heater, it must be prevented that people could
have physical contact with the heater or that other dangerous
situations could emerge during the heating process.
•
•
the heater.
Connecting the heater to the power supply
•
power supply.
•
used as the connection cable.
• It is recommended to connect the unit to the mains without an
earth-leakage circuit breaker.
•
cable and circuit breaker are listed in Table 1.
