HVTest HTJY-80S User manual

1
Dear Client
Thank you for Purchasing our HTJY-80S Transformer Oil
BDV Tester (Three Cups). Please read the manual in detail prior
to first use, which will help you use the equipment skillfully.
Our aim is to improve and perfect the
company's products continually, so there may be
slight differences between your purchase equipment
and its instruction manual. You can find the changes
in the appendix. Sorry for the inconvenience. If you have further
questions, welcome to contact with our service department.
The input/output terminals and the test column
may bring voltage, when you plug/draw the test wire or
power outlet, they will cause electric spark. PLEASE
CAUTION RISK OF ELECTRICAL SHOCK!
Company Address:
T4，No. 41, High-tech 2 Road，East Lake High-tech Development Zone，
Wuhan
Sales Hotline: [phone]
After Service Hotline:[phone]
Fax: [phone]
E-mail: [email protected]
Website: www.hvtest.cc

2
SERIOUS COMMITMENT
All products of our company carry one year limited warranty
from the date of shipment. If any such product proves defective
during this warranty period we will maintain it for free. Meanwhile
we implement lifetime service. Except otherwise agreed by
contract.
SAFETY REQUIREMENTS
Please read the following safety precautions carefully to avoid
body injury and prevent the product or other relevant subassembly
to damage. In order to avoid possible danger, this product can only
be used within the prescribed scope.
Only qualified technician can carry out maintenance or repair
work.
--To avoid fire and personal injury:
Use Proper Power Cord
Only use the power wire supplied by the product or meet the
specification of this produce.
Connect and Disconnect Correctly
When the test wire is connected to the live terminal, please do
not connect or disconnect the test wire.
Grounding
The product is grounded through the power wire; besides, the

3
ground pole of the shell must be grounded. To prevent electric
shock, the grounding conductor must be connected to the ground.
Make sure the product has been grounded correctly before
connecting with the input/output port.
Pay Attention to the Ratings of All Terminals
To prevent the fire hazard or electric shock, please be care of
all ratings and labels/marks of this product. Before connecting,
please read the instruction manual to acquire information about the
ratings.
Do Not Operate without Covers
Do not operate this product when covers or panels removed.
Use Proper Fuse
Only use the fuse with type and rating specified for the product.
Avoid Touching Bare Circuit and Charged Metal
Do not touch the bare connection points and parts of energized
equipment.
Do Not Operate with Suspicious Failures
If you encounter operating failure, do not continue. Please
contact with our maintenance staff.
Do Not Operate in Wet/Damp Conditions.
Do Not Operate in Explosive Atmospheres.
Ensure Product Surfaces Clean and Dry.

4
－Security Terms
Warning: indicates that death or severe personal injury may
result if proper precautions are not taken
Caution: indicates that property damage may result if proper
precautions are not taken.

5
Contents
First item summary........................................................................... 6
Second, the instrument characteristics.........................................6
Third, technical indicators................................................................7
Fourth, conditions of use................................................................. 7
fifth, Description of chassis and panel parts................................ 8
sixth, diagram of operation steps................................................... 9
The seventh, matters needing attention..................................... 16
eighth, simple troubleshooting......................................................17
The ninth, Equipment package.....................................................17
The first ten, after-sales service:..................................................18

6
First item summary
This type of insulating oil dielectric strength tester is my company
all the scientific and technical personnel, according to national
standard GB507-86 line and the DL - 474-4-92 DL/T596-1996
regulations, play their own advantages, after a lot of field test and
long-term unremitting efforts, carefully research and development
of high accuracy, fully digital industrial equipment. This machine is
easy to operate, beautiful shape. Due to adopt fully automatic
digital computer control, so the measurement of high precision,
strong anti-jamming capability, safe and reliable.
Second, the instrument characteristics
1. Instrument adopt large capacity single-chip microcomputer
control, stable and reliable work;
2. The instrument is equipped with temperature and humidity in
time clock display function, and is equipped with grounding
alarm to remind customers pay attention to safety;
3. The instrument has wide range of watchdog circuit to
eliminate the phenomenon of crash;
4. A variety of choices, operation instrument program with
GB1986, GB2002 two methods of national standard and custom
operation, able to adapt to a variety of different users to choose;
5. The instrument oil cup is made of a special glass casting
forming, to eliminate the phenomenon of oil and other
interference occurred;
6. Special high voltage side sampling design for test values

7
directly into the A/D converter, to avoid the error caused in the
analog circuit, make more accurate measurement results;
7. An instrument has over current, over voltage, short circuit
protection, and other functions, and with a strong anti-jamming
capability, good electromagnetic compatibility.
Third, technical indicators
1. 1.5 kVA booster capacity
2. The pressure rise rate of 2.0 kV/s, 2.5 kV/s, 3.0 kV/s, 3.5 kV/s
four gears Error: 0.2 kV/s
3. The output voltage of 0 ~ 80 kV (optional)
4. Voltage accuracy ±(2% reading word + 2)
5. Power distortion rate of < 1%
6. The electrode gap standard 2.5 mm
7. Test 6 times (1-6 optional)
8. Let stand 5 min time (1-9 min optional)
9. Overall dimensions 670 mm * 420mm * 410mm
10.The instrument was 38 kg in weight
Fourth, conditions of use
1. 0 ~ 40 ℃ambient temperature
2. The relative humidity of 85% or less
3. Power AC220V±20%
4. The power frequency 50Hz(1±10%)
5. Power consumption < 200 W

8
fifth, Description of chassis and panel parts

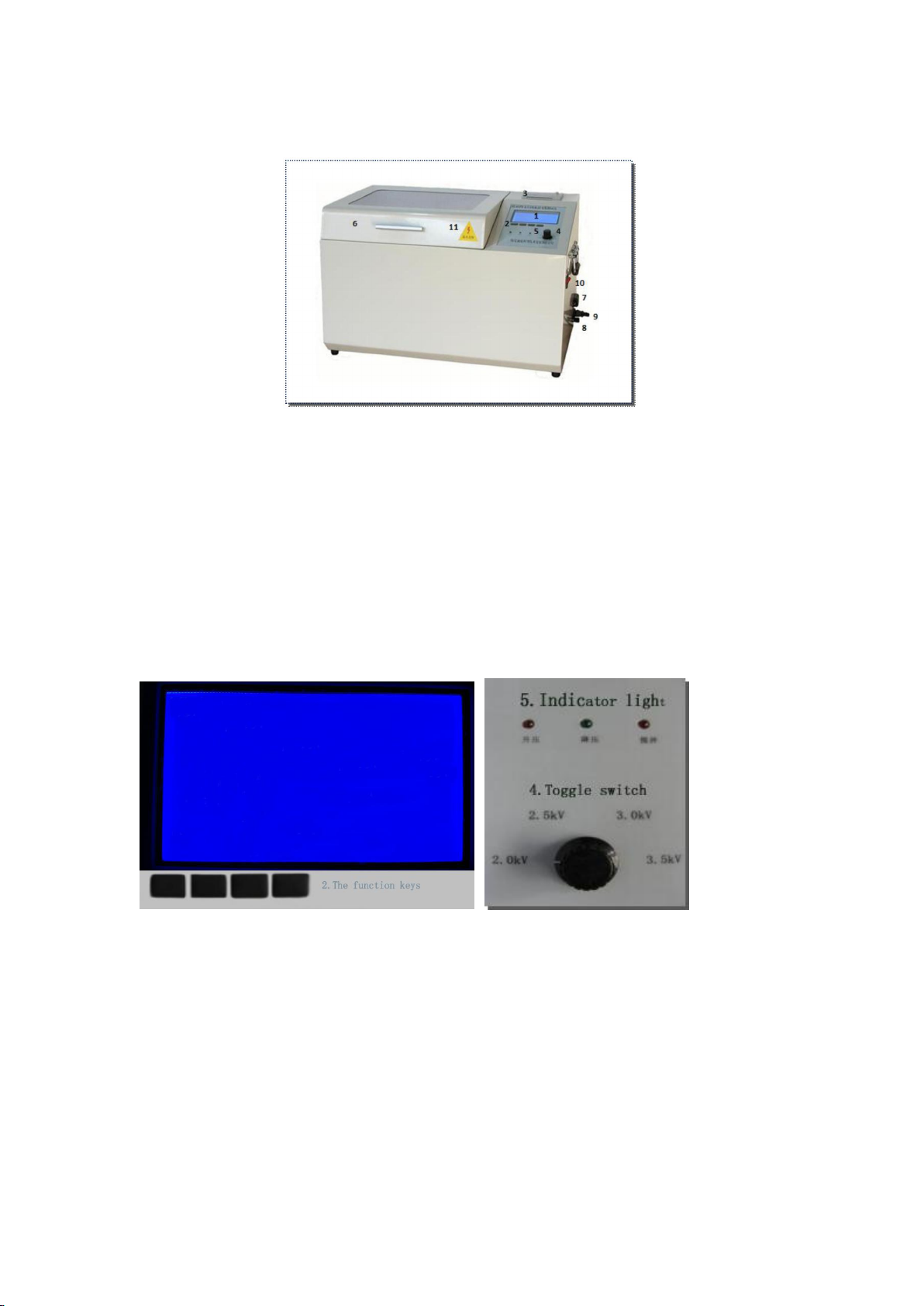

Note: 1. The liquid crystal display;2. The function keys;3. The
printer;4. The rate of pressure rise toggle switch;5. The indicator
light;6. Oil cup cover 7. Temperature, humidity sensor;8. Ground
column;9. The power switch;10. The power switch;11. A high
voltage safety sign

9
1. LCD screen to display the date, time, operating parameters, test
results and operation menu prompts and other related information;
2. The function keys to choose operation parameter Settings;
3. The printer to print a single and multiple test results of average;
4. Switch to choose different pressure rise rate;
5. When the indicator light is lit said related steps is now under way;
6. Oil cup cover open add or remove oil cup, after close the rear
can test;
7. Temperature humidity sensor to measure temperature of 0
degrees Celsius temperature and relative humidity, and converted
into digital signals to display;
8. Ground column reliable ground wire column;
9. Good power socket plug AC 50 hz, 220 v power cord;
10. The power switch control instrument power on and off;
11. Mark prompt high dangerous triangle sign.
sixth, diagram of operation steps
1.Plug the power cord, open the power switch, LCD shows on the
page (figure 1)

10

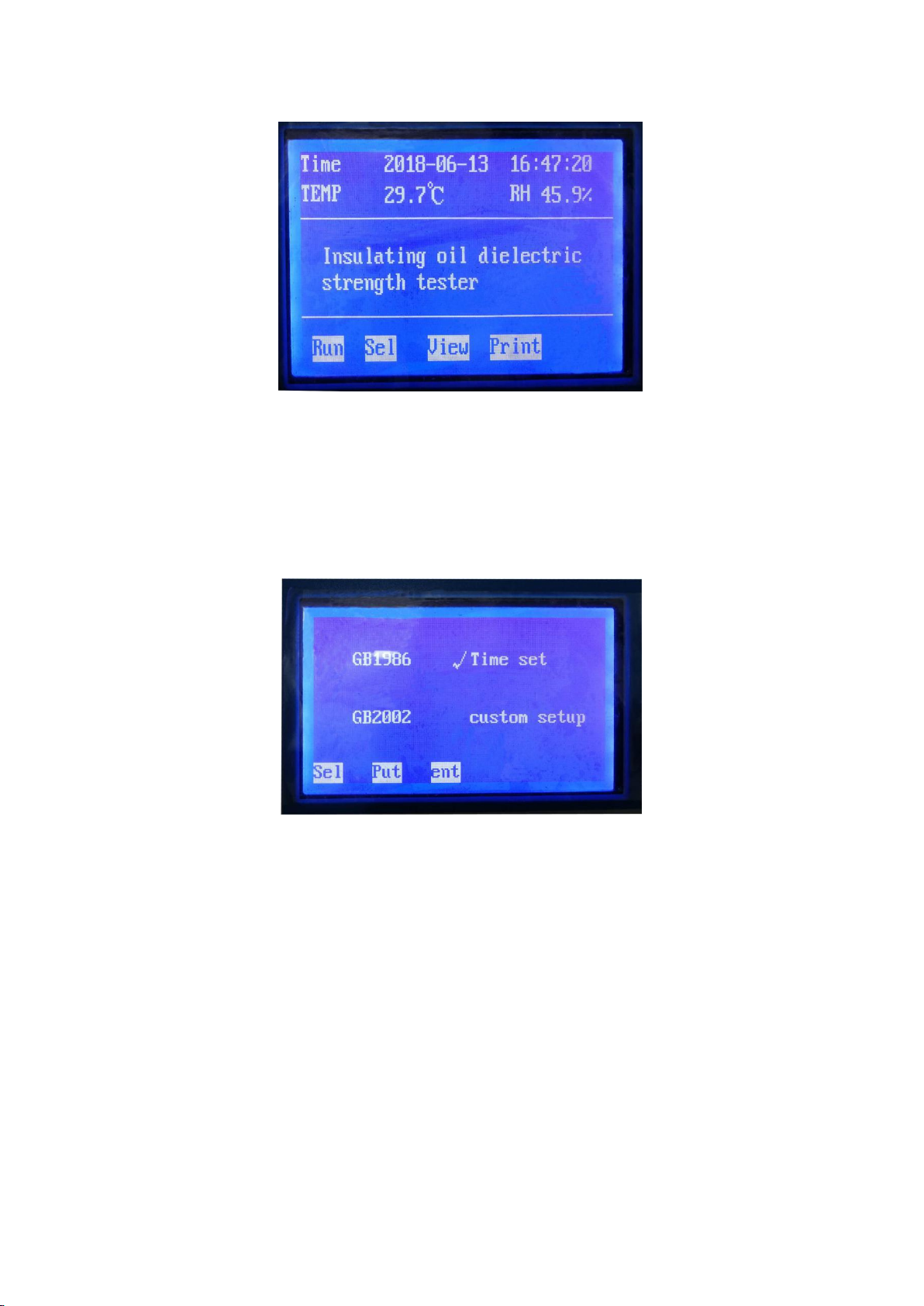

Figure 1 startup page
2. In figure 1 page, press set button to enter the next level page
(figure 2).
Figure 2 selector page
3. In figure 2 page, press the select key to move the cursor)
GB1986, press the ok button to enter national standard 1986 set
child pages (figure 3).

11
GB1986 child pages
In figure 3 page, press the select key move the cursor to stop rising
voltage, press the + or - button set ting up voltage, its default value
is 80 kV, optional scope of 10 kV ~ 80 kV (incremental Δ = 10
kV).Choose good after stopping up voltage, press keys move the
cursor to a cup of a selection, press confirm button to enter a cup a
selector page (figure 4).
Figure 4 cups of a selector page
In figure 4 pages, press the select key move the cursor to the
different cup, press x or a tick # define cup, the default value is all
(that is, each cup of square root).And then press ok button to

12
confirm the selected stop litres of voltage and cup return to boot the
page number, press the start key for testing.
If there is no reliable grounding, instrument displays grounding,
please!And send out alarm, should turn off the power at this
moment, again after good earthed.If there is no installation of
ground wire or no conditions, can press any key to skip, will not
affect the test results.
4. In figure 2 page, press the select key to move the cursor)
GB2002, press the ok button to enter national standard 2002 set
child pages.Operating under the page with GB1986 child pages
basic same, refer to six, operation steps diagram 3. The related
content.
5. In figure 2 page, press the select key to move the cursor) time
Settings, press the ok button to enter time set child pages (figure
5).

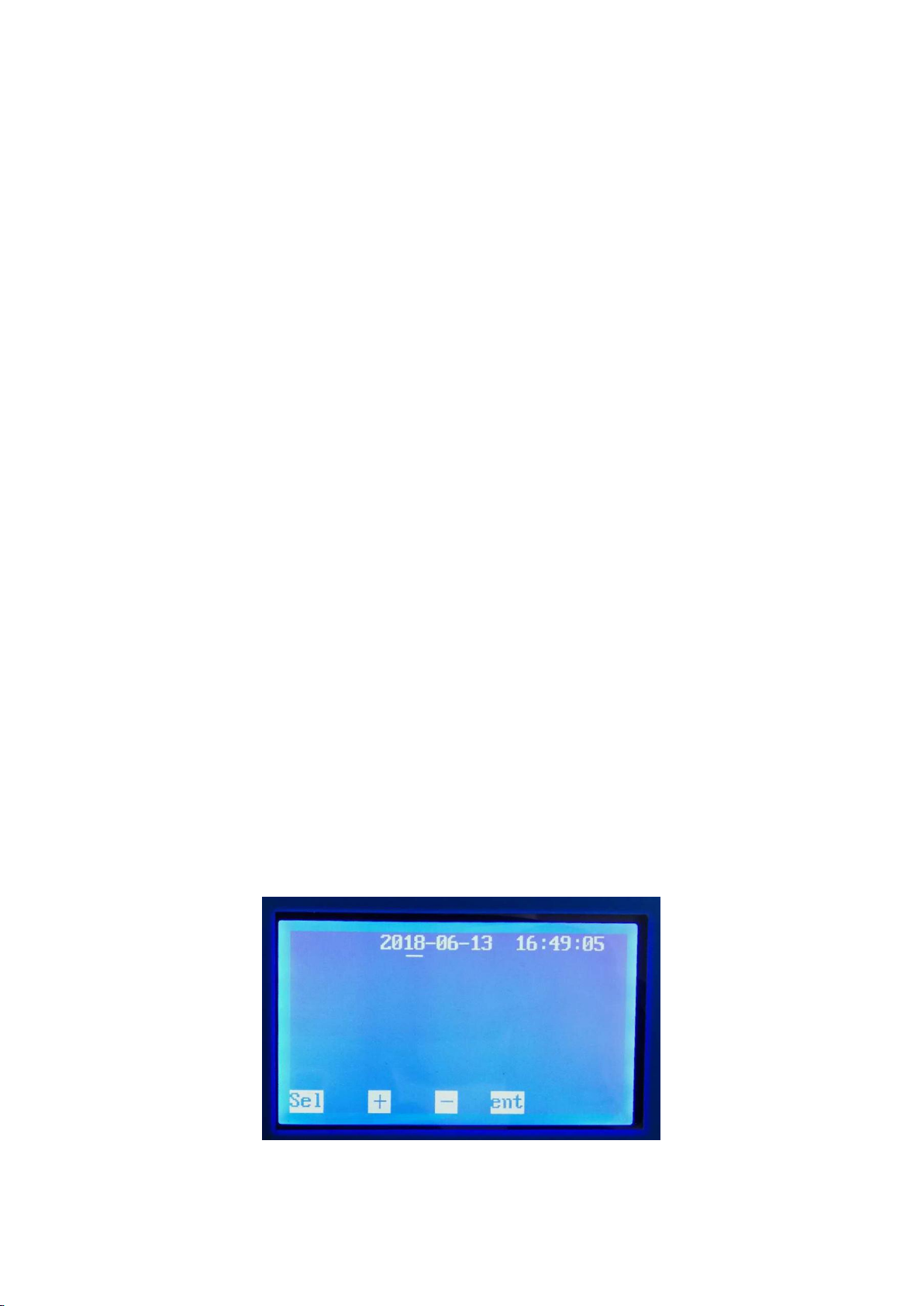

Figure 5. Set the child page.

13
Press the select key move cursor - to the year, month, day, time
and distance, press the + or - key to choose the specific numerical,
according to the confirmation key, and return to the start page;
6. In figure 2 page, press the select key to move the cursor)
Settings, press the ok button to enter the custom set child pages
(figure 6);

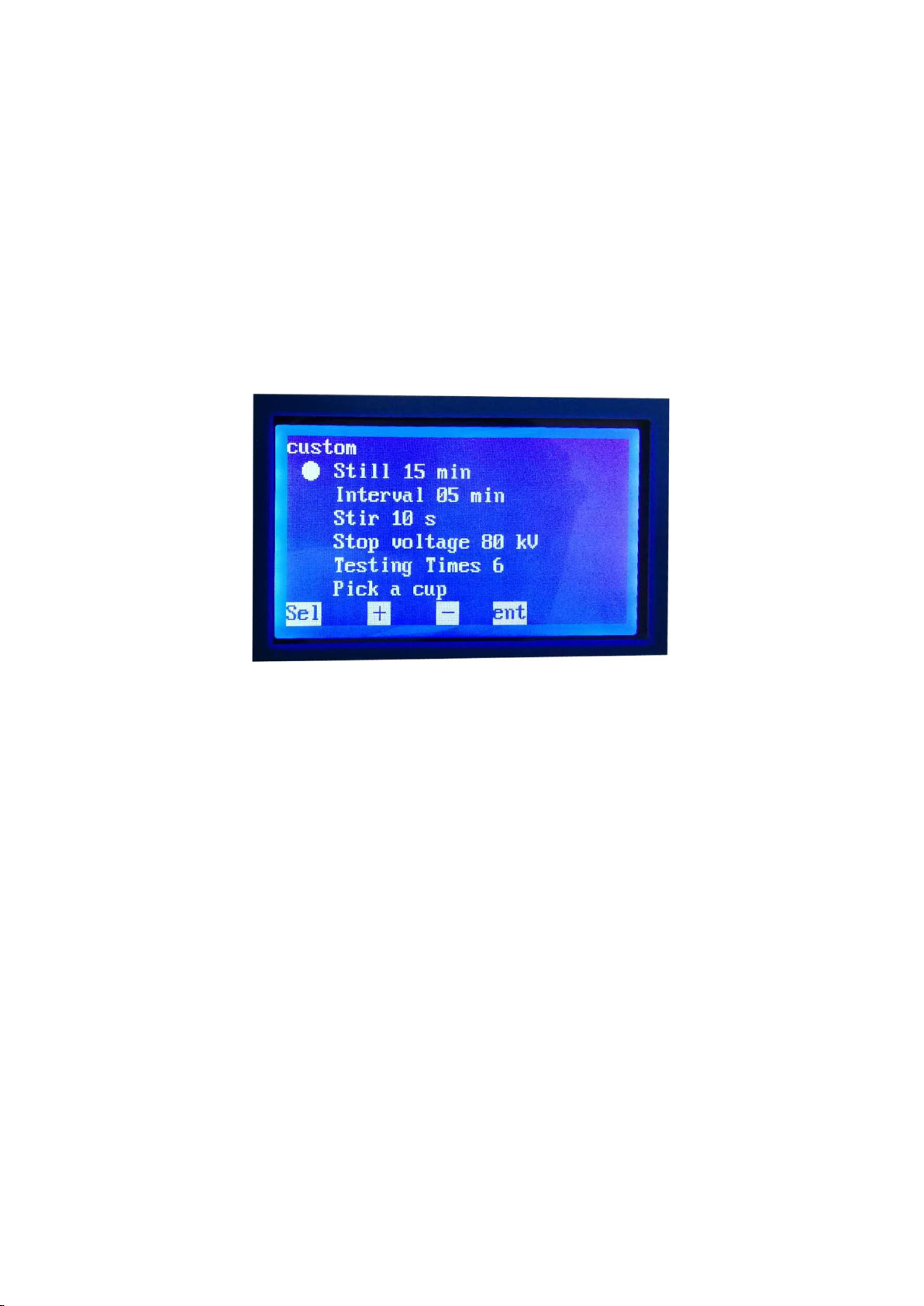

Figure 6 a custom Settings page
7. In figure 6 pages, press the select key move the cursor to the
corresponding option, then press the + or - key parameters can be
set.Among them:
Let stand for 15 min, the default value range of 1 ~ 15 min
(incremental Δ = 1 min);
The time interval between the default value of 5 min, range 1 ~ 10
min (incremental Δ = 1 min);
Mixing time default 10 s, the range of 5 ~ 90 s (incremental Δ = 5 s);
Stop up the default 60 kV voltage, range of 10 ~ 80 kV (incremental
Δ = 10 kV).When the instrument booster to stop rising voltage Time

14
will cease to step up and into the state. If no breakdown for 15 s,
the instrument will default to the current stop up voltage of
insulating oil breakdown voltage;
On the default value is 6, optional range 1 ~ 6 times (incremental Δ
= 1);Set after press ok button to return to the start page, press the
start key test;
Cup a cup press this button to enter a selection child pages,
specific see six operation, operation steps diagram 3. The related
content.
7. For this model, every cup of up to 6 times parallel determination
parameters such as the breakdown voltage value will be
automatically stored. After the measurement screen will display to
remind the test, press the confirmation key to return to the start
page (figure 1).Press to print or display, enter the sample single
breakdown voltage value, arithmetic mean value and measurement
of the date and time display child pages (figure 7 ~ 9).
Figure 7.

15
Figure 8.
Figure 9.
interface without measuring time, according to data for temporary
data group, will be lost after shutdown.Then three interface
measuring time, according to data for the stored data set, will not
be lost after shutdown.If the oil cup sample is more than three, the
system will be grouped by time, records show that the recent three
sets of data.
In show the child pages, press print to print the store data for the
selected page, click confirm button to return to the main page.

16
The seventh, matters needing attention
1. Before using this instrument, be sure to read this operation
manual;
2. The instrument operators should be familiar with electrical
equipment or analysis instrument of general use common sense;
3. The instrument is applicable to both inside and outside the home,
but should avoid the rain, corrosive gas, high dust, high
temperatures or direct sunlight and other places;
4. The oil cup should be kept clean.During the outage, should add
enough dry qualified insulating oil immersion, keep oil cup will not
be affected with damp be affected with damp and oxide electrode;
5. Use after a month in a row, electrode should be routine
inspection and maintenance. Check and adjust the electrode gap,
make its restore standard; A magnifying glass to observe whether
the electrode surface appear dark spots, if has this phenomenon,
application of silk cloth to wipe the electrode surface, make its
restore;
6. A professional instrument maintenance and debugging should be
complete;
7. Before turning on the power supply, should check carefully
whether the cable is firm, instrument shell must be reliable
grounding.
8. After turning on the power supply, operators are strictly forbidden
to touch the oil cup lid shell, lest produce an electric shock danger!
9. The instrument is in use process, if discovery is unusual should
immediately cut off the power!

17
eighth, simple troubleshooting
1. Boot no reaction：Check whether the power cord is plugged in
properly and check whether the safety tube is intact;
2. No booster：Check whether the cap of the oil cup box is covered;
3. Normal wear without breakdown：Check if the setting limits the
boost speed;
4. No display after breakdown：Check the oil cup for dirt;
5. The printer is out of paper：Check if the printer has any paper;
6. Replace the printer paper：The printer has been installed with
printer paper. If the printing paper is used, new printing paper will
be installed. The installation method opens the printer to put the
paper bin, put the paper into the paper, extend a part. The printing
paper light faces the direction of heat - sensitive tooth.
The ninth, Equipment package
1. The equipment 1
2. The oil cup 3 sets
3. The power cord 1
4. The standard gauge 1
5. Insurance tube 2 (3 a)
6. Impeller four

18
7. Tweezers
8. Printing paper 1 shaft
9. The ground 1
The first ten, after-sales service:
Instruments within one year from the date of purchase, the product
quality problem free warranty, life-long maintenance and technical
services.If it is found that the instrument is not normal or defective,
please contact with our company, in order to arrange the most
convenient and effective processing scheme for you.
