USER’S MANUAL
Model No. NTEL71315.0
Serial No.
Write the serial number in the space
above for reference.
www.nordictrack.com
To register your product and
activate your warranty today, go
to www.nordictrackservice.com/
registration.
For service at any time, go to
www.nordictrackservice.com.
Or call 1-800-TO-BE-FIT
(1-800-862-3348)
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal

2
TABLE OF CONTENTS

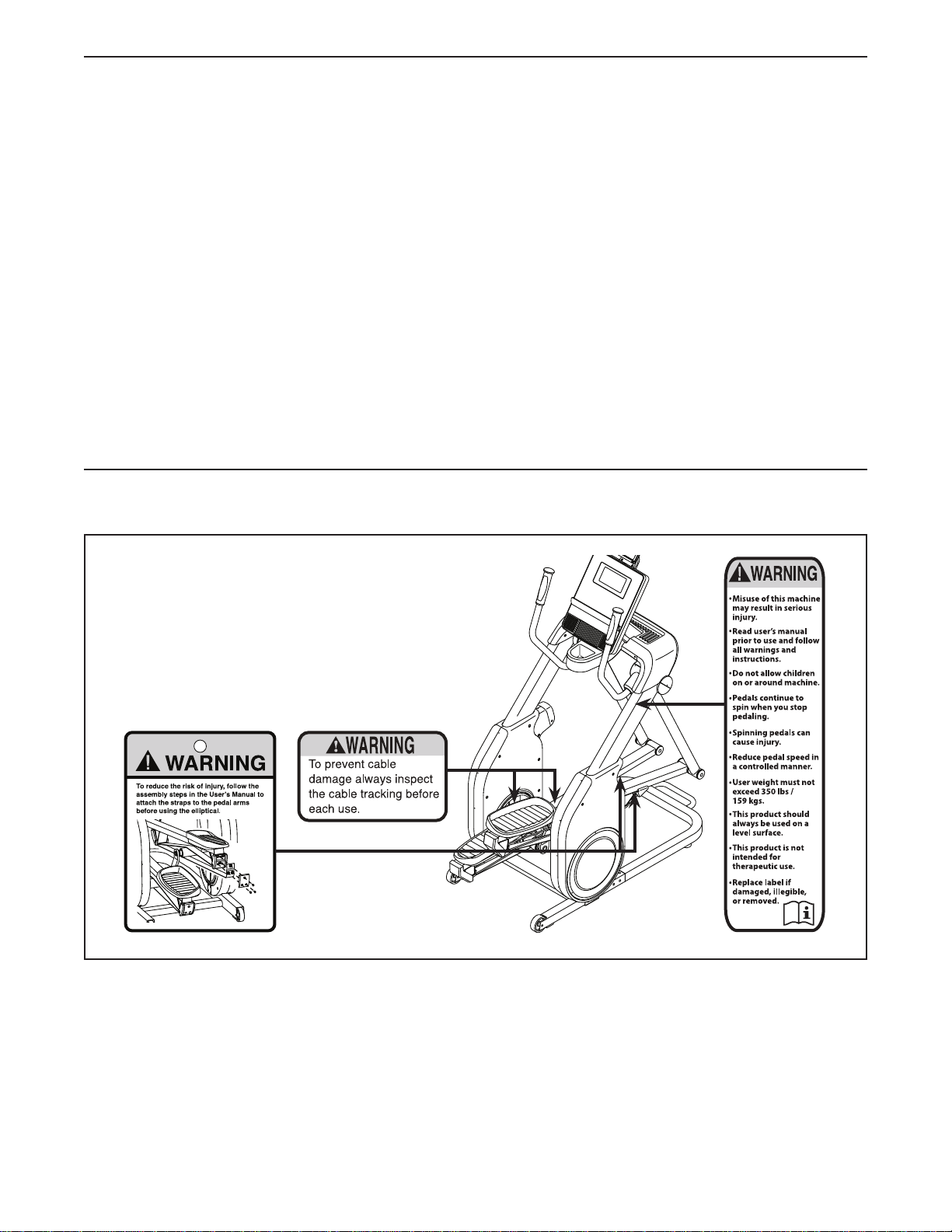

WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
FCC INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
MAINTENANCE AND TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
NORDICTRACK is a registered trademark of ICON Health & Fitness, Inc. IFIT is a registered trademark of ICON
Health & Fitness, Inc. App Store is a trademark ofApple Inc., registered in the U.S. and other countries. Android
and Google Play are trademarks of Google Inc. The BLUETOOTH®word mark and logos are registered trade-
marks of Bluetooth SIG, Inc. and are used under license. IOS is a trademark or registered trademark of Cisco in
the U.S. and other countries and is used under license.

3
WARNING:To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervi-
sion or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from mois-
ture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 4 ft. (1.2 m) of clearance in the front of
the elliptical, 6 ft. (1.8 m) in the rear, and 2 ft.
(0.6 m) on each side. To protect the floor or
carpet from damage, place a mat under the
elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately.
9. Keep children under age 13 and pets away
from the elliptical at all times.
10. The elliptical should not be used by persons
weighing more than 350 lbs. (159 kg).
11. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
12. Hold the handlebars or the handrails
when mounting, dismounting, or using the
elliptical.
13. The heart rate monitor is not a medical
device. Various factors may affect the accu-
racy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
14. The elliptical does not have a freewheel; the
pedals will continue to move until the fly-
wheel stops. Reduce your pedaling speed in
a controlled way.
15. Keep your back straight while using the ellip-
tical; do not arch your back.
16. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
IMPORTANT PRECAUTIONS

4
all
STANDARD SERVICE PLANS

5
Thank you for selecting the revolutionary
NORDICTRACK®FREESTRIDE TRAINER FS5I
elliptical. The FREESTRIDE TRAINER FS5I elliptical
provides an impressive selection of features designed
to make your workouts at home more effective and
enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handlebar
Fan
Handle
Accessory Tray
Console
Tablet Holder
BEFORE YOU BEGIN
Wheel
Leveling Foot
Length: 5 ft. 2 in. (157 cm)
Width: 2 ft. 5 in. (74 cm)
Pedal

6
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M8 x 68mm Screw
(105)–2
Pedal Arm Washer
(89)–2
M10 x 20mm
Screw (30)–12
M8 x 14mm
Shoulder
Screw (82)–2
M4 x 16mm
Screw (98)–5
M8 Locknut
(108)–2 #8 x 16mm
Screw (114)–4
M8 x 45mm Bolt
(109)–2
M6 x 20mm
Patch Screw
(42)–6

7
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 6.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
two adjustable wrenches
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
ASSEMBLY
1. Go to www.nordictrackservice.com/
registration on your computer and register
your product.
•activates your warranty
•saves you time if you ever need to contact
Customer Care
•allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Care (see the front cover of this
manual) and register your product.
1

8

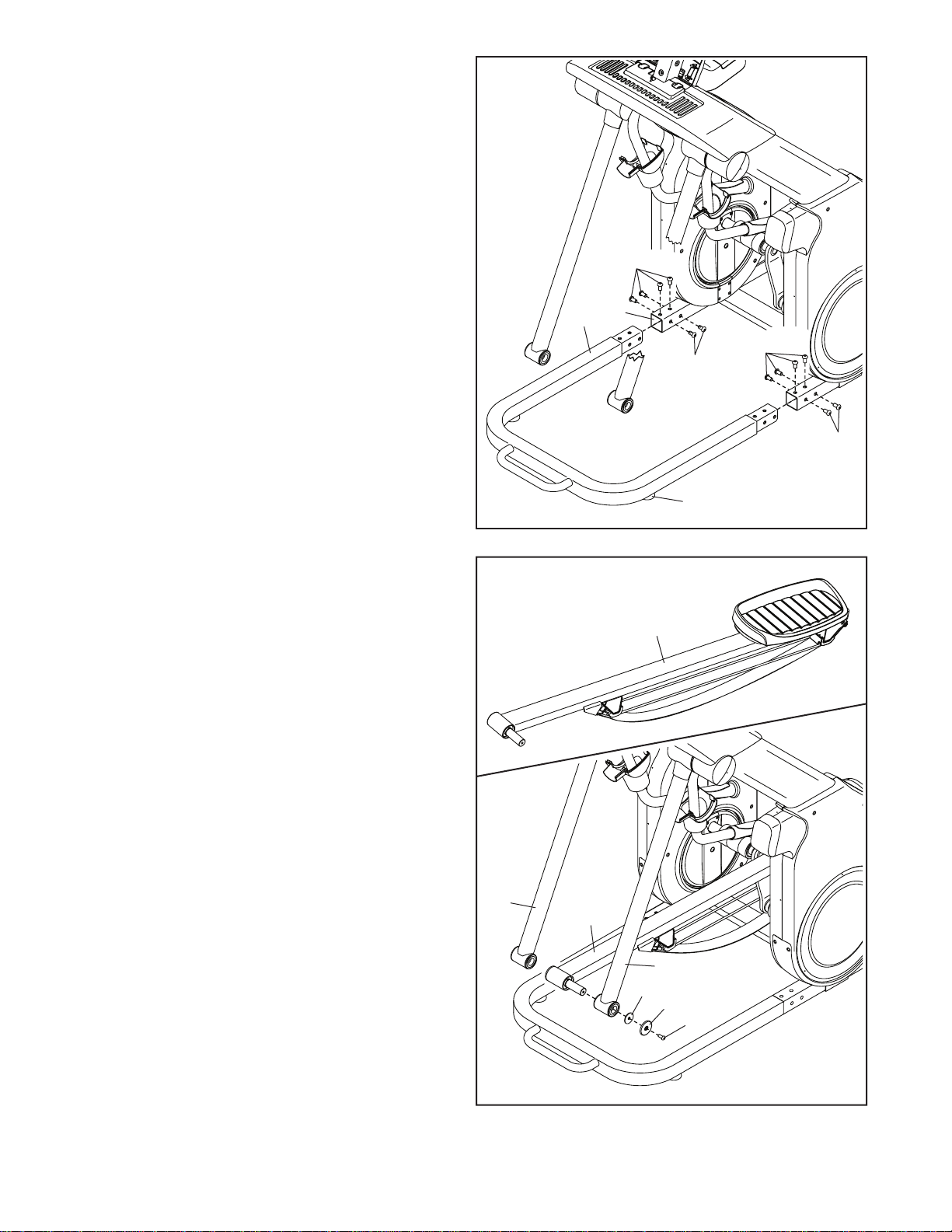

3. See the upper drawing. Identify the Left Pedal
Arm (9) and orient it as shown.
See the lower drawing. Insert the axle on the
Left Pedal Arm (9) into the Left Leg (6) from the
direction shown.
AttachtheLeftPedalArm(9)withan
M8 x 14mm Shoulder Screw (82), an Outer
Pedal Cover (93), and a Pedal Arm Washer (89).
Attach the Right Pedal Arm (not shown) to
the Right Leg (5) in the same way.
3
30
12
30
53
30
30
2. With the help of a second person, lift the Frame
(2) and place some of the packaging materials
under each side of the Frame.
Next,orienttheBase(1)sothattheLeveling
Feet (53) are in the indicated locations. Then,
insert the Base into the Frame (2).
Tip: It may be helpful to have the second
person help you work each side of the Base
(1) into the Frame (2). It may also be helpful
to use a rubber mallet.
AttachtheBase(1)withtwelveM10x20mm
Screws (30); start all the Screws, and then
tighten them.
Then,removethepackagingmaterialsfrom
under the Frame (1).
2
9
9
6
5
89 93 82

9
4. Identify the Strap (64) on the Right Pedal Arm
(94). Route the Strap under the Roller (67);
make sure that the Strap is not twisted.
Make sure that the Glide Cables (62) on the
Right Pedal Arm (94) are resting on top of the
Roller (67) and that the Strap (64) is routed
under the Roller.
Tip: It may be helpful to have a second
person press downward on the Right Pedal
(11) while you perform the following action.
Attach the Strap (64) to the Cable Guide (12) on
the Right Pedal Arm (94) with three M6 x 20mm
Patch Screws (42) and a Strap Clamp (13); start
all the Patch Screws, and then tighten them.
Repeat this step on the other side of the
elliptical.
4
13
42 64
31
94
98
98
94
67
12
5
5. Attach a Pedal Arm Cover (31) to the
Right Pedal Arm (94) with two M4 x 16mm
Screws (98).
Repeat this step on the other side of the
elliptical.
62
11

10
6
113
114
7
8
Avoid pinching
the wires

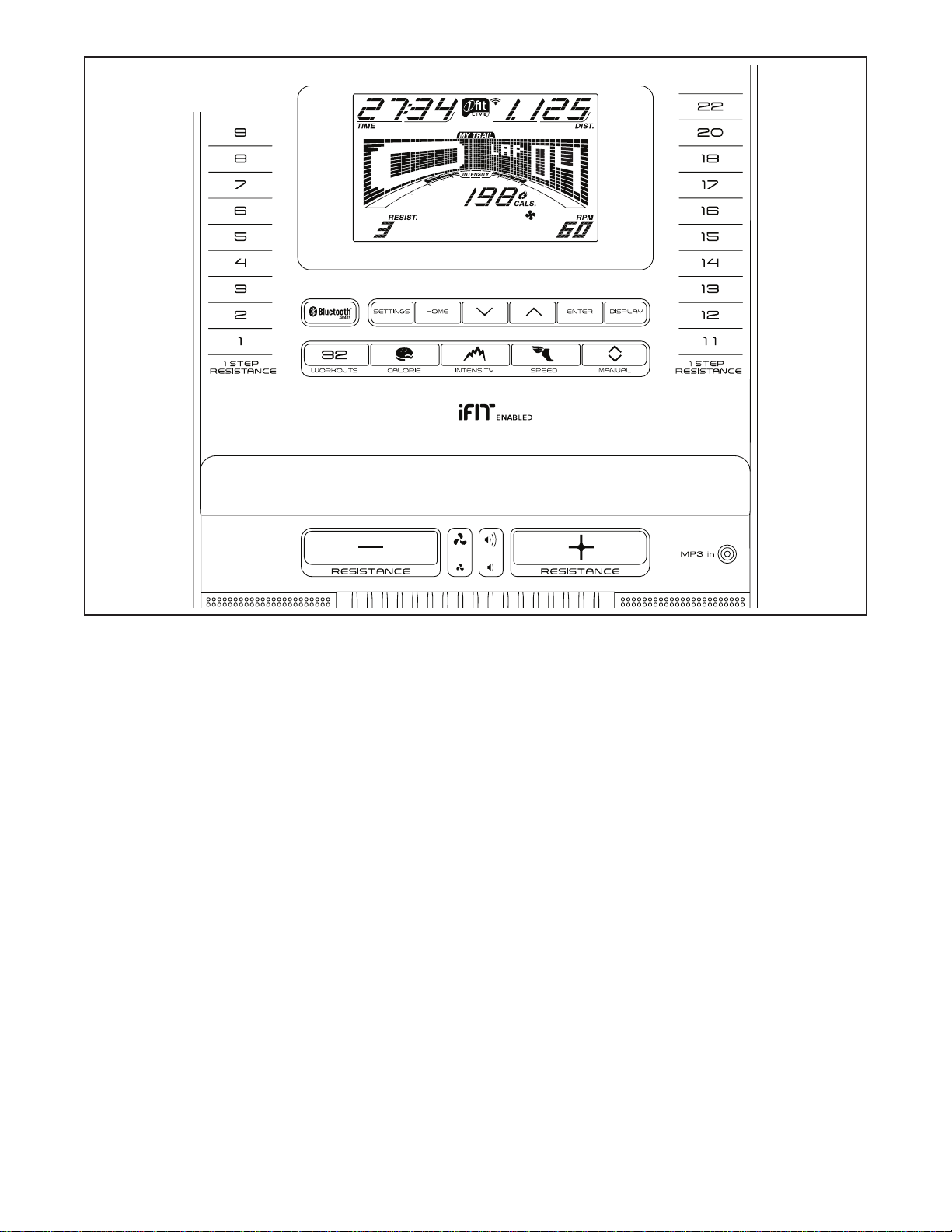

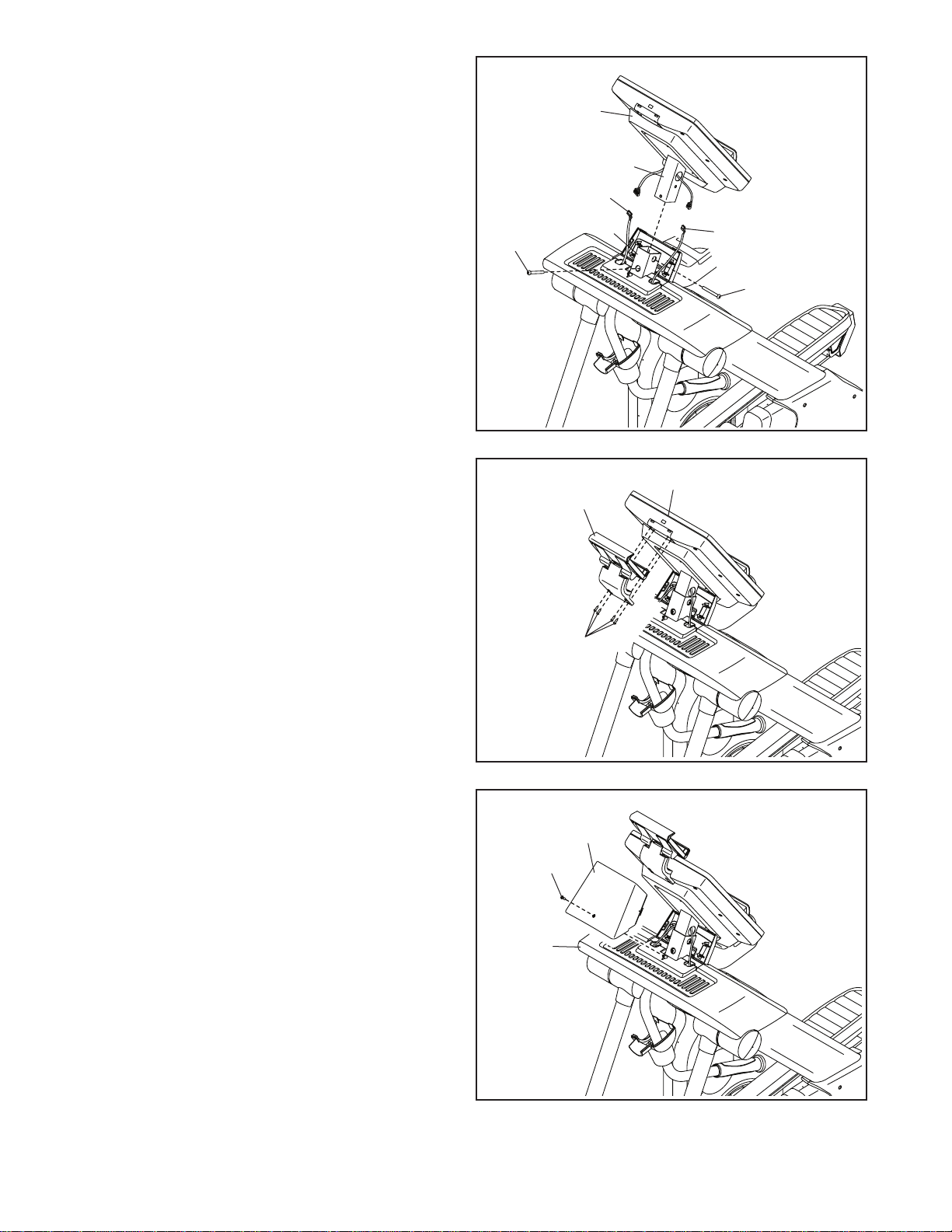

6. Tip: Avoid pinching the wires. Insert the
Console Bracket (3) into the Frame (2). Attach
the Console Bracket with two M8 x 68mm
Screws (105).
Then,connectthewiresfromtheConsole(4)
to the Main Wire (45) and the Accelerometer
Wire (48).
4
4
105
105
3
2
Avoid pinching
the wires
45
48
7. Insert the tabs on the Tablet Holder (113) into the
slots on the Console (4). Attach the Tablet Holder
with four #8 x 16mm Screws (114); start all the
Screws, and then tighten them.
8. Tip: Avoid pinching the wires.Attach the
Upper Neck Cover (17) to the Upper Bridge
Cover (16) with an M4 x 16mm Screw (98).
98
17
16
