ICON Health & Fitness NordicTrack Incline Trainer X11i User manual

USER’S MANUAL
Model No. NETL21718.1
Serial No.
Write the serial number in the space
above for reference.
Serial
Number
Decal
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: iconsupport.eu
E-mail: [email protected]
Write:
ICON Health & Fitness, Ltd.
Unit 4, Westgate Court
Silkwood Park
OSSETT
WF5 9TT
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: [email protected]
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
iconeurope.com

2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
THE CHEST HEART RATE MONITOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
HOW TO USE THE INCLINE TRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
HOW TO MOVE THE INCLINE TRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
MAINTENANCE AND TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
RECYCLING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
NORDICTRACK and IFIT are registered trademarks of ICON Health & Fitness, Inc. Google Maps is a trademark
of Google LLC. The BLUETOOTH®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and
are used under license. Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi
Alliance.

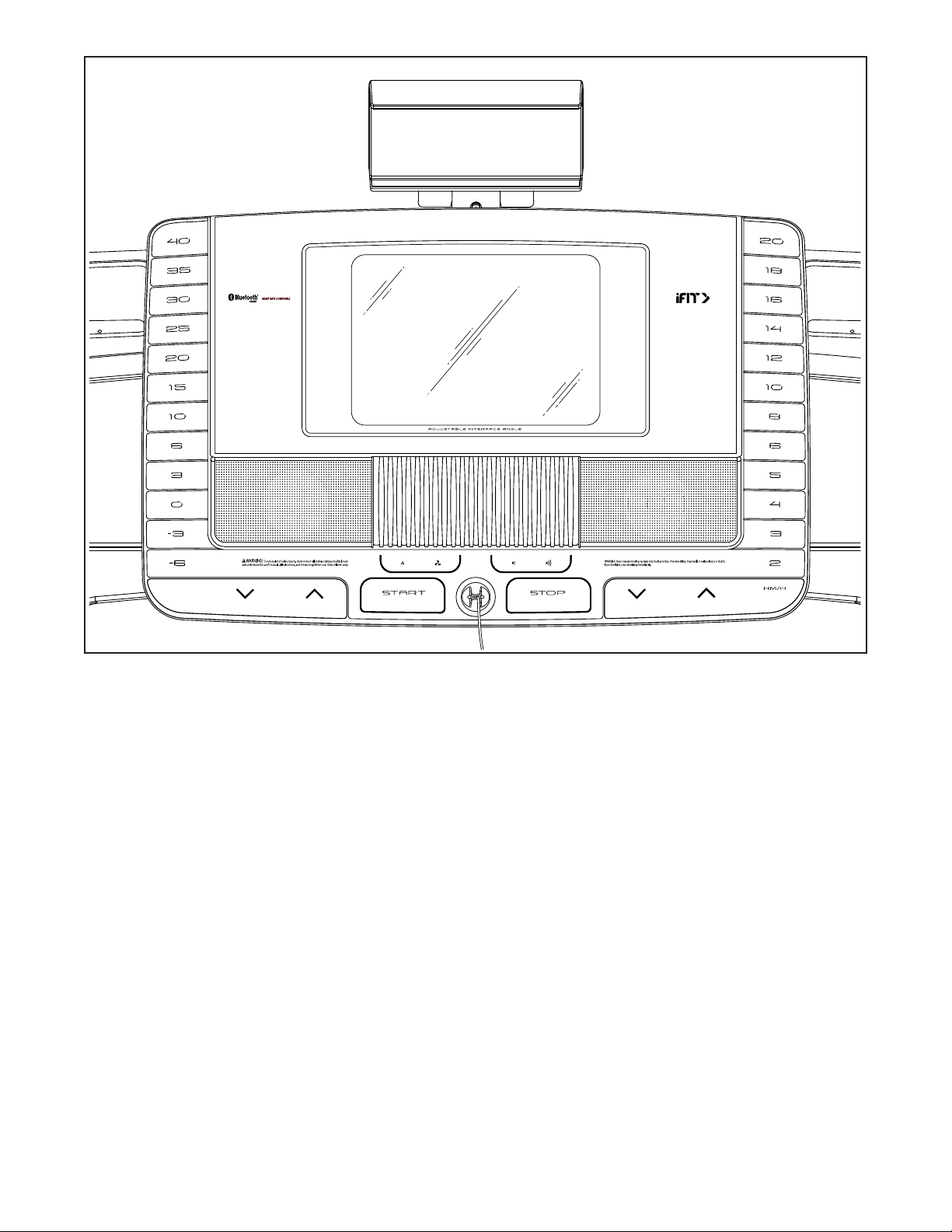

This drawing shows the locations of the warning decals.
If a decal is missing or illegible, call the telephone
number on the front cover of this manual and
request a free replacement decal. Apply the decal
in the location shown. Note: The decals may not be
shown at actual size.
WARNING DECAL PLACEMENT

3
1. It is the responsibility of the owner to
ensure that all users of this incline trainer
are adequately informed of all warnings and
precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The incline trainer is not intended for use
by persons with reduced physical, sensory,
or mental capabilities or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of
the incline trainer by someone responsible
for their safety.
4. Use the incline trainer only as described in
this manual.
5. The incline trainer is intended for home use
only. Do not use the incline trainer in any
commercial, rental, or institutional setting.
6. Keep the incline trainer indoors, away from
moisture and dust. Do not put the incline
trainer in a garage or covered patio, or near
water.
7. Place the incline trainer on a level surface,
with at least 8 ft. (2.4 m) of clearance behind
it and 2 ft. (0.6 m) on each side. Do not place
the incline trainer on any surface that blocks
air openings. To protect the floor or carpet
from damage, place a mat under the incline
trainer.
8. Do not operate the incline trainer where
aerosol products are used or where oxygen
is being administered.
9. Keep children under age 13 and pets away
from the incline trainer at all times.
10. The incline trainer should be used only by
persons weighing 297 lbs. (135 kg) or less.
11. Never allow more than one person on the
incline trainer at a time.
12. Wear appropriate exercise clothes while
using the incline trainer. Do not wear loose
clothes that could become caught in the
incline trainer. Athletic support clothes are
recommended for both men and women.
Always wear athletic shoes. Never use the
incline trainer with bare feet, wearing only
stockings, or in sandals.
13. When connecting the power cord (see page
12), plug the power cord into an earthed
circuit. No other appliance should be on the
same circuit. When replacing the fuse in the
power cord adapter, insert an ASTA-approved
BS1362, 13-amp fuse into the fuse carrier.
14. If an extension cord is needed, use only a
3-conductor, 14-gauge (2 mm2) cord that is
no longer than 5 ft. (1.5 m).
15. Keep the power cord away from heated
surfaces.
16. Never move the walking belt while the
power is turned off. Do not operate the
incline trainer if the power cord or plug
is damaged, or if the incline trainer is not
working properly. (See MAINTENANCE AND
TROUBLESHOOTING on page 24 if the
incline trainer is not working properly.)
17. Read, understand, and test the emergency
stop procedure before using the incline
trainer. (See HOW TO TURN ON THE POWER
onpage 14.) Always wear the clip while
using the incline trainer.
18. Always stand on the foot rails when starting
or stopping the walking belt. Always hold the
handrails while using the incline trainer.
19. When a person is walking on the incline
trainer, the noise level of the incline trainer
will increase.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all
important precautions and instructions in this manual and all warnings on your incline trainer before
using your incline trainer. ICON assumes no responsibility for personal injury or property damage
sustained by or through the use of this product.
IMPORTANT PRECAUTIONS

4
20. Keep fingers, hair, and clothing away from
the moving walking belt.
21. The incline trainer is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
22. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
23. Never leave the incline trainer unattended
while it is running. Always remove the key,
press the power switch into the off position
(see the drawing on page 5 for the loca-
tion of the power switch), and unplug the
power cord when the incline trainer is not in
use.
24. Do not attempt to move the incline trainer
until it is properly assembled. (See
ASSEMBLY on page 7, and HOW TO
MOVE THE INCLINE TRAINER on page 23.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the incline trainer.
25. Never insert any object into any opening on
the incline trainer.
26. Inspect and properly tighten all parts each
time the incline trainer is used.
27. DANGER: Always unplug the power
cord immediately after use, before cleaning
the incline trainer, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
28. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
29. IMPORTANT: To satisfy exposure compliance
requirements, the antenna and transmitter
in the console must be at least 8 in. (20 cm)
from all persons and must not be near or
connected to any other antenna or transmit-
ter. The incline trainer console contains FCC
ID OMCIABR12.
SAVE THESE INSTRUCTIONS

5
Thank you for selecting the revolutionary
NORDICTRACK®X11I INCLINE TRAINER. The X11I
INCLINE TRAINER offers a selection of features
designed to make your workouts at home more effec-
tive and enjoyable.
For your benefit, read this manual carefully before
using the incline trainer. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Console
Key/Clip
Power Switch
Foot Rail
Platform Cushion
Wheel
Idler Roller
Adjustment Screws
Accessory Tray
Walking Belt
Heart Rate Monitor
Length: 5 ft. 10 in. (178 cm)
Width: 3 ft. 4 in. (101 cm)
Weight: 304 lbs. (138 kg)
Tablet Holder
Fan

6
PART IDENTIFICATION CHART

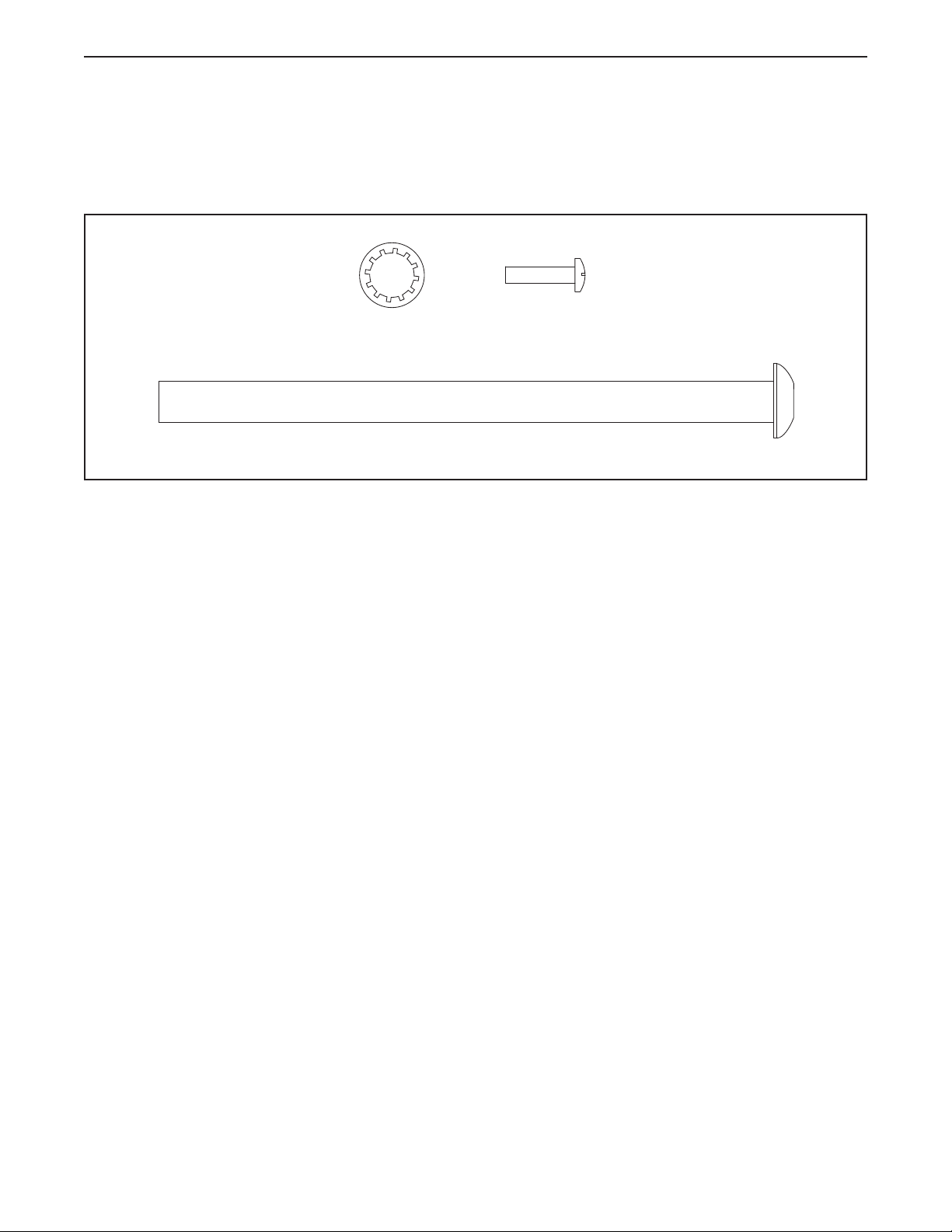

Use the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether it is
preattached. Extra parts may be included.
3/8" Star
Washer (3)–12
3/8" x 5 1/2" Screw (1)–4
M4 x 16mm
Screw (8)–6

7
ASSEMBLY
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• After shipping, there may be an oily substance on
the exterior of the incline trainer. This is normal.
If there is an oily substance on the incline trainer,
wipe it off with a soft cloth and a mild, non-abra-
sive cleaner.
• To identify small parts, see page 6.
• Assembly requires the following tools:
the included hex keys
a standard screwdriver
To avoid damaging parts, do not use power tools.
1. To register your product and activate your
warranty in the UK, go to iconsupport.eu. If
you do not have internet access, call Customer
Service (see the front cover of this manual).
To register your product and activate your
warranty in Australia, email or post the
following information to the email address or
postal address on the front cover of this manual.
• your receipt (make sure to keep a copy)
• your name, address, and telephone number
• the model number, serial number, and name
of your product (see the front cover of this
manual)
1
2. Make sure that the power cord is unplugged.
Remove the four 3/8" x 3 1/4" Screws (18) from
the Base (74) (only one side is shown). Save the
Screws.
74
18
2

8
4. Set the Uprights (83) on the Base (74). Make
sure that the hole with the Upright Wire (75)
is on the right side.
Attach the right Upright (83) to the Base (74)
with two of the 3/8" x 3 1/4" Screws (18) and
two of the 3/8" x 2 3/4" Screws (22) that you just
removed and four 3/8" Star Washers (3); do not
fully tighten the Screws yet. Make sure that
the Base Wire (52) is not pinched.
Attach the left Upright (not shown) as
described above. Note: There is not a wire on
the left side.
Then, fully tighten the 3/8" x 3 1/4" Screws (18)
and the 3/8" x 2 3/4" Screws (22).
22
3
3
52
74
75
18
83
3. Remove the four 3/8" x 2 3/4" Screws (22) from
the Uprights (83). Save the Screws. 3
83
22
22
3
3
4
5. See the inset drawing. Connect the Base Wire
(52) to the Upright Wire (75). The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER.
Then, remove the tie (A) from the Base Wire
(52), and insert the connectors into the hole (B)
in the right Upright (83).
5
52
75 75
52
83
A
B

9
6
1
1
D
6. Identify the right handrail assembly (C). Hold
the right handrail assembly near the right side of
the console assembly (D), and connect the two
pulse wires (E).
Next, set the right handrail assembly (C) on the
console assembly (D). Make sure that no wires
are pinched.
Attach the right handrail assembly (C) with
two 3/8" x 5 1/2" Screws (1) and two 3/8" Star
Washers (3); start both Screws, and then
tighten them.
Attach the left handrail assembly (not shown)
as described above.
CE
7. Slide the Right Inside Upright Cover (70) against
the lower end of the right Upright (83). Press
the Right Outside Upright Cover (71) against
the Right Inside Upright Cover until it snaps into
place. Make sure that the wires (F) are not
pinched.
Attach the Left Inside Upright Cover (not
shown) and the Left Outside Upright Cover
(not shown) as described above. Note: There
is not a wire on the left side.
70
71
83
F
7
3
3

10
8
65
88
8. Attach the Tablet Holder (65) to the console
assembly (D) with six M4 x 16mm Screws (8);
start all six Screws, and then tighten them.
Be careful not to overtighten the Screws.
IMPORTANT: The Tablet Holder (65) is
designed for use with most full-size tablets.
Do not place any other electronic device or
object in the Tablet Holder. D
10. Make sure that all parts are properly tightened before you use the incline trainer. Keep the included hex
keys in a secure place. One of the hex keys is used to adjust the walking belt (see pages 25 and 26). To pro-
tect the floor or carpet from damage, place a mat under the incline trainer. To avoid damage to the console,
keep the incline trainer out of direct sunlight.
77
9. If necessary, move the incline trainer to the
desired location (see HOW TO MOVE THE
INCLINE TRAINER on page 23).
After the incline trainer is placed in the loca-
tion where it will be used, make sure that the
incline trainer rests firmly on the floor. If the
incline trainer rocks even slightly, turn a Leveling
Foot (77) as needed until the rocking motion is
eliminated.
9

11
HOW TO PUT ON THE HEART RATE MONITOR
If the heart rate monitor looks like the one shown
in drawing 1, press the transmitter (A) onto the snap
fasteners on the chest strap (B). If the heart rate
monitor looks like the one shown in drawing 2,
insert the tab (C) on one end of the chest strap (D) into
one end of the transmitter (E). Then, press the end of
the transmitter under the buckle (F) on the chest strap;
the tab should be flush with the transmitter.
Next, wrap the heart
rate monitor around
your chest in the loca-
tion shown; the heart
rate monitor must be
under your clothes,
tight against your skin.
Make sure that the logo
is right-side-up. Then, attach the other end of the chest
strap. Adjust the length of the chest strap, if necessary.
Next, pull the trans-
mitter and the chest
strap away from your
body a few inches
and locate the two
electrode areas (G).
Using saliva or con-
tact lens solution, wet the electrode areas. Then, return
the transmitter and the chest strap to a position against
your chest.
CARE AND MAINTENANCE
• Thoroughly dry the electrode areas with a soft towel
after each use. Moisture may keep the heart rate
monitor activated, shortening the life of the battery.
• Store the heart rate monitor in a warm, dry place. Do
not store the heart rate monitor in a plastic bag or
other container that may trap moisture.
• Do not expose the heart rate monitor to direct sun-
light for extended periods of time, and do not expose
it to temperatures above 122°F (50°C) or below 14°F
(-10°C).
• Do not excessively bend or stretch the heart rate
monitor when using or storing it.
• To clean the transmitter, use a damp cloth and a
small amount of mild soap. Then, wipe the transmit-
ter with a damp cloth and thoroughly dry it with a soft
towel. Never use alcohol, abrasives, or chemicals
to clean the transmitter. Hand wash and air dry the
chest strap.
TROUBLESHOOTING
• If the heart rate monitor does not function when posi-
tioned as described at the left, move it slightly lower
or higher on your chest.
• If heart rate readings are not displayed until you
begin perspiring, re-wet the electrode areas.
• For the console to display heart rate readings, you
must be within arm’s length of the console.
• If there is a battery cover on the back of the trans-
mitter, replace the battery with a new battery of the
same type.
• The heart rate monitor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical condi-
tions such as premature ventricular contractions
(pvcs), tachycardia bursts, and arrhythmia.
• The operation of the heart rate monitor can be
affected by magnetic interference from high power
lines or other sources. If you suspect that magnetic
interference is causing a problem, try relocating the
fitness equipment.
THE CHEST HEART RATE MONITOR
1 2
G
A
B
EF
CD

12
HOW TO PLUG IN THE POWER CORD
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of least
resistance for electric current to reduce the risk of
electric shock. This product’s power cord has an
equipment-earthing conductor and an earthing plug.
IMPORTANT: If the power cord is damaged, it must
be replaced with a manufacturer-recommended
power cord.
Follow the steps below to plug in the power cord.
1. Plug the indicated end of the power cord into the
socket on the incline trainer.
2. Plug the power cord into an appropriate outlet that
is properly installed and earthed in accordance with
all local codes and ordinances.
DANGER: Improper connection of
the equipment-earthing conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product
is properly earthed. Do not modify the plug
provided with the product—if it will not fit
the outlet, have a proper outlet installed by a
qualified electrician.
Socket on Incline Trainer
Power Cord
Outlet
UK Australia
Outlet
HOW TO USE THE INCLINE TRAINER

13
FEATURES OF THE CONSOLE
The advanced incline trainer console offers a selec-
tion of features designed to make your workouts more
effective and enjoyable.
The console features wireless technology that enables
the console to connect to iFit. With iFit, you can access
a large and varied workout library, create your own
workouts, track your workout results, and access many
other features.
When you use the manual mode, you can change the
speed and incline of the incline trainer with the touch
of a button. As you exercise, the console will display
instant exercise feedback. You can also measure your
heart rate using the handgrip heart rate monitor or the
chest heart rate monitor.
In addition, the console features a selection of onboard
workouts. Each workout automatically controls the
speed and incline of the incline trainer as it guides you
through an effective exercise session.
You can even listen to your favorite workout music or
audio books with the console’s sound system while you
exercise.
To turn on the power, see page 14. To learn how
to use the touch screen, see page 14. To set up
the console, see page 15.
CONSOLE
DIAGRAM

14
HOW TO TURN ON THE POWER
IMPORTANT: If the incline trainer has been
exposed to cold temperatures, allow it to warm to
room temperature before you turn on the power. If
you do not do this, you may damage the console
displays or other electrical components.
Plug in the power cord (see
page 12). Next, locate the
power switch on the incline
trainer frame near the power
cord. Press the power switch
into the reset position.
Next, stand on the
foot rails of the
incline trainer. Locate
the clip attached to
the key, and slide the
clip securely onto
the waistband of
your clothes. Then,
insert the key into
the console. Note: It
may take some time for the console to be ready for
use. IMPORTANT: In an emergency, the key can be
pulled from the console, causing the walking belt
to slow to a stop. Test the clip by carefully taking
a few steps backward; if the key is not pulled from
the console, adjust the position of the clip.
Note: The console can display speed and distance
in either miles or kilometers. To find which unit of
measurement is selected, see HOW TO USE THE
EQUIPMENT SETTINGS SECTION on page 20.
For simplicity, all instructions in this section refer to
kilometers.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the incline trainer. The first time you
use the incline trainer, observe the alignment of
the walking belt, and center the walking belt if
necessary (see page 26).
HOW TO USE THE TOUCH SCREEN
The console features a tablet with a full-color touch
screen. The following information will help you become
familiar with the tablet’s advanced technology:
• The console functions similarly to other tablets. You
can slide or flick your finger against the screen to
move certain images on the screen, such as the
displays in a workout (see step 5 on page 16).
However, you cannot zoom in and out by sliding your
fingers on the screen.
• The screen is not pressure sensitive. You do not
need to press hard on the screen.
• To type information into a text box, touch the text box
to view the keyboard. To use numbers or other char-
acters on the keyboard, touch the ?123 button. To
view more characters, touch the Alt button. Touch the
Alt button again to return to the number keyboard. To
return to the letter keyboard, touch the ABC button.
To use a capital character, touch the button with an
upward-facing arrow. To use multiple capital charac-
ters, touch the arrow button again. To return to the
lowercase keyboard, touch the arrow button a third
time. To clear the last character, touch the button
with a backward-facing arrow and an X.
Reset
Key
Clip

15
HOW TO SET UP THE CONSOLE
Before using the incline trainer for the first time, set up
the console.
1. Connect to your wireless network.
In order to access the internet, download iFit work-
outs, and use several other features of the console,
you must be connected to a wireless network.
Follow the prompts on the screen to connect the
console to your wireless network.
2. Customize settings.
Fill in the form on the screen to set the console to
display the desired unit of measurement and your
time zone. Note: If you need to change these set-
tings later, see HOW TO USE THE EQUIPMENT
SETTINGS SECTION on page 20.
3. Log into or create an iFit account.
Provide your email address, and follow the prompts
on the screen to sign up for or log into your iFit
account.
4. Tour the console.
The first time you turn on the incline trainer, dia-
logue boxes on the screen will guide you through
the features of the console. Note: To access the
tour again at any time, touch the profile button in
the lower-right corner, then touch the Settings but-
ton, and then scroll to the How It Works section.
5. Check for firmware updates.
First, touch the profile button in the lower-right cor-
ner to select the settings main menu. Next, select
the maintenance section. Then, touch the Update
button to check for firmware updates using your
wireless network. See step 3 on page 20 for more
information.
6. Calibrate the incline system.
First, touch the profile button. Next, select the set-
tings main menu. Then, select the maintenance
section, touch the Calibrate Incline button, and then
touch the Begin button to calibrate the incline sys-
tem. See step 4 on page 21 for more information.
The console is now ready for you to begin working out.
The following pages explain the various workouts and
other features that the console offers.
To use the manual mode, see page 15. To use a
map workout, see page 17. To use a draw your
own map workout, see page 18. To use a distance
or time workout, see page 19.
To use the workout settings section, see page 20.
To use the equipment settings section, see page 20.
To use the maintenance section, see page 20. To
use the wireless network mode, see page 21. To
use the sound system, see page 22. To connect
an HDMI cable, see page 22. To use the tablet
holder, see page 23.
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on
page 14. Note: It may take some time for the
console to be ready for use.
2. Select the main menu.
When you turn on the power, the main menu will
appear after the console boots up. If you are in a
workout or the settings menu, touch the back arrow
or the x on the screen to return to the main menu.
3. Start the walking belt and adjust the speed.
Touch the Manual Start button in the upper-right
corner of the screen or press the Start button on
the console to start the walking belt. The walk-
ing belt will begin to move at a low speed. As you
exercise, change the speed of the walking belt
as desired by pressing the speed increase and
decrease buttons or the speed slider on the screen.
Each time you press one of the buttons, the speed
setting will change in small increments; if you hold
down the button, the speed setting will change
more quickly.
If you press one of the numbered speed buttons,
the walking belt will gradually change speed until it
reaches the selected speed setting.

16
Note: When the incline setting is below 0% or
above 15.5%, you will not be able to select the
highest speed settings.
To stop the walking belt, press the Stop button or
tap the middle of the screen. To restart the walking
belt, press the Start button.
4. Change the incline of the incline trainer as
desired.
To change the incline of the incline trainer, press
the Incline increase and decrease buttons or one of
the numbered incline buttons. You can also touch
the incline slider on the screen. Each time you
press one of the buttons, the incline will gradually
change until it reaches the selected incline setting.
Note: If the walking belt is moving at a high
speed and you adjust the incline below 0% or
above 15.5%, the speed of the walking belt may
automatically decrease.
Note: The first time you use the incline trainer, you
must calibrate the incline system (see step 4 on
page 21).
5. Monitor your progress with the display modes.
The console offers several display modes. The
display mode that you select will determine which
workout information is shown. To select the desired
display mode or view stats and charts, drag down
on the screen. You can also touch the + button in
the lower-right corner of the screen to view stats or
charts.
As you walk or run on the incline trainer, the screen
can show the following workout information:
• The incline level of the incline trainer
• Your vertical gain
• Your vertical loss
• The elapsed time
• The approximate number of calories you have
burned
• The approximate number of calories you are
burning per hour
• Your heart rate (see step 6)
• Your average heart rate
• The distance that you have walked or run
• Your pace
• The speed of the walking belt
• The average speed of the walking belt
• A track representing 400 m (1/4 mile)
If desired, adjust the volume by pressing the
volume buttons on the console.
To pause the workout, tap the screen or press
the Stop button on the console. To continue the
workout, touch the Resume button or the Start but-
ton. To end the workout session, touch the Finish
button.
6. Measure your heart rate if desired.
Note: If you use the handgrip heart rate moni-
tor and the chest heart rate monitor at the same
time, the chest heart rate monitor will have
priority. For information about the chest heart
rate monitor, see page 11. Note: The console is
compatible with BLUETOOTH®Smart heart rate
monitors.
Before using
the handgrip
heart rate
monitor,
remove the
sheets of
plastic from
the metal
contacts.
In addition,
make sure
that your
hands are
clean.
Contacts

17
To measure your heart rate, stand on the foot
rails and hold the contacts with your palms for
approximately ten seconds; avoid moving your
hands. When your pulse is detected, your heart
rate will be shown. For the most accurate heart
rate reading, continue to hold the contacts for
about 15 seconds.
7. Turn on the fan if desired.
The fan features several
speed settings. Press the
fan buttons repeatedly to
select a fan speed or to
turn on or turn off the fan.
8. When you are finished exercising, remove the
key from the console.
Step onto the walking platform and press the Stop
button on the console or tap on the screen. Next,
touch the Finish button. A workout summary will
appear on the screen. If you wish to save your
workout for future use, you can add it as a favor-
ite by touching the heart button in the upper-right
corner of the screen. You may also be able to
either save or publish your results using one of the
options on the screen. Then, remove the key from
the console and put it in a secure place.
When you are finished using the incline trainer,
press the power switch into the off position and
unplug the power cord. IMPORTANT: If you do
not do this, the incline trainer’s electrical com-
ponents may wear prematurely.
HOW TO USE A MAP WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on
page 14.
2. Select the main menu or the workout library.
Touch the icons in the
lower-left corner of the
screen to select either
the main menu (A) or
the workout library (B).
3. Select a map workout.
To select a map workout, touch the desired button
on the screen. Note: The featured map workouts
on your console will change periodically. To save
one of the featured workouts for future use, you
can add it as a favorite by touching the heart button
in the upper-right corner of the screen. To draw
your own map workout, see page 18.
The screen will show the duration and distance of
the workout, and the approximate number of calo-
ries you will burn during the workout.
4. Start the workout.
Touch the Start button to start the workout. A
moment after you touch the button, the walking belt
will begin to move. Hold the handrails and begin
walking.
During the workout, a map on the screen will show
your progress.
The workout will function in the same way as the
manual mode (see pages 15 to 17).
When you reach the end of the workout, the
walking belt will slow to a stop, and a workout
summary will appear on the screen. After you view
the workout summary, touch the Finish button to
return to the main menu. You may also be able to
either save or publish your results using one of the
options on the screen.
A B

18
5. Monitor your progress with the display modes.
See step 5 on page 16.
6. Measure your heart rate if desired.
See step 6 on page 16.
7. Turn on the fan if desired.
See step 7 on page 17.
8. When you are finished exercising, remove the
key from the console.
See step 8 on page 17.
HOW TO USE A DRAW YOUR OWN MAP
WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on
page 14.
2. Select a draw your own map workout.
To select a draw your own map workout, touch the
Draw Your Own Map button on the screen.
3. Draw your map.
Navigate to the area on the map where you want
to draw your workout by sliding your fingers on the
screen. Tap the screen to add the start point for
your workout. Then, tap the screen to add the end
point for your workout. Note: If you want to start
and end the workout at the same point, use the
Loop or Out & Back buttons on the left side of the
screen. You can also select whether you want your
workout to snap to the road.
If you make a mistake, you can use the Undo but-
ton on the left side of the screen.
The screen will display the elevation and distance
stats for your workout. If desired, you can change
the default speed.
4. Save your workout.
Touch the Save New Workout button in the lower-
left corner of the screen. If desired, change the title
of the workout or add a description, and then press
the > symbol on the screen.
5. Start the workout.
Touch the Start button on the screen to start the
workout. A moment after you touch the button, the
walking belt will begin to move. Hold the handrails
and begin walking.
6. Monitor your progress with the display modes.
See step 5 on page 16.
7. Measure your heart rate if desired.
See step 6 on page 16.
8. Turn on the fan if desired.
See step 7 on page 17.
9. When you are finished exercising, remove the
key from the console.
See step 8 on page 17.

19
HOW TO USE A DISTANCE OR TIME WORKOUT
Note: To use a distance or time workout, the console
must be connected to a wireless network (see HOW
TO USE THE WIRELESS NETWORK MODE on page
21). An iFit account is also required.
1. Add workouts to your schedule on iFit.com.
On your computer, smartphone, tablet, or other
device, open an internet browser, go to iFit.com,
and sign in to your iFit account.
Next, navigate to Menu > Library on the website.
Browse the workout programs in the library and join
the desired workouts.
Then, navigate to Menu > Schedule to view your
schedule. All of the workouts that you have joined
will appear on your schedule; you can arrange or
delete the workouts on your schedule as desired.
Take time to explore the iFit.com website before
you log out.
2. Insert the key into the console.
See HOW TO TURN ON THE POWER on
page 14.
3. Select the main menu.
See step 2 on page 15.
4. Log in to your iFit account.
If you have not already done so, touch the Login
button to log in to your iFit account. The screen
will ask for your iFit.com username and password.
Enter them and touch the Submit button. Touch the
Cancel button to exit the login screen.
5. Select a distance or time workout that you have
previously added to your schedule on iFit.com.
Touch the calendar icon to download a distance or
time workout from your schedule.
Note: Before workouts will download, you must
add them to your schedule on iFit.com.
When you select a distance or time workout, the
screen will show the name, the estimated duration,
and the distance of the workout.
6. Start the workout.
See step 4 on page 17. Note: During a distance
or time workout, the display will not show a map.
7. Monitor your progress with the display modes.
See step 5 on page 16. The screen will show
the elapsed distance or time, and the remaining
distance or time.
8. Measure your heart rate if desired.
See step 6 on page 16.
9. Turn on the fan if desired.
See step 7 on page 17.
10. When you are finished exercising, remove the
key from the console.
See step 8 on page 17.
For more information about iFit, go to iFit.com.

20
HOW TO USE THE WORKOUT SETTINGS SECTION
1. Select the settings main menu.
Insert the key into the console (see HOW TO
TURN ON THE POWER on page 14). Next, select
the main menu (see step 2 on page 15). Then,
touch the gears button to select the settings main
menu.
2. Select the workout section.
In the settings main menu, scroll to the Workout
section.
3. Customize settings.
To customize settings, touch the desired category,
and then use the toggles to the side of the category
name.
4. Exit the workout section.
To exit the workout section, touch the back button
on the screen.
HOW TO USE THE EQUIPMENT SETTINGS
SECTION
1. Select the settings main menu.
See step 1 above.
2. Select the equipment settings section.
In the settings main menu, scroll to the Equipment
Settings section. Note: Slide or flick the screen to
scroll up or down through the options if necessary.
3. Customize the unit of measurement and other
settings.
To customize the unit of measurement, timezone,
or other settings, touch the desired category, and
then use the toggles to the side of the category
name.
4. View machine information.
Touch the Machine Info button to view information
about your incline trainer. After you view the infor-
mation, touch the back button on the screen.
5. Exit the equipment settings section.
To exit the equipment settings section, touch the
back button on the screen.
HOW TO USE THE MAINTENANCE SECTION
1. Select the settings main menu.
See step 1 at the left.
2. Select the maintenance section.
In the settings main menu, scroll to the
Maintenance section.
3. Update the console firmware.
For the best results, regularly check for
firmware updates.
Touch the Update button to check for firmware
updates using your wireless network. The update
will begin automatically.
To avoid damaging the incline trainer, do not
turn off the power or remove the key while the
firmware is being updated.
The screen will show the progress of the update.
When the update is complete, the incline trainer will
turn off and then turn back on. If it does not, press
the power switch into the off position, wait for sev-
eral seconds, and then press the power switch into
the reset position. Note: It may take a few minutes
for the console to be ready for use.
Note: Occasionally, a firmware update may cause
the console to function slightly differently. These
updates are always designed to improve your exer-
cise experience.
