ICON Health & Fitness Pro-Form Trainer 5.0 User manual

USER’S MANUAL
Model No. PFTL48520.0
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Save this
manual for future reference.
Serial
Number
Decal
proform.com
To register your product and
activate your warranty today,
go to my.proform.com.
For service at any time, go to
support.proform.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
ACTIVATE YOUR
WARRANTY
CUSTOMER CARE

2
PROFORM and iFit are registered trademarks of ICON Health & Fitness, Inc. App store is a trademark of Apple
Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google LLC. The
Bluetooth®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. IOS
is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
MAINTENANCE AND TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
TABLE OF CONTENTS

3
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. The treadmill is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use
of the treadmill by someone responsible for
their safety.
4. Use the treadmill only as described.
5. The treadmill is intended for home use only.
Do not use the treadmill in any commercial,
rental, or institutional setting.
6. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
7. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
8. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
9. Keep children under age 16 and pets away
from the treadmill at all times.
10. The treadmill should be used only by per-
sons weighing 300 lbs. (136 kg) or less.
11. Never allow more than one person on the
treadmill at a time.
12. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recom-
mended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
13. Plug the power cord into a surge suppressor
(not included), and plug the surge suppres-
sor into an appropriate outlet (see page 13).
To avoid overloading the circuit, do not plug
other electrical devices, except for low-power
devices such as cell phone chargers, into
the surge suppressor or into an outlet on the
same circuit.
14. Use only a surge suppressor that meets all of
the specifications described on page 13. To
purchase a surge suppressor, see your local
PROFORM dealer, call the telephone number
on the front cover of this manual, or see your
local electronics store.
15. Failure to use a properly functioning surge
suppressor could result in damage to the
control system of the treadmill. If the control
system is damaged, the walking belt may
slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
16. Keep the power cord and the surge suppres-
sor away from heated surfaces.
17. Never move the walking belt while the power
is turned off. Do not operate the treadmill
if the power cord or plug is damaged, or if
the treadmill is not working properly. (See
MAINTENANCE AND TROUBLESHOOTING
on page 23 if the treadmill is not working
properly.)
18. Read, understand, and test the emergency
stop procedure before using the treadmill
(see HOW TO TURN ON THE POWER on
page 15). Always wear the clip while using the
treadmill.
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your treadmill before
using your treadmill. ICON assumes no responsibility for personal injury or property damage sus-
tained by or through the use of this product.
IMPORTANT PRECAUTIONS

4
19. Always stand on the foot rails when starting
or stopping the walking belt. Always hold the
handrails while using the treadmill.
20. When a person is walking on the treadmill,
the noise level of the treadmill will increase.
21. Keep fingers, hair, and clothing away from
the moving walking belt.
22. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
23. Never leave the treadmill unattended while
it is running. Always remove the key, press
the power switch into the off position (see
the drawing on page 6 for the location of the
power switch), and unplug the power cord
when the treadmill is not in use.
24. Do not attempt to move the treadmill until
it is properly assembled. (See ASSEMBLY
on page 8 and HOW TO FOLD AND MOVE
THE TREADMILL on page 22.) You must be
able to safely lift 45 lbs. (20 kg) to move the
treadmill.
25. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position. Do
not operate the treadmill while it is folded.
26. Do not change the incline of the treadmill by
placing objects under the treadmill.
27. Never insert any object into any opening on
the treadmill.
28. Inspect and properly tighten all parts each
time the treadmill is used.
29. DANGER: Always unplug the power
cord immediately after use, before clean-
ing the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized ser-
vice representative only.
30. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS

5
all
STANDARD SERVICE PLANS

6
Thank you for selecting the new PROFORM®TRAINER
5.0 treadmill. The TRAINER 5.0 treadmill offers a selec-
tion of features designed to make your workouts at
home more effective. And when you’re not exercising,
the treadmill can be folded up, requiring less than half
the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Storage Latch
Console
Key/Clip
Power Switch
Power Cord
Walking Belt
Motor Hood
Wheel
Foot Rail
Idler Roller Screws
Accessory Tray
Rear Foot
Length: 5 ft. 5 in. (165 cm)
Width: 2 ft. 5 in. (74 cm)

7
PART IDENTIFICATION CHART

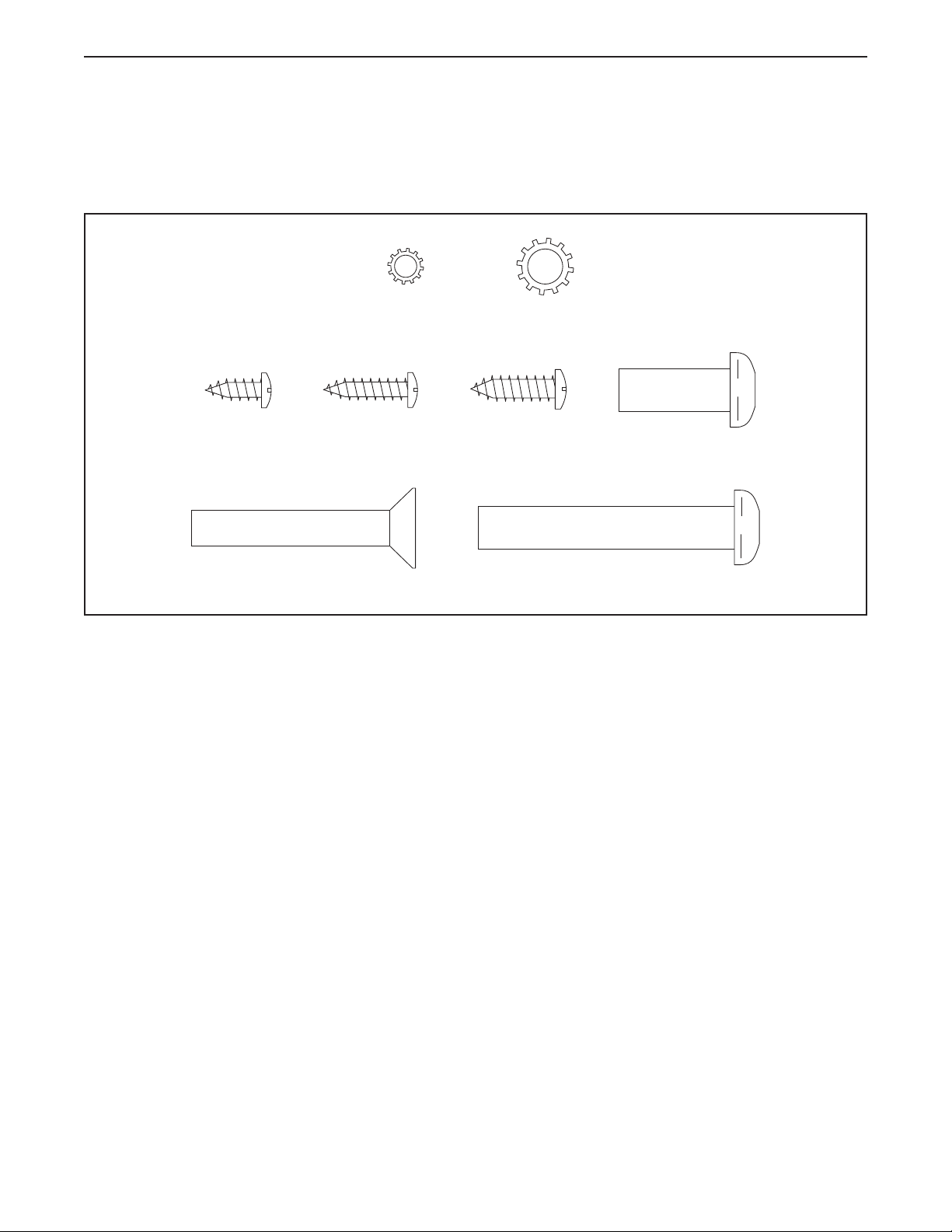

Use the drawings below to identify small parts used for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see whether
it is preattached. Extra parts may be included.
M10 x 25mm
Screw (2)–2
M10 x 58mm Screw (1)–2
#10 x 3/4"
Screw (5)–2
M8 x 50mm Screw (4)–4
#8 x 1/2"
Screw (81)–6
#8 x 3/4"
Screw (3)–18
#10 Star
Washer (31)–2
M8 Star
Washer (30)–2

8
• To hire an authorized service technician to
assemble the treadmill, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish all assembly steps.
• After shipping, there may be an oily substance
on the exterior of the treadmill. This is normal. If
there is an oily substance on the treadmill, wipe
it off with a soft cloth and a mild, non-abrasive
cleaner.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 7.
• Assembly requires the following tools:
the included hex keys
one Phillips screwdriver
To avoid damaging parts, do not use power tools.
ASSEMBLY

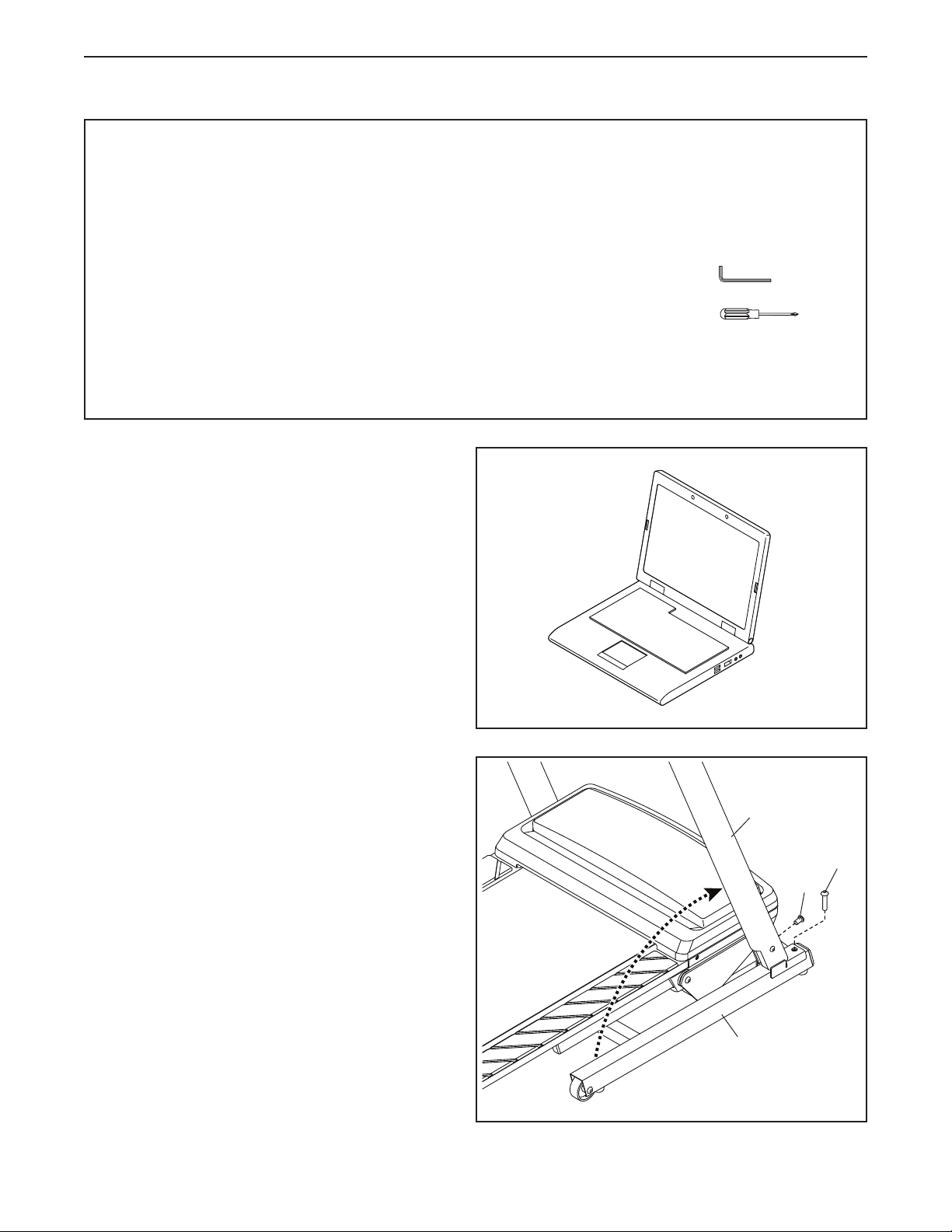

1. Go to my.proform.com on your computer and
register your product.
• documents your ownership
• activates your warranty
• ensures priority customer support if assistance
is ever needed
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.
1
2
2. Make sure that the power cord is unplugged.
Carefully raise the Right Upright (70) to the verti-
cal position.
Next, start an M10 x 58mm Screw (1) and an
M10 x 25mm Screw (2) into the Base (74) and
the Right Upright (70) as shown; start both
Screws, and then tighten them.
Repeat this step on the left side of the
treadmill.
2
74
70
1

9

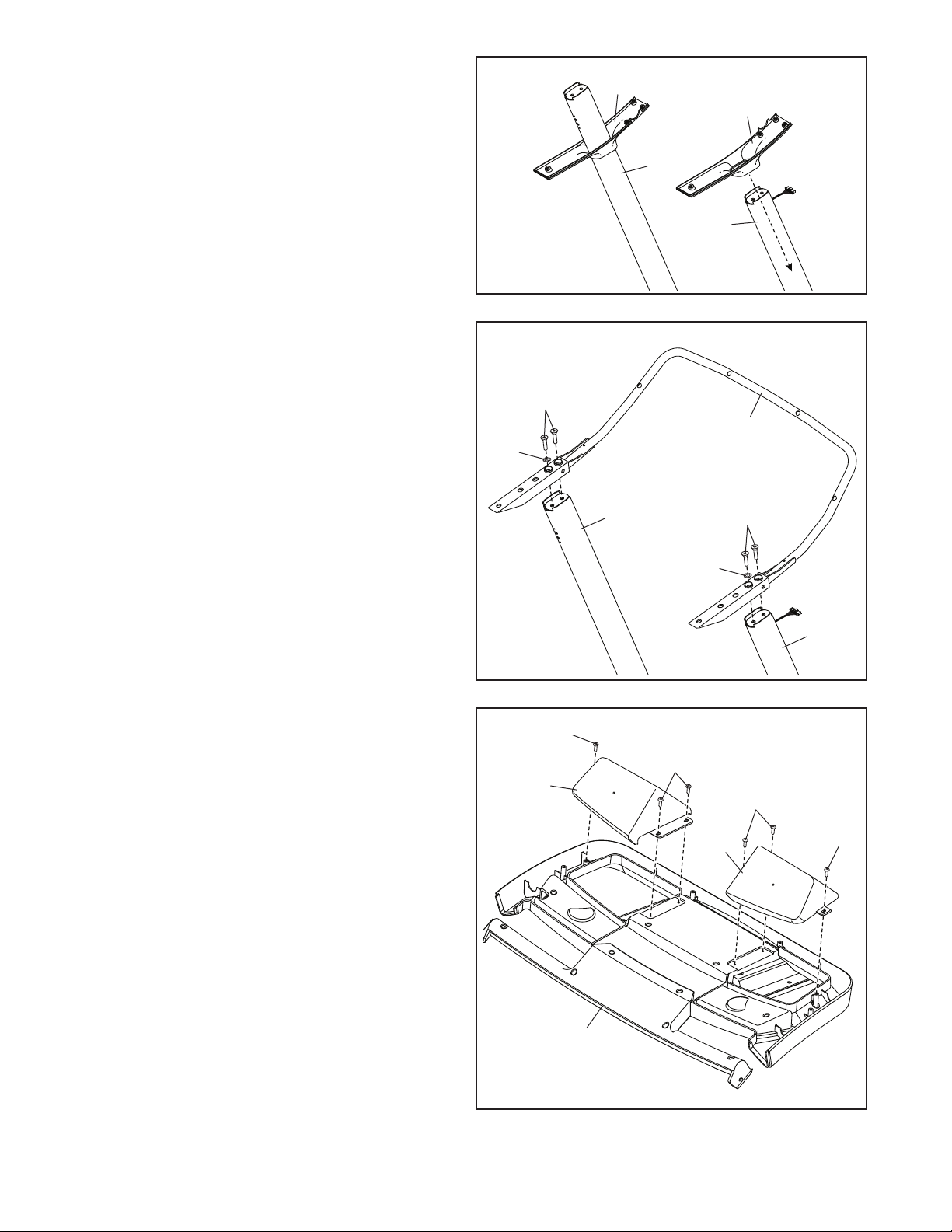

3. Identify the Left and Right Handrail Bottoms
(60, 62) and slide them onto the Uprights
(69, 70) as shown.
4. With the help of a second person, set the
Handrail (63) on the Uprights (69, 70). Attach the
Handrail with four M8 x 50mm Screws (4) and
two M8 Star Washers (30); do not fully tighten
the Screws yet.
3
4
69
63
69
60
70
62
4
30
30
4
70
5. Set the console assembly (A) face down on
a soft surface to avoid scratching the console
assembly.
Attach the Right and Left Trays (77, 76) with six
#8 x 3/4" Screws (3); start all six Screws, and
then tighten them. Do not overtighten the
Screws.
5
3
3
77
76
A
3
3

10
7. IMPORTANT: To avoid damaging the
Crossbar (64), do not use power tools and do
not overtighten the #10 x 3/4" Screws (5).
Attach the Crossbar (64) to the Handrail (63)
with two #10 x 3/4" Screws (5) and two #10 Star
Washers (31); start both Screws, and then
tighten them.
Then, tighten the four M8 x 50mm Screws (4).
7
64
63
5
5
4
4
6
3
3
A
6. Carefully set the console assembly (A) onto the
Handrail (63).
Attach the console assembly (A) with four #8 x
3/4" Screws (3); start all four Screws, and then
tighten them. Make sure that the console wire
(B) is not pinched.
B
3
63
31
31

11
9
61
A
67
81

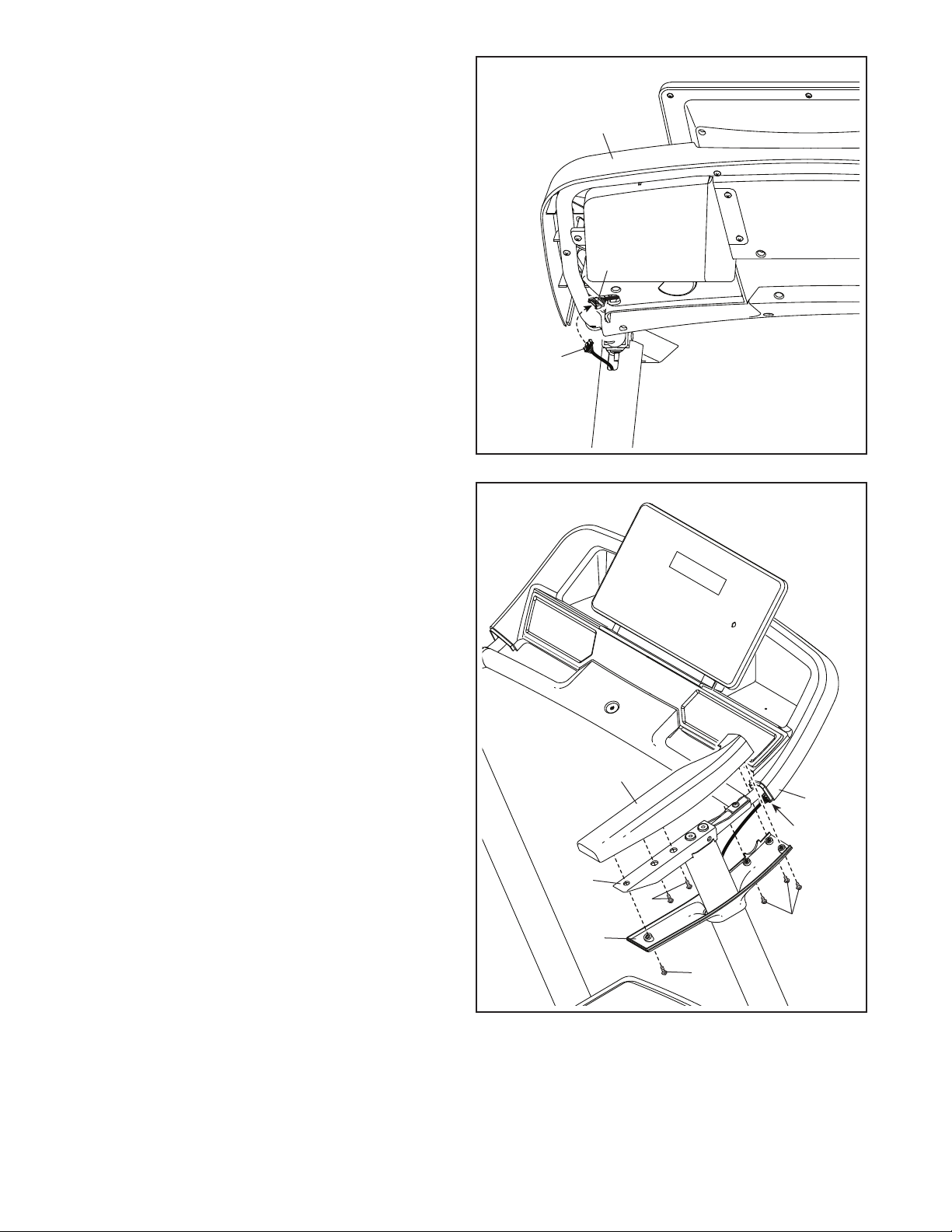

9. Identify the Right Handrail Top (61). Set the
Right Handrail Top on the Handrail (63) and
slide it forward against the console assembly
(A). Attach the Right Handrail Top with two
#8 x 3/4" Screws (3). Note: The Screws must
be inserted at an angle as shown. Be careful
not to overtighten the Screws.
Next, slide the Right Handrail Bottom (62)
upward. Make sure that the Upright Wire (67)
is covered by the Right Handrail Bottom
and is not pinched. Attach the Right Handrail
Bottom with a #8 x 3/4" Screw (3) and three
#8 x 1/2" Screws (81) as shown. Note: The
Screws must be inserted at an angle as
shown. Be careful not to overtighten the
Screws.
Attach the Left Handrail Top (not shown)
and the Left Handrail Bottom (not shown) as
described above. Note: There are no wires on
the left side.
3
3
63
62
8. Connect the Upright Wire (67) to the con-
sole wire (B). The connectors should slide
together easily and snap into place. If they do
not, turn one connector and try again.
Insert any excess wire into the console
assembly (A).
8
B
A
67

12
12. Make sure that all parts are properly tightened before you use the treadmill. To protect the floor or car-
pet, place a mat under the treadmill. To avoid damage to the console, keep the treadmill out of direct sunlight.
Keep the included hex keys in a secure place. One of the hex keys is used to adjust the walking belt (see
page 24). Note: Extra parts may be included.
10
3
69
68
10. Orient the Storage Latch (68) as shown. Attach
the Storage Latch to the left Upright (69) with
two #8 x 3/4" Screws (3); start both Screws,
and then tighten them.
11. IMPORTANT: You must activate your Console
(79) to begin using its exclusive features.
First, plug in the power cord (see page 13) and
turn on the power (see page 15).
Then, using your smartphone or tablet, go to
iFit.com/activate and follow the instructions to
activate the Console (79).
Note: If you do not have a smartphone or tablet,
use your computer to go to iFit.com/activate for
an alternate way to activate the Console (79). If
you do not have a computer, call Customer Care
(see the front cover of this manual).
11
79

13
HOW TO USE THE TREADMILL
HOW TO CONNECT THE POWER CORD
Use a Surge Suppressor
Your treadmill, like other electronic equipment, can be
damaged by sudden voltage changes in your home’s
power. Voltage surges, spikes, and noise interference
can result from weather conditions or from other appli-
ances being turned on or off. To decrease the risk of
damaging the treadmill, always use a surge sup-
pressor (A) with the treadmill. To purchase a surge
suppressor, see precaution 14 on page 3.
Use only a surge suppressor (A) that is UL 1449 listed
as a transient voltage surge suppressor (TVSS). The
surge suppressor must have a UL suppressed volt-
age rating of 400 volts or less and a minimum surge
dissipation of 450 joules. The surge suppressor must
also be electrically rated for 120 volts AC and 15
amps. There must be a monitoring light on the surge
suppressor to indicate whether it is functioning prop-
erly. Failure to use a properly functioning surge
suppressor could result in damage to the control
system of the treadmill and serious injury to users.
Plug in the Power Cord
The treadmill must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. The treadmill power cord (B) has a plug with
a grounding pin (C) (see drawing 1 on this page).
Plug the power cord (B) into a surge suppressor
(A), and plug the surge suppressor into an appropri-
ate outlet (D) that is properly installed and grounded
in accordance with all local codes and ordinances.
The outlet must be on a nominal 120-volt circuit
capable of carrying 15 or more amps. To avoid
overloading the circuit, do not plug other electrical
devices, except for low-power devices such as cell
phone chargers, into the surge suppressor or into
an outlet on the same circuit. IMPORTANT: If the
treadmill is connected to an AFCI-equipped outlet
and your circuit breaker trips repeatedly when the
treadmill is used, see the front cover of this manual
to purchase an arc filter.
A temporary
adapter (E)
may be used
to connect the
surge sup-
pressor (A)
to a 2-pole
receptacle (F)
if a properly
grounded outlet
is not available.
The lug (G) or wire extending from the adapter must
be connected with a metal screw (H) to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a quali-
fied electrician to determine whether the outlet box
cover is grounded. The temporary adapter should
be used only until a properly grounded outlet can
be installed by a qualified electrician.
DANGER: Improper connection
of the power cord increases the risk of elec-
tric shock. Do not modify the plug—if it will
not fit an outlet, have a proper outlet installed
by a qualified electrician. If you are unsure
whether the treadmill is properly grounded,
contact a qualified electrician.
1
A
C
D
C
B
2
E
F
G
H
A

14
FEATURES OF THE CONSOLE
IMPORTANT: To activate your console and begin
using its exclusive features, see assembly step 11
on page 12.
The treadmill console offers a selection of features
designed to make your workouts more effective and
enjoyable. You can change the speed and incline of the
treadmill with the touch of a button. As you exercise,
the console will display continuous exercise feedback.
You can even measure your heart rate using a compat-
ible heart rate monitor. See page 20 for information
about purchasing an optional chest heart rate
monitor.
You can also connect your tablet to the console and
use the iFit®–Smart Cardio Equipment app to run auto-
mated, trainer-led workouts; and to make fitness goals
and track your progress.
You can even listen to your favorite workout music or
audio books with the console’s sound system while you
exercise.
To turn on the power, see page 15. To use the man-
ual mode, see page 15. To use an onboard workout,
see page 17. To connect your tablet to the console,
see page 18. To connect your heart rate monitor to
the console, see page 18. To use the settings mode,
see page 19. To use the sound system, see page 20.
IMPORTANT: If there is a sheet of plastic on the
console, remove the plastic. To prevent damage
to the walking platform, wear clean athletic shoes
while using the treadmill. The first time the tread-
mill is used, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 24).
Note: The console can display speed and distance in
either miles or kilometers. To find which unit of mea-
surement is selected, see THE SETTINGS MODE on
page 19. To change the unit of measurement, press the
St/M button. For simplicity, all instructions in this sec-
tion refer to miles.

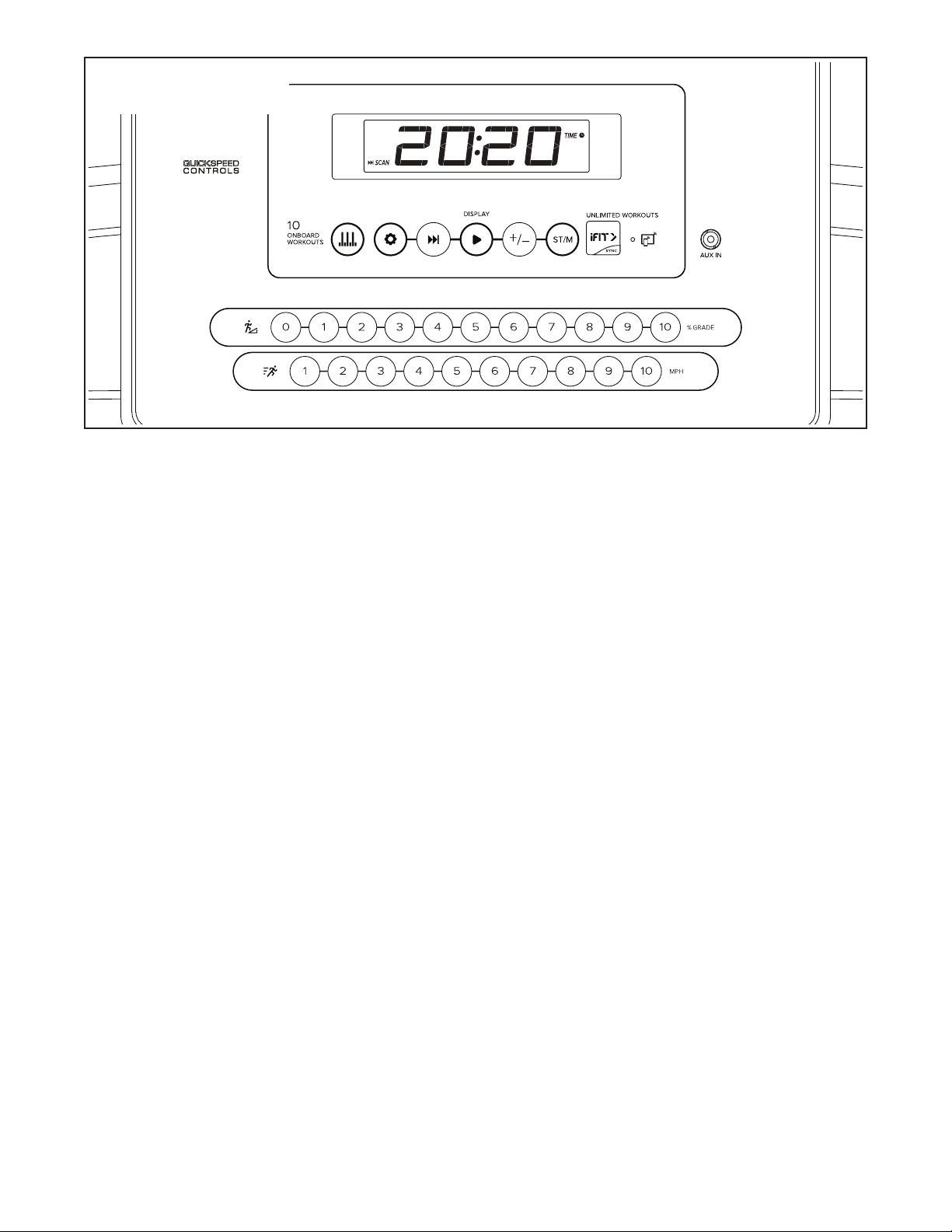

CONSOLE DIAGRAM

15
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.
Plug in the power cord (see
page 13). Next, locate the
power switch on the treadmill
frame near the power cord.
Make sure that the switch is
in the reset position (I).
IMPORTANT: The console may feature a display
demo mode, designed to be used if the treadmill is
displayed in a store. If the displays light as soon
as you plug in the power cord and press the power
switch into the reset position, the demo mode is
turned on. To turn off the demo mode, hold down
the Stop button for a few seconds. If the displays
remain lit, see THE SETTINGS MODE on page 19 to
turn off the demo mode.
Next, stand on the
foot rails of the
treadmill. Find the
clip (J) attached to
the key (K), and
slide the clip onto
the waistband of
your clothes. Then,
insert the key into
the console. After
a moment, the
displays will light.
IMPORTANT: In an emergency, the key can be
pulled from the console, causing the walking belt
to slow to a stop. Test the clip by carefully taking
a few steps backward; if the key is not pulled from
the console, adjust the position of the clip.
IMPORTANT: The first time you use the treadmill,
you must calibrate the incline system (see step 3
on page 19).
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Start the walking belt.
To start the walking belt, press the Start button or
one of the numbered speed buttons.
If you press the Start button, the walking belt will
begin to move at 1 mph. As you exercise, change
the speed of the walking belt as desired by press-
ing the Speed increase and decrease buttons.
Each time you press one of the buttons, the speed
setting will change by 0.1 mph; if you hold down
the button, the speed setting will change in incre-
ments of 0.5 mph.
If you press one of the numbered speed buttons,
the walking belt will gradually change speed until
it reaches the selected speed setting. To select a
speed setting that includes a decimal—such as
3.5 mph—press two numbered buttons in suc-
cession. For example, to select a speed setting of
3.5 mph, press the 3 button and then immediately
press the 5 button. Note: This feature will not func-
tion when the console is set to metric units.
To stop the walking belt, press the Stop button.
The time will begin to flash in the display. To restart
the walking belt, press the Start button, the Speed
increase button, or one of the numbered speed
buttons.
3. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase and decrease buttons or one of
the numbered incline buttons. Each time you press
the Incline increase or decrease button, the incline
setting will change by 0.5 percent. If you press
one of the numbered incline buttons, the incline
will gradually change until it reaches the selected
incline setting.
J
K
I

16
4. Follow your progress with the display.
The display can show the following workout
information:
Calories (CALS)—The approximate number of
calories you have burned.
Calories per Hour (CALS/HR)—The approximate
number of calories you are burning per hour.
Distance (MI or KM)—The distance that you have
walked or run in miles or kilometers. To change the
unit of measurement, press the St/M button.
Incline (%Grade)—The incline level of the
treadmill.
Pace—Your speed in minutes per mile or minutes
per kilometer. To change the unit of measurement,
press the St/M button.
Pulse (BPM and heart symbol)—Your heart rate
when you use a compatible heart rate monitor (see
page 20).
Speed (MPH or KPH)—Your speed in miles per
hour or kilometers per hour. To change the unit of
measurement, press the St/M button.
Time—The elapsed time.
Vertical Distance (VRT FT or VRT M)—The
distance you have walked or run in vertical feet or
vertical meters.

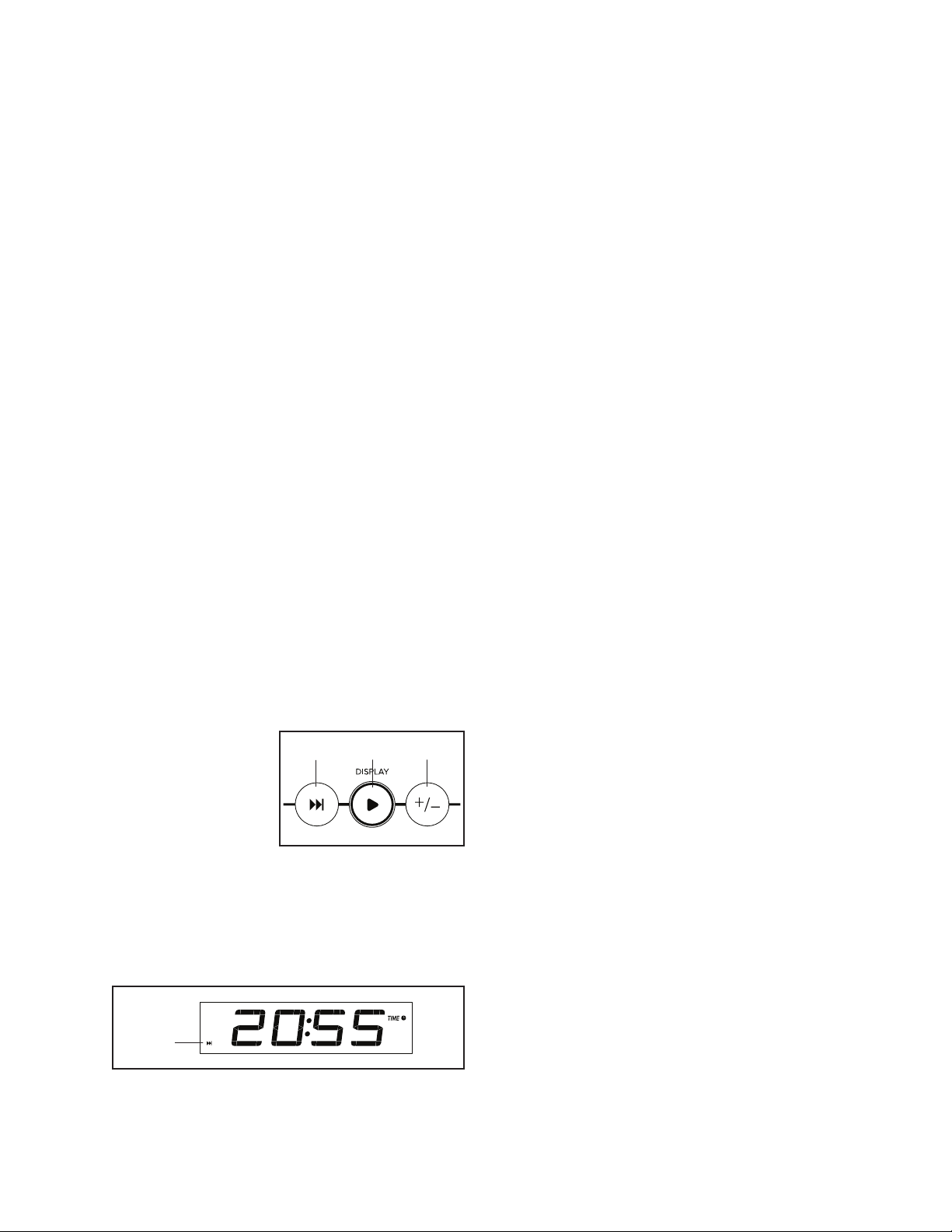

Press the Display
button (L) repeatedly
to view the desired
workout information
in the display.
Scan mode—The console also has a scan mode
that will display workout information in a repeating
cycle. To turn on the scan mode, press the Scan
button (M); the scan indicator (N) will turn on in the
display.
To manually advance the scan cycle, press the
Scan button repeatedly.
To turn off the scan mode, press the Display
button; the scan indicator and the word SCAN will
turn off.
You can also customize the scan mode to display
only the desired workout information in the
repeating cycle.
To customize the scan mode, first press the
Display button repeatedly until the workout
information that you want to add to or remove from
the scan cycle appears in the display.
Next, press the Add/Remove button (O) to add or
remove that workout information from the scan
cycle. When workout information is added, its
indicator will turn on in the display. When workout
information is removed, its indicator will turn off.
Then, press the Scan button to turn on the scan
mode.
To reset the displays, press the Stop button twice,
remove the key, and then reinsert the key.
5. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button,
and adjust the incline of the treadmill to zero.
The incline must be at zero when you fold the
treadmill to the storage position, or you may
damage the treadmill. Next, remove the key from
the console and put it in a secure place.
When you are finished using the treadmill, press
the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do
this, the treadmill’s electrical components may
wear prematurely.
MO
L
N

17
HOW TO USE AN ONBOARD WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 13.
2. Select an onboard workout.
To select an onboard workout, press the 10
Onboard Workouts button repeatedly until the de-
sired workout appears in the display.
A few seconds after you select a workout, the dura-
tion, distance, and maximum speed settings of the
workout will appear in the display for a few
seconds.
3. Start the walking belt.
Press the Start button. A moment after you press
the button, the treadmill will automatically adjust to
the first speed and incline settings for the workout.
Hold the handrails and begin walking.
Each workout is divided into several segments.
One speed setting and one incline setting are
programmed for each segment. Note: The same
speed and/or incline settings may be programmed
for consecutive segments.
At the end of each segment, the speed and/or in-
cline setting for the next segment will flash in the
display to alert you if the setting is about to change.
The treadmill will then automatically adjust to the
speed and incline settings for the next segment.
The workout will continue in this way until the
last segment ends. The walking belt will then
slow to a stop.
If the speed or incline setting for the current seg-
ment is too high or too low, you can manually over-
ride the setting by pressing the Speed and Incline
buttons; however, when the current segment of
the workout ends, the treadmill will automati-
cally adjust to the speed and incline settings
for the next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start but-
ton. The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
treadmill will automatically adjust to the speed and
incline settings for that segment.
4. Follow your progress with the display.
See step 4 on page 16.
5. When you are finished exercising, remove the
key from the console.
See step 5 on page 16.

18
HOW TO CONNECT YOUR TABLET TO THE
CONSOLE
The console supports Bluetooth connections to tab-
lets via the iFit–Smart Cardio Equipment app and to
compatible heart rate monitors. Note: Other Bluetooth
connections are not supported.
1. Download and install the iFit–Smart Cardio
Equipment app on your tablet.
On your iOS®or Android™ tablet, open the App
Store℠or the Google Play™ store, search for the
free iFit–Smart Cardio Equipment app, and then
install the app on your tablet. Make sure that the
Bluetooth option is enabled on your tablet.
Then, open the iFit–Smart Cardio Equipment app
and follow the instructions to set up an iFit account
and customize settings.
2. Connect your heart rate monitor to the console
if desired.
If you are connecting both your heart rate monitor
and your tablet to the console, you must connect
your heart rate monitor before you connect
your tablet. See HOW TO CONNECT YOUR
HEART RATE MONITOR TO THE CONSOLE on
page 18.
3. Connect your tablet to the console.
Press the iFit Sync button on the console; the
console pairing number will appear in the display.
Then, follow the instructions in the iFit–Smart
Cardio Equipment app to connect your tablet to the
console.
When a connection is established, the LED on the
console will turn solid blue.
4. Record and track your workout information.
Follow the instructions in the iFit–Smart Cardio
Equipment app to record and track your workout
information.
5. Disconnect your tablet from the console if
desired.
To disconnect your tablet from the console, first
select the disconnect option in the iFit–Smart
Cardio Equipment app. Then, press and hold the
iFit Sync button on the console until the LED on the
console turns solid green.
Note: All Bluetooth connections between the con-
sole and other devices (including any tablets, heart
rate monitors, and so forth) will be disconnected.
HOW TO CONNECT YOUR HEART RATE MONITOR
TO THE CONSOLE
The console is compatible with all Bluetooth Smart
heart rate monitors.
To connect your Bluetooth Smart heart rate monitor to
the console, press the iFit Sync button on the console;
the console pairing number will appear in the display.
When a connection is established, the LED on the
console will flash red twice.
Note: If there is more than one compatible heart rate
monitor near the console, the console will connect to
the heart rate monitor with the strongest signal.
To disconnect your heart rate monitor from the console,
press and hold the iFit Sync button on the console until
the LED on the console turns solid green.
Note: All Bluetooth connections between the console
and other devices (including any tablets, heart rate
monitors, and so forth) will be disconnected.

19
THE SETTINGS MODE
1. Select the settings mode.
To select the settings mode, press the Settings
button. The first settings screen will appear in the
display. Note: If you have selected a workout, you
may need to press the Stop button repeatedly to
return to the main menu before selecting the set-
tings mode.
2. Navigate the settings mode.
While the settings mode is selected, you can
navigate through several settings screens. Press
the Stop button repeatedly to select the desired
settings screen.
3. Change settings as desired.

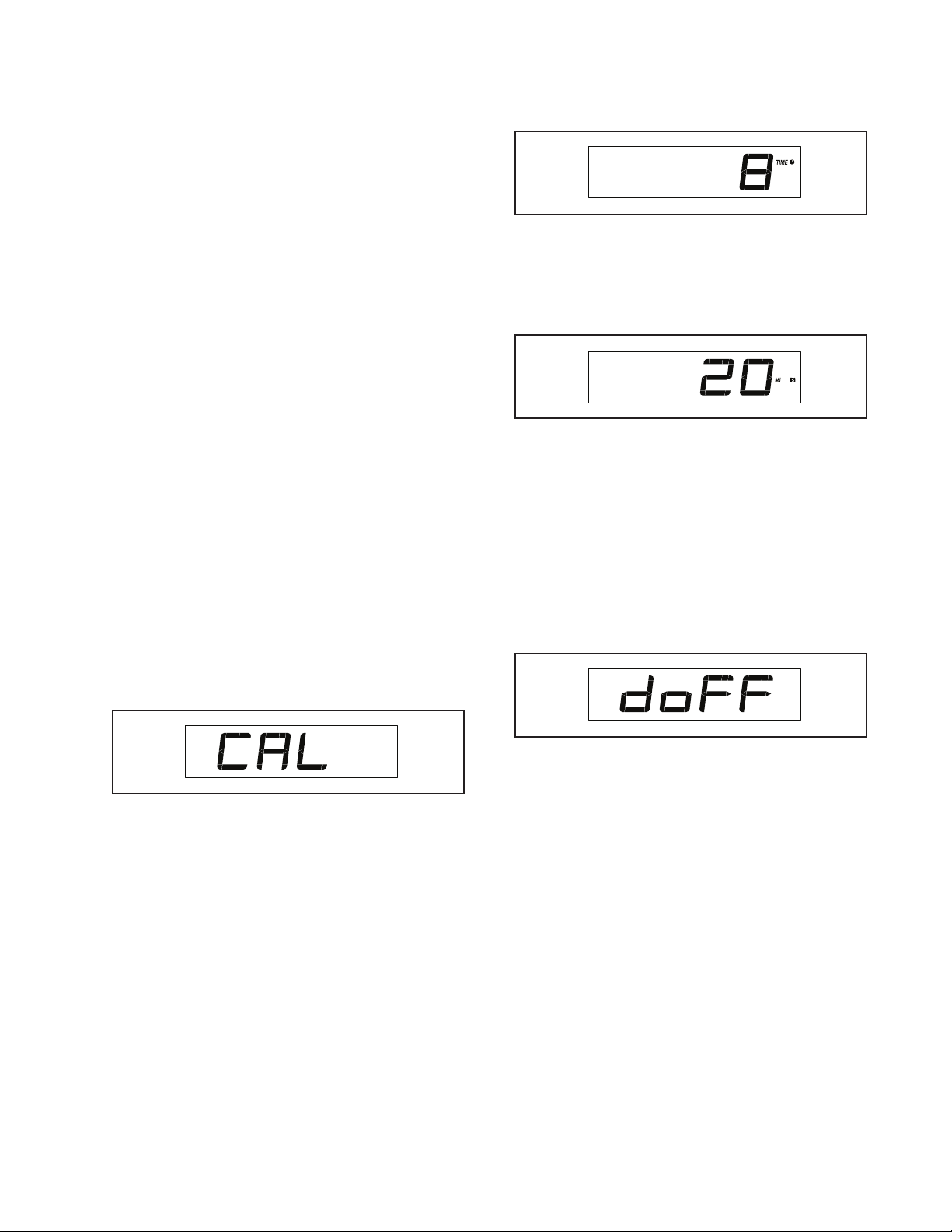

Software Version Number—The software version
number will appear in the display.
Incline System Calibration—The letters CAL will
appear in the display. If the incline system is not
functioning properly, it may need to be calibrated.
To calibrate the incline system, press the Incline
increase or decrease button. The treadmill will
automatically rise to the maximum incline level and
then return to the minimum level. When the tread-
mill stops moving, the incline system is calibrated.
Note: The treadmill may occasionally calibrate
the incline automatically when the power is
turned on.
Display Test—This screen is intended to be used
by service technicians to identify whether the
display is working correctly.
Button Test—This screen is intended to be used
by service technicians to identify whether a certain
button is working correctly.
Total Time—The word TIME will appear in the
display. The display will show the total number of
hours that the treadmill has been used.
Total Distance—The letters MI or KM will appear
in the display. The display will show the total
distance (in miles or kilometers) that the walking
belt has moved.
Demo Mode—The currently selected demo mode
option will appear in the display. The console
features a demo mode, designed to be used if the
treadmill is displayed in a store. If the demo mode
is turned on, the console will not turn off and the
display will not be reset when you finish exercising.
Press the Speed increase button repeatedly to
select a demo mode option. To turn on the demo
mode, select DON. To turn off the demo mode,
select DOFF.
4. Exit the settings mode.
Press the Settings button to exit the settings mode.

20
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the
jack on the console and into a jack on your personal
audio player; make sure that the audio cable is fully
plugged in. Note: To purchase an audio cable, see
your local electronics store.
Next, press the play button on your personal audio
player. Adjust the volume level using the volume con-
trol on your personal audio player.
THE OPTIONAL HEART RATE MONITOR
Whether your
goal is to
burn fat or to
strengthen your
cardiovascular
system, the key
to achieving the
best results is
to maintain the
proper heart
rate during your
workouts. The optional chest heart rate monitor will
enable you to continuously monitor your heart rate
while you exercise, helping you to reach your personal
fitness goals. To purchase a chest heart rate moni-
tor, please see the front cover of this manual.
Note: The console is compatible with all Bluetooth
Smart heart rate monitors.
