Inspur OB5161M5 User manual

Inspur Server User Manual
OB5161M5

© Copyright Inspur 2018. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means
without prior written consent of Inspur.
The information in this manual is subject to change without notice.
Inspur is the registered trademark of Inspur. All the other trademarks or registered
trademarks mentioned in this manual are the property of their respective holders.
Edion: 1.0
Oct. 2019

Abstract
This manual contains technical information such as specifications, hardware operations,
software configuration, fault diagnosis, etc., that are relevant to the maintenance and
operation of this server.
It is recommended that server installation, configuration, and maintenance is performed by
experienced technicians only.
Target Audience
This manual is intended for:
● Technical support engineers
● Product maintenance engineers
● Technicians
Warnings:
This manual introduces the NF5270M5server’s technical features, system installation
and setup, which will help the userto understand how best to utilize the server and all its
functionalities.
1.For your safety, please do not disassemble the server’s components arbitrarily. Please do
not extend configuration or connect other peripheral devices arbitrarily. If needed, please
contactInspur for our support and guidance.
2.Before disassembling the server’s components, please be sure to disconnect all the power
cords connected to the server.
3.BIOS and BMC setup is a significant factor in correctly configuring your server. If there are
no special requirements, it is suggested to use the Default Values and not alter the parameter
settings arbitrarily. After the first login, please change the BMC user password in time.
4.Please install the product-compatible operating system and use the driver provided by
Inspur. If you use an incompati ble operating system or non-Inspur driver, it may cause
compatibility issues and affect the normal use of the product, Inspur will not assume any
responsibility or liab ility.
Inspur is not responsible for any damages, including loss of profits, loss of information,
interruption of business, personal injury, and/or any damage or consequential damage
without limitation, incurred before, during, or after the use of our products.

Contents
1 Safety Instructions......................................................................................................................... 1
2 Product Specification..................................................................................................................... 6
2.1 Introduction................................................................................................................................ 6
2.2 Product Specifications ................................................................................................................ 6

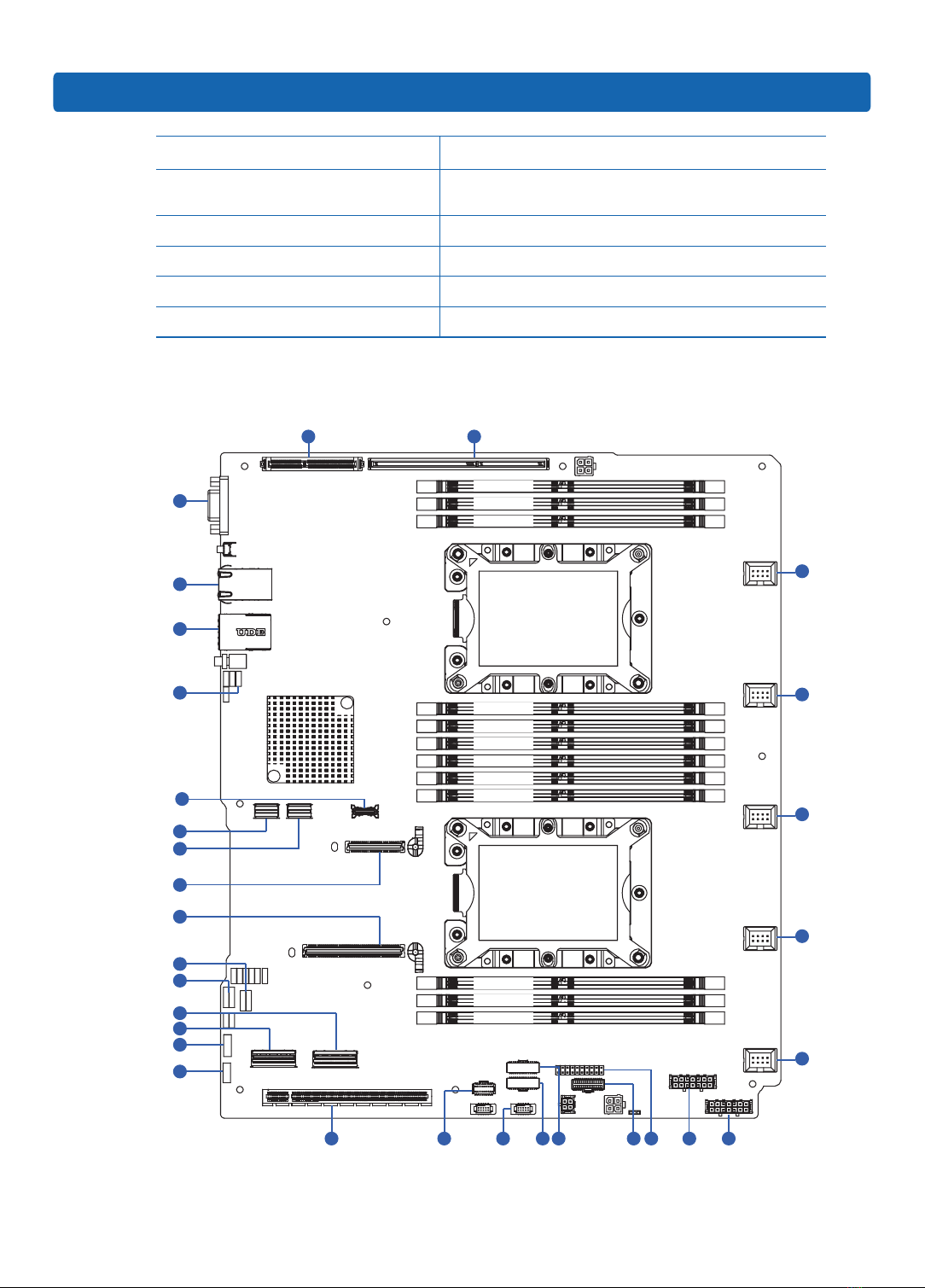

2.3 Motherboard Components......................................................................................................... 7

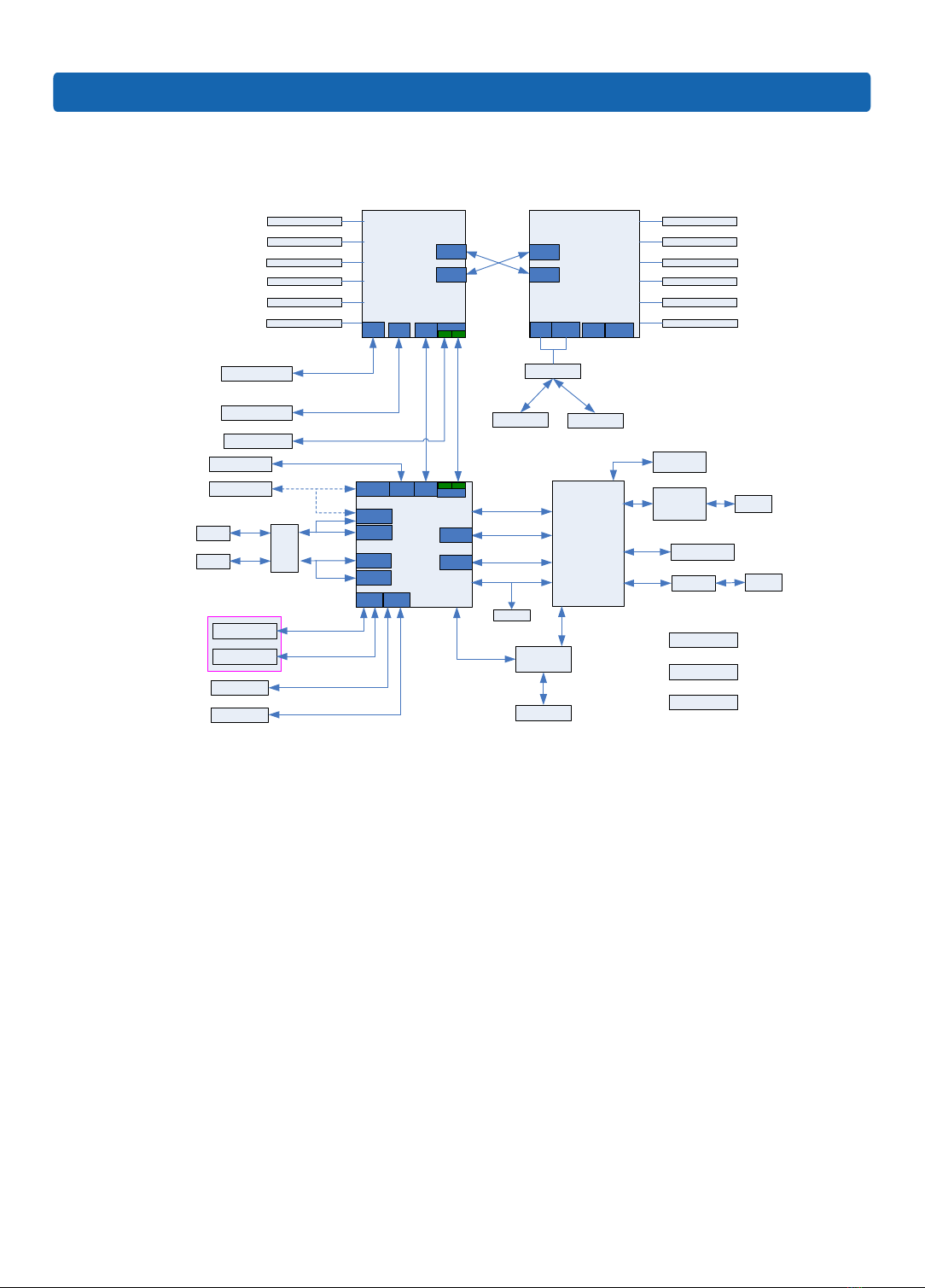

2.4 Motherboard Topology Diagram ................................................................................................ 9
3 Hardware system........................................................................................................................... 8

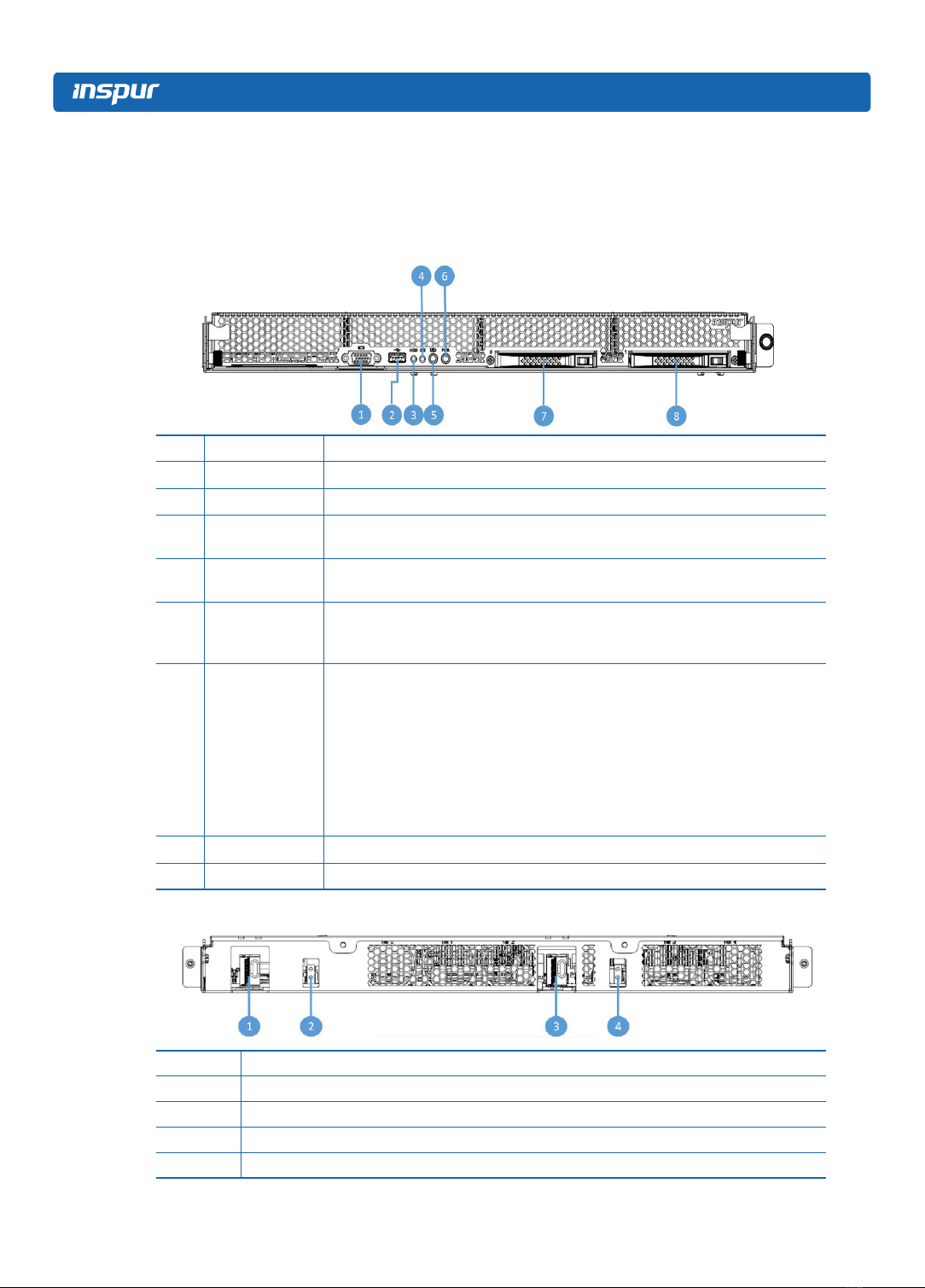

3.1 Product View .............................................................................................................................. 8

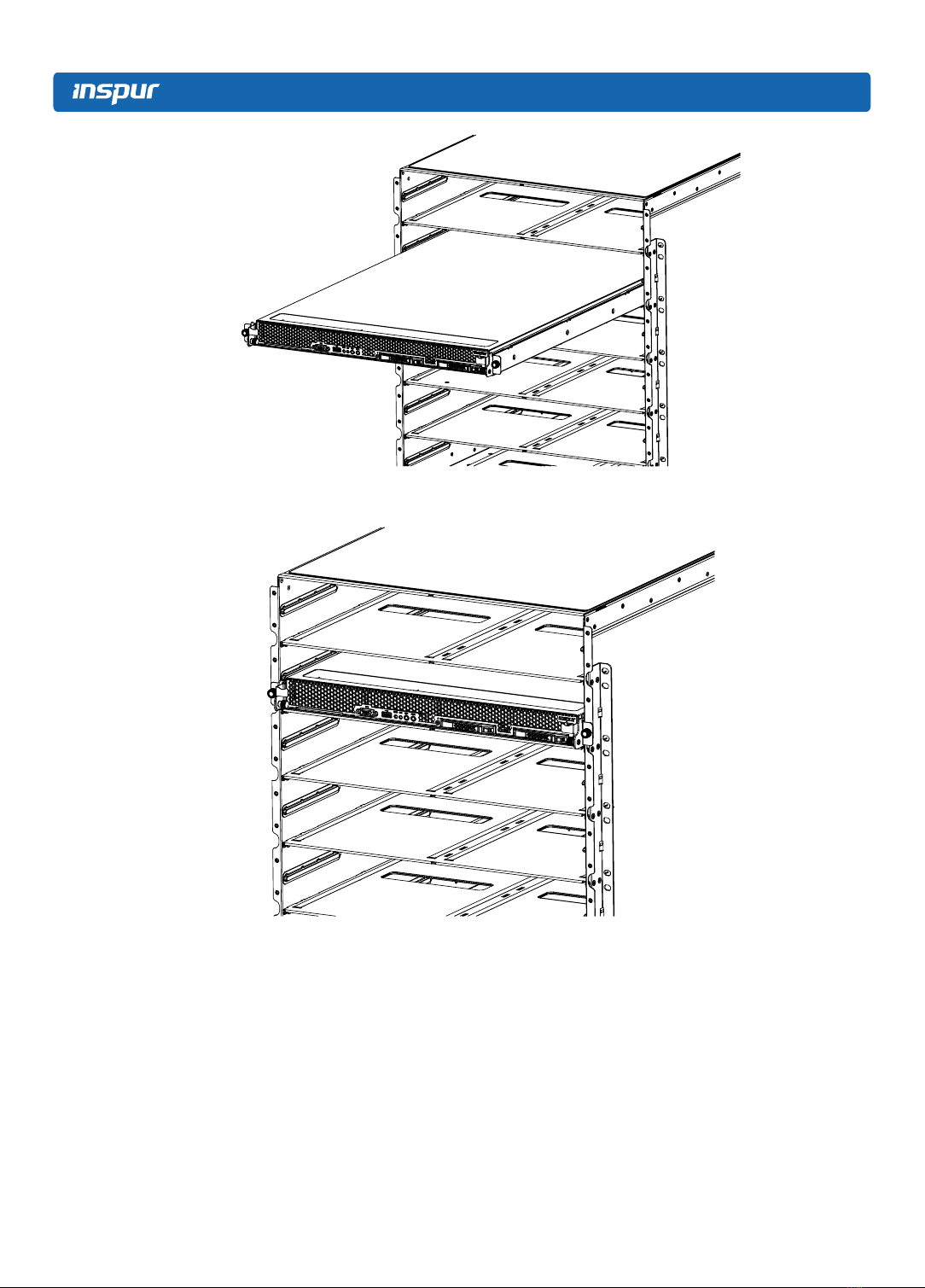

3.2 Install the server into the rack.................................................................................................... 9
3.3 Start the server........................................................................................................................... 10
4 BIOS Setup..................................................................................................................................... 13
4.1 Login to the BIOS Interface......................................................................................................... 13
4.2 UEFI/Legacy Mode Switching ..................................................................................................... 15
4.3 View System Information ........................................................................................................... 15
4.4 Viewing CPU Details ................................................................................................................... 16
4.5 Viewing Memory Information .................................................................................................... 17
4.6 View Hard Drive Information and RAID Configuration ...............................................................17
4.7 Viewing and Setting of BMC Network Parameter ...................................................................... 25
4.8 BIOS Parameter Description ....................................................................................................... 31
4.9 Processor.................................................................................................................................... 45
4.10 Sever Mgmt .............................................................................................................................. 61
4.11 Security..................................................................................................................................... 71
4.12 Boot.......................................................................................................................................... 71
4.13 Firmware Update...................................................................................................................... 72
4.14 Firmware Update...................................................................................................................... 72
5 BMC Settings ................................................................................................................................ 78
5.1 Introduction................................................................................................................................ 78
5.2 Functional Modules.................................................................................................................... 79

5.3 Web Module............................................................................................................................... 80
5.4 Storage ....................................................................................................................................... 85
5.5 Remote Control .......................................................................................................................... 85
5.6 Fan.............................................................................................................................................. 87
5.7 BMC Settings .............................................................................................................................. 87
5.8 Logs ............................................................................................................................................ 91
5.9 Fault Diagnosis............................................................................................................................ 93
5.10 System Maintenance ................................................................................................................ 95
5.11 Service & Protocol .................................................................................................................... 98
5.12 User Management.................................................................................................................... 96
5.13 BMC Firmware Update ............................................................................................................. 97
5.14 Time Zone Table ....................................................................................................................... 99
6 Common Faults, Diagnosis and Troubleshooting ..........................................................................101
6.1 Hardware Problems.................................................................................................................... 101
6.2 Software Problems ..................................................................................................................... 103
7 Battery Replacement..................................................................................................................... 105
8 Regulatory Compliance Notices..................................................................................................... 106
8.1 Regulatory Compliance Identification Numbers......................................................................... 106
8.2 Federal Communications Commission Notice............................................................................ 106
8.3 Cables ......................................................................................................................................... 107
8.4 Battery Replacement Notice ...................................................................................................... 107
9 Electrostatic Discharge .................................................................................................................. 108
9.1 Preventing Electrostatic Discharge ............................................................................................. 108
9.2 Grounding Methods to Prevent Electrostatic Discharge ............................................................108
10 Warranty...................................................................................................................................... 109
10.1 Introduction.............................................................................................................................. 109
10.2 Warranty Service ...................................................................................................................... 109
10.3 Warranty Exclusions ................................................................................................................. 110

 1
Safety Introduction
1 Safety Instructions
WARNING: Please be advised to follow the instructions below for safety. Failure to do so could
result to potential dangers that may cause property loss, personal injury or death.
1. The power supplies in the system may produce high voltages and energy hazards that
may cause personal injury. For your safety, please do not attempt to remove the cover
of the system to remove or replace any component without assistance provided by
Inspur. Only service technicians trained by Inspur are authorized to remove the cover of
the host, and to remove and replace internal components.
2. Please connect the equipment to the appropriate power supply. Use only power
supplies with the correct voltage and electrical specifications according to the label. To
protect your equipment from damages caused by a momentary spike or plunge of the
voltage, please use relevant voltage stabilizing equipment, or uninterruptible power
supplies.
3. If you must use an extension cable, please use a three-core cable with properly
grounded plugs. Observe extension cable ratings. Ensure that the total rating of all
equipment plugged into the extension cable does not exceed 80 percent of the ratings
limit for the extension cable.
4. Please be sure to use the power supply components that come with the server, such as
power lines, power socket (if provided with the server) etc. For your safety, please do
not replace power cables or plugs randomly.
5. To prevent electric shock dangers caused by leakage in the system, please make sure
that the power cables of the system and peripheral equipment are correctly connected
to the earthed/grounded power socket. Please connect the three-core power line plug
to the three-core AC power socket that is well earthed and easy to access. Be sure
to use earthing /grounding pin of power lines and do not use the patch plug or the
earthing/grounding pin unplugged with cables. In the case that the earthing/grounding
conductors are not installed and it is uncertain whether there are appropriate earthing/
grounding protections, please do not use or attempt to operate the equipment. Contact
and consult an electrician.
6. Please do not push any objects into the openings of the system. Doing so may cause

2
fire or electric shock.
7. Please place the system far away from the cooling plate and heat sources, and be sure
not to block the air vents.
8. Please be sure not to scatter food or liquid in the system or on other components, and
do not use the product in humid or dusty environments.
9. Using an incompatible battery may cause explosion. When battery replacement is
required, please consult the manufacturer first, and choose batteries of the same or
equivalent type. Do not disassemble, crush, puncture the batteries or make the external
connection point short circuit, and do not expose them in the environment over 60°C.
Never throw batteries into fire or water. Please do not attempt to open or repair the
batteries. Dispose of used batteries according to instructions. For battery recycling,
please contact the local waste recycling center.
10. Before installing equipment into the rack, please install all front and side stabilizers on
the independent rack first. Please install the front stabilizers first, if connecting with
other racks. Please install stabilizers before installing equipment into the rack. Failure to
install the corresponding stabilizers before installing equipment into the rack may cause
the cabinet to tip over, possibly resulting to severe injury. After installing the equipment
and other components into the rack, only one component can be pulled out from the
rack through its sliding part at one time. Pulling out several components at the same
time may cause the rack to turn over, resulting to serious personal injury.
11. A minimum of two people are required to safely move a rack. The racks are extremely
awkward and heavy, moving them without adequate, trained personnel could result in
severe injury or death.
12. It is prohibited to directly short-circuit the copper busbar. Please do not touch the
copper busbar when the rack is powered on.
13. This is Class A product, and may cause radio interference. In such case, users may need
to take necessary measures to mitigate the interference.
14. The equipment is intended for installation in a Restricted Access Location.
Note: The following considerations may help avoid the occurrence of problems that could
damage the components or cause data loss, etc.
1. In the event of the following, please unplug the power line plug from the power socket

 3
Safety Introduction
and contact Inspur’s customer service department:
1) The power cables, extension cables or power plugs are damaged.
2) The products get wet.
3) The products have fallen or have been damaged.
4) Other objects have fallen into the products.
5) The products do not or are unable to function normally even when attempting to
operate according to the instructions.
2. If the system becomes wet or damp, please follow these steps:
1) Power off the equipment, disconnect them with the power socket, wait for 10 to
20 seconds, and then open the host cover.
2) Move the equipment to a well-ventilated place to dry the system at least for 24
hours and make sure that the system is fully dried.
3) Close the host cover, reconnect the system to the power socket, and then power
on.
4) In case of operation failure or other abnormal situations, please contact Inspur and
get technical support.
3. Pay attention to the position of system cables and power cables-avoid placing wires in
high foot traffic locations. Please do not place objects on the cables.
4. Before removing the host cover, and/or touching the internal components, please
allow for the equipment to cool first. To avoid damaging the mainboard, please power
off the system and wait for five seconds, and then remove the components from the
mainboard and/or disconnect the peripheral device from the system. Please remember
that only service technicians trained by Inspur are authorized to remove the cover of
the host, and to remove and replace internal components.
5. If there is modem, telecom or LAN options installed in the equipment, please pay
attention to the followings:
1) In the case of thunder and lightning, please do not connect or use the modem.
2) Never connect or use the modem in a damp environment.
3) Never insert the modem or telephone cables into the socket of network interface
controller (NIC).
4) Before unpacking the product package, installing internal components, touching
uninsulated cables or jacks of the modem, please disconnect the modem cables.
6. In order to prevent electrostatic discharge from damaging the electronic components in

4
the equipment, please pay attention to the followings:
1) Please remove any static electricity on your body before dismounting or touching
any electronic component in the equipment, to prevent the static electricity from
conducting itself to the sensitive components. You may remove the static electricity
on the body by touching the metal earthing objects (such as the unpainted metal
surface on the rack).
2) Please do not take electrostatic sensitive components that are not ready to be
installed for application out of the antistatic package materials.
3) While working, please touch the earthing conductor or the unpainted metal
surface on the cabinet regularly to remove any static electricity from the body that
may damage the internal components.
7. Upon receiving the proper authorization from Inspur and dismounting the internal
components, please pay attention to the following:
1) Switch the system power supply off and disconnect the cables, including all
connections of the system. When disconnecting the cables, please hold the
connector of the cables and slowly pull the plugs out. Never pull on the cables.
2) The products need to completely cool down before dismounting the host cover or
touching the internal components.
3) During the dismounting process, avoid making large movement ranges to prevent
damage to the components or scratching arms.
4) Handle components and plug-in cards with care. Please do not touch the
components or connection points on the plug-in cards. When handling the plug-in
cards or components, firmly grab the edges of the plug-in cards and components,
and/or their metal fixed supports.
8. During the process of rack installation and application, please pay attention to the
followings:
1) After the rack installation is finished, please ensure that the stabilizers have been
fixed to the rack and supported to ground, and the weight of the rack is firm on
ground.
2) Always load from the bottom up, and load the heaviest items first.
3) When pulling out the components from the rack, apply slight force to keep the rack
balanced.
4) When pressing down the release latch and the rail of components is sliding, please

 5
Safety Introduction
be careful; as the sliding may hurt your fingers.
5) Do not overload the AC power supply branch circuits in the rack. The total load of
the rack should not exceed 80% of the ratings of the branch circuits.
6) Ensure that components in the rack have good ventilation conditions.
7) When repairing components in the rack, never step on any other components.

6
2 Product Specification
2.1 Introduction
Open19 server standard is designed to bring a simplified open standard for the construction
of storage, network and server, and it is suitable for data centers of all sizes. The goal is to
increase the “mainstream 19-inch data center rack” servers and storage, and the density
of network devices, reduce the cost of rack equipment, optimize rack integration and
deployment, optimize power utilization, and ultimately provide low-cost infrastructure
solutions for data centers of different environments.
Under the demand and support of overseas business, at the CeBIT 2017 in Hannover, Inspur,
as the first members of Open19 project, released the first batch of servers based on the
Open19 standard when the Open19 project was only established for 9 months.
Open19 main specifications:
Standard 19-inch 4-block rack, 12RU or 8RU Brick Cage, support half width 1RU server,
Half width 2RU server, Full width 1RU server, Full width 2RU server; Power Shelf - 12V
Distribution, OTS Power Module; optional Battery Backup Unit (BBU); optional Switch (ToR).
This server has great significance for overseas markets, especially the US market, we can
take the initiative when overseas Internet customers switch to Open19 servers.
2.2 Product Specifications
Chassis Dimension  (L* W * H) 901.34mm*441.1mm*41.65mm
CPU  Dual Intel Scalable Processors TDP 165W
Memory  12*DDR4 DIMM
Front I/O  1* USB 2.0 port
 1* VGA port
Storage Support  12*3.5"/2.5" SAS/SATA
 2*2.5*SSD (hot plug, front)
HDD controller  Onboard 6Gb PCH SATA controller or RAID
NIC  1*Management Port
 1*OCP 2.0 (Support 10/25/50Gbe)
PCI Expansion  1*PCIe x16 for RAID card or 2 slimline x8 riser to card
 1*PCIe x32 for 2 Slimline x8 to riser card
Power Support Per Brick  12V DC 800W
 Node Support hot swap

 7
3URGXFW6SHFL¿FDWLRQ
Management  IPMI 2.0 compliant with AST 2500
Indicator Light  Front: Power button with LED, UID button with LED,
SYSTEM_ERROR LED, and HDD_ERRER LED
TPM  Support TPM 2.0
Operating environment temperature  0℃-40℃
Storage and transport temperature  -40℃ -70℃
Operating humidity  5％-90％relative humidity
2.3 Motherboard Components
1
2
3
4
6
7
8
9
10
11
12
13
14
15
16 17 18 19 20 21 23 24
25
26
27
28
29
3031
22
5
CPU1_C2D0
CPU1_C1D0
CPU1_C0D0
CPU1_C3D0
CPU1_C4D0
CPU1_C5D0
CPU0_C2D0
CPU0_C1D0
CPU0_C0D0
CPU0_C3D0
CPU0_C4D0
CPU0_C5D0
CPU1
CPU0

8
1 VGA connector 17 Power board connector
2 JBOD connector 18 VPP signal connector
3 RJ45 connector 19 BP I2C connector
4 CLR_CMOS 20 BP I2C connector
5 Front board connector 21 Front board connector
6 SSATA2-5 connector 22 TPM connector
7 SATA0-3 connector 23 PSU1
8 OCPC connector 24 PSU0
9 OCPA connector 25 FAN 0
10 CPLD JTAG connector 26 FAN 1
11 BMC debug connector 27 FAN 2
12 SLIMLINE0/1 connector 28 FAN 3
13 SLIMLINE2/3 connector 29 FAN 4
14 Raid key connector 30 x32 riser connector
15 BMC I2C connector 31 x8 riser connector
16 X16 riser connector
CLR_CMOSJumper Introduction
See [Motherboard Components] for the jumper position.
Item Description Function
CLR_CMOS CMOS clear jumper Short-circuit pin1-2, restore to normal status; short-circuit
pin2-3, clear CMOS.
Note:
It is required to shut down the system, as well as disconnect the power supply during CMOS
clearing. Hold for 5 seconds after short-circuiting Pin2-3, and then short-circuit Pin1 and
Pin2 (the default status) of CLR_CMOS jumper with a jumper cap, to restore to its original
status.

 9
3URGXFW6SHFL¿FDWLRQ
2.4 Motherboard Topology Diagram
 9
Product Specication
2.4 Motherboard Topology Diagram
Skylake
CPU0
Skylake
CPU1
DDR IV DIMM CHA
DDR IV DIMM CHB
DDR IV DIMM CHC
DDR IV DIMM CHD
DDR IV DIMM CHE
DDR IV DIMM CHF
DDR IV DIMM
CHG
DDR IV DIMM
CHH
DDR IV DIMM
CHJ
DDR IV DIMM
CHK
DDR IV DIMM
CHL
DDR IV DIMM
CHM
PCH
Lewisburg
LBG-1G
DMI X4
USB2.0(P8)
FP USB
LPC
BMC
AST2500
PCIE X1
SMBUS/SMLINK
PHY
RTL8211FD RJ45
VGA
Expander LEDS
CPLD
VR13
CLOCK BUF
UPI0
UPI1
UPI0
UPI1
Ocp Conn A
SPI
SPI
Switch
SPI
Spi Flash
TPM
SATA x4（colay）
Slimline X4
PE1
PCIE X16 CON
DMI
Slot1
Pcie x8
PE3
X8 X8
DMI PE UP
X8 X8
Pcie X8（8-15）
PCIE X16 CON
PE1 PE2 DMI PE3
Pcie X8（0-7）
PCIE X16 CON
Pcie X16
Pcie x24
Slimline X4
SATA
0-7
SATA x4
SSATA
3-5
USB
Rear USB
OC 0
Rear USB
USB
FP USB
USB2.0 P6
USB2.0 P5
USB3.0 P2
OC 1
Pcie P5
USB P8
PCIE8-11
PCIE x4
M.2
Riser
Card
M.2
SSD
SPI Flash
Pcie X16
X32 riser
Pcie X16
PE2
Slot2
U.2
Pcie X16
SSATA1
M.2
SSD
SATA x1
SSATA2
PCIE4-7
SATA x1
PCIE x4

10
3 Hardware system
3.1 Product View
Front View
Item Name Function
1 VGA connector
2 USB 2.0 connector
3 HDD_LED 1. On (Red): Any of HDD0~HDD11 attached to HBA/Raid Card have error.
2. OFF: HDD0~HDD11 have no error.
4 SYS_ LED 1. On (Red): CPU error /RAM error/FAN error/System overheat.
2. OFF: No error.
5 UID button
ID LED (Blue):
1. Location LED, support local and remote control modes;
2. On: selected; Off: not selected
6 PWR button
Power button (Amber):
In any case, short press the PWR button, the system will be power on
Power button (Green):
1.In Shell or ESCOM, press the PWR button for more than 3 seconds, the system
will be powered off;
2. In OS, press the PWR button for more than 3 seconds, the system will enter
the soft shutdown mode;
3. After the system is powered on, in any case, press the PWR button for more
than 7 seconds, the system will be powered down.
7 SSD0
8 SSD1
Rear View
Item Name
1 Network connector 1
2 Power connector 1
3 Network connector 2
4 Power connector 2
10
3 Hardware system
3.1 Product View
Front View
Item Name Function
1 VGA connector
2 USB 2.0 connector
3 HDD_LED 1. On (Red): Any of HDD0~HDD11 attached to HBA/Raid Card have error.
2. OFF: HDD0~HDD11 have no error.
4 SYS_ LED 1. On (Red): CPU error /RAM error/FAN error/System overheat.
2. OFF: No error.
5 UID button
ID LED (Blue):
1. Location LED, support local and remote control modes;
2. On: selected; Off: not selected
6 PWR button
Power button (Amber):
In any case, short press the PWR button, the system will be power on
Power button (Green):
1.In Shell or ESCOM, press the PWR button for more than 3 seconds, the system
will be powered off;
2. In OS, press the PWR button for more than 3 seconds, the system will enter
the soft shutdown mode;
3. After the system is powered on, in any case, press the PWR button for more
than 7 seconds, the system will be powered down.
7 SSD0
8 SSD1
Rear View
Item Name
1 Network connector 1
2 Power connector 1
3 Network connector 2
4 Power connector 2

 11
Hardware system
3.2 Install the server into the rack
Rack prepare
Before installing the servers into the rack, the rack must be fixed tightly and be grounded
well.
Connect Network cable and power cable.
 Connect Network cable to the Network connector and connect the power cable to the
power connectors.
Installing the server into the rack
Note: The server is heavy, please ensure sufficient manpower or use assistive tools during
installation.
 Lock the screw and fix the storage tray in the chassis.
 Push the server into the rack horizontally.
Lock the screw Lock the screw
 11
Hardware system
3.2 Install the server into the rack
Rack prepare
Before installing the servers into the rack, the rack must be fixed tightly and be grounded
well.
Connect Network cable and power cable.
 Connect Network cable to the Network connector and connect the power cable to the
power connectors.
Installing the server into the rack
Note: The server is heavy, please ensure sufficient manpower or use assistive tools during
installation.
 Lock the screw and fix the storage tray in the chassis.
 Push the server into the rack horizontally.
Lock the screw Lock the screw

12
 Fixed the server by tightening the screws on the both sides.
3.3 Start the server
CAUTION: Before starting the server, make sure that you have read and followed the
contents of Safety Instructions in this manual. Once you have started the server, it is
considered that you have read the contents of Safety Instructionsin this manual.
After connecting the power cables and network cables, press the power button to start the
server.

 13
BIOS Setup
4 BIOS Setup
This chapter introduces BIOS function setup and mainboard jumper of the server. All
operations described in this section are only limited to operators or administrators with
system maintenance qualification.
BIOS is a basic input and output system. The system parameter and the hard drive parameter
can be adjusted through special set program. BIOS has great influence on the system start
and running so that setting parameters improperly may arose the conflict among the
hardware resource, or fall down the system run performance. Hence understanding the
BIOS setup is significant to the configuration of your server. If no especial requirement, you
are suggested to use the default value and not alter the parameters optionally.
Notes:
1. Before the server BIOS setup is altered, please record the corresponding original setup.
Hence when there are operating problems in the system due to the option altered, the
setup can revert.
2. Ordinarily the factory default system value is the optimized setup. Don’t try to alter the
parameters before you understand their denotations.
3. The common setup is introduced in detail in this paper. The less referred options in the
application procedure are simply explained or not.
4. The content of the BIOS is diverse based on the different configurations of the products;
hence the detailed introduction is elided.
4.1 Login to the BIOS Interface

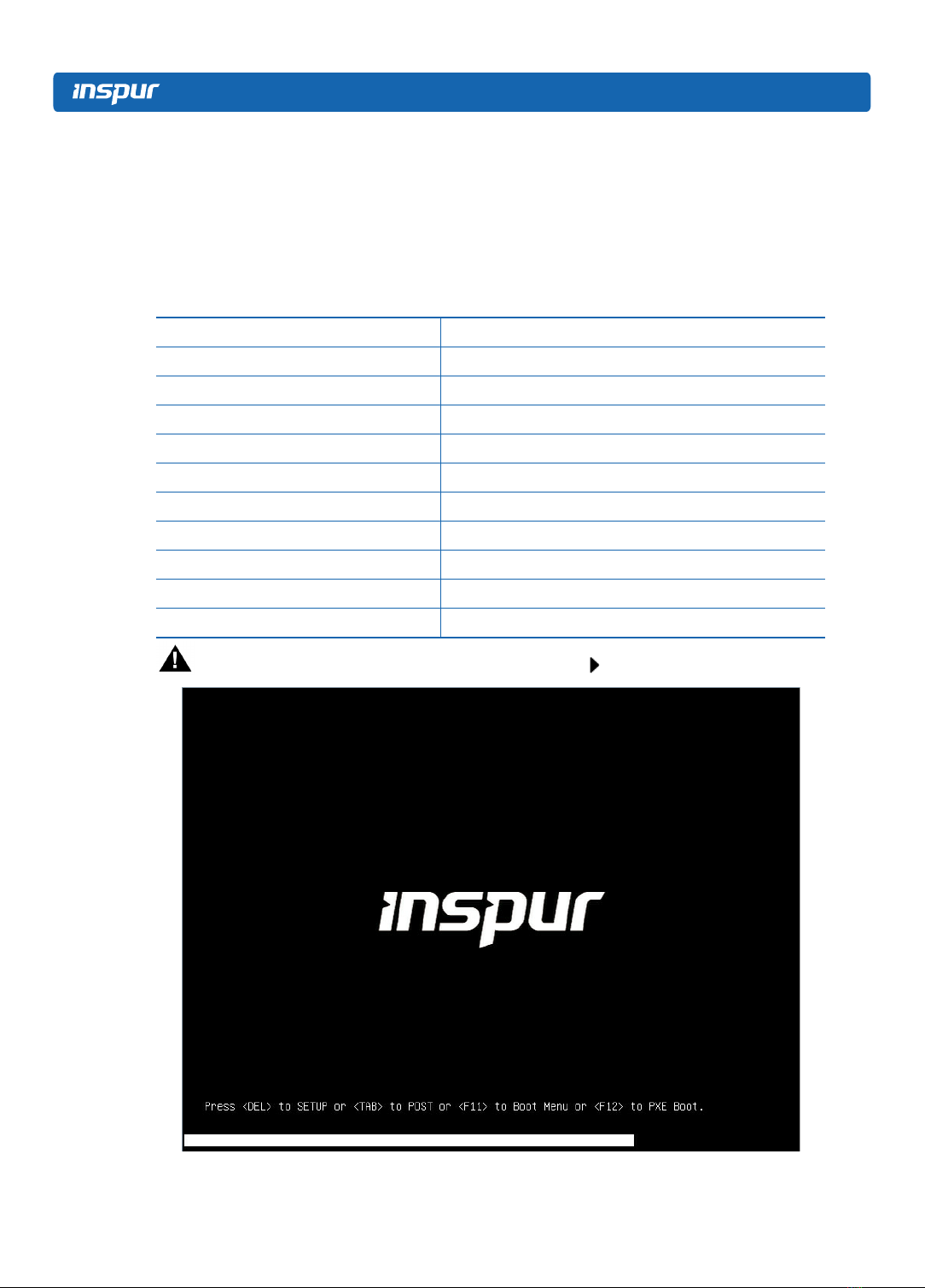

Power up the server, the system starts to boot, when the screen shows the following Inspur
Logo prompt:
When pressing <DEL> to SETUP or <TAB> to POST or <F11> to Boot Menu or <F12> to PXE
Boot as shown in the following figure, press the [DEL] key, the system will show “Entering
Setup...” in the lower right corner of the screen, and then will enter the system BIOS settings.
In the BIOS main menu, you can use the arrow keys to select the sub-item and press Enter key to
enter the submenu.
Other hotkeys are described in the following:
 Press “F2” key to enter the BIOS Setup interface.

14
 Press “TAB” key to display the POST process system information.
 Press “F11” key to enter the startup management interface and select the startup device
to start.
 Press the “F12” key to start the network PXE pre-boot environment.
Description Table of BIOS Setup Interface Control Key
Key Features
<Esc> Exit or return to the main menu from the submenu
<←> or <→> Select menu
<↑> or <↓> Move the cursor up or down
<Home> or <End> Move the cursor to the top or bottom of the screen
<+> or <-> Select the previous or next value of the current item, set
<F1> help
<F2> Restore last setting
<F9> Restore default settings
<F10> Save and exit
<Enter> Execute commands or select submenus
Note: The gray option is not available. Items with the “ ” symbol have submenus.

 15
BIOS Setup
4.2 UEFI/Legacy Mode Switching
Log in to the BIOS Setup interface, select the “Advanced CSM Configuration” interface,
press Enter, set the Boot Mode option, set the system startup mode (UEFI Mode/Legacy
Mode), and set the implementation method of Option ROM of Network, Storage, Video
Oprom Policy and other PCI devices accordingly as shown in the following figure.
Currently, the default setting of the platform is Legacy Mode Network, Storage, Video
Oprom Policy, and the Option ROM of Other PCI device is also set to Legacy.
If the Boot Mode is set to UEFI Mode, the implementation mode of the Option ROM of the
Network must be set to UEFI, Storage, Video Oprom Policy, and the implementation mode
of the Option ROM of Other PCI device is recommended to be set to UEFI, which can also
set to Legacy if there are special requirements. Compared with legacy mode, UEFI mode
has many advantages, supporting booting from GPT format hard drive larger than 2.2T,
PXE booting of IPv6/IPv4 network, and providing UEFI Shell environment. This item can be
customized according to customer needs.
4.3 View System Information
Log in to the BIOS Setup interface, and “Main” screen will display the information summary
