thermioTM eco QE1/QE2
EN Operating manual
0662_QE1_QE2.indd 1 29.03.2017 13:44:13

EN
2
!
This manual ensures safe and efcient use of the “thermioTM eco QE1 / QE2” timeswitches. This manual is a compo-
nent of the device and must remain accessible at all times for everyone who uses the device.
Everyone who uses the device must have read and understood this manual before commencing any work. The basic
prerequisite for working safely is compliance with all safety instructions and usage instructions specied in this man-
ual. Furthermore, the local accident prevention regulations and the general safety regulations apply for the operating
area of the device.
Copyright
This manual is copyright protected.
Handover this manual to third parties, reproductions of any type and form – including excerpts – and use and/or dis-
closure of the content without the written permission of Grässlin GmbH (referred to as “manufacturer” in the following),
except for internal purposes, is not permitted. Violations will result in liability for compensation. The manufacturer
reserves the right to assert additional claims.
The copyright is held by the manufacturer.
0662_QE1_QE2.indd 2 29.03.2017 13:44:13

The copyright is held by the manufacturer.
© Grässlin GmbH
Bundesstr. 36
78112 St. Georgen
GERMANY
Declaration of conformity and download instructions
The declaration of conformity for the device described in this manual, a download of the manual, and
the technical data can be found at www.graesslin.de.
3
0662_QE1_QE2.indd 3 29.03.2017 13:44:13

EN
4
Safety Information���������������������������������� 5
Technical Data���������������������������������������� 6
Installation ����������������������������������������������� 7
Application / Programming QE1���������������� 9
Application / Programming QE2��������������� 26
Table of Contents
0662_QE1_QE2.indd 4 29.03.2017 13:44:13

EN
5
Safety Information
Risk of death due to electrical shock!
Incorrect assembly and installation of the device can result in life-threatening
electrical voltages.
 This product should be installed by a qualied installer according to current installation
standards.
WARNING
0662_QE1_QE2.indd 5 29.03.2017 13:44:14

EN
6
Technical Data
Dimensions 156x85x42 [mm]
Power supply 240V/50Hz
Rating 5A (2A)/240V, per channel
Memory locations 28 per channel
Battery permanently xed re-chargeable (not replaceable)
Battery reserve 500 hours plus (after 70 hours charge)
Installation double insulated
Fitting surface mounted or single gang plaster depth socket outlet
Maximum ambient temperature 50 °C
Type 1 Action type 1B
Micro disconnection type 1B
Pollution protection normal pollution situation
You can nd the technical data for the devices that are described in this manual at:
www.graesslin.de/technical-data
0662_QE1_QE2.indd 6 29.03.2017 13:44:14

EN
7
Remove QE1/QE2 from packing and prepare it for use
on fully pumped or for gravity hot water systems. For
gravity hot water systems no action is required.

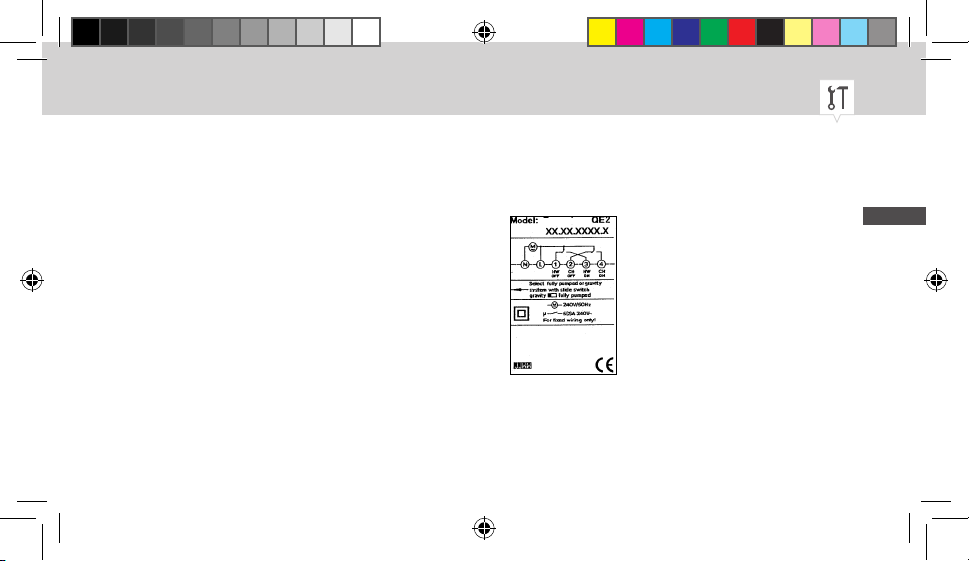

For fully pumped systems the switch located at the
rear of the “QE2” must be moved to the right-
into the “fully pumped” position.
Installation
INSTALLATION PROCEDURE
Remove QE1/QE2 from packing and prepare it for use on fully pumped or for gravity hot water systems.
For gravity hot water systems no action is required.
For fully pumped systems the switch
located at the rear of the “QE2” must
be moved to the right-
into the “fully pumped” position.
NB • Installation must be carried out by a qualified electrician and conform to current IEE Regulations.
NB • Mains supply must be suitably fused (usually 3 amps) and provision made for Class A circuit disconnection.
0662_QE1_QE2.indd 7 29.03.2017 13:44:14

EN
8
NB • Installation must be carried out by a qualied electrician and conform to current IEE Regulations.
NB • Mains supply must be suitably fused (usually 3 amps) and provision made for Class A circuit disconnection.
NB • Control is suitable for xed wiring only.
NB • If the unit is to be surface wired:
- Remove backplate by slackening xing screw and separate the plate from the timeswitch
- Remove the knock-out from the backplate and the timeswitch
- Screw backplate to wall with counter sunk No. 8. Wood screws, using xing holes provided.
NB • For socket box mounting:
- Use the centre two holes and t backplate to box using machine screws
- To ensure clearance for the down ap, ensure that there is a minimum of 4 cm clearance under the unit when
mounted
0662_QE1_QE2.indd 8 29.03.2017 13:44:14

EN
9
Application QE1............................................................. 10
Programming QE1 ......................................................... 11
Setting current time and day ...................................................... 11

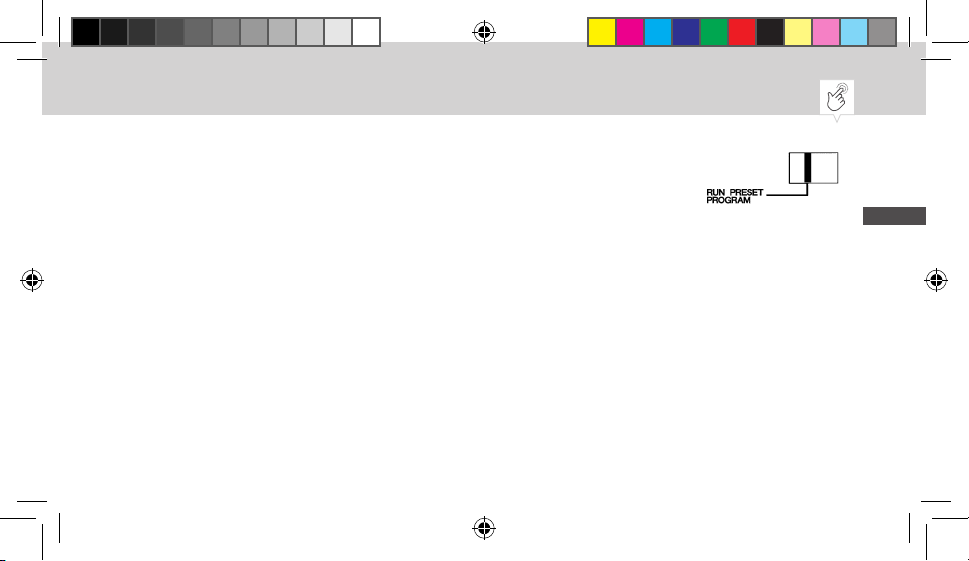

Start the inbuilt standard program .............................................. 12
View the inbuilt standard program .............................................. 13
Setting your own time program ................................................. 14
View/modify/delete your entered program selections ................. 16
Manual override functions (boost, advance, constant, OFF) ......... 17

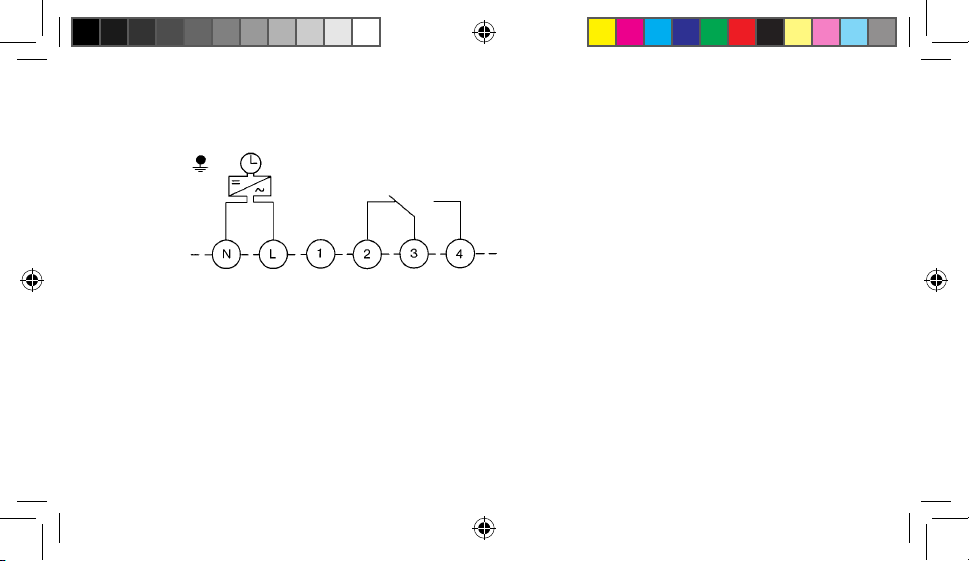

Internal wiring diagram ............................................................. 19
General installation instructions ................................................. 20
Wiring installation instructions ................................................... 21
Application / Programming QE1
0662_QE1_QE2.indd 9 29.03.2017 13:44:14

EN
10

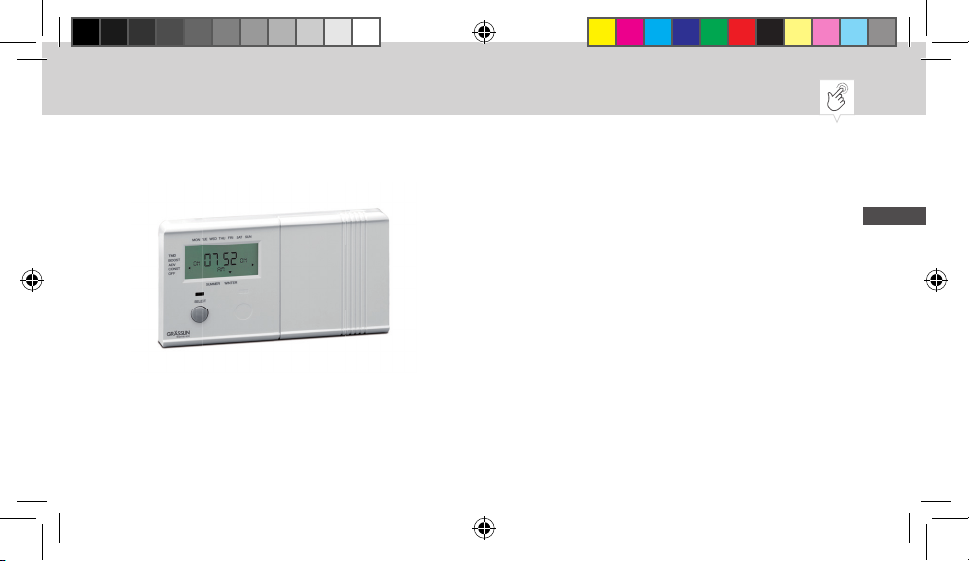

• Any simple time switching application up to
the stated rating
• Domestic heating systems where both heating
and hot water services are required to switch
ON and OFF at the same time
• Controlling a “combi“ or “combination boiler“
Application QE1
