IMPORTANT SAFETY RULES
Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product.
• Supervise children and those with disabilities at all times.
• Always assist children when they use the ladder to avoid falls and/or serious
injury.
• Never dive or jump from this ladder.
• Locate the ladder on a level, solid base.
• One person on this ladder at a time.
• Maximum load: 300 lbs (136 kg). Complies with EN16582 strength
requirements.
• Face the ladder at all times for entry/exit of pool.
• Remove and secure ladder when pool is not occupied.
• Do not swim under, through or behind ladder.
• Check all nuts and bolts regularly to ensure ladder stays sturdy.
• If swimming at night use artificial lighting to illuminate all safety signs,
ladders, pool floor and walkways.
• Assembly and disassembly by adults only.
• This ladder is designed and manufactured for a specific pool wall height
and/or deck of the pool.
• The non-respect of the maintenance instruction may result in huge risk for
health, particularly for children.
• Only use this ladder for the purposes described in this manual.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN BROKEN
BONES, ENTRAPMENT, PARALYSIS, DROWNING OR OTHER SERIOUS
INJURY.
These product warnings, instructions and safety rules provided with the product
represent some common risks of water recreation devices and do not cover all
instances of risk and danger. Please use common sense and good judgment
when enjoying any water activity.
WARNING

91PO
SAVE THESE INSTRUCTIONS
(91PO) 48” 2-SECTIONS POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 07/16/2015
English
Page 4
PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
REF.
NO. DESCRIPTION QUANTITY
SPARE PART NO.
#28062 #10903
1 U-SHAPED TOP RAIL 2 11167 11171
2 TOP BRACE 2 11168 11172
3 SHORT FASTENER FOR U-SHAPED TOP RAIL (WITH 1 EXTRA) 5 10810 10810
4 LONG FASTENER FOR TOP BRACE (WITH 1 EXTRA) 5 10227 10227
5 STEP MOUNTING PIN (WITH 2 EXTRA) 34 10349 10913
6 STEP 8 10348 10914
7 UPPER SIDE LEG (MARKED “A”) 2 11553A 11555A
8 UPPER SIDE LEG (MARKED “B”) 2 11553B 11555B
9 LOWER J-SHAPED SIDE LEG ( MARKED “A”) 2 12266A 12267A
10 LOWER J-SHAPED SIDE LEG ( MARKED “B”) 2 12266B 12267B
1
3
47
9
10
6
8
2
5
48” (122 cm) model
This ladder is designed and manufactured for Intex pool wall height:
Item # Pool Wall Height
28062 (white & blue) 48in (122 cm)
10903 (silver & white) 48in (122 cm)

91PO
SAVE THESE INSTRUCTIONS
(91PO) 48” 2-SECTIONS POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 07/16/2015
English
Page 5
LADDER SETUP
TOOLS REQUIRED: One (1) Phillips screwdriver
One (1) pair of pliers or a small adjustable wrench
IMPORTANT: Do not fully tighten fasterners until last assembly operation.
WARNING
ASSEMBLE THE LEGS BEFORE INSTALLING THE LADDER STEPS. FAILURE TO
ASSEMBLE THE LEGS BEFORE INSTALLING THE STEPS MAY ALLOW THE LEGS
TO SEPARATE FROM THE LADDER DURING USE, POSSIBLY RESULTING IN
SERIOUS INJURY OR DEATH.
WARNING
INCORRECTLY CONNECTED PARTS MAY RESULT IN AN UNSTABLE LADDER
OR LADDER FAILURE WHICH CAN CAUSE FALLING AND PERSONAL INJURY
OR DEATH.
1.IDENTIFY PARTS:
It is very important to lay out the parts correctly and identify which parts connect
together before starting the assembly. Although some parts look alike, they are not
always interchangeable. Refer to the parts list.

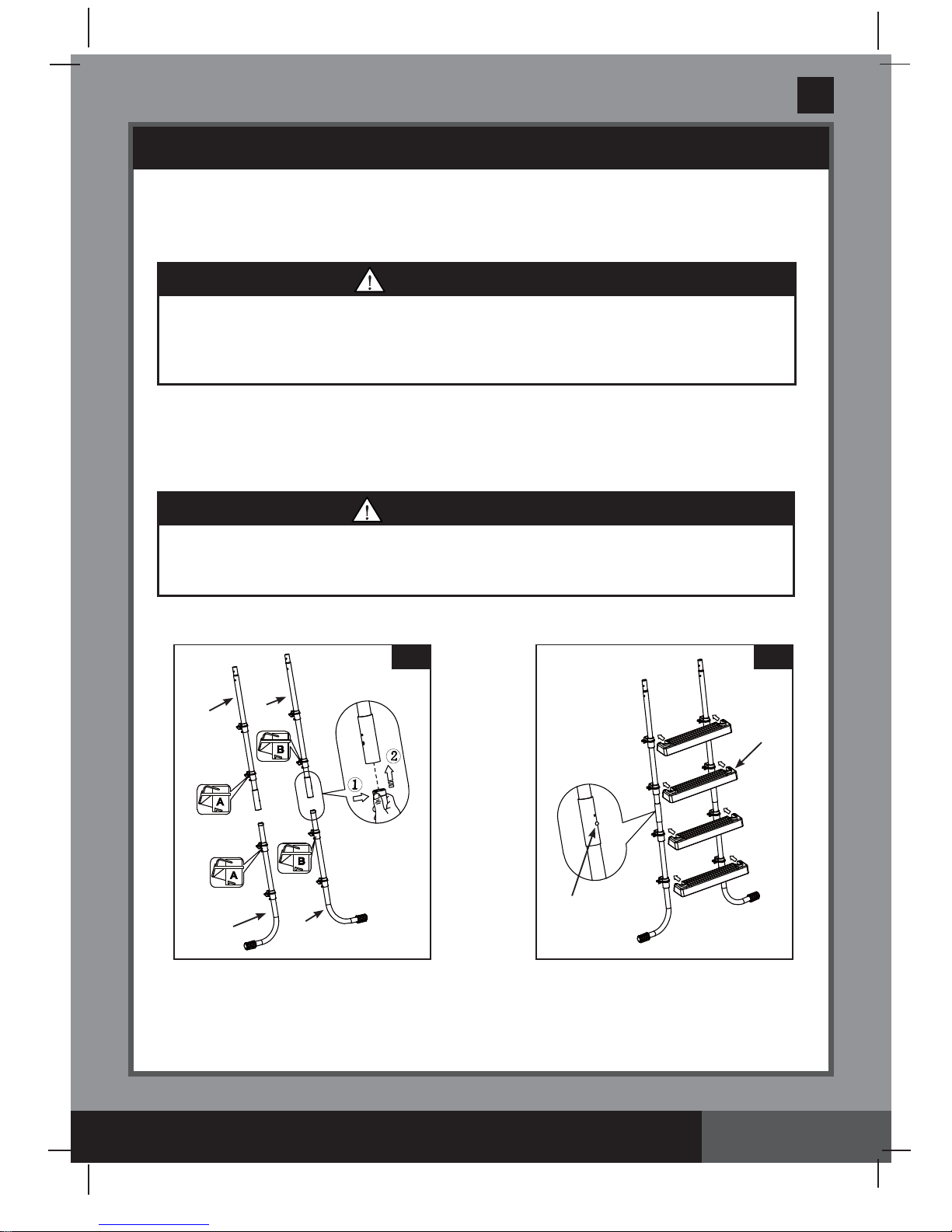

2.LEG ASSEMBLY (refer to figures 1.1 through 1.2):
IMPORTANT: Make sure the legs are securely connected and locked. Check the spring
pins have snapped out before proceeding to the next step. Ensure the J-shaped legs are
pointing outwards before installing the steps.
1.2
AB
Spring pin
6
AB1.1
910
8
7
Press,
hold and
insert

91PO
SAVE THESE INSTRUCTIONS
(91PO) 48” 2-SECTIONS POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 07/16/2015
English
Page 6
LADDER SETUP (continued)

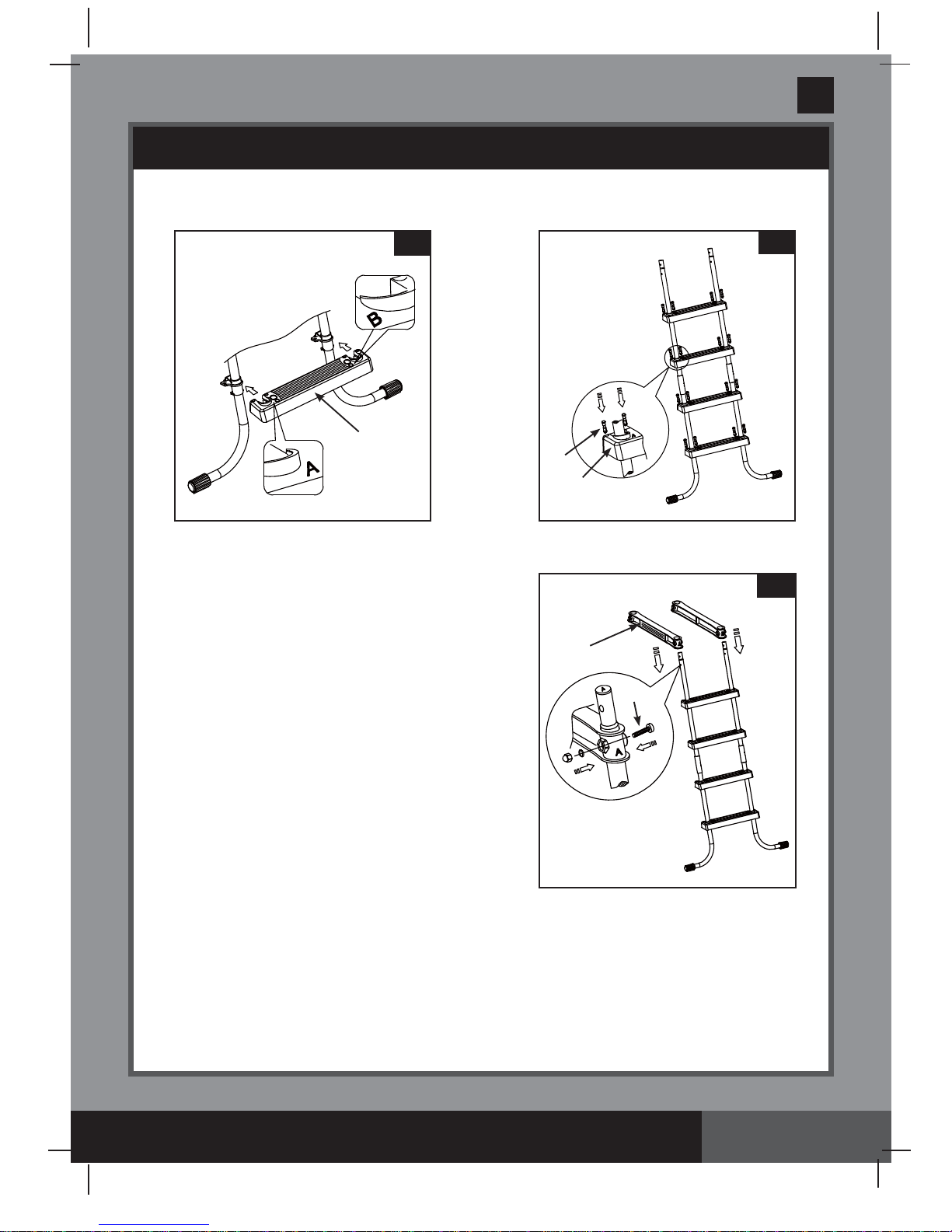

3. STEP INSTALLATION (refer to figures 2.1 through 2.2):
IMPORTANT: Make sure all pins are securely locked.
4.TOP BRACE INSTALLATION – ONE SIDE AT
A TIME
(refer to figure 3):
Identify hole “A” and hole “B” on the top braces
(2), marked accordingly at each end. Slide the
top braces over the legs, making sure hole “A”
of one brace slides over leg “A” and hole “B” of
the other brace over leg “B”. The small holes on
the side of braces should align with the lower
holes on the legs. Fasten each brace to the legs
using the longer fasteners/screws (4). Do not yet
attach the other side of the ladder to the top
braces – this assembly step will follow later.
2.1
A
B
6
2.2
AB
56
AB
3
2
4

91PO
SAVE THESE INSTRUCTIONS
(91PO) 48” 2-SECTIONS POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 07/16/2015
English
Page 7
LADDER SETUP (continued)
5.U-SHAPED TOP RAIL INSTALLATION (refer to
figure 4):
Install the U-shaped top rails (1) onto the legs
above the top brace (2) and fasten them with
the shorter fasteners/screws (3) – see figure 4.
6.INSTALLATON OF THE REMAINING LADDER
SIDE (refer to figure 5):
With all the top rail and top brace holes in
alignment, slide the remaining ladder side from
the underside into its proper position. Make sure
the “A” leg slides into hole “A” of the top brace
and the “B” leg slides into hole “B” of the
corresponding top brace. Fasten all parts using
the appropriate fasteners/screws (4) and (3), as
described earlier.
7.BEFORE USE OF LADDER:
With all parts now in place, verify that all
fasteners/screws are fully tightened and apply
downward pressure to each step to be sure they
are fully anchored in place. If your ladder came
with a ladder barrier, proceed to instructions for
ladder barrier installation, otherwise proceed to
placing the ladder over the side wall of your
pool, with one side of the ladder located inside
the pool and the other side outside of the pool -
see figure 6.
Estimated assembly time 20~45 minutes. (Note
the assembly time is only approximate and
individual assembly experience may vary.)
WARNING
• Locate ladder on a level, solid base and make sure the ladder is stable and
safe to climb.
• Remove and secure ladder away from the pool when the pool is not in use to
prevent unauthorized, unintentional or unsupervised pool entry.
• Check all nuts and bolts regularly and before each use to ensure the ladder
is sturdy. See maintenance instructions.
8.MAINTENANCE:
Regularly check all nuts, bolts, step mounting fixtures and step mounting pins to
ensure all parts are secured properly and the ladder is sturdy. Bring the ladder indoors
and store in a safe and dry area, preferably between 32 degrees Fahrenheit (0
degrees Celsius) and 104 degrees Fahrenheit (40 degrees Celsius).
4
5
6
1
3

91PO
SAVE THESE INSTRUCTIONS
(91PO) 48” 2-SECTIONS POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 07/16/2015
English
Page 8
GENERAL AQUATIC SAFETY
Water recreation is both fun and therapeutic. However, it involves inherent risks
of injury and death. To reduce your risk of injury, read and follow all product,
package and package insert warnings and instructions. Remember, however, that
product warnings, instructions and safety guidelines cover some common risks
of water recreation, but do not cover all risks and dangers.
For additional safeguards, also familiarize yourself with the following general
guidelines as well as guidelines provided by nationally recognized Safety
Organizations:
• Demand constant supervision. A competent adult should be appointed as a “lifeguard”
or water watcher, especially when children are in and around the pool.
• Learn to swim.
• Take the time to learn CPR and first aid.
• Instruct anyone who is supervising pool users about potential pool hazards and about
the use of protective devices such as locked doors, barriers, etc.
• Instruct all pool users, including children what to do in case of an emergency.
• Always use common sense and good judgement when enjoying any water activity.
• Supervise, supervise, supervise.
For additional information on safety, please visit
• The Association of Pool and Spa Professionals: The Sensible Way to Enjoy
Your Aboveground/Onground Swimming Pool www.nspi.org
• American Academy of Pediatrics: Pool Safety for Children www.aap.org
• Red Cross www.redcross.org
• Safe Kids www.safekids.org
• Home Safety Council: Safety Guide www.homesafetycouncil.org
• Toy Industry Association: Toy Safety www.toy-tia.org
SAVE THE CARTON FOR STORAGE AND THE INSTRUCTIONS
FOR RE-ASSEMBLY

91PO
SAVE THESE INSTRUCTIONS
(91PO) 48” 2-SECTIONS POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 07/16/2015
English
Page 9
Your Intex Pool Ladder has been manufactured using the highest quality materials and
workmanship. All Intex products have been inspected and found free of defects prior to
leaving the factory. This Limited Warranty applies to the Intex Pool Ladder only.
The provisions of this Limited Warranty apply only to the original purchaser and is not
transferable. This Limited Warranty is valid for a period of 90 days from the date of the
initial retail purchase. Keep your original sales receipt with this manual, as proof of
purchase will be required and must accompany warranty claims or the Limited Warranty is
invalid.
If a manufacturing defect is found within this 90-day period, please contact the appropriate
Intex Service Center listed in the separate “Authorized Service Centers” sheet. The Service
Center will determine the validity of the claim. If the Service Center directs you to return the
product, please carefully package the product and send with shipping and insurance
prepaid to the Service Center. Upon receipt of the returned product, the Intex Service
Center will inspect the item and determine the validity of the claim. If the provisions of this
warranty cover the item, the item will be repaired or replaced at no charge.
Any and all disputes regarding the provisions of this Limited Warranty shall be brought
before an informal dispute settlement board and unless and until the provisions of these
paragraphs are carried forth, no civil action may be instituted. The methods and procedures
of this settlement board shall be subject to the rules and regulations set forth by the Federal
Trade Commission (F.T.C.). IMPLIED WARRANTIES ARE LIMITED TO THE TERMS OF
THIS WARRANTY AND IN NO EVENT SHALL INTEX, THEIR AUTHORIZED AGENTS OR
EMPLOYEES BE LIABLE TO THE BUYER OR ANY OTHER PARTY FOR DIRECT OR
CONSEQUENTIAL DAMAGES OR LIABILITIES. Some states, or jurisdictions do not allow
the exclusion or limitation of incidental or consequential damages, so the above limitation or
exclusion may not apply to you.
This Limited Warranty does not apply if the Intex product is subject to negligence,
abnormal use or operation, accident, improper operation, improper maintenance or storage,
or to damage by circumstances beyond Intex’s control, including but not limited to,
ordinary wear and tear and damage caused by exposure to fire, flood, freezing, rain, or
other external environmental forces. This Limited Warranty applies only to those parts and
components sold by Intex. The Limited Warranty does not cover unauthorized alterations,
repairs or disassembly by anyone other than Intex Service Center personnel.
DO NOT GO BACK TO THE PLACE OF PURCHASE FOR RETURN
OR REPLACEMENT. IF YOU ARE MISSING PARTS OR NEED
ASSISTANCE, PLEASE CALL US TOLL-FREE (FOR U.S. AND
CANADIAN RESIDENTS): 1-800-234-6839 OR VISIT OUR WEBSITE:
WWW.INTEXSTORE.COM.
Proof of Purchase must accompany all returns or the warranty claim will be invalid.
LIMITED WARRANTY
