ipf electronic DW35312 Series User manual

manual pressure sensorspage 1
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration!
Tel [phone]
Fax [phone] [e-mail]
Manual
pressure sensors
DW35312x
DW36312x

page 2 manual pressure sensors
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration! Tel [phone]
Fax [phone] [e-mail]
table of contents
Safety instructions page 3
Controls and indicating elements page 4
page 5
page 6
page 8
page 9
page 9
page 10
page 10
page 11
page 12
page 12
page 15
page 16
page 17
Description of the operating elements
Menu / overview
Operation modes of the switching outputs
Switch-point with release position
Switch-point with hysteresis
Window function with switch-point
Window function with hysteresis
Operating modes
Programming
List of parameters
Mounting and electrical connection
Initial operation / operation
Factory settings / Technical data
Dimensional drawings / list of articles
page 18

manual pressure sensors page 3
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration!
Tel [phone]
Fax [phone] [e-mail]
Safety instructions
Read the product description before installing the unit. Ensure that the product
is siutable for your application without any restric-tions.
Non-adherence to the operating instructions or technical data can lead to
personal injury and/or damage to property.
In all applications please check the compliance of the product materials (see
technical data) with the media to be measured.
Never use these articles in applications where the safety of a person depends
on their functionality.

page 4 manual pressure sensors
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration! Tel [phone]
Fax [phone] [e-mail]

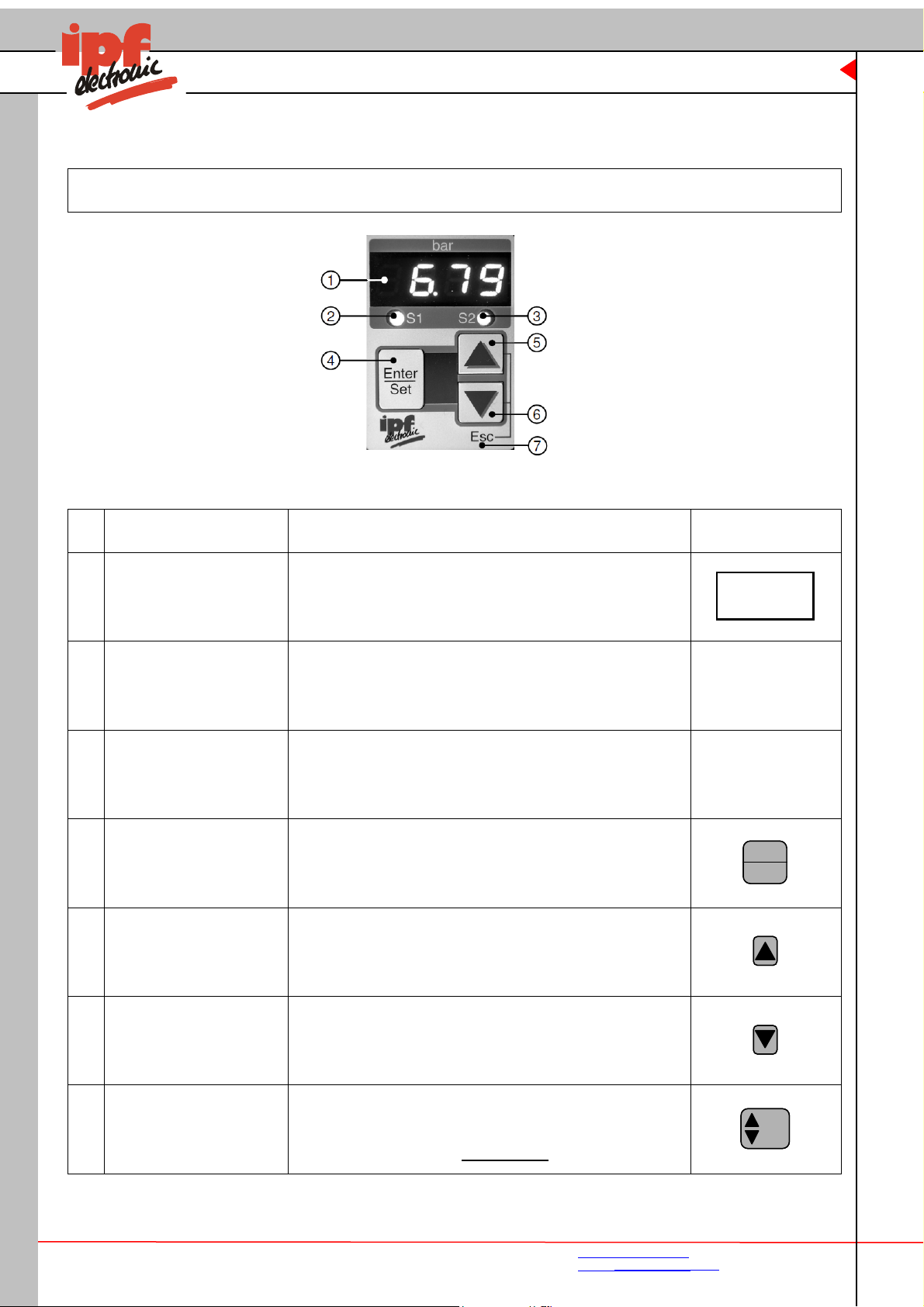

Controls and indicating elements
description function symbol
1 4-digit display displays the current system pressure
parameter, parameter values
265.4
2 LED red
S1
displays the switching state of output 1
lights, if the output is switched -
3 LED red
S2
displays the switching state of output 2
lights, if the output is switched -
4 programming button
Enter/ Set
selection of menu and parameters
setting and saving of parameters
Enter
Set
Enter
Set
5 arrow key
up
setting the parameter values
increasing the value
(fast, keep the button pressed)
6 arrow key
down
setting the parameter values
decreasing the value
(fast, keep the button pressed)
7 ESC finishing programming without saving keyboard lock: press both the arrow keys at
the same time
ESCESC

manual pressure sensors page 5
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration!Tel [phone]
Fax [phone] [e-mail]
265.4
265.4265.4
SP.2
Description of the operational controls
Display
4-digit LED display
Symbolic description:
shows the current system pressure (RUN-Mode), menu name, parameters
and parameter values.
blinking display in RUN-Mode: fault report (Error).
3 x blinking in PROGRAMM mode: saving current value after pressing
Enter/Set button.
The indication on the display depends on the programmed function.
If one of these functions is selected in the enhanced Menu, the indication
will be shown on the display.
Program button Enter/Set
Symbol:
Enter
Set
Enter
Set
Selection of menus and submenus as well as confirming and saving of parameter values.
Short pressing in the RUN-Mode →starting up the base menu.
Arrow keys
Symbol:
and
Increasing and decreasing the parameter values and scrolling of the menu.
Pressing the button continuous, the value increases or decreases in „fast-forward“ mode.
Pushing the button →the value changes step by step.

page 6 manual pressure sensors
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration!Tel [phone]
Fax [phone] [e-mail]
ESC- button
Symbol:
ESCESC
Pressing both arrow keys + at the same time results in the ESC function.
With the ESC function you can step backwards inside the menu and parameters
without saving the settings.
In order to leave all menus and submenus please press the ESC-button again and again
until you are back in the RUN-mode.
Keyboard lock
If the device is in the RUN-Mode and you press the arrow keys + at the same
time for at least 5 seconds, the keyboard lock will be activated.
The display shows „sLOC“, blinking 3 times.
Now the adjusted settings can be read but not be changed.
For cancelling the Keyboard Lock please press both arrow keys + for at least 5
seconds again.
Menu / overview
1. level

manual pressure sensors page 7
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration!Tel [phone]
Fax [phone] [e-mail]

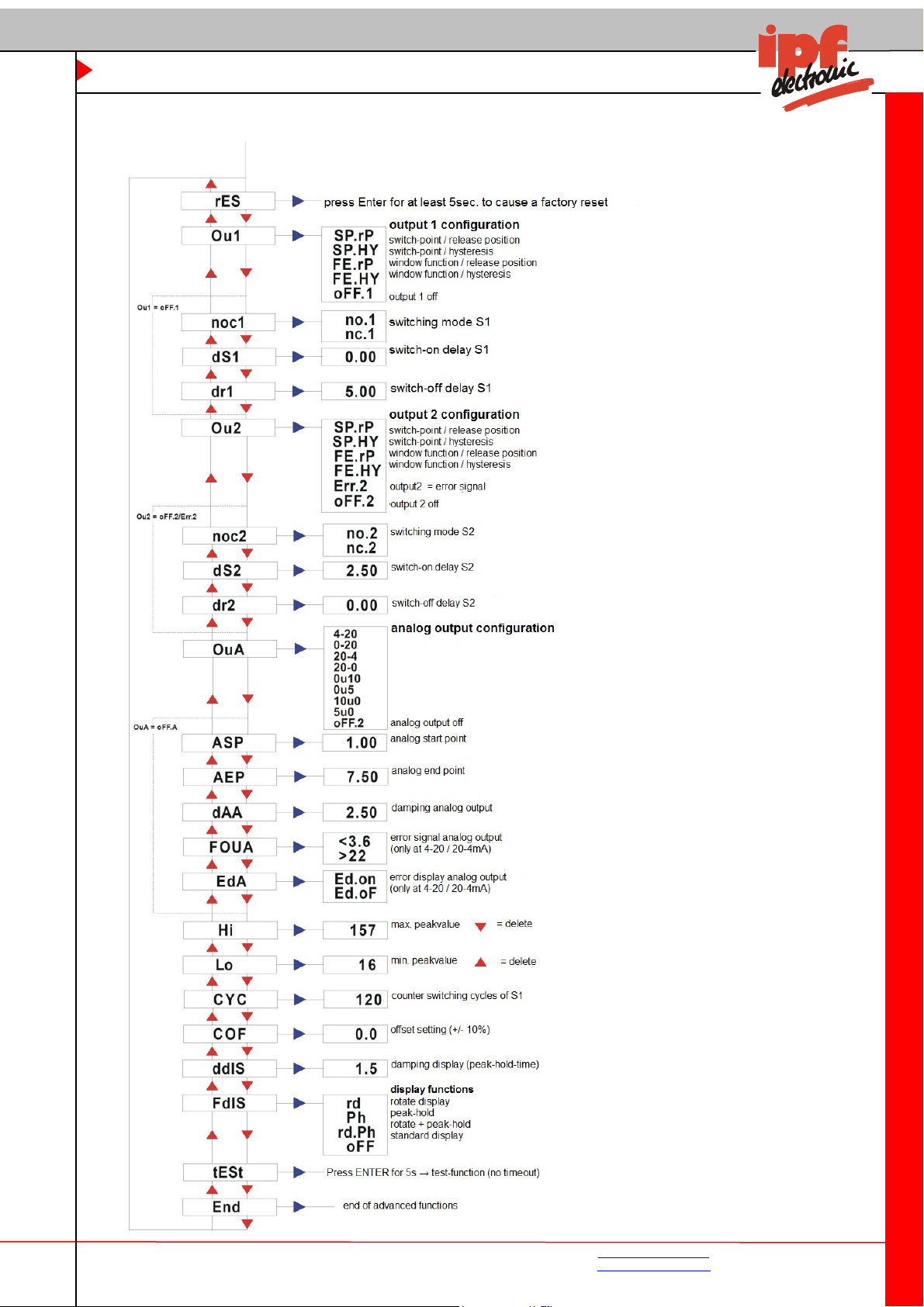

2. level

page 8 manual pressure sensors
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration! Tel [phone]
Fax [phone] [e-mail]
Operation modes of the switching outputs
notes:
•The following examples and descriptions of the switching output 1 (SP1) refer to the
switching function „normally open“ (no). If the switching output 1 is set „normally
closed“ (nc) the states are reversed.
•The minimum range between the switching outputs (SP.1 and rSP.1) is 1% of the
nominal pressure; stated by the system.
•The smallest adjustable hysteresis is 1% of the nominal pressure; stated by the sys-
tem.
•All examples are effective for output 2, if this output is defined as switching output
(SP-2) also.

manual pressure sensors page 9
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration!Tel [phone]
Fax [phone] [e-mail]
switch-point with release position
Programmed parameters: SP.1:
250.0 bar
rP.1:
40.0 bar
An increasing pressure up to SP.1 (e.g. 250bar), switches the output according to the ad-
justed switching function (no or nc). This state remains also for higher pressure.
For decreasing pressure the switching state changes with the pressure value at rP.1 (e.g.
40bar). If SP.1 will be changed, rP.1 remains the same.
The minimum range between SP1 and rSP.1 is 1% of the maximum pressure.
Switch-point with hysteresis
Programmed parameters:
SP.1:
50.0 bar
HYS.1:
20.0 bar
An increasing pressure up to SP.1 (e.g. 50bar) switches the output according to the ad-
justed switching function (no or nc). This state remains also for higher pressure.
For decreasing pressure the switching state changes after passing the hysteresis (e.g.
20bar). If SP.1 will be changed, the hysteresis HYS1 remains the same, that is the release
position is (SP.1 – 20)bar.
pressure [bar]
switch-point
release position
switch-point
pressure [bar]

page 10 manual pressure sensors
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration! Tel [phone]
Fax [phone] [e-mail]
Window function with release position
Programmed parameters: SP.1:
250.0 bar
rP.1:
40.0 bar
Due to the window function, the monitoring of a defined pressure range is possible.
As soon as the pressure reaches the adjusted range between rP.1 (40bar) and SP.1
(250bar), the output switches according the chosen switching function (no or nc).
The switching state changes if the pressure leaves the adjusted pressure range.
The values for the switching point and the release point have to be defined separately.
If SP.1 changes, rP.1 will remain the same.
Window function with hysteresis
Programmed parameters: SP.1:
50.0 bar
HYS.1:
20.0 bar
If the pressure hits the adjusted window between (SP.1-HYS.1) and SP.1 (50bar), the
output switches according to the adjusted switching function (no or nc). The switching
function changes when leaving the window. If SP.1 changes, the hysteresis will not
change, e.g. the release position is (SP.1 – 20)bar.
pressure [bar]
switching pointrelaese position
pressure [bar]
switching point SP1

manual pressure sensors page 11
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration!Tel [phone]
Fax [phone] [e-mail]
Operating modes
RUN-Mode
Normal operating mode
At power on the unit is in the Run mode. It carries out its measurement and evaluation
functions and provides output signals according to the set parameters.
The display shows the current system pressure. The yellow LED indicates the switching
state of the output.
Display mode
Indication of parameters and the set parameter value.
When the Enter/Set button is pressed briefly, the unit passes to the Display mode which
allows parameter values to be read. The internal sensing, processing and output func-
tions of the unit continue as if in Run mode.
The parameter values can be read and adjusted.
Pressing the arrow key „downwards“ briefly, scrolls through the adjustable parameters.
Pressing the Enter/Set button briefly, indicates the adjusted parameter value.
Pressing the arrow key „downwards“ or „upwards“ briefly, changes the parameter value
step by step. Pressing the arrow key continuous changes the value fast.
Pressing the Enter/Set button safes the adjusted value, the Display blinks three times.
The unit now operates with the „new adjusted“ value.
Returning to the RUN-Mode: Press the ESC button.
Enhanced menu/ Programmimg mode
Setting of the parameter values and programming the main functions.
The unit changes to the programming mode if „EF“ is set in the main menu and the En-
ter/Set button is pressed for at least 5s.
The internal sensing, processing and output functions of the unit continue as if in Run
mode.
Pressing the arrow key „downwards“briefly, scrolls through the adjustable parameters.
Pressing the Enter/Set button briefly, indicates the adjusted parameter value
Pressing the arrow key „downwards“ or „upwards“ briefly, changes the parameter value
step by step. Pressing the arrow key continuous changes the value fast.
Pressing the Enter/Set button safes the adjusted value, the Display blinks three times.
The unit now operates with the „new adjusted“ value.
Returning to the RUN-Mode: Press the ESC button several times.

page 12 manual pressure sensors
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration! Tel [phone]
Fax [phone] [e-mail]
Parameter list
SP1 Switching point S1
HYS1 / rP1
Hysteresis S1 / release point S1
SP2 Switching point S2
HYS2 / rP2
Hysteresis S2 / release point S2
EF This menu item encloses a sub menu which contains further pa-
rameters.
Press the Enter/Set for at least 5s to get access to these parame-
ters.
rES Reset (getting back to the factory settings)
Press the Enter/Set button at least for 5s to reset the system.
Thereafter the unit returns into the RUN Mode automatically.

manual pressure sensors page 13
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration!Tel [phone]
Fax [phone] [e-mail]
0u 1 Configuration of output1:
Four switching functions are possible:
SP.HY switching point / hysteresis
SP.rP switching point / release point
FE.HY window function / hysteresis
FE. rP window function / release point
oFF.1 output 1 „off“
noc 1
noc 1 is active if in Ou 1 a switching function is set.
Switching function of switching output S1:
no.1 (normally open)
nc.1 (normally closed)
ds 1 ds 1 is active if in Ou 1 a switching function is set.
on delay timer function S1
dr 1 ds 1 is active if in Ou 1 a switching function is set.
off delay timer function S1
Ou 2 Configuration output 2:
Four switching functions, the error signal or four analogue func-
tions are possible:
SP.HY switching point / hysteresis
SP.rP switching point / release point
FE.HY window function / hysteresis
FE. rP window function / release point
Err. 2 error signal
4-20 analogue signal 4-20mA
0-20 analogue signal 0-20mA
20-4 analogue signal 20-4mA
20-0 analogue signal 20-4mA
oFF.2 output 2 „off“
ASP ASP is active if in Ou 2 an analogue signal was set.
Analogue starting point:
The pressure value (low pressure) where the analogue output
starts.
AEP AEP is active if in Ou 2 an analogue signal was set.
Analogue end point:
The pressure value (higher pressure), where the analogue sig-
nal ends.
Note: The minimum range between starting point and end point
is 20% of the measuring range for the DW35 type; and 50% of
the measuring range for the DW36 type.

page 14 manual pressure sensors
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration!Tel [phone]
Fax [phone] [e-mail]
dAA dAA is active if in Ou 2 an analogue signal was set.
Damping the analogue output
This function filters peak values of short duration or high fre-
quency.
dAA-value = response time. Period of time between the chang-
ing of the pressure and the analogue signal. ( unit, seconds).
FOUA FOUA is active if in OU 2 an analogue signal was set.
Error signal of the analogue output.
The analogue output signal is <3,6mA or >22mA
(for 4-20/ 20-4 only)
EdA Error display of the analogue output.
(for 4-20mA/ 20-4mA only)
noc 2 noc 2 is active if in Ou 2 a switching function is set.
Switching function of switching output S2:
no.2 (normally open)
nc.2 (normally closed)
dS 2 ds 2 is active if in Ou 2 a switching function is set.
on delay timer function S2
dr 2 ds 2 is active if in Ou 2 a switching function is set.
off delay timer function S2
HI saving the max. pressure value of the system. The highest value
is dislayed.
= delete memory
LO Saving the min. pressure value of the system. The lowest value
is displayed.
= delete memory.
COF zero-point calibration
The internal measurand (operating value of the sensor) is offset
compared to the real measurand.
adjustment range: +/-10% of the measuring span.
ddIS Damping of the display (Peak-Hold-Time)
FdIS Dislpay functions:
rd rotate display
Ph peak-hold. Temporary display of peak values
Rd. Ph rotate display + peak hold
oFF standard display

manual pressure sensors page 15
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration!
Tel [phone]
Fax [phone] [e-mail]
tESt
Press Enter/Set button for 5s, then test-function (no Timeout)
With the Test-function you can check the adjusted parameters
without influence for the system.
The display starts with indicating the current pressure.
Due to the arrow keys the displayed value can be increased or
decreased. All parameters react as if the real pressure would
increase or decrease.
Leave the Test Mode with ESC.
END End of enhanced functions.
Press the Enter/Set button twice to get into the RUN mode
again.
The units come with an optical interface that allows all parameters to be set and ad-
justed by a PC or notebook.
The suitable interface cable and Windows-Software can be ordered with the article
number AD000011.
With the Software you are able to adjust all functions described above.
NOTE:
Use a shielded cable socket (e.g. VK205A21), in order to avoid
interfer-ences.
Mounting and electrical connection
Before mounting and removing the unit: Make sure that no pressure is applied to the
system.
Stellen Sie vor Ein- und Ausbau des Sensors sicher, dass die Anlage druckfrei ist.
Mount the pressure sensor DW35 on a G1/4 – process connection.
Mount the pressure sensor DW36 on a G1/8 – process connection.
After mounting the sensor mechanically, the control panel can be rotated by 350°.
Do not touch the opening of the pressure connection with a sharp object.
This causes irreparable damage to the partition!
The unit must be connected by a suitably qualified electrician. The national and in-
ternational regulations for the installation of electrical equipment must be observed.
Voltage supply to EN50178.
The device shall be supplied from an isolating source and protected by an overcur-
rent device. Disconnect power before connecting the unit as follows:

page 16 manual pressure sensors
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration!Tel [phone]
Fax [phone] [e-mail]
Implementing / operation
After mounting, electrical connection and programming, please check the safety of the
unit.
Fault indications during operation
display cause effect on the outputs elemination
OL
overload
exceeding the measuring range
(sensor-limit) > 120%Pnominal
-limit the system pres-
sure to Pnominal.
If necessary use a unit
with higher measure-
ing range
UL
underload
system pressure is lower than
the measuring range
SC1 short circuit S1 analogue output=
error signal*
- check wiring
- check load of S1
SC2 short circuit S2 analogue output=
error signal*
- check wiring
- check load of S2.
SC short circuit S1 and S2 analogue output=
error signal
- check wiring
- check load
ERR sensor defect, internal error
-S1 and S2 are switched
off
- analogue output = error
signal*
contact manufacturer
AO
if current output is selected:
analogue-output open
of voltage output is
selected:
short-circuit or voltage is
applied
- check wiring
- check burden resis-
tance.
NOTE:
If this indication is un-
desired, the menu item
Eda can be set Ed.of.
* the error signal of the analogue output appears only, if in Ou2 an analogue signal (4-
20mA oder 20-4mA) was set.
The error signal (< 3.6mA or >22mA) can be set in menu item FOuA.

manual pressure sensors page 17
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration!
Tel [phone]
Fax [phone]
[e-mail]
Factory settings
OU 1 SP.rP
OU 2 4 - 20
SP 1 50% of nominal pressure
rP 1 10% of nominal pressure
SP 2 75% of nominal pressure
rP 2 10% of nominal pressure
technical data
pressure range [bar]
excess pressure [bar]
pressure pick-up
operating voltage
voltage drop
current consumption
switching outputs
time delay
operating position adj. range
release position
switching frequency
repeatability
current output
burden
error recognition
rise time
muting
linearity error
system pressure display
switching function display
operating temperature
temperature drift
conn. to pressure system
sensor head material
housing material
system of protection
electrical connection
optical interface
see list of articles
50% of nominal pressure (PN) for DW35 (6bar for DW36)
peak value memory every 2ms (display via PC)
12 to 32V DC, reverse polarity protection
(15 to 32V DC, if operated with voltage output)
< 2V
< 60mA
2 x pnp-switching, no/nc 1A short circuit protection
0 to 20s, adjustable
1 to 100% of PN,
0 to 99% of PN
max. 125Hz
< ±0,1% of accumulated value
0/4 to 20mA, 20 – 0/4mA
max.analog outp RL [W]=(Ub-8V) / 20mA. if line breakage (current) - short-circuit (voltage ≥1V)
5ms (10% - 90% of PN)
0 to 20s, adjustable
max. ±0.25% of PN
4 x 7 segment LED-Display
2x LED red
-20°C to +80°C
< ±0,2% / 10K (-10°C to +70°C)
DW35: G1/4A, SW 22 (DW36: G1/8, SW 22)
stainless steel 1.4435 / ceramic
PA6.6, polyester
IP65 to EN 60529
M12 connector,8-pin
9600 Baud, via optical adapter at USB-Port

page 18 manual pressure sensors
ipf electronic gmbh
Kalver Str. 25 - 27
58515 Lüdenscheid - Germany
www.ipf-electronic.com Subject to alteration!
Tel [phone]
Fax [phone] [e-mail]
dimensional drawings
fig.1: DW35xxxx fig.2: DW36xxxx
list of articles
article-no.
design description
housing voltage output curre
nt connection fig.
DW36312H
36-G1/8
-0.5 to +0.5bar, ceramic polyester/V4A 12-32V DC pnp,no/nc,analog 2x1A M12-conn8pin 1
DW36312J
36-G1/8
-1 to +1bar, ceramic polyester/V4A 12-32V DC pnp,no/nc,analog 2x1A M12-conn8pin 1
DW363120
36-G1/8
-1 to 0bar, ceramic polyester/V4A 12-32V DC pnp,no/nc,analog 2x1A M12-conn8pin 1
DW363121
36-G1/8
0 to 1bar, ceramic polyester/V4A 12-32V DC pnp,no/nc,analog 2x1A M12-conn8pin
1
DW35312D 35-G1/4A 10bar, stainless steel polyester/V4A 12-32V DC pnp,no/nc,analog 2x1A M12-conn8pin
2
DW35312F 35-G1/4A 50bar, stainless steel polyester/V4A 12-32V DC pnp,no/nc,analog 2x1A M12-conn8pin
2
DW353124 35-G1/4A 100bar, stainless steel polyester/V4A 12-32V DC pnp,no/nc,analog 2x1A M12-conn8pin
2
DW35312G 35-G1/4A 200bar, stainless steel polyester/V4A 12-32V DC pnp,no/nc,analog 2x1A M12-conn8pin
2
DW353126 35-G1/4A 400bar, stainless steel polyester/V4A 12-32V DC pnp,no/nc,analog 2x1A M12-conn8pin
2
DW353127 35-G1/4A 600bar, stainless steel polyester/V4A 12-32V DC pnp,no/nc,analog 2x1A M12-conn8pin
2
AD000011 accessories opt. interface USB connection, software 1.5m cable
w/o
Revised version: 18.01.2016
SW22
DW35
G1/4A
SW22
DW36
G1/8
122 108
DW35312K 35-G1/4A -1 ... +10bar, stainless steel polyester/V4A 12-32V DC pnp,no/nc,analog 2x1A M12-conn8pin 2
AY000060 accessories mounting clip
w/o
