iSinwheel X3 User manual

01
Package Contents
When unboxing your X3 or X3 Pro electric scooter, please verify that
the below items are included in the package. If anything is missing or damaged,
please contact isinwheel customer service for support: [email protected].
Keep the package box to ship back the scooter when necessary.
Release the accelerator and the kinetic energy recovery system (KERS) initiates
automatically to brake slowly. And squeeze the brake lever for a sudden brake.
Hex Wrench *5
Keys *2 Stem Screw *6 Charger *1
Manual *1Pneumatic tire *1 Quick Start *1 Bell *1

Product Overview
Front Light
02
LCD Dashboard
Grips
Folding Mechanism
Throttle
lock
Charging Port
Rear Brake
Kickstand
Motor
Taillight
Front Brake

Control Panel
ECO
Cruise Control
POW
Speed
Instructions for Dashboard
03
Insert the key into the lock hole, then turn right to power on, turn left to off.
Click to switch the power mode.
One-click to turn on/off the front light.
Long press the front light for 5 seconds to turn on/off cruise control.
Battery
Light On / Off

1. Push up the black button to open the
folding lever, and lift up the stem until you
align it. Twist the knob clockwise to tighten
the folding mechanism. Close the folding
lever until you hear a "CLICK" sound.
2. Connect all of the wires coming from the
stem according to the connector pins.
Assembly
12
3. Install the handlebar into the stem. Install
the 6 PCS screws (two on each side) into the
holes, then tighten each screw properly with
the included hex wrench. (Tips: Don't tighten
only one side one time, visit www.isin-
wheel.com for additional help with assembly,
including a step-by-step video.)
4.Make sure that the scooter's turned off. To
fold, push up the black button, then open the
white folding mechanism, and bend the
handlebar.
3 4

05
Product Safety Notice
Always wear a helmet, elbow pads, and knee pads when riding your electric
scooter.
Don't Ride Until You Read This:
Make sure your electric scooter has a full charge, and all screws are closely
tightened before riding.
Always be aware of local road laws, and follow them.
Do not ride under the influence of drugs or alcohol.
Always respect pedestrians.
Do not ride under heavy rain or extreme temperature conditions. Do not ride in
a puddle deeper than 1.5 inches. The electric scooter may slide causing injury.
These conditions may damage the electronics and void the warranty.

06
Avoid Water --- The electric scooter has an IPX4 rating. The electronics may be damaged
due to water and water damage is not covered by our warranty. Riding in heavy rain or
extreme temperature conditions is also very dangerous and may result in injury.
Keep Away from Fire --- Do not bring the electric scooter near the fire.
Proper Storage --- Avoid prolonged exposure to sun or rain and avoid storage in places
with high temperatures or corrosive gas.
Abuse --- We do not cover physical damage due to negligent care and extreme riding.
Safety Ride --- Whenever you ride the isinwheel electric scooter, you risk severe injury or
even death from loss of control, collisions, and falls.
Be Careful --- Use caution and ride at your own risk.
No Modification --- Only use original brand accessories. Unauthorized modification is
strictly prohibited.
whether the locking screws of the motor, front wheels, folding joints, etc. are fastened and
Before Riding --- Be sure to check that the entire scooter is in good condition, such as
reliable. Do not ride at will before correcting any problems.
Before Riding --- be sure to check that the braking system is functioning properly, also be
sure check that all safety labels are in place and that you understand the safety warnings.
No Hanging --- Do not hang heavy objects on the handlebars.
No Use --- Pregnant women, the disabled, and those with heart problems should not use
this product.
Save Electricity --- To conserve electricity, do not frequent braking, ride against the wind,
and carry heavy loads including other people.
Age Limit --- The electric scooter should never be used by children under the age of 16.
Not Overload --- Never exceed the 440 lbs (200 kg) maximum load rating.
Away Danger --- Keep hands and all body parts away from moving parts while operating
the electric scooter.
Caution --- Make note that additional insurance may be required to cover situations you
encounter while riding an electric scooter. It is recommended that you contact an insurance
company or broker for advice and consultation.
Caution --- Closely follow the safety instructions in the manual. iSinwheel shall not be
liable for any financial losses, physical injuries, accidents, legal disputes, and other interest
conflicts resulting from actions that violate user instructions.
Warning Message

Your scooter will be fully charged when the LED
indicator on the charger changes to green from red.
With charging protection, it will cut off charging
automatically after fully charge.
Even so, we still don't recommend charging your
scooter for a long time more than 24 hours at one time.
Do not connect the charger if the charging port is wet.
Keep the charging port closed when not charging.
Open the rubber cover on the front of the deck and connect the included charger for
charging.
07
Charging

Riding Basics
Wear a helmet, elbow pads, and knee pads in
case of falls and injuries either you are a
beginner learning to ride or you are a
seasoned rider.
1. Turn the power on, and check the battery
level indicator.
2. Stand with one foot on the deck and one
foot on the ground. Scoot yourself with the
foot on the ground.
3. When the scooter starts to move forward,
put both feet on the deck and press the
accelerator.
4. Release the accelerator and the kinetic
energy recovery system (KERS) initiates
automatically to brake slowly. And squeeze
the brake lever for a sudden brake.
5. Tilt your body to the steering direction as
you turn, and slowly turn the handlebar.
08

09

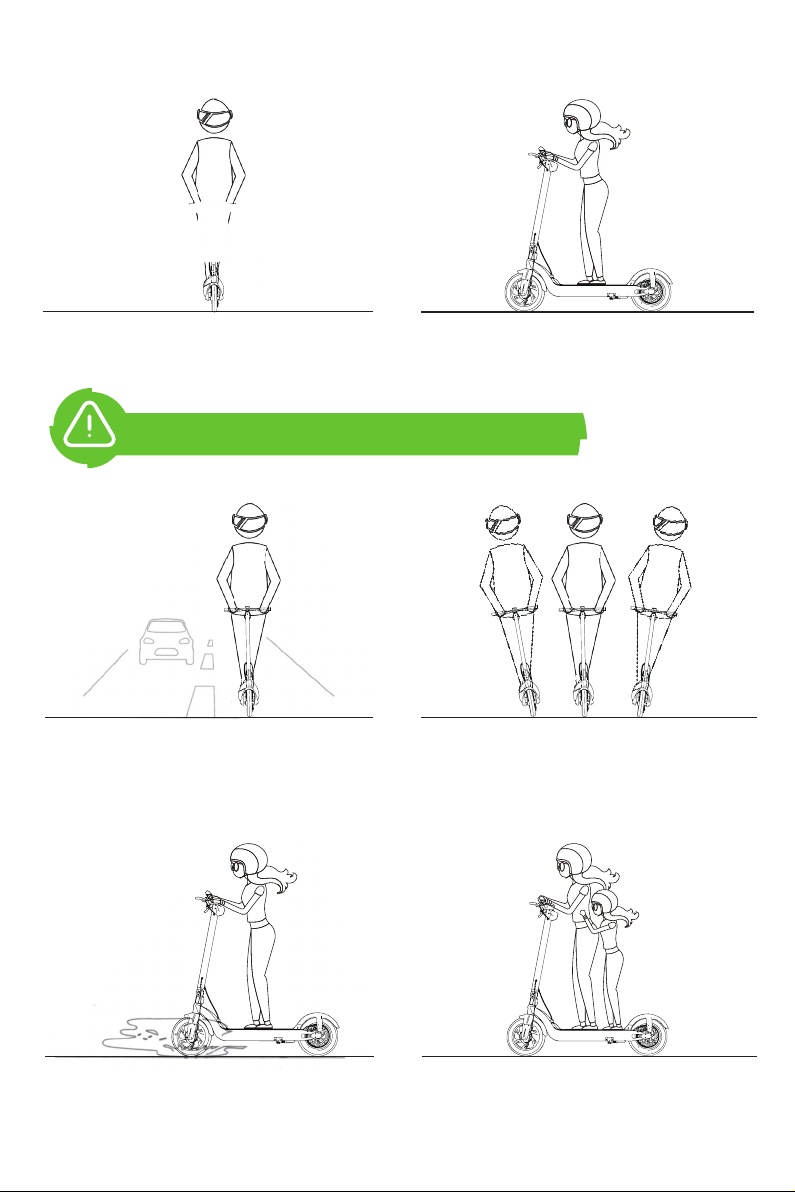

Safety Instructions
Do not ride in the rain. Please keep a medium or low speed (5mph)
when you ride across speed bumps, elevator
door sills, bumpy roads or other uneven
surfaces. Slightly bend your knee to better
adjust mentioned surfaces.
Look out for doors, elevators and other
overhead obstacles.
Do not accelerate when you go downhill.
Do not press the accelerator when you're
walking alongside the scooter.
Always steer clear of obstacles.

10
Dangerous Actions (No Attempting!)
Do not hang bags or other heavy stuff on the
handlebar.
Keep both feet on the deck all time.
Do not ride in traffic lanes or residential areas
where vehicles and pedestrians are both
allowed.
Do not turn the handlebar violently during
high-speed riding.
Do not ride in a ponding that is higher than
20mm.
Do not ride with anyone else, including
children.

11
Keep your feet off the rear mudguard. Always keep your hands on the handlebar.
Do not touch the disc brake. Do not try riding up or down stairs, and
jumping over obstacles.

12
Safety Instructions
If you see stains on the scooter's body, wipe them off with a damp cloth. If you cannot
scrub off the stain, put on some toothpaste, and brush them with a toothbrush, then wipe
them off with a damp cloth.
Notes:
• Do not clean the scooter with alcohol, gasoline, kerosene, or other corrosive and volatile
chemical solvents to prevent dire damage.
• Do not wash the deck with a high-pressure water spray. During cleaning, make sure that
the scooter's turned off, the charging cable is unplugged, and the rubber flap is closed as
water leakage may result in electric shock or other major problems. When the scooter is
not in use, keep it indoors where it is dry and cool.
• Do not put it outdoors for a long time. Excessive sunlight, overheating, and over-cooling
will shorten the battery pack's lifespan．
1. Use original battery packs. Use of batteries of other models or brands may bring about
safety issues,
2. Do not touch the contacts. Do not dismantle or puncture the casing. Keep the contacts
away from metal objects to prevent short circuit which may result in battery damage or
even injuries and deaths,
3. Use original power adapter to avoid potential damage or fire,
4. Mishandling of used batteries may do tremendous harm to the environment. To protect
natural environment, please follow local regulations to properly dispose used batteries.
5. After every use, fully charge the battery to prolong its lifespan.
1. Please try to store the scooter in a cool and dry place between 14℉and 104℉. In
extremely humid environments the interior of the scooter may suffer condensation or
even water accumulation, which may damage the battery rapidly. Devices are not
intended for use at elevations greater than 2000 m above sea level. Prolonged Exposure
to UV Rays, Rain and the Elements May Damage the Enclosure Materials, Store Indoors
When Not in Use.
2. In daily use, try to recharge the scooter after completely exhausting the battery. If the
battery level is low, charge it as soon as possible.
3. Please charge the scooter every other month to preserve the battery.
Cleaning and Storage
Battery Maintenance
Storage and Disposal

13
Specification
X3 X3 Pro
Motor
Type
Unfolded Size
Folded Size
Battery
Charging Time
Top Speed
Maximum Range
Climbing Angle
Maximum Load
Brake
Light
Tire
Product Weight
48V 1200W BLDC Hub Motor
Specification
50*19.6*20 (in) / 127*50*52 (cm)
50*19.6*47 (in) / 127*50*120 (cm)
Lithium Ion Battery, 48V 15AhLithium Ion Battery, 48V 12.5Ah
6-7 Hours 7-8 Hours
25-28 MPH
24-31 Miles 31-37 Miles
25%-40% (Slightly different depending on the riding environment)
330-440 LBS / 150-200 KG
Front drum brake and Rear disc brake ( Rear-wheel drive)
LED Lights
12 INCH
48-55 LBS

16
E-mail Service: [email protected]
www.isinwheel.com
Facebook: @isinwheelOfficial
YouTube: isinwheelOfficial
TikTok: @isinwheel
Question & Answer
Contact us if you experience issues relating to riding, maintenance and safety,
or errors/faults with your isinwheel X3 or X3 Pro electric scooter.
E1 Throttle failure Replace the throttle.
Replace the dashboard and brake.E2 Brake failure
E3 High current protection / motor
high temperature warning
Shut down and stop riding, turn it on again after
5 minutes. If the code still exists, the controller
and motor need replacing.
Replace the motor, accelerator, and controller.
Replace the dashboard and controller.
E4 Hall failure
E5 Communication failure
1. What if the E-Scooter arrived with missing accessories or broken parts?
A: Please take a photo and send to isinwheel support team by sending email:
[email protected]. We will reply you soon and send correct accessory
or part replacement.
2. Is the tire replaceable and how to replace the tire?
A: Yes, the tire is replaceable. Please contact isinwheel support team for more information
or search the video “How to replace the offroad tire” in YouTube instead.
3. What if the rear disc brake of the scooter doesn't work well?
A: You may please contact us for instructions of brake adjusting, or search "How to adjust
rear brake of scooter" in YouTube for tutorial video as well.
4. What should I do when I hear an unusual noise coming from the rear wheel?
A: It usually means your disc brake tilts to cause friction noise. Please see Disc Brake
Adjustment page. If you still have problem, please contact us for help.
5. Why does the screen display an error code?
A: If you see any error code below, please contact isinwheel support team to remove the
error code.
