Javes IMD-440 User manual

IMD-440 USB
LED Micro Projector
User Menu (Preliminary)

IMD-440 USB LED Micro Projector
- 1 -
Contents
Introduction................................................................................................... 2
Features ................................................................................................................................................. 2
System Requirements............................................................................................................................. 2
Package Contents................................................................................................................................... 2
Note ....................................................................................................................................................... 2
Device Installation on Windows .................................................................. 3
Device Driver Installation ...................................................................................................................... 3
erification device driver installation .................................................................................................... 5
Device driver un-installation .................................................................................................................. 6
Function description..................................................................................... 7
“Primary” Mode .................................................................................................................................... 7
“Extended” Mode .................................................................................................................................. 7
“Mirror” Mode....................................................................................................................................... 7
“OFF” Mode.......................................................................................................................................... 7
Technical Specifications ............................................................................... 8
Q & ............................................................................................................. 9
Troubleshooting Tips.................................................................................... 9
Disclaimer .................................................................................................... 10

IMD-440 USB LED Micro Projector
- 2 -
Introduction
Thank you for purchasing the USB 2.0 L OS Projector. The product
will add a secondary display to your existing Desktop or Notebook
computer running Windows 2000/XP/Vista.The connected display can
act as mirrored or extended desktop of the main display on your P .
The flexibility of the common USB 2.0 technology saves the need to
open the computer or struggle with compatibility issues related to the
VGA card.
Features
√
√√
√ olor Filter L OS inside
√
√√
√ Resolution 640X480
√
√√
√ 100c.c. Small in Size
√
√√
√ 80g Light in Weight
√
√√
√ Multi graphics display mode – Primary, Extended and Mirror
√
√√
√ Plug-and-Play USB connectivity
√
√√
√ USB 2.0 compliant
System Requirements
√
√√
√ Pentium 4 / eleron Family, AMD K6 / Athlon / Duron Family.
1GHz or higher processor.
√
√√
√ 512MB RAM or higher(Higher memory recommended for optimal
performance)
√
√√
√ Available USB 2.0 Port
√
√√
√ Windows 2000 SP4 / Windows XP SP2 / Windows Vista
Pac age Contents
√
√√
√ USB LED Micro Projector
√
√√
√ USB 2.0 Particular able
√
√√
√ D ( User Menu and driver )
√
√√
√ Tripod
Note
√
√√
√ Unplug the device to your P or Notebook before executing the
setup or un-installation program.

IMD-440 USB LED Micro Projector
- 3 -
Device Installation on Windows
Device Driver Installation
Follow these steps to install your new USB 2.0 LCOS Projector:
1. Insert the installation D and follow the instructions.
2. The dialog will appear. Then press the “ ontinue” button.
3. When the installation
is completed, please
reboot the computer.
4. After reboot, plug the L OS Projector into an available USB 2.0
port.(Note *)

IMD-440 USB LED Micro Projector
- 4 -
5. And then the icon will appear at the tool bar.
6. You should be able to use the L OS Projector as a secondary
display now.
7. Right click on the icon , you can select the
display mode as described at “Function
Description” ,and set the “Hotkey Setting”.
8. Select your preference keys as the Hotkey of
the different display modes on the dialog.
Note *: There are 2 types of connect ors o f
th e p a rticul ar US B c a bl e. P l eas e plug t h e
both c o n n e c t o r s t o yo ur c o m puter f o r t h e
normal operation.
T h e c on n ec to r i n c l u d e s p o w e r a n d
signal wires. If only the connector is
plugged, the projector still can work in
darker mode.
T h e c o n n e c t o r o n l y i nc l ud e s p o we r
wires. The projector won’t work, if only
the connector is plugged.

IMD-440 USB LED Micro Projector
- 5 -
Verification device driver installation
The following procedure allows you to verify the device driver
installation.
Please right click “My omputer” → ”Properties” → ”Hardware”
→ ”Device Manager”, and then double click ”Display adapters”
and ”Universal Serial Bus ontrollers”.
√
√√
√ It shows a new direction:“USB2.0 Projector-0902” on ”Universal
Serial Bus ontrollers”.
√
√√
√ It shows two new directions: “USB2.0 Projector-0902(Extend) &
USB2.0 Projector-0902(Mirror)” on “Display adapters”.

IMD-440 USB LED Micro Projector
- 6 -
Device driver un-installation
Step 1:
Start menu:
lick “Start” → “ ontrol Panel” → “Add or Remove Programs”.
lassic start menu:
lick “Start” → “Settings” →“ ontrol Panel” → “Add or Remove
Programs”.
Select “USB2.0 Projector” item. lick “Remove” button.
Step 2:
Unplug the device and click “OK” to continue.
Step 3:
Select “Yes, I want to restart my computer now” and click “Finish” to
reboot. After reboot, you will complete the driver un-installation.

IMD-440 USB LED Micro Projector
- 7 -
Function description
This section describes the main functions provided by the USB LED
Projector.
It supports 3 kinds of Display mode: Primary, Extended and Mirror.
“Primary” Mode
The system’s main graphics adapter will be automatically off. And
the USB LED Projector will now act as the primary Windows
desktop. Please be advised that some display utility and drivers
that be shipped with certain AGP and built-in display adapters may
prevent this option from working on some systems. You can disable
the other utility program (usually found in the same toolbar located
on the bottom right hand corner) to make the function work properly.
“Extended” Mode
The USB LED Projector will work as “Extended” desktop which
extends the primary Windows desktop of your system. You can
change the relative position of the extended desktop under the
Display Properties.
“Mirror” Mode
By setting this mode, the Windows desktop will be mirrored /
replicated to the secondary RT/L D monitor. The primary screen
resolution will follow the USB LED Projector setting.
“OFF” Mode
This option disables the USB LED Projector on the system .

IMD-440 USB LED Micro Projector
- 8 -

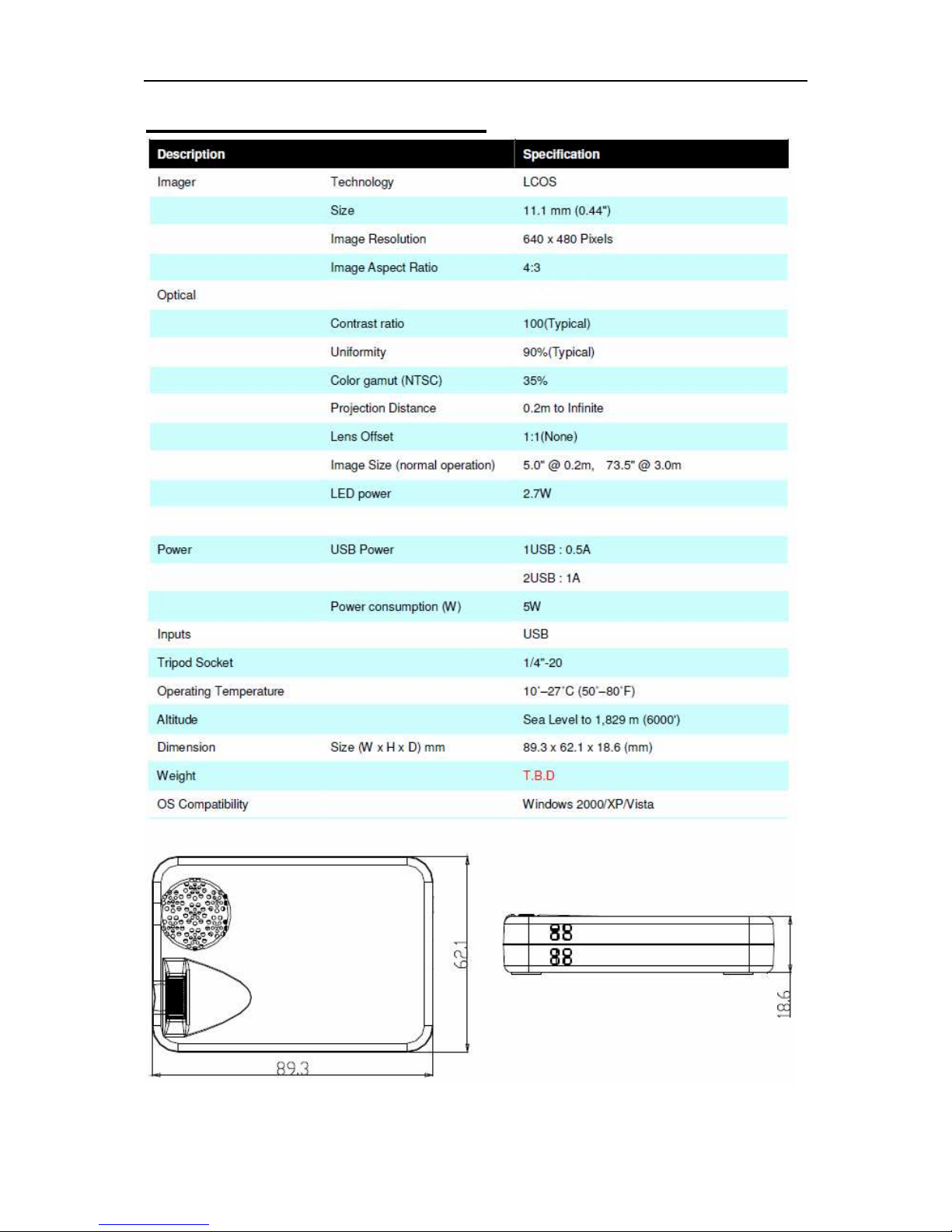

Technical Specifications

IMD-440 USB LED Micro Projector
- 9 -
Q & A
The section describes the common Q&A regarding to installation or
operation of the USB LED Projector.
Q: Why can’t we make the USB LED Projector primary display?
A: Some video cards ship their product with a utility that prevents
other video cards from being set as the primary card. heck the
bottom right hand corner taskbar for the utility. Disable the utility
before switching our adapter to be the primary display mode.
Q: Why won’t my DVD player work when I move it over to the
extended display?
A: Some DVD playback software packages do not support play on
a second display adapter of any kind. You may try to open the
program in the secondary display first before playing the DVD.
Q: How come my video will not play on Media Player if I move it
over to the extended desktop?
A: heck that yo u h ave move d t h e Me dia Pl a ye r windo w
completely over the second screen.
Q: Why does my mouse not move pass the right side of the screen
as it should on extended desktop?
A: heck the display settings and make sure your display number
“2” is on the right side of display number “1”. You can rearrange
how Windows treats each display in relation to each other in
Display Properties settings.
Troubleshooting Tips
The following trouble shooting tips may help if you are experiencing
the difficulties using the device. ontact your dealer for additional
assistance if needed.
heck to make sure that all connectors are plugged in correctly.
Make sure the USB port is USB 2.0.
Try a different USB 2.0 port or another computer.
heck the power led indicator is ON.
Try connecting the adapter directly instead of through the hub.
Unplug all other USB devices from the system.
Make sure to restart your computer after the driver installation.

IMD-440 USB LED Micro Projector
- 10 -
Unplug the device and re-insert it.
For better performance on watching DVD on the secondary display,
it is recommended to use the following license free software.
Media Player lassic:
http://sourceforge.net/projects/guliverkli/
For better DVD movies file decoder complied with Windows Media
Player, suggestion the following free software.
http://www.free-codecs.com/download/K_Lite_ odes_Pack.htm
Selecting Primary mode may disable the main system display on
certain Intel graphics solution based computer system.
If you have problems during the boot up process, start your
computer in Safe Mode and un-install the driver. Hold the TRL
key until the Windows start menu appears and select Safe Mode.
Disclaimer
Information in this document is subject to change without notice.
The manufacturer does not make any representations or warranties
(implied or otherwise) regarding accuracy and completeness of this
document and shall in no event to be liable for any lose of profit or
any commercial damage, including but not limited to special,
incidental, consequential, or other damage. No part of this
document may be reproduced or transmitted in any form by any
means, electronic or mechanical, including photocopying, recording
or information recording and retrieval systems without the express
written permission of the manufacturer.
