jbc CV-E User manual

www.jbctools.com
Ref. CV-E
English 2
Page
Compact Desoldering Station
with Pneumatic Pump
INSTRUCTION MANUAL
Deutsch 38
Español 20
中文 54

2

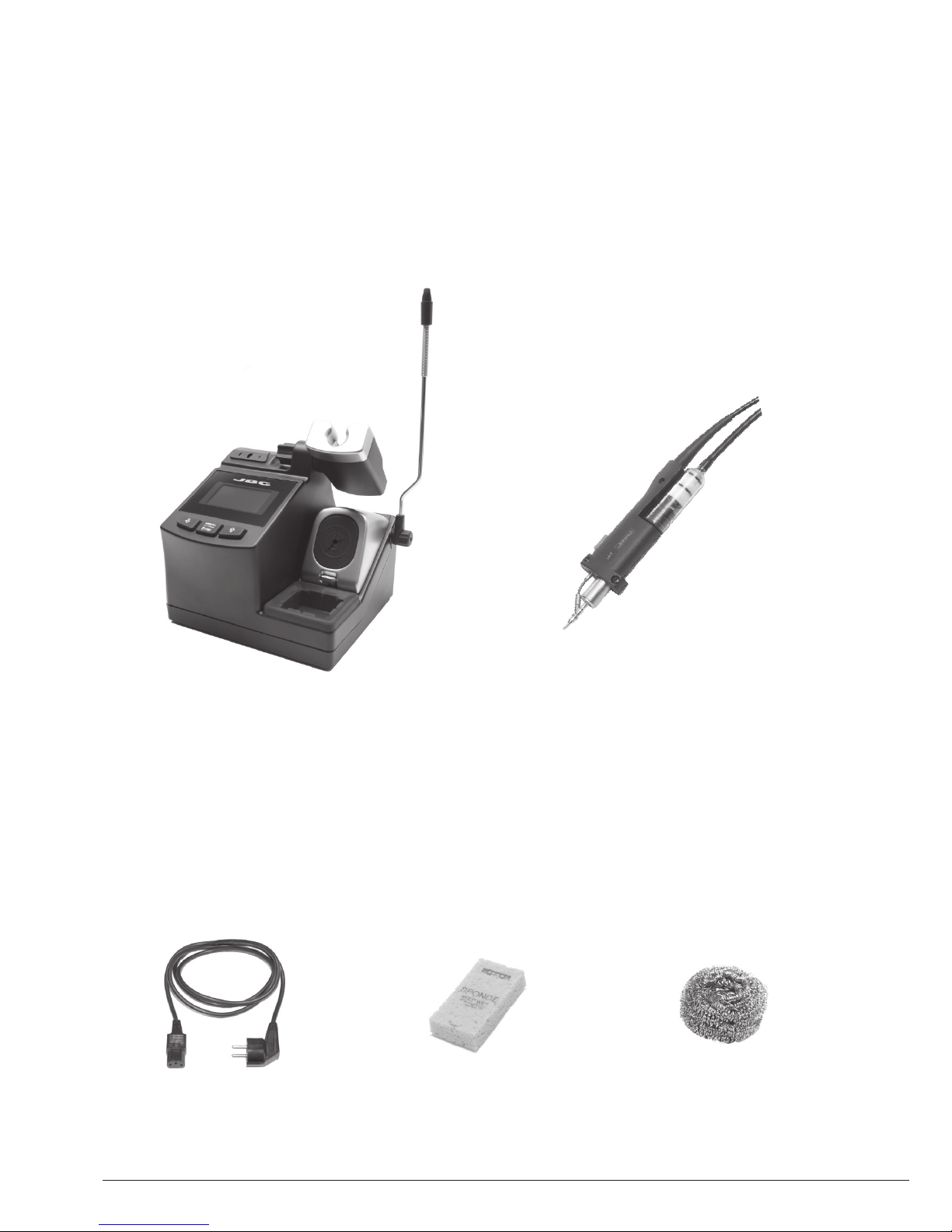

Packing List
The following items should be included:
Power Cord ................ 1 unit
Ref. 0009417 (100V/120V)
0009401 (230V)
Brass Wool ..................1 unit
Ref. CL6210
Sponge ....................... 1 unit
Ref. S0354
Micro Desoldering Iron ........................ 1 unit
Ref. DS360-A
CSV Control Unit .................................... 1 unit
Ref. CSV-1E (120V)
CSV-2E (230V)
CSV-9E (100V)

www.jbctools.com

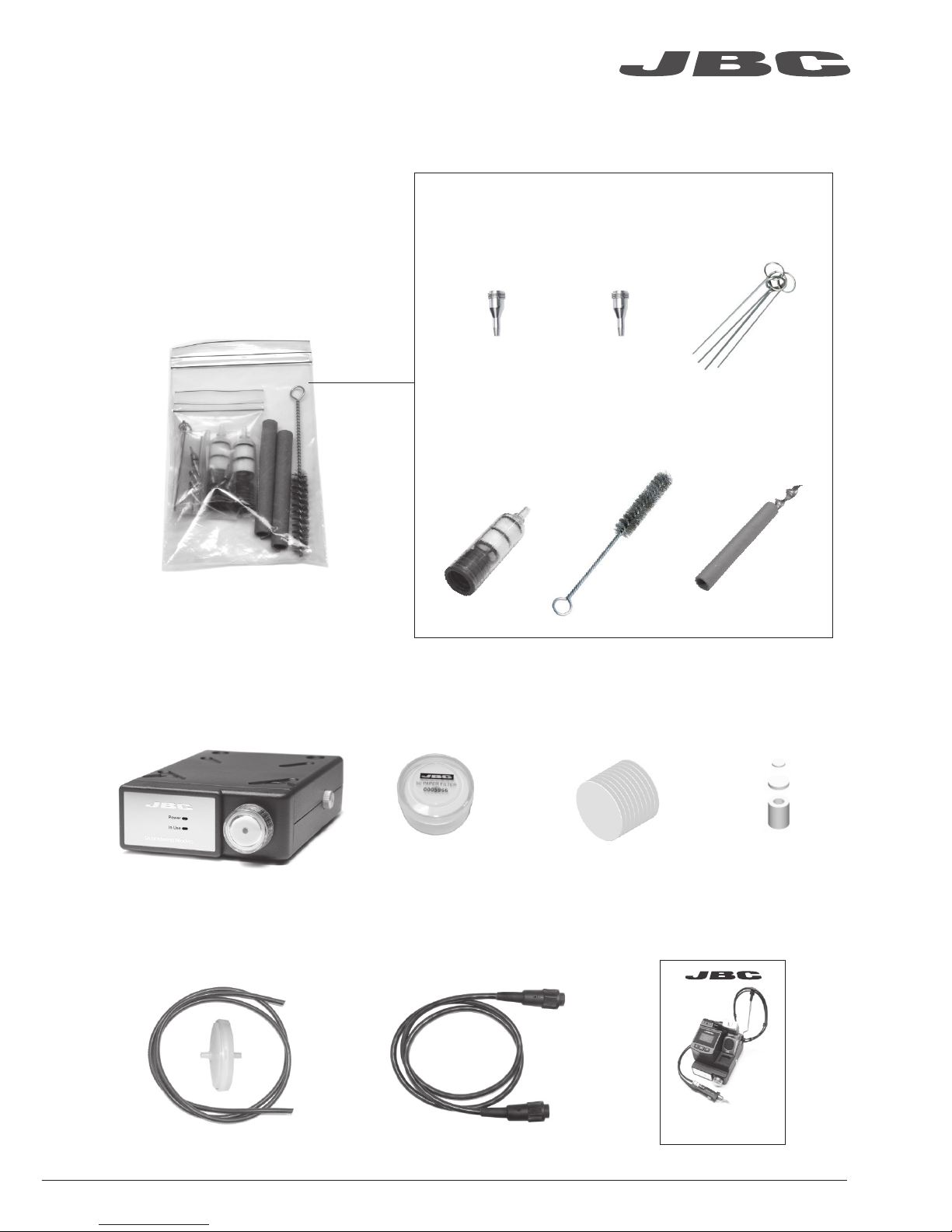

3
Manual ......................... 1 unit
Ref. 0016887
www.jbctools.com
Compact Desoldering Station
with Pneumatic Pump
Ref. CV-E
Pneumatic Desoldering
Module ........................... 1 unit
Ref. MV-A
Tips
(5 units)
Ref. C360002
Tips
(5 units)
Ref. C360004
Cleaning Rods
Ref. 0008466
Filter
(2 units)
Ref. 0008473
Cleaning brush
Ref. 0008297
Solder Collector
(2 units)
Ref. 0008467
DS360-A Accessories
Ref. 0010259
50 Filter Box .... 1 unit
Ref. 0005966
Suction Filter ................ 1 unit
Ref. 0821830
Module Cable
connector ...................... 1 unit
Ref. 0010207
10 Cotton
Filters ................ 1 unit
Ref. 0781046
Escape Filter .. 1u.
Ref. 0008446

* A compressed air outlet is necessary at the operator´s bench.
Module Cable
Ref. 0010207
Air pressure range
supply (4 - 6 bar)*
4
Features
Power Socket
Main switch
Equipotential
connection

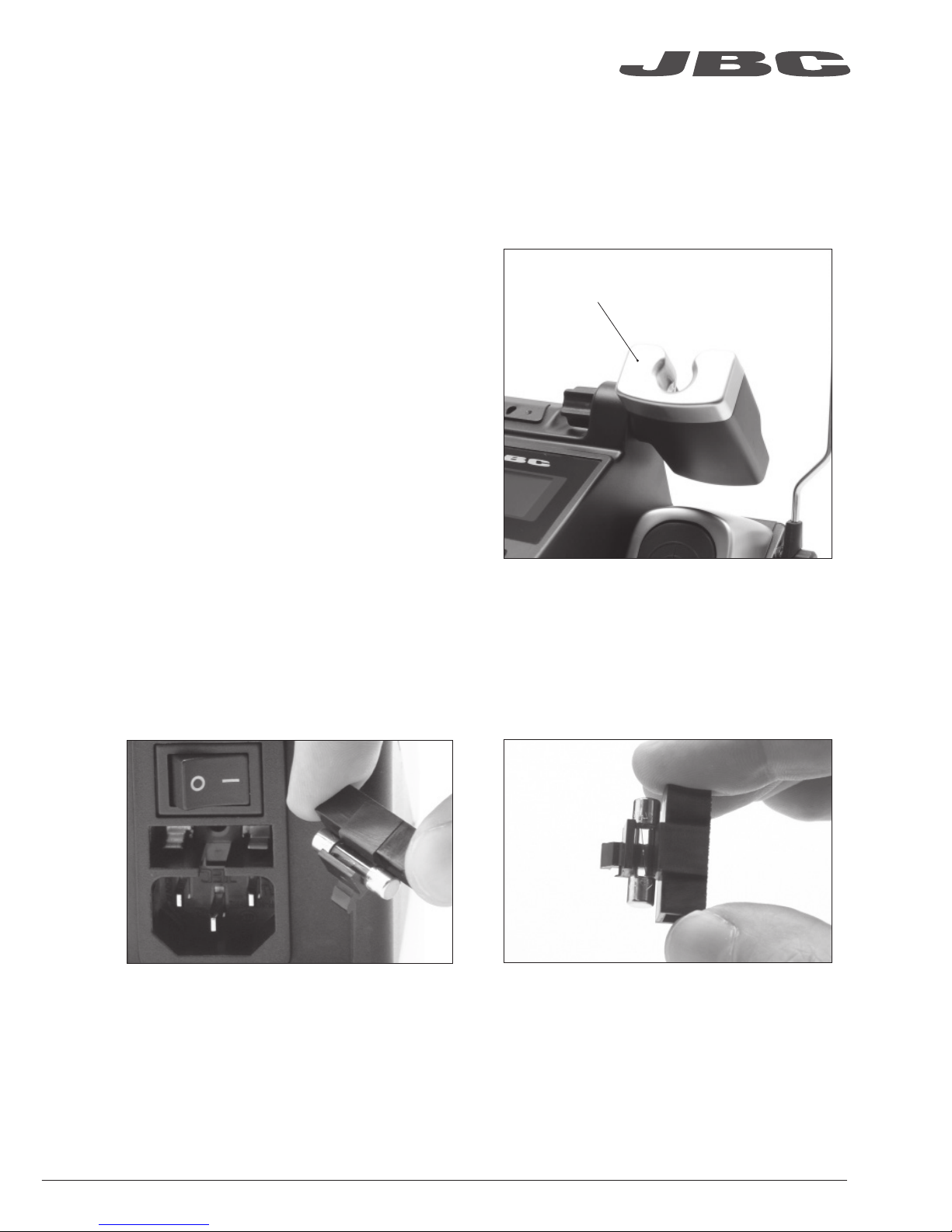

Fuse
USB-B
Micro
Desoldering Iron
Ref. DS360-A
Suction Filter
Ref. 0821830
Cable collector
Brass wool tip cleaner
with antisplash
membrane
Process
Screen
Adjustable Stand:
Intelligent Heat
Management

www.jbctools.com
5

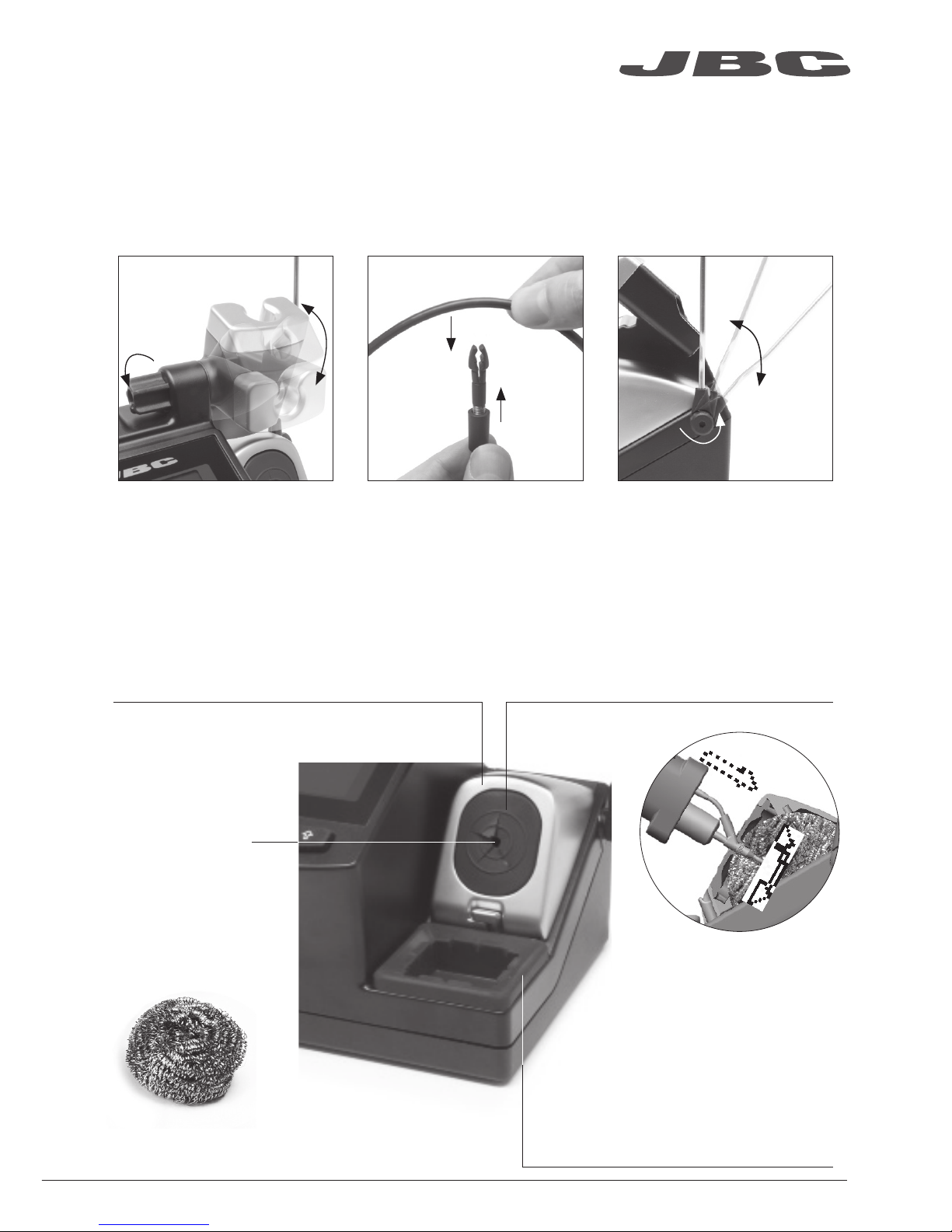

Adjustable stand Cable collector (Ref. CC3702)
Adjust the tool stand to suit
your work position.
Place the cable on the collector so that the working area is free
of cable.
Tip Cleaner
Brass Wool
Ref. CL6210
Very effective
cleaning method.
Leaves a small layer
of solder on the tip
preventing oxidation
between cleaning
and rewetting.
Select the option to suit your needs and improve the thermal transfer of the tip.
Splashguard
Ref. 0017576
When using the brass wool, it prevents
splashing of solder particles
.
Antisplash Membrane
Ref. 0017574
Prevents splashing and keeps the work area
clean.
Wiper
A temperature resistant receptacle
for removing excess solder by gently
tapping or wiping.
If the tip is very dirty,
JBC recommends first
cleaning it with the wiper
to remove excess solder.

6

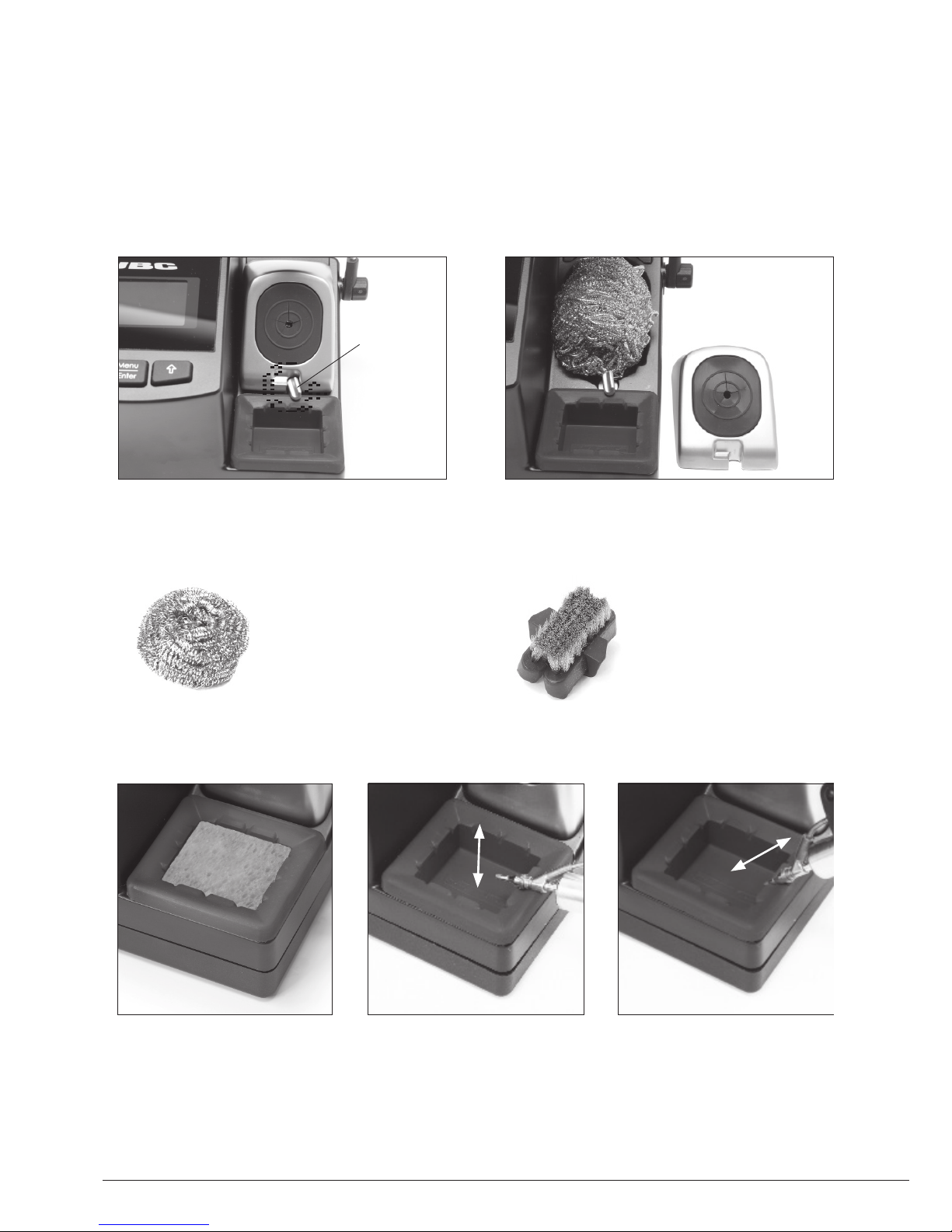

Removing the splashguard:
1. Unlock the splashguard. 2. Lift off.
Lock
More cleaning options (not supplied):
Inox Wool
Ref. CL6205
Provides a superior
cleaning of the tip.
Metal Brush
Ref. CL6220
When used carefully, it
provides a more thorough
cleaning.
Sponge
Ref. S0354
The least harmful cleaning
method. Keep the sponge
damp with distilled water to
avoid tip wear.
Tapping:
Tap gently to remove excess
solder.
Wiping:
Use the slots to remove
remaining particles.
Wiper

www.jbctools.com
7
C360-003
ØA: 1.4
ØB: 1
Ømax.pin: 0.8
C360-002
ØA: 1.2
ØB: 0.8
Ømax.pin: 0.6
C360-004
ØA: 1.4
ØB: 1
Ømax.pin: 0.8
Important:
Change tips only when the tool is hot.
Ø Inner nozzle
Ø Pin
C360-001
ØA: 1
ØB: 0.8
Ømax.pin: 0.4
C360-007
ØA: 1.9
ØB: 1.4
Ømax.pin: 1.2
C360-006
ØA: 3
ØB: 1.5
Ømax.pin: 1.3
Do not hold the tip in a spring clamp.
Changing the Tip
1. Remove the tip by using a flat-nosed pliers. Twist the tip and pull.
2. Insert the new tip and follow the same steps conversely.
Compatible tips
The CS and CV desoldering stations work with C360 tip range. Find the model that best suits your
desoldering needs on www.jbctools.com
Tip selection
Remember to select the biggest tip possible for your application: Ø Inner nozzle > Ø Pin.

Spare filters
Ref. 0005966
Cotton filters
Ref. 0781046
Suction filter
Ref. 0821830
Important:
Do not open the
Suction filter with
a sharp point to
avoid damaging it.
O Ring
Ref. 0007717
Filter cover
Ref. 0004710
8
Changing the Heating Element
Filter
Fixing screw
Heating element
Ref. DSV-DS
1. Pull off the filter and the solder collector.
2. Remove the fixing screw and then the heating element.
3. Insert the new heating element following the same steps conversely.
Solder Collector
Changing the Pump Filters
Escape Filter
Ref. 0008446

www.jbctools.com
9

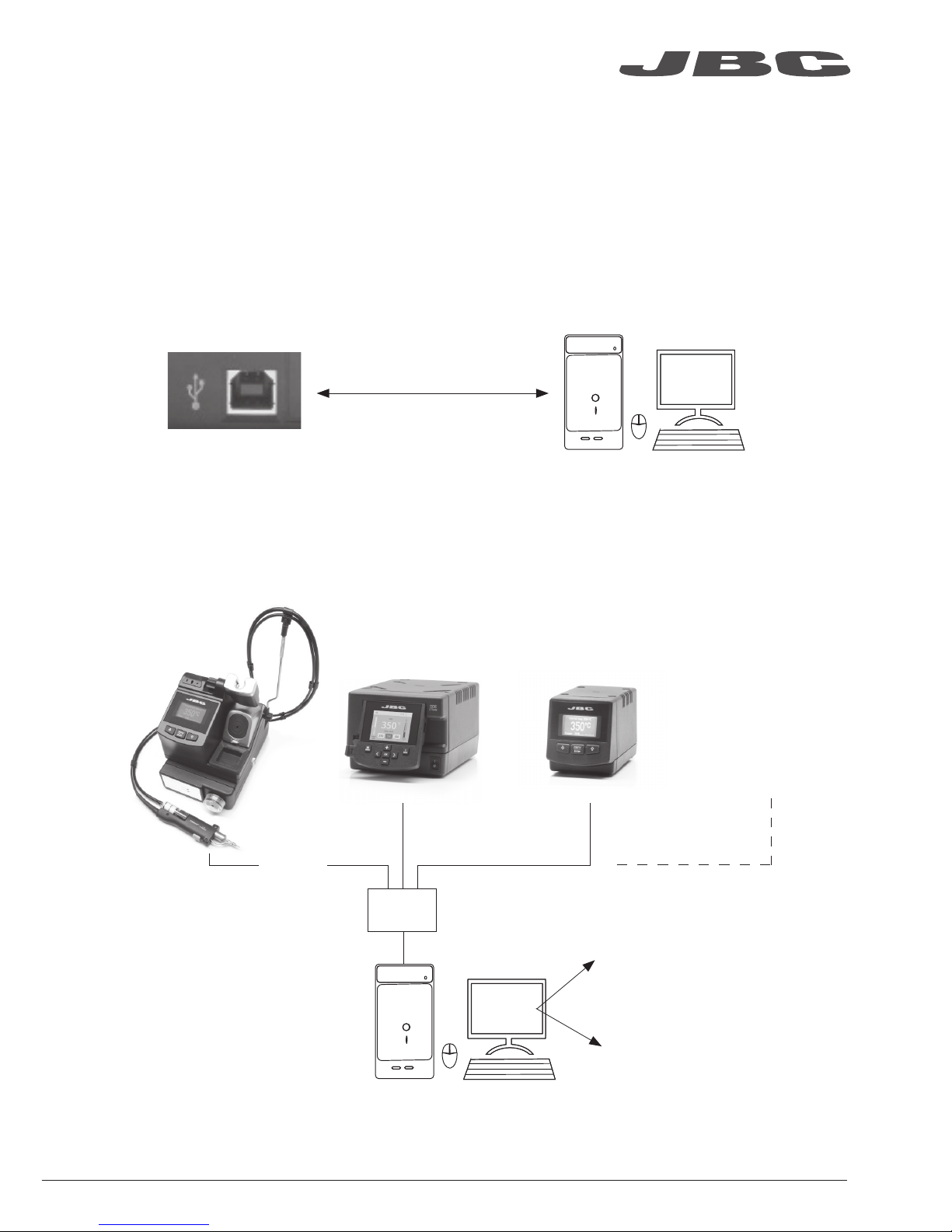

USB Connector
Download the latest software from our website to update your soldering station.
JBC Updater
www.jbctools.com/software.html
Update the station software via USB connection:
Cable USB AB
JBC
Manager
JBC
Updater
JBC Manager
www.jbctools.com/manager.html
Manage and monitor as many stations as your PC can handle by using the JBC Manager. You can
export data to another PC.
Register Settings
Create graphs of the
soldering process in real
time showing power and
temperature data.
Manager Settings
Change settings for a
group of JBC stations at
the same time.
any JBC
station
USB
Hub
Cable
USB AB

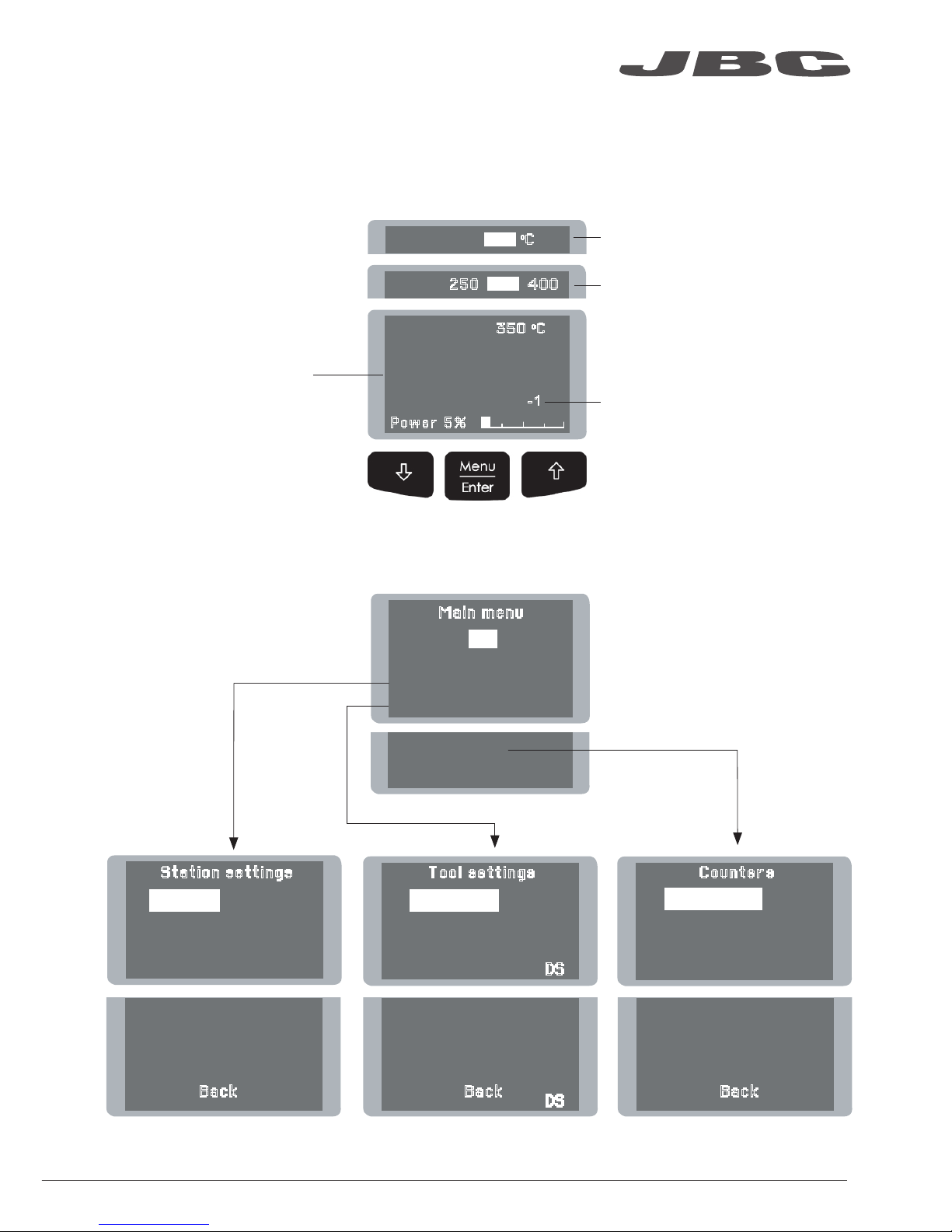

Sleep temp 260
o
C
Sleep
Tool in the stand, no heat
Hibernation
0
c
Power 5%
350
Selected temp 350
o
C
00
cc
350 350
10
Operation
The JBC Exclusive Heating System
This revolutionary technology is able to recover tip temperature extremely quickly.
This allows the user to work at a lower temperature.
As a result, tip life increases by 5.
· Change temperature
(from 180 to 450ºC)
· Select temperature levels
· Fix one temperature
· Change Sleep temperature
· Set Sleep delay
(from 0 to 9 min or no Sleep)
· Change Hibernation delay
(from 0 to 35 min)
Long period
in the stand
1. Work
When the tool is lifted from the
stand the tip will heat up to the
selected temperature.
2. Sleep
When the tool is in the stand,
the temperature falls to the
preset sleep temperature.
3. Hibernation
After longer periods of
inactivity, the power is cut off
and the tool cools down to
room temperature.
