jbc CD-SE User manual

Precision Soldering Station
Ref. CD-SE
www.jbctools.com

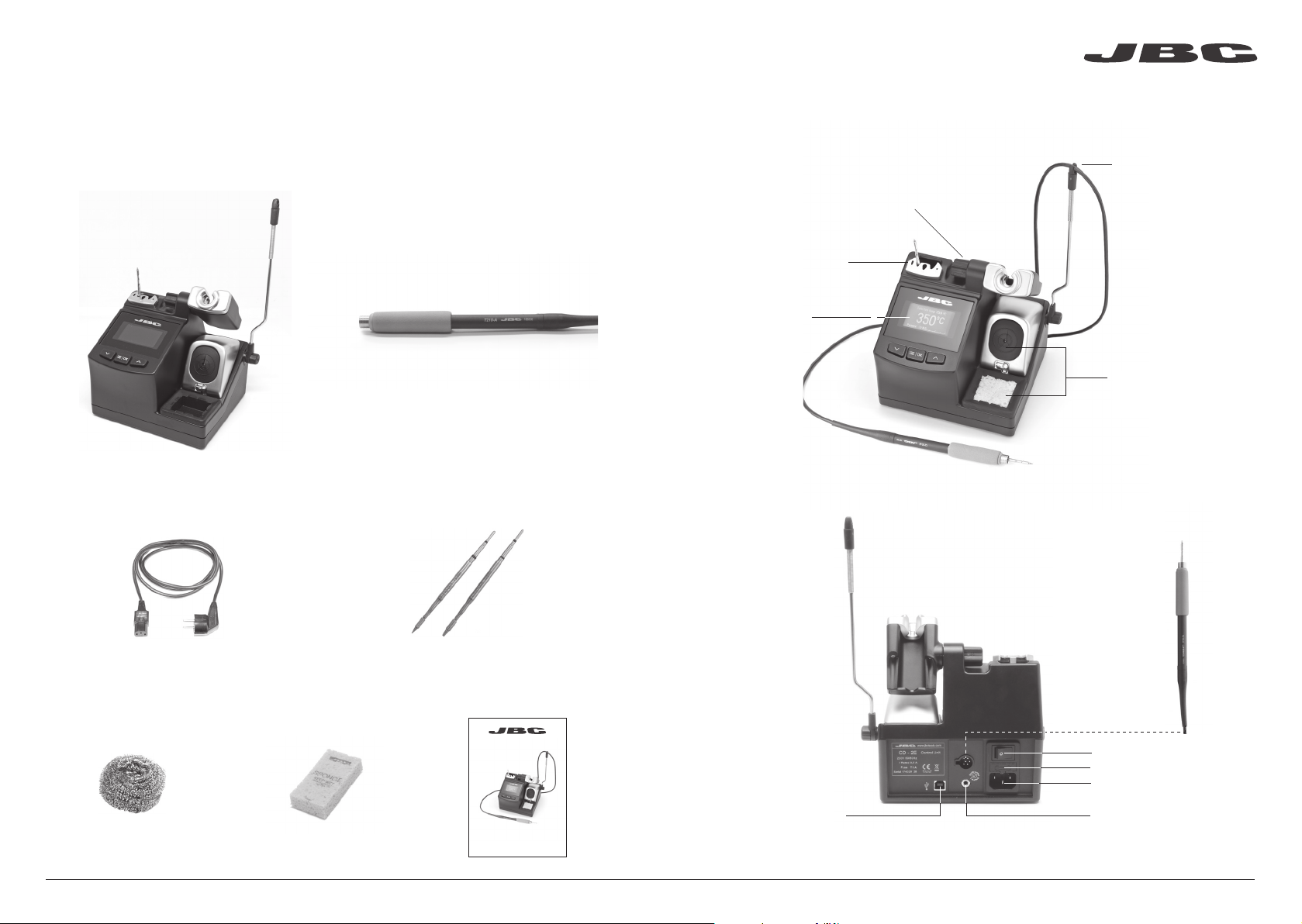

Packing List
The following items should be included:
Power Cord ................................................ 1 unit
Ref. 0009417 (100V/120V)
0009401 (230V)
Manual ............................ 1 unit
Ref. 0016876
CD Control Unit ........................................ 1 unit
Ref. CD-1E (120V)
CD-2E (230V)
CD-9E (100V)
Brass Wool .................... 1 unit
Ref. CL6210
Cartridges ................................................. 2 units
Ref. C210001 (x1)
C210008 (x1)
Precision Purpose Handle .................... 1 unit
Ref. T210-A
Sponge ........................... 1 unit
Ref. S0354
Power Socket
Main switch
Fuse
Cable collector
Quick Tip Changer
Process
Screen
Adjustable Stand:
Intelligent Heat Management
Equipotential connection
USB-B connector
Features
Precision Purpose
Handle
Ref. T210-A
Tip Cleaner brass wool
with antisplash
membrane
Precision Soldering Station
Ref. CD-SE
www.jbctools.com
2 3
www.jbctools.com

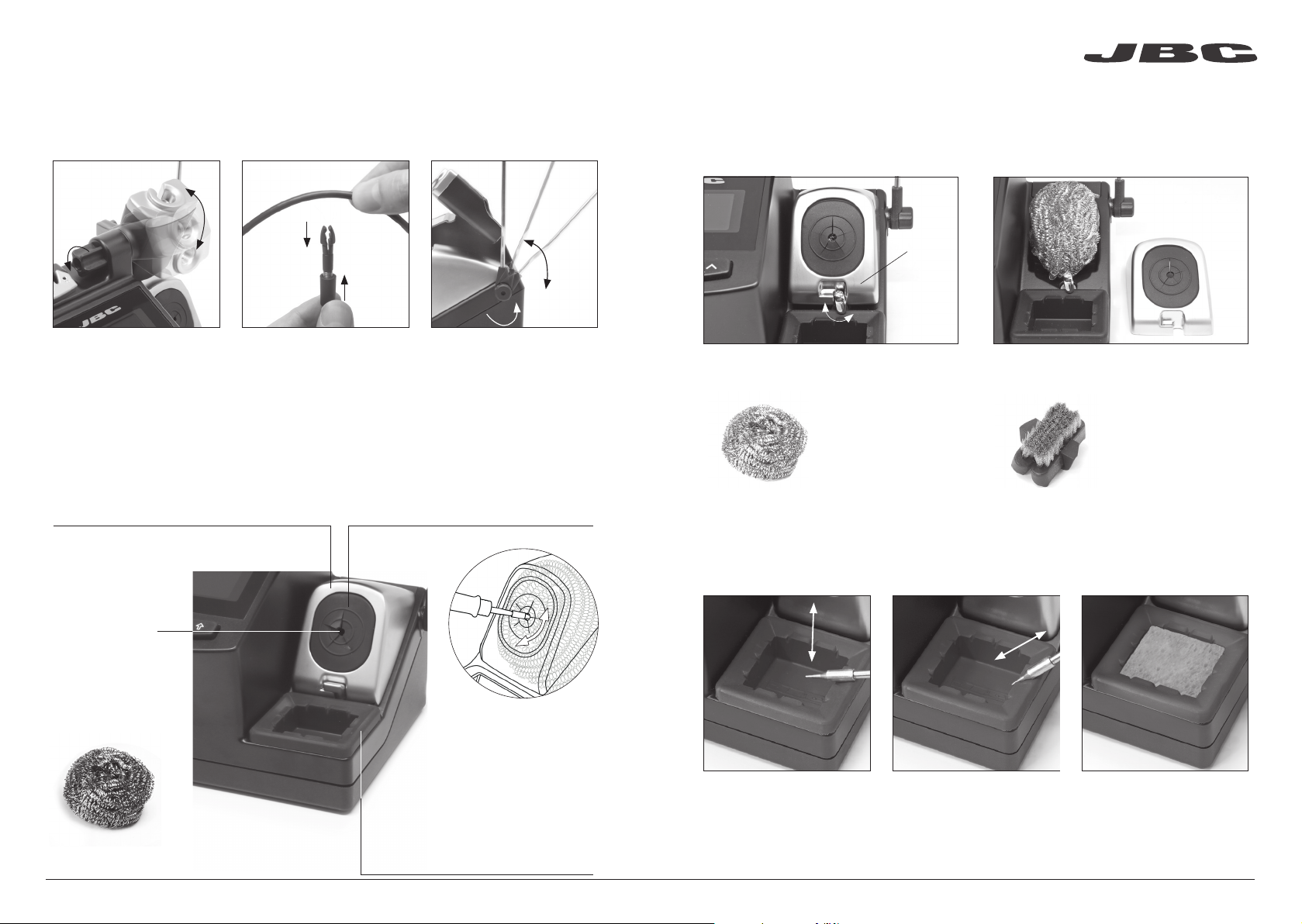

Removing the Splashguard
1. Unlock the splashguard. 2. Lift off.
Lock
More cleaning options (not supplied):
Inox Wool
Ref. CL6205
Provides a superior
cleaning of the tip.
Metal Brush
Ref. CL6220
When used carefully,
it provides a more
thorough cleaning.
Sponge
Ref. S0354
Tapping:
Tap gently to remove excess
solder.
Wiping:
Use the slots to remove
remaining particles.
Wiper
Ref. CL0160
The least harmful cleaning
method. Keep the sponge
damp with distilled water
when working to avoid tip
wear.
Adjustable stand Cable collector (Ref. CC3702)
Adjust the tool stand to suit
your work position.
Fix the cable on the collector so that the working area is free of
cable.
Tip Cleaner
Select the option to suit your needs and improve the thermal transfer of the tip.
Brass Wool
Ref. CL6210
Very effective
cleaning method.
Leaves a small layer
of solder on the tip,
preventing oxidation
between cleaning
and rewetting.
Splashguard
Ref. 0 017576
When using the brass wool, it prevents
splashing of solder particles
Antisplash Membrane
R ef. 0 017574
Prevents splashing and keeps the work area
clean.
Wiper
Ref. CL0160
A temperature resistant receptacle
for removing excess solder by gently
tapping or wiping.
If the tip is very dirty,
JBC first recommends
cleaning it with the wiper
to remove excess solder.
www.jbctools.com
4 5

ø 1
ø 1,5
ø 3,5
A
AB
JBC
Manager
software

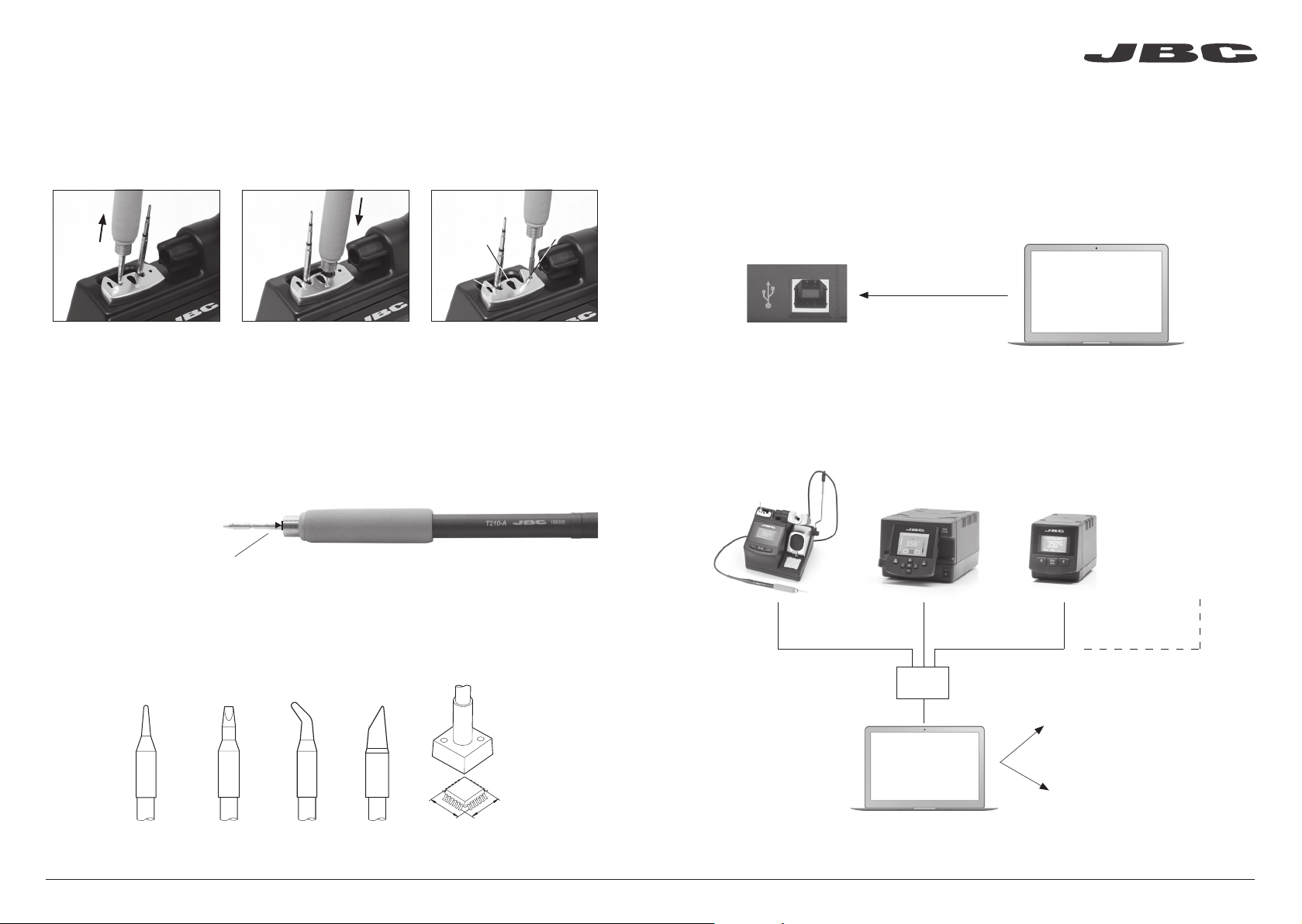

Quick Tip Changer
Round Chisel Round
bent
Bevel Special models
Compatible cartridges
The CD-S stations work with C210 cartridges and T210 handles.
Find the model that best suits your soldering needs in www.jbctools.com
Save time and change cartridges safely without switching the station off.
1. Removing 2. Inserting 3. Fixing
Place the handpiece in the
extractor and pull to remove
the cartridge.
Place the handpiece on top
of the new cartridge and
press down slightly.
Use the holes for fixing the
cartridge* as follows:
A. For straight C210.
B. For curved C210.
C. For C245.
*Important
It is necessary to insert the cartridges as far as the mark for a proper connection.
Mark
USB Connector
Download the latest software from our website to update your soldering station.
JBC Updater
www.jbctools.com/software.html
Update the station software via USB connection:
Cable USB AB
JBC Manager
www.jbctools.com/manager.html
Manage and monitor as many stations as your PC can handle by using the JBC Manager.
You can export data to another PC.
Register Settings
Create graphs of the
soldering process in real
time which show power and
temperature data.
Manager Settings
Change settings for a group
of JBC stations at
the same time.
any JBC
station
USB
Hub
Cable USB AB
B
CA
JBC
Manager
software
www.jbctools.com
6 7

Main menu
4 Counters
5 Program version
Exit
1 Reset settings
2 Station settings
3 Tool settings
4 Hibernation hours 0
5 No tool hours 0
6 Sleep cycles 0
Tool 210
Back
Back
1 Fix one temp -----
2 Temp levels set OFF
3 Sleep delay 0 min
5 Help text OFF
6 Beep ON
7 Change PIN
1 Temp unit Celsius
2 Maximum temp 4000C
3 Minimum temp 2000C
4 Metronome ----
1 Plugged hours 0
2 Working hours 0
3 Sleep hours 0
Counters
Tool settings
Station settings
0
Selected temp. 350
o
C
Power 5%
Fixed temp. 350
o
C
Levels ºC 270 350 400
-10
4 Sleep temp 1500C
5 Hibernationdelay 10 min
6 Temp adjust + O OC
Tool 210
Back
c
350
0
c
Power 5%
350
Selected temp 350
o
C
Sleep temp 150
o
C
Sleep
0
c
350
Tool in the stand, no heat
Hibernation
0
c
350
Menu Screen
Original PIN: 0105
The work screen provides
useful information of tool
status in real time.
Work Screen
Control Process
Displays a specific fixed temp.
Shown when you have selected
temp. levels. The values must be
adjusted for the task.
“Temp. Adjust” parameter.
It provides a more precise
adjustment between the selected
temp and the actual one.
Operation
The JBC Exclusive Heating System
This revolutionary technology is able to recover tip temperature extremely quickly.
This allows the user to work at a lower temperature.
As a result, tip life increases by 5.
· Change temperature
(from 90 to 450ºC)
· Select temperature levels
· Fix one temperature
· Change Sleep temperature
· Set Sleep delay
(from 0 to 9 min or no Sleep)
· Change Hibernation delay
(from 0 to 35 min)
Long time in
the stand
1. Work 2. Sleep 3. Hibernation
When the tool is lifted from the
stand the tip will heat up to the
selected temperature.
When the tool is in the stand,
the temperature falls to the
preset sleep temperature.
After longer periods of
inactivity, the power is cut off
and the tool cools down to
room temperature.
www.jbctools.com
8 9

Sleep delay
Set the time that the tool will
remain at the selected tempe-
rature when in the stand be-
fore entering sleep mode. The
tip temperature will then drop
to the Sleep temperature.
Fix one temperature
Fix a value within the
temperature range of the
station (90 - 450ºC /
190 - 840ºF).
Temperature levels set
Similar to “Fix one temp”
parameter. In this case, the
user can set up to 3 values for
different power requirements.
The sleep temperatures are
set to achieve a balance
between preventing oxidation
and reaching the working tem-
perature in a few seconds.
Ideal for soldering more than
one component at a specific
temperature. The station will
reject any attempt to change
the temperature.
This allows a quick change
between 3 different tempe-
ratures. Set them according
to the allowed values for your
soldering applications.
Because our tools reach the
working temperature from the
deafult Sleep mode in only a
few seconds, this parameter is
preset to 0 min. Once the tool
is returned to the stand the
temperature will automatically
drop to the sleep temperature,
extending tip life and avoiding
oxidation. Retinning the tip
before placing the tool in the
stand will protect the tip and
extend its life.
RecommendationsParameter description Warnings
N/a
N/a
Setting these
parameters to higher
values will unnecessarily
accelerate oxidation
and shorten tip life
especially when working
with temperatures up to
450°C (840°F).
Tool Settings
Sleep temperature
This is the set temperature the
tip reaches when returned to
the stand.
Station Settings
Minimum temperature
Set the minimum
temperature to work with.
Min. temp. by default is
200ºC (392ºF). This is consi-
dered to be a proper starting
point for leaded applications.
Maximum temperature
Set the maximum
temperature to work with.
Max. temp by default is 400°C
(750°F). This is considered
high enough to work with
most lead-free applications.
Temperature unit
Celsius (ºC) or Fahrenheit (ºF)
RecommendationsParameter description
N/a
Warnings
The station temperature
range is 90-450ºC
(190-840ºF). Change the
temperature limits when
working with less common
applications such as low / high
melting point soldering (HMP)
or plastics (e. g. riveting).
In most cases,
working with temperatures
over 400°C (750°F) can
damage the PCB and its
components. Even in short
time periods of tip contact
with the soldering joint, the
flux may not work properly
and could seriously reduce
tip life.
If the solder joint requires
more power (e.g. multila-
yered or high dissipation
boards), JBC strongly
recommends using other
aids like preheaters.
Be careful when using these parameters. They can reduce tip life if not used properly. Please follow
the recommended guidelines:
Parameters
Metronome
This activates a beep sound.
Frequencies vary from 1 to 50
seconds.
Help text
Activate this parameter to
receive info from the system.
Beep
Enable/disable the beep
sound of the keypad.
Change pin
Change the default security
PIN number (0105).
The PIN must be entered
every time a parameter is
changed.
Useful for setting a work rate
in repetitive jobs. The beep
lets you know the length of
time the tip must be in contact
with the soldering joint.
N/a
N/a
N/a
N/a
N/a
N/a
www.jbctools.com
10 11

Before carrying out maintenance, always allow the equipment to cool.
- Clean the station screen with a glass cleaner or a damp cloth.
Clean
periodically
- Use a damp cloth to clean the casing and the
tool. Alcohol can only be used to clean the
metal parts.
- Periodically check that the metal parts of the
tool and stand are clean so that the station
can detect the tool status.
- Maintain tip surface clean and tinned prior to
storage in order to avoid tip oxidation.
Rusty and dirty surfaces reduce heat transfer
to the solder joint.
- Periodically check all cables and tubes.
Maintenance
1. Pull off the fuse holder and remove the
fuse. If necessary use a tool to lever it off.
2. Press the new fuse into the fuse holder
and replace it in the station.
- Replace a blown fuse as follows:
- Replace any defective or damaged pieces. Use original JBC spare parts only.
- Repairs should only be performed by a JBC authorized technical service.
Hibernation Delay
Set the time the tool will
remain at Sleep temperature
before entering the Hiber-
nation mode. At this time,
the power supply is cut off
and the tip remains at room
temperature.
Recommendations
Parameter description Warnings
Increasing the default
value will accelerate
oxidation and shorten the
tip life.
When the user chan-
ges the cartridge type, the
parameter should be reset
to 0°C/F or to the value
needed for this cartridge.
E.g. If a correction of
+20°C (+36°F) is set for the
C245966 (thick type) and
then the user changes the
cartridge for a C245030
(which is thinner) without
resetting, they would be
working at a temperature
of +20°C (+36°F) lower for
the C245030 which does
not need any temperature
adjustment.
This function completely
protects the tip from oxidation
during long periods of inactivi-
ty while the tool is in the stand.
Retinning the tip before pla-
cing the tool in the stand also
helps prevent oxidation and
extends the life of the tip.
Temp Adjustment
It provides a more precise
adjustment between the
selected temperature and the
actual one.
Set values within ±50°C
(± 90°F) to achieve zero error.
JBC strongly recommends
the use of TID-A or TIA-A
Thermometers to obtain
precise readings.
Tool Settings
www.jbctools.com
12 13

It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cord must be plugged into approved bases. Make sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to activate the sleep mode.
The soldering tip, the metal part of the tool and the stand may still be hot even when the station
is turned off. Handle with care, including when adjusting the stand position.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.
- Avoid the contact of flux with skin or eyes to prevent irritation
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced
physical, sensory or mental capabilities or lack of experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
Safety Exploded View
www.jbctools.com
14 15

This product should not be thrown in the garbage.
In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facility.
Manual in other languages available on our website
Warranty
JBC’s 2 year warranty covers this equipment
against all manufacturing defects, including the
replacement of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment
must be returned, postage paid, to the dealer
where it was purchased.
Specifications
CD-1SE 120V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CD-1E
CD-2SE 230V 50/60Hz. Input fuse: 1A. Output: 23,5V. Control Unit model: CD-2E
CD-9SE 100V 50/60Hz. Input fuse: 2A. Output: 23,5V. Control Unit model: CD-9E
- Net Weight: 2,86 Kg (.31 lb)
- Dimensions: 150 x 175 x 145 mm
- Output Peak Power CD-SE: 40W
- Temperature Range: 90 - 450 °C (190 - 840 °F) (±5%)
- Idle Temp. Stability (still air): ±1.5 ºC / ±3 ºF
- Tip to ground resistance: <2 ohms
- Tip to ground voltage: <2mV RMS
- Ambient operating temp: 10 - 40 ºC / 50 - 104 ºF
- USB connector station-PC
Complies with CE standards
ESD protected housing “skin effect”
0017916-0818 www.jbctools.comwww.jbctools.com
