jbc HDE-B User manual

Heavy Duty station
Ref. HDE-B
English 3
Page
INSTRUCTION MANUAL
Español 17
Deutsch 33
中文 49
www.jbctools.com

2

Manual ........................... 1 unit
Ref. 0016161

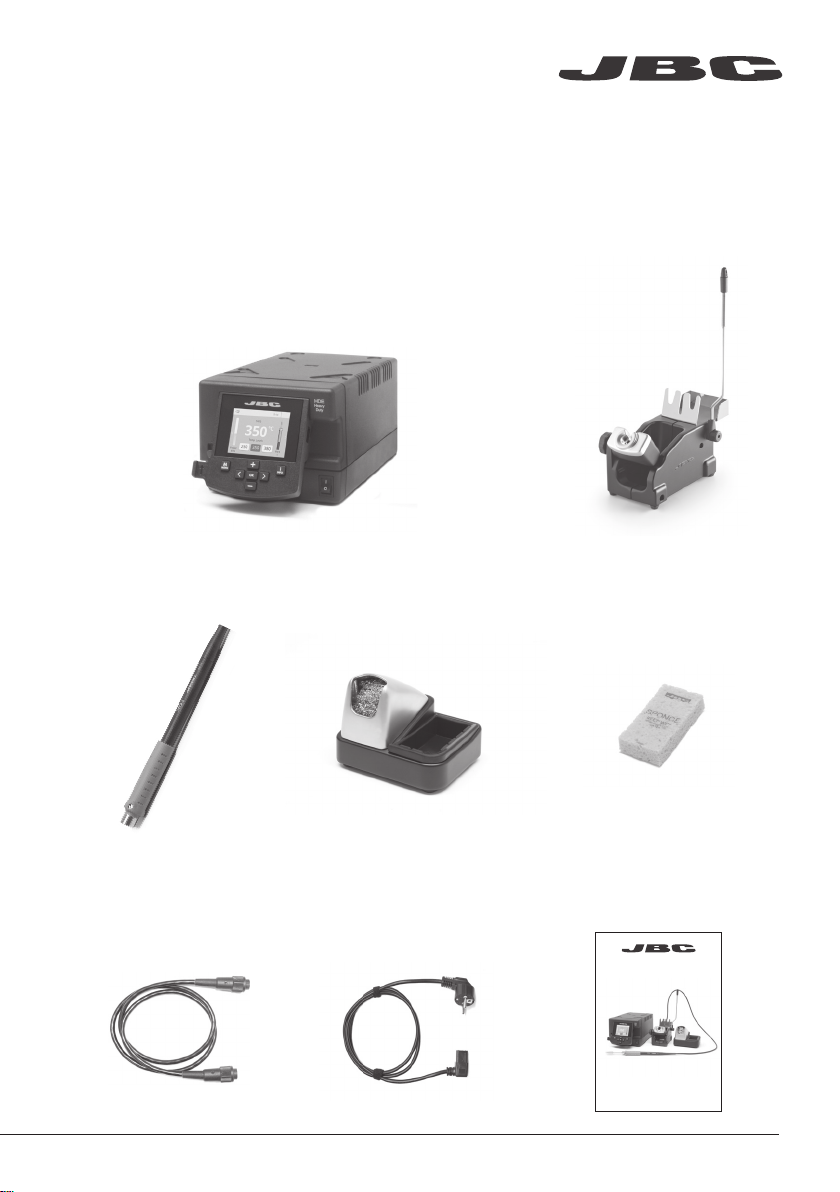

Packing List
The following items should be included:
HDE Control Unit ........................................................................ 1 unit
Ref. HDE-1B (120V)
HDE-2B (230V)
HDE-9B (100V)
Stand ............................... 1 unit
Ref. HD-SD
Heavy Duty
HD Handle ..................... 1 unit
Ref. T470-B
Heavy Duty station
Ref. HDE-B
Stand Cable ................. 1 unit
Ref. 0 011283
ESD Tip Cleaner ........... 1 unit
Ref. CL6166
Sponge ........................... 1 unit
Ref. S0354
Power Cord ................... 1 unit
Ref. 0010569 (230V)
0013671 (100/120V)
www.jbctools.com
3
www.jbctools.com

Stand
Ref. HD-SD
HDE Control Unit
RJ12 connector
for Robot system
Peripheral connector
for joining modules and
pedals
USB-B
connector
Equipotential
connector
Power Socket
Heavy Duty HD
Handle
Ref. T470-B
C470 cartridges
Required but not
suppliedStand cable
Ref. 0 011283

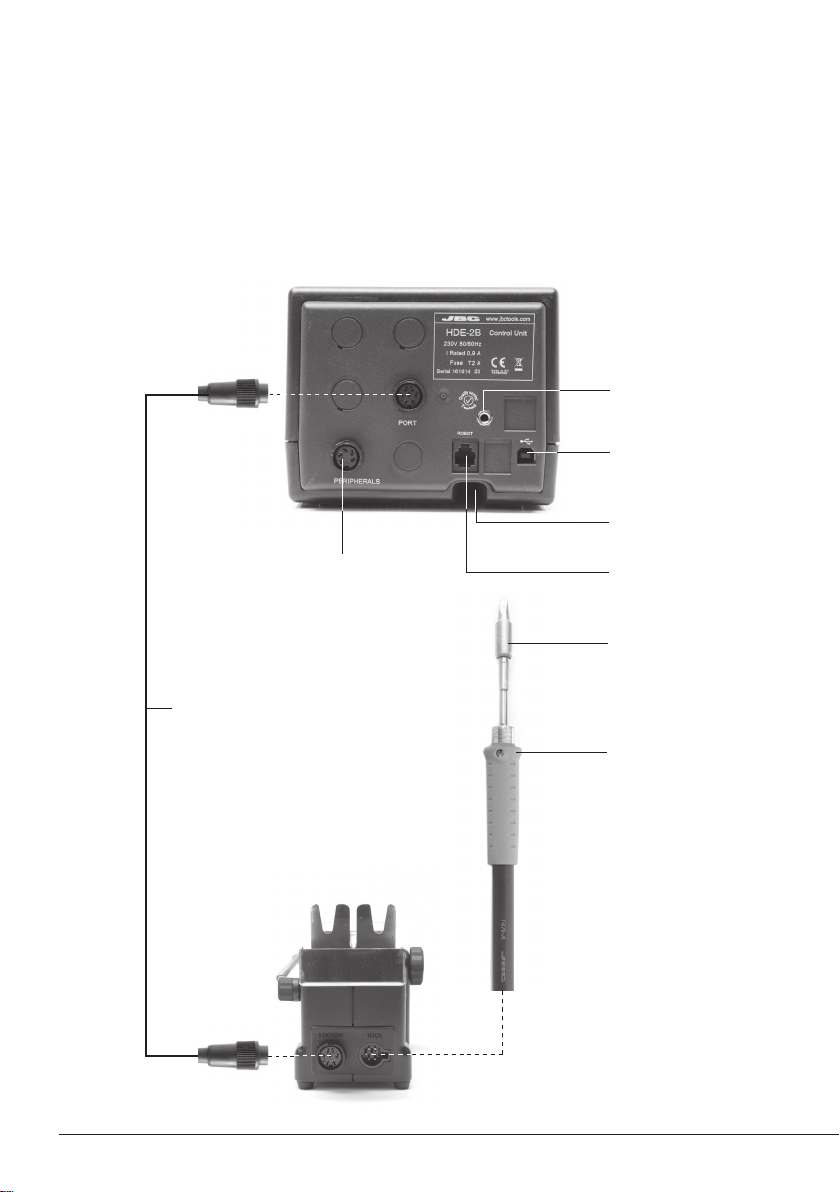

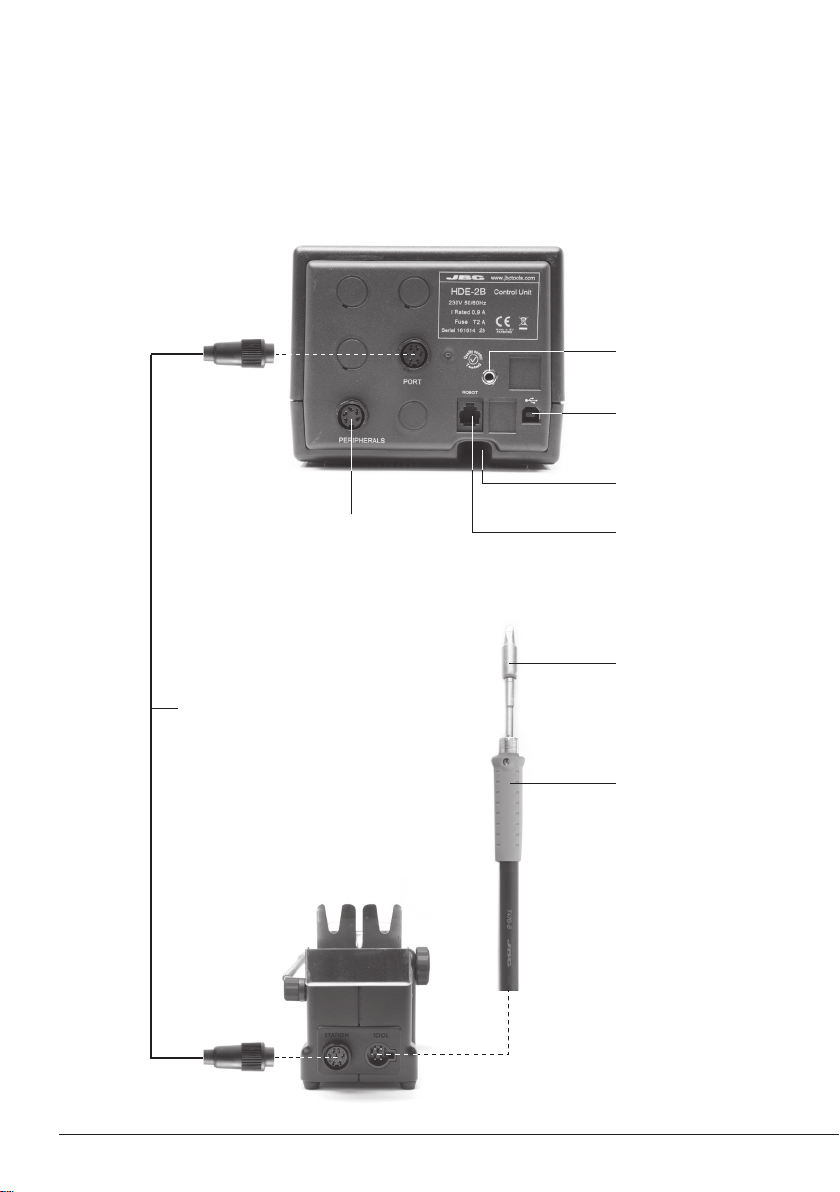

Connections
4

Compatibility
Select the equipment that best suit your soldering or desoldering needs.
Control
Unit Stand Tool Cartridge Range MNE-A FSE-A P-005
HDE-B
HD-SD
T470-A
C470
T470-B
T470-SA
T470-ZA
T470-FA
T470-MC
T470-NA
HDT-SD HT470 -A*
DN-SE T470-NA**
* It works with two HDE Heavy Duty stations in order to manage the cartridges individually
** The MNE Nitrogen Flow Regulator is required.

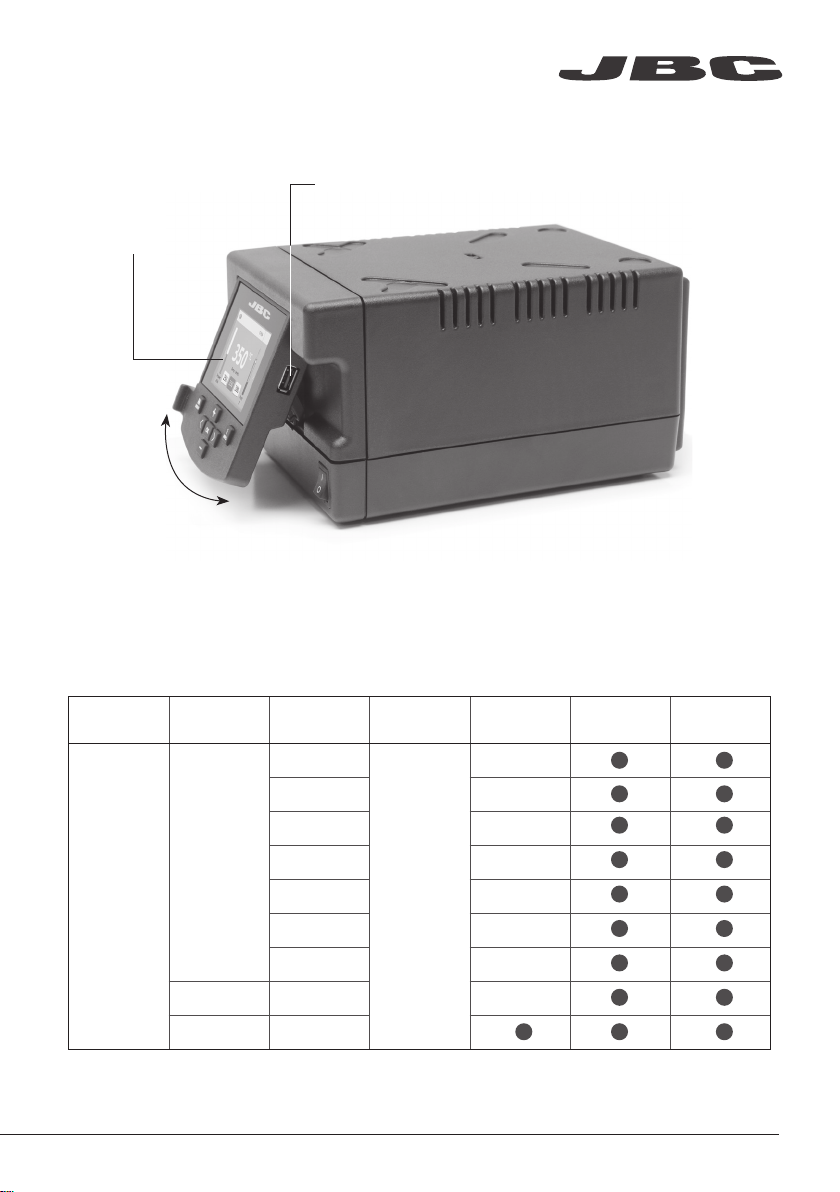

Features
USB-A connector
Tilt the display
for easy reading
2.8” Color TFT screen
www.jbctools.com
5

Cable collector
Keeps working area free of cable.
Quick tip changer
The cartridge extractor / inserter system
permits switching cartridges without
interrupting your work.
Adjustable tool holder
Suits your work position.
Adjustable cable collector
Stand
6

Improve thermal transfer by cleaning the tip after each solder joint.
Tip Cleaner
Optional Cleaning methods
Brass Wool
Ref. CL6210
Inox Wool
Ref. CL6205
Metal Brush
Ref. CL6220
Tip-Tinner
Ref. TT-A
Sand
Ref. CL6211
Splashguard
Non-slip base
Sponge
Ref. S0354
Wiper
Ref. CL0236
Very effective cleaning method.
It leaves a small layer of
solder on the tip to
prevent oxidation
between cleaning
and rewetting.
It prevents splashing
of solder particles
when using the brass
wool.
Heavy weighted non-
slip base for simple-
handed cleaning.
The least harmful cleaning
method. Keep the sponge
damp with distilled water
when working to avoid tip
wear.
A temperature resistant receptacle lets
the operator remove excess solder by
gently tapping or wiping.
Tapping:
Tap gently to remove
excess solder.
Wiping:
Use the slots to remove
remaining particles.
www.jbctools.com
7

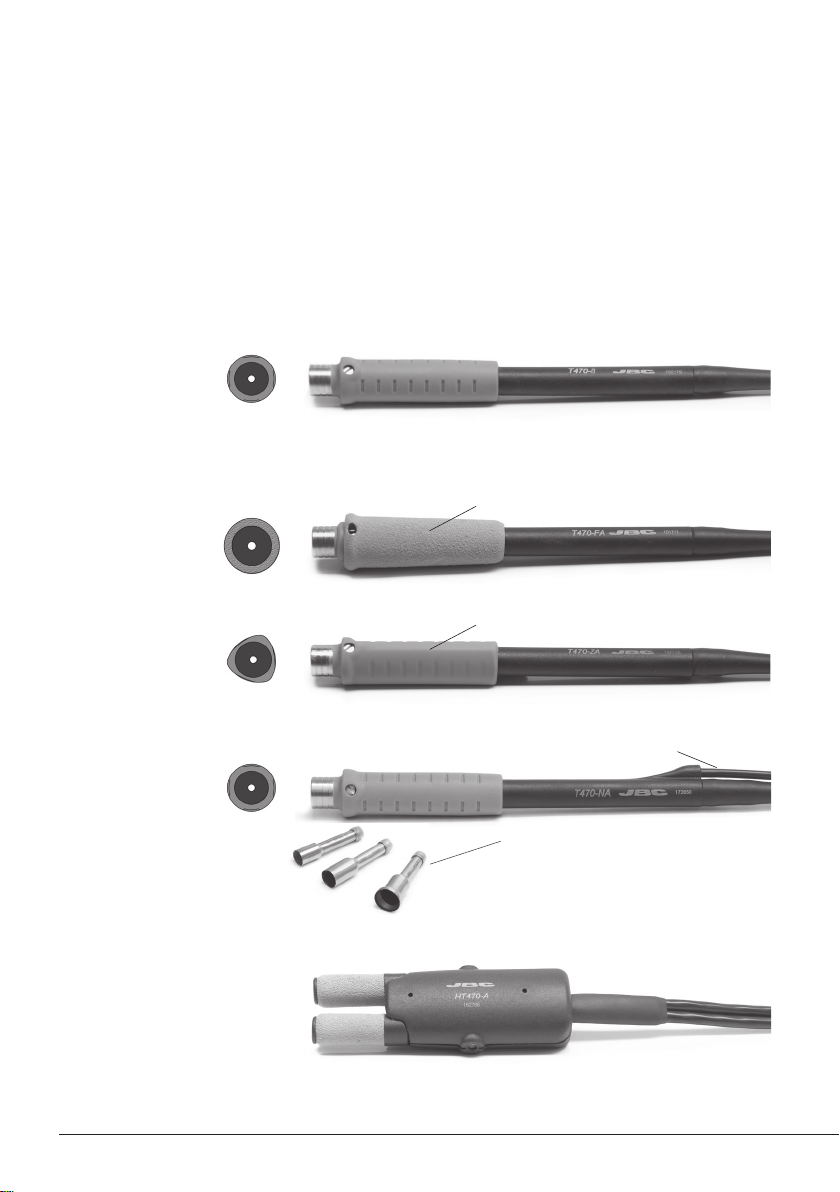

T470 Handles for Heavy Duty
Use C470 Cartridge range
For intensive soldering jobs requiring continued high thermal power. They feature a non-slip-grip
with a good thermal insulation and a screw which fixes the cartridge and prevents rotation.
Note: All models are supplied with a 1.5m cable except those specified with 3m.
Only used with two
HDE-B control units
and a HDT-SD stand.
Compatible Tools
Foam
Tri-lobed HD Handle
Ref. T470-Z A
HD Purpose Handle Heavy Duty HD Handle HD Purpose Handle with 3m cable
Ref. T470-A Ref. T470-B Ref. T470-SA
Thermal Insulator HD Handle Thermal Insulator HD Handle with 3m cable
Ref. T470-FA Ref. T470-MC
Nitrogen HD Handle
Ref. T470-NA
Nozzles
Ref. B6193
B6194
B6195
HD Thermal Tweezers
Ref. HT470-A
The MNE Nitrogen
Flow Regulator
is required.
Only used with a
DN-SE stand.
For better handling of the tool
Nitrogen feed
8

*Mark
Loosen the screw. Place the Soldering Iron
in the extractor and remove the cartridge.
Insert the cartridge and press slightly to the
mark*.
Once the cartridge is properly inserted we recommend tightening the screw to prevent it turning.
Important: It is essential to insert the cartridges as far as the mark for a proper connection.
Changing Cartridges
Compatible cartridges
The HDE works with T470 handles and C470 cartridges. Find the model that best suits your
soldering needs in www.jbctools.com
Round Chisel Round bent Bevel Special models
1. Removing 2. Inserting
3. Fixing
Screw
www.jbctools.com
9

380
ºC
Port
1
Power
45%
Selected 380ºC
T470
17:14
Sleep
Port
1
Tool in the stand
17:14
Actual Temp. 180ºC
T470
Delay to hibernation: 29:30
Port
1
Actual Temp. 25ºC
17:14
T470
Hibernation
3. Hibernation
Operation

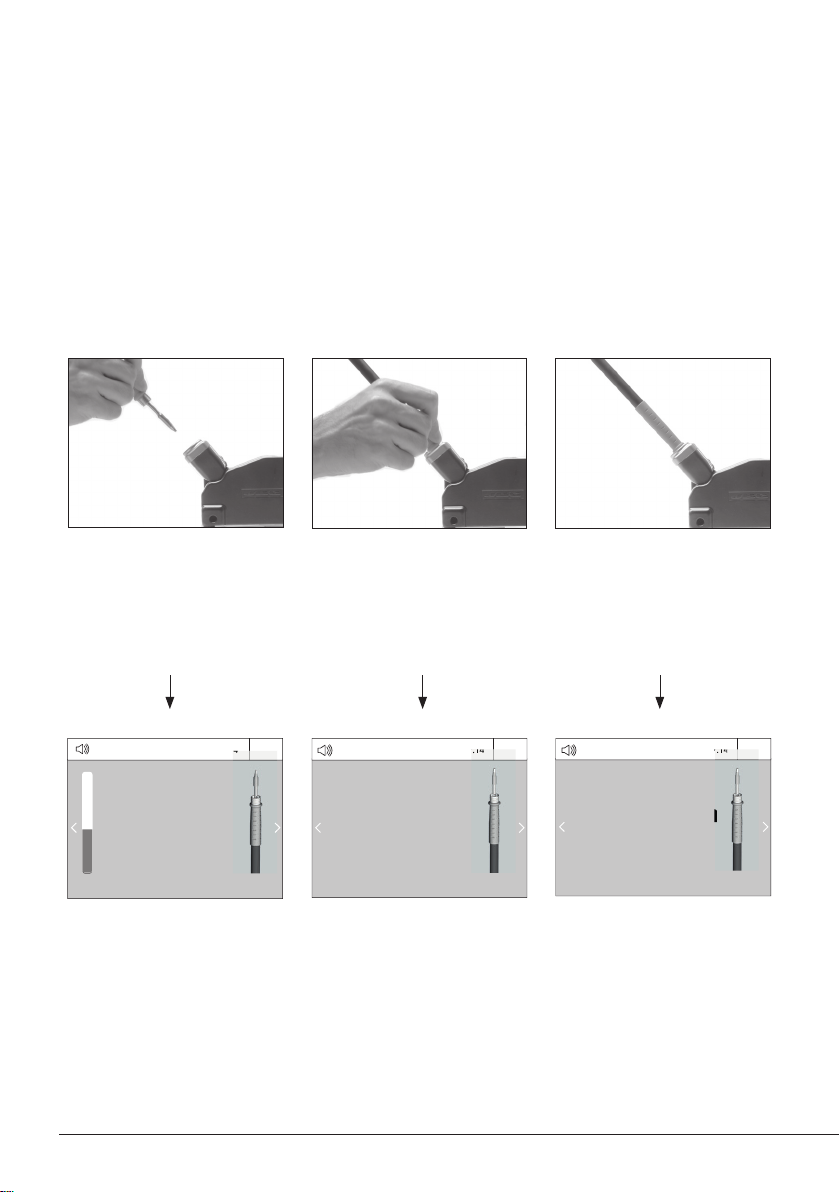

The JBC Exclusive Heating System
This revolutionary technology is able to recover tip temperature extremely quickly. It allows the user
to work at a lower temperature and improve the quality of soldering. The tip temperature is further
reduced thanks to the Sleep and Hibernation modes which increase the tip life by 5.
1. Work 2. Sleep
When the tool is lifted from the
stand the tip will heat up to the
selected temperature.
When the tool is in the stand,
the temperature falls to the
preset sleep temperature.
After longer periods of
inactivity, the power is cut off
and the tool cools down to
room temperature.
Tools Menu:
· Set Sleep temperature
· Set Sleep delay
(from 0 to 9 min or no Sleep)
Tools Menu:
· Set Hibernation delay
(from 0 to 60 min or no
hibernation)
Long time in
the stand
Tools Menu:
· Set temperature limits
· Select temperature levels
10

380ºC
Port
1
Power
45%
Temp. Levels
T470
250 380 400
17:14
USB flash drive is connected.
Station is controlled by a PC.
Station is controlled by a robot.
Station software update.
Press INFO to start the process.
Warning.
Press INFO for failure description.
Error. Press INFO for failure description,
the type of error and how to proceed.
System notifications (Status Bar)Menu Options
Station
Information
Power
indicator
Tool
in use
Work Screen
Status bar

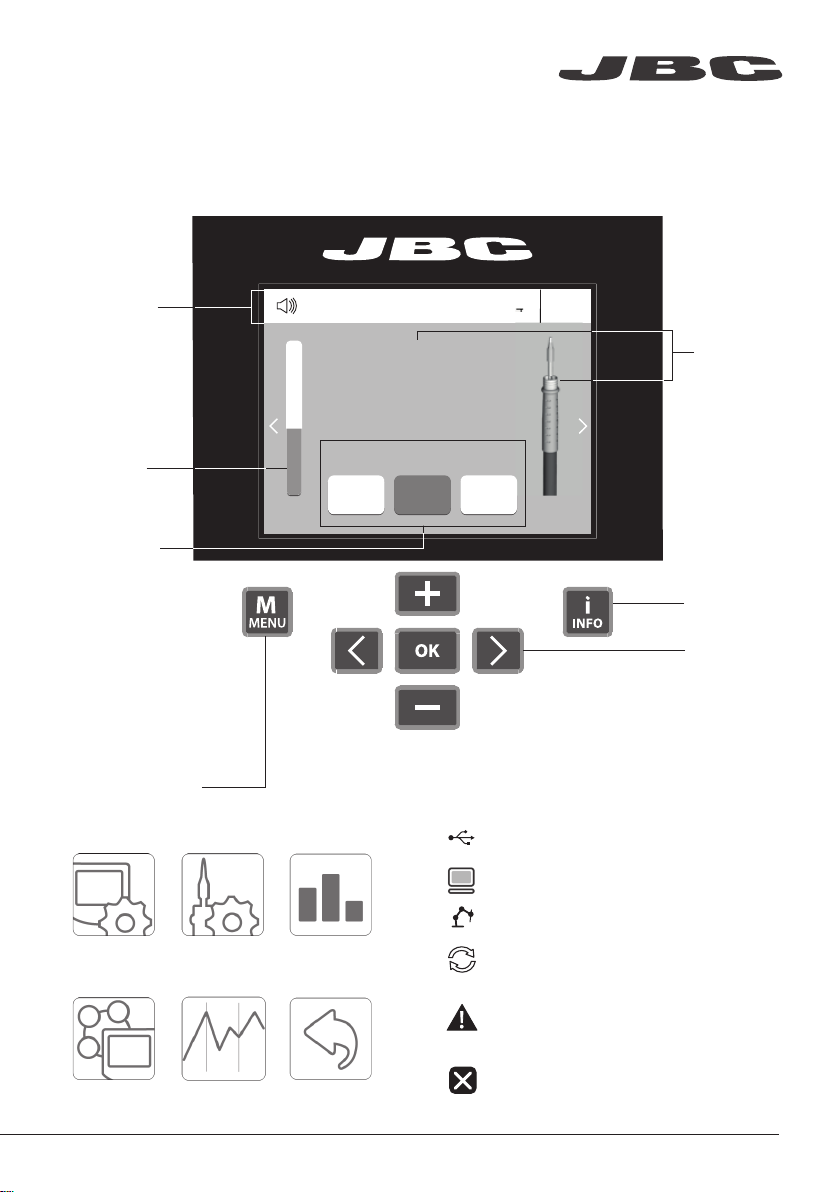

The HDE offers an intuitive user interface which provides quick access to station parameters.
Original PIN: 0105
Change
port
Displayed if
temperature
levels are
activated
Station Tools Counters
ResetGraphicsPeripherals
Press INFO for each parameter description.
www.jbctools.com
11

Port 1 - T470
450
400
350
300
250
150
100
50
200
Power Temp
17:14
By pressing Graphics in the main MENU, temperature and power figures in real
time are displayed for each port. This helps you decide which tip to use to obtain
the best quality solder joints.
Process analysis
Graphics
Temperature
Power (%)
See other
port graphic
Files
Export graphics
Insert a USB flash drive into
the USB-A connector to save
your soldering
process in csv format.Files
12

Soldering Net
Remotely manage and monitor as many stations as your Windows PC can handle.
Functions:
- Set all the station parameters from your PC.
- Organize groups of stations and set all their parameters at the same time.
- Store specific configurations for later uses.
- Analyze the soldering graphics of the stations on
your PC and export them.
1. Download the JBC Software Manager and the user manual from www.jbctools.com/manager.html
2. Connect the stations via USB-B connector and the PC will automatically detect them.
3. The notification will be displayed on the station.
any JBC
station
USB Hub
JBC
Manager
software
Update the station software
1. Download the JBC Update file from
www.jbctools.com/software.html and save
it on a USB flash drive. Preferably one with no
other files.
JBC
Update file
2. Insert the USB flash drive.
The icon is diplayed while updating.
www.jbctools.com
13

1. Connect the tool to the station port by means of the CHB-A converter.
2. Connect your Robot system to the Robot connector (RJ12) of the station.
DB9-RJ12 Adapater available only if necessary (Ref. 0013772).
3. Enable the Robot option in the station settings and the notification will be displayed:
4. Set your Robot’s commands according to the Robot Communication Protocol, available on the
website www.jbctools.com/jbcsoftware-menu-115.html.
Manage and monitor the station using a Robotic system.
Working with Robots
HDE
Control Unit
Robot Converter
Ref. CHB-A
RS-232
connection
14

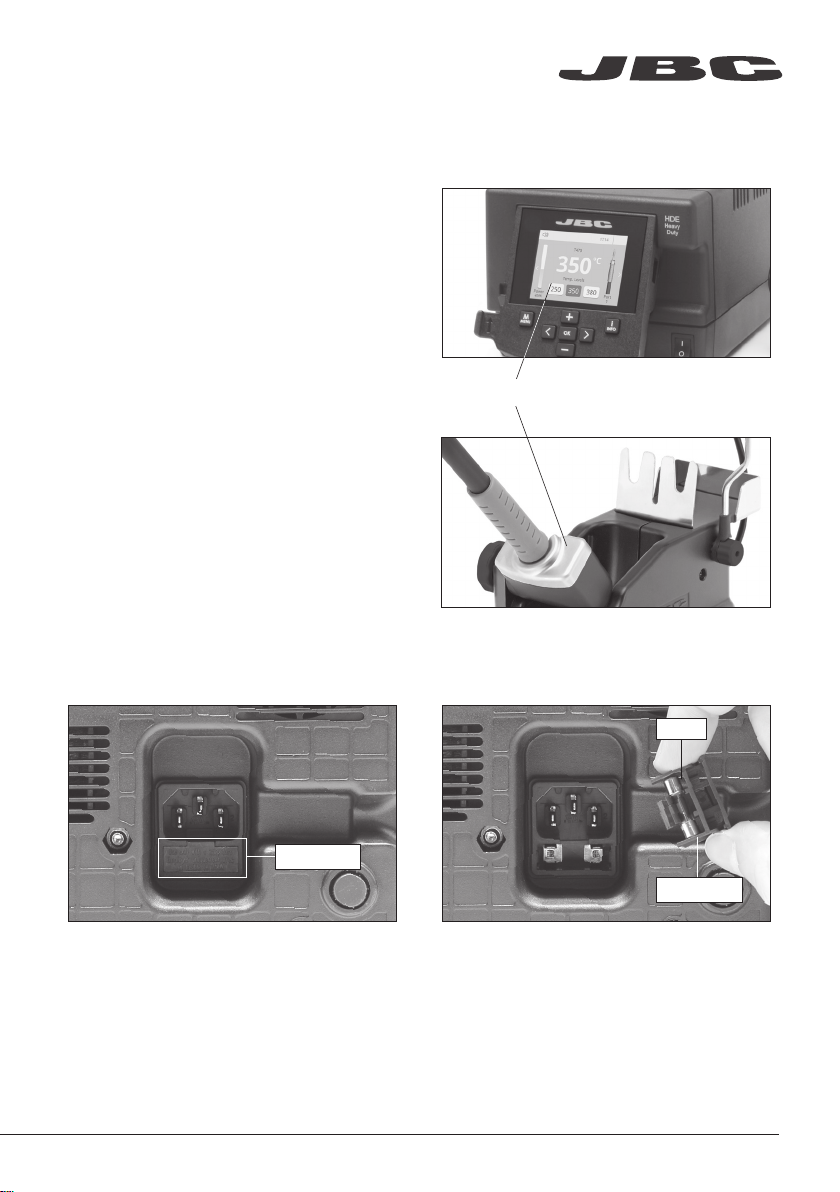

Clean periodically
Maintenance
Before carrying out maintenance or storage, always allow the equipment to cool.
1. Pull off the fuse holder and remove the fuse.
If necessary use a tool to lever it off.
2. Press the new fuse into the fuse holder and
return to the station.
- Clean the station screen with a glass cleaner
or a damp cloth.
- Use a damp cloth to clean the casing and
the tool. Alcohol can only be used to clean the
metal parts.
- Periodically check that the metal parts of the
tool and stand are clean so that the station can
detect the tool status.
- Maintain tip surface clean and tinned prior to
storage in order to avoid tip oxidation. Rusty
and dirty surfaces reduce heat transfer to the
solder joint.
- Periodically check all cables and tubes.
- Replace a blown fuse as follows:
Fuse holder
Fuse holder
Fuse
HDE
Control Unit
- Replace any defective or damaged pieces. Use original JBC spare parts only.
- Repairs should only be performed by a JBC authorized technical service.
www.jbctools.com
15

Specifications
Safety
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cord must be plugged into approved bases. Make sure that it is properly grounde
before use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to activate the sleep mode.
The soldering tip, the metal part of the tool and the stand may still be hot even when the station
is turned off. Handle with care, including when adjusting the stand position.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.
- Avoid the contact of flux with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced
physical, sensory or mental capabilities or lack of experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
HDE-1B 120V 50/60Hz. Input fuse: 4A. Output: 47V.
HDE-2B 230V 50/60Hz. Input fuse: 2A. Output: 47V.
HDE-9B 100V 50/60Hz. Input fuse: 4A. Output: 47V.
- Weight: 6,1 Kg (13.45 lb)
- Dimensions: 145 x 120 x 225 mm (5.70 x 4.72 x 8.86 in)
- Output Peak Power: 250W
- Temperature Range: 90-500 ºC (190-932 ºF) (±5%)
- Idle Temp. Stability (still air): ±1.5 ºC (±3 ºF)
- Tip to ground resistance: <2 ohms
- Tip to ground voltage: <2mV RMS
- Ambient operating temp: 10 - 40 ºC (50 - 104 ºF)
- Connections station-PC USB / Peripherals connector / RJ12 connector for Robot
Complies with CE standards
ESD protected housing “skin effect”
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
16

Estación de alta potencia
Ref. HDE-B
www.jbctools.com
17

18

Manual ...................... 1 unidad
Ref. 0016161
Composición
Los siguientes artículos deben estar incluidos:
HDE Control Unit
HDE Unidad de Control ......................................................... 1 unidad
Ref. HDE-1B (120V)
HDE-2B (230V)
HDE-9B (100V)
Stand
Soporte ...................... 1 unidad
Ref. HD-SD
Heavy Duty HD Handle
Mango HD de
uso intensivo ............ 1 unidad
Ref. T470-B
Heavy Duty station
Ref. HDE-B
Stand Cable
Cable del soporte .......... 1 ud.
Ref. 0 011283
ESD Tip Cleaner
Limpiador de
puntas ESD ................ 1 unidad
Ref. CL6166
Sponge
Esponja ...................... 1 unidad
Ref. S0354
Power Cord
Cable de red .................... 1 ud.
Ref. 0010569 (230V)
0013671 (100/120V)
www.jbctools.com
19
www.jbctools.com

Stand
Soporte
Ref. HD-SD
HDE Control Unit
HDE Unidad de Control
Conector RJ12
para sistemas de robot
Conector para enlazar
módulos y pedales
Conector USB-B
Conector
equipotencial
Toma de red
Heavy Duty
HD Handle
Mango HD de uso
intensivo
Ref. T470-B
Cartuchos C470
Necesarios pero
no suministrados
Stand Cable
Cable del soporte
Ref. 0 011283
Conexiones
20
