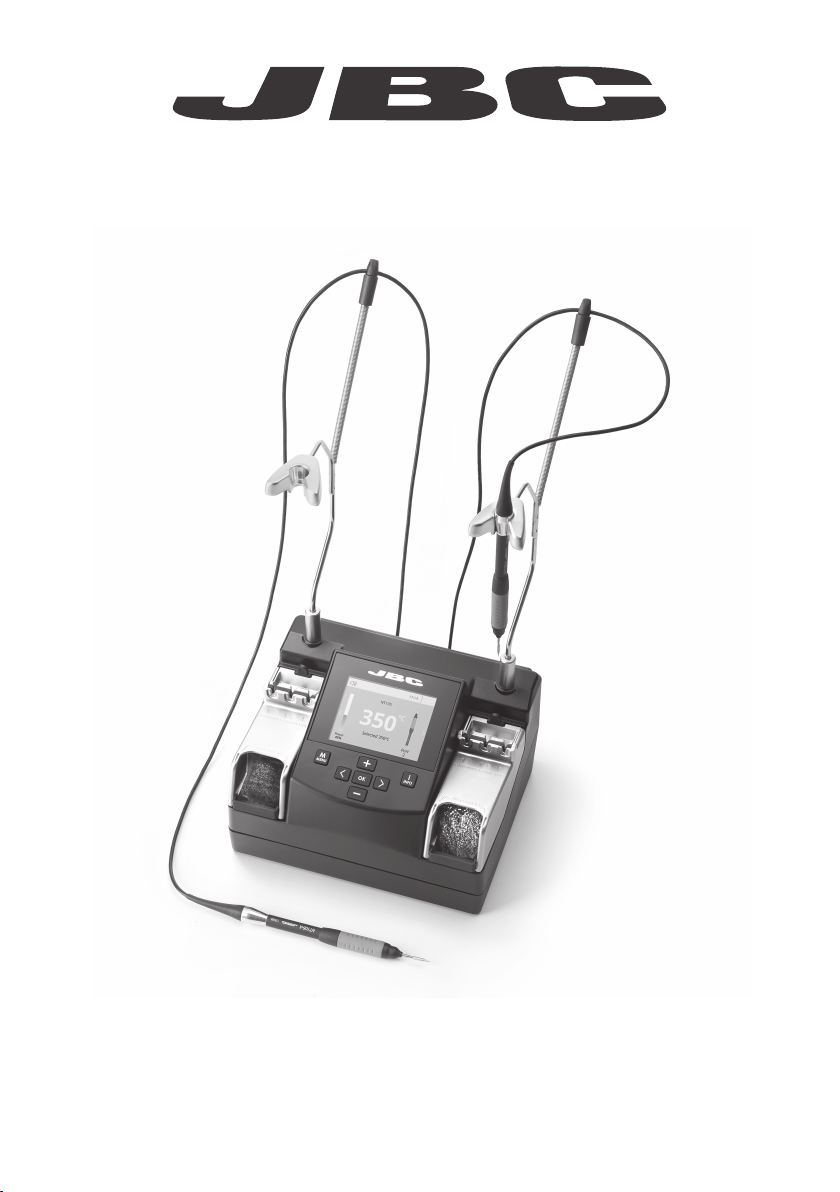

jbc NANE-B User manual

Nano Soldering station
Ref. NANE-B
www.jbctools.com

222

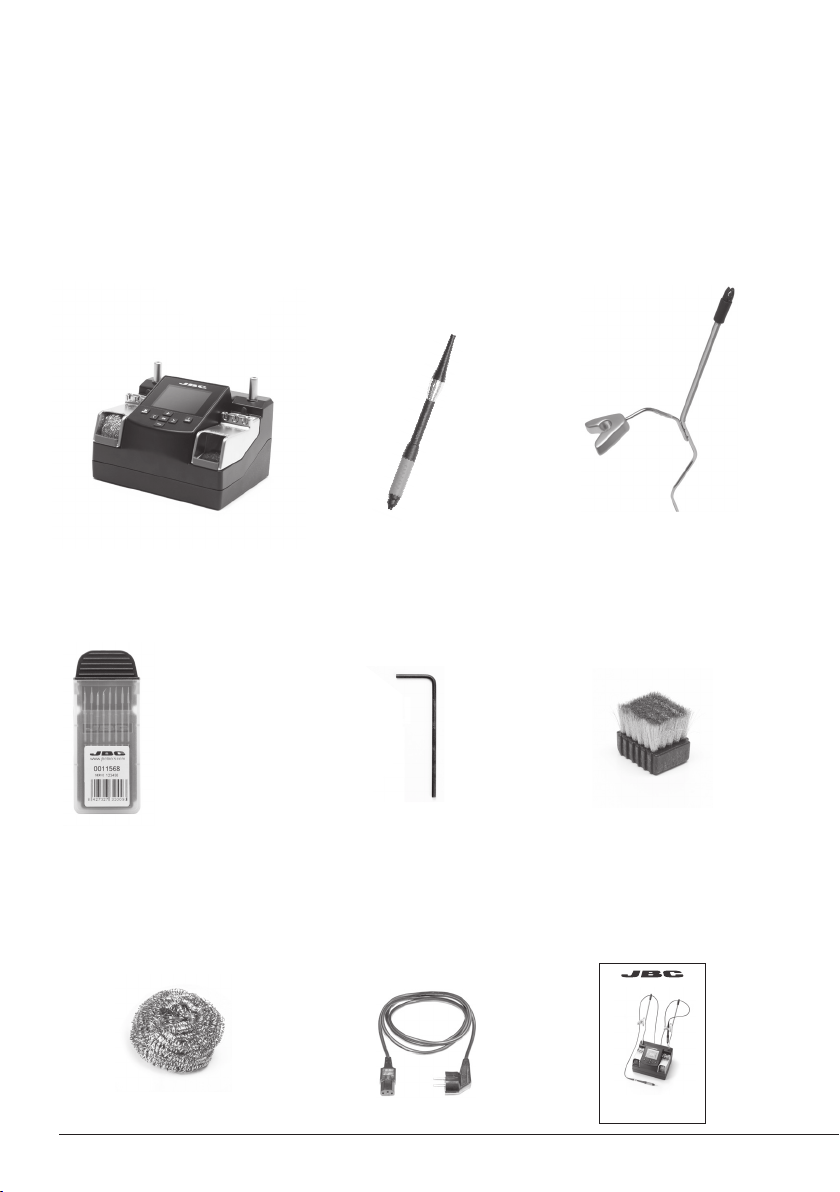

Packing List
The following items should be included:
Control Unit .................. 1 unit
Ref. NAE-1B (120V)
NAE-2B (230V)
NAE-9B (100V)
Nano Handle ................ 2 units
Ref. NT105-A
Manual ............................ 1 unit
Ref. 0016765
Cartridge dispenser
Case ................................ 1 unit
Ref. 0011568
Allen key ......................... 1 unit
Ref. 009848
Metal Brush ................... 1 unit
Ref. CL2466
Brass Wool .................... 1 unit
Ref. CL6210
Power Cord ................... 1 unit
Ref. 0009417 (100/120V)
0009401 (230V)
Nano Soldering station
Ref. NANE-B
Cartridges
included
Ref. C105-101 x1
C105-103 x1
C105-105 x2
C105-107 x1
C105-112 x1
C105-113 x2
Tool Holder .................. 2 units
Ref. 0016606
ww w.jb cto ols .com

333

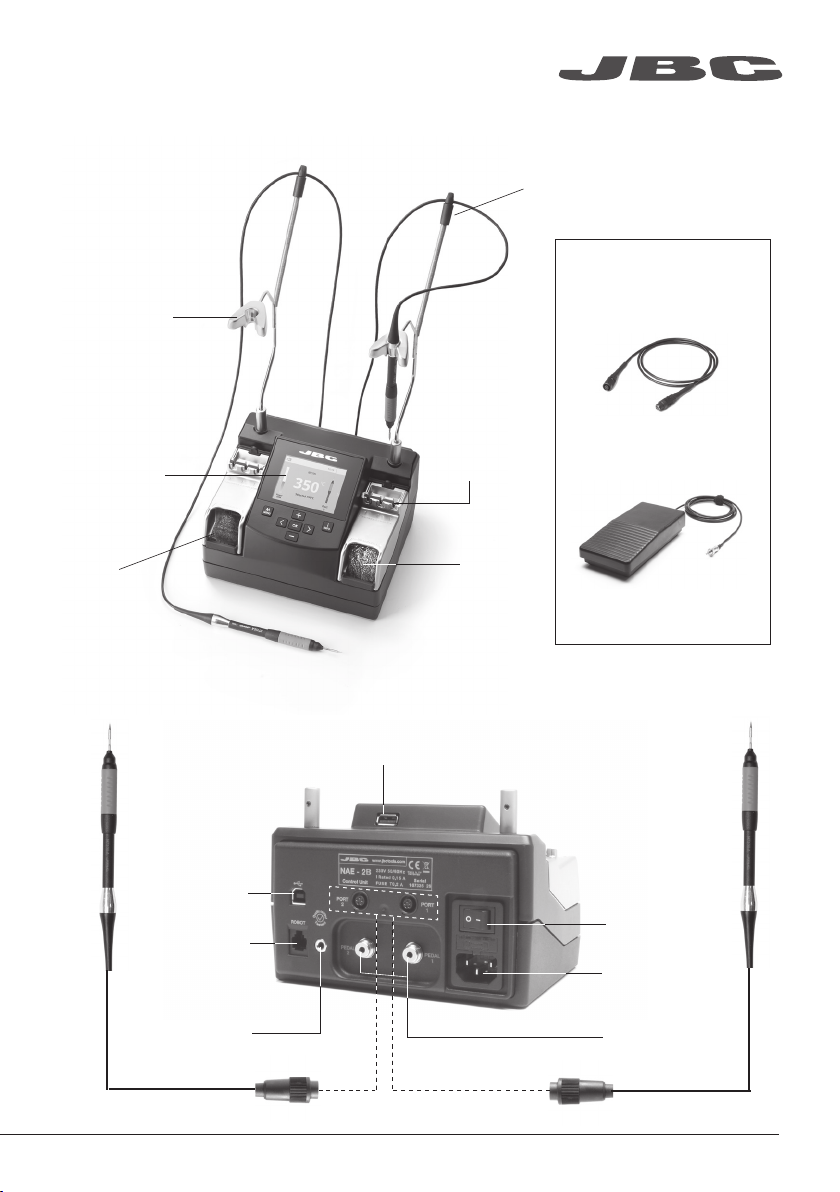

Features
Tool extension cord (1m)
Ref. A1205
Pedal
Ref. P-005
Accessories not included:
Puts the tool into
hibernation mode
Power socket
Main switch
Equipotential
connector Pedal
connectors
USB-B
connector
RJ12 connector
for Robot
USB-A
connector Nano Handle
Ref. NT105-A
Nano Handle
Ref. NT105-A
Process
Screen:
2.8 Color TFT
Cartridge
extractor
and tip
aligner
Brass
wool
Metal
brush
Stand:
Intelligent Heat
Management
Cable
collector
www.jbctools.com

4
1
2
44
For Nano
Soldering Iron
Replace the tip cleaning system:
- Brass wool
- Inox wool
- Metal brush
For Nano
Tweezers

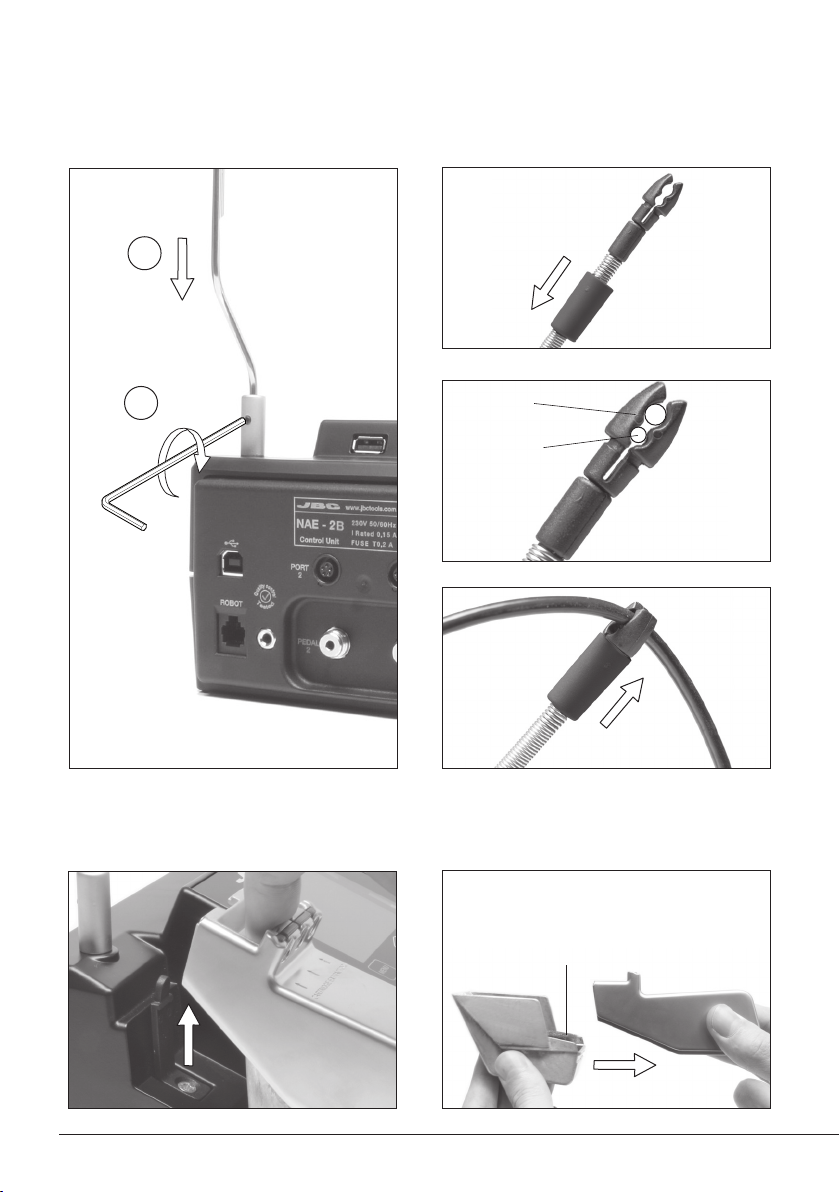

Tool Holder assembly Cable assembly
Changing the tip cleaning system

¥
ø 0,3
ø 0,6
0,7
3,5
0,2 x 0,1
5
2
1
55
Changing cartridges
Save time and change cartridges safely without having to switch the station off.
All the cartridges shown are actual size. All measurements are in millimiters (mm).
Contact JBC if you need alternative shapes.
Compatible cartridges
The NANE-B station works with C105 cartridge range.
See the full range in www.jbctools.com and find the model that best suits your soldering needs.
Removing Inserting Aligning
Place the cartridge in the slot
as shown and pull the handle
to remove it.
Push the cartridge into the
handle to the mark*.
Use the holes to rotate
the cartridges for a proper
alignment.
*Important
It is essential to insert the cartridges as far as the mark
for a proper connection.
Special models
Round ChiselRound bent Bevel
Mark
www.jbctools.com

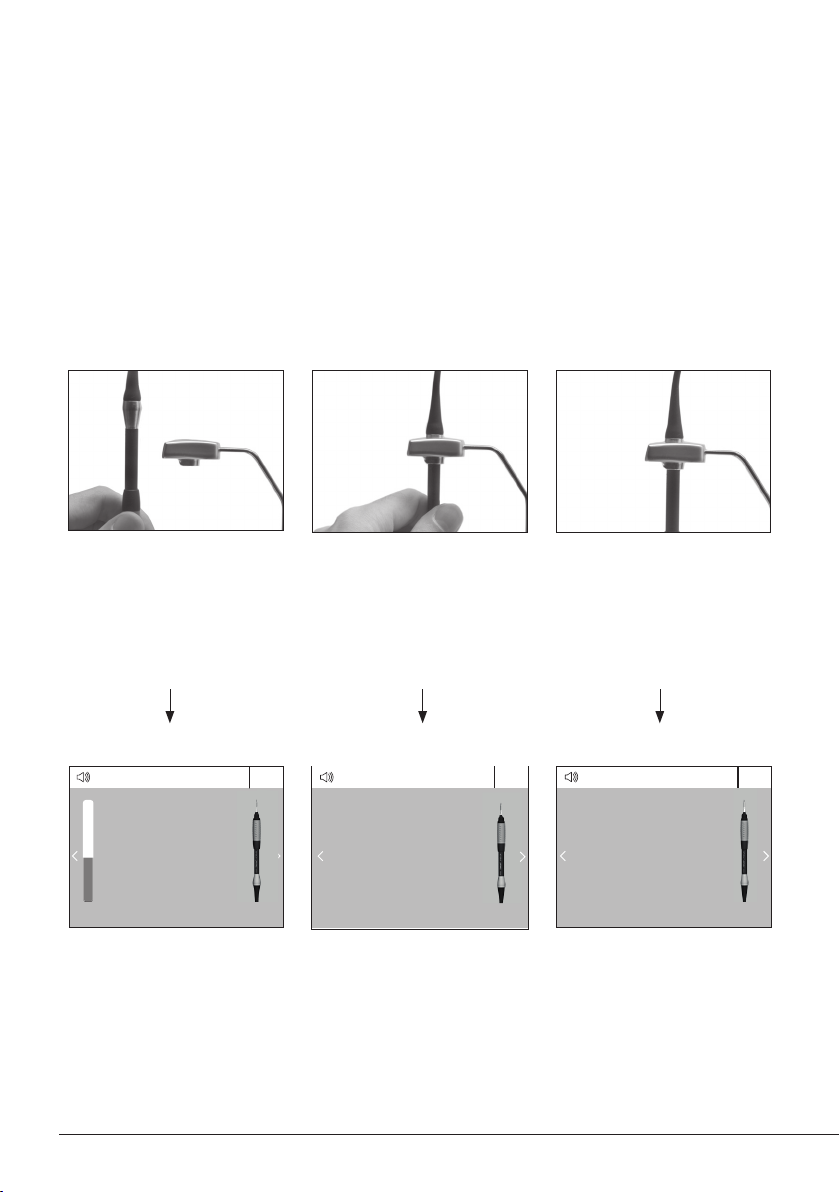

Tool in the stand
Actual Temp. 180ºC
Delay to hibernation: 29:30 Port
2
NT105
17:14
Sleep
2
17:14
Hibernation
Actual Temp. 25ºC
NT105
Port
2
350ºC
Port
2
Power
45%
17:14
Selected 350ºC
NT105
6
6
6
Operation
The JBC Exclusive Heating System
Our revolutionary technology is able to recover tip temperature extremely quickly. It means the user
can work at a lower temperature and improve the quality of soldering. Tip temperature is further
reduced thanks to the Sleep and Hibernation modes which increase tip life by 5.
1. Work 2. Sleep
· Set temperature limits
· Select temperature levels
· Set Sleep temperature
· Set Sleep delay
(from 0 to 9 min or no Sleep)
· Set Hibernation delay
(from 0 to 60 min or no
hibernation)
3. Hibernation
When the tool is lifted from the
holder the tip will heat up to the
selected temperature.
When the tool is in the holder,
the temperature falls to
180ºC / 360ºF (preset sleep
temperature).
After longer periods of
inactivity (pre-set to 30 min.),
the power is cut off and the
tool cools down to room
temperature.
Long time in
the holder

350ºC
Port
2
Power
45%
Temp. Levels
NT105
250 350 380
17:14
7
7
7
USB flash drive is connected.
Station is controlled by a PC.
Station is controlled by a Robot.
Station software update.
Press INFO to start the process.
Warning.
Press INFO for failure description.
Error. Press INFO for failure description,
the type of error and how to proceed.
System notifications (Status Bar)
Menu Options
Station
Information
Power
indicator
Tool
connected

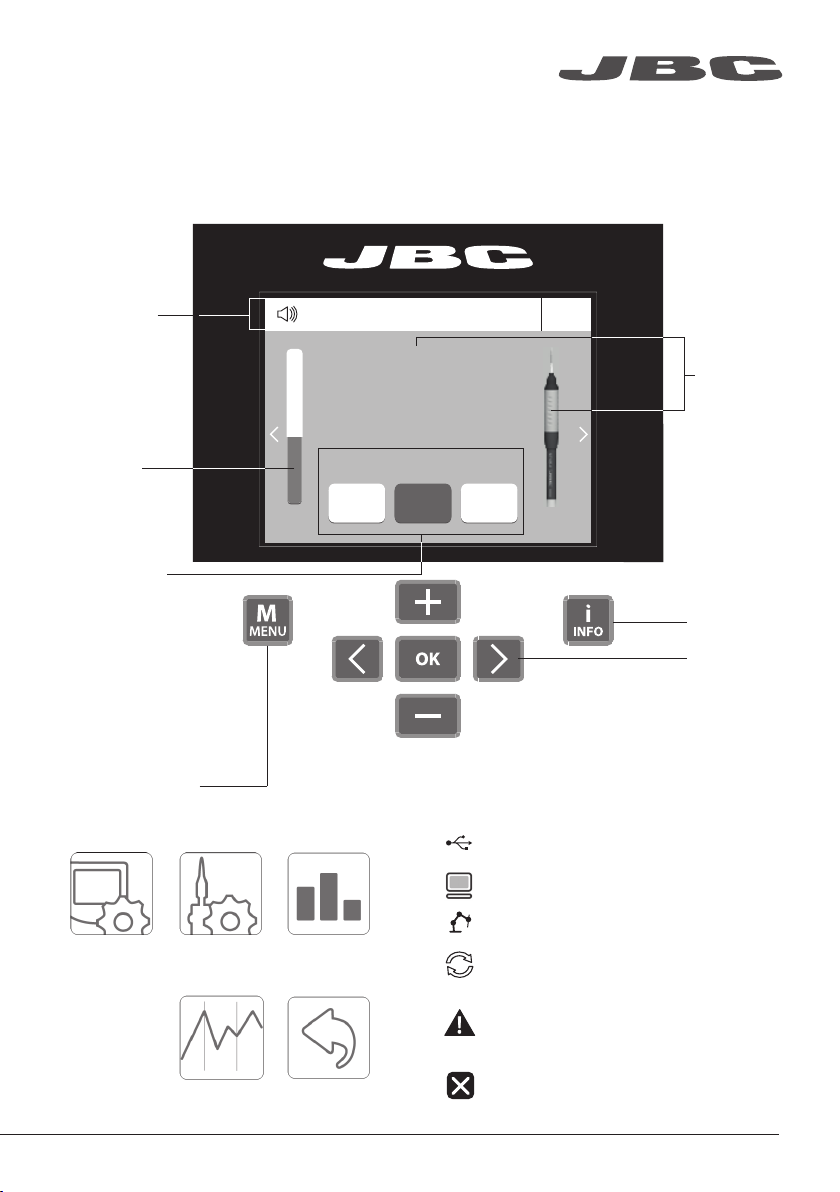

Work Screen
Status Bar
The NANE-B offers an intuitive user interface which provides quick access to station parameters.
Change
port
Displayed
when
temperature
levels are
activated
Station Tools Counters
ResetGraphics
Press INFO for each parameter description.
www.jbctools.com

Port 1 - NT105
450
400
350
300
250
150
100
50
200
Power Temp
17:14
8
8
8
See other
port graphic
By pressing Graphics in the main MENU, temperature and power figures in real
time are displayed for each port. This helps you decide which tip to use to obtain
the best quality solder joint.
Process analysis
Graphics
Temperature
Power (%)
Export graphics
Insert a USB flash drive into the USB-A
connector to save your soldering process
in csv format.

9
9
9

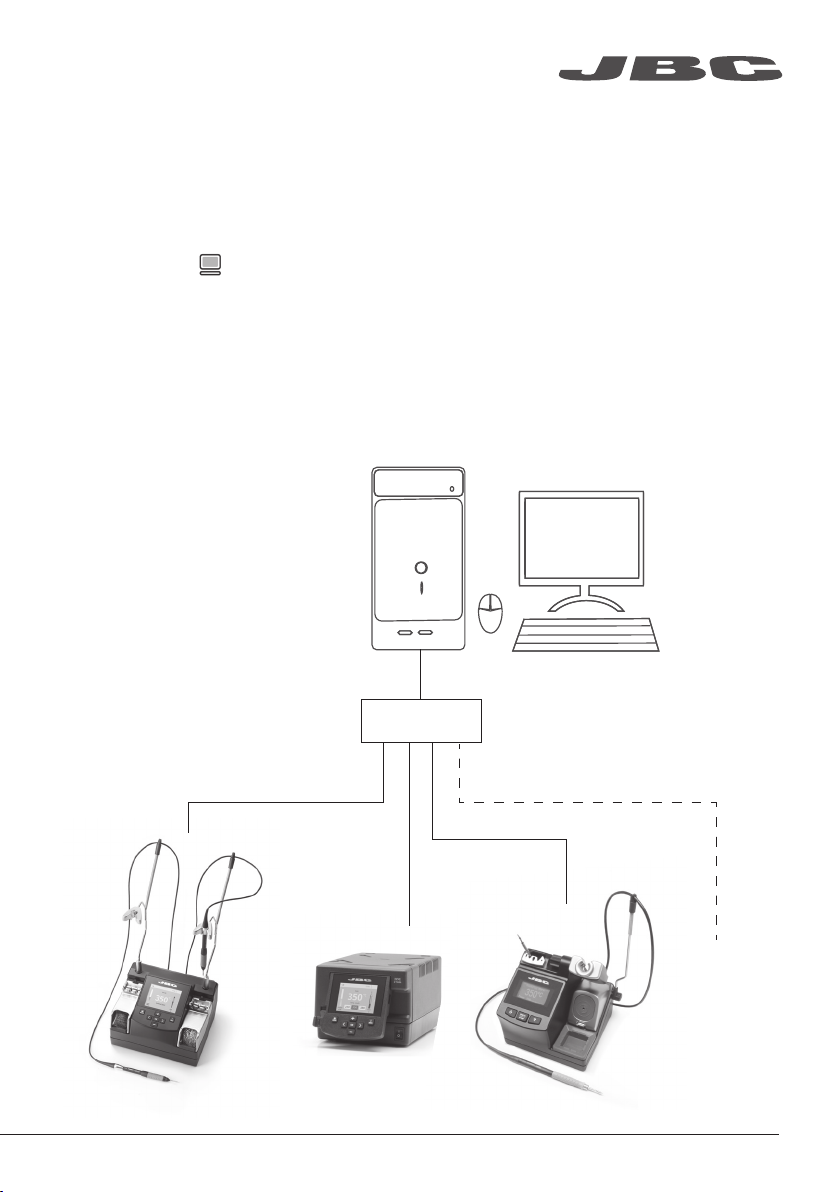

Soldering Net
Remotely manage and monitor as many stations as your PC can handle.
Functions:
- Set all the station parameters from your PC.
- Organize groups of stations and set all their parameters at the same time.
- Store specific configurations for later use.
- Analyze the soldering graphics of the stations on your PC and export them.
1. Download the JBC Manager software and the user manual from www.jbctools.com/manager.html
2. Connect the stations via USB-B connector and the PC will automatically detect them.
3. The notification will be displayed on the station.
any JBC
station
USB Hub
JBC
Manager
software
www.jbctools.com

10
10
10
Manage and monitor the station using a Robotic system.
Working with Robots
Update the station software
1. Download the JBC Updater software from
www.jbctools.com/software.html and save
it on a USB flash drive. Preferably one with no
other files.
2. Insert the USB flash drive.
The icon is diplayed while updating.
1. Connect the tool to the port and connect your Robot system to the Robot connector (RJ12).
DB9-RJ12 Adapater available only if necessary (Ref: 0013772).
2. Enable the Robot option in the station settings and the notification will be displayed:
3. Set your Robot’s commands according to the Robot Communication Protocol, available on the
website www.jbctools.com/jbcsoftware-menu-115.html
Control
Unit
Robot
RS-232
connection
JBC
Updater

11
11
11
Maintenance
1. Pull off the fuse holder and remove the fuse.
If necessary use a tool to lever it off.
2. Press the new fuse into the fuse holder and
replace it in the station.
Fuse holder
Fuse
holder
Fuse
Before carrying out maintenance, always allow the equipment to cool.
- Clean the station screen with a glass cleaner
or a damp cloth. Clean
periodically
- Replace any defective or damaged pieces. Use original JBC spare parts only.
- Repairs should only be performed by a JBC authorized technical service.
- Use a damp cloth to keep the casing and the
tool clean. Alcohol can only be used to clean
the metal parts.
- Maintain tip surface clean and tinned prior to
storage in order to avoid tip oxidation. Rusty
and dirty surfaces reduce heat transfer to the
solder joint.
- Periodically check all cables and tubes.
- Periodically check that the metal parts of the
tool and stand are clean so that the station
can detect the tool status.
- Replace a blown fuse as follows:
www.jbctools.com

12
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
12
12
Safety
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cord must be plugged into approved bases. Be sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- The tool should be placed in the stand when not in use in order to activate the sleep mode.
The soldering tip, the metal part of the tool and the stand may still be hot even when the station is
turned off. Handle with care.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.
- Avoid the contact of flux with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protective glasses and gloves when
working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced
physical, sensory or mental capabilities or lack of experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.

13
13
13

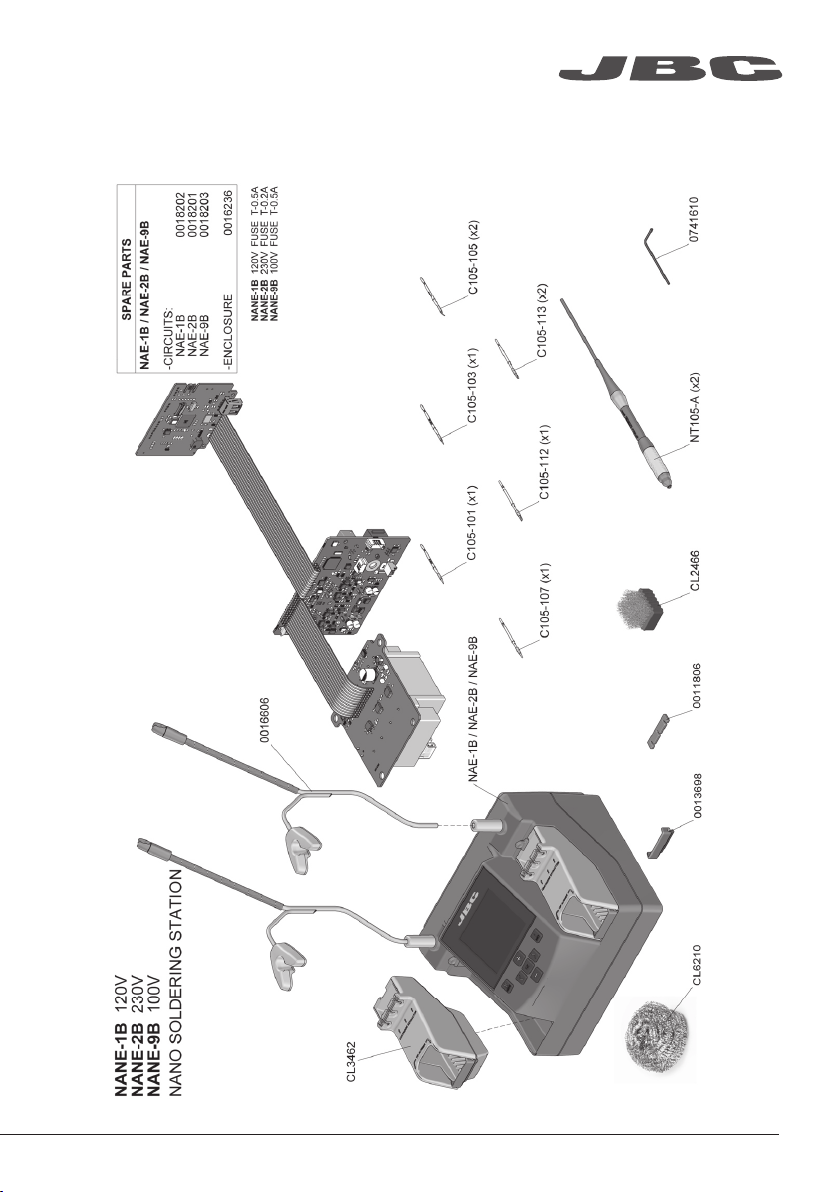

Exploded View
www.jbctools.com

14
14
14
Notes

15
15
15
www.jbctools.com

This product should not be thrown in the garbage.
In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facility.
Manual in other languages available on our website
Warranty
JBC’s 2 year warranty covers this equipment
against all manufacturing defects, including the
replacement of defective parts and labour.
Warranty does not cover product wear or misuse.
In order for the warranty to be valid, equipment
must be returned, postage paid, to the dealer
where it was purchased.
0016765-1116
Specifications
NANE-1B 120V 50/60Hz. Input fuse: 0.5A. Output: 8.5V
NANE-2B 230V 50/60Hz. Input fuse: 0.2A. Output: 8.5V
NANE-9B 100V 50/60Hz. Input fuse: 0.5A. Output: 8.5V
- Weight: 2.450 kg (5.40 lb)
- Dimensions: 170 x 90 x 135 mm
- Output Peak Power: 14W per tool
- Temperature Range: 90-450°C (190-840ºF) ±5%
- Idle Temp. Stability (still air): ±3 ºC (±5.5 ºF)
- Tip to ground resistance: <2 ohms
- Ambient operating temp: 10 - 40 ºC (50 - 104 ºF)
- USB-A / USB-B / Pedal connectors
- RJ12 connector for Robot
Complies with CE standards
ESD protected housing “skin effect”
