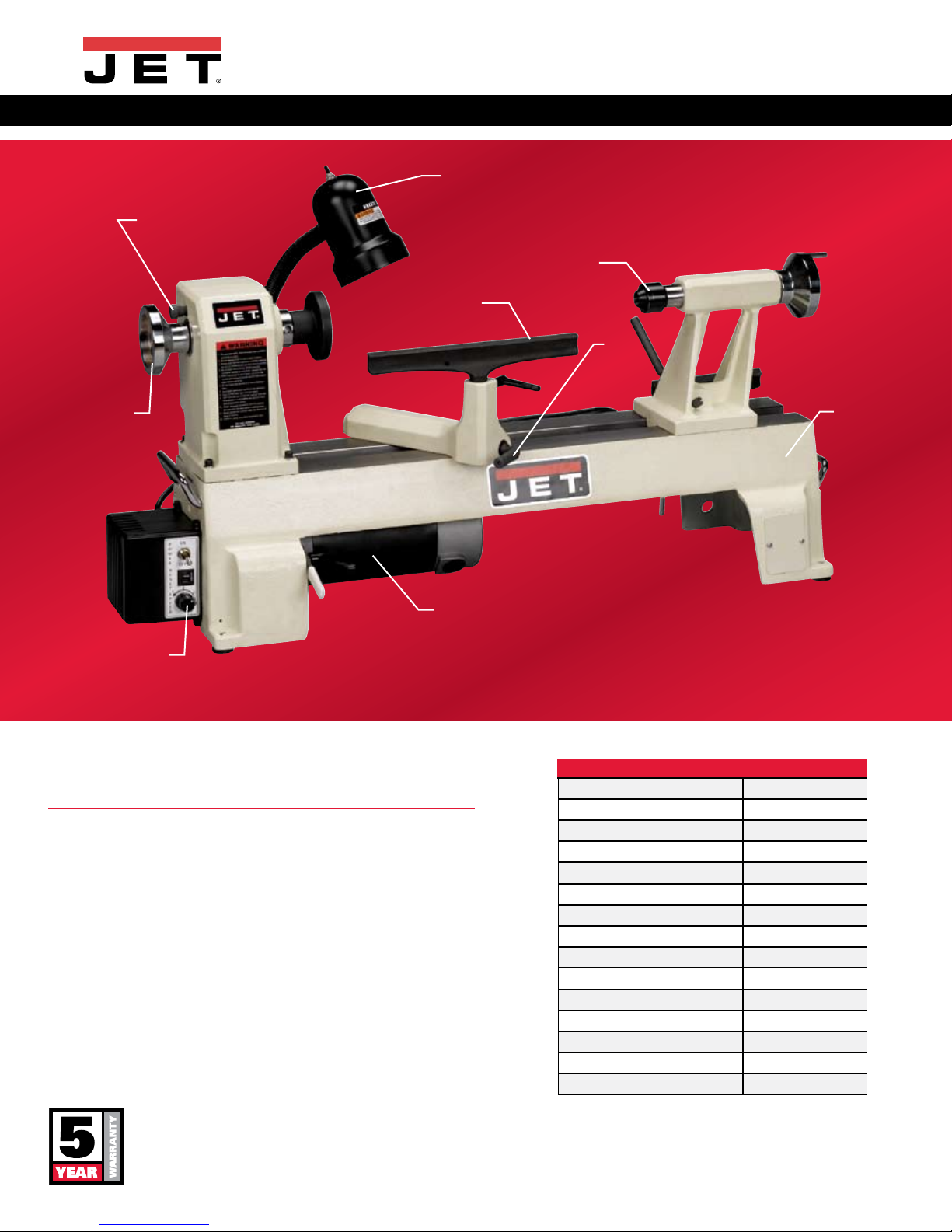

Jet JWL-1220 User manual

jettools.com
12" x 20" VARIABLE SPEED
WOOD LATHE
STOCK NO. 900493
©2007 WMH TOOL GROUP, Inc. All Rights Reserved.
The newest addition to our JET®line of Woodturning Lathes is the model JWL-1220VS.This new
variable speed, 3/4HP lathe supports stock up to 12” in diameter and 20” in length.This little
powerhouse features variable 270-4200RPM continuous speed operation, a self-ejecting tailstock
for added safety, spindle lock and indexing capability for fluting and veining applications, builtin
work light to illuminate your work piece, and much more. If you are looking for a big lathe for
your shop, but are short on space, give the Jet JWL-1220VS a try, you’ll be glad you did.

jettools.com
12"x 20" VARIABLE SPEED
WOOD LATHE
•Continuously variable speed operation from 270-4200 RPM
•Heavy-duty cast iron lathe bed adds stability while limiting vibration during operation
•Indexing mechanism allows for fluting and veining operations
•Self-ejecting tailstock for safe and easy removal of tooling
•Cam-lock mechanisms allow adjustments of the tailstock and tool rest base
•Hollow tailstock and removable tip on live center allows for hole boring through stock
•Convenient worklight allows better lighting right on the workpiece
•Includes: 6" and 10" tool rests, storage tray, integrated cord wrap and 3" face plate
JWL-1220VS: 12"x 20" VARIABLE
SPEED WOOD LATHE
STOCK NUMBER 708376VS
Model Number JWL-1220VS
Net Weight (lbs.) 125
Swing Over Bed (in.) 12
Swing Over Tool Rest Base (in.) 9-1/2
Distance Between Centers (in.) 20
Speeds (RPM) Variable 270–4200
Headstock Taper MT-2
Spindle Nose (in. x TPI) 1 x 8TPI
Tailstock Taper: MT-2
Hole Through Tailstock (in.) 3/8
Ram Travel (in.) 2
Spindle Taper MT-2
Motor HP 3/4HP
Motor Phase 1Ph
Motor Voltage 115V
Spindle
with
Indexing
Capability
3/4 HP Motor
Quick
Cam
Locks
Live
Center
Cast-Iron
Construction
10" Tool
Rest
Worklight
Chrome
Plated
Handwheel
Variable Speed
Control Dial
